Nilight LED Third Brake Light for Ford F150 1997-2003 & 2004 Heritage — 30-LED, IP67 Sealed Direct-Fit Replacement

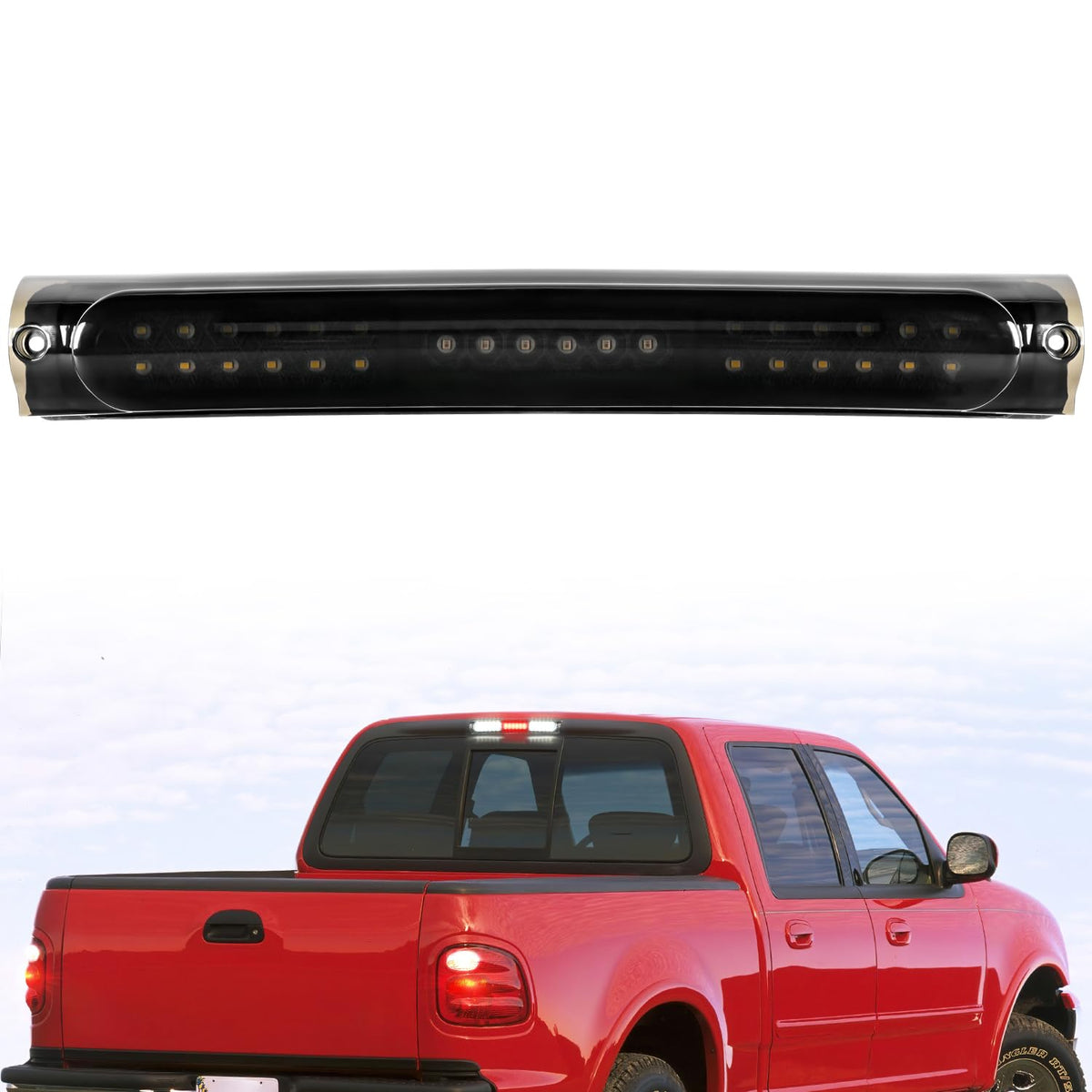

Nilight's LED third brake light is a direct-fit, plug-and-play replacement engineered to restore and upgrade the center high-mounted stop lamp for Ford F150 models 1997–2003 and the F-150 Heritage 2004.

This third brake light is built to OEM fitment standards and uses 30 integrated LEDs to replace the original halogen lamp. It matches factory mounting points and electrical connections for a straightforward swap while offering brighter, faster-illuminating LEDs and an IP67-rated sealed housing for reliable weather resistance. The unit ships with a high-density foam pad for sealing and is compatible with the original Ford part numbers FO2890102 and XL3Z13A613AA.

How does this Nilight light fit my F150 and what parts does it replace?

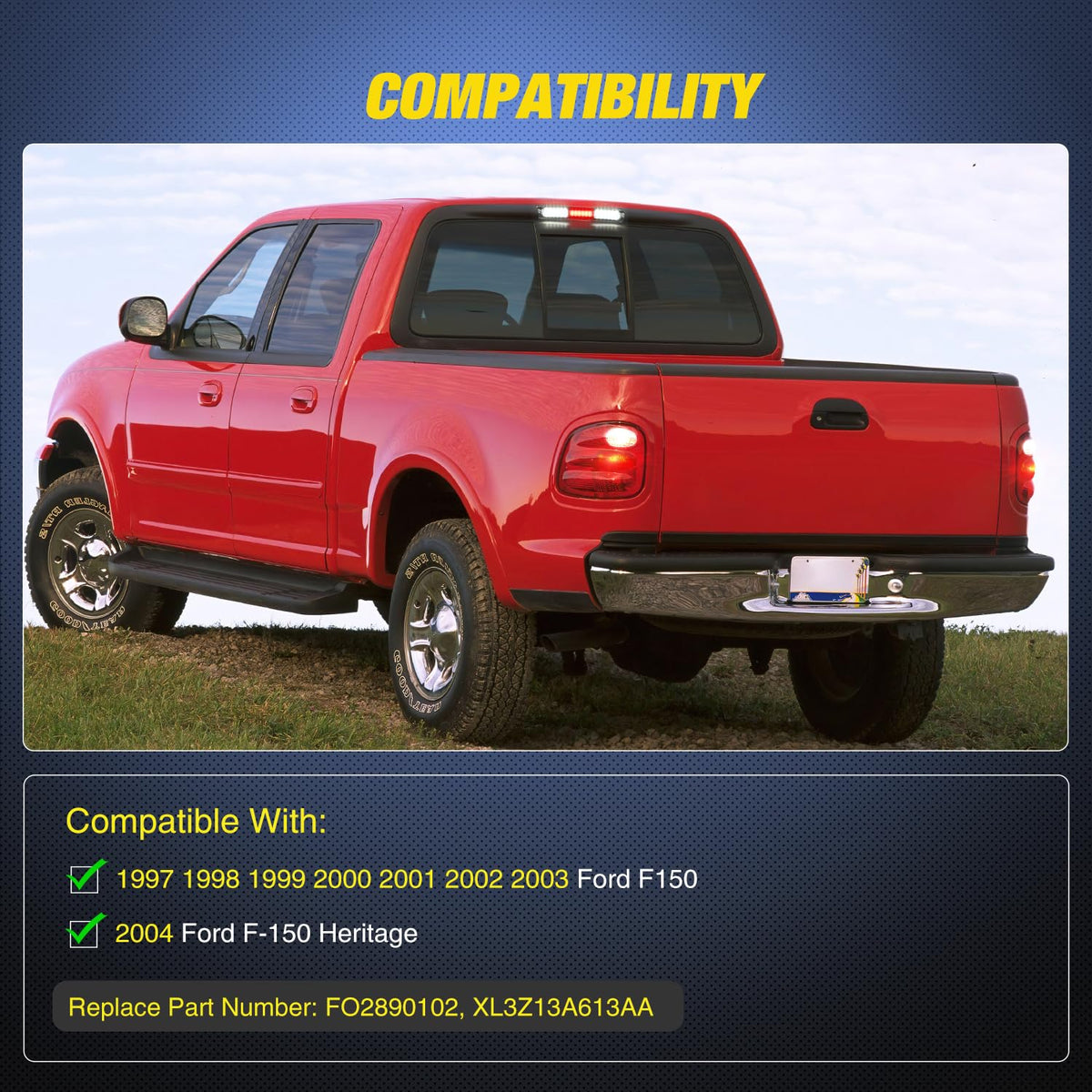

The assembly is made to fit the center third brake opening on Ford F150 trucks from 1997 through 2003 and the F-150 Heritage 2004 model. It replaces the OEM center stop lamp and corresponds to part numbers FO2890102 and XL3Z13A613AA, using the factory screw holes and electrical connector for a direct replacement.

• Direct-fit for specified Ford years and Heritage 2004
• Replaces FO2890102 and XL3Z13A613AA compatible units
• Uses factory screw locations—no new drilling required
• Plug-and-play electrical connector for easy swap

What are the light and build specifications of this LED third brake lamp?

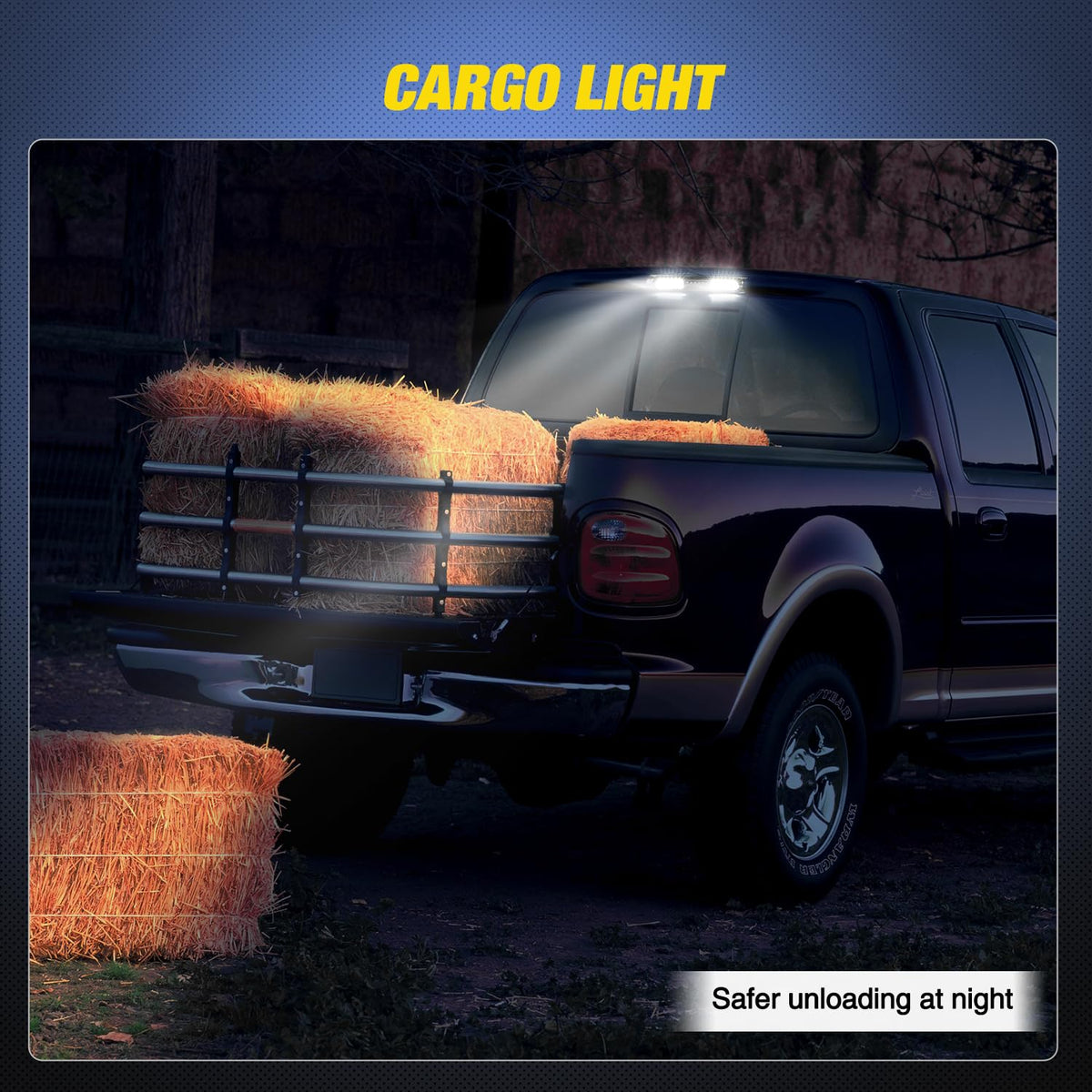

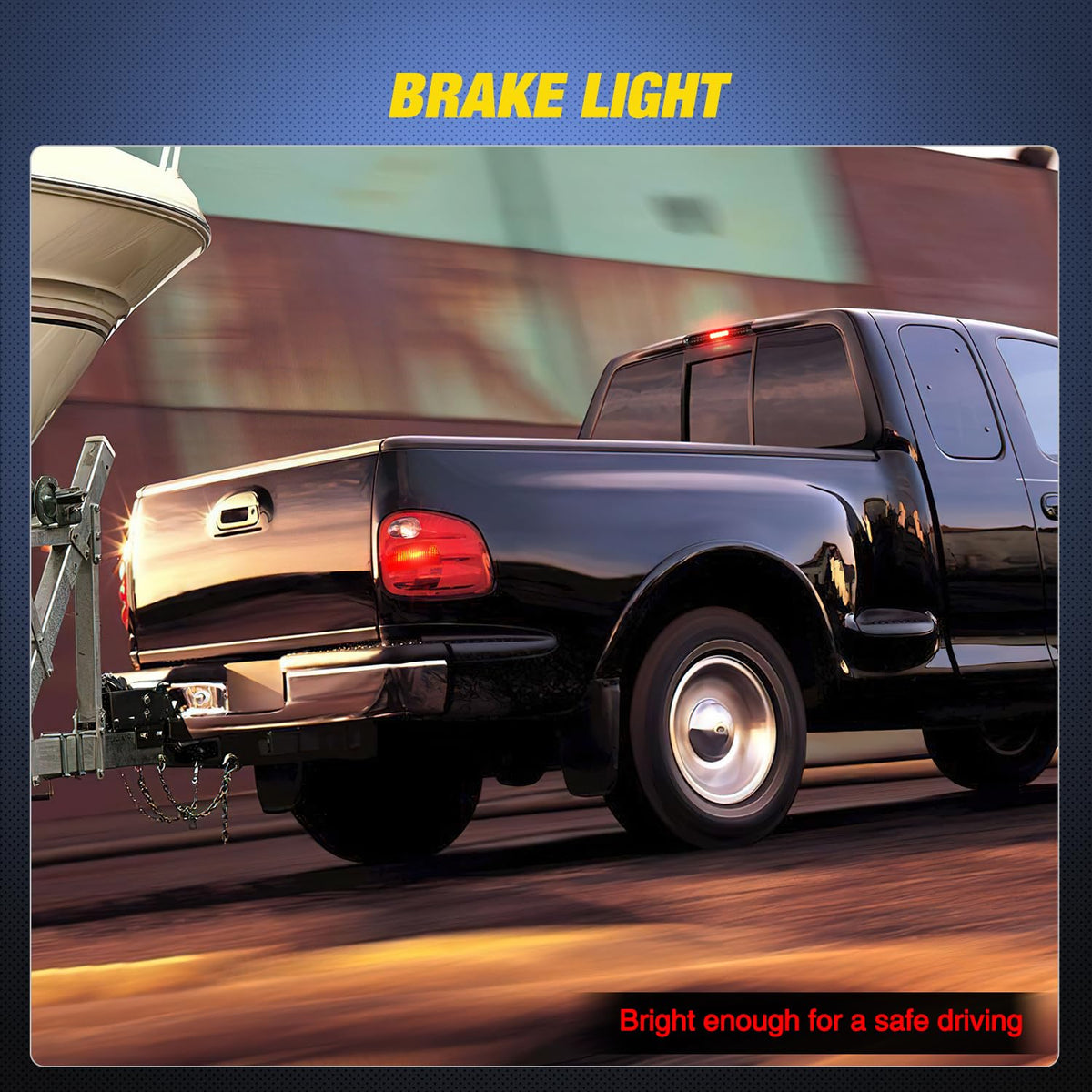

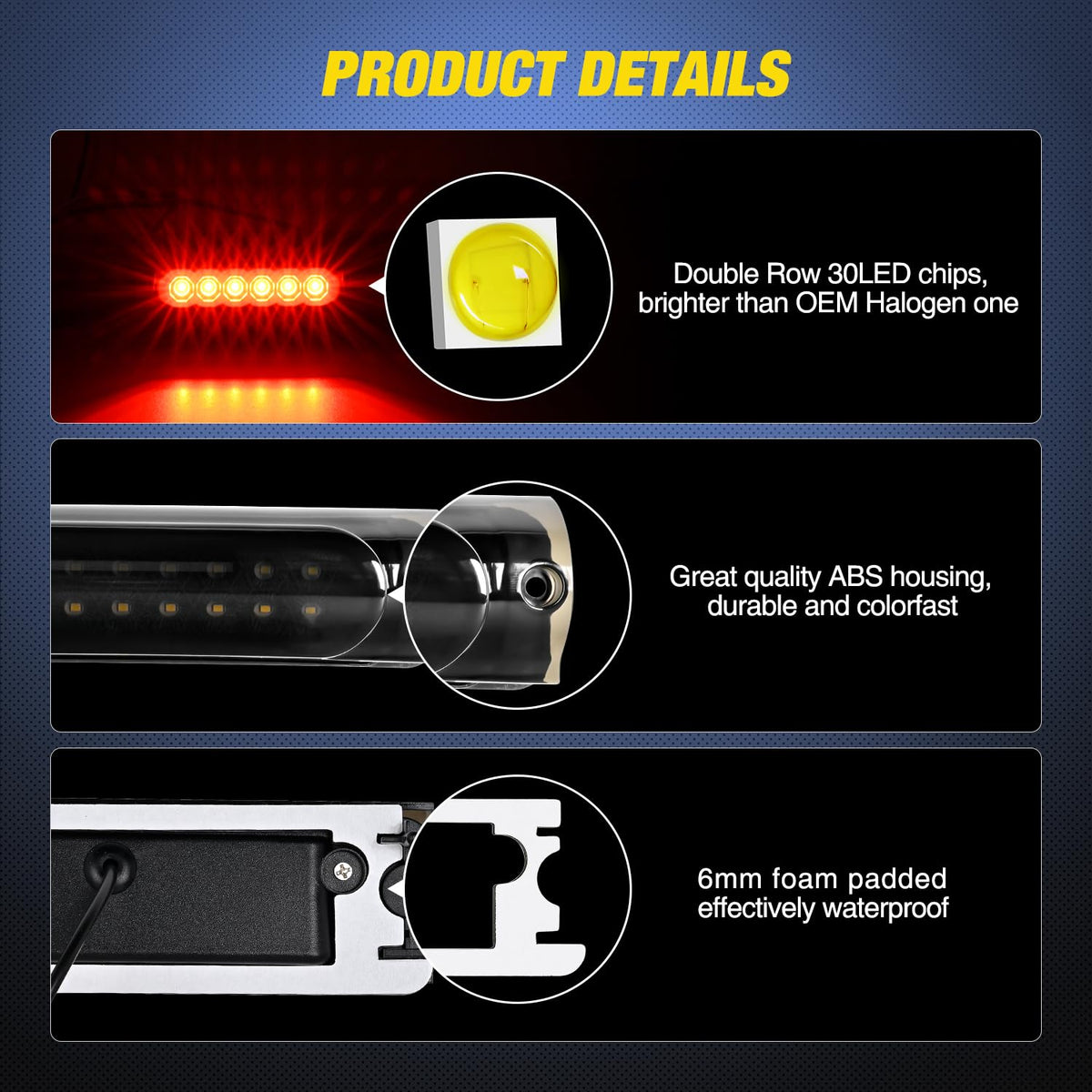

The Nilight unit contains 30 LEDs—6 dedicated to the brake function and 24 for cargo illumination—designed to emit brighter, quicker light than traditional halogen bulbs. The housing and materials meet OE-style quality standards to ensure consistent illumination, longevity, and heat management.

• 30 built-in LEDs: 6 brake, 24 cargo light
• OE-grade materials and build for durability
• Faster LED response than halogen for clearer signaling
• Designed for long life and steady light output

Is this light weatherproof and how should I seal it during installation?

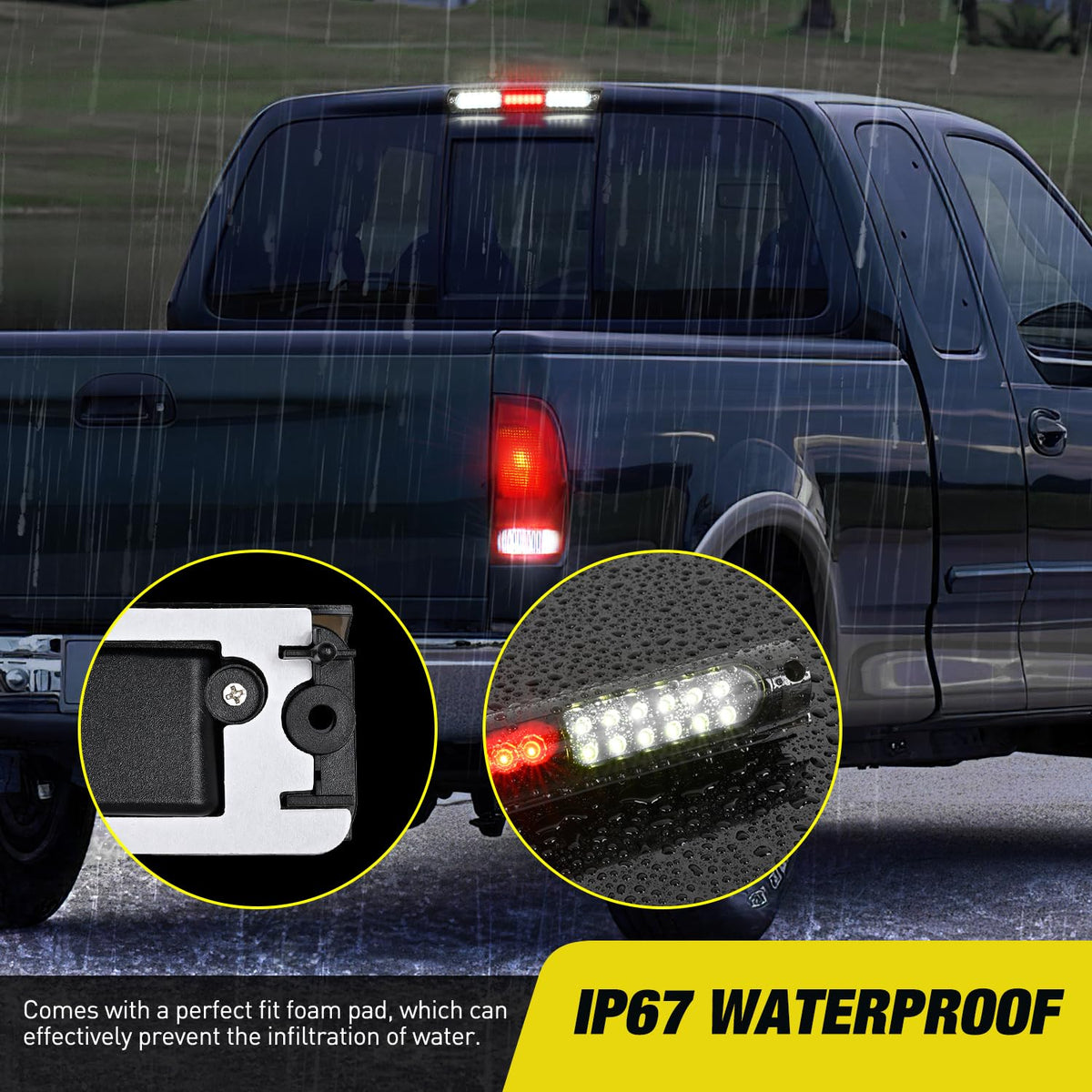

The brake lamp is manufactured with an IP67-rated sealed housing and a high-density foam pad to resist water ingress and harsh weather conditions. For best long-term protection, Nilight recommends applying butyl sealant around the fixture after installation to ensure a watertight barrier at the mounting surface.

• IP67-rated sealing for temporary submersion protection
• High-density foam pad included to improve the seal
• Apply butyl sealant post-install for maximum waterproofing
• Designed to resist rain, snow, and road spray

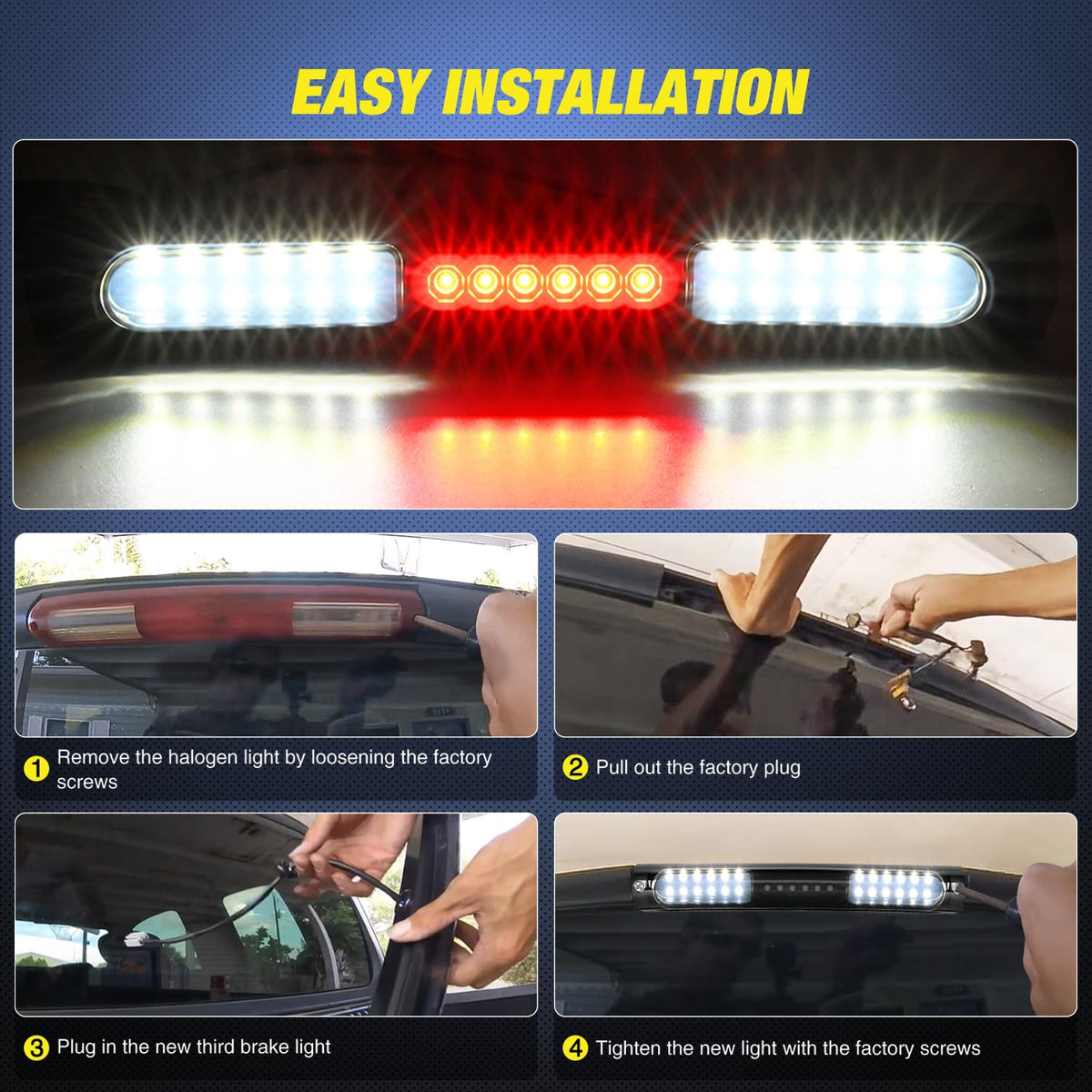

How simple is the installation and what tools or parts will I need?

Installation is plug-and-play using the truck's factory connector and original screw locations—no drilling required. Nilight supplies the LED lamp and foam pad; the original factory screws are recommended for correct fit. Use hand tools or a low-torque screwdriver to avoid overtightening and cracking the housing.

• Plug-and-play electrical connection—no splicing needed
• Use factory screws for proper alignment and fit
• Avoid high-torque power drivers to prevent cracking
• Includes 1 LED lamp and 1 high-density foam pad

Who is this for? This Nilight third brake light is aimed at Ford F150 owners (1997–2003) and F-150 Heritage 2004 drivers who want a direct OEM-style replacement with upgraded LED performance and improved weather resistance. It's suitable for DIY installers who prefer plug-and-play upgrades, fleet maintenance managers replacing aged halogen assemblies, and restorers replacing worn or nonfunctional center stop lamps while keeping factory fitment.
