Nilight Motorcycle Handlebar Switch Wiring Harness 16 AWG 1‑Lead — Illuminated Waterproof Rocker, 7/8" Fit

Nilight's 16 AWG nylon wiring harness and illuminated handlebar rocker switch kit gives you a weatherproof, relay-protected single-lead control solution for 12V motorcycles, scooters, ATVs and e-bikes.

This compact kit combines a heavy-duty 16 AWG stranded wiring harness with a CNC aluminum-alloy illuminated on/off rocker switch wrapped in a silicone sleeve, plus a power relay and inline blade fuse for added safety. Designed for 7/8" handlebars, the system is made to tolerate road vibration, weather exposure and frequent use while keeping wiring tidy and protected.

How durable is this harness for everyday riding?

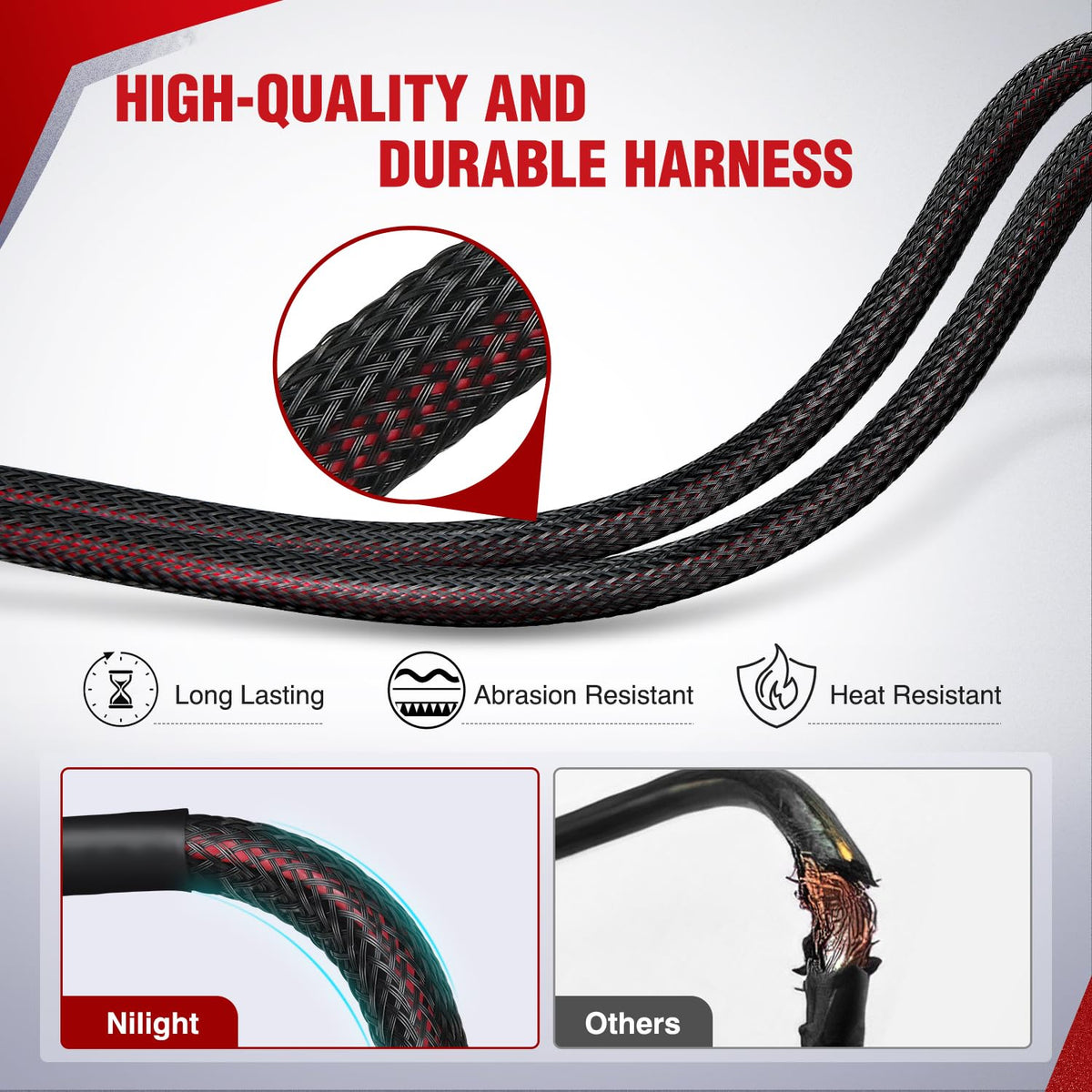

The harness uses a high-quality nylon jacket and 16 AWG stranded conductors to resist abrasion, heat and flex fatigue. The inline blade fuse and power relay protect the circuit from overloads and short circuits, extending component life.

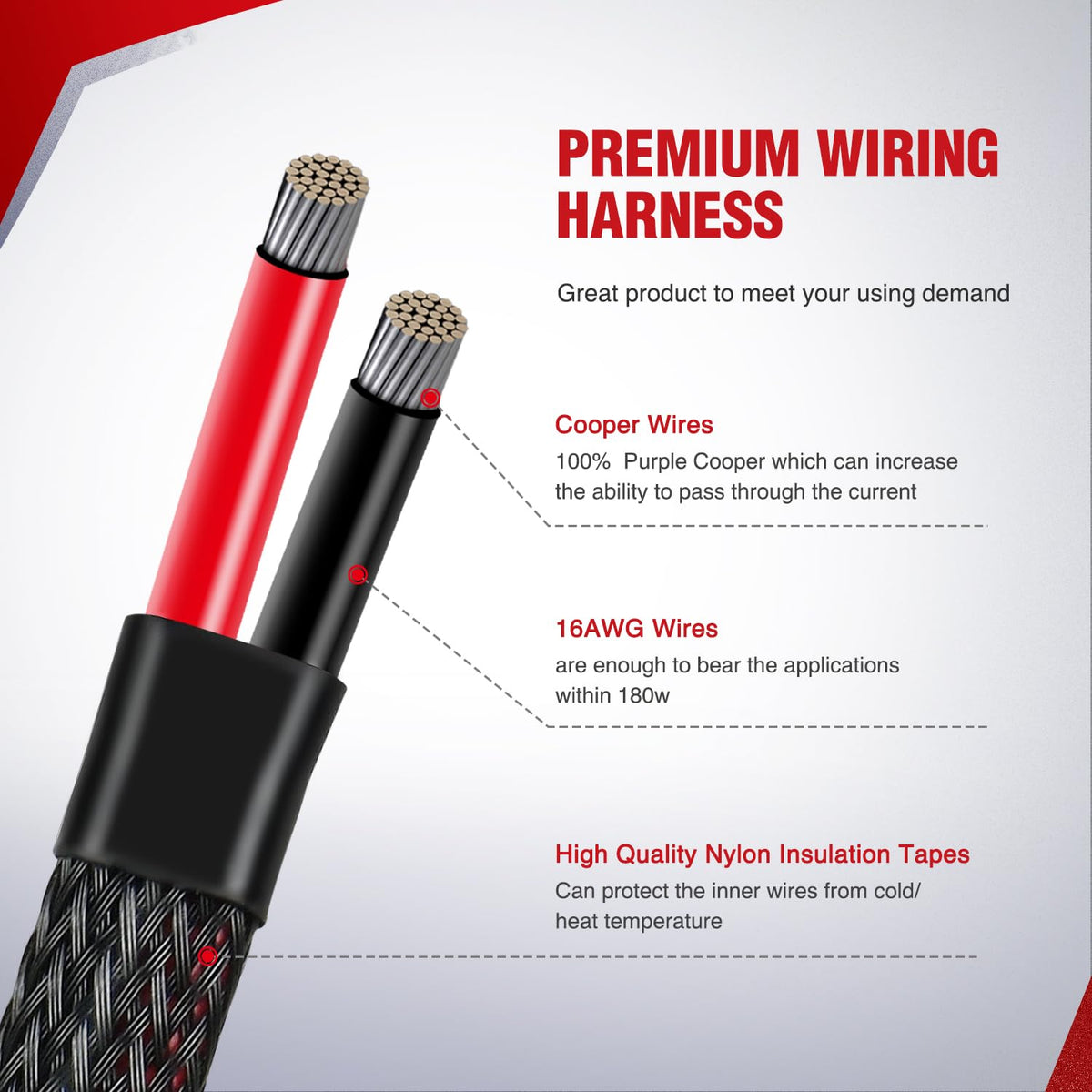

• 16 AWG stranded wire rated up to 180W load capacity
• Nylon outer jacket for abrasion and heat resistance
• Power relay and inline blade fuse as first-line protection

Will the illuminated switch survive rain, dust and frequent use?

The switch body is CNC aluminum alloy with a silicone sleeve that provides waterproofing, dust resistance and shock protection. The illuminated 3-pin rocker has been tested for durability and includes a red indicator light to confirm power on.

• Silicone sleeve for weatherproof performance
• 3-pin on/off rocker with red indicator light
• Tested for 5,000 presses to ensure reliable switching

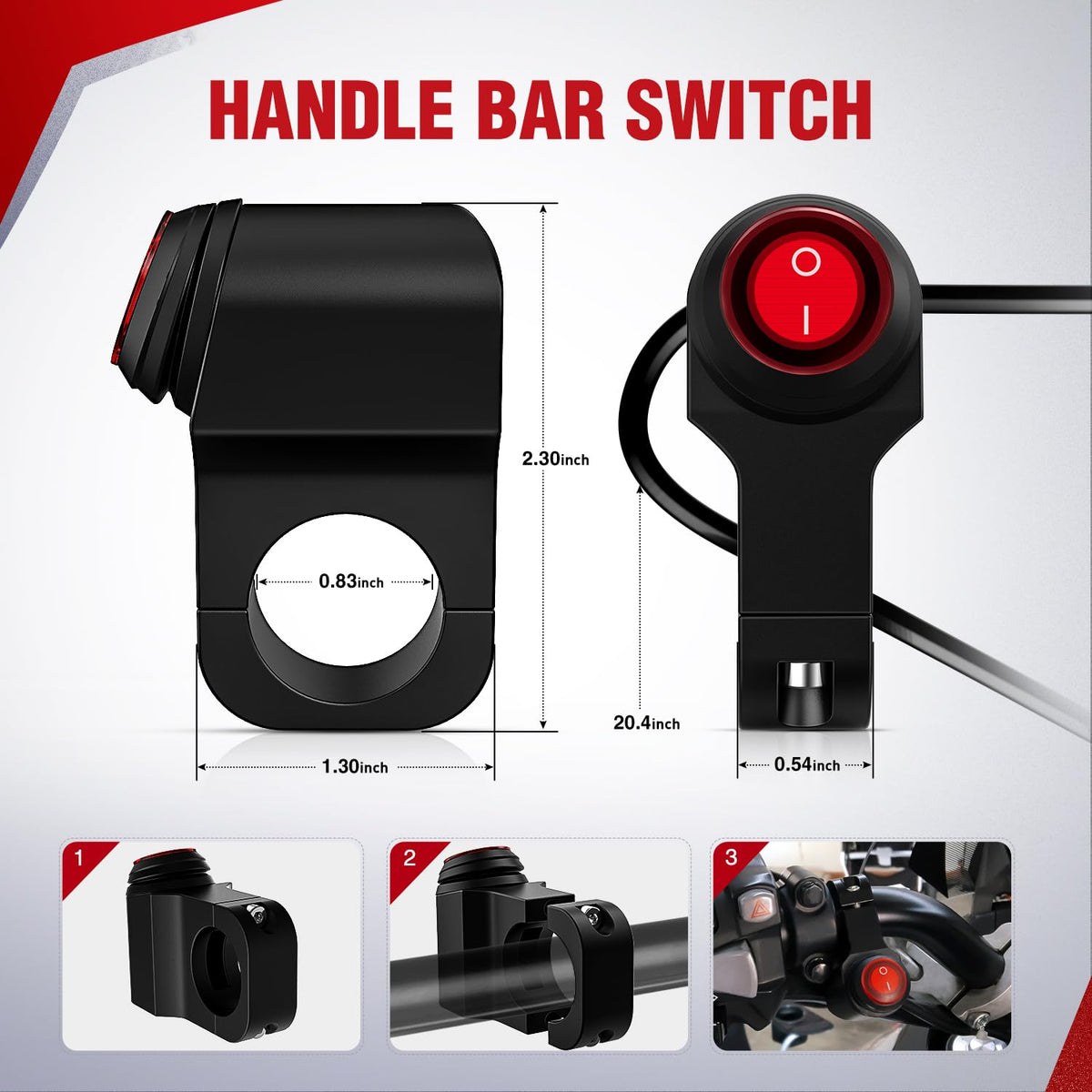

How easy is installation on a 7/8" handlebar motorcycle or scooter?

The kit is designed to fit standard 7/8" (22 mm) handlebars used on many motorcycles, scooters, ATVs and bicycles. It ships with blade fuses, spade connectors and simple instructions so basic wiring skills are sufficient to complete the install.

• Fits most 7/8" diameter handlebars

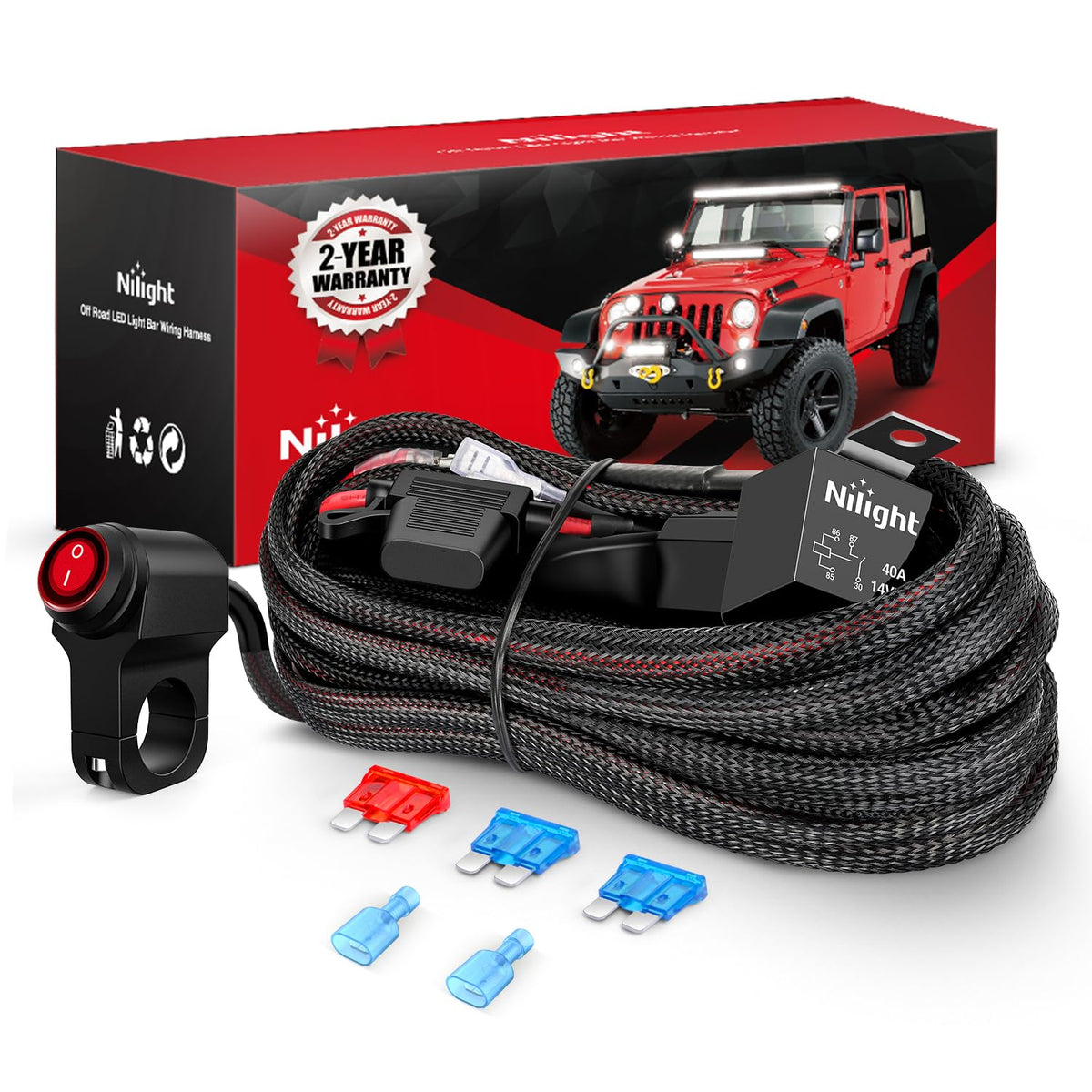

• Includes blade fuses, spade connectors and instruction sheet

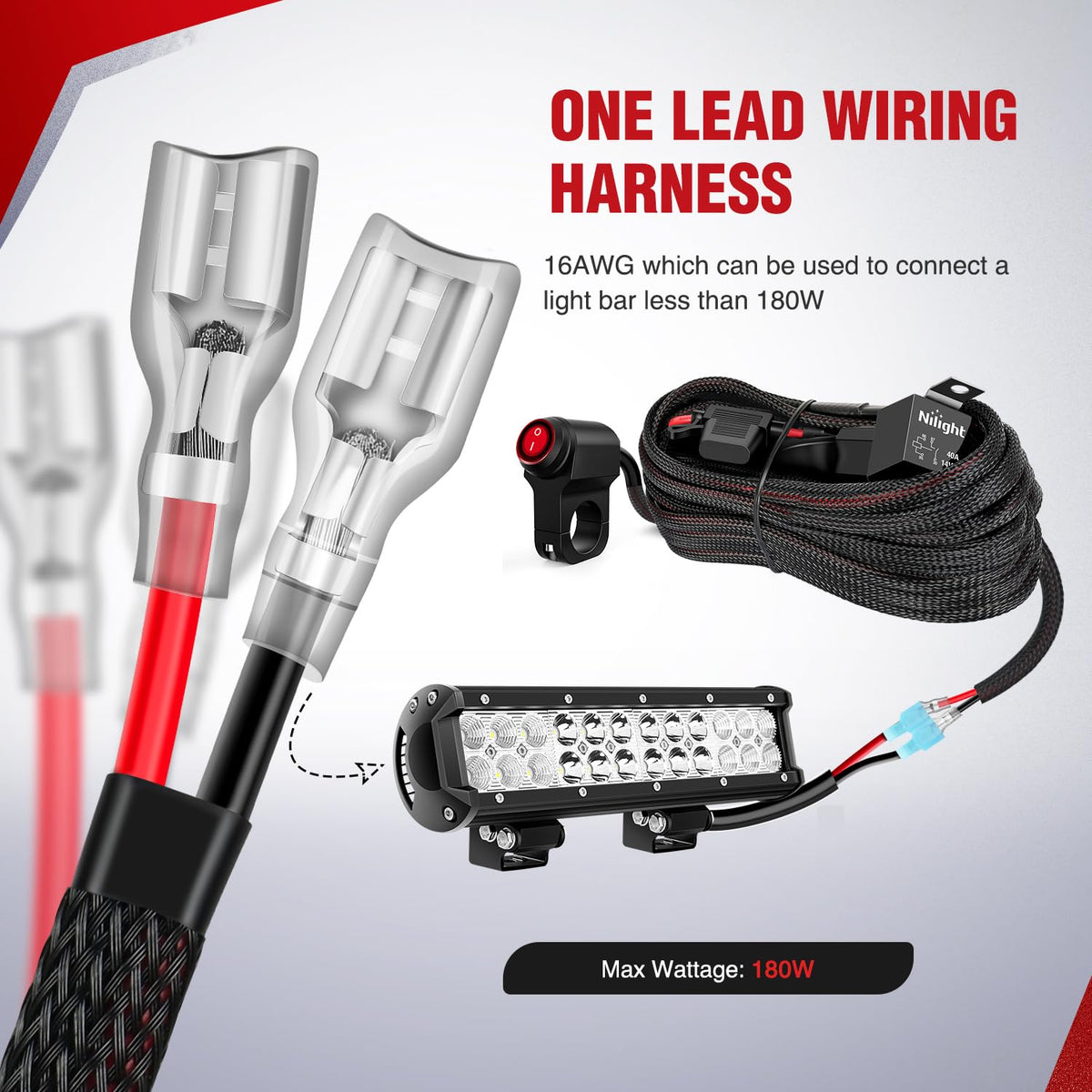

• Single-lead harness simplifies routing and connection

What electrical specs and protections should I expect?

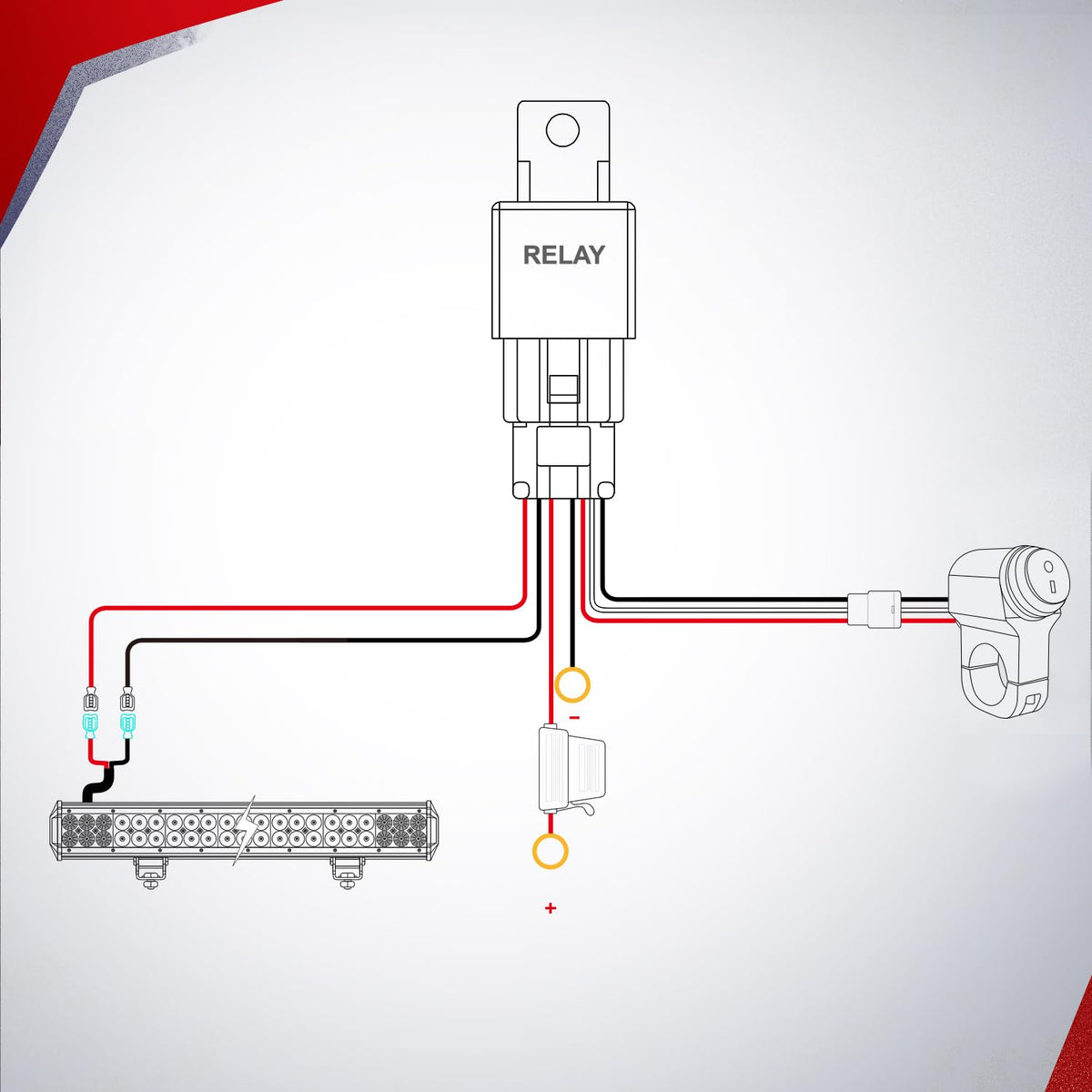

The harness supports up to a 180W load when properly fused and uses a relay to handle higher current devices without overloading the switch contacts. Inline fusing and relay operation reduce heat at the handlebar and improve overall system safety.

• Maximum rated load: up to 180W with proper fuse

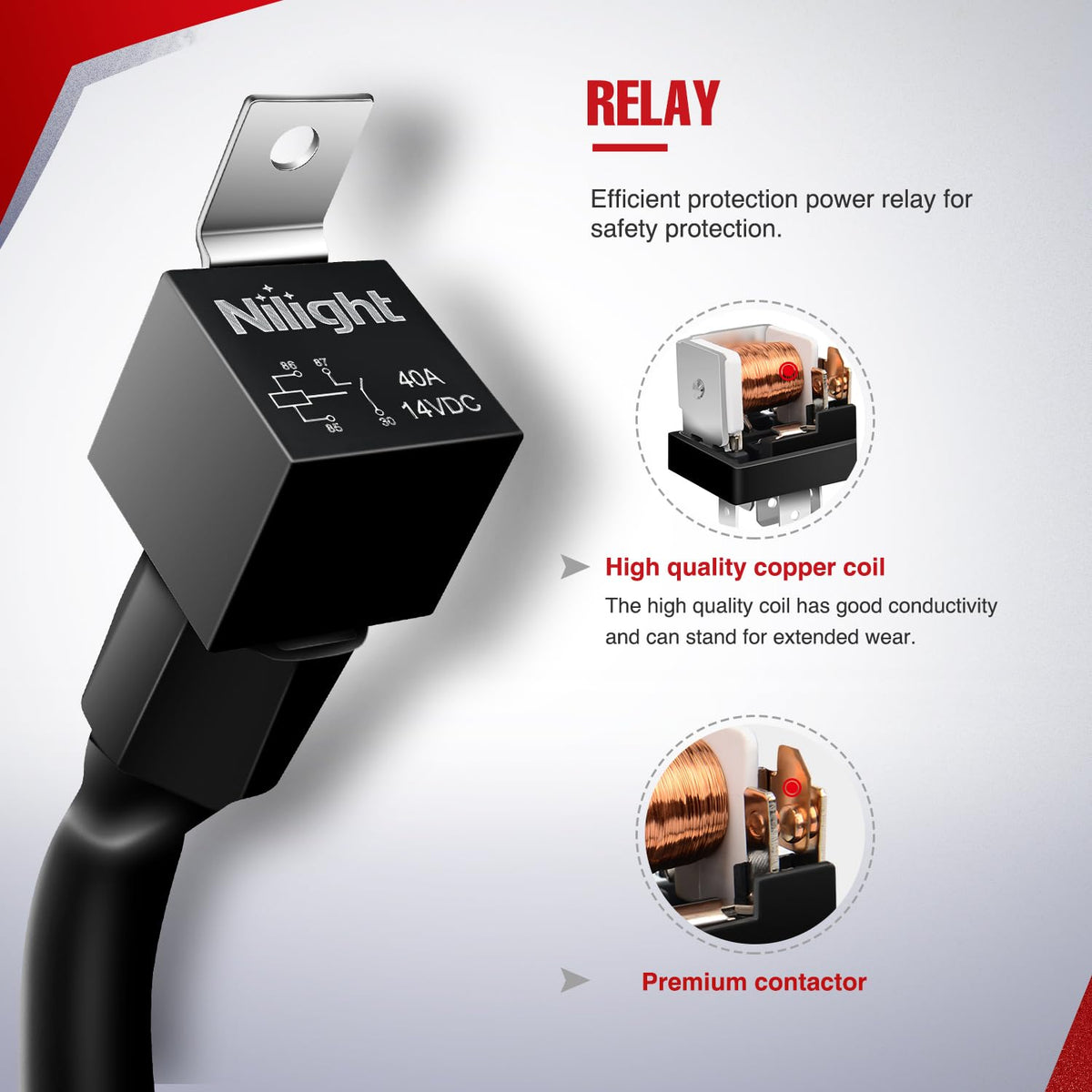

• Relay-equipped to protect switch contacts from high current

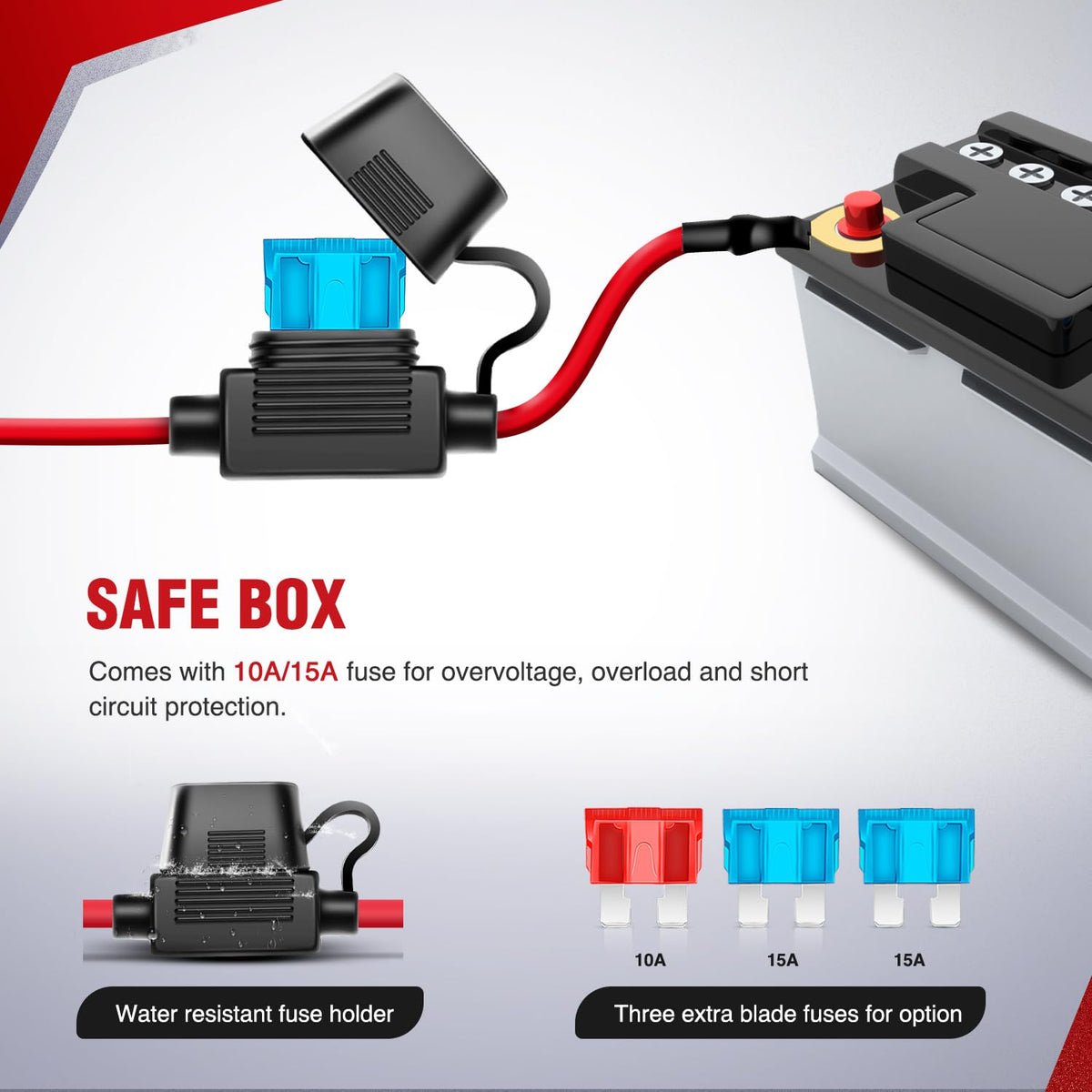

• Inline blade fuse provides immediate overcurrent protection

Who this is for: Riders, mechanics and DIY enthusiasts who need a compact, reliable way to add or replace a handlebar-mounted switch for auxiliary lights, horns or small electrical accessories. The Nilight kit is best for vehicles with 7/8" handlebars and 12V systems where a weatherproof switch, tidy wiring, and relay-protected circuitry are desired. If you require multi-switch setups or higher-amperage accessories, consider pairing this kit with additional relays or a multi-gang solution.
