Nilight TR-05 60in LED Bed Strip Kit - 2pcs 180 LEDs, 6000K Pure White, IP67 Waterproof, Inline Switch

Nilight TR-05 is a 2-piece 60-inch LED bed strip kit delivering 180 high-output 5050-SMD LEDs in weatherproof housing with an inline on/off switch, 2-way splitter and extension cable for simple, reliable truck, RV or boat lighting.

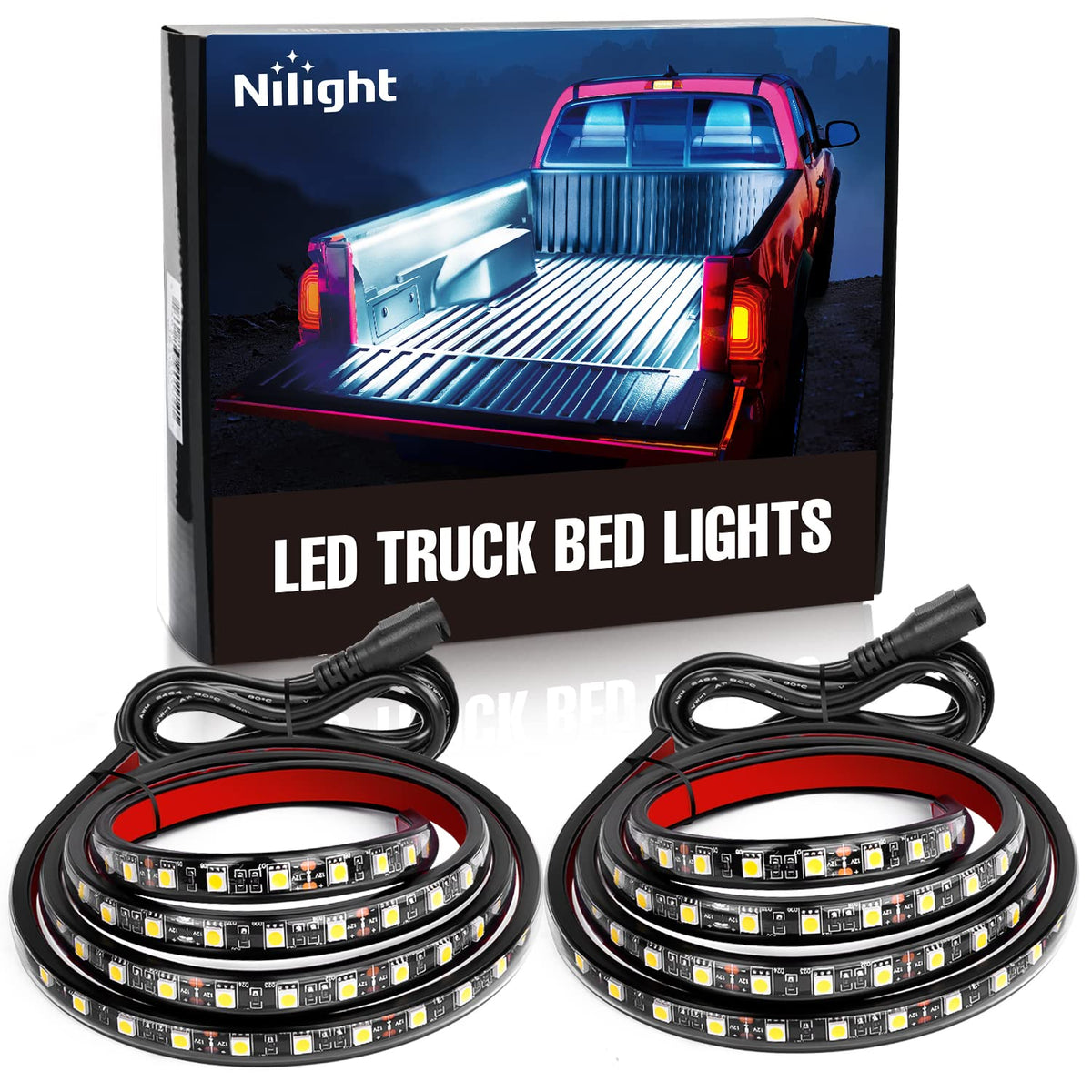

The Nilight TR-05 kit is built to illuminate cargo areas, stepped entries and awnings with a clean 6000K pure white beam. Each kit contains two 60-inch strips (90 LEDs per strip), pre-wired harnesses with an inline blade fuse and on/off switch, plus a splitter and extension lead so you can power and control the lights without complex rewiring. The strips are IP67 rated and use self-adhesive backing with optional mounting hardware for added security.

How bright are these LED strips for bed and cargo lighting?

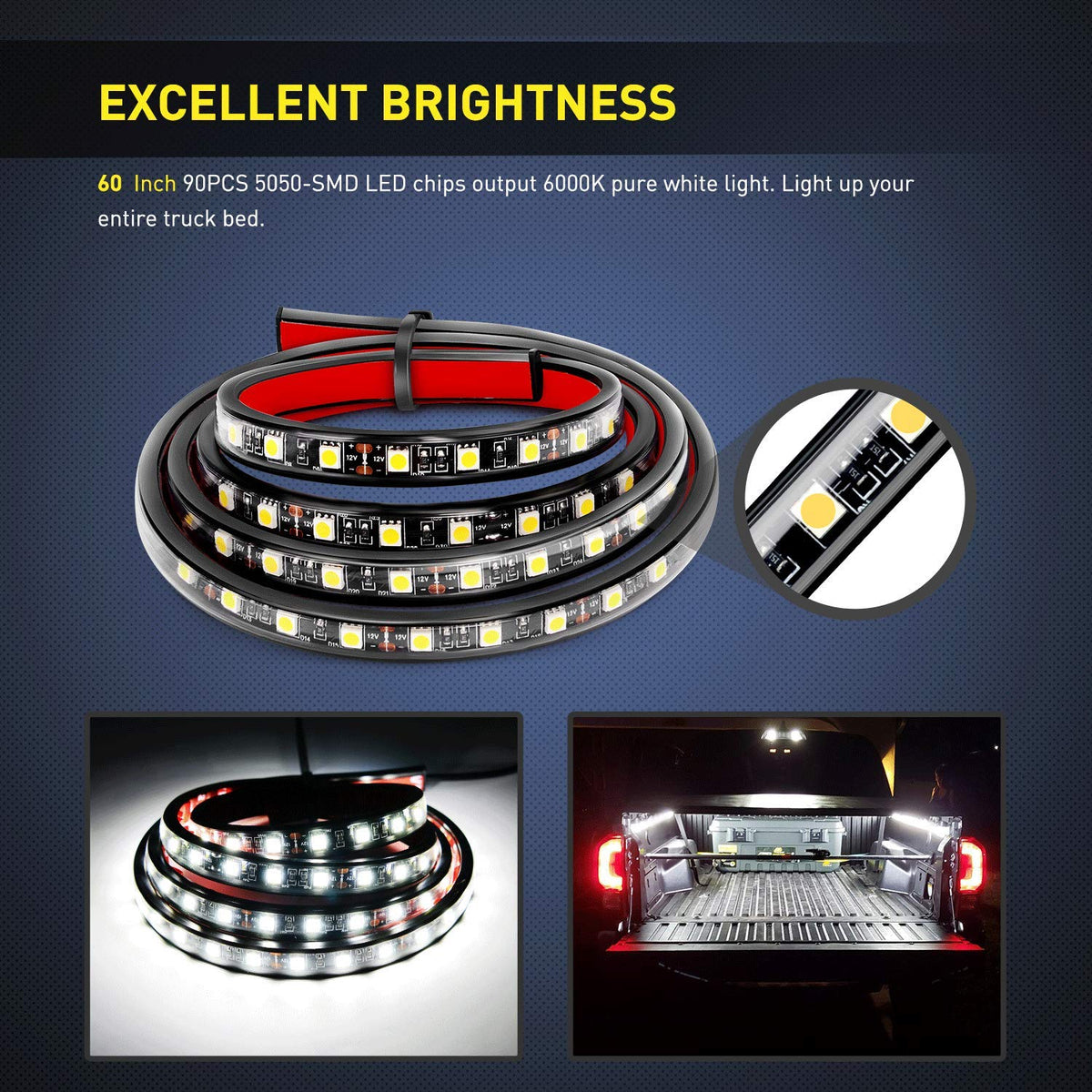

The TR-05 produces a total of about 2400 lumens across both strips, using 5050-SMD LEDs that output roughly 20–22 lumens per diode. That level of illumination is effective for loading, inspections and general utility tasks at night.

• 180 LEDs total: 90 per 60" strip for even coverage
• Approx. 2400 lumens combined at 6000K pure white color
• 5050-SMD technology for broad, visible light spread
• Rated 30,000 hours for long-term use

What makes installation quick and safe?

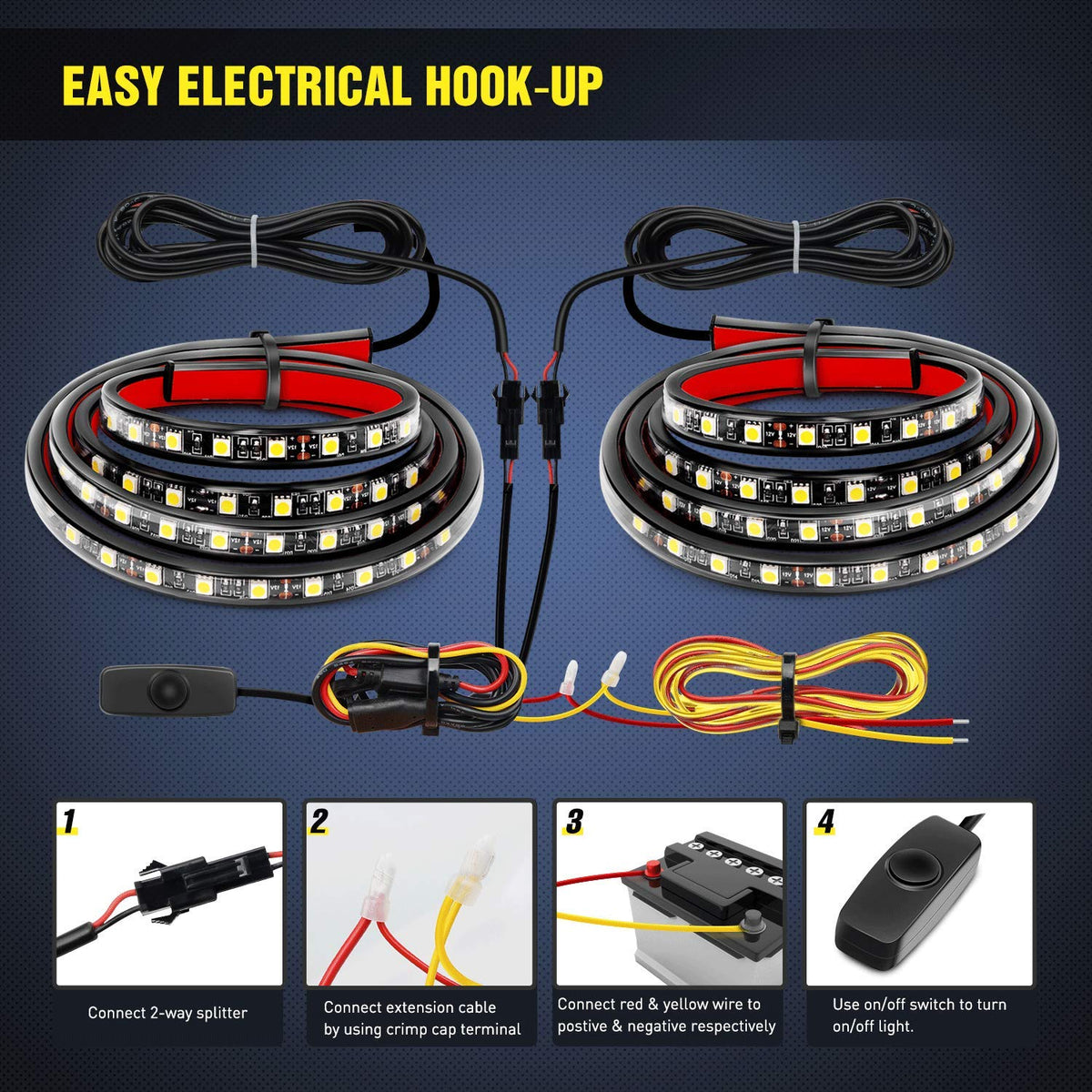

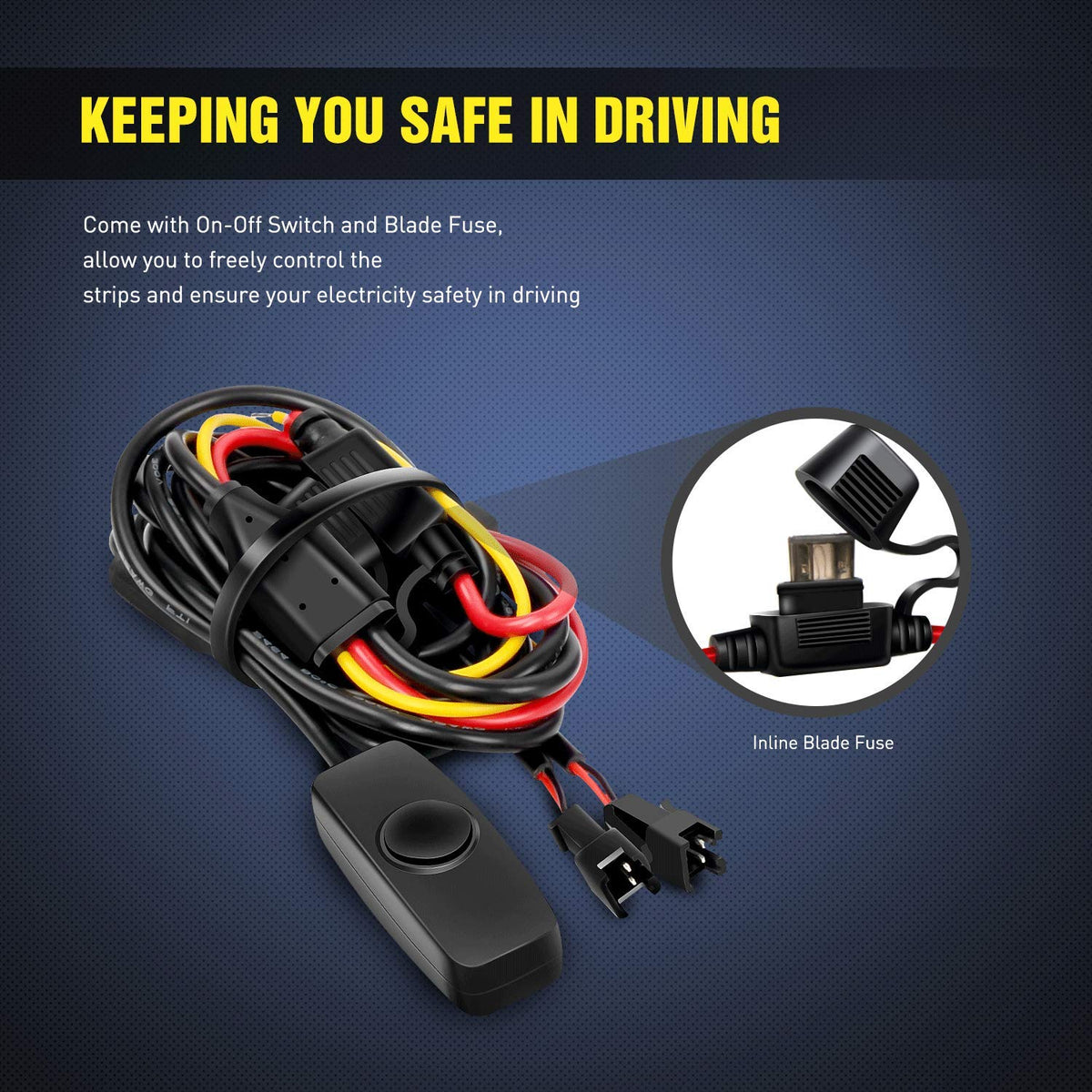

Nilight designed the kit for plug-and-play convenience: strips come with a peel-and-stick backing enhanced for stronger adhesion and an included hardware pack if you prefer screws. The wiring harness includes an inline blade fuse and an on/off switch, plus a 2-way splitter and extension cable so you can connect both strips to one power source while protecting the circuit.

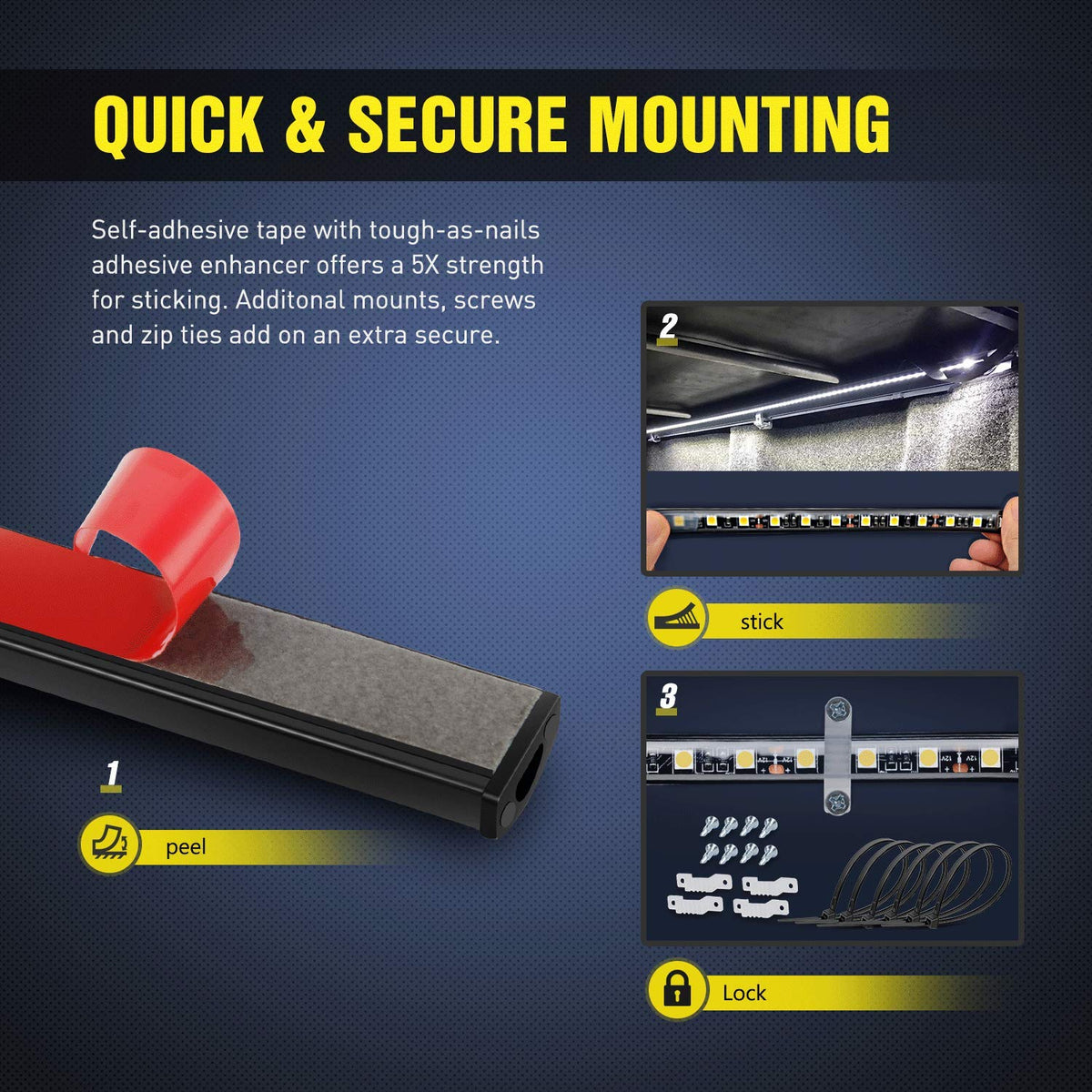

• Self-adhesive tape with adhesive enhancer for stronger bond
• Inline blade fuse and on/off switch for circuit protection and control
• 2-way splitter to run two strips from a single power feed
• Extension cable to reach common battery or accessory power points

Are these strips weatherproof and durable enough for outdoor use?

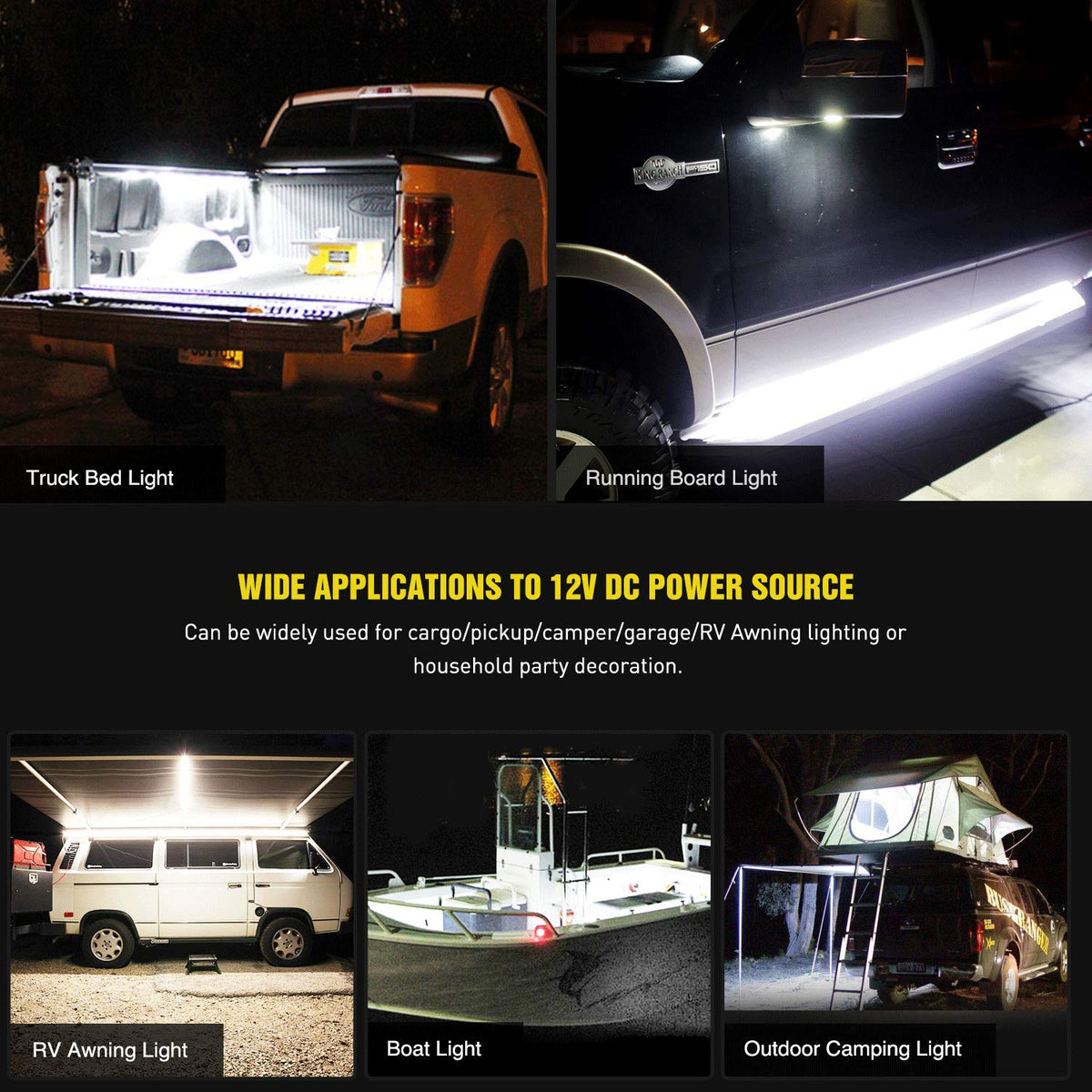

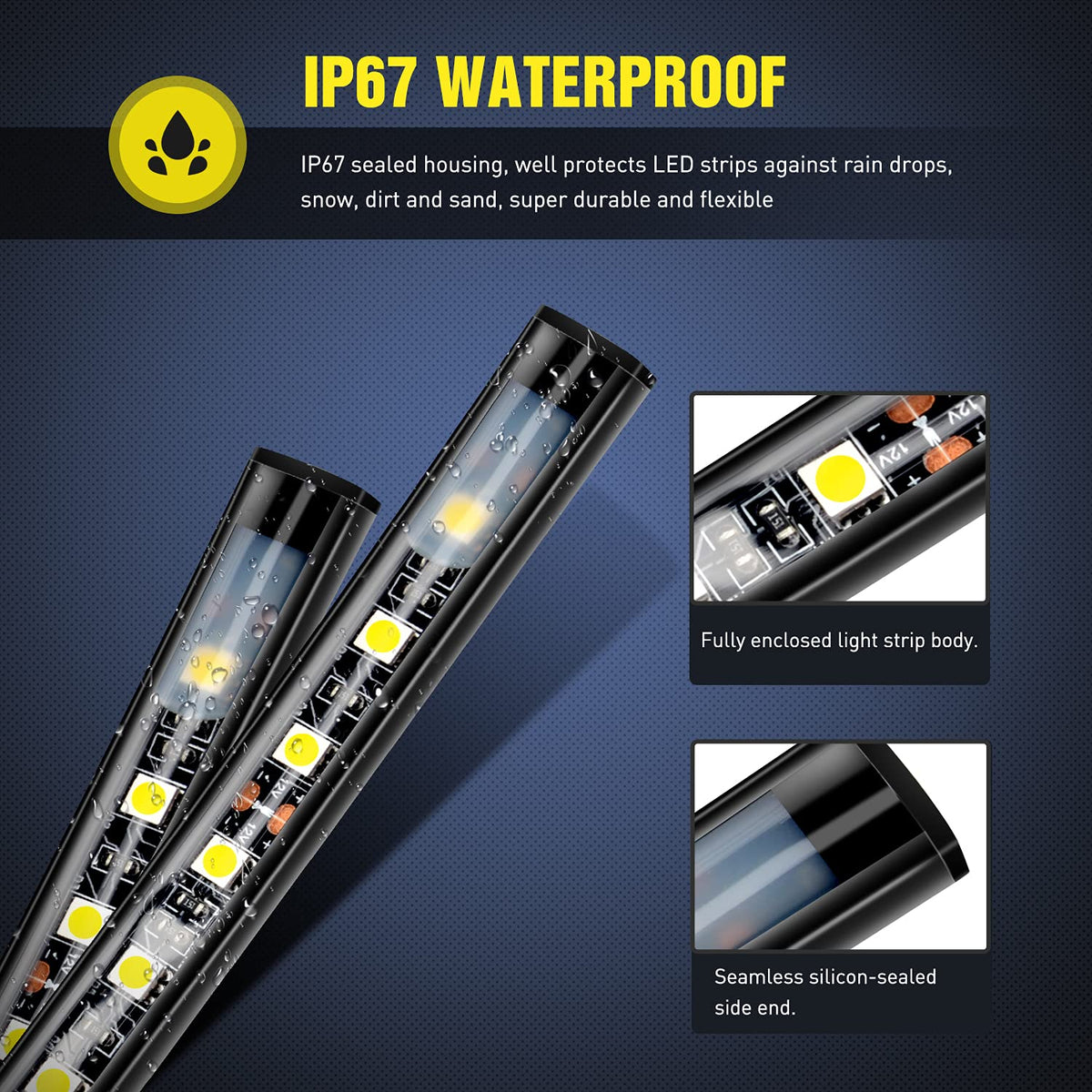

The TR-05 strips are enclosed in an IP67 sealed housing to resist rain, dust and splashes, making them suitable for truck beds, RV exteriors and marine applications. The flexible construction allows them to conform to curved surfaces while the manufacturing specs aim for a multi-year service life under normal use.

• IP67-rated sealed housing shields LEDs from water and debris
• Flexible body adapts to curved mounting locations
• Durability claim of up to 30,000 hours under typical conditions
• Includes mounting hardware for more permanent installs

What connectors and dimensions should I expect for wiring and fit?

Each 60-inch strip measures approximately 60" x 3/5" x 2/5" and arrives with a 76" wire bundle from the strip. The on/off switch harness has about a 55" lead, and the kit includes an extension to reach a power source. These lengths make routing around a truck bed or RV interior convenient without additional splicing.

• Strip size: 60" length; slim cross-section fits narrow channels
• Wire bundle: 76" from each strip for flexible routing
• Switch lead: ~55" for accessible placement of the control
• Included extension and splitter reduce need for extra parts

Who is this for? The Nilight TR-05 kit is aimed at truck, SUV, RV and boat owners who want a straightforward, weatherproof lighting upgrade for cargo areas, tailgate work or exterior awnings. It suits DIY installers who prefer peel-and-stick convenience with the option to secure strips with hardware, as well as fleet operators seeking a durable, fuse-protected lighting solution backed by a two-year warranty.
