Nirakoka 15-Foot Schwintek 12V DC Motor Harness #247768 — Plug‑and‑Play RV Slide-Out Replacement, Pre‑Wired Connectors

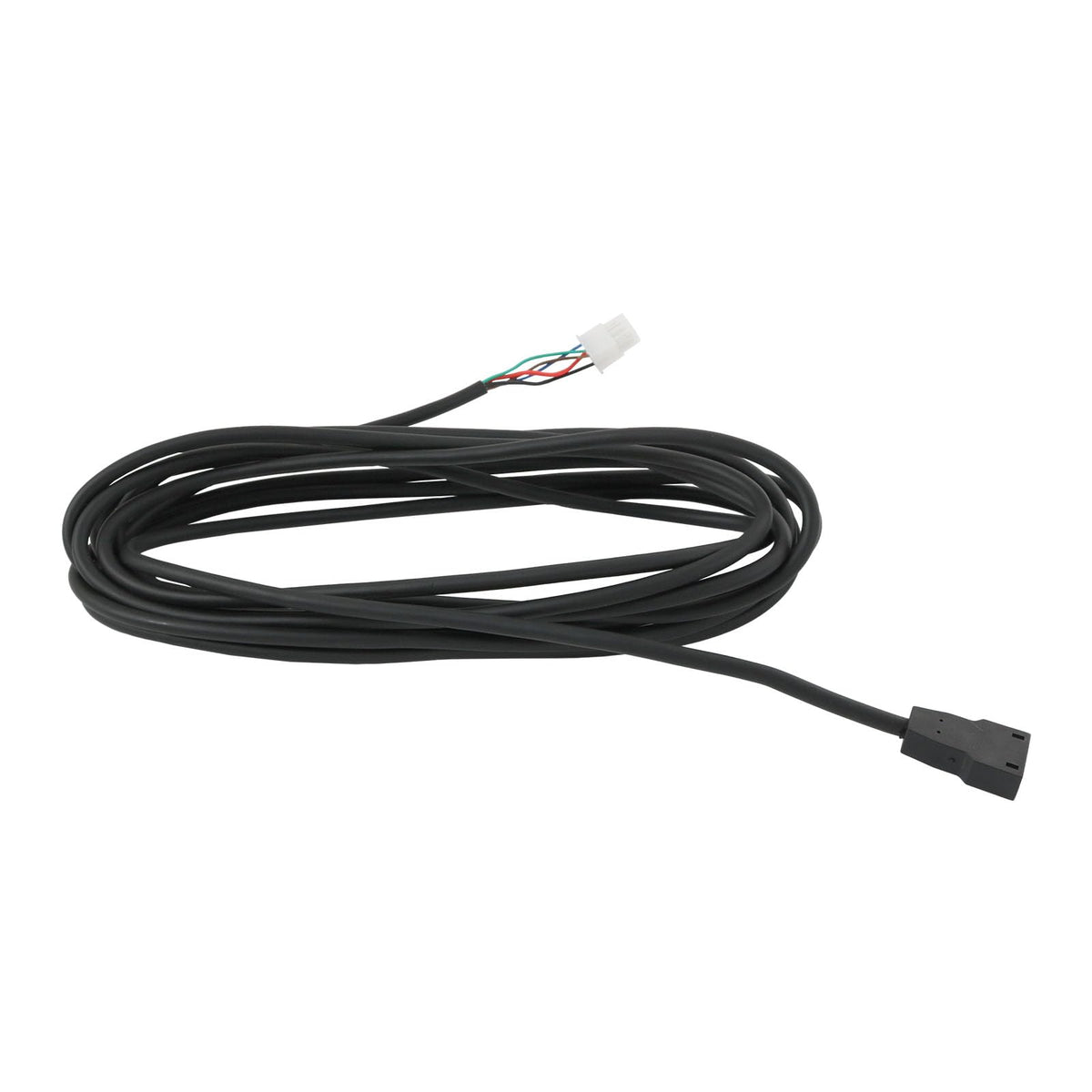

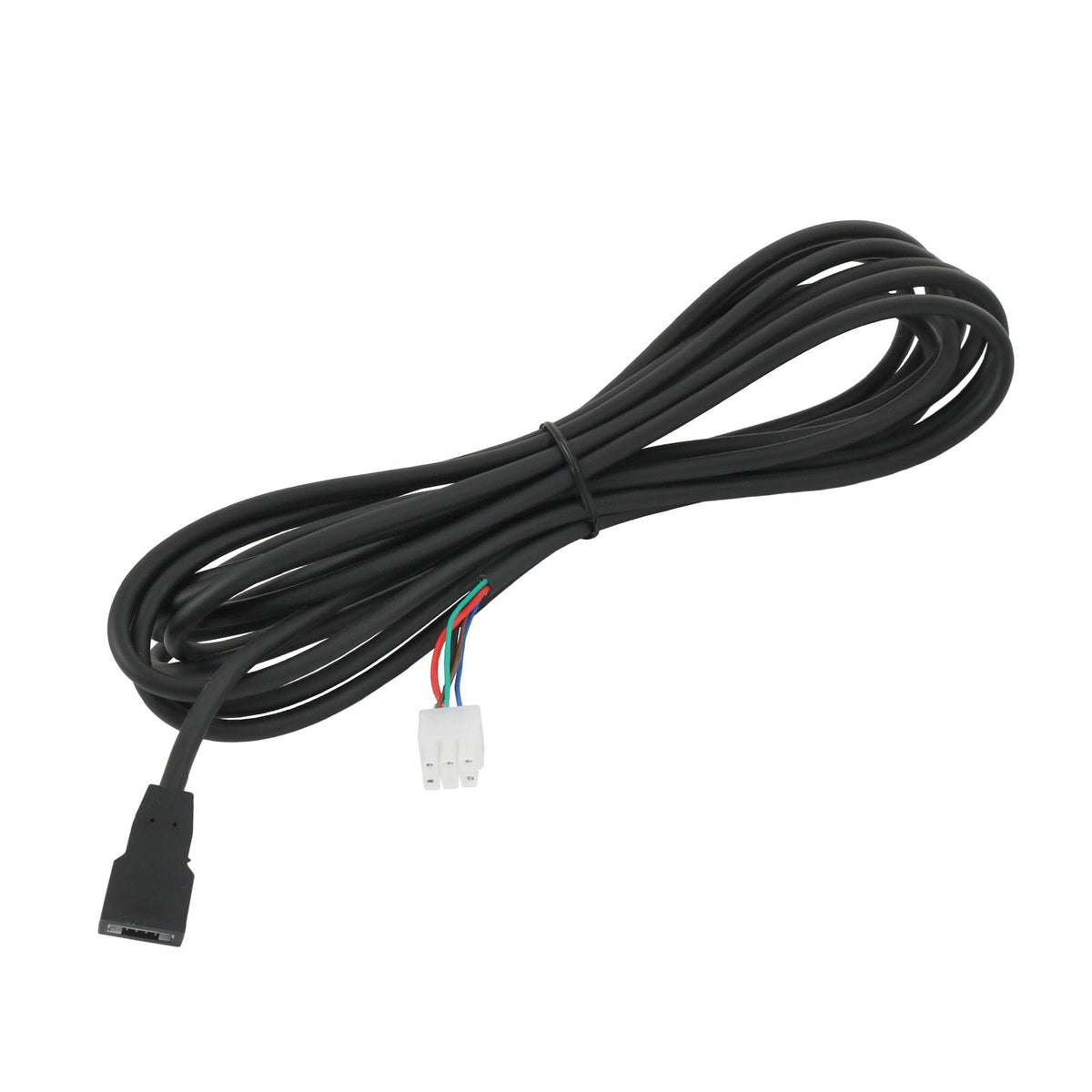

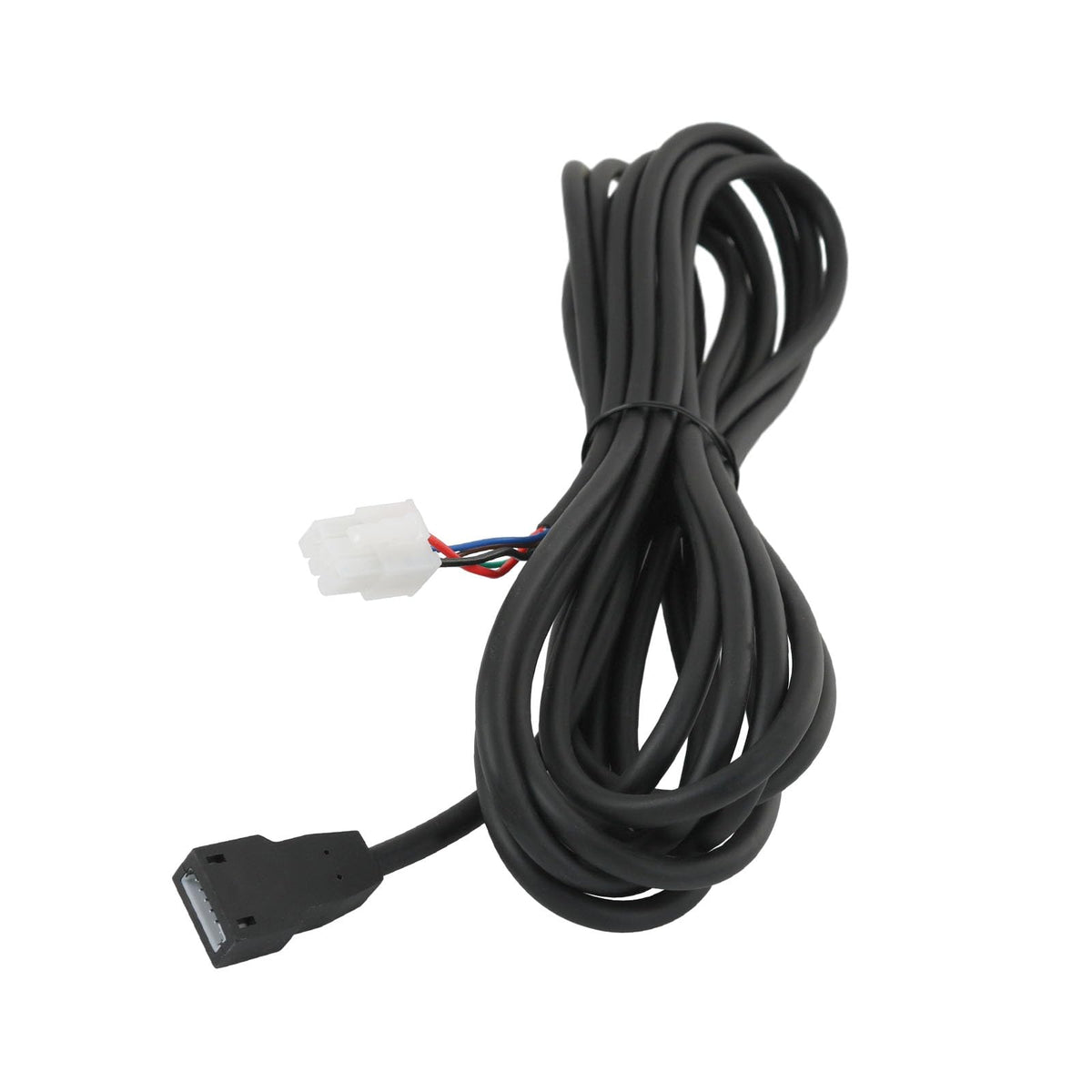

Nirakoka's 15-foot Schwintek 12V DC motor harness #247768 is a ready-to-install replacement cable assembly engineered for in-wall RV slide-out systems.

When a slide-out drivetrain needs a direct-fit wiring solution, this harness provides the correct length, connectors, and wiring layout to replace worn or damaged Schwintek motor leads without splicing or fabricating new connections. It’s intended as a plug-and-play substitute for the original factory harness, simplifying repair and minimizing downtime for your RV slide mechanism.

How does this harness fit my Schwintek 12V DC in-wall slide-out?

The Nirakoka harness is manufactured to match factory wiring dimensions and connector types used on many Schwintek in-wall slide-out motors, so it mates with the motor and the vehicle-side wiring harness in most compatible systems. Using the correct part number ensures alignment of terminals and avoids modification.

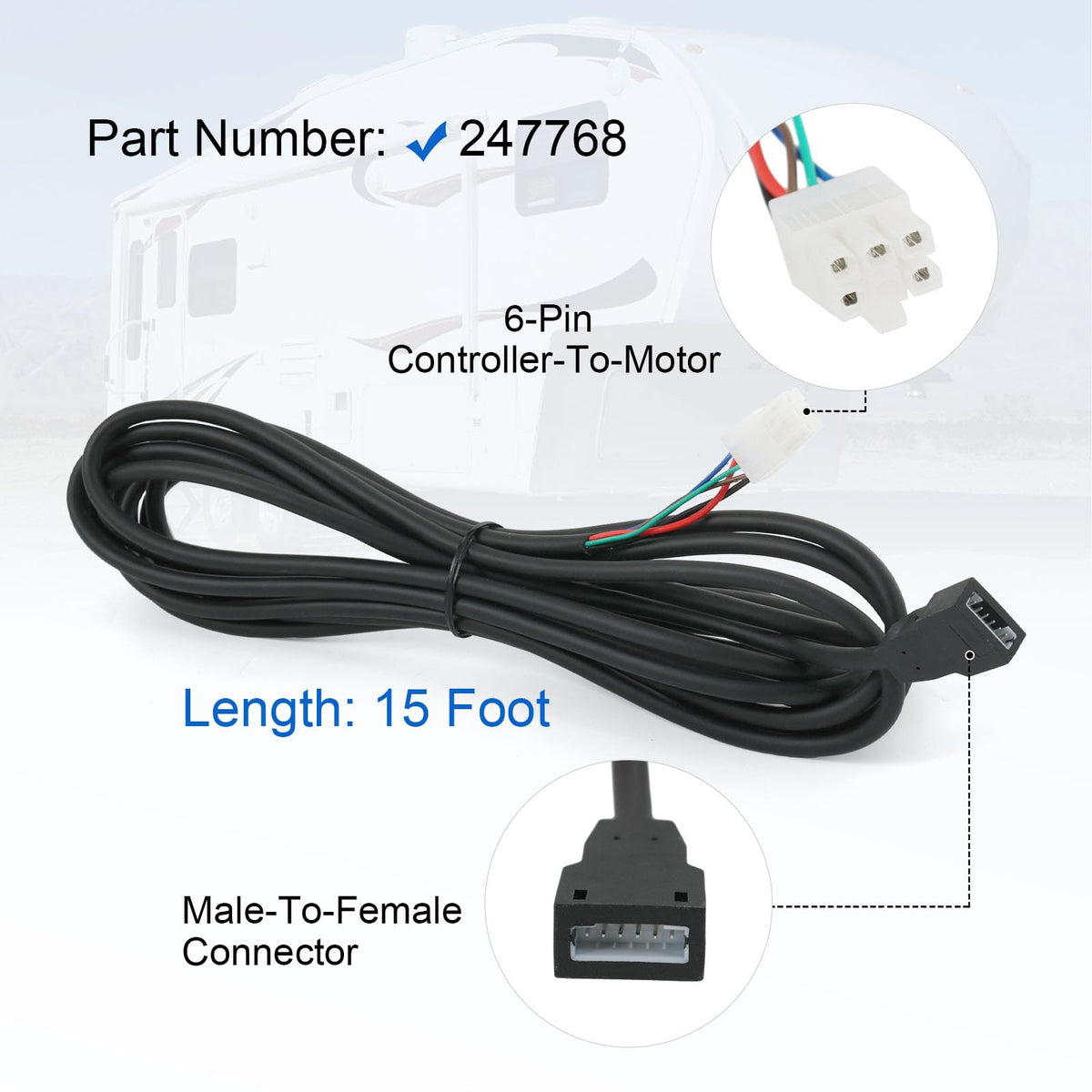

• 15-foot overall length for typical in-wall routing.

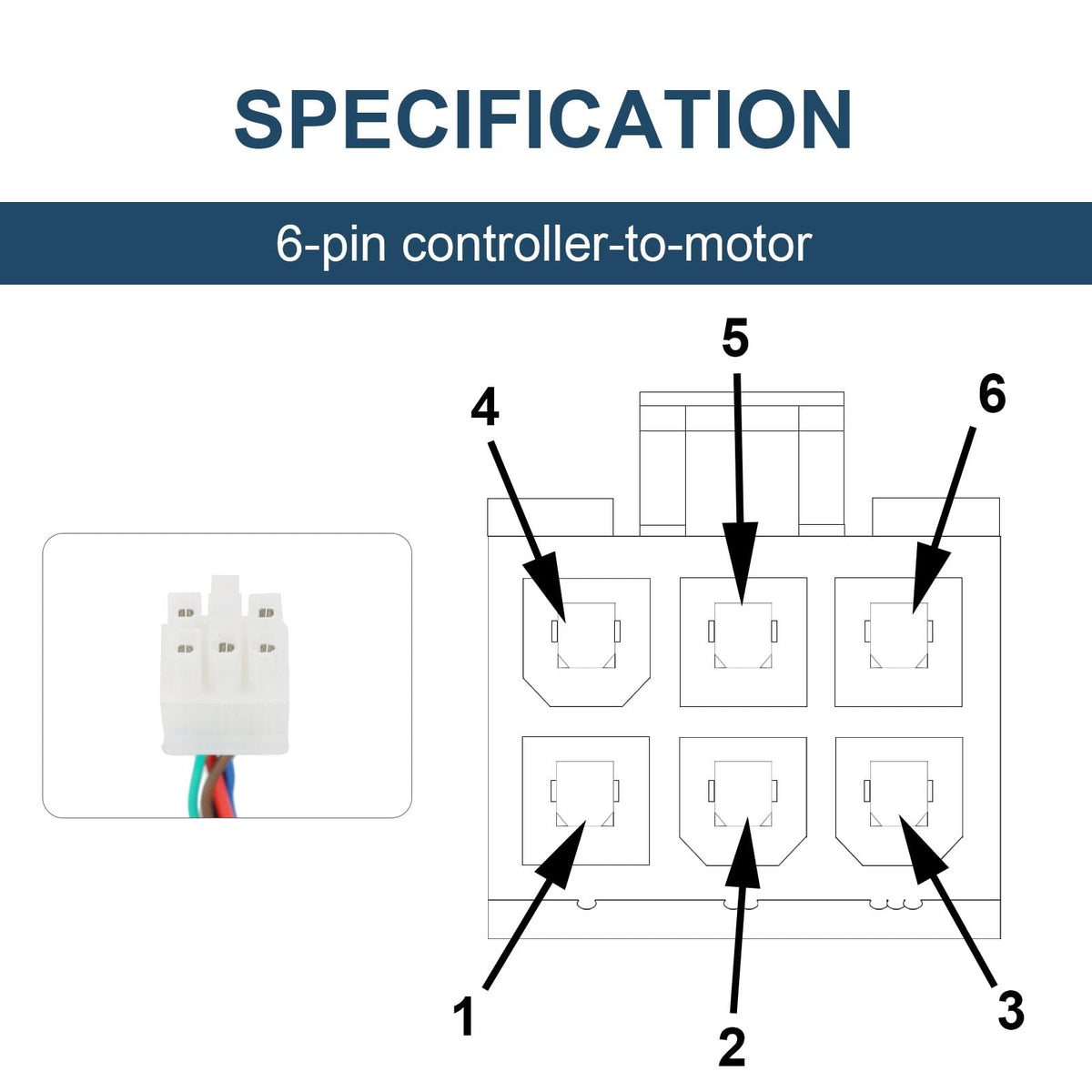

• Pre-assembled connectors matching common Schwintek motor pins.
• Insulated conductors sized for 12V DC slide-out loads.
• Direct replace part #247768 for straightforward compatibility checks.

What are the installation steps and required tools?

Installation usually involves disconnecting battery power, removing service panels to access the existing harness, unplugging the old assembly, and plugging in the new one. No soldering or splicing is required when the harness is the correct OEM-style match, though basic hand tools make the job quicker.

• Tools: screwdriver set, panel trim tools, and a voltmeter for safety checks.
• Disconnect battery before working on 12V circuits.
• Route harness through factory wire channels to avoid pinch points.
• Verify connector seating and secure loose wiring with cable ties.

Will this harness handle the electrical load and outdoor conditions?

The wiring and connector choices for this assembly are designed for 12V DC slide-out motor applications, providing the ampacity and insulation typical for such systems. While the harness is intended for in-wall installation and protected from direct weather exposure, proper routing and strain relief help maintain long-term reliability.

• Conductors sized for DC motor current draw.
• Insulation suitable for in-wall RV environments.
• Connector housings resist vibration and maintain contact integrity.
• Best practice: avoid routing across sharp edges or heat sources.

How do I confirm I have the right part before ordering?

Confirm compatibility by matching the OEM part number, connector shape, and length to your existing harness. Comparing photos and connector pinouts helps ensure the Nirakoka #247768 will mate correctly without modification.

• Compare your harness to part number 247768.
• Measure existing cable length and connector types.
• Check motor model and Schwintek system documentation if available.
• Contact support with clear photos for confirmation if unsure.

Who is this for? RV owners, technicians, and mobile service professionals who need a like-for-like replacement harness for Schwintek 12V in-wall slide-out motors will find this Nirakoka assembly useful. It’s aimed at people who prefer a plug-and-play solution over custom wiring, and those performing routine maintenance or repairing damaged slide-out wiring with minimal downtime.
