NYXOVA Ball Joint Removal & Installation Tool Kit Black-Anodized — Forged Steel C‑Frame Press, Dana 30/44 Ready

NYXOVA Ball Joint Removal Installation Tool is a complete, forged-steel press kit designed to remove and install press-fit ball joints, universal joints, and brake anchor pins on a wide range of 2WD and 4WD vehicles.

Built for professional garages and home mechanics alike, this NYXOVA kit combines hardened carbon-steel components with a corrosion-resistant black anodic finish and a molded storage case. The set includes a C-frame press, multiple receiver tubes and cups, plus dedicated installation and removal adapters so you can service domestic and imported cars, light trucks, and many Dana 30/44 front axle applications without improvising tools.

What parts are included and how do they fit together?

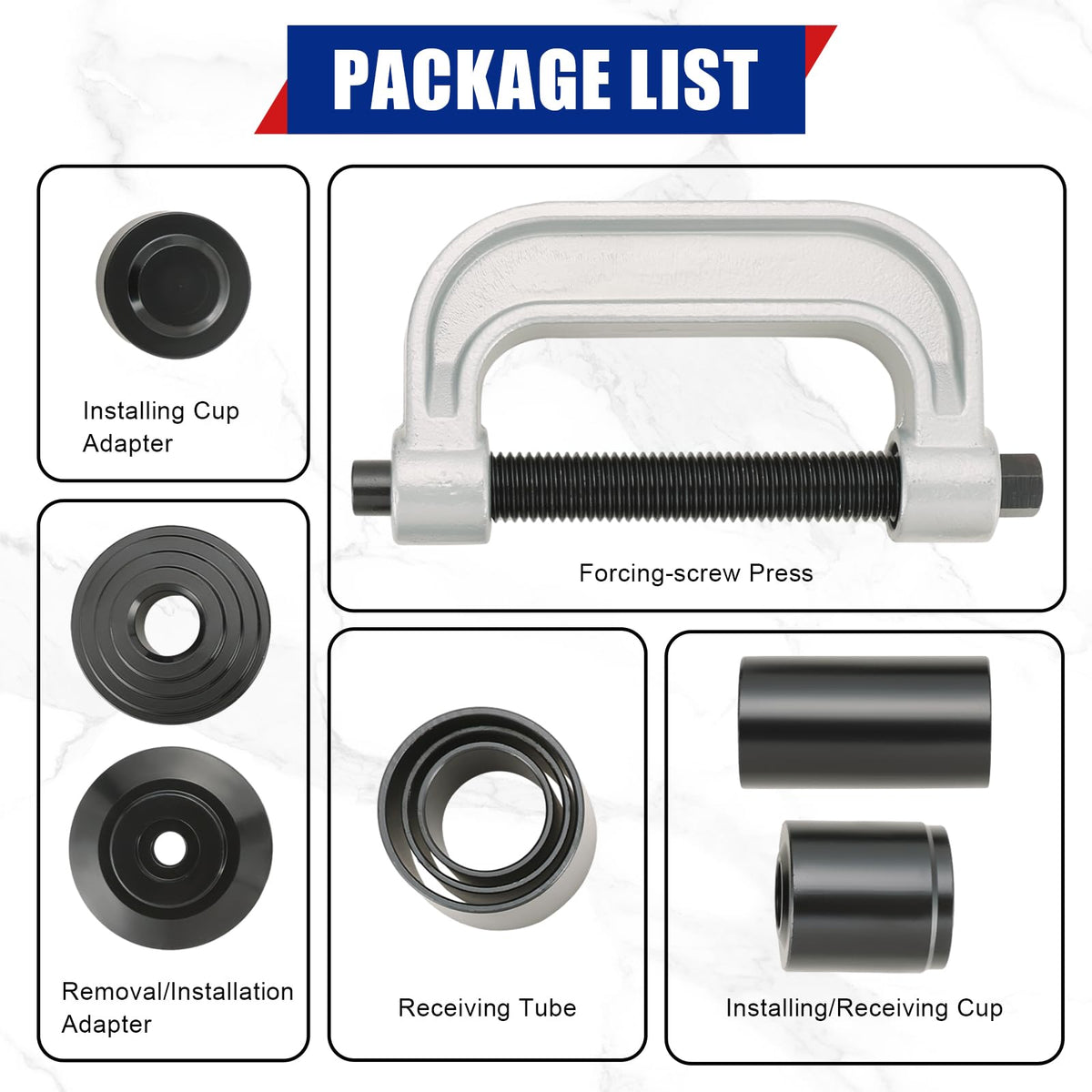

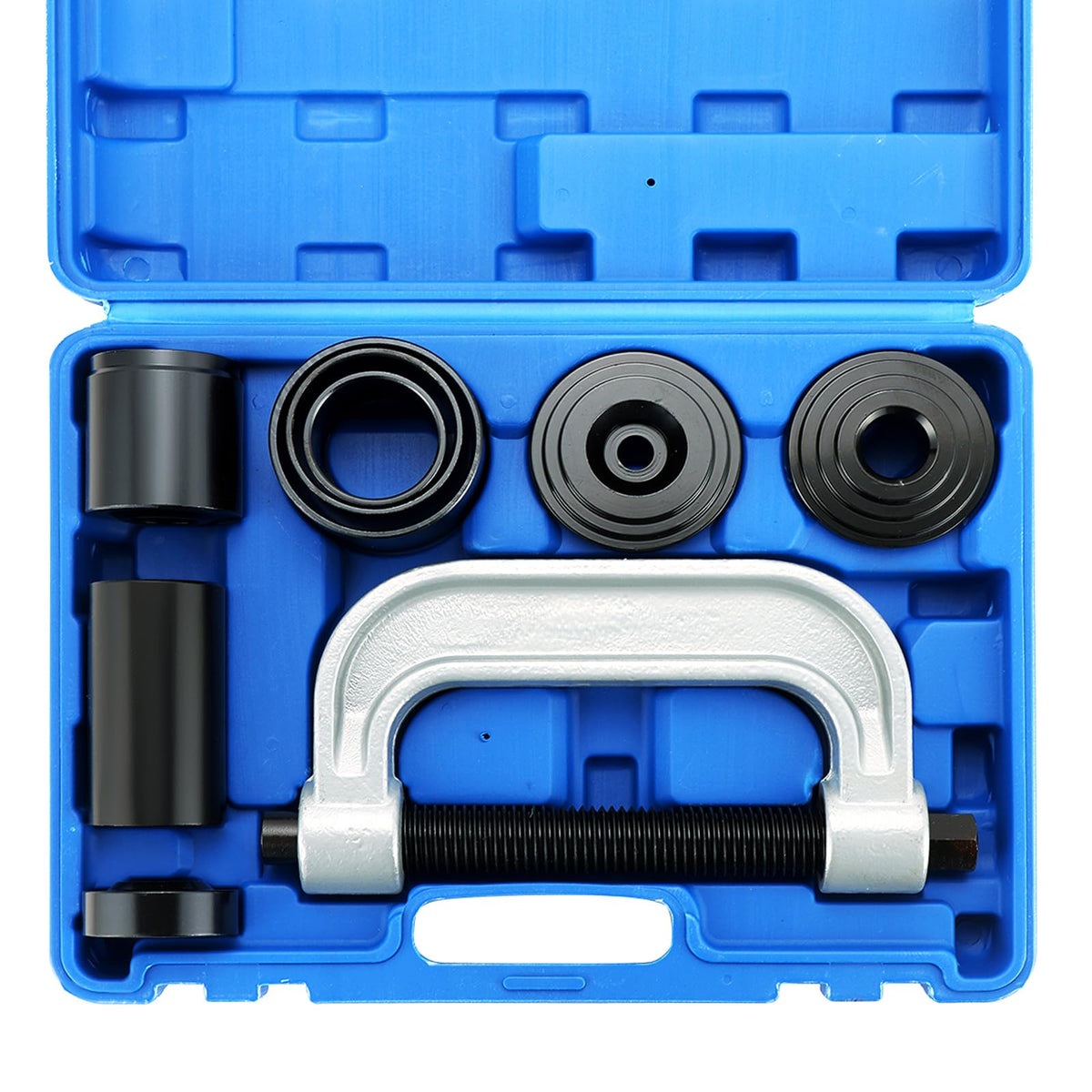

The kit contains a C-frame press, a heavy screw, install and receiving cups, an installing cup, three receiver tubes in three sizes, plus installation and removal adapters. Each component is sized to work together so you can press ball joints and U-joints out and back in with controlled force.

• C-frame press and screw: central clamping and force application
• Installing/receiving cups: support and capture pressed parts
• Three receiver tubes: accommodate different joint lengths and diameters
• Installation/removal adapters: match common vehicle fitments including Dana 30/44

How does this tool help on 4WD Dana axle and light truck jobs?

NYXOVA includes a 4WD adapter range and receiver sizes that cover many 1/2 and 3/4 ton 4WD vehicles from 1967 to current models using Dana 30 or 44 front axles. The kit eliminates the need for separate specialty tools, letting you address press-fit joints on Ford, GM, IHC, Jeep, and similar platforms in one setup.

• Dana 30/44 compatibility: works with common front axle joint sizes
• Receiver tubes permit deep or short presses for varied joint lengths
• Forged construction withstands repeated high-force applications
• One kit for both removal and installation saves time and shop space

What makes the NYXOVA tool durable and safe to use?

All load-bearing pieces are forged from heavy-duty carbon steel and finished with black anodic oxidation to resist rust and wear. The case organizes components to prevent damage in transport and keeps sleeves and adapters from getting lost or damaged between jobs.

• Forged carbon-steel construction for long life under pressure
• Anti-rust anodic coating to reduce corrosion in workshop environments
• Precision-sized case compartments protect and organize parts
• Robust screw and frame minimize bending and slippage during use

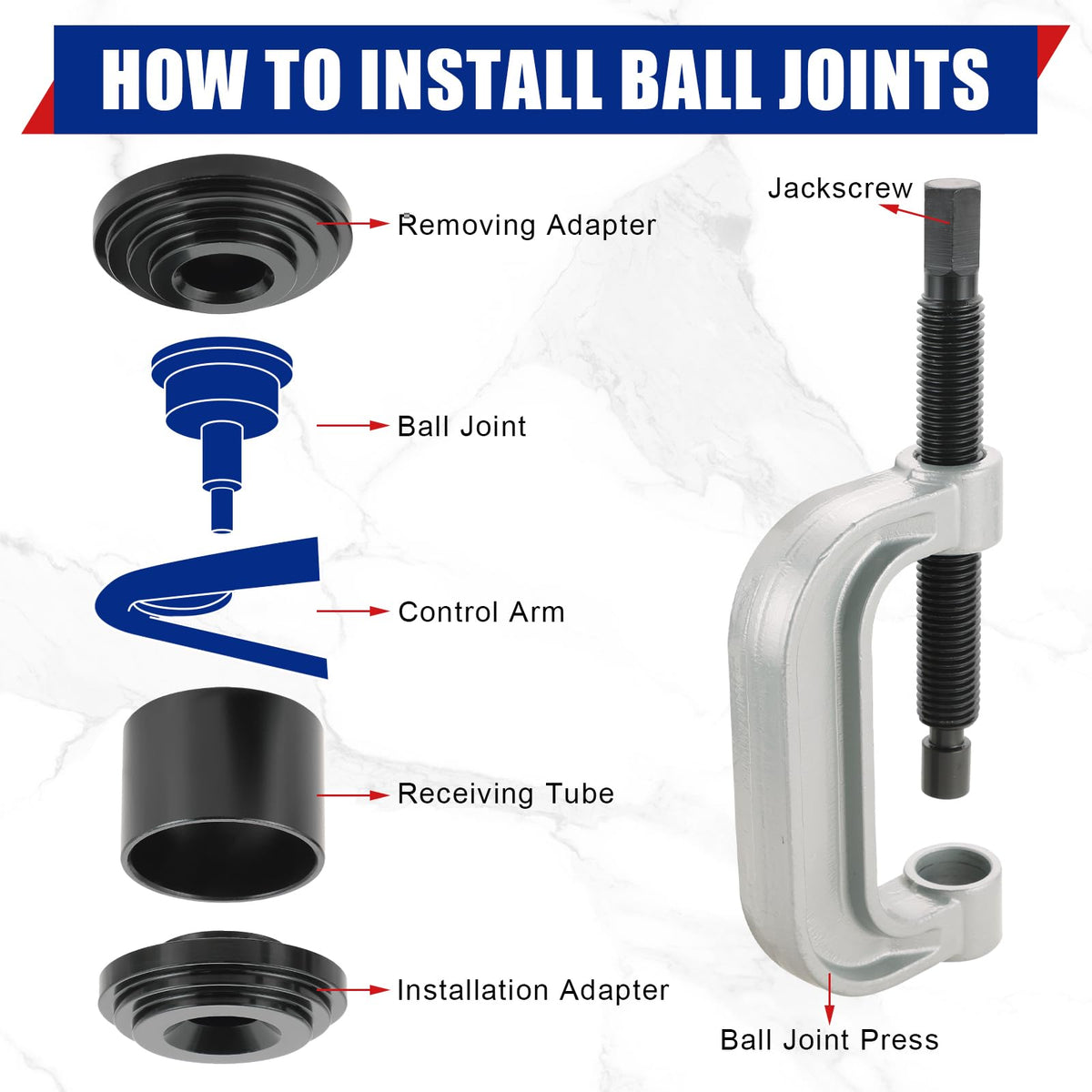

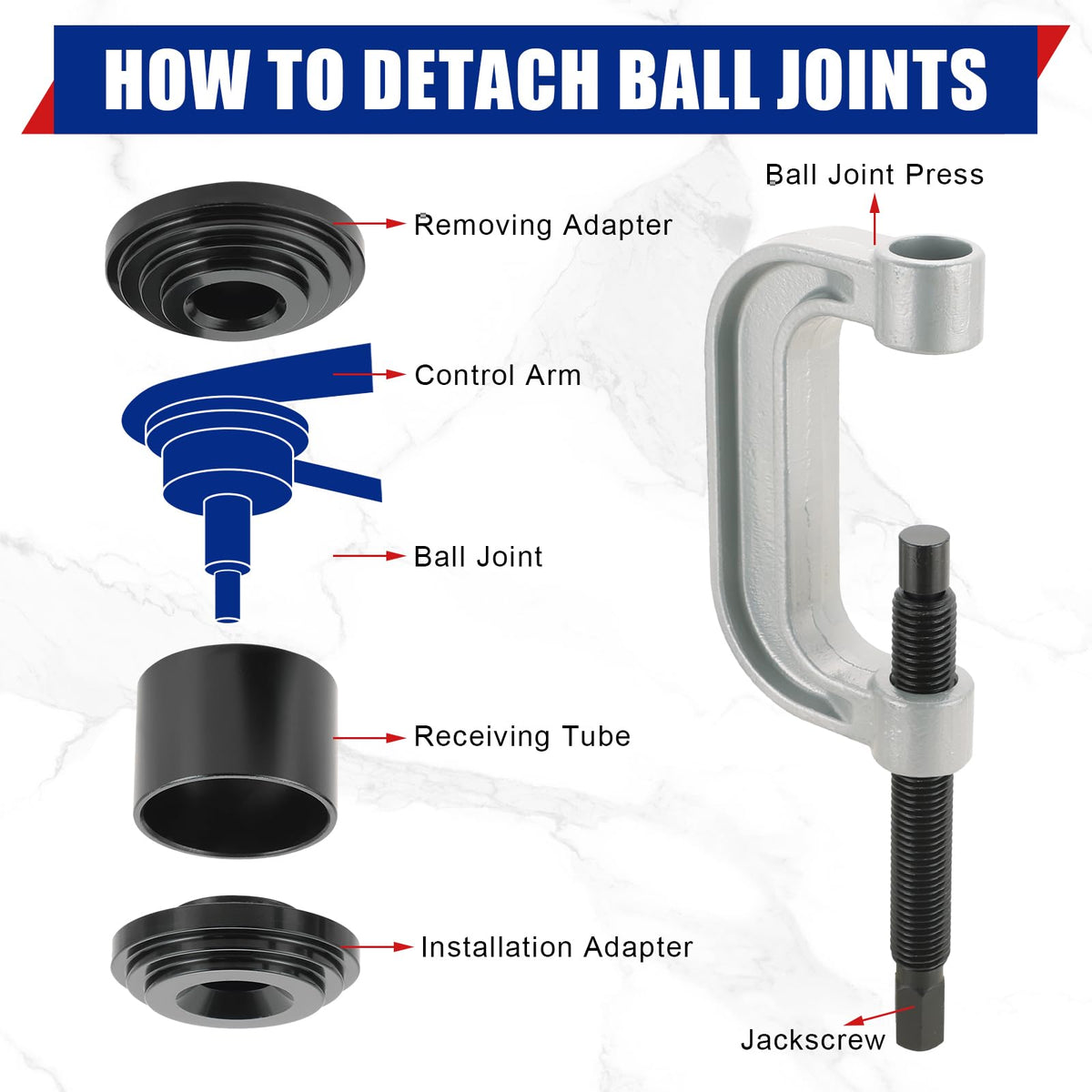

How do I choose the right receiver tube and cup for a job?

Match the receiver tube diameter and depth to the exposed length and diameter of the joint you’re pressing. Start with the smallest receiver that fully captures the removed joint; if the cup or tube touches the control arm or axle, switch to the next size to avoid damage.

• Select tube depth to fully contain the pressed-out part
• Use installing cup to properly seat new joints without deforming them
• Change adapters when contact points shift to protect suspension components
• Refer to vehicle fitment and inspect clearances before applying full force

Who is this for? The NYXOVA Ball Joint Removal Installation Tool is aimed at automotive technicians, DIY mechanics, and restoration enthusiasts who need a dependable, all-in-one press solution for press-fit ball joints, U-joints, and anchor pins on cars and light trucks. If you regularly service domestic or imported 2WD/4WD vehicles or work on Dana 30/44 front-axle applications, this kit reduces trips to specialty tool suppliers and speeds repairs by keeping the right adapters at hand.
