Obeaming 12V Light Dimmer Rotary PWM 6A (72W) — Black Front, Flush-Mount for RVs & Boats

Obeaming 12V Light Dimmer is a compact PWM rotary dimmer that gives smooth, flicker-free brightness control for 12V LED, halogen and incandescent lighting up to 6A (72W).

This low-voltage dimmer is built for mobile and compact installations — think RVs, boats, vans, trailers and custom control panels. Using pulse-width modulation (PWM) it lowers heat and improves efficiency while providing linear 0–100% adjustment. The front plate and knob are removable to let you flush-mount the control in panels or dashboards, and four clearly labeled wires simplify installation.

How does this dimmer manage smooth brightness changes?

The dimmer uses advanced PWM circuitry to modulate the power supplied to the lamp, producing consistent, glitch-free dimming across the whole range. PWM reduces wasted power as heat and is compatible with many LED drivers, avoiding the flicker common to inferior controllers.

• Pulse-width modulation offers linear 0–100% dimming.
• Reduced heat compared with resistive dimmers increases efficiency.
• Works with LED, halogen and incandescent loads within rating.
• Final click at minimum detent turns the light fully off.

Is it simple to wire and fit into a custom panel?

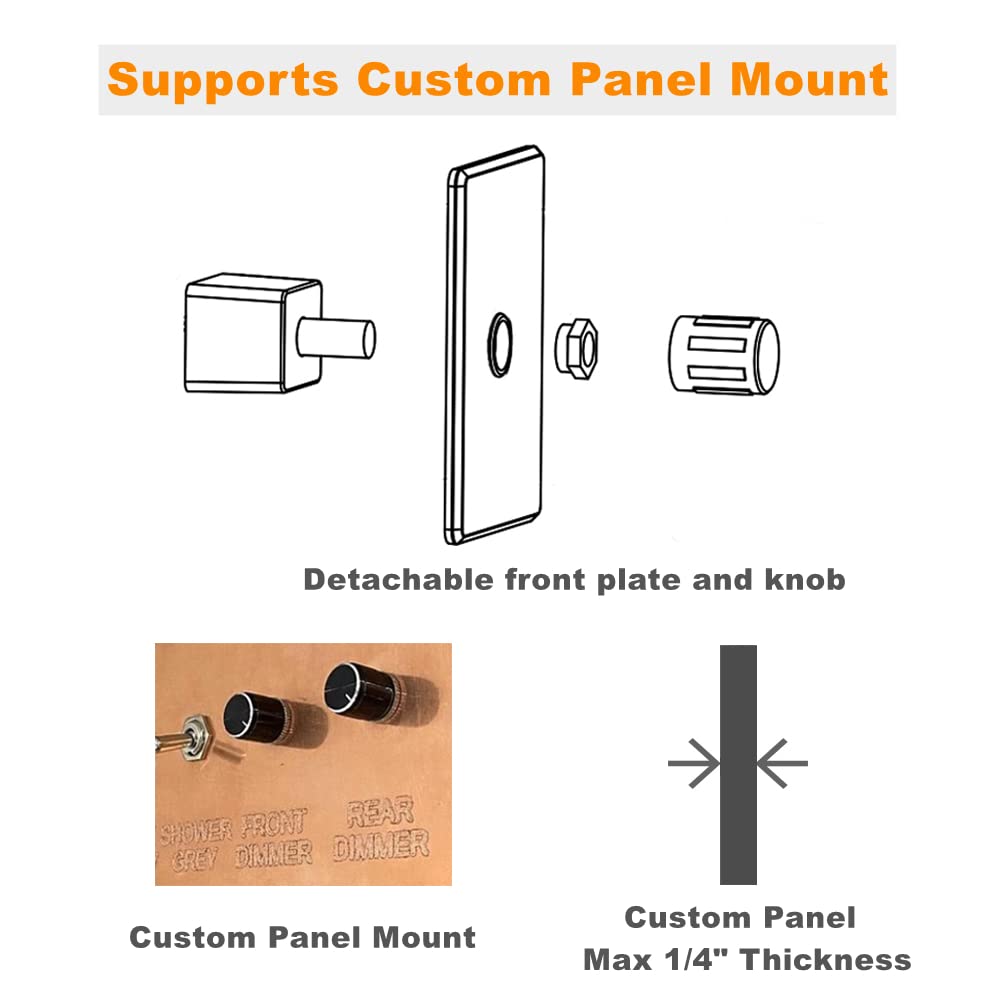

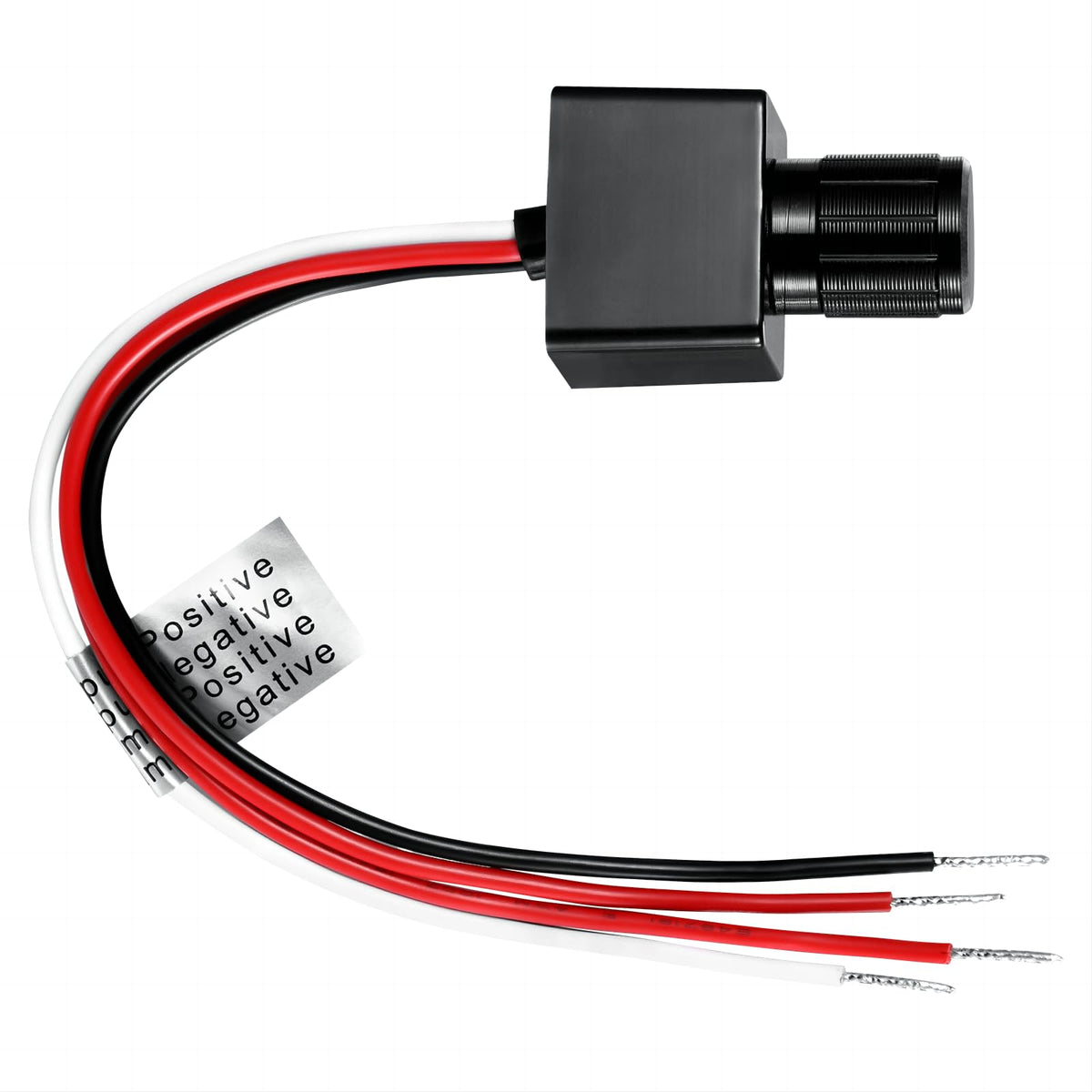

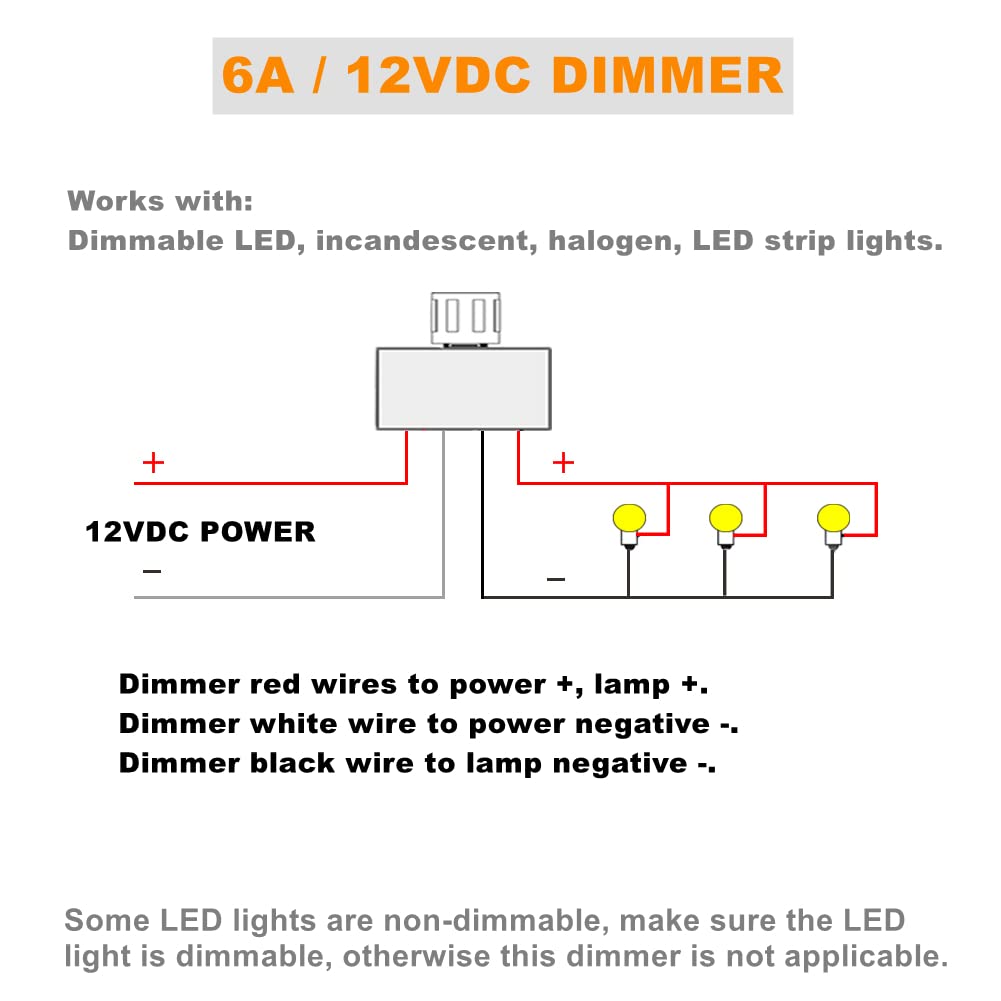

Yes — the dimmer provides four clearly separated wires: two for power input (positive and negative) and two for lamp output (positive and negative). The faceplate and knob detach so you can mount the body behind a dashboard or custom panel, then refit the control for a neat, factory look.

• Clear 4-wire layout minimizes wiring mistakes.
• Detachable front plate and knob enable flush panel mounting.
• Compact footprint suits tight spaces in vehicles and boats.
• Black polycarbonate front and lacquered aluminum knob for durable finish.

What electrical limits and compatibility should I expect?

The dimmer is rated for 12V DC systems with a continuous current capacity of 6 amps (maximum 72 watts). It’s suitable for low-voltage lighting circuits typically found in recreational vehicles and marine craft, but always confirm the total lamp wattage and inrush characteristics before use.

• Rated for DC 12V, 6A continuous (72W max).
• Compatible with many LED strips and fixtures plus halogen/incandescent.
• Not designed for higher-voltage or higher-current applications.
• Suitable for LED drivers that accept PWM dimming.

How does the user operate the control day-to-day?

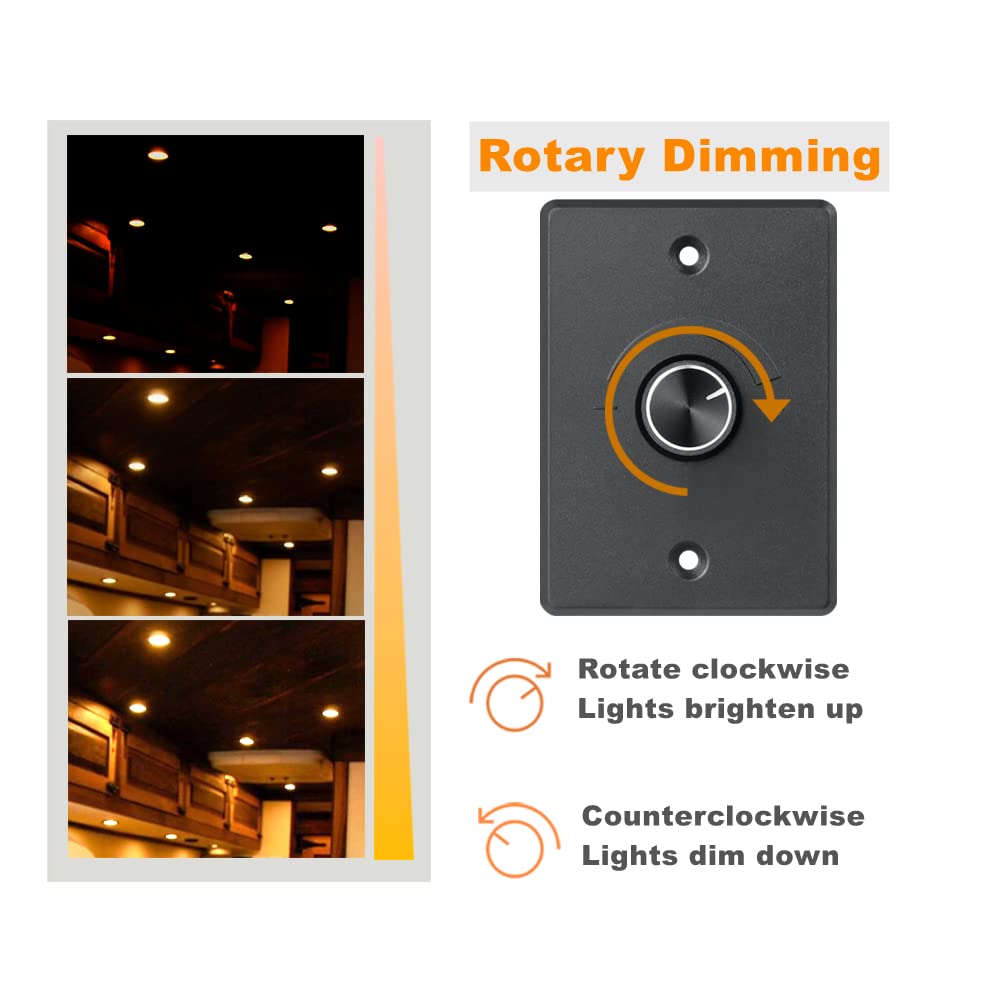

Operation is intuitive: twist the rotary knob to increase or decrease brightness, with a tactile click when you turn the dial to the off position. The knob’s smooth action gives fine control at low light levels and immediate full brightness when turned fully clockwise.

• Rotary knob provides precise, incremental adjustment.
• Click detent signals the off position for quick shutoff.
• All-aluminum knob finish for a comfortable grip and lasting wear.
• Works well for mood lighting, task lighting and dash illumination.

Who is this for? If you need a compact, reliable dimmer for 12V lighting—whether you’re upgrading an RV interior, fitting under-cabinet lights in a camper, adding adjustable brightness to a boat cabin, or building a custom van control panel—this Obeaming module provides straightforward installation and stable PWM dimming. Choose it when you want linear, low-heat dimming in a small package with a clean panel-mounted appearance.
