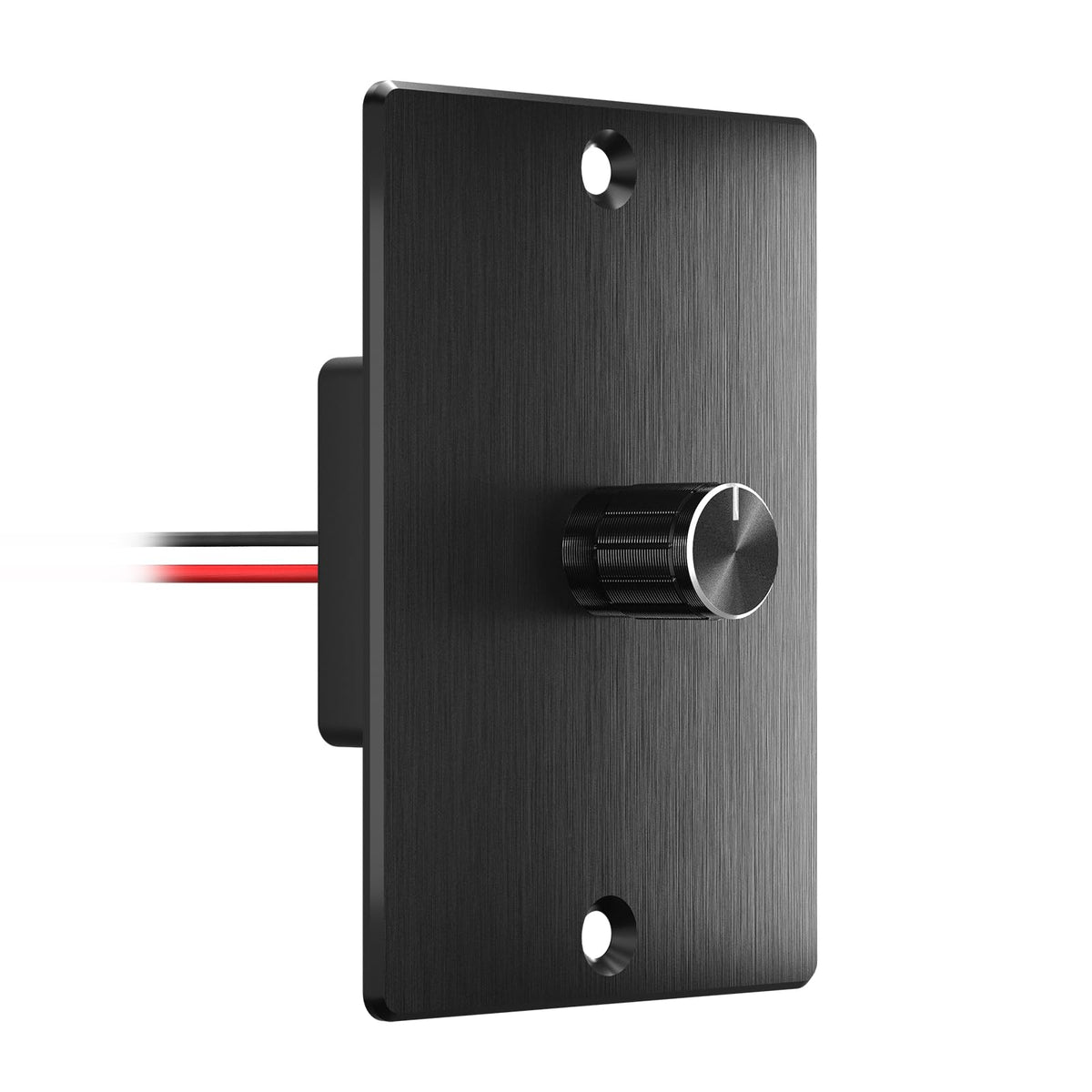

Obeaming 12V PWM LED Dimmer Switch for RVs & Boats — Black Panel, 15A 0–100% Rotary with Push On/Off

The Obeaming 12 Volt PWM LED Dimmer Switch is a compact, panel-mounted rotary dimmer with push on/off and memory, delivering smooth 0–100% dimming for 12V–24V DC lighting up to 15A (180W at 12V).

This aluminum-faced dimmer blends robust construction with PWM (pulse-width modulation) control to offer flicker-free, energy-efficient dimming for LED strips, bulbs, and mixed low-voltage lighting on mobile and custom installations. Built to integrate into RV, camper, boat, truck, and trailer panels, it provides a tactile rotary knob plus a one-touch push switch and remembers the last brightness setting for convenience. Rated for DC12V–24V systems and supporting up to 15 amps, it suits common 12V vehicle electrical setups while offering efficient heat dissipation thanks to its metal faceplate.

How does the Obeaming dimmer improve lighting control on mobile vehicles?

The dimmer uses PWM technology to regulate LED brightness without producing the noticeable flicker or excess heat common to crude dimming methods. Its rotary knob gives fine-grained, linear adjustment from low to full brightness, and the push on/off offers a quick way to toggle lights while retaining your preferred level.

• Pulse-width modulation for smooth, flicker-free dimming.
• Rotary knob enables precise 5%–100% adjustment.

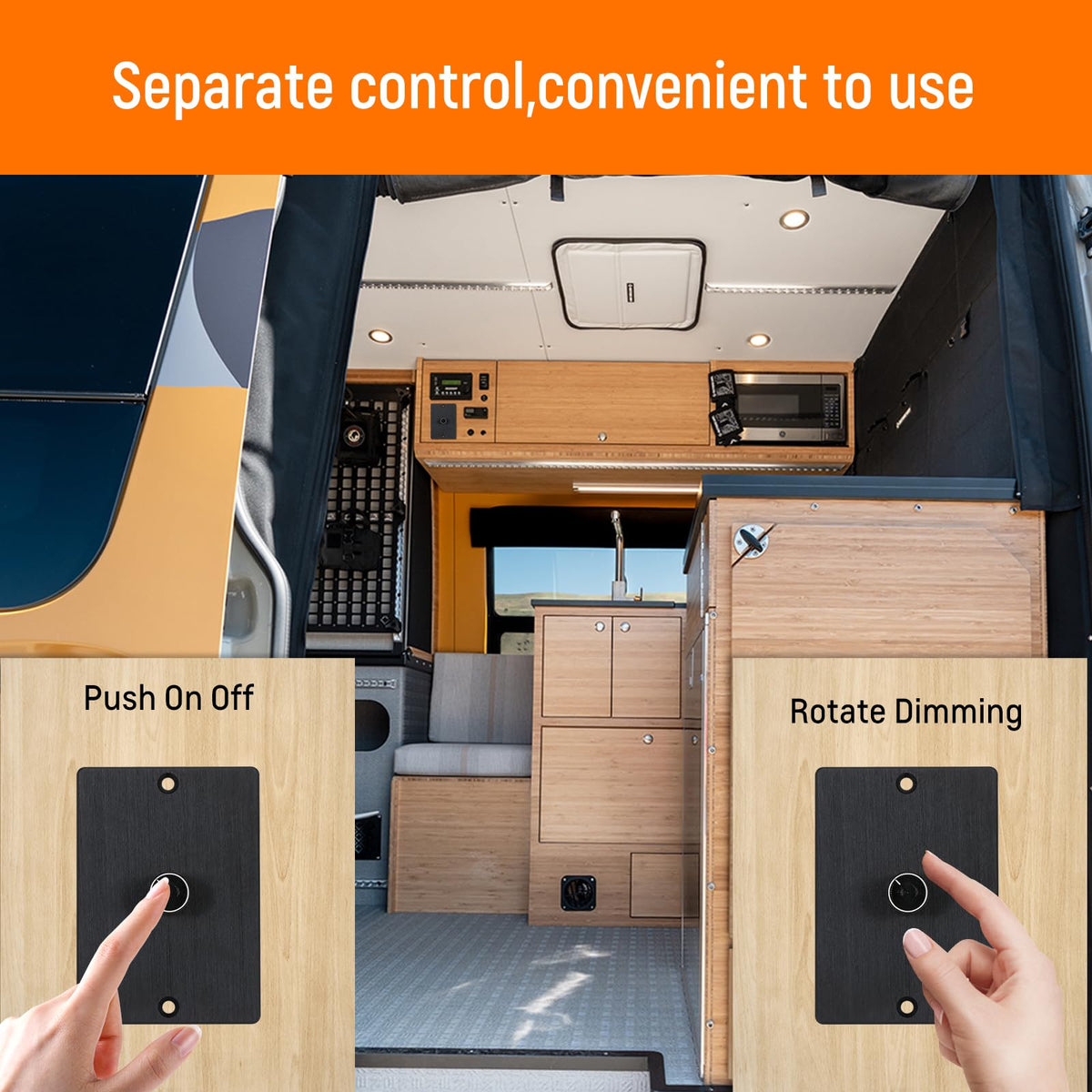

• Push-button power with memory saves the last setting.
• Aluminum faceplate reduces heat buildup in enclosed panels.

Will this dimmer work with my LED strips, halogen, or incandescent fixtures?

The Obeaming dimmer is compatible with a broad range of low-voltage lighting, including most dimmable LED strips, incandescent, and halogen loads within the DC12V–24V range. Always check the load type and overall current draw to ensure the total remains at or below 15 amps for safe, reliable operation.

• Supports LED, halogen, and incandescent low-voltage lighting.
• Operates on DC12V–24V systems found in vehicles and marine setups.
• 15A maximum — do not exceed combined device current.
• Suitable for single or multiple fixtures as long as load limits are respected.

How simple is installation and integration into a control panel?

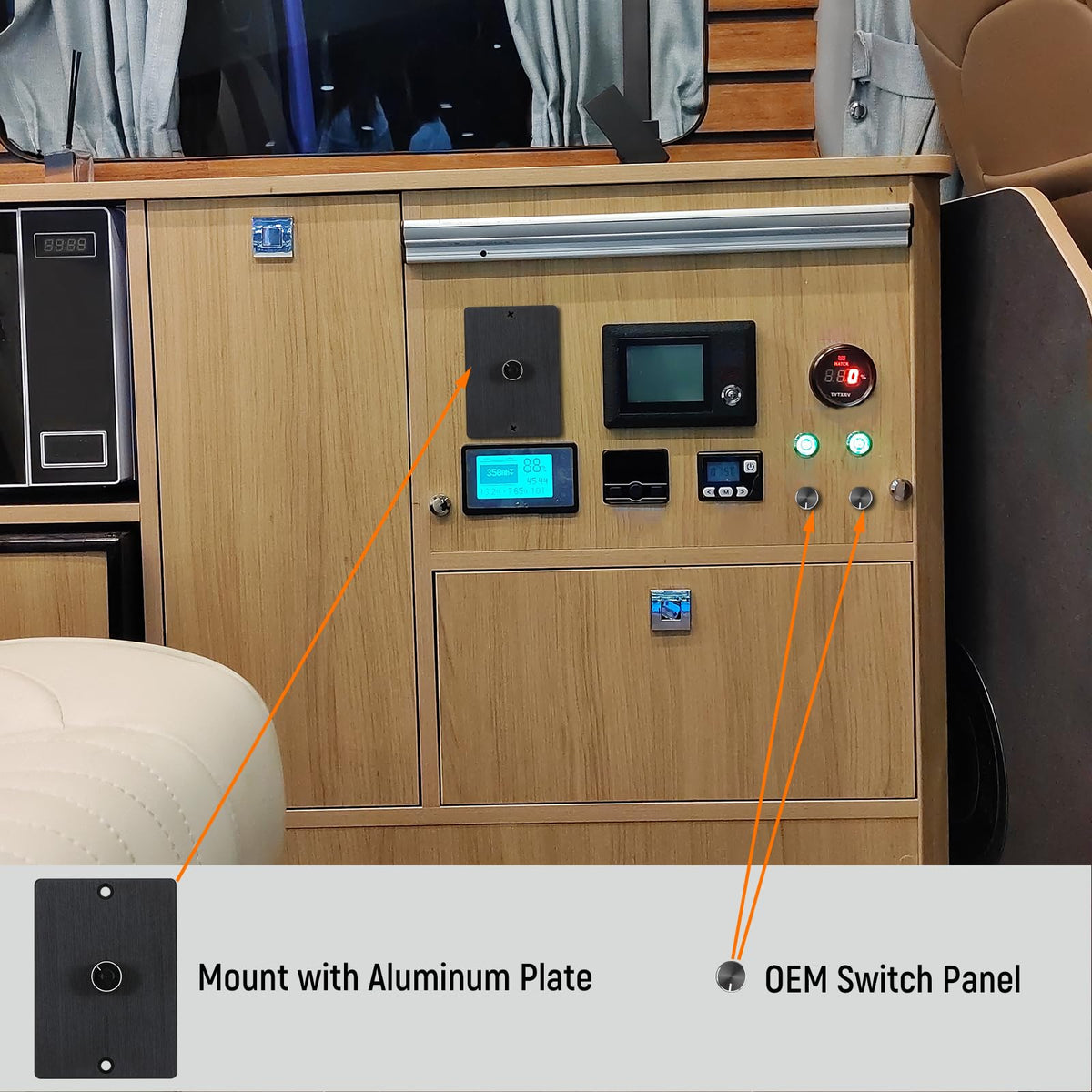

The dimmer’s compact form factor and included aluminum faceplate are intended for neat panel mounting in DIY or OEM applications. Wiring is straightforward for anyone familiar with 12V installations; the metal faceplate also helps anchor the unit and dissipate heat in tight enclosures.

• Compact size fits most custom control panels and dashboards.
• Aluminum faceplate secures the unit and improves thermal performance.

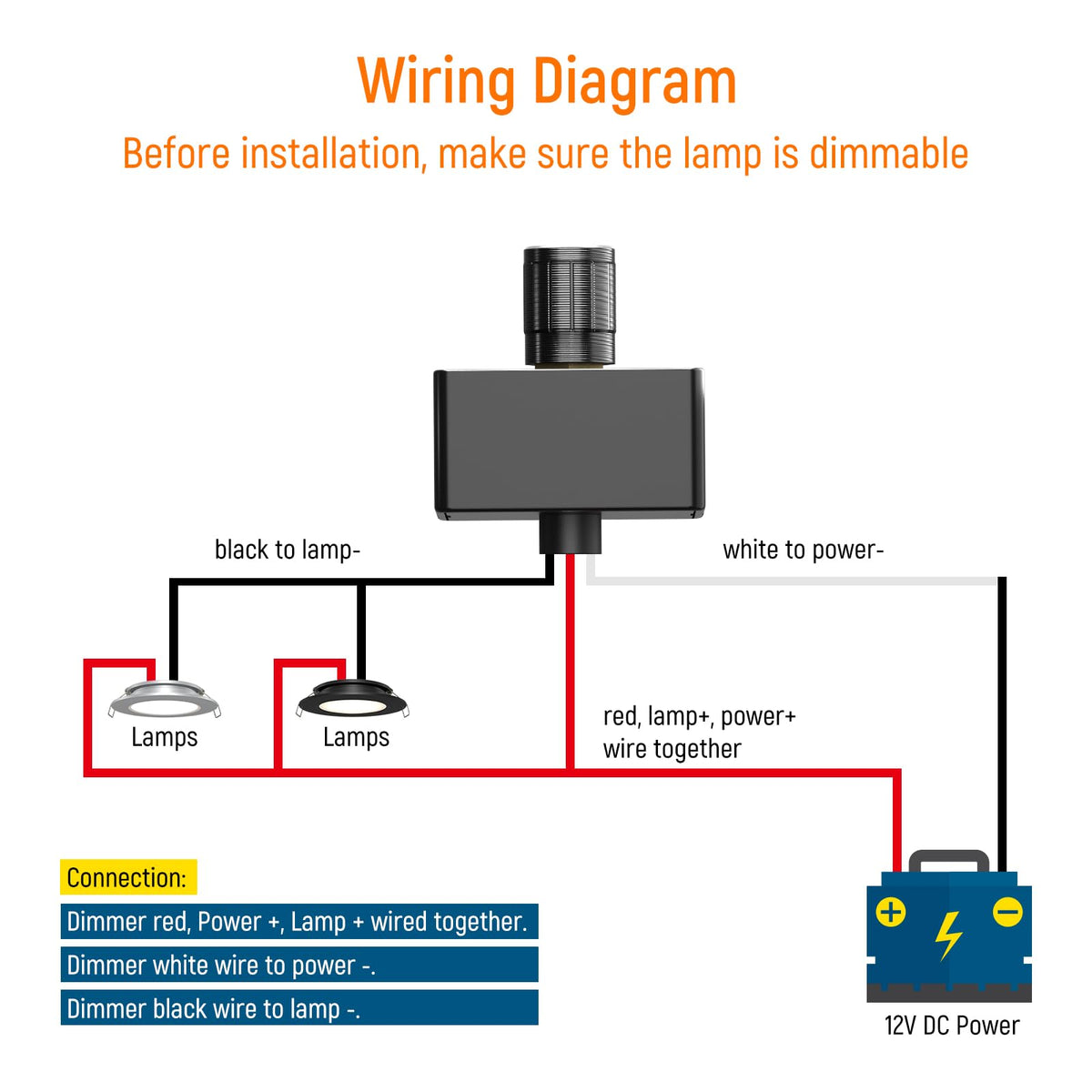

• Standard DC wiring — follow polarity and fuse the circuit appropriately.
• Ideal for retrofit projects in RVs, boats, campers, vans, and trucks.

What performance and safety features should I expect?

The dimmer combines a rated 15A capacity with PWM control to maximize LED efficiency while minimizing heat. The aluminum construction and efficient control method help maintain stable operation under typical mobile conditions, but correct wiring and load limits remain essential for safe use.

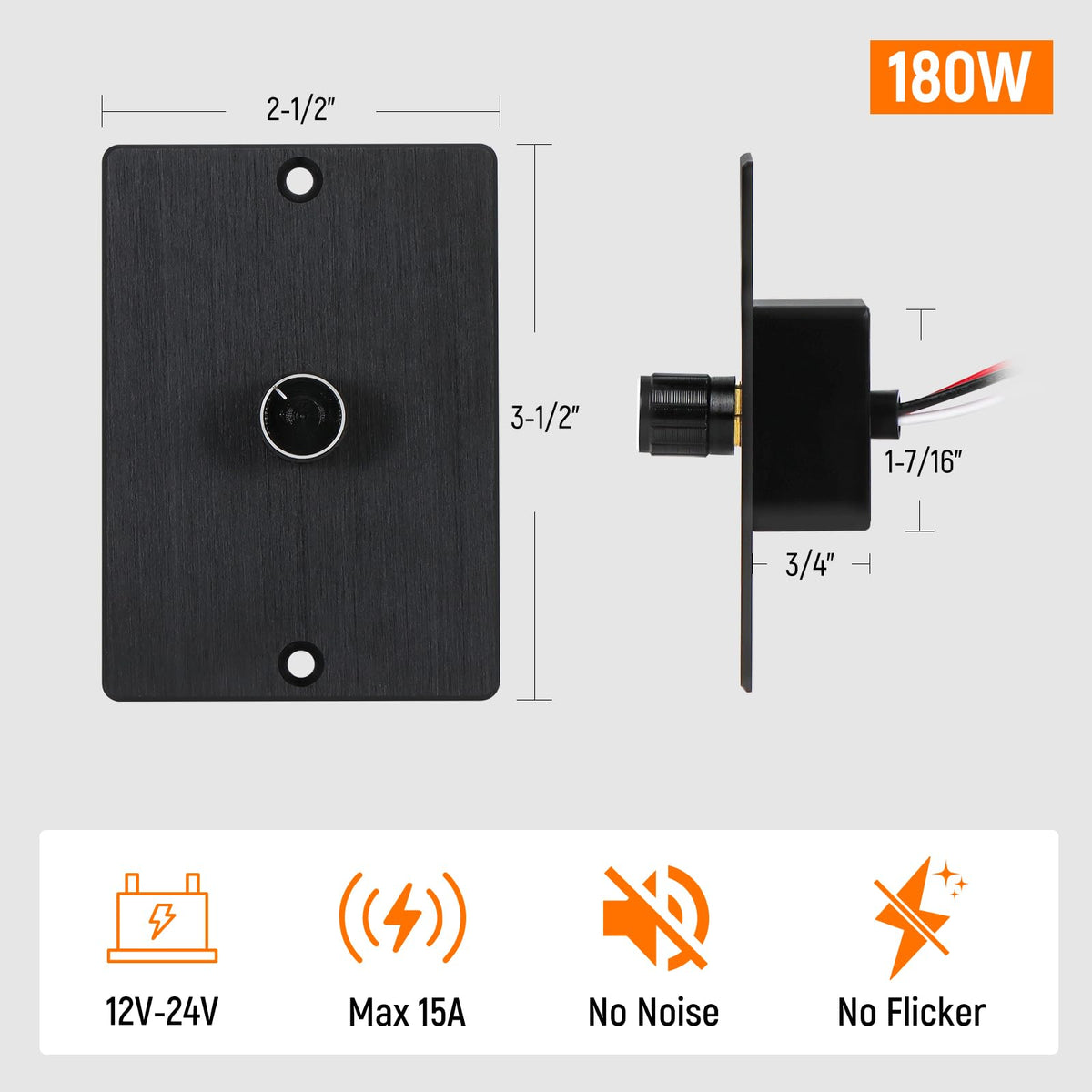

• Rated 15 amps (up to 180W at 12V) for common 12V installations.

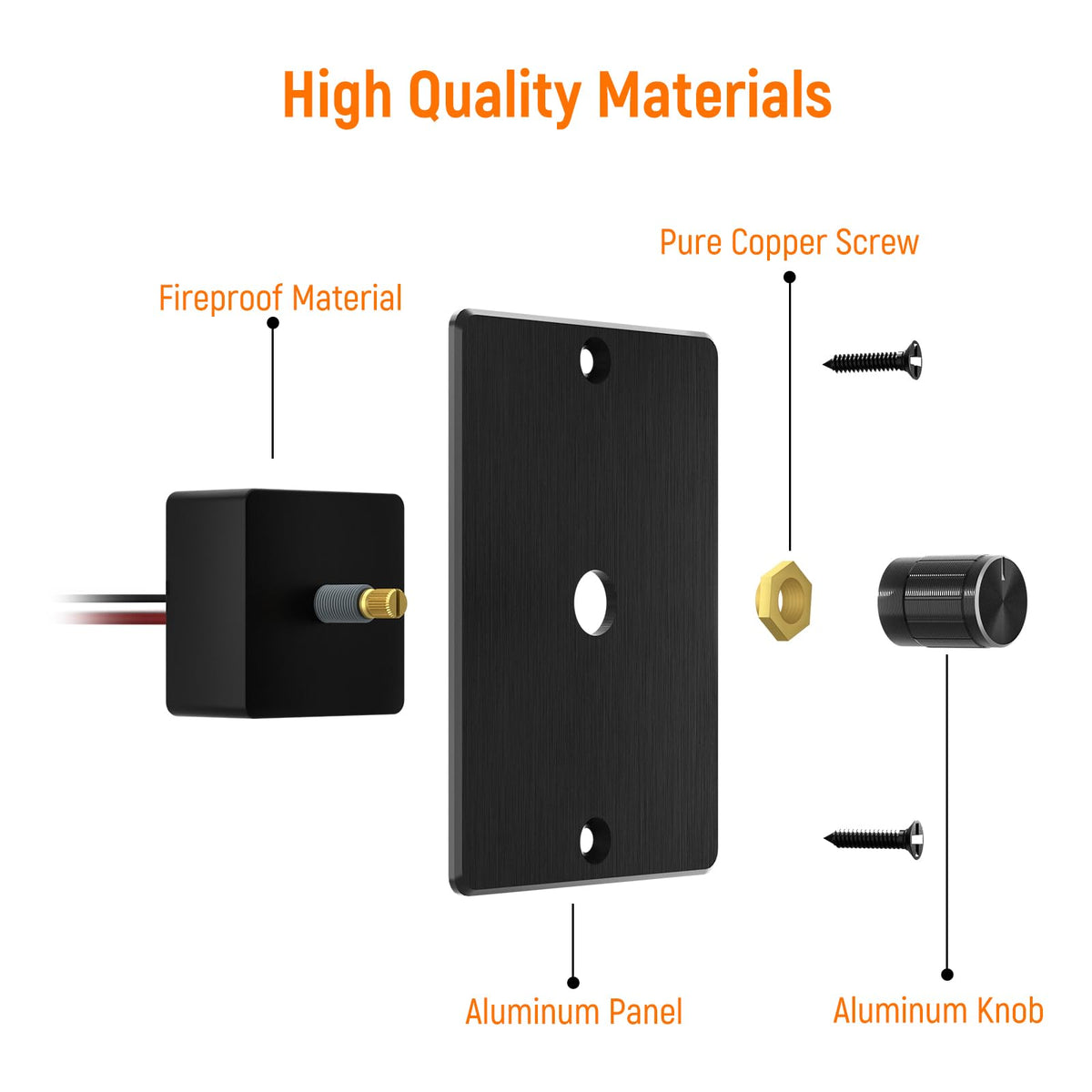

• Aluminum faceplate for durable mounting and heat dissipation.
• Memory function returns to previous brightness after power cycles.
• Linear, full-range dimming from very low to full brightness.

Who is this for? Installers, RV owners, boat builders, vanlifers, and vehicle customizers who need a reliable, panel-ready DC dimmer will find this Obeaming unit well suited to retrofit and OEM applications. It’s aimed at people wanting an easy-to-use, durable control with precise PWM dimming for LED strips and low-voltage fixtures, provided total load stays within the 15A rating.
