OEMTOOLS Exhaust Back Pressure Tester Gauge Kit — Dual-Scale 2.5" Gauge, M12/M18 Adapters, 6 ft Hose

The OEMTOOLS 37263 Exhaust Back Pressure Tester/Gauge kit is a portable diagnostic tool that measures exhaust back pressure through the oxygen sensor to help locate restrictions such as catalytic converter blockages.

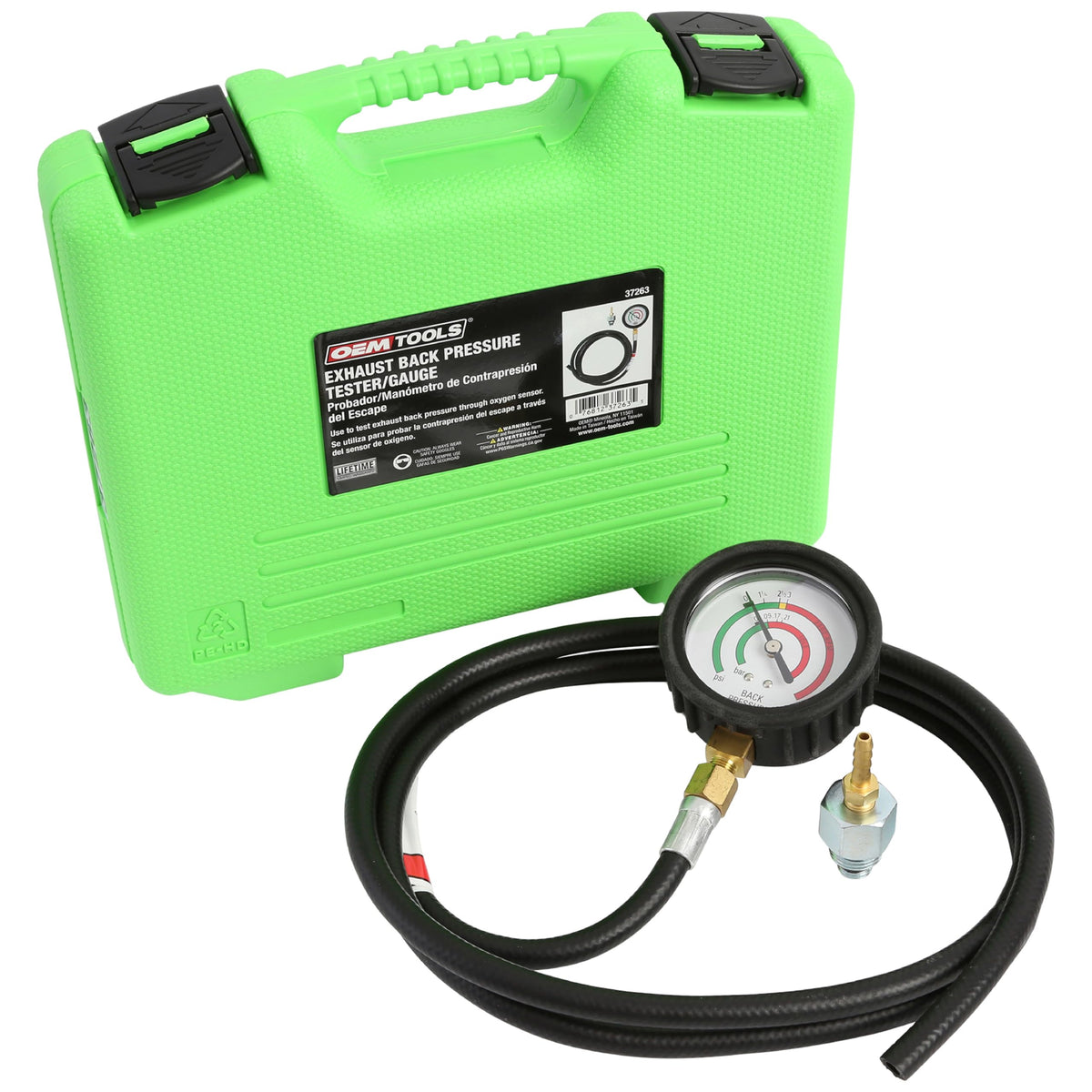

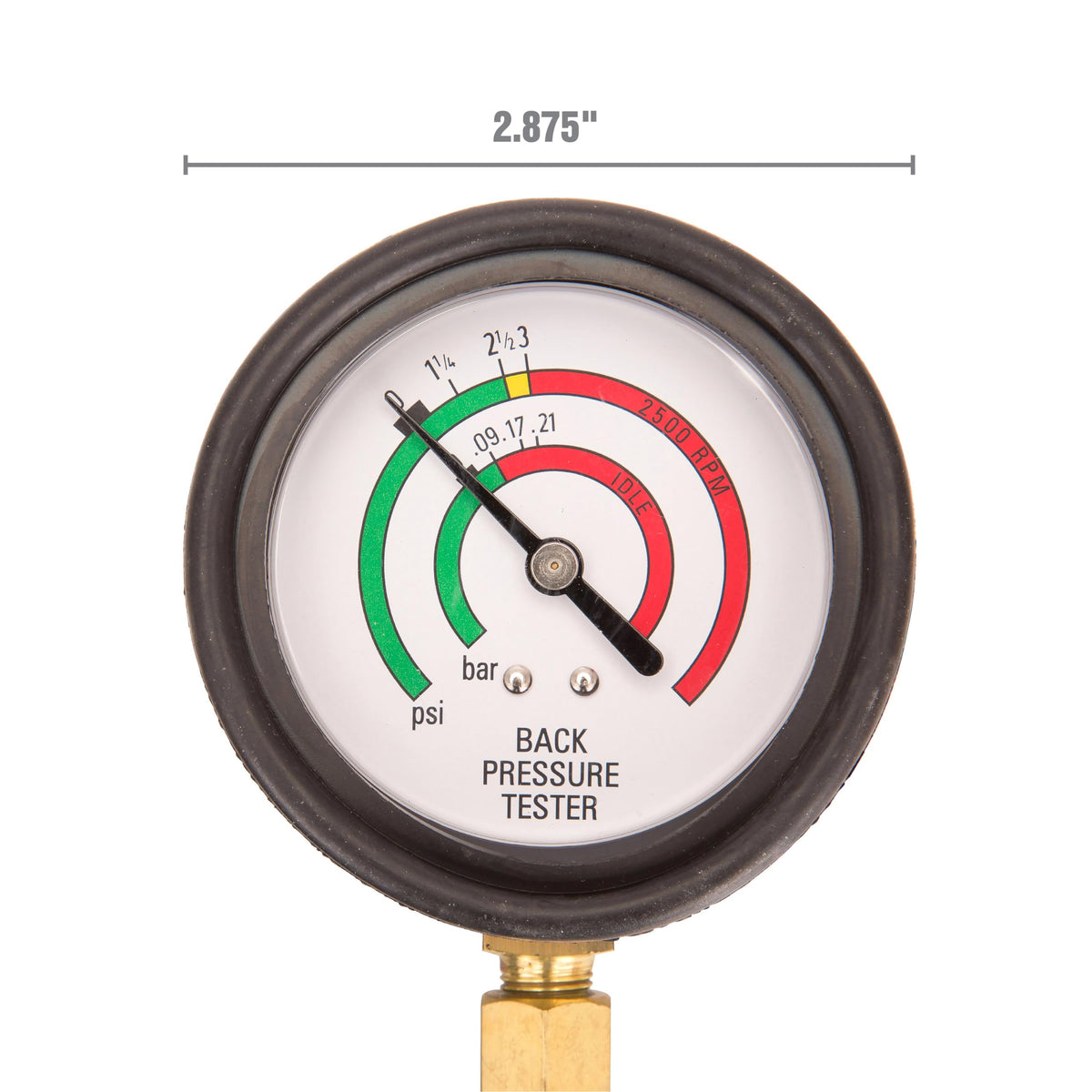

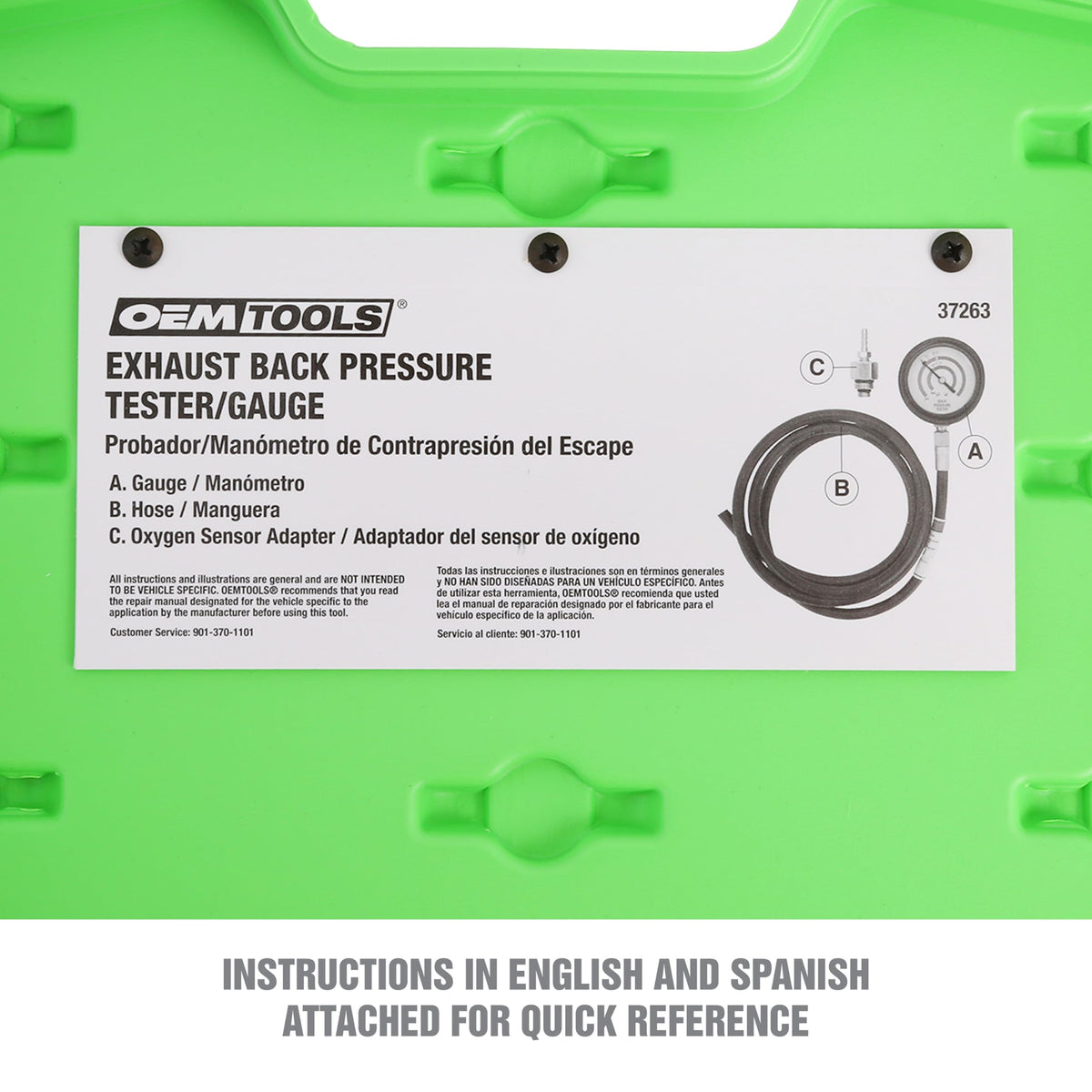

This compact kit combines a 2-1/2" dual-scale gauge, two oxygen-sensor thread adapters, a six-foot test hose and a protective case so you can quickly check exhaust back pressure from the driver's seat. The gauge uses contrasting colored bands and clear psi/bar markings to show relative pressure at idle and at higher engine speeds without complicated conversions. Built to fit most modern cars and light trucks, it’s designed for both shop technicians and home mechanics who need a straightforward way to assess exhaust flow issues.

How do I use the exhaust back pressure tester safely and effectively?

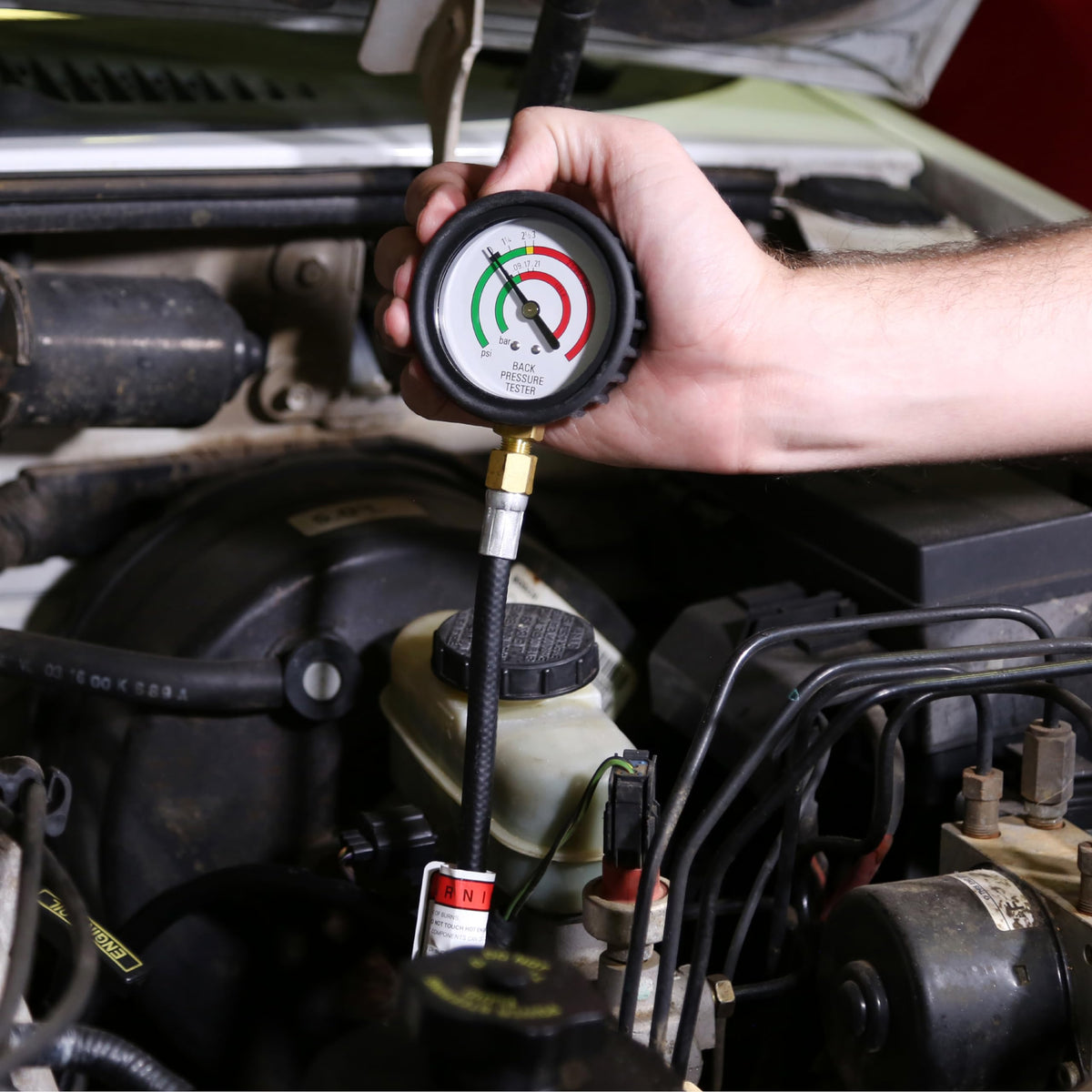

Install the correct adapter (M12 or M18) into the oxygen-sensor bung, attach the hose and gauge assembly, then start the engine and read pressure at the specified engine speed. Perform tests at idle and around 2,500 RPM to compare baseline and loaded conditions. Always follow vehicle manufacturer guidelines for O2-sensor access and avoid hot surfaces.

• Choose M12 or M18 adapter for a leak-tight fit.

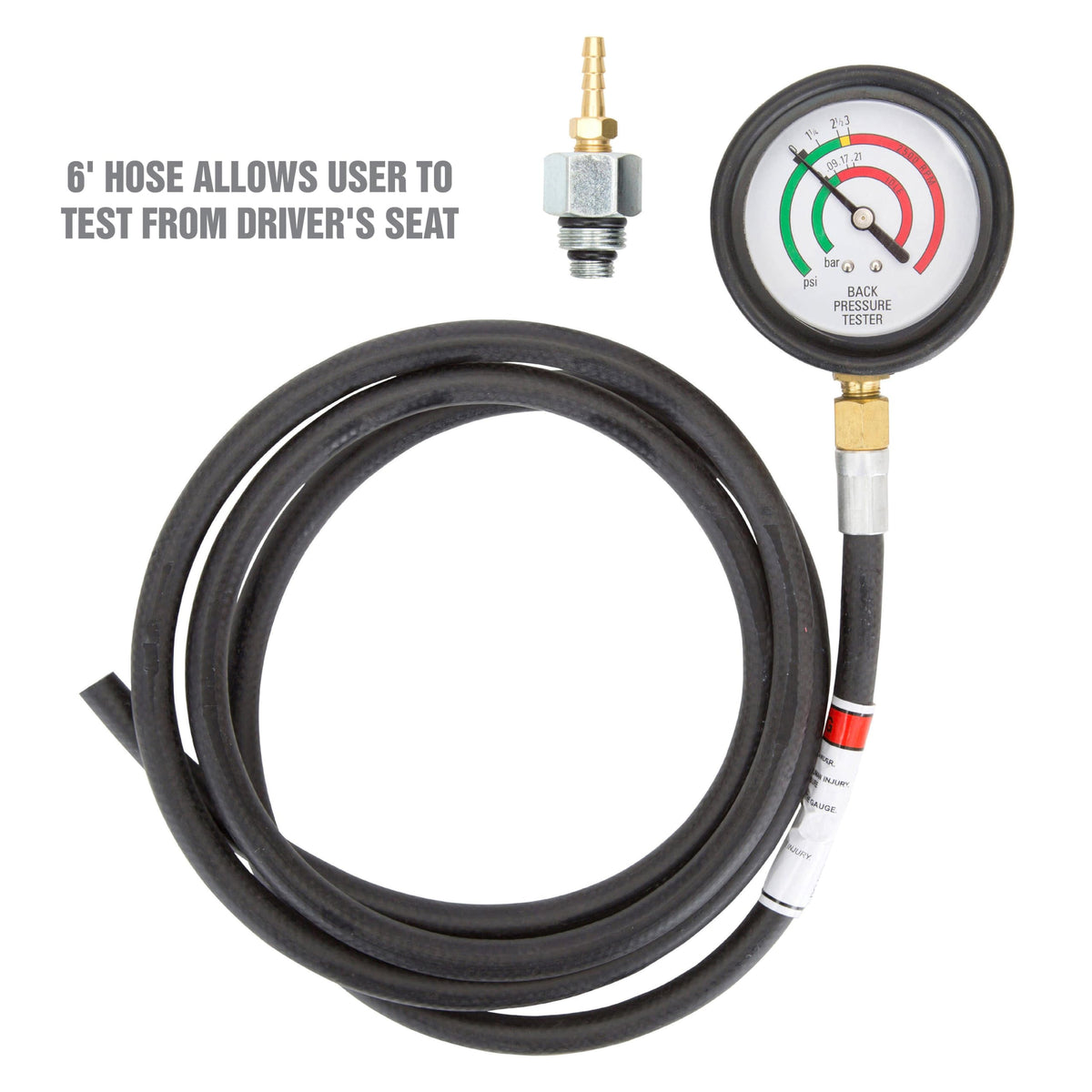

• Route the 6 ft hose away from hot components and moving parts.
• Record psi and bar values at idle and 2,500 RPM for comparison.

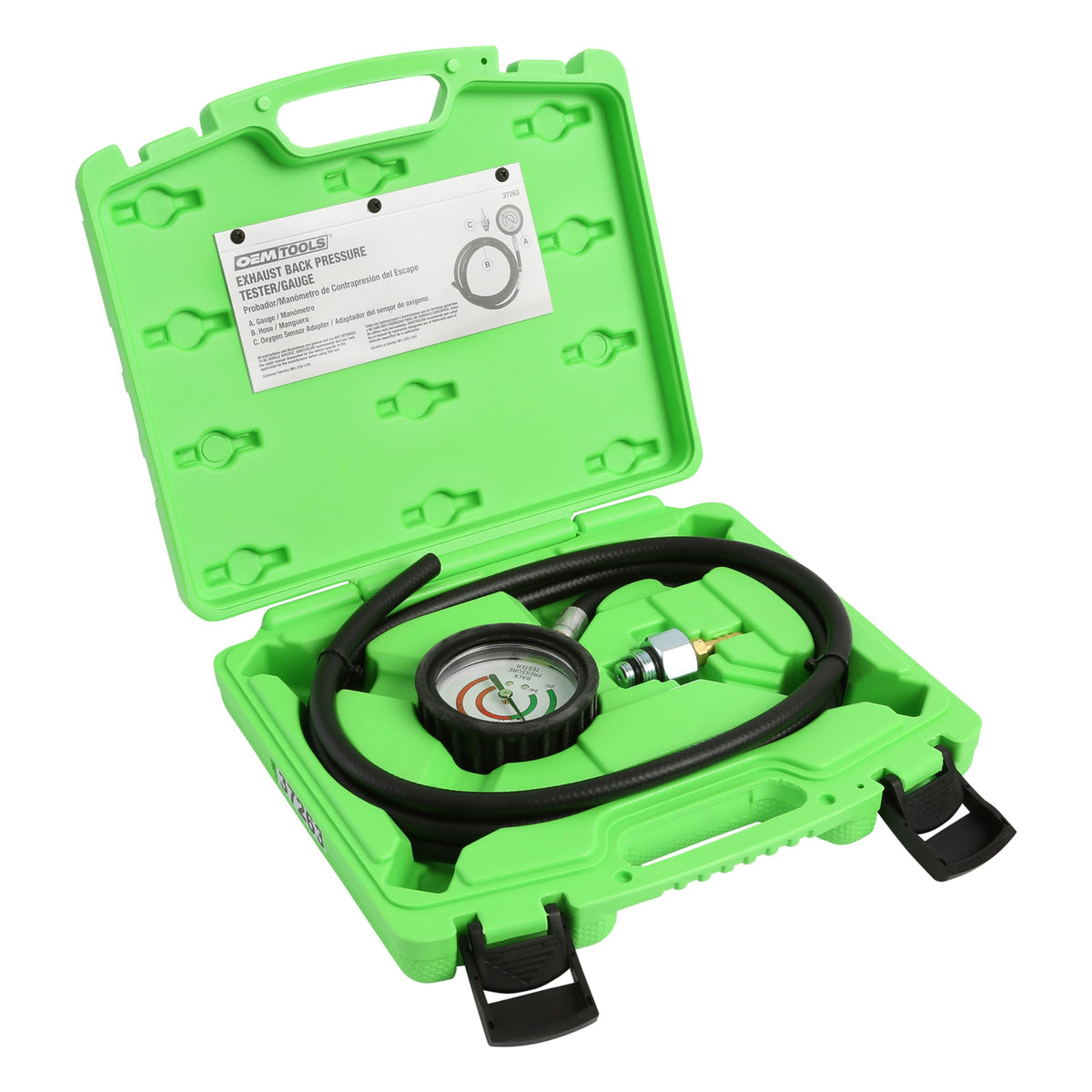

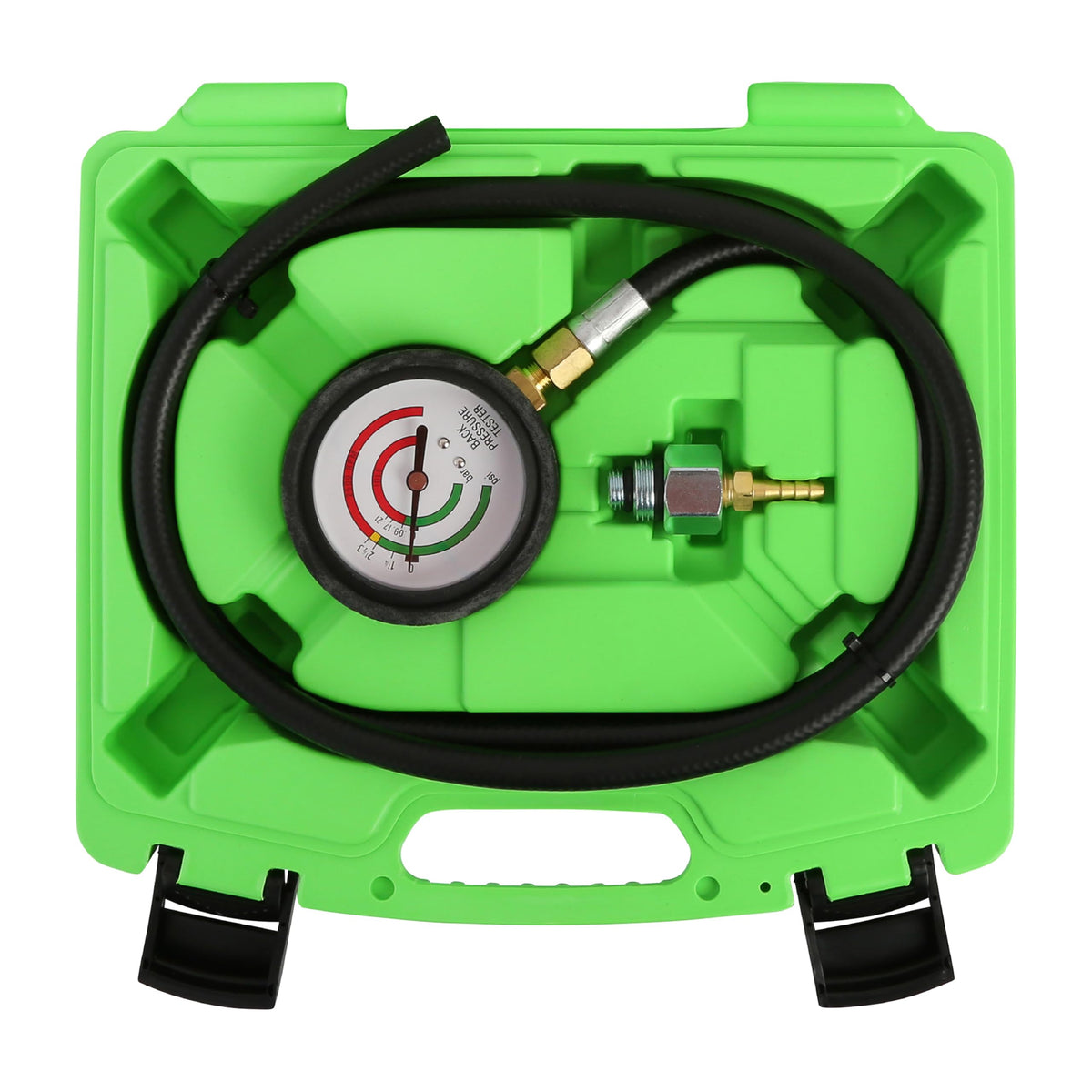

• Use protective case to store components after cooling.

What readings indicate a potential exhaust restriction?

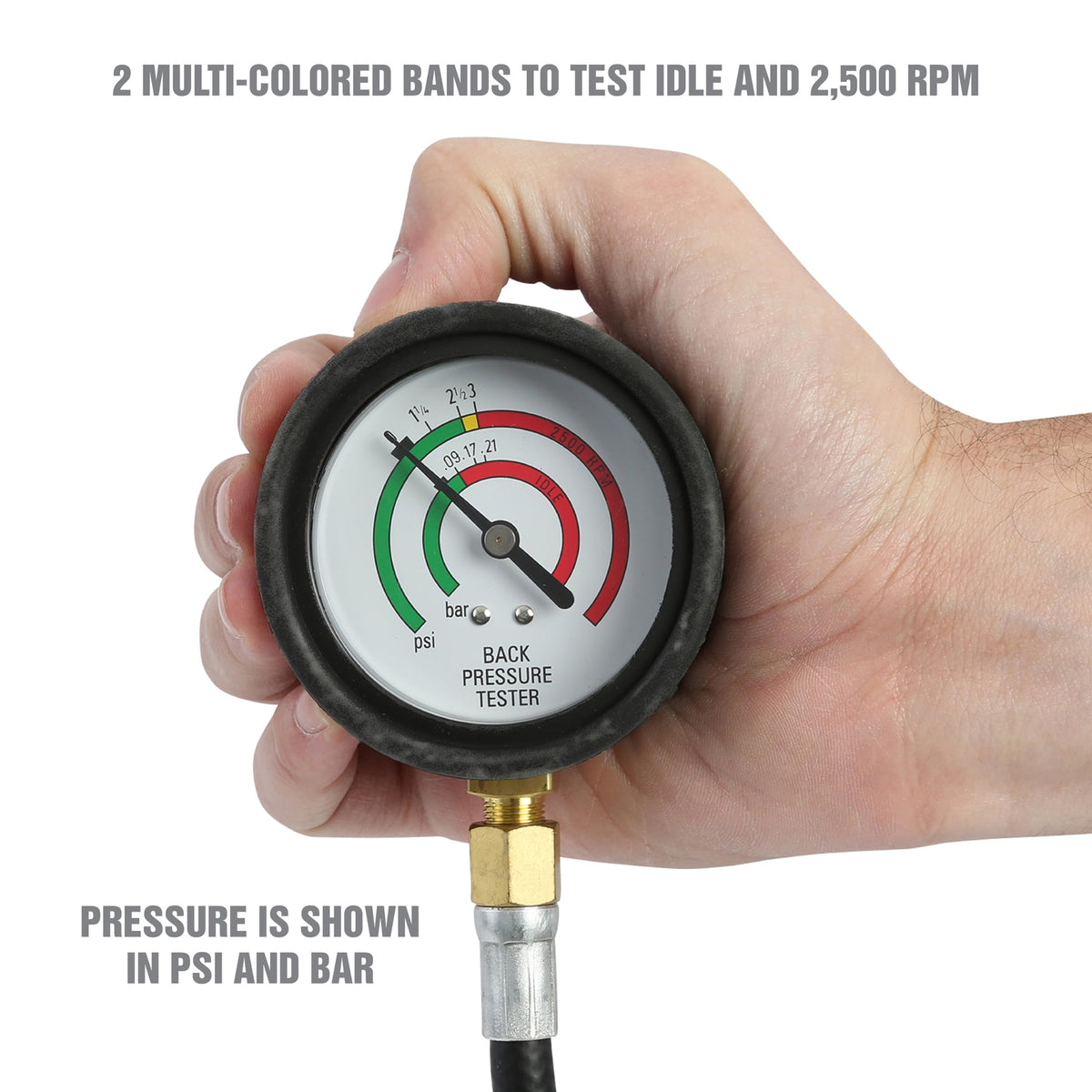

The gauge’s dual-colored bands make it easier to interpret whether pressure is within a normal range at idle and under revs. Elevated back pressure—especially a marked increase at both idle and 2,500 RPM—typically suggests a downstream restriction like a clogged catalytic converter, muffler damage or collapsed piping. Use the pattern of readings, not a single value, to guide further inspection.

• Normal low-pressure band indicates free-flowing exhaust.
• Higher pressure band at idle or 2,500 RPM signals possible restriction.
• Consistently rising pressure under load points to catalytic or piping issues.
• Compare readings between cylinders if available for diagnosis depth.

Which vehicles and scenarios is this kit compatible with?

With M12 and M18 oxygen-sensor adapters, the kit fits the majority of passenger cars and light trucks that use standard O2 sensor threads. It is especially useful when troubleshooting poor engine performance, reduced fuel economy or failed emissions tests where exhaust flow is a suspect. The long hose and compact case make it practical for mobile techs and DIYers alike.

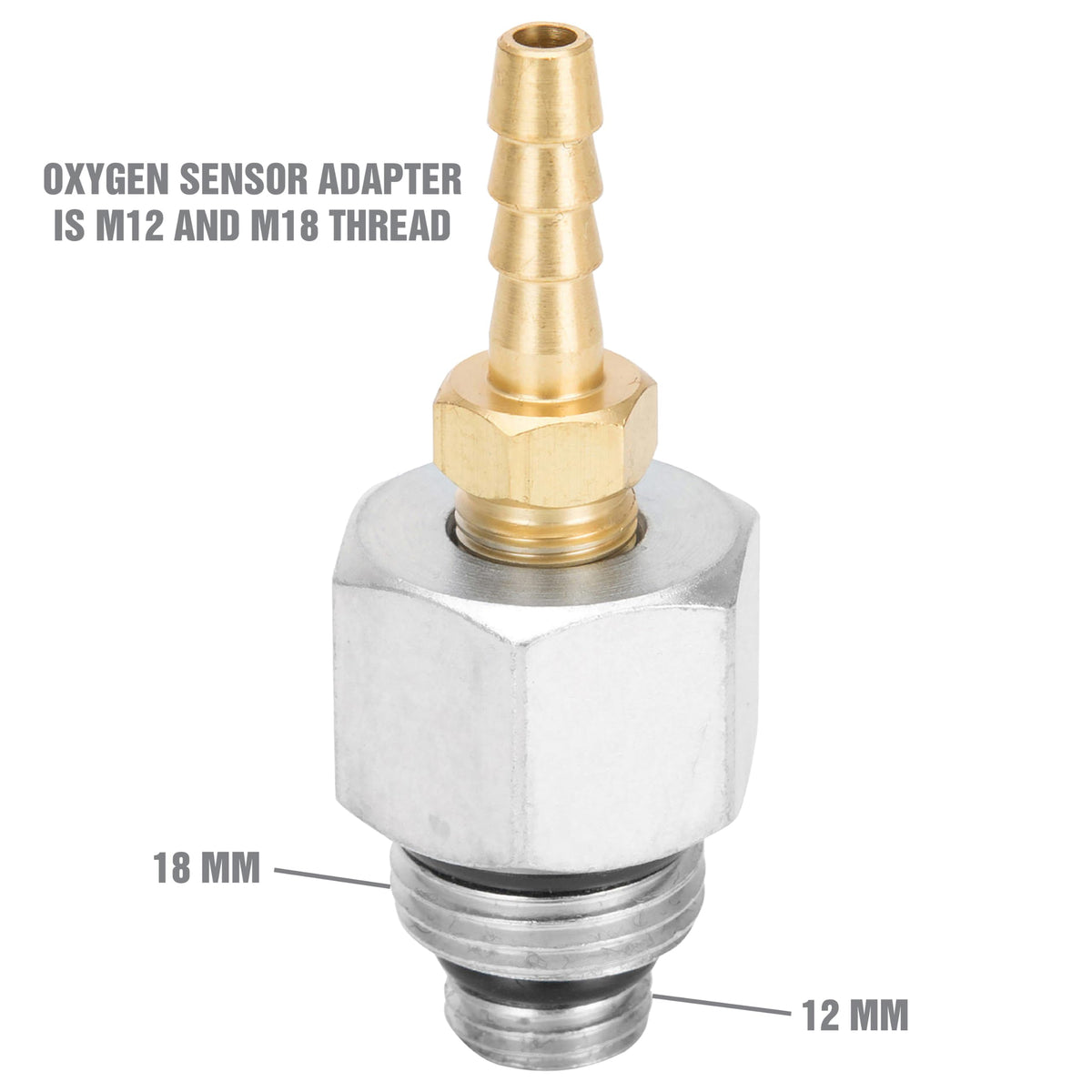

• Compatible with O2 sensor ports using M12 or M18 threads.
• Suitable for gasoline engines and many light-duty diesel applications.
• Useful for pre- and post-repair verification of exhaust repairs.
• Portable kit ideal for field service, shops, and home garages.

Who is this for: The OEMTOOLS 37263 is aimed at professional mechanics and knowledgeable DIY enthusiasts who want a reliable, easy-to-read way to measure exhaust back pressure without disassembling large sections of the exhaust. If you perform emissions troubleshooting, catalytic converter inspections, or periodic diagnostics, this kit gives quick, repeatable readings and durable storage for transport between jobs.
