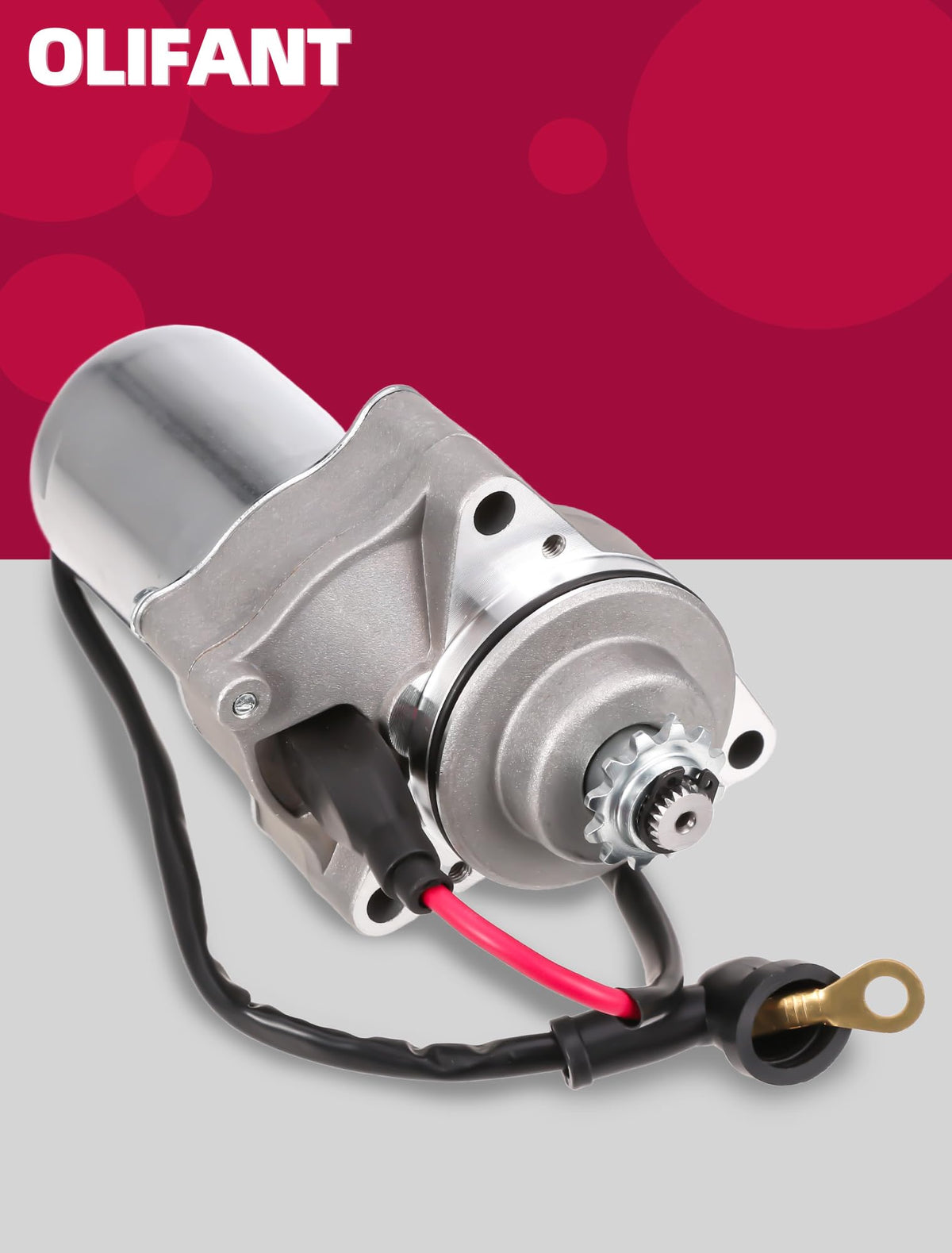

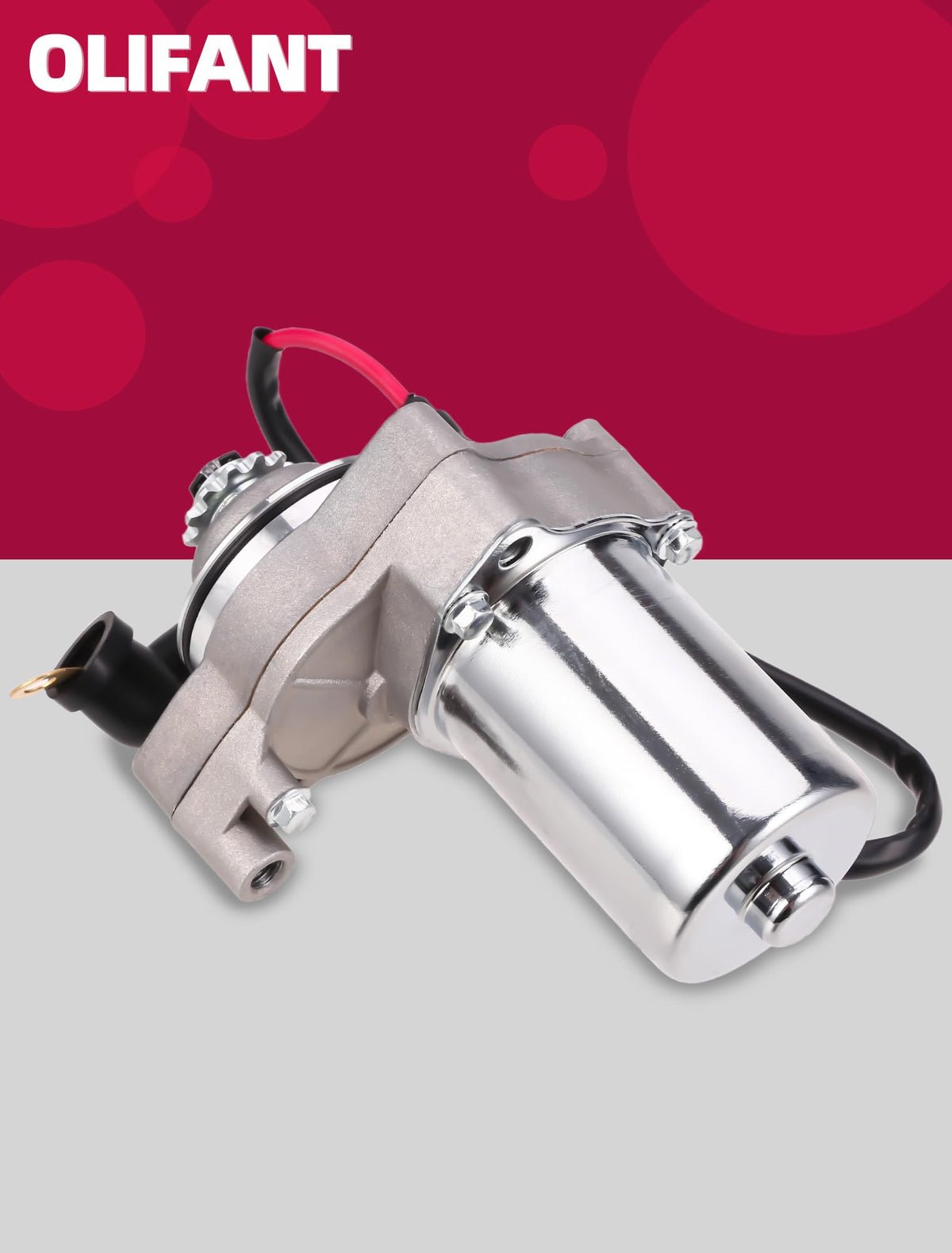

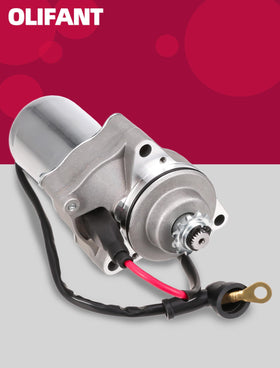

OLIFANT 12V Starter Motor for 50cc–125cc Chinese ATVs — 3-Bolt Top-Mount, 12-Tooth CCW with Wire Harness

OLIFANT's 3-bolt 12V starter motor is a direct-replacement PMDD starter designed to fit many 50cc–125cc Chinese 4-stroke ATVs and go-karts with a top-mount, 12-tooth sprocket.

If your TaoTao, SunL, Roketa, Coolster, Jetmoto or similar Chinese-built quad won’t crank and you’ve checked the battery and starter relay, this OLIFANT starter is built to match common 3-bolt top-mount applications. It ships with a plug-and-play wire harness and a CCW rotation motor that engages a 12-tooth pinion. Before ordering, confirm the existing starter uses a 3-bolt mounting pattern and a 12-tooth sprocket to ensure fitment.

How will this starter restore reliable starting on my ATV?

This unit replaces worn or failed starters by providing compatible mounting, electrical connections, and gear engagement. Its permanent magnet direct drive (PMDD) design offers compact, efficient starting torque suited to small 4-stroke engines.

• 12V PMDD motor optimized for small-displacement engines

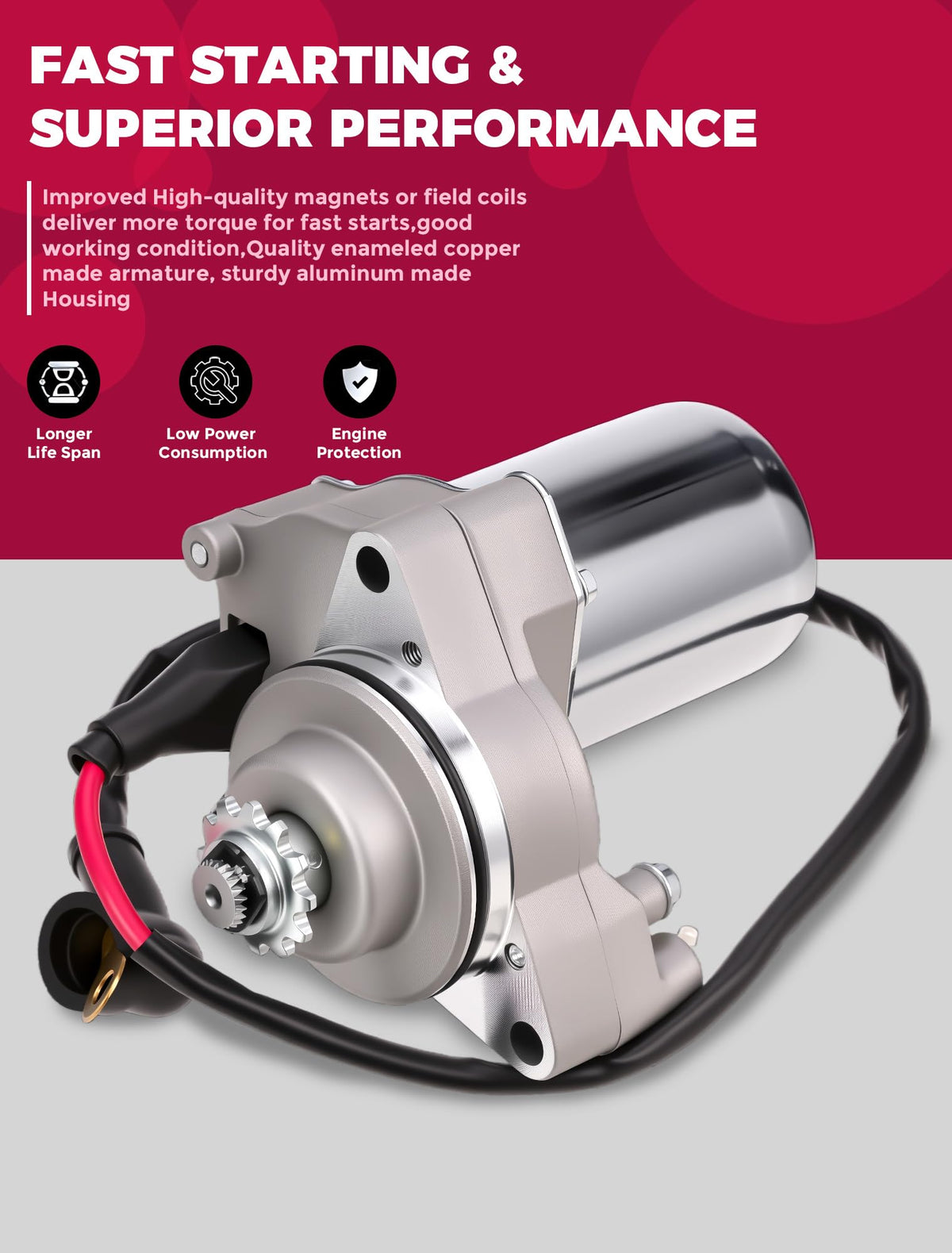

• 12-tooth pinion for direct gear mesh with common flywheels
• CCW rotation to match many Chinese ATV models
• Includes wire harness to simplify installation

Will this starter fit my specific model of TaoTao, Roketa, or SunL?

It fits many Chinese-manufactured ATVs and utility quads with 50cc–125cc 4-stroke engines that accept a 3-bolt top-mount starter. Some models use a 2-bolt pattern or different gear counts, so visual confirmation is essential before purchase.

• Compatible with many TaoTao, SunL, Roketa, Coolster, Jetmoto models
• Works on 50cc–125cc 4-stroke ATVs, pit bikes, go-karts, dune buggies
• Not for 2-bolt starters or non-matching gear counts
• Confirm your unit is 3-bolt top-mount and 12-tooth prior to ordering

How difficult is installation and what tools are needed?

Installation is straightforward for anyone comfortable with simple mechanical and electrical work. Removal of the old starter and reinstallation of the OLIFANT unit usually requires basic hand tools and a short wiring swap using the supplied harness.

• Basic tools: ratchet, sockets, wrenches, and screwdrivers
• Disconnect battery before starting electrical work for safety
• Swap the starter, secure three mounting bolts, and connect the harness
• Test cranking before reassembling any covers or shrouds

What are the technical specs I should verify before buying?

Confirm these key attributes match your original starter to avoid fitment issues. If your current starter differs in bolt pattern, rotation, or tooth count, this OLIFANT unit may not be compatible.

• Mounting: 3-bolt top mount pattern
• Voltage: 12V, PMDD (permanent magnet direct drive)
• Rotation: counter-clockwise (CCW)

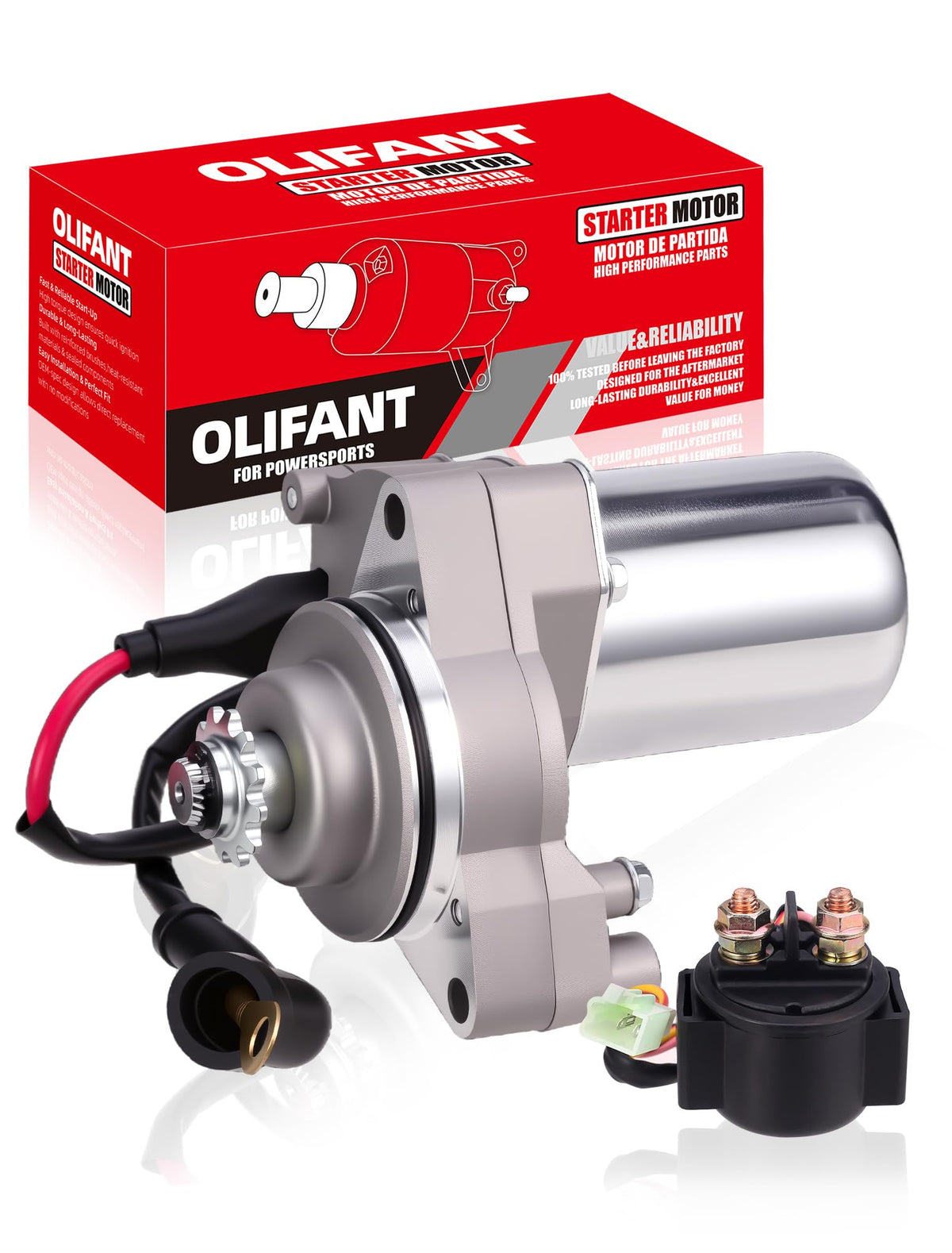

• Pinion: 12 teeth; includes wire harness and relay connection

Who is this for: Riders, repair shops, and DIY mechanics who maintain Chinese-built small ATVs, go-karts, pit bikes, or dune buggies and need a reliable 3-bolt replacement starter. If you have a 50cc–125cc 4-stroke vehicle with a top-mount 3-bolt starter and a 12-tooth pinion, this OLIFANT starter offers a cost-effective swap-in solution. If your machine uses a 2-bolt pattern, a different tooth count, or opposite rotation, select the matching replacement to ensure proper engagement and safe operation.
