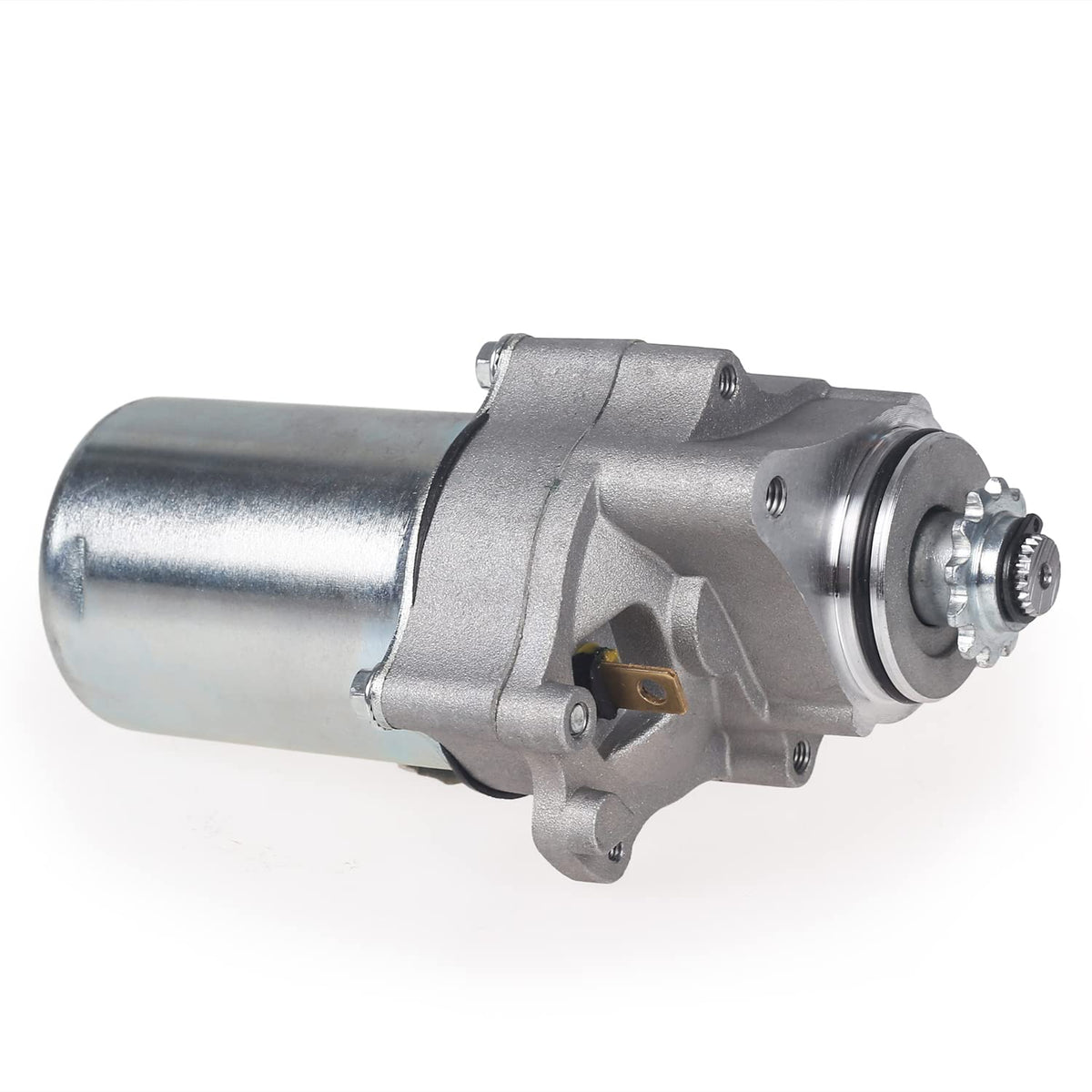

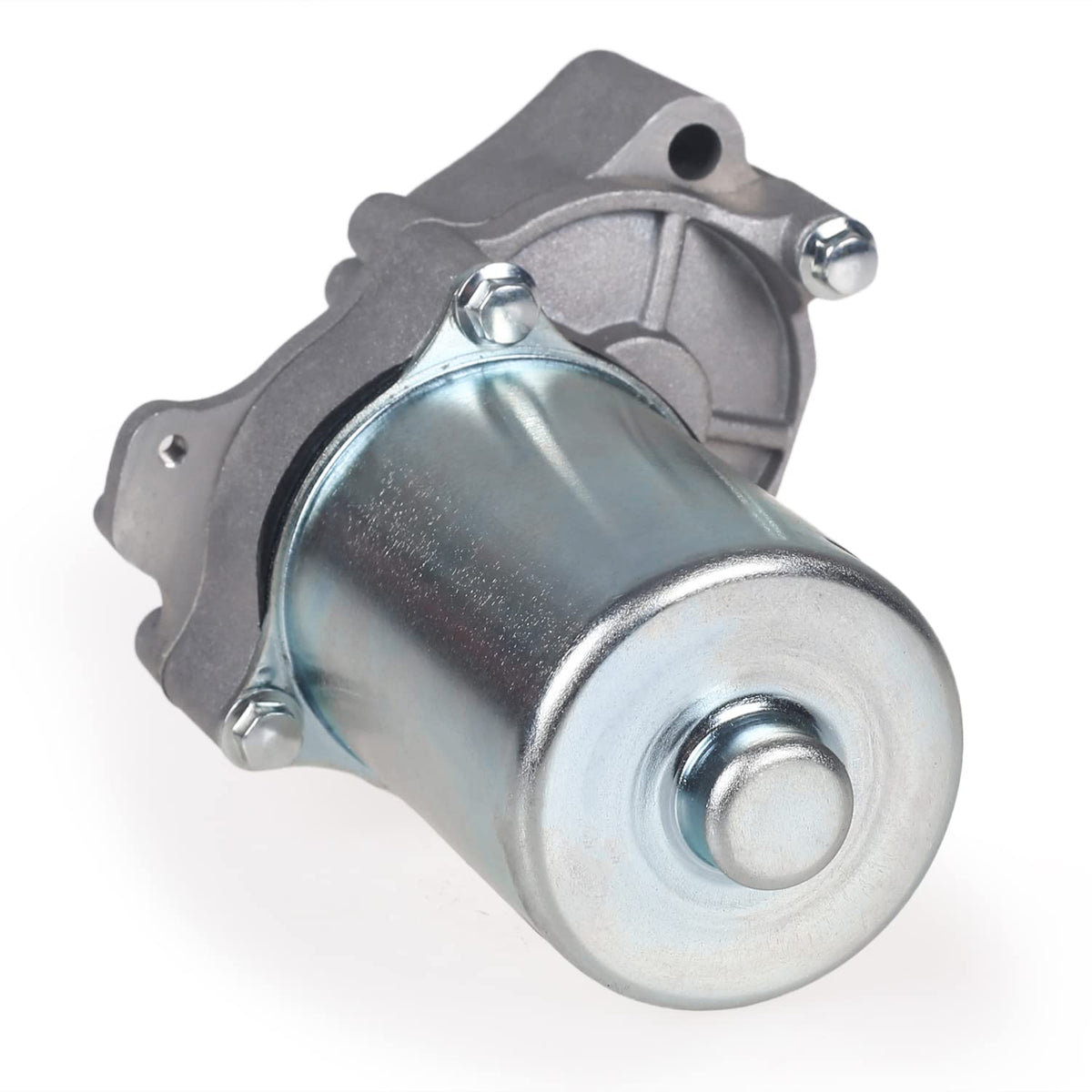

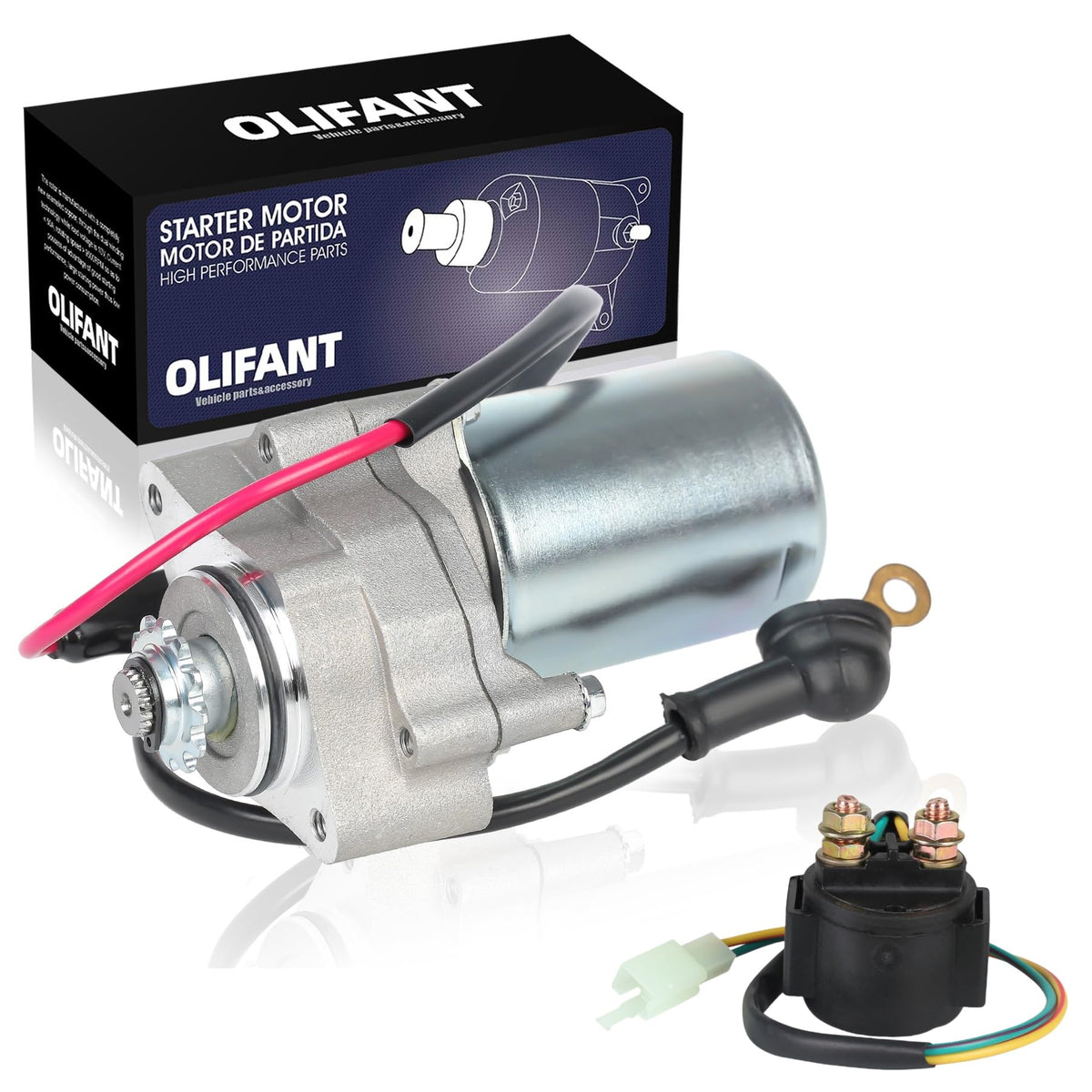

OLIFANT 2-Bolt ATV Starter for Chinese 110cc/125cc Clones — 68mm Bolt Spacing, 12T/22 Spline

If your small-displacement ATV won’t crank or the original starter has failed, this OLIFANT replacement provides a direct-fit option for many Chinese-manufactured 50cc–110cc youth ATVs and compatible models. Built with high-quality magnets, a copper-enameled armature and an aluminum housing, this starter targets quicker engagement and longer wear than cheaper aftermarket units. It’s specifically made for under-mounted engines with two-bolt bottom mounts — not for three-bolt starters.

Which ATVs will this starter work with?

This starter is engineered for a broad range of small Chinese-clone ATVs and many models from mainstream brands that share similar mounting patterns. It covers kid-focused machines from 50cc up to 110cc and fits models that use a 2-bolt lower bottom mount configuration.

• Compatible with many Chinese 50cc, 70cc, 90cc and 110cc kids ATVs
• Can fit various Honda, Yamaha, Kawasaski-style and other clone models that share bolt pattern
• Not compatible with 3-bolt starter housings
• Ideal for common makes like Kazuma, Redcat, Polaris-style clones, and similar

How do I know it will physically mount on my machine?

Confirm compatibility by checking your starter’s bolt spacing and spline/gear counts before ordering. This OLIFANT unit uses a 68mm (2.7") center-to-center bolt hole spacing, two mounting bolts, 12 teeth on the drive gear and 22 splines on the shaft.

• Bolt hole spacing: 68mm (2.7") center-to-center
• Mount type: 2-bolt lower bottom engine position only

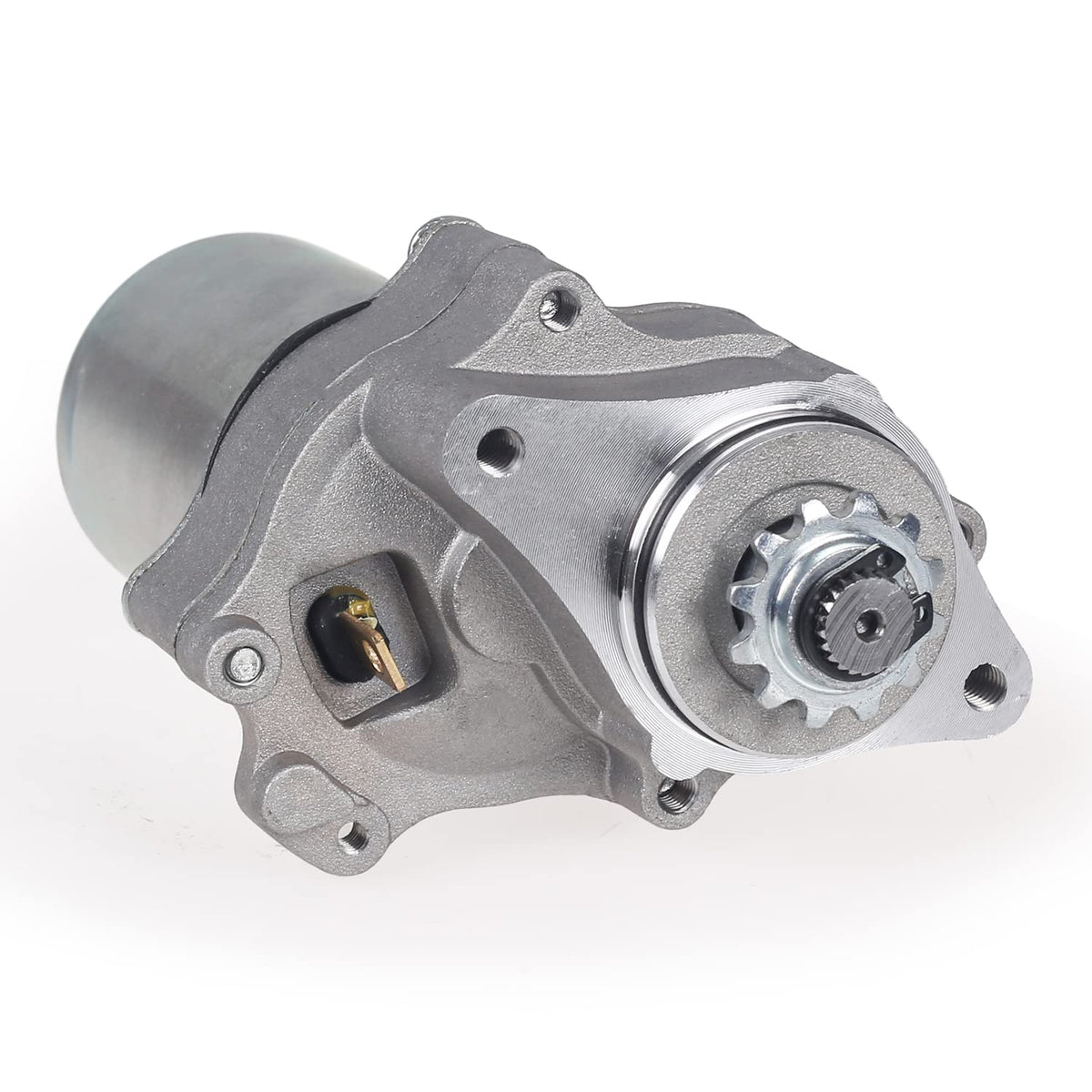

• Drive gear: 12 teeth for engagement with flywheel
• Shaft: 22 splines to match common clutch/flywheel interfaces

What materials and design features improve performance?

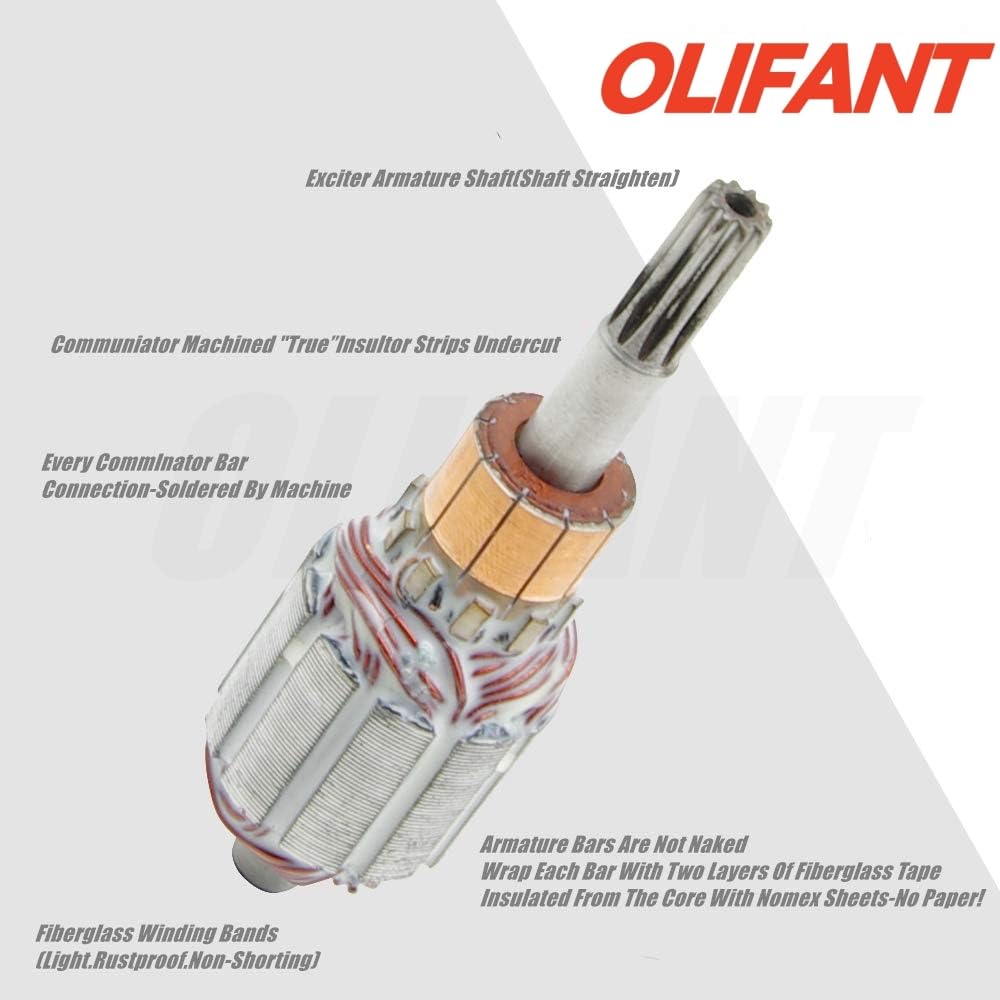

OLIFANT focuses on durability and starting torque by using stronger magnets, quality copper windings, and a robust aluminum housing. Those component choices reduce the chance of premature failure and provide cranking power tailored to small-displacement engines.

• High-quality magnets or field coils for better torque at startup
• Enameled copper armature for reliable electrical performance
• Sturdy aluminum housing for heat dissipation and impact resistance
• Precision-cut gear teeth and splines to ensure solid meshing with the flywheel

How do I install and maintain this starter?

Installation is straightforward for anyone comfortable with basic ATV maintenance: disconnect the battery, remove the old starter, match bolt spacing and spline alignment, then bolt the OLIFANT unit in place and reconnect wiring. Routine checks and keeping electrical connections clean extend service life.

• Disconnect battery first to avoid shorts
• Verify 68mm bolt spacing and 22-spline shaft match before mounting
• Tighten mounting bolts securely and reconnect wiring harness
• Periodically inspect connections and clean terminals to prevent voltage drop

Who is this for? This OLIFANT starter suits owners of Chinese-clone and many mainstream kids ATVs (50cc–110cc) that use a two-bolt lower-bottom starter mount and require a 12-tooth, 22-spline drive. If you need a durable, direct-replacement starter with improved magnets and solid construction for recreational youth machines, this unit is designed to meet those needs. Avoid ordering if your ATV uses a three-bolt starter or has different bolt spacing or spline/teeth counts.
