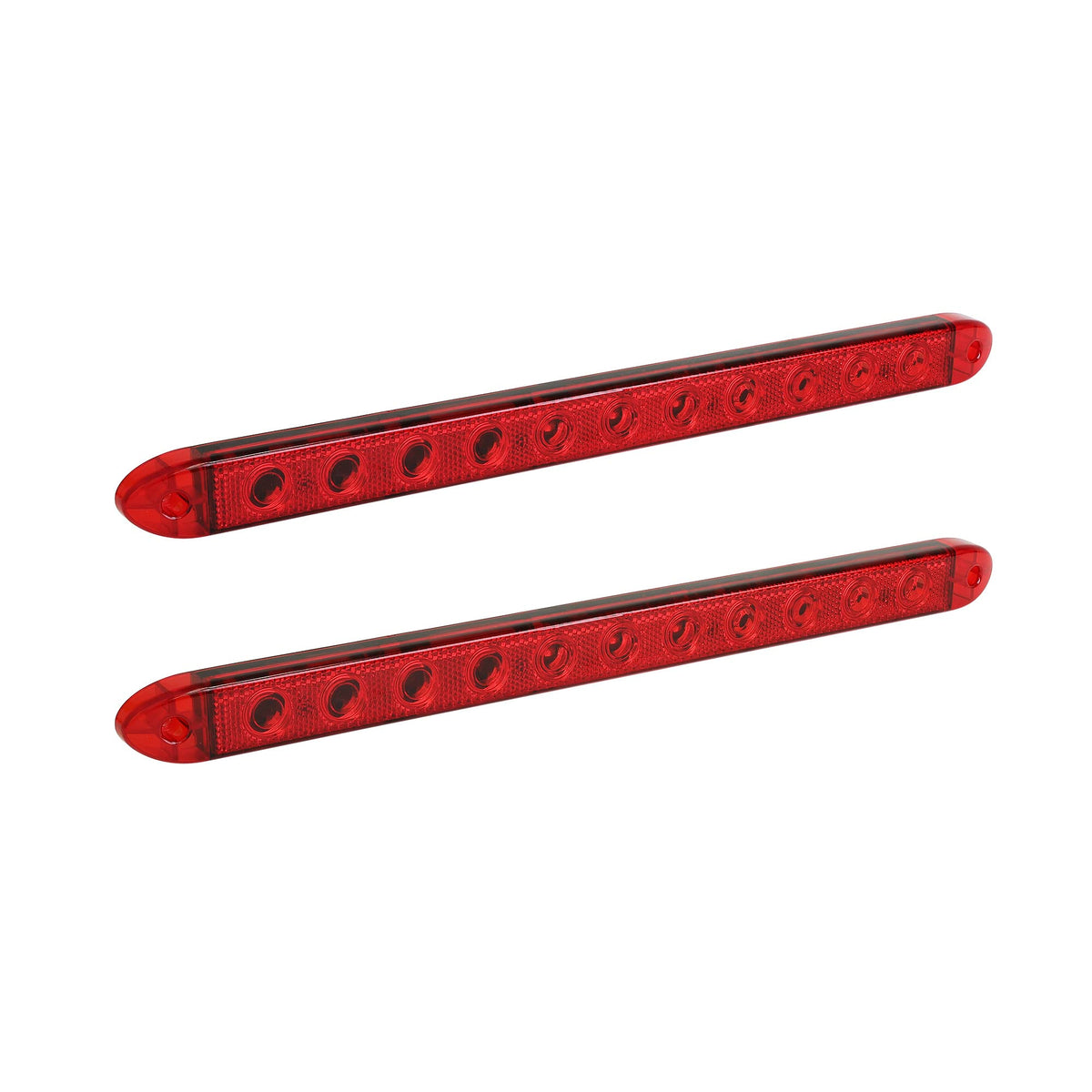

ONLINE LED STORE TRUE MODS 16" Red LED Trailer Light Bar 2-Pack — DOT-Compliant Rear ID/Tail with Brake, Turn & IP65 Weatherproof

TRUE MODS 16" red LED trailer light bars are DOT-compliant rear ID/tail lights that provide brake, turn and parking functions in a slim, waterproof housing.

These two 16-inch LED light bars from ONLINE LED STORE combine reflector-grade lenses with full brake, turn and tail light capabilities to meet trailer rear-marker requirements. Built in a low-profile 5/8" polycarbonate casing and rated IP65 for water resistance, the set is intended for use on trucks, semis, RVs and trailers—particularly those 80" wide or wider—where a slim, durable solution is needed for rear identification and signaling.

How does this light bar meet trailer rear-marker and signaling requirements?

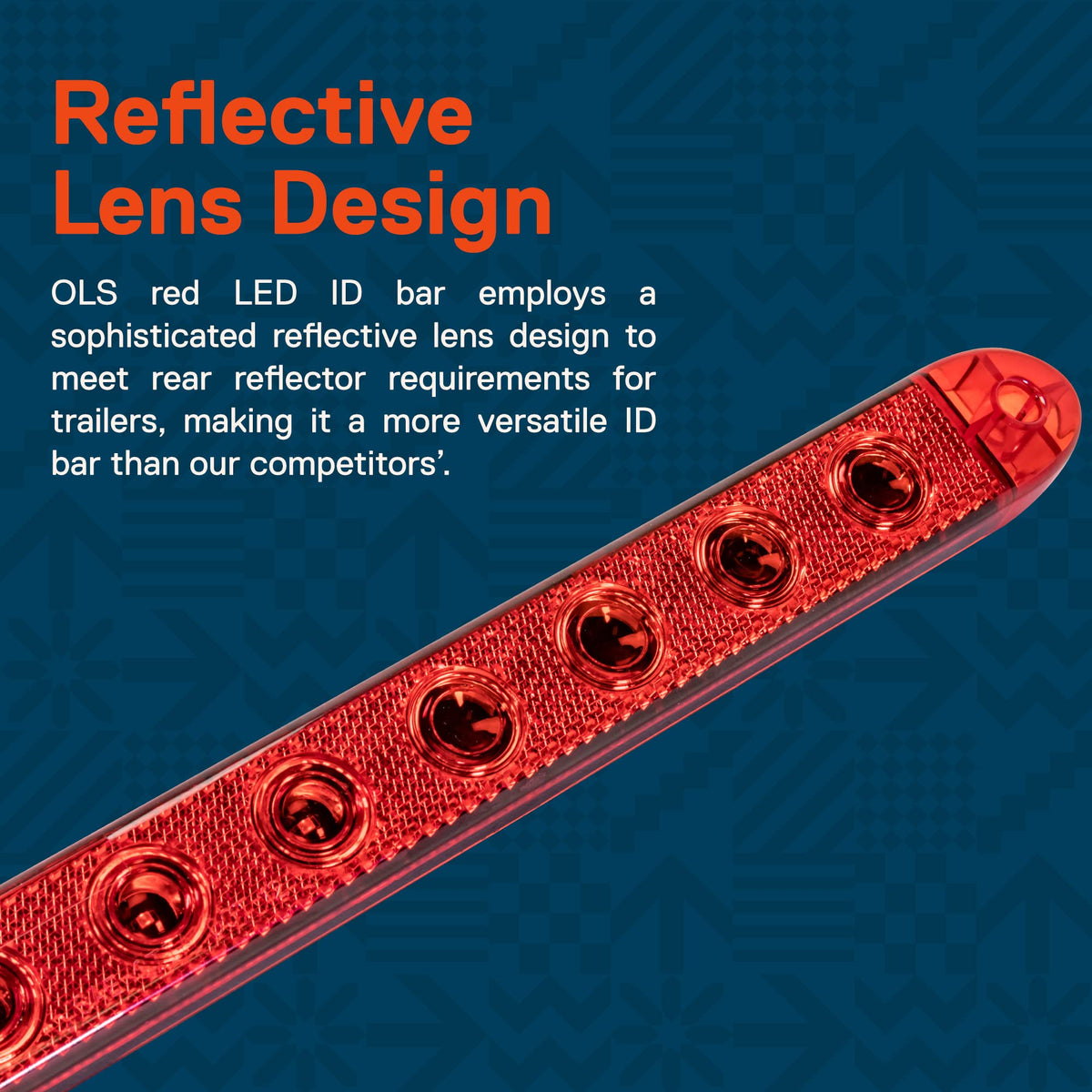

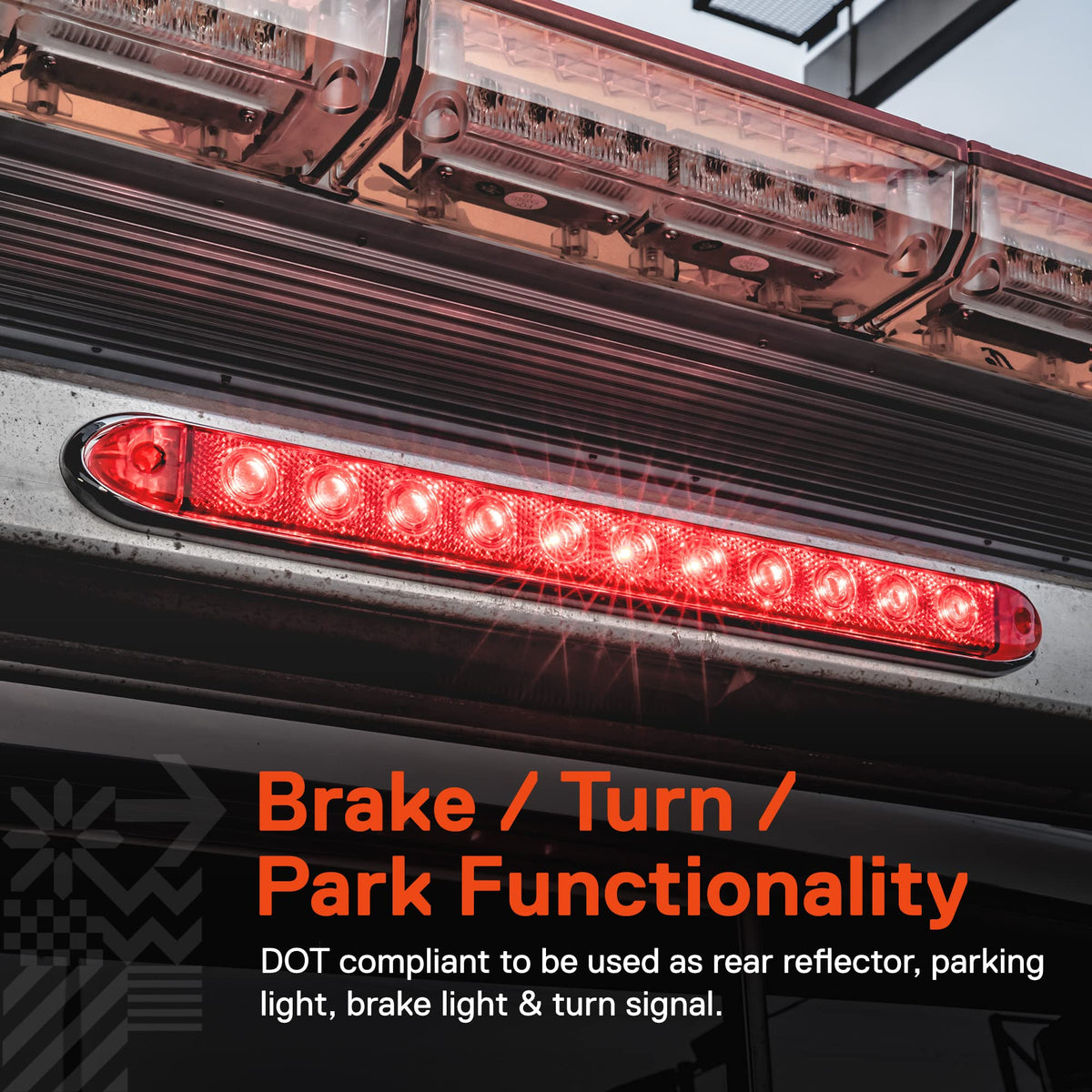

The TRUE MODS bars integrate a reflective lens plus active LEDs so they function as both passive reflectors and active brake/turn/parking lights. That combination helps satisfy DOT rear reflector rules while delivering bright visibility when signaling or braking. The printed wiring legend simplifies correct hookup to standard tail/stop/ground circuits.

• DOT-compliant reflector plus active LED output
• Brake, turn signal and parking light functionality in one unit
• Wiring legend (GND, TAIL, STOP) printed on the rear for fast installation

How durable and weather-resistant are these LED bars for outdoor use?

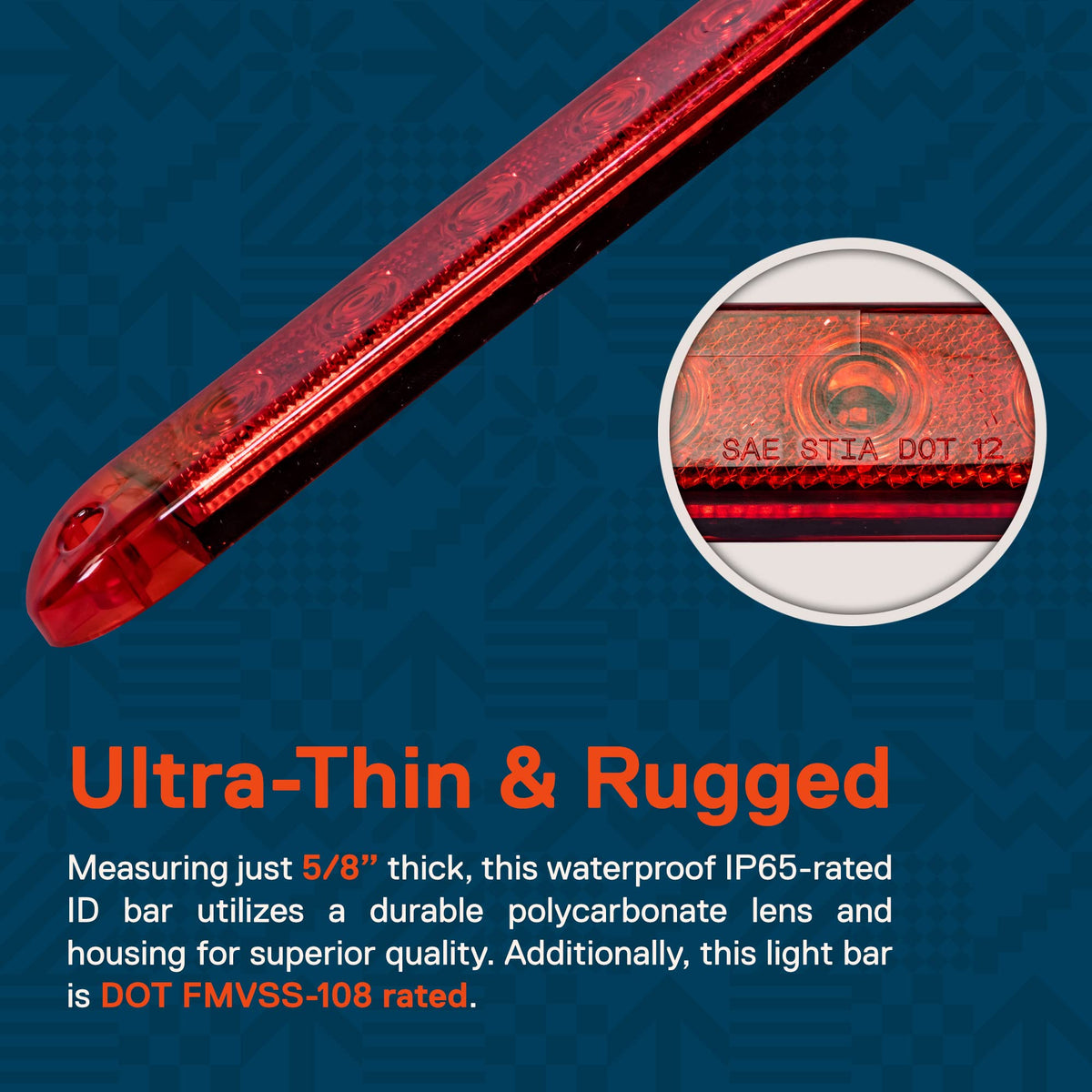

Designed with a rugged polycarbonate body only 5/8" thick, the light bars resist impacts and flex while keeping a slim profile that mounts close to the trailer surface. An IP65 rating protects the electronics against dust and low-pressure water jets, making them suitable for road exposure and regular inclement weather.

• 5/8" ultra-thin polycarbonate housing for strength and compact appearance
• IP65 waterproof rating for road and rain protection
• Sealed construction reduces moisture and corrosion risk

How easy is installation and what wiring do I need to know?

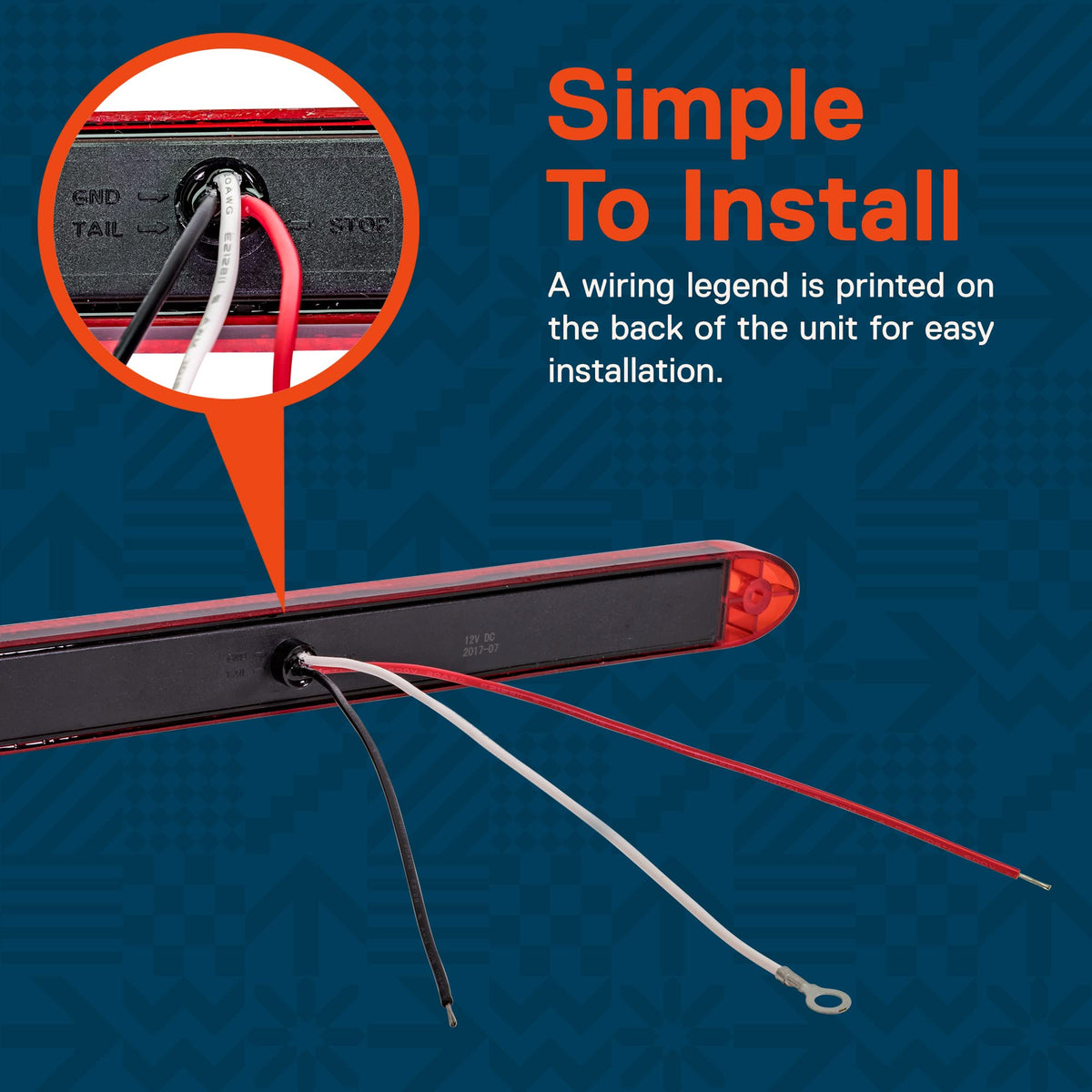

Installation is straightforward thanks to a wiring legend printed on the rear of each bar showing GND (ground), TAIL and STOP connections. The unit mounts to the trailer surface with standard fasteners and connects to existing tail, brake and turn circuits; no special controller required for basic operation. If upgrading multiple lights, match polarity and grounding to avoid hyper-flashing or dim output.

• Clear rear-printed labels for GND, TAIL and STOP wires
• Standard trailer wiring compatible—no extra module needed for basic functions
• Surface-mount installation with common fasteners and sealant recommended

What sizes and vehicle types is this light bar best suited for?

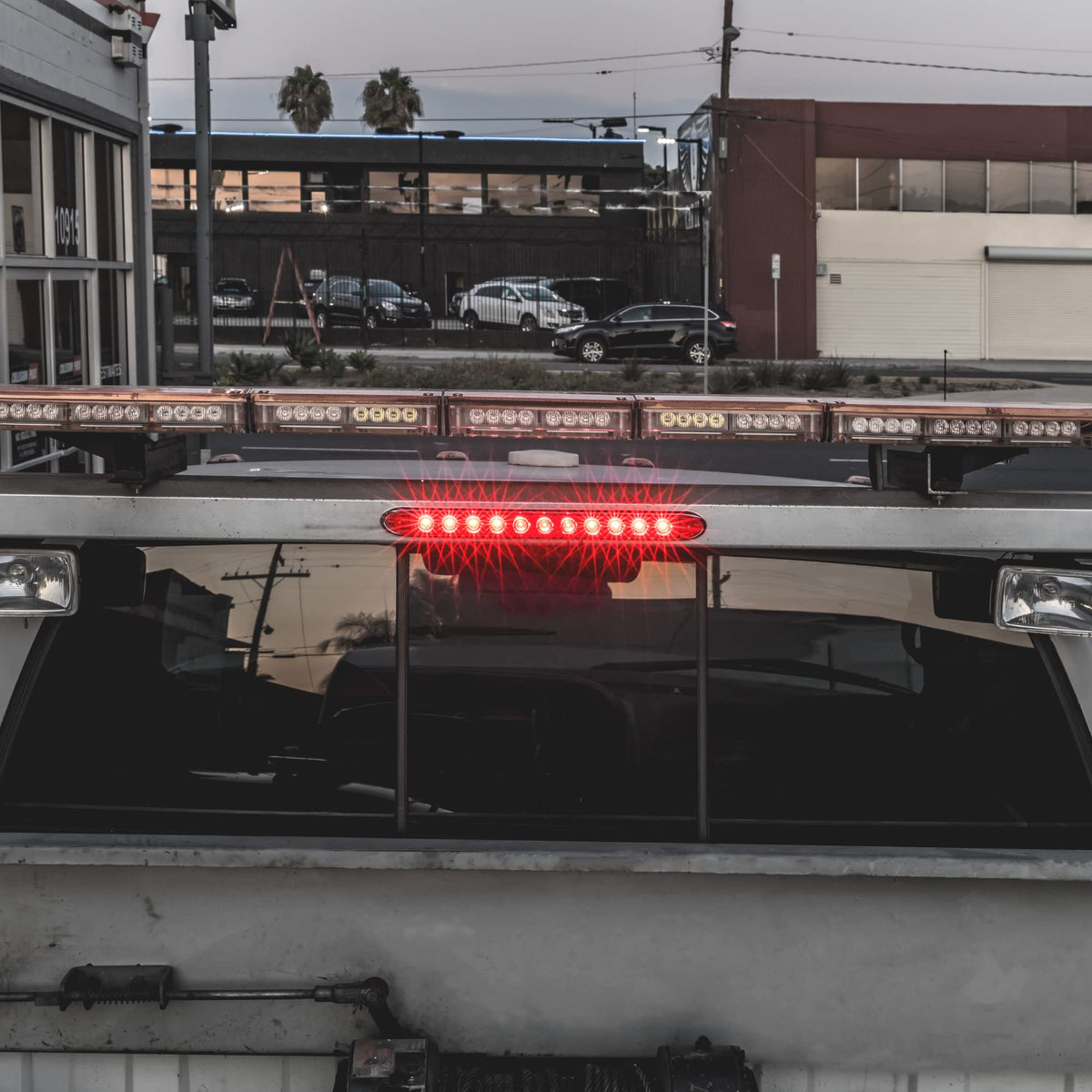

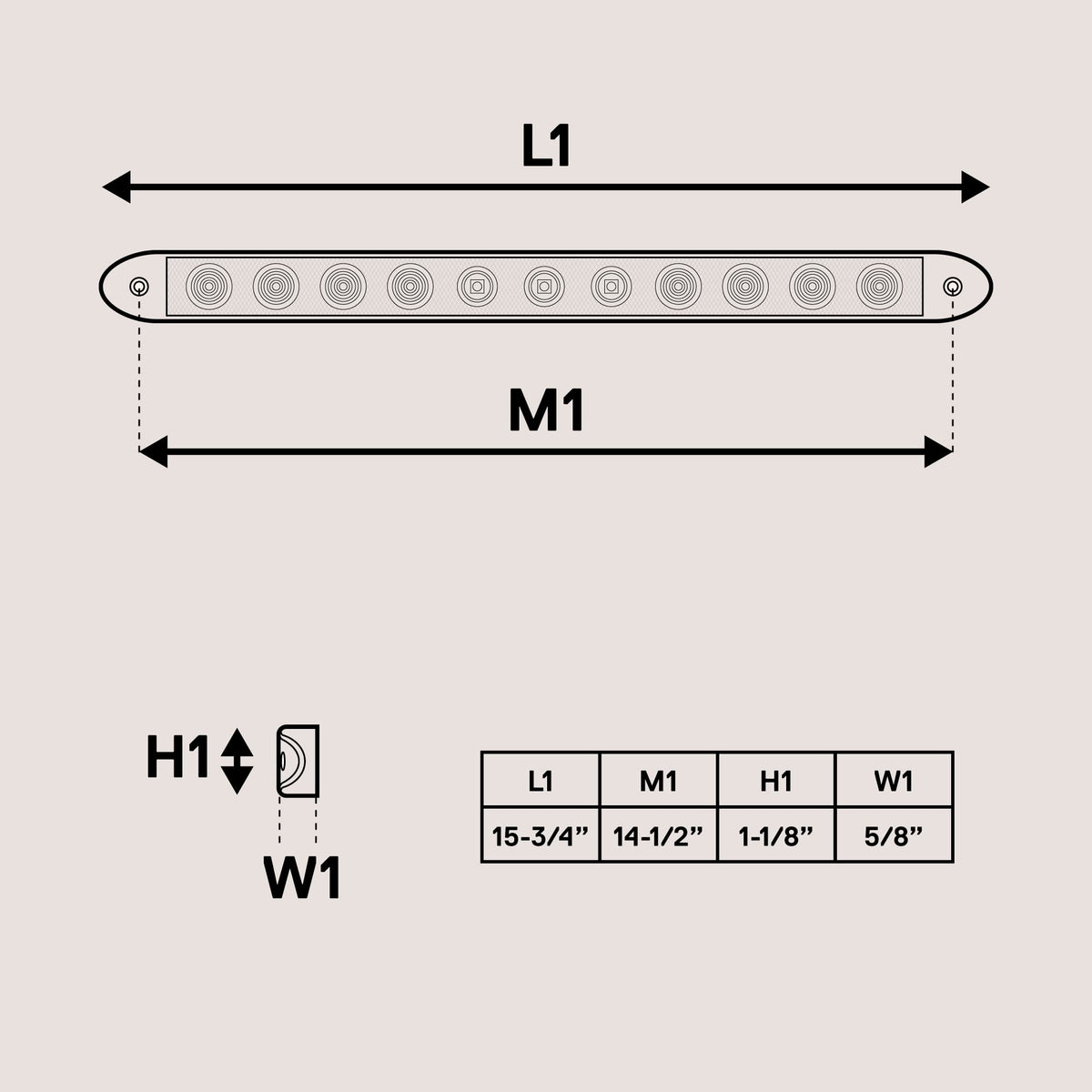

Each kit contains two 16" bars designed to be mounted at the rear of trailers, trucks, RVs and semis. The length and reflector design make them especially appropriate for trailers 80" wide or larger where a longer ID/tail unit improves visibility and meets marking regulations. They also work well as replacements for older or damaged rear marker lights.

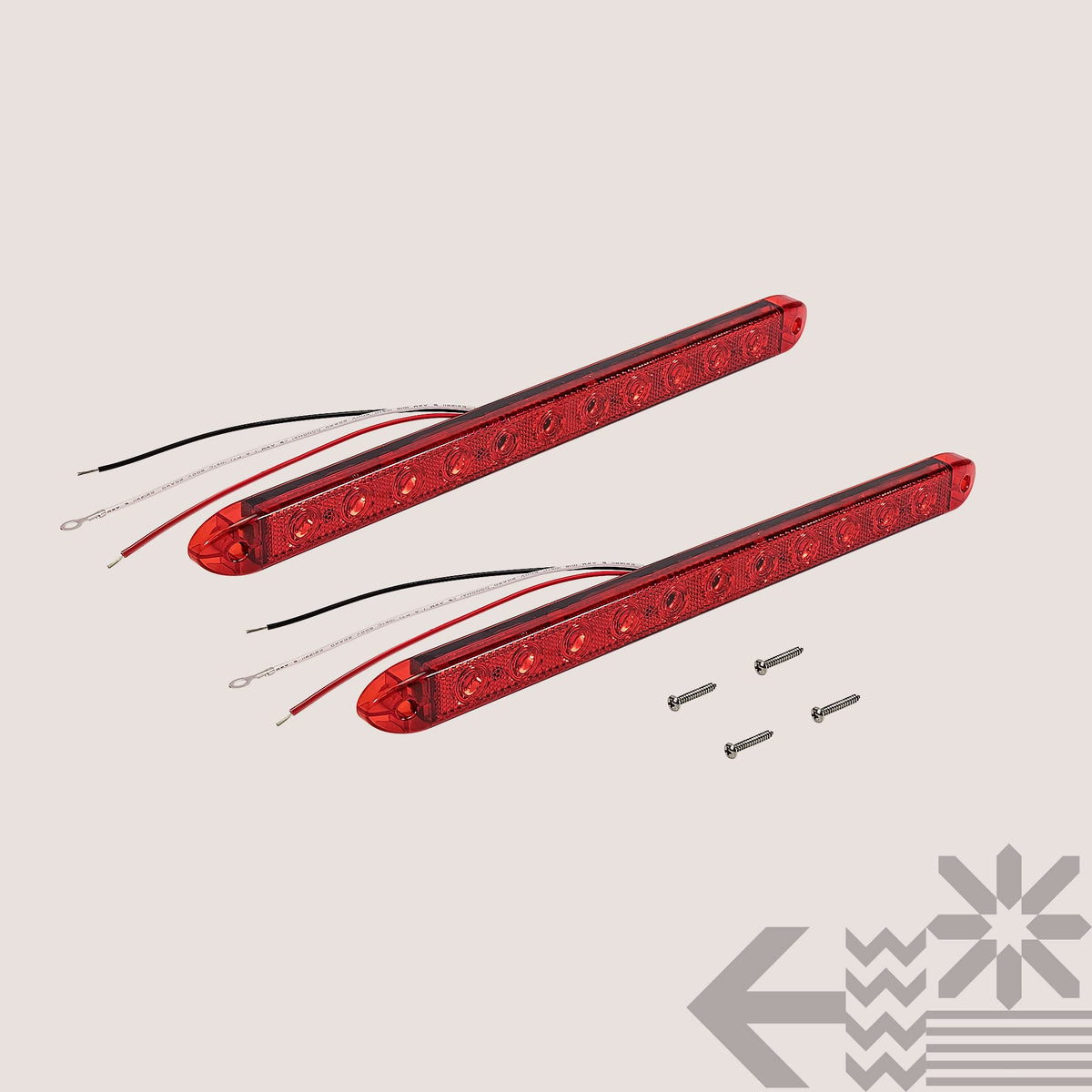

• Two 16" bars per kit for wide coverage
• Recommended for trailers 80" or wider, plus trucks, semis and RVs
• Suitable replacement for many factory rear ID/tail lights

Who is this for: The TRUE MODS 16" red LED light bars are intended for fleet managers, trailer builders, RV owners and truck operators who need DOT-compliant rear ID/tail lighting that combines reflector capability with active brake, turn and parking functions. Choose this kit if you want a low-profile, weather-resistant solution that installs quickly and improves rear visibility on wide trailers and heavy vehicles.
