Optronics One LED Low Profile RV Tail Lights Pair - Black Base, DOT-Approved Stop/Turn/Tail

Optronics One™ L.E.D. Low Profile Combination RV Tail Lights (RVSTLB6061-KIT) are a surface-mount pair of DOT-approved stop/turn/tail lights with a low-profile black base and a single LED diode that adjusts brightness for each function.

These combination lights are designed for trailers and recreational vehicles over 80 inches wide, delivering clear stop, turn and tail signaling from a compact housing. Built for surface mounting, the set includes a left and right lamp with hard-wired connections and a separate ground lead to ensure dependable electrical contact. The acrylic lens and plastic housing keep weight down while offering weather-resistant performance for exterior vehicle use.

How do these lights handle stop, turn and tail functions?

The lamps use a single multi-intensity LED diode that increases or decreases brightness depending on the active function, giving distinct visual cues for stopping, turning and standard tail lighting. This simplifies wiring and reduces component count compared with multi-bulb fixtures while maintaining compliance for road use.

• Single LED diode varies brightness per function
• Combination stop/turn/tail in one compact unit
• DOT approved for trailers wider than 80 inches

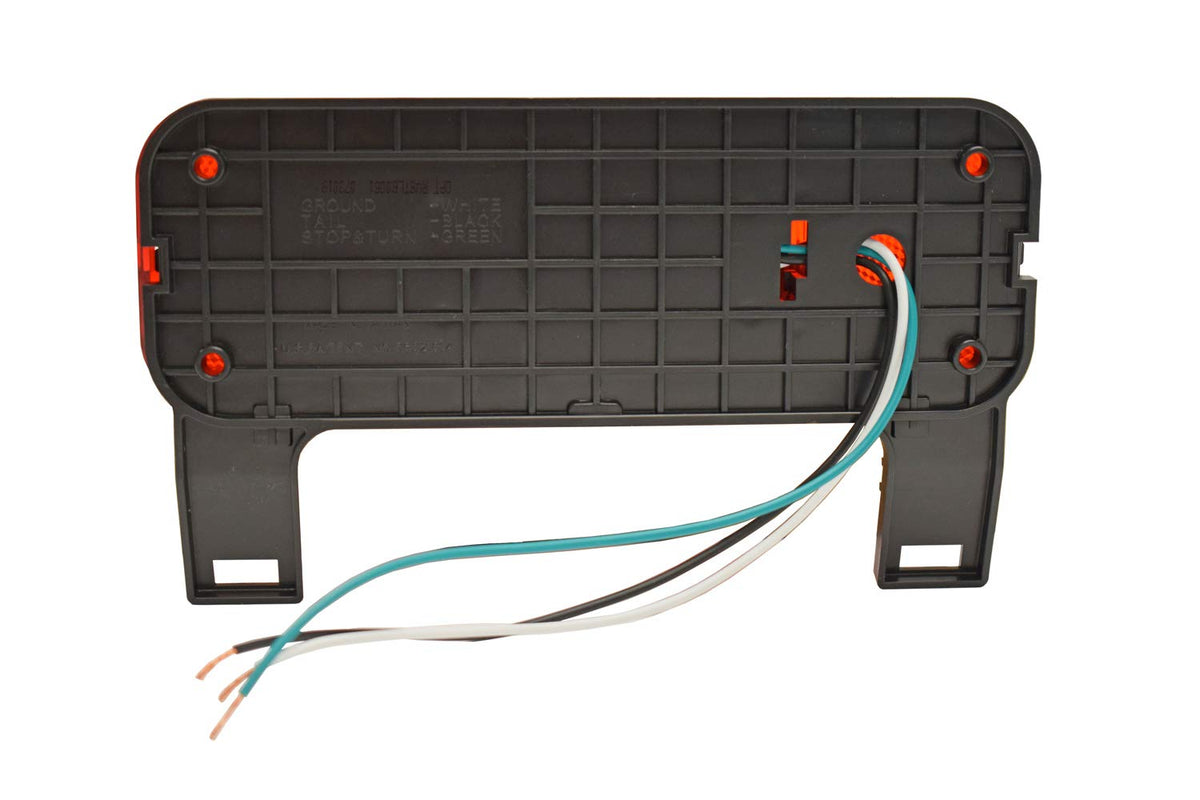

What are the physical and mounting specifications I need to know?

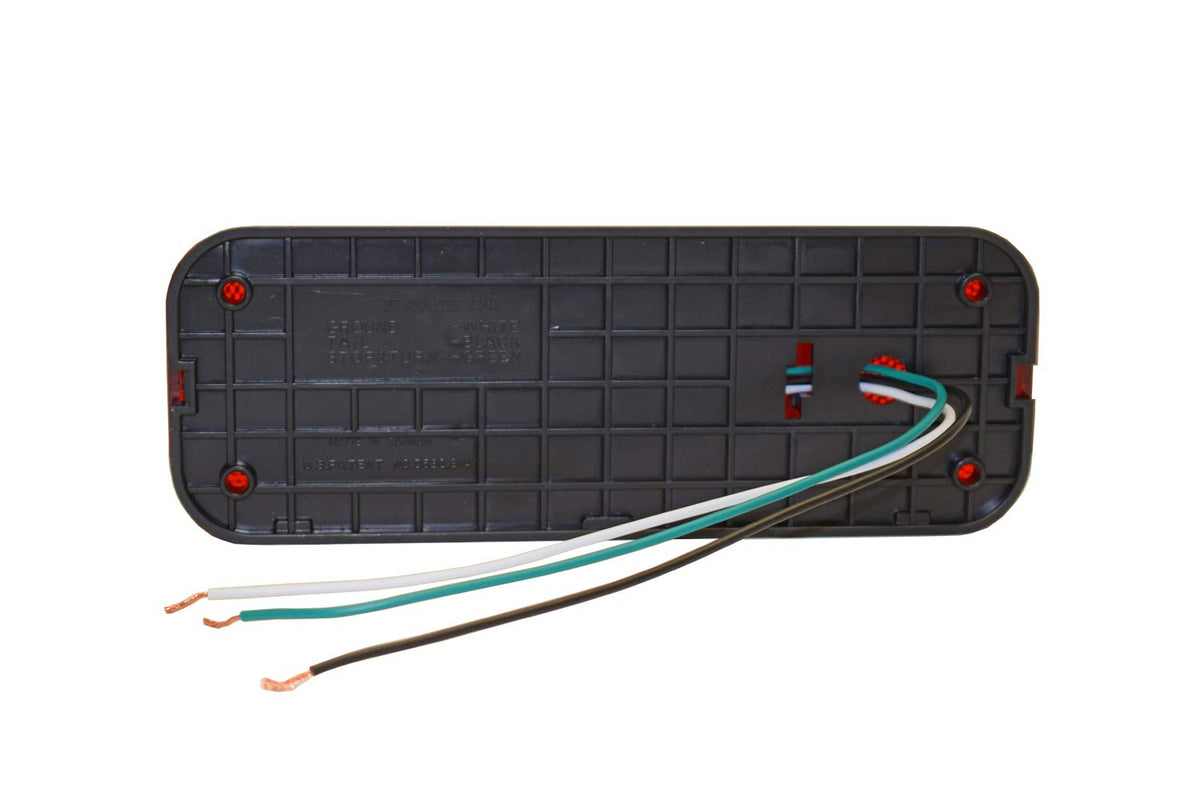

The lamps are low-profile and sized to fit most RV and trailer rear lighting applications. They use a hard-wired connection method and come with a separate ground wire; mounting hardware is not included, so plan to supply screws suited to your vehicle's mounting surface.

• Overall dimensions: 3-3/16" H x 8-11/16" W x 2-1/4" D
• Mounting pattern: 1-7/8" x 7-3/8"
• Hard wire style, includes dedicated ground lead; mounting screws sold separately

What electrical details and performance should I expect?

Designed for standard 12V DC vehicle systems, each light draws modest current while providing bright, reliable signaling. The low amp draw helps preserve trailer battery and electrical resources while delivering clear, visible lighting for road safety.

• Operating voltage: 12V DC
• Current draw: 0.34 amps

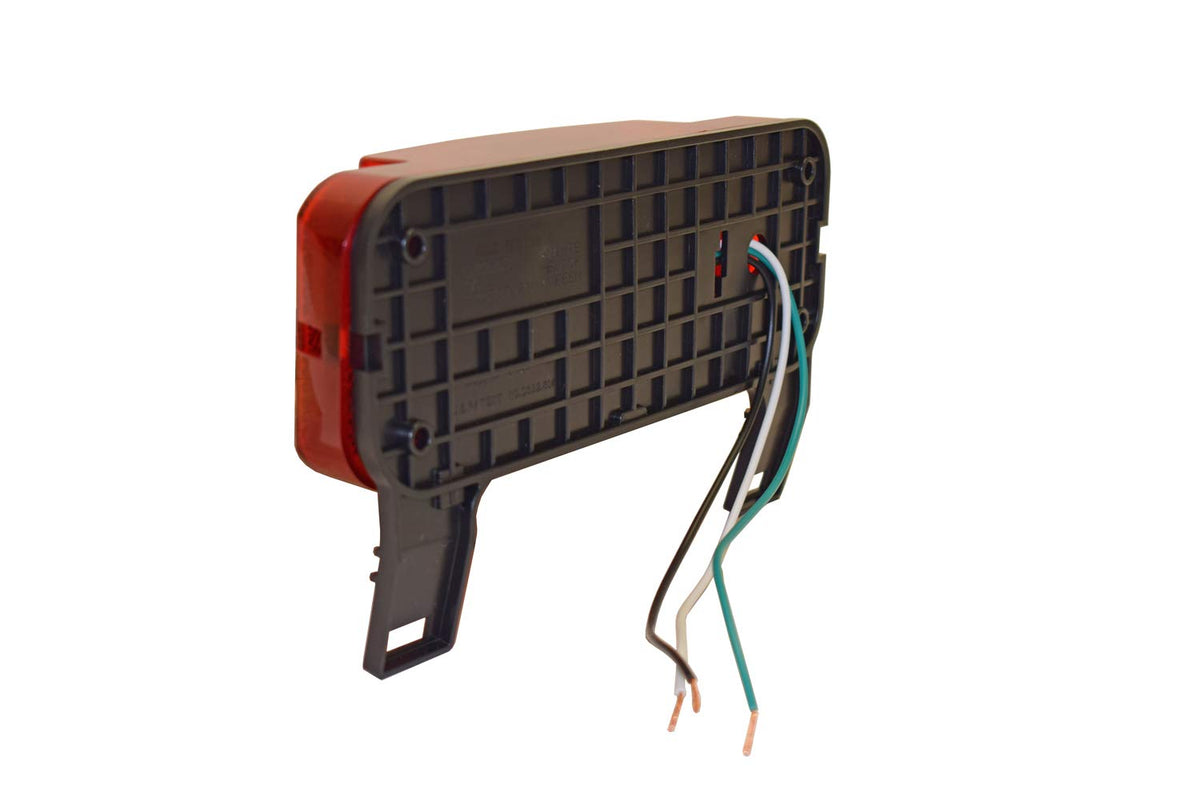

• Acrylic lens with plastic housing for weather resistance and reduced weight

Are these lights easy to install and maintain?

Installation is straightforward if you’re comfortable with hard-wiring vehicle lights: strip, connect and secure the included wires, attach to the mounting surface using appropriate screws, then seal as needed. The solid-state LED design requires less maintenance than incandescent bulbs and resists filament failure and vibration.

• Hard-wired connection—no plug-in pigtail included
• Separate ground wire simplifies reliable grounding
• Acrylic lens resists impact and fading for long service life

Who is this for? These Optronics One™ low-profile combination tail lights are ideal for RV and trailer owners, fleet managers and installers who need DOT-compliant rear lighting that conserves power, reduces maintenance, and fits in tight mounting locations. Choose this pair when you want a compact black-base solution that delivers bright, function-specific LED signaling for wider trailers or any application requiring surface-mounted stop/turn/tail lamps.
