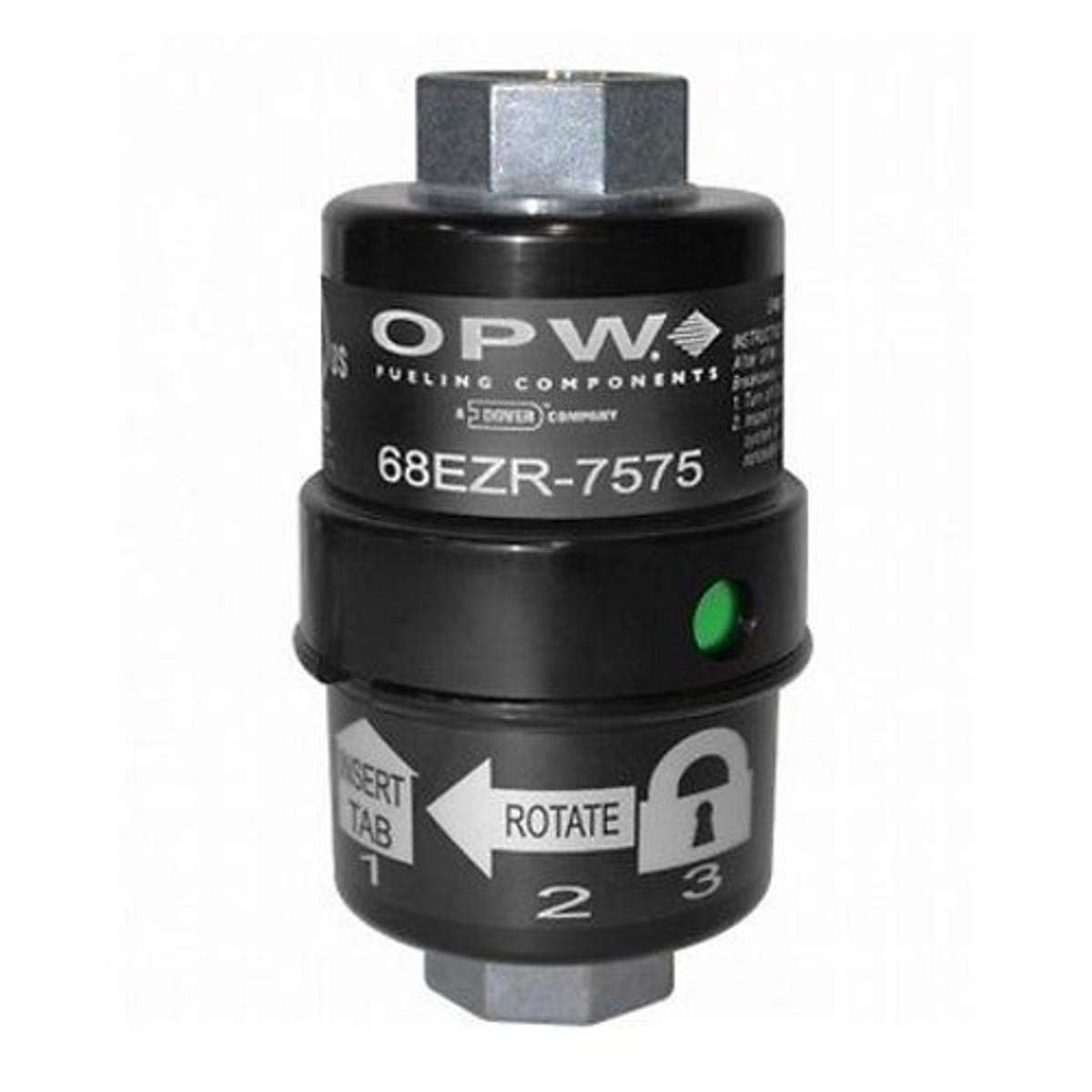

OPW 3/4" Reconnectable Fuel Breakaway 68EZR-7575 — 350 lb Pull, Double-Poppet, Audible Reconnect

The OPW 68EZR-7575 is a 3/4" reconnectable fuel breakaway valve that cleanly separates at up to 350 lb pull force and is engineered for fast, secure reconnection to minimize downtime and spills.

The 68EZR-7575 reconnectable breakaway from OPW is built for retail fueling stations that need reliable protection against drive-offs and hose strain incidents. Based on the proven 66Rec platform, this unit stops fuel flow automatically when separated, limits spilled product, and keeps dispensing hardware safe. It combines durable materials with a double-poppet valve design for low pressure drop and easy, audible reconnection — making maintenance and incident recovery quicker and more certain.

How does this breakaway stop fuel flow when it separates?

When the unit separates under excessive tensile force, dual internal poppets seat automatically to close both sides of the valve and halt fuel movement. This action reduces fuel loss and prevents contamination or equipment damage.

• Automatic dual-valve poppet system that seats on separation
• Designed to limit spillage at the break point
• Materials compatible with common fuels and vapors
• Separation force rated up to 350 lb (pull force)

How do technicians reconnect the 68EZR-7575 after a separation?

Reconnection uses a simple push-twist-click method so crews can restore service quickly without special tools. Reconnection requires lining up the valve, pushing the halves together and twisting until an audible click confirms a secure seat.

• Push-twist-click operation for straightforward reassembly
• Audible click gives positive confirmation of full reconnection
• Reconnection force is approximately 7 lb for easy handling
• Simplifies return-to-service procedures and reduces labor time

What materials and performance features ensure durability in fueling environments?

The 68EZR-7575 uses a blend of robust metals and engineered polymers chosen for chemical resistance and mechanical strength. Its construction supports cold-weather operation and long-term reliability under repeated cycles.

• Die-cast ZAMAK (zinc alloy) body for structural strength
• Zytel protective sleeves and Viton main seals for fuel resistance
• Stainless steel spring and acetal/Delrin guide and poppets
• Unique double-poppet design for low pressure drop during fueling

Are there installation guidelines or compatibility notes I should know?

Correct placement on the fuel hose is important for dependable operation. For high-hanging hose setups, the 68EZR must be paired with a straightening hose at least 9" long, and for low-hanging hoses it should be installed downstream of any retractor cable.

• Required on high-hanging hoses: use a 9" minimum straightening hose such as OPW 66H
• For low-hose applications, install downstream of the retractor cable
• Intended for retail dispensing hoses and typical petroleum products
• Designed to match common 3/4" hose fittings for ease of integration

Who is this for? The OPW 68EZR-7575 is aimed at service station owners, site operators, maintenance technicians, and contractors who manage retail fueling islands and need a rugged, reconnectable breakaway to reduce spill risk, minimize downtime after drive-offs, and simplify field repairs. It’s especially useful on busy sites where rapid reconnection and reliable shutoff protect both customers and equipment.
