Orion Motor Tech Bushing Press Kit — 27pc Pull & Press Sleeve Set, 34–80mm Sleeves with M10–M18 Spindles, AISI 1045 Steel

The OMT Bushing Press Kit is a 27-piece pull-and-press sleeve set that removes and installs wheel bearings, bushings, and seals quickly and reliably across most cars, light-commercial, and heavy-duty vehicles.

This comprehensive kit from Orion Motor Tech bundles 22 precision sleeves and five hardened pulling spindles in a portable case so you can tackle suspension, steering, and driveline bushings without searching for improvised tools. Every sleeve features a notched lip for secure engagement, and the spindles are heat-treated for longevity. The set is designed to fit common workshop wrenches and drivers, making it a practical upgrade for home mechanics and professional technicians alike.

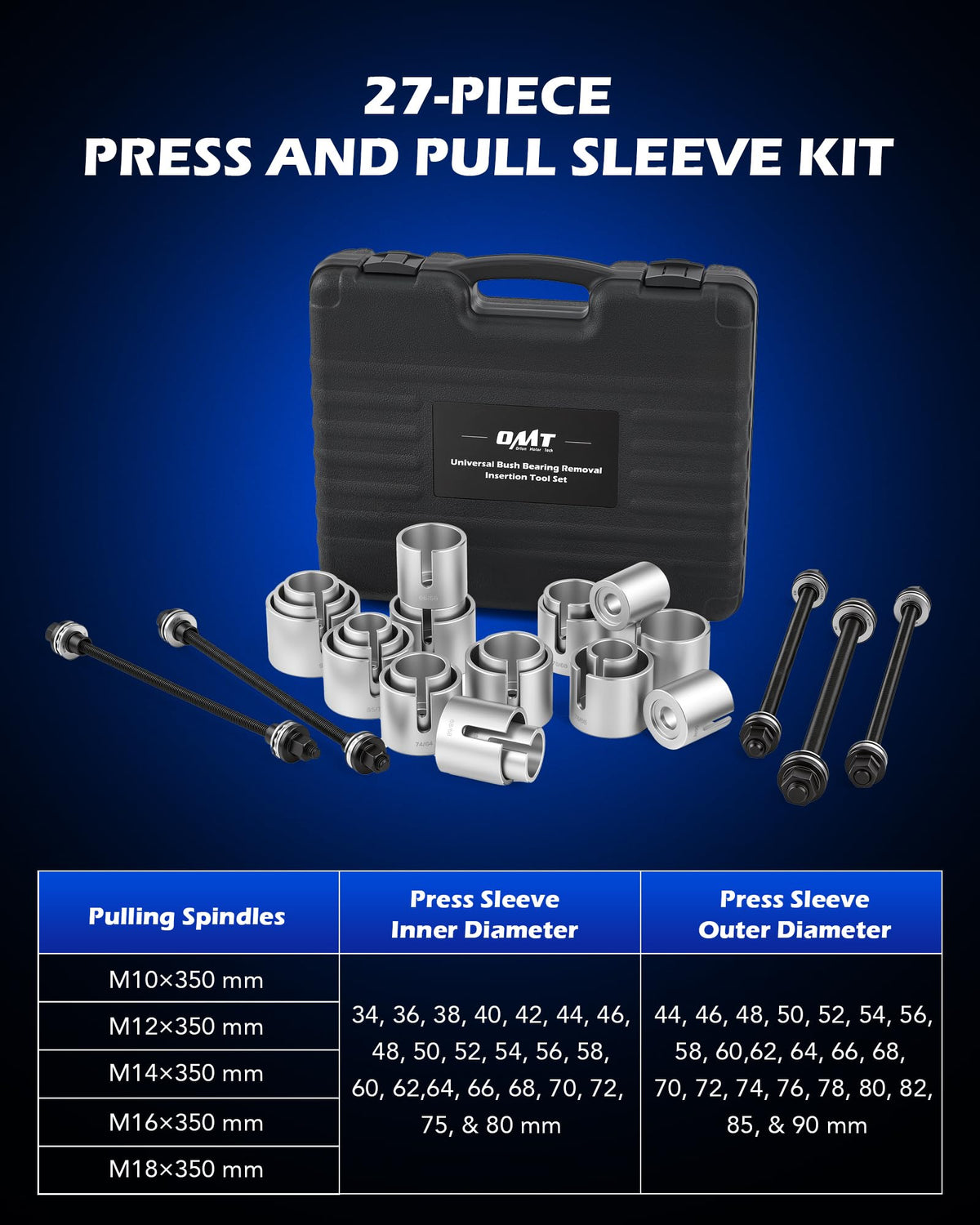

What sizes and parts are included, and will they fit my vehicle?

The kit includes 22 sleeves that cover internal diameters from 34 mm to 80 mm plus five pulling spindles in M10, M12, M14, M16, and M18. This range handles most wheel bearing, bushing, and seal jobs found on cars, light commercial vehicles, and some heavy vehicles.

• 22 sleeves sized 34–80 mm for broad compatibility

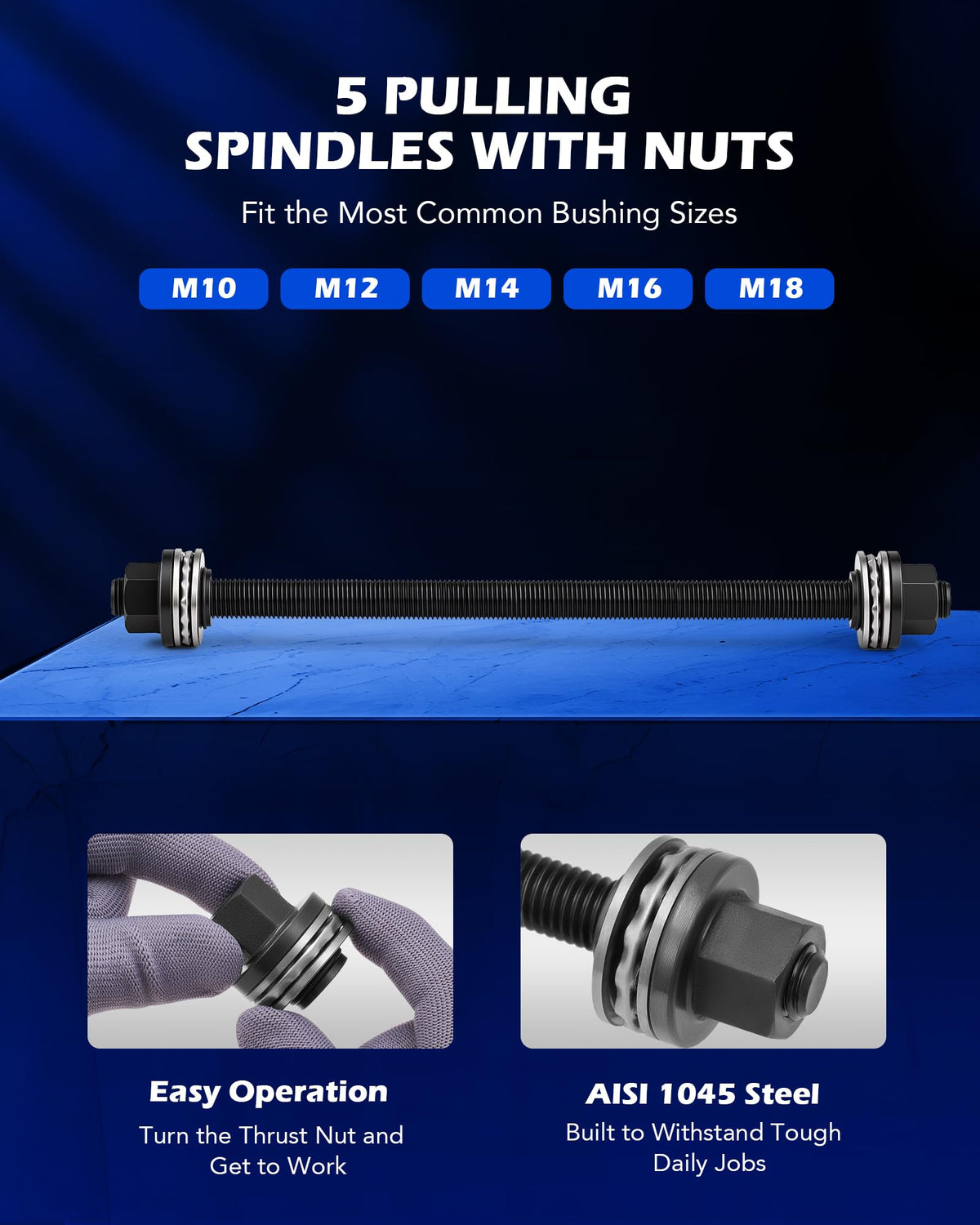

• Pulling spindles: M10, M12, M14, M16, M18
• Works with standard wrenches and hydraulic drivers
• Notched sleeve edges fit typical bushing lips securely

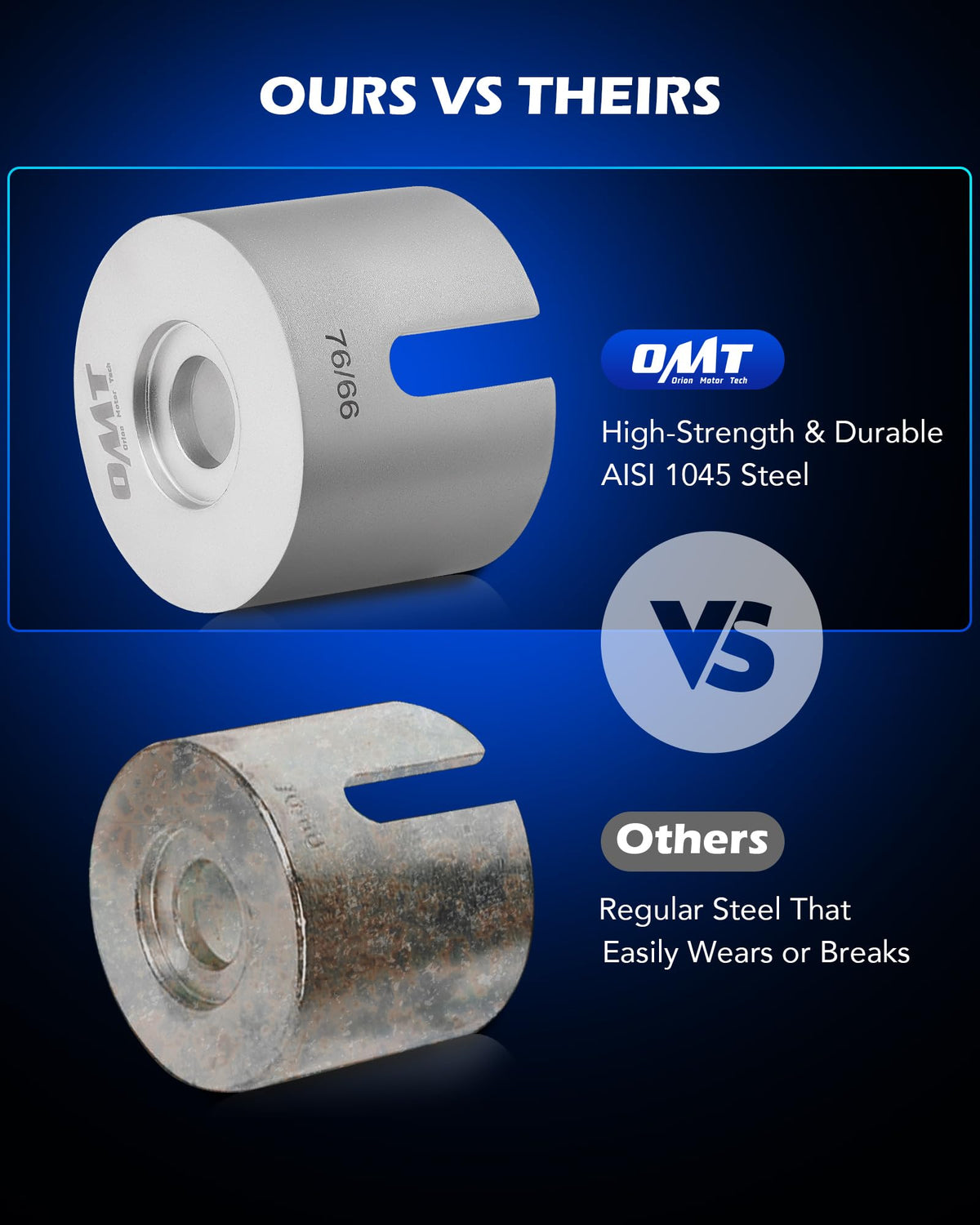

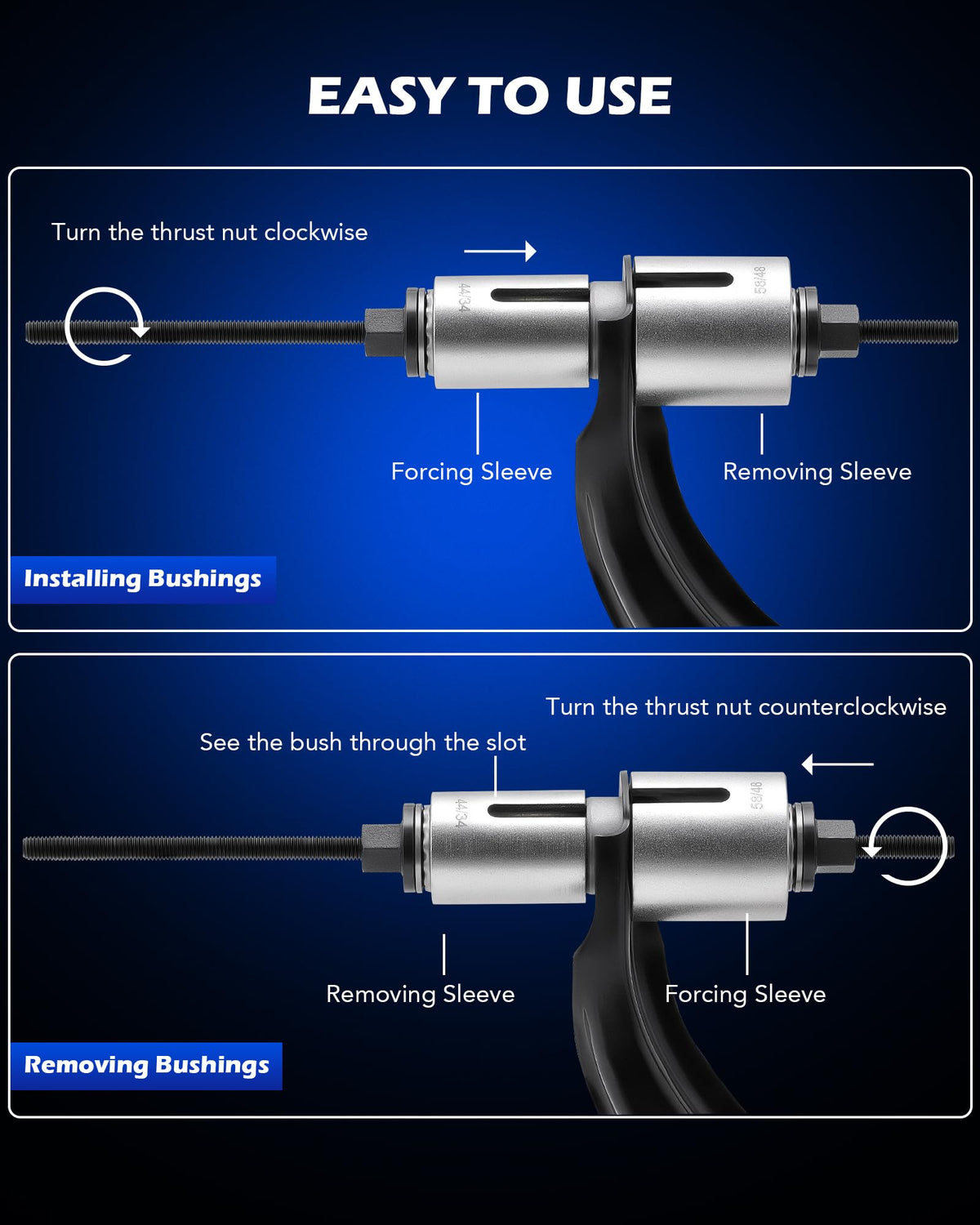

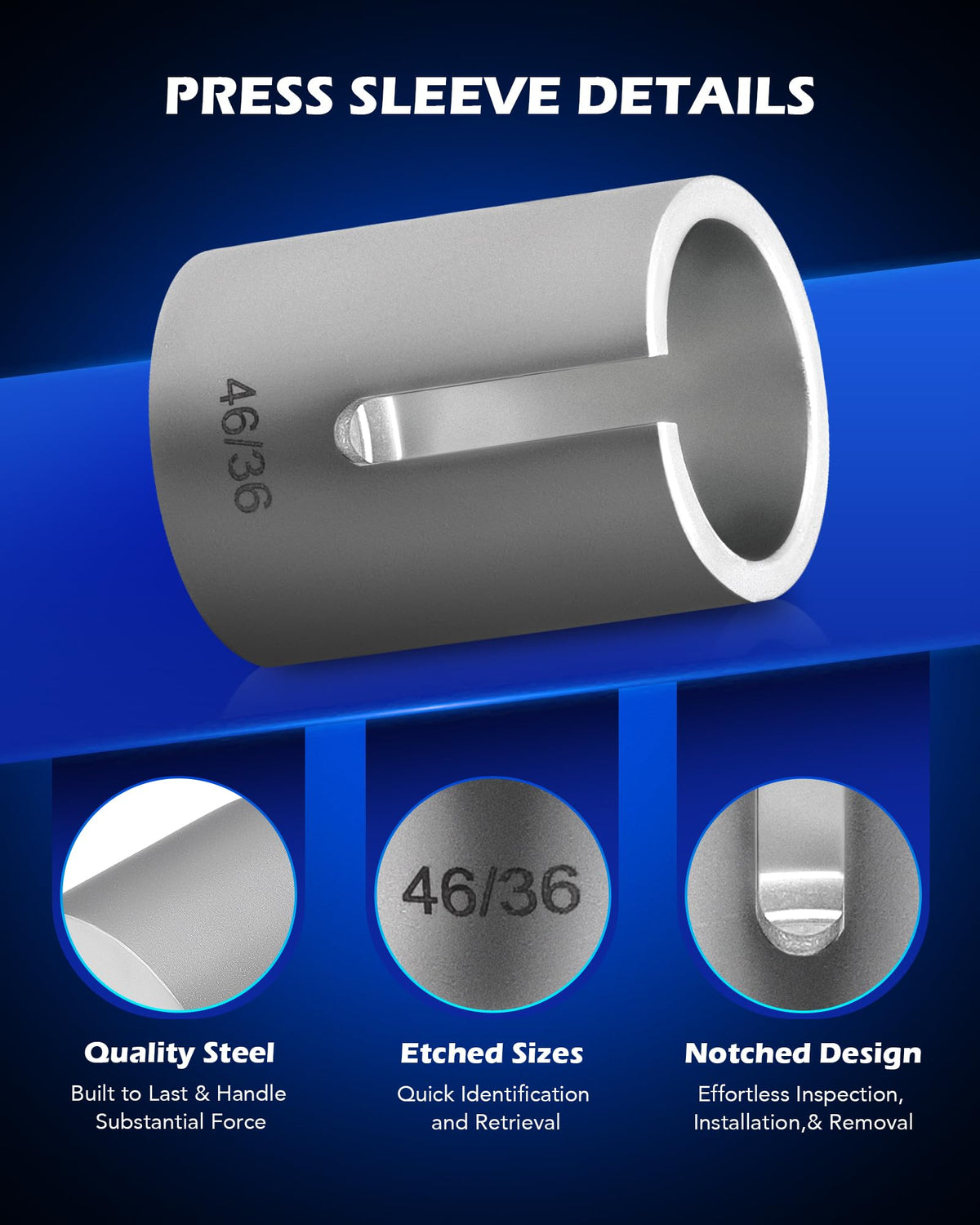

How does the notched sleeve design help during removal or installation?

The notched rim on each sleeve gives a positive bite on the bushing flange so it won’t slip while you press or pull. It also allows a clear line-of-sight to monitor alignment and depth, reducing the chance of misseating or damage.

• Notches secure the bushing edge for controlled movement
• Visible alignment window speeds accurate placement
• Reduces use of hammering or makeshift adapters
• Minimizes risk of deforming seals or bearings

Are the components durable enough for repeated workshop use?

Yes — sleeves are machined from AISI 1045 steel and the pulling spindles are heat-treated and blackened to resist wear and corrosion. The materials and finishes are selected for sustained bench and garage use, withstanding the forces involved in pressing and pulling operations.

• AISI 1045 steel sleeves for toughness and rigidity
• Heat-treated, blackened spindles for strength and rust resistance
• Precision machining for consistent fit and lifespan
• Blow-molded case protects components during storage and transport

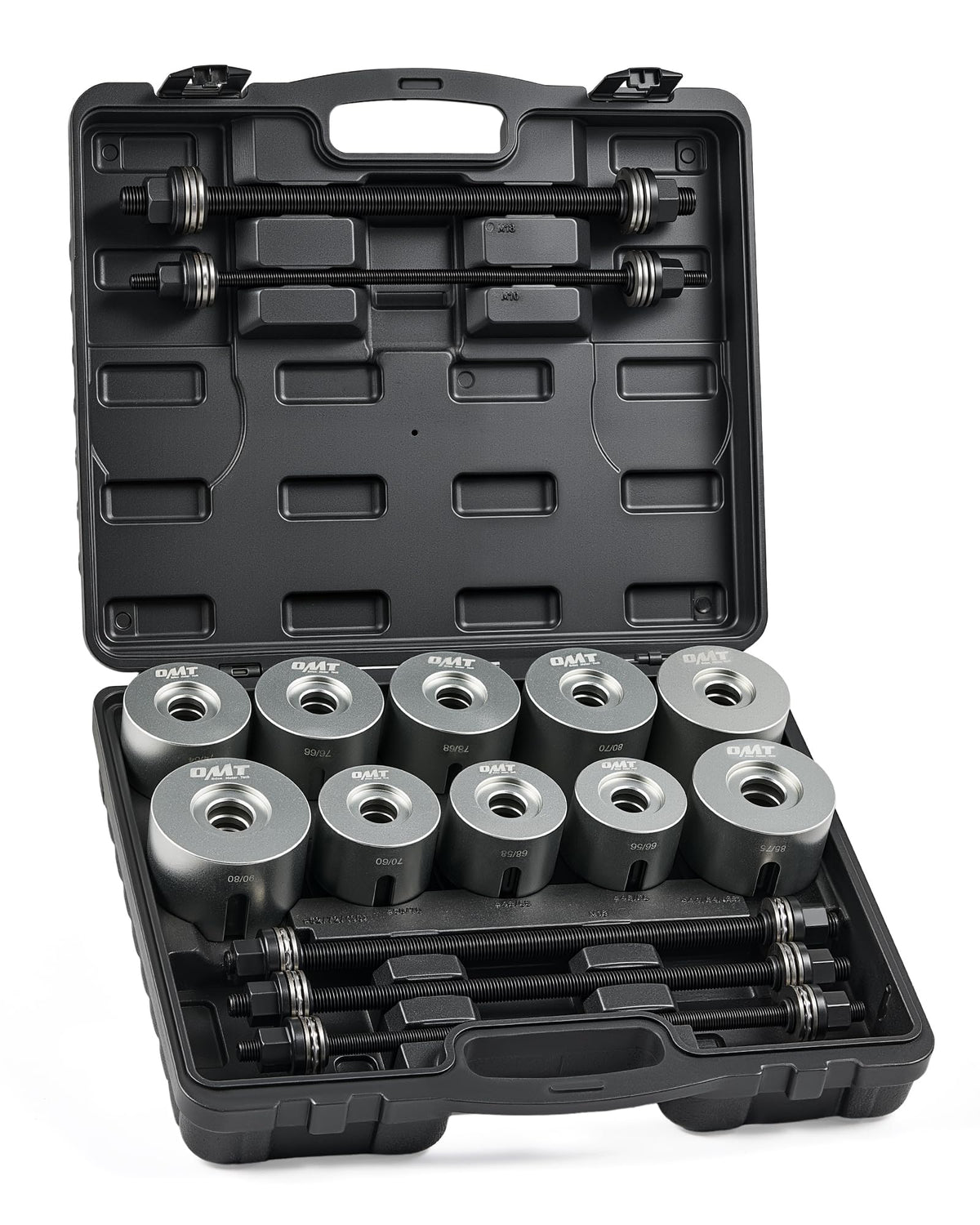

How portable and organized is the kit for mobile work?

The entire 27-piece set ships in a blow-molded carrying case with custom-fit cavities for every sleeve and spindle. It’s compact enough to carry to a roadside job or move between bays while keeping parts protected and ready to use.

• Compact blow-molded case keeps parts secure and visible
• Individual slots prevent loss and simplify inventory checks
• Case fits into standard tool carts or van storage cubbies
• Lightweight enough for one-person transport to job sites

Who is this for: The Orion Motor Tech 27pc Bushing Press Kit is built for DIY mechanics, independent garages, and fleet maintenance crews who need a reliable, wide-ranging set for removing and installing bushings, bearings, and seals. If you want a durable, all-in-one solution that reduces reliance on makeshift adapters and speeds up suspension and driveline service, this kit covers the most common sizes and job types you'll encounter.
