Orion Motor Tech Cam Bearing Removal & Installation Tool Set — 16‑Piece, AISI 1045 Steel with Neoprene Sleeves

The Orion Motor Tech OMT Cam Bearing Removal and Installation Tool Set is a complete 16-piece kit designed to remove and install camshaft bearings in most domestic and import engines quickly and accurately.

If you work on engines—whether in a home garage or a professional shop—this kit puts the adapters, expander, centering cone and durable tool shaft needed to service cam bearings without improvisation. Built from heat-treated AISI 1045 carbon steel and finished with protective neoprene sleeves, the set combines strength with bearing-friendly surfaces so you can extract and press bearings with minimal risk of damage.

What components are included and how do they work together?

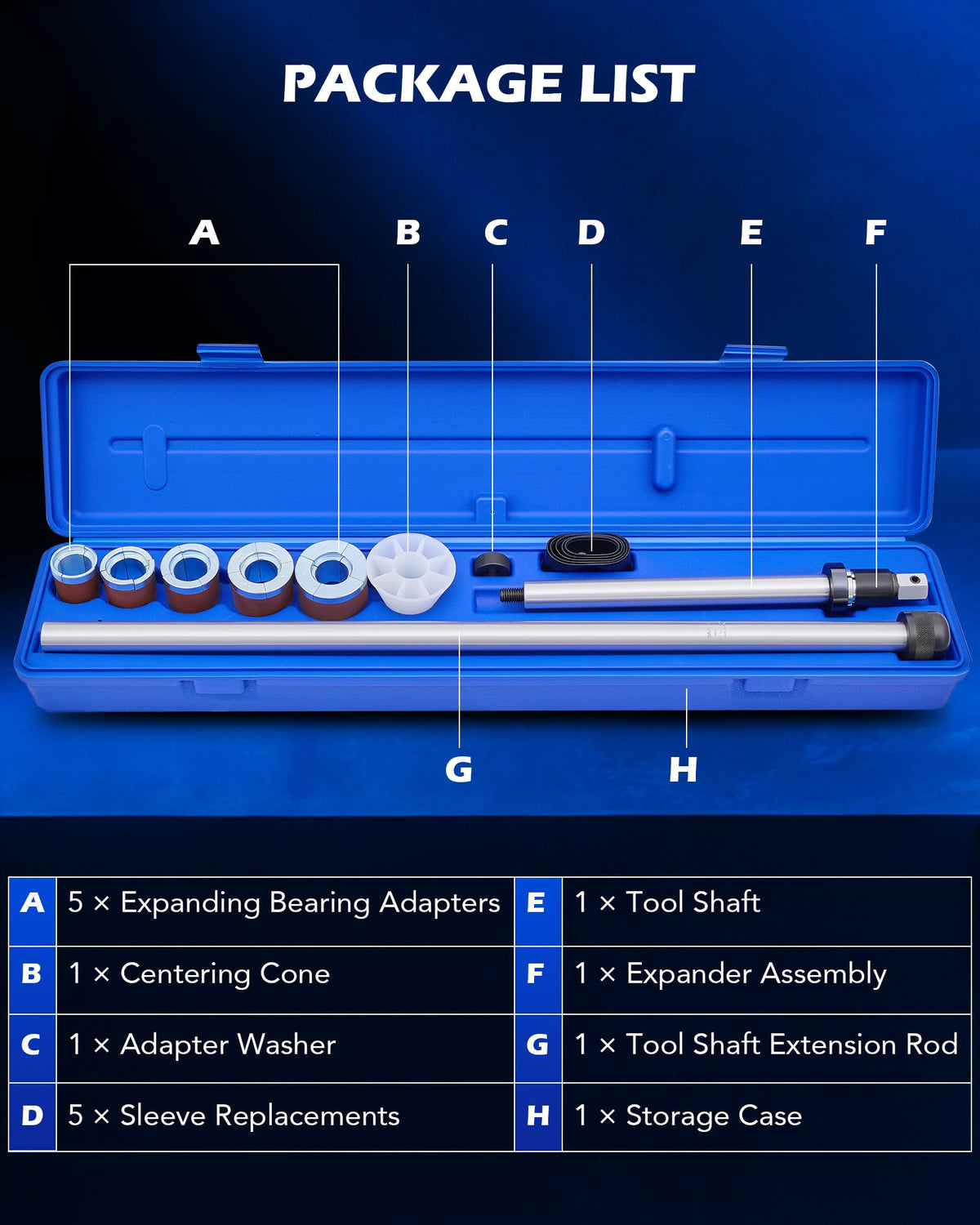

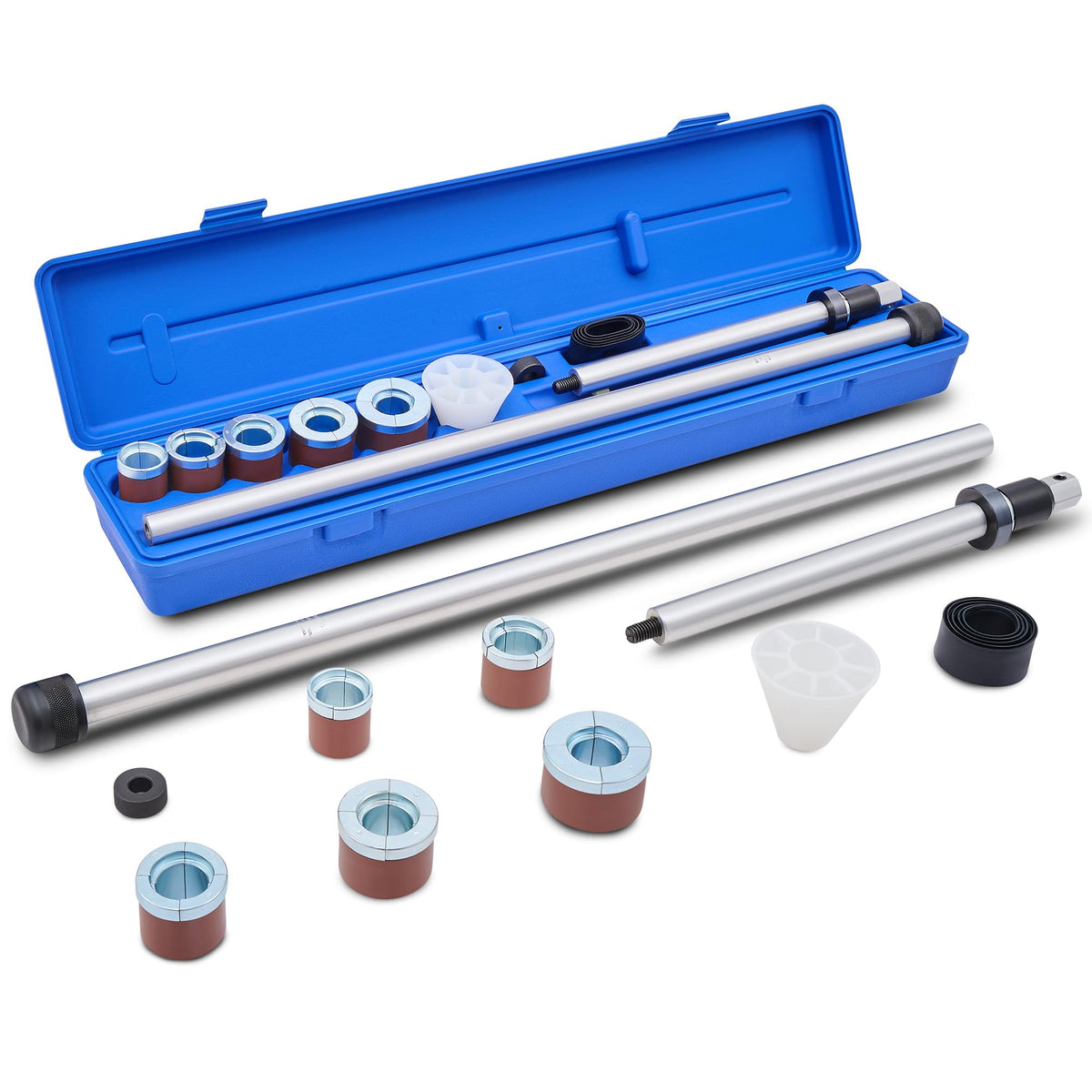

The kit includes five adapters with replacement neoprene sleeves, an expander assembly, a tool shaft, an extension, a centering cone and two washers — a total of 16 pieces. Each part is designed to interlock so you can transition from removal to installation without changing tools mid-job.

• Five adapters cover a wide diameter range for different bearing sizes.
• Neoprene sleeves protect bearings and improve grip during removal and installation.
• Expander assembly grips the bearing from the inside for controlled extraction.

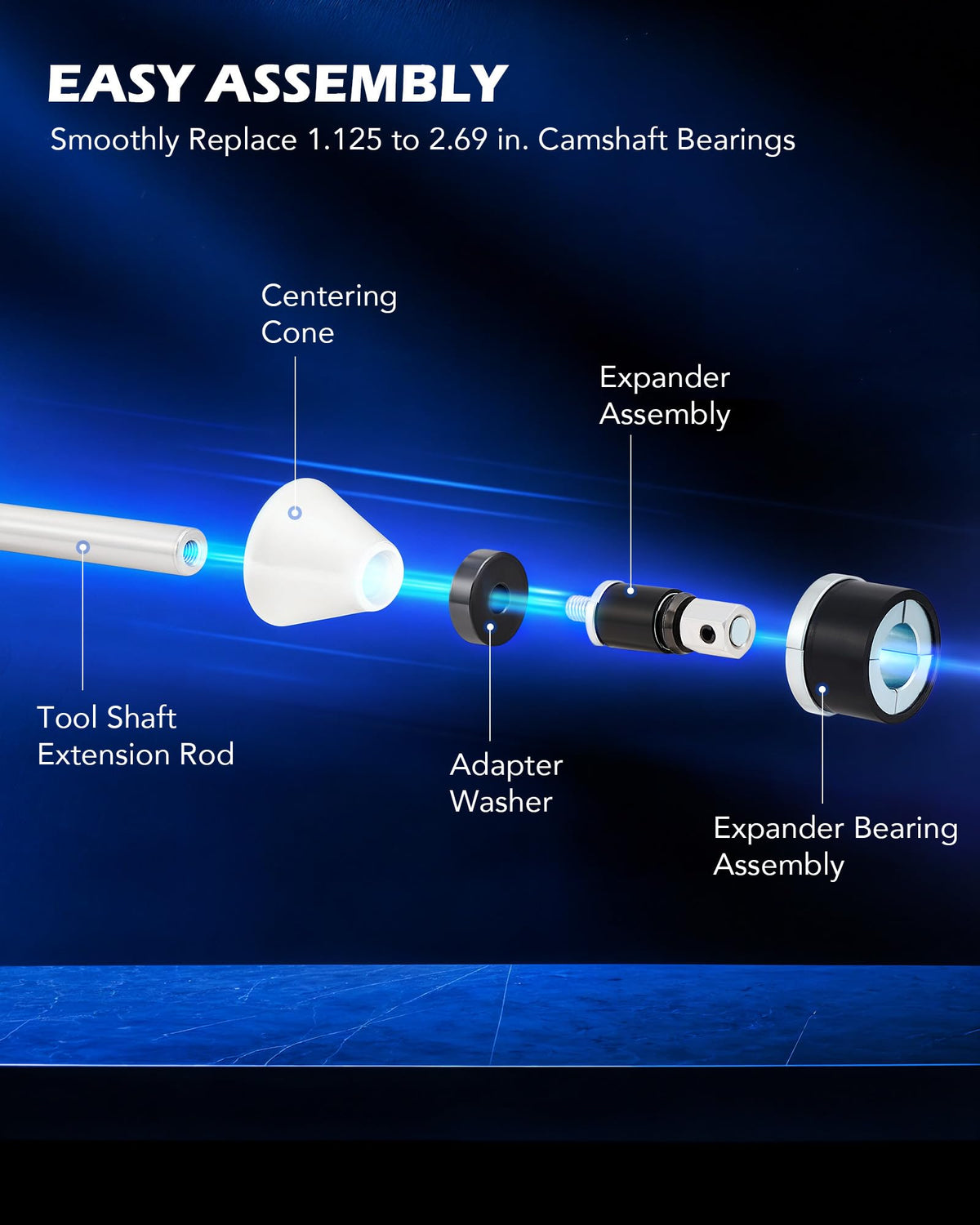

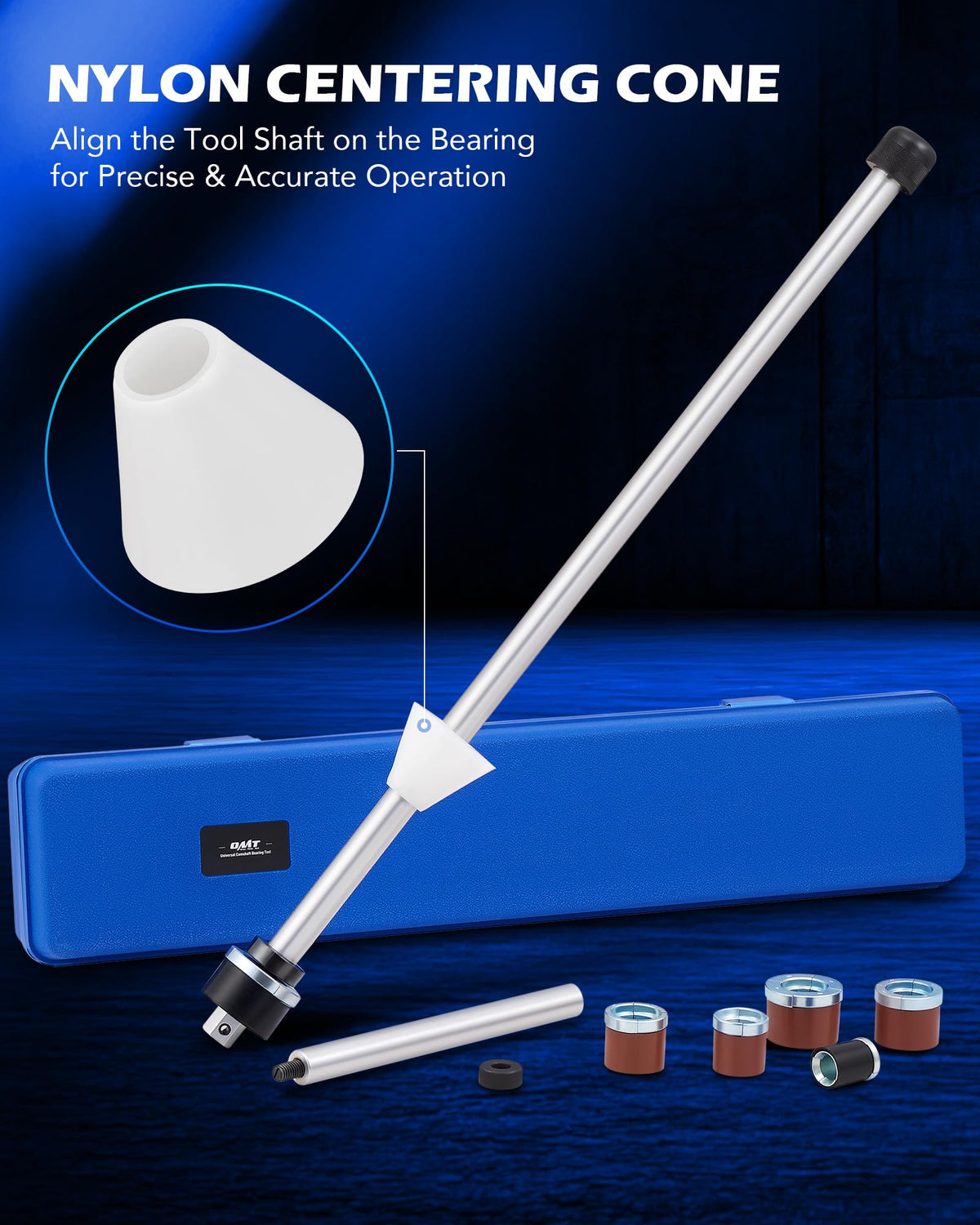

• Centering cone aligns the adapter and shaft for straight, damage-free installation.

Which engines and bearing sizes will this tool set fit?

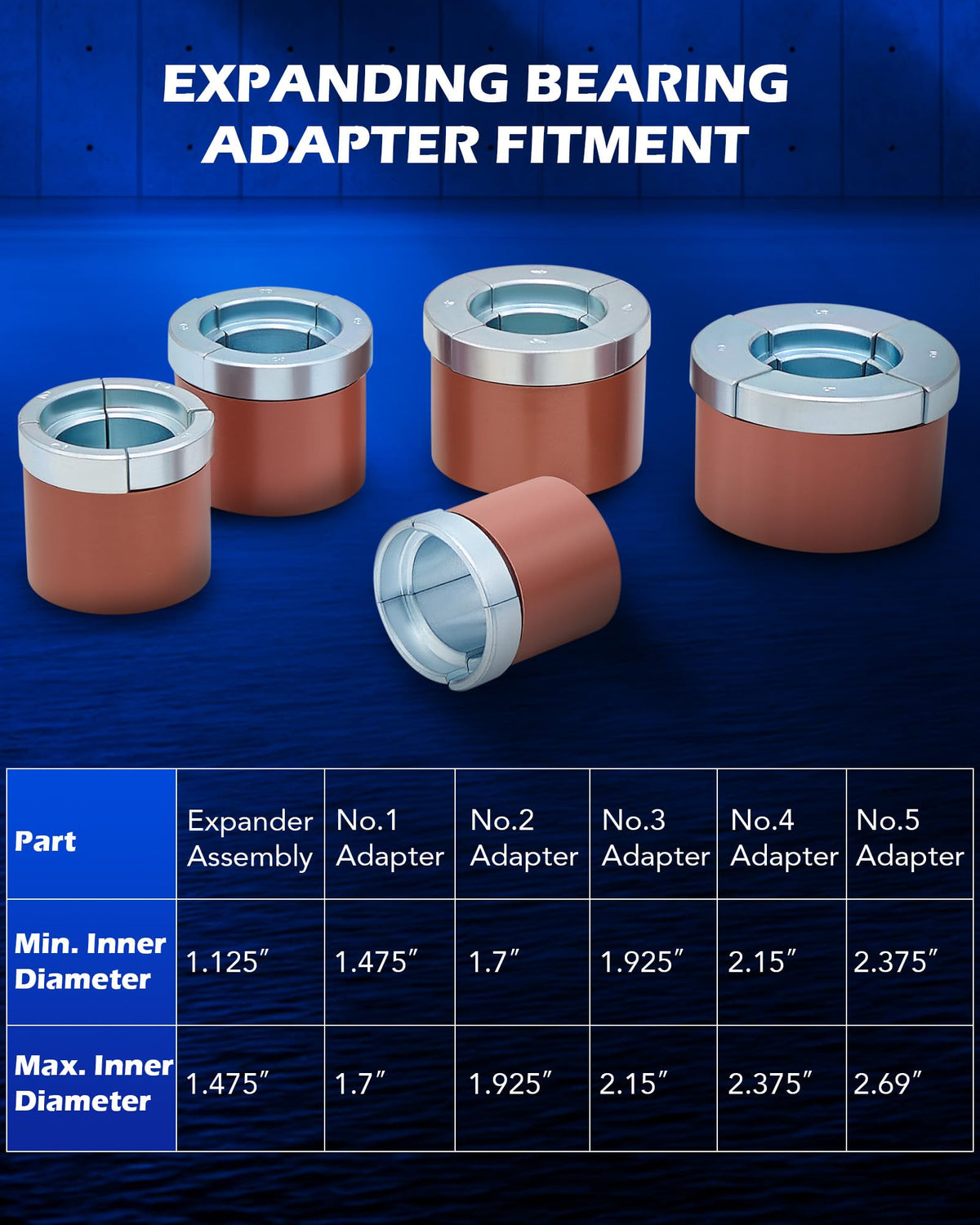

The adapter assortment gives the expander assembly a usable range from 1-1/8 inch to 2-2/3 inches, making the kit compatible with the majority of camshaft bearings found in compact cars, mid-size vehicles and heavy trucks. It accommodates both common domestic and many import applications, though very specialized or older model engines may require different tooling.

• Diameter range spans typical passenger-car to truck cam bearings.
• Adapters work across OEM and many aftermarket bearing profiles.
• Suitable for most engines used in routine rebuilds and repairs.

How does construction and finish affect durability and safety?

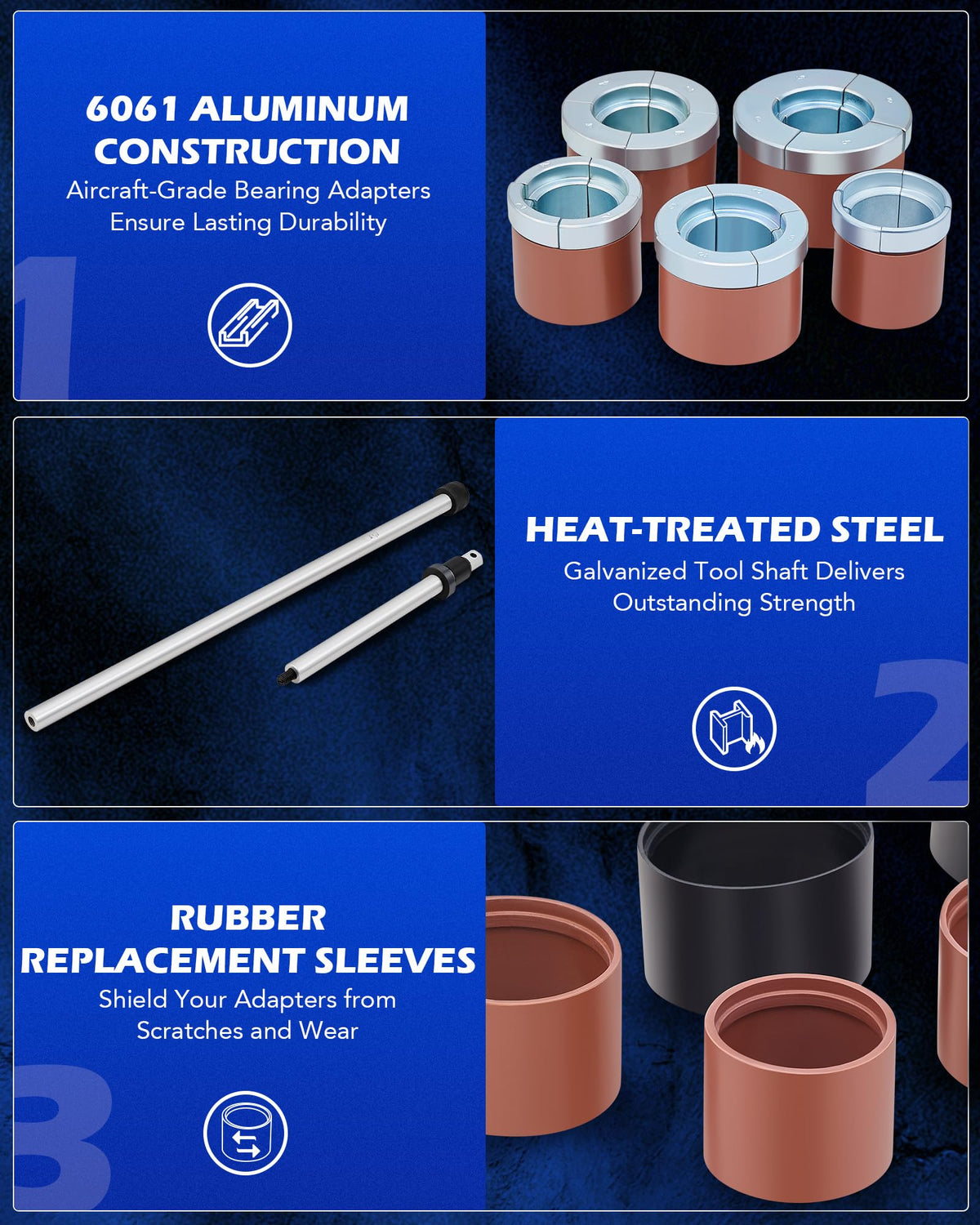

The pieces are made from structural-grade AISI 1045 medium carbon steel, then heat-treated and sandblasted for strength and surface uniformity. That high-strength core reduces bending or failure risk under load, while the neoprene sleeves and refined surfaces lower the chance of scratching bearings or journals during service.

• AISI 1045 carbon steel provides long service life under repeated use.
• Heat treatment increases toughness for high-torque operations.
• Neoprene sleeves cushion contact points, preventing cosmetic and functional damage.

How do I get reliable results using this kit?

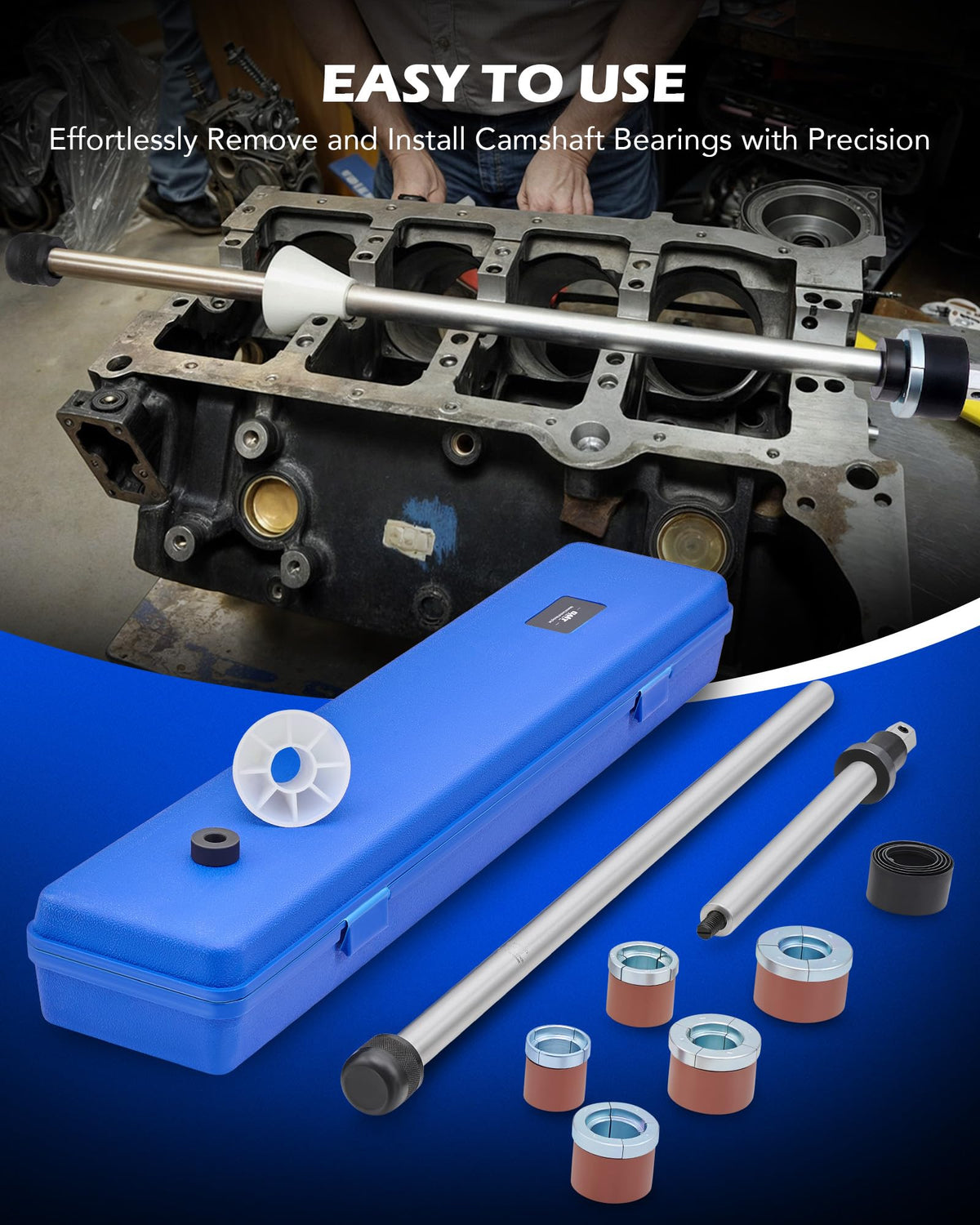

Successful bearing removal and installation depend on proper alignment, the right adapter size and controlled force application. Use the centering cone to align the assembly, choose the adapter whose neoprene sleeve matches the bearing inner diameter, and apply steady, even pressure with the tool shaft and extension to avoid cocking or uneven seating.

• Select the adapter that most closely matches the bearing diameter.
• Use the centering cone to ensure straight-line pulling or pressing.
• Apply steady, measured force; avoid hammering directly on the bearing surface.

Who is this for: The Orion Motor Tech OMT cam bearing set is built for automotive technicians, engine rebuilders and DIY mechanics who need a dependable, full-range solution for cam bearing work. If you service a variety of domestic and import vehicles and want tools that protect bearing surfaces while delivering the strength required for heavy-duty jobs, this kit provides the adapters and hardened components to get the job done in a home garage or professional bay.
