Orion Motor Tech Engine Timing Kit 10pc for Ford & Mazda 1.6–2.5L EcoBoost — Heat-Treated Steel, VCT Setting Tool

Orion Motor Tech's 10-piece engine timing kit is a complete set of hardened locking tools designed to accurately set camshafts, crankshafts and VCT components on Ford, Mazda and compatible engines.

This professional-grade timing tool kit brings together the specific pins, camshaft alignment plates and a VCT setting tool needed when replacing timing belts or performing engine service on a range of 1.25–2.5L dual-overhead-cam 16V engines, including many EcoBoost and Ti-VCT variants. Every piece is heat-treated and zinc plated for durability, and the blow-molded case keeps components organized for garage or mobile work.

Which engines and models does this kit fit?

The kit is designed for multiple Ford, Mazda and Volvo dual-cam 16-valve engines in the 1.25–2.5L range, covering common EcoBoost and Ti-VCT applications. It does not support 2.3T/turbo variants. Check engine codes and service manuals to confirm fitment before ordering.

• Covers 1.25, 1.4, 1.5, 1.6, 1.7, 1.8, 2.0, 2.3 (non-turbo) and 2.5L dual-cam 16V engines
• Includes tools for 1.6L Ti-VCT and many 1.5/1.6L EcoBoost engines
• Not compatible with 2.3L turbocharged engines
• Compare OEM part references or VIN-specific guides to confirm compatibility

How do these tools improve timing accuracy and safety?

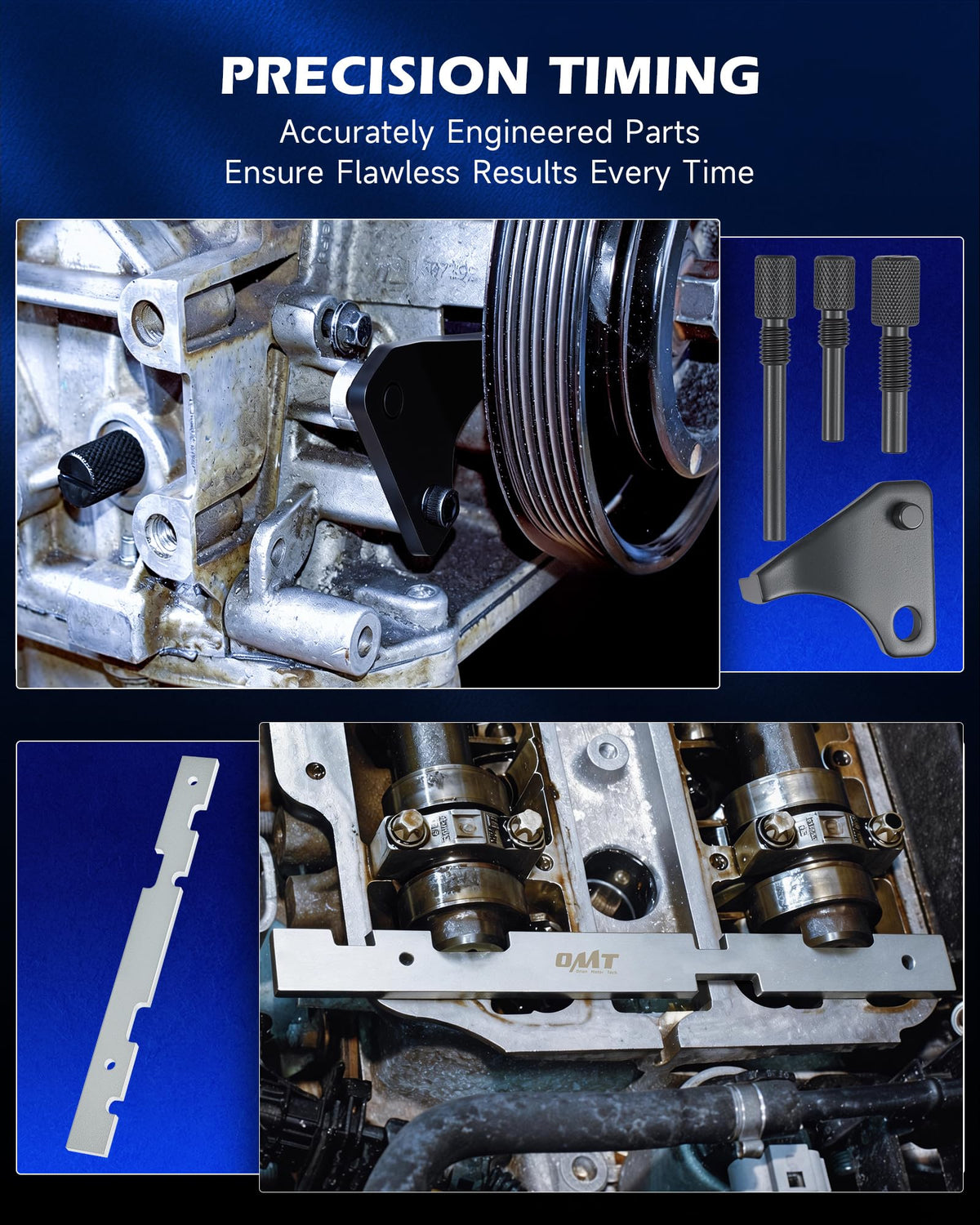

Each component is purpose-made to immobilize camshafts, the crankshaft and the variable cam timing unit during service, reducing the risk of misalignment. Using the correct pins and alignment plates simplifies reassembly and prevents valve-to-piston contact on interference engines.

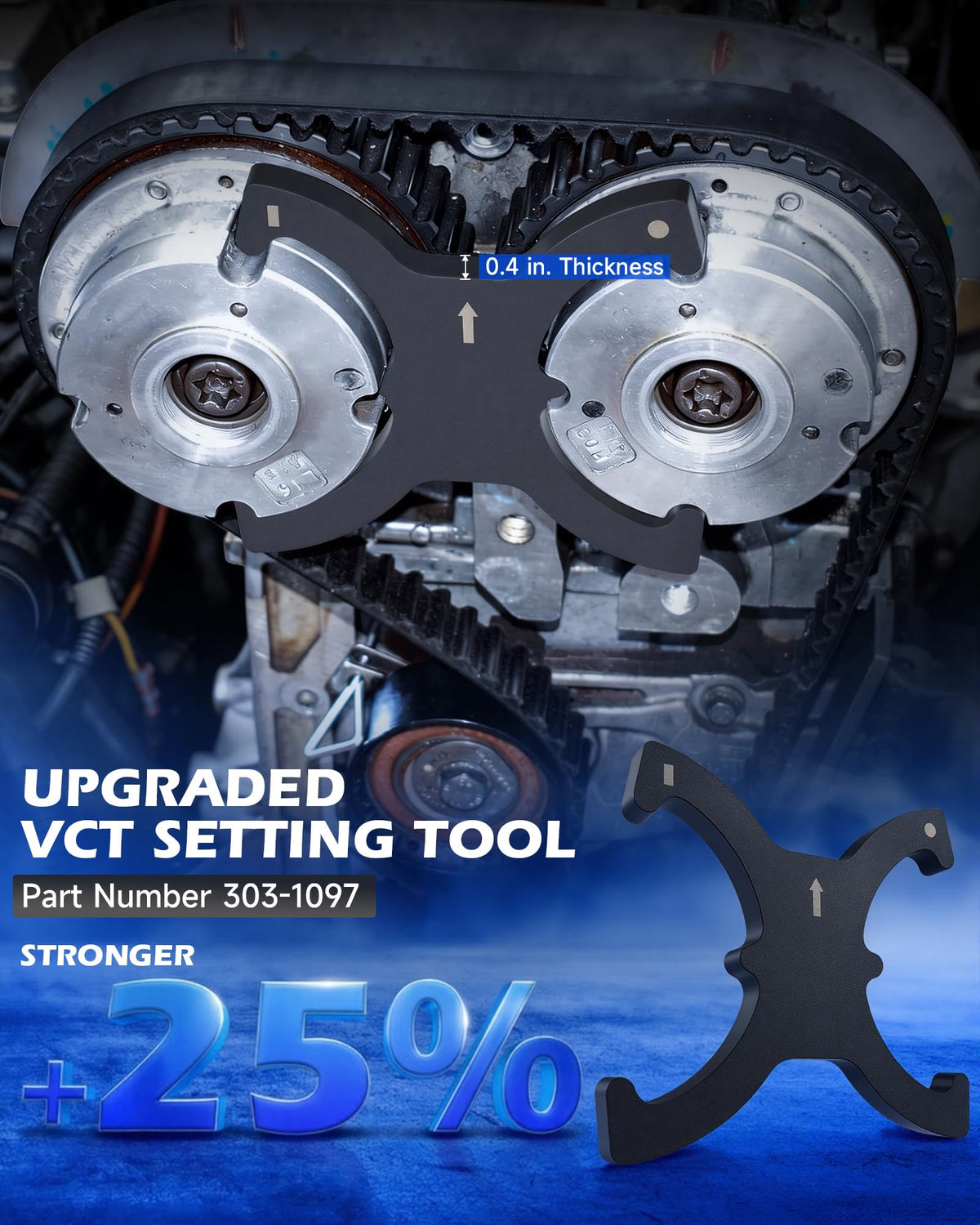

• VCT setting tool secures variable timing components for repeatable positioning
• Camshaft alignment plates maintain precise lobe orientation during belt changes

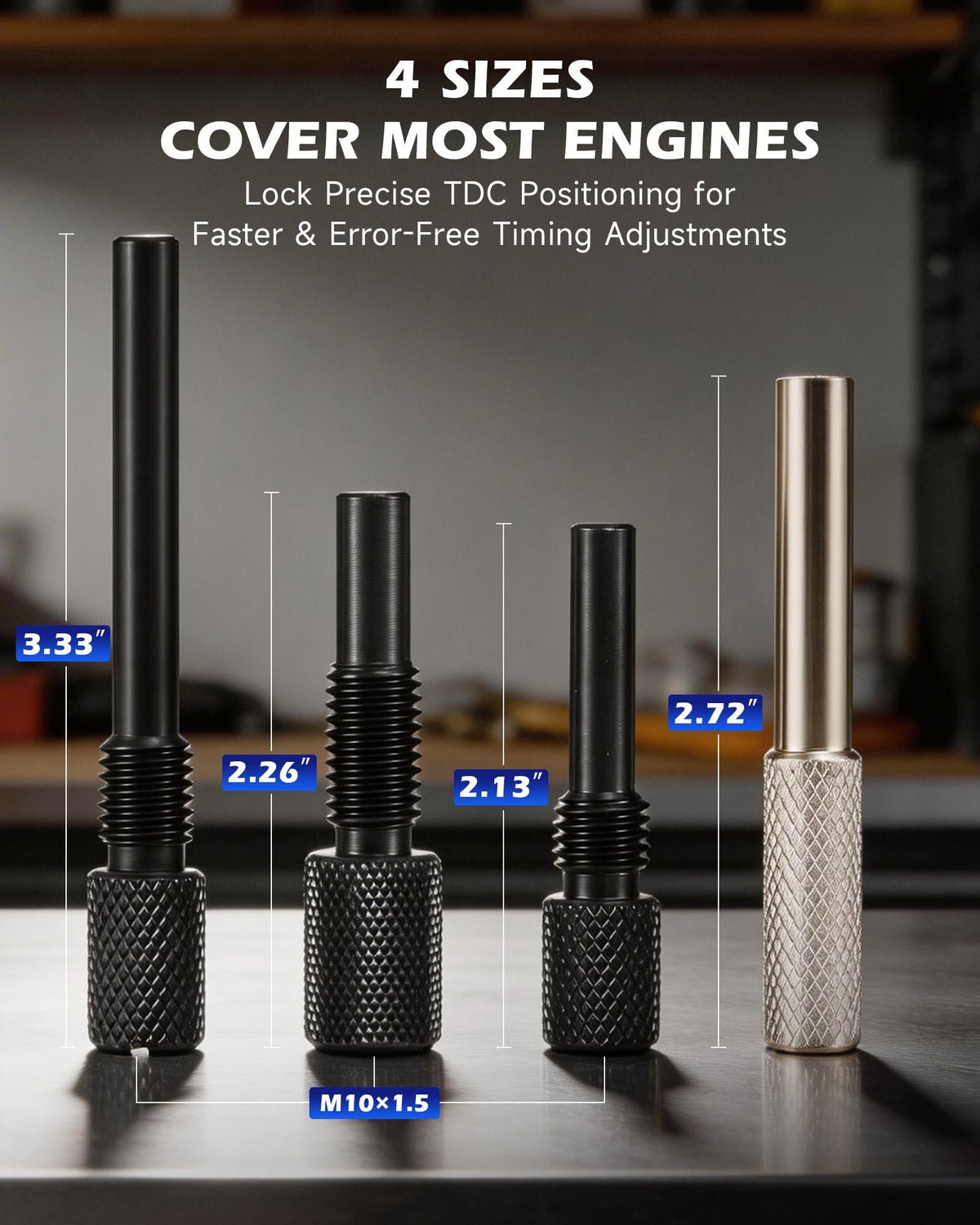

• Specialized timing pins lock the crank and auxiliary shafts in factory-specified positions
• Using the kit lowers the chance of costly engine damage from incorrect timing

What materials and construction make this kit durable?

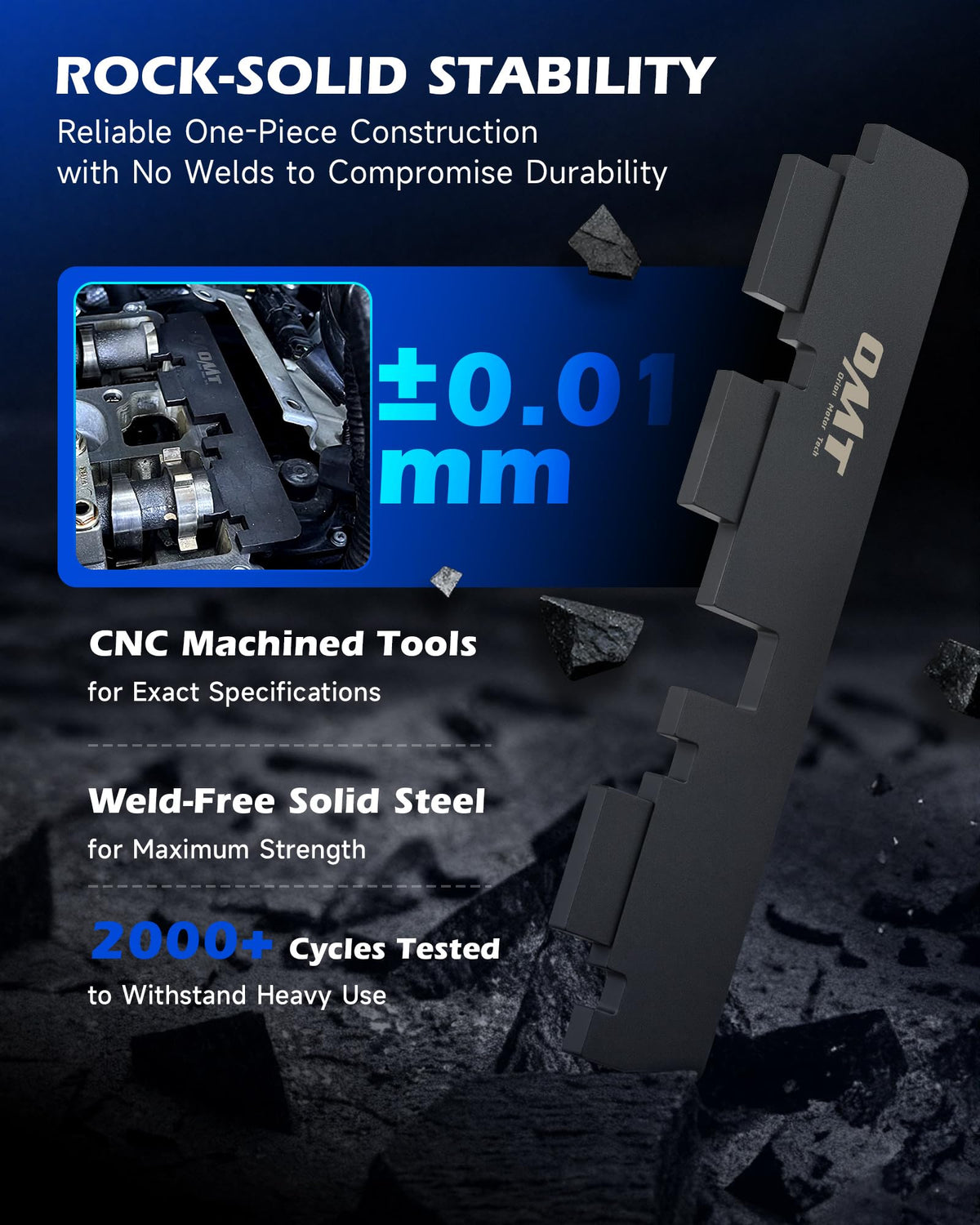

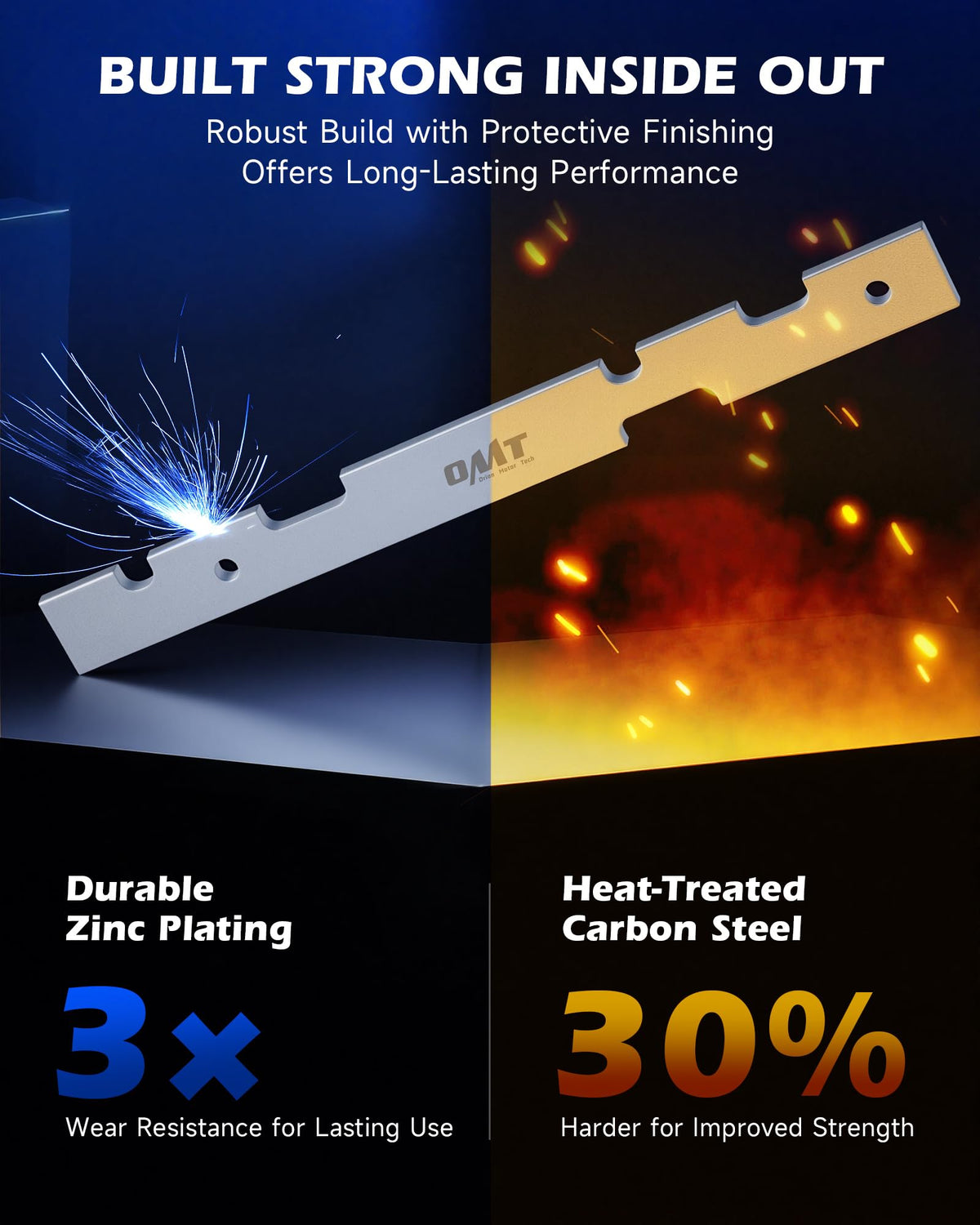

Orion Motor Tech builds these tools from heat-treated 1045 carbon steel for increased hardness and strength under shop conditions. A zinc-plated finish adds corrosion and wear resistance so the set remains reliable after repeated use.

• Heat-treated 1045 carbon steel for about 30% increased hardness versus untreated alloy
• Zinc plating for enhanced corrosion and wear resistance
• Precision machined tolerances to match OEM locating points and fitment
• Blow-molded case protects tools and organizes components for transport

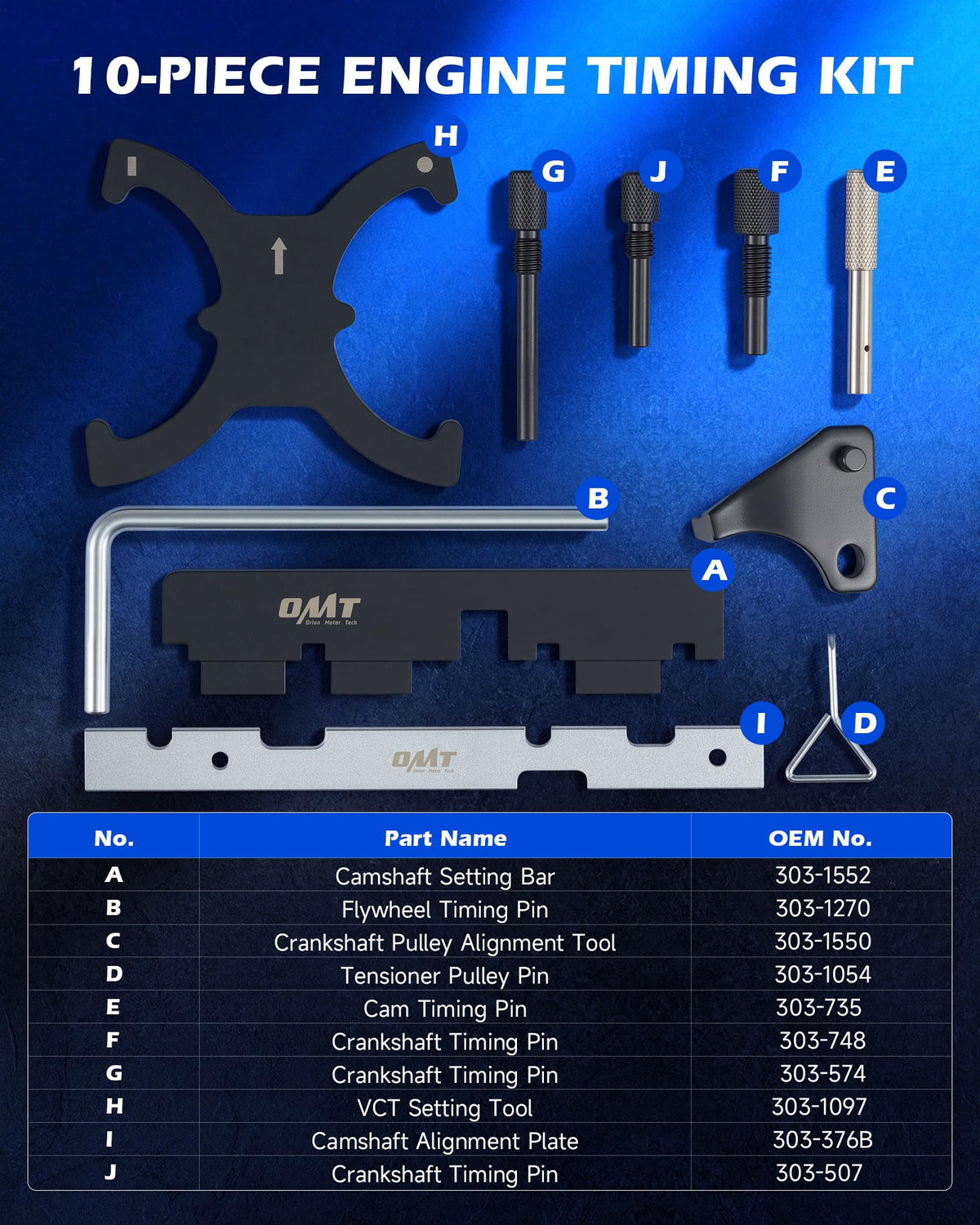

What comes in the box and how is it organized?

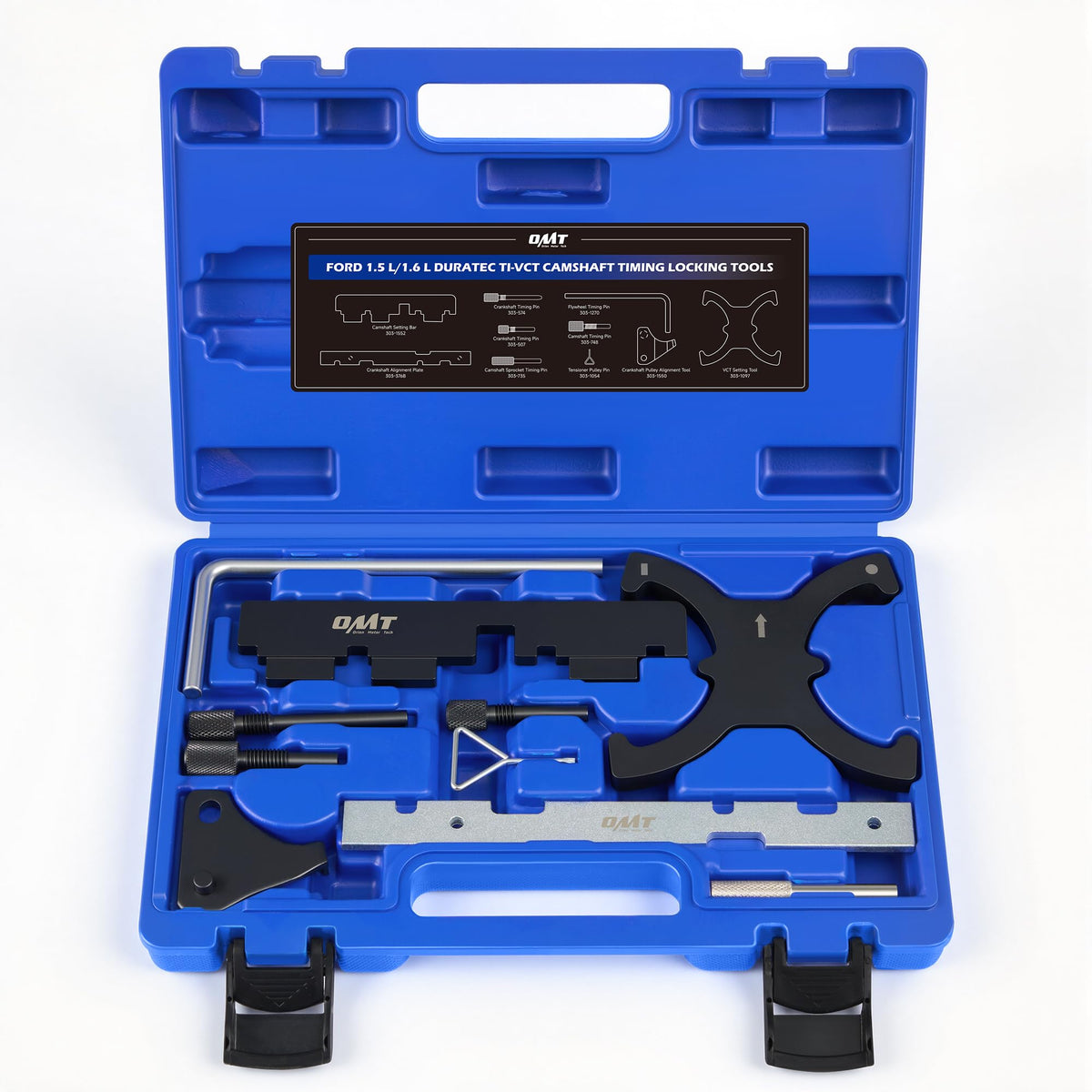

The kit contains ten distinct tools engineered to cover the common locking and setting needs for applicable engines, including specific Orion part-equivalent pieces. Everything nests in a custom blow-molded case so mechanics can quickly find the right item and keep components secure between jobs.

• Total of 10 tools including a VCT setting tool, cam alignment plates and assorted timing pins
• Includes Orion-referenced components that correspond to common OEM service tools
• Sturdy blow-molded case with molded slots for each piece
• Ready for shop storage or mobile technician use

Who is this for: This Orion Motor Tech 10-piece timing kit is intended for professional mechanics, independent shops and experienced DIYers who work on Ford, Mazda or compatible engines within the specified displacement range. If you perform timing belt replacements, head removal or VCT service on these engines and need a durable, organized set of locking tools, this kit offers the components and build quality expected in a professional toolset.
