Orion Motor Tech timing tool kit for Ford Mazda Volvo 1.4–2.5L — cam/crank locking, CNC steel case

This Orion Motor Tech timing tool kit locks camshafts and the crankshaft to exact top-dead-center positions so you can service or replace timing components on compatible Ford, Mazda and Volvo engines safely and accurately.

When working on timing belts, chains, or variable valve systems, precise alignment is essential to avoid costly engine damage. This complete kit supplies the alignment pins, locking bars, sprocket puller and alignment plate you need to hold the engine in position while removing or installing components on a range of 1.4–2.5L Ford, Mazda and selected Volvo engines. Tools are CNC-formed from hardened steel and stored in a sturdy blow-molded case for professional and DIY use.

How does this kit secure engine timing during repairs?

The tools engage factory reference points on camshafts, the crankshaft pulley and sprockets, preventing rotation while you work. Using the correct locking pins and plates ensures the timing marks remain aligned so parts are reinstalled in the original phase.

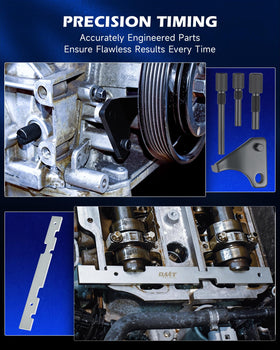

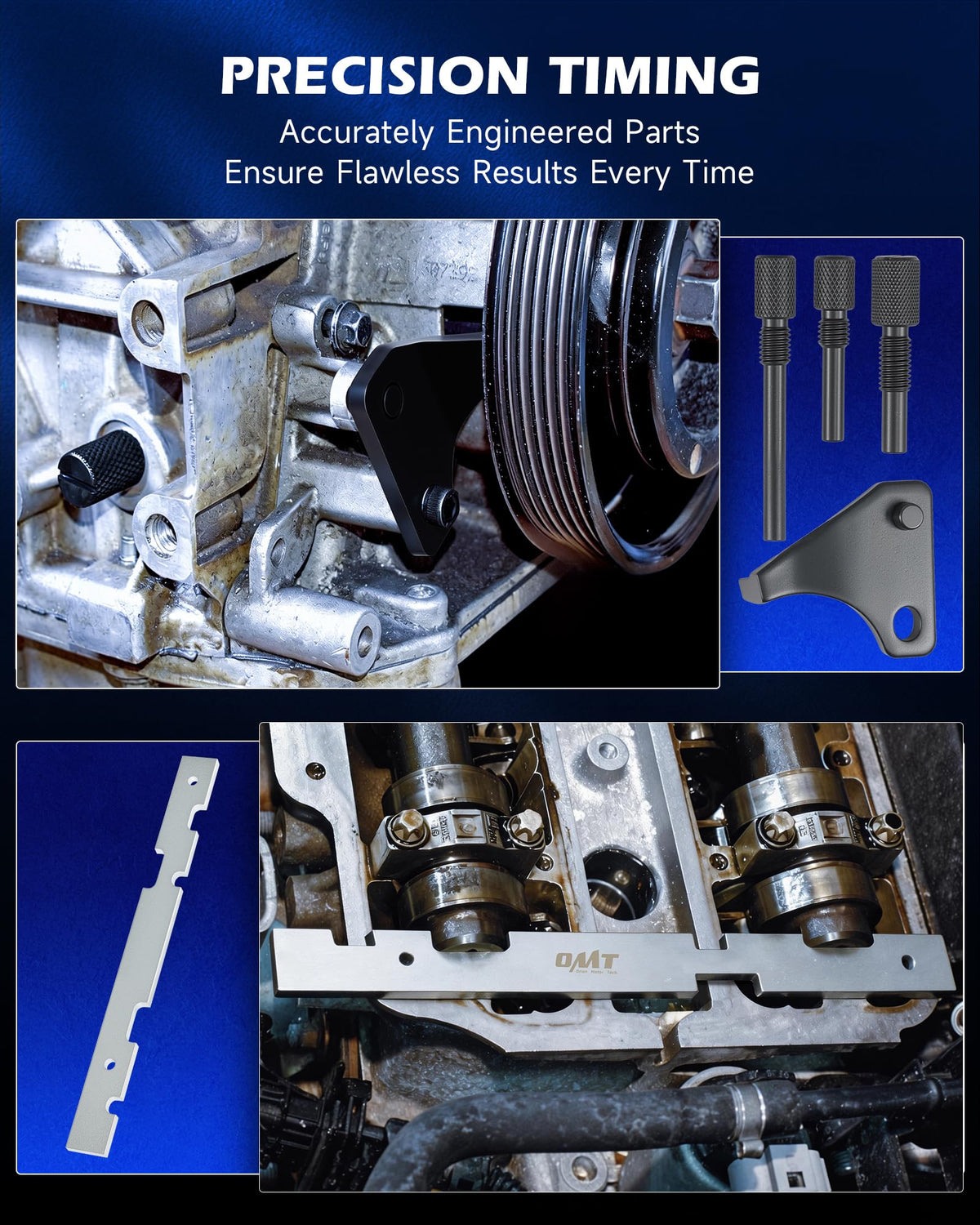

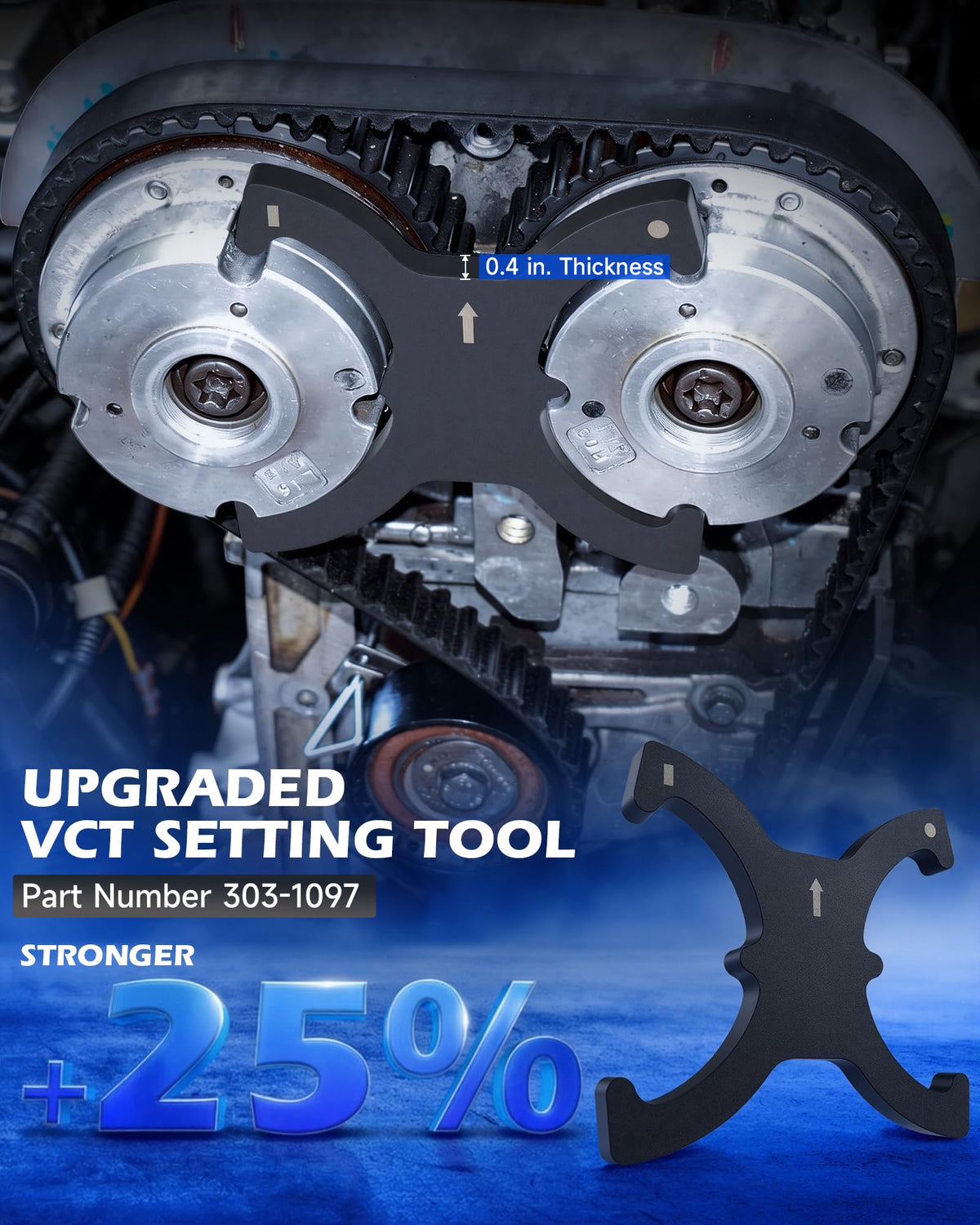

• Camshaft locking plates and setting bars fit OEM locations for secure hold.

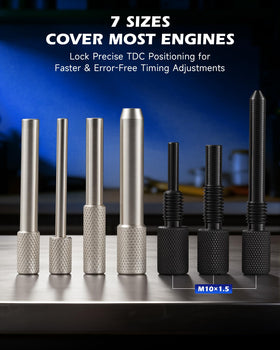

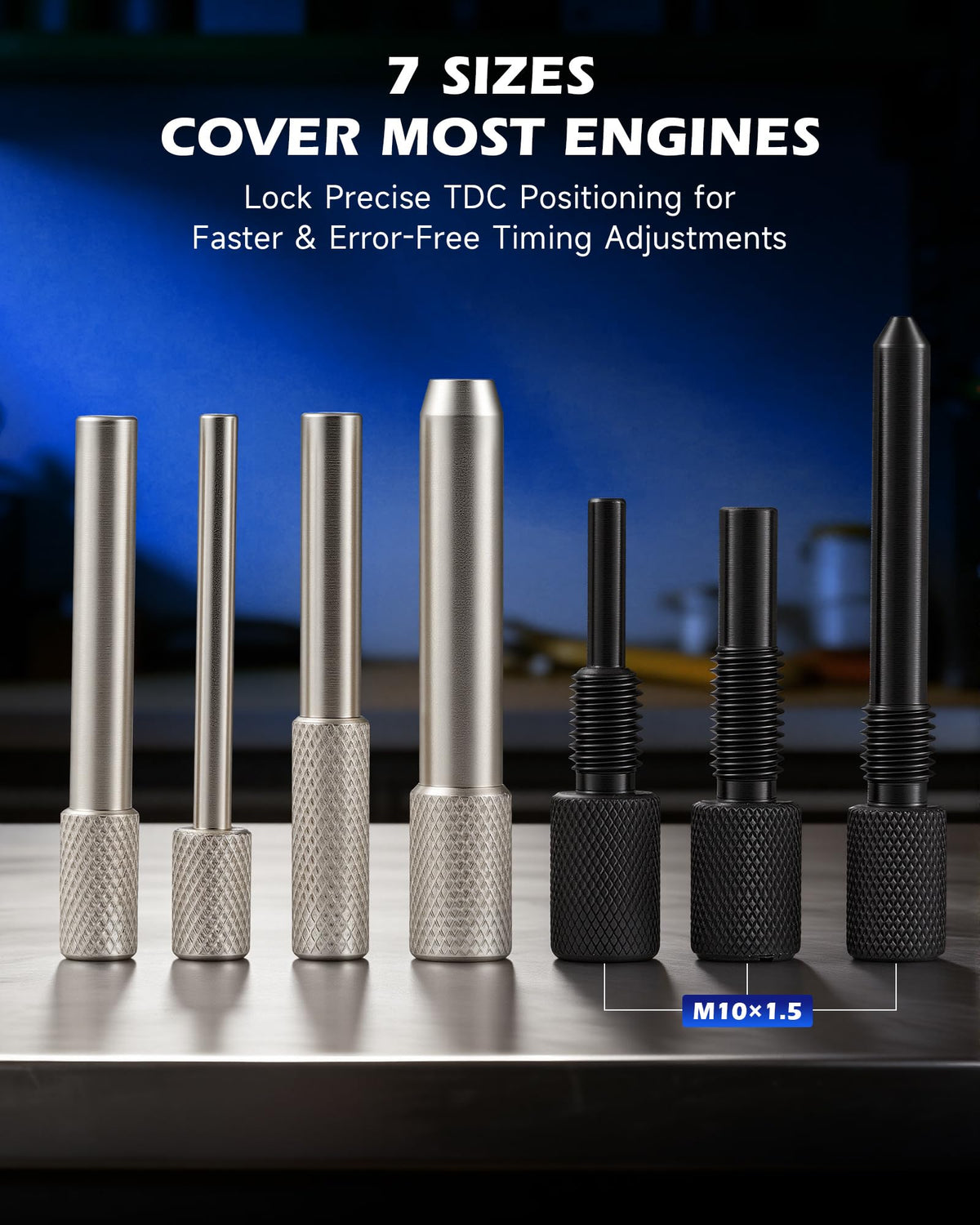

• Crankshaft alignment pins lock the pulley at top-dead-center (TDC).

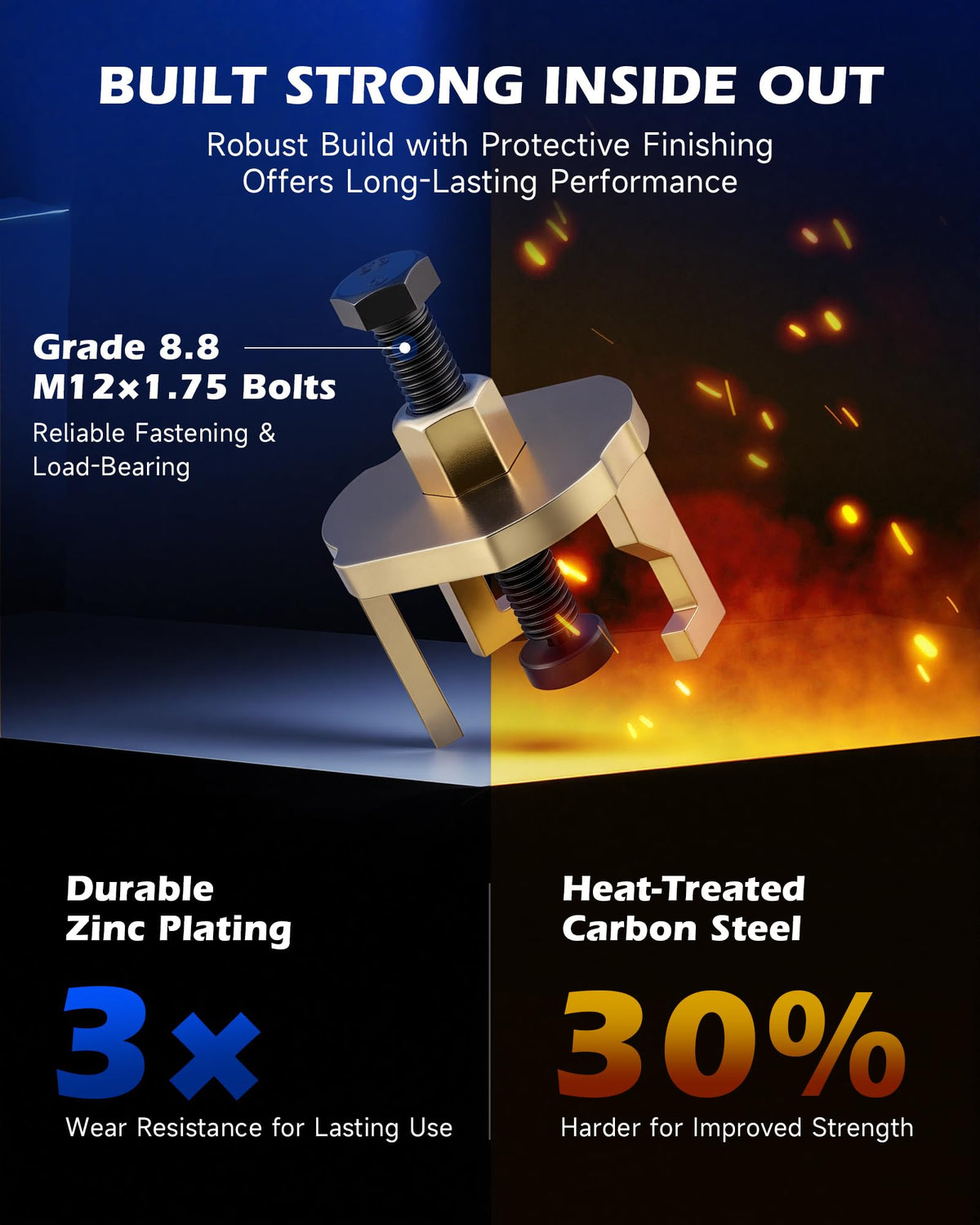

• Included flywheel and sprocket puller allows safe removal without turning the assembly.

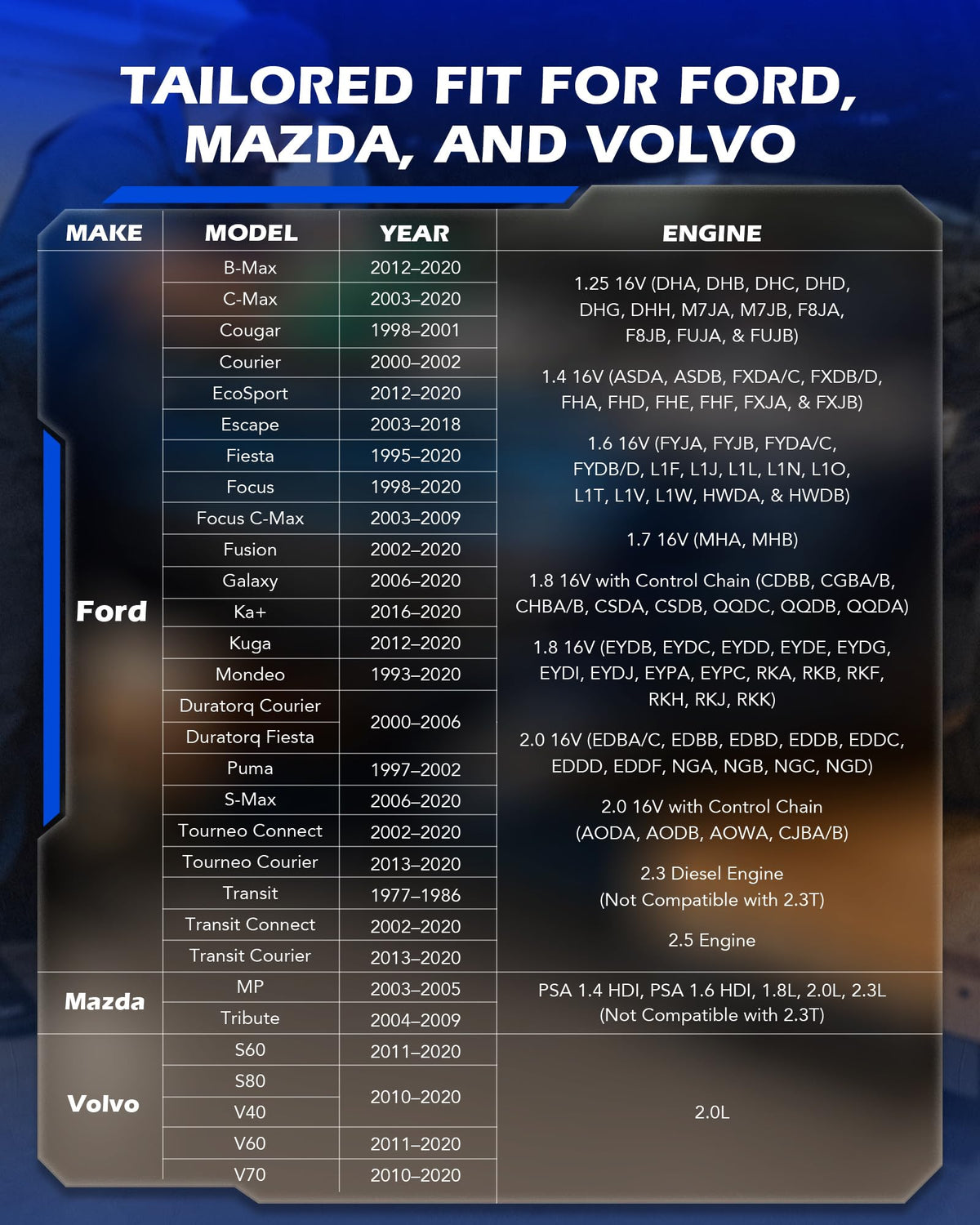

Which engines and vehicles are compatible with this set?

The kit is built for a wide range of Ford gasoline and diesel EcoBoost/TDCi/TDDi engines plus certain Mazda and Volvo 1.4–2.5L variants. It replaces several manufacturer tooling references so you can service multiple models with one kit.

• Compatible with Ford models: Fiesta, Focus, Fusion, Escape, C-MAX, Kuga, Mondeo, Transit and more.
• Works with Mazda 1.4–2.5L engines that share timing layout with Ford-based units.
• Fits selected Volvo models (S60, S80, V40, V60, V70) that use the same locking points.

What materials and build quality can I expect?

Orion Motor Tech manufactures the set from heat-treated alloy steel for rigidity and corrosion resistance. Precision machining ensures each pin and plate seats accurately into factory locating holes, minimizing play during maintenance.

• Heat-treated 45# steel construction for strength and long service life.

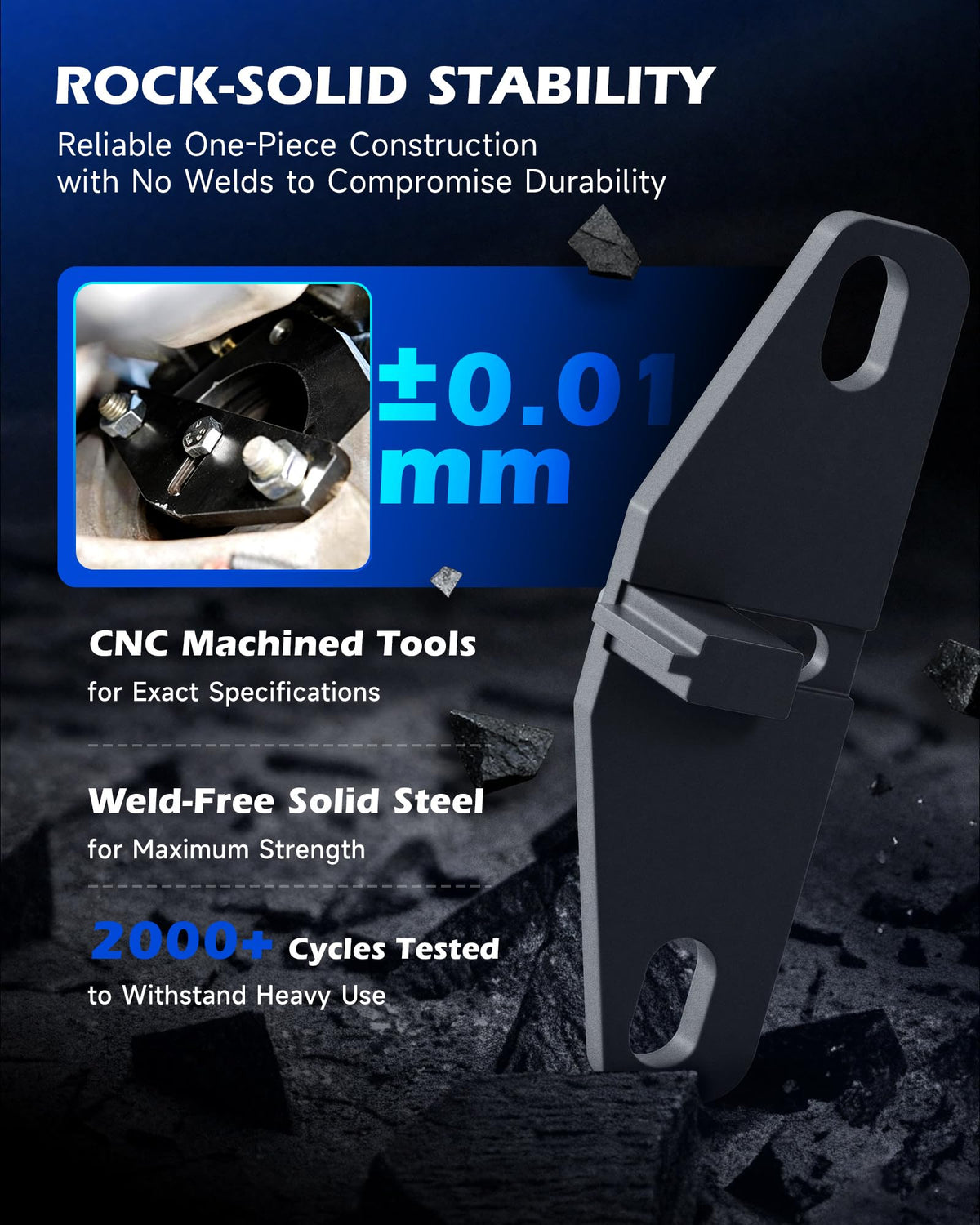

• CNC-machined tolerances match OEM tooling dimensions for reliable fit.
• Corrosion-resistant finish for durability in garage environments.

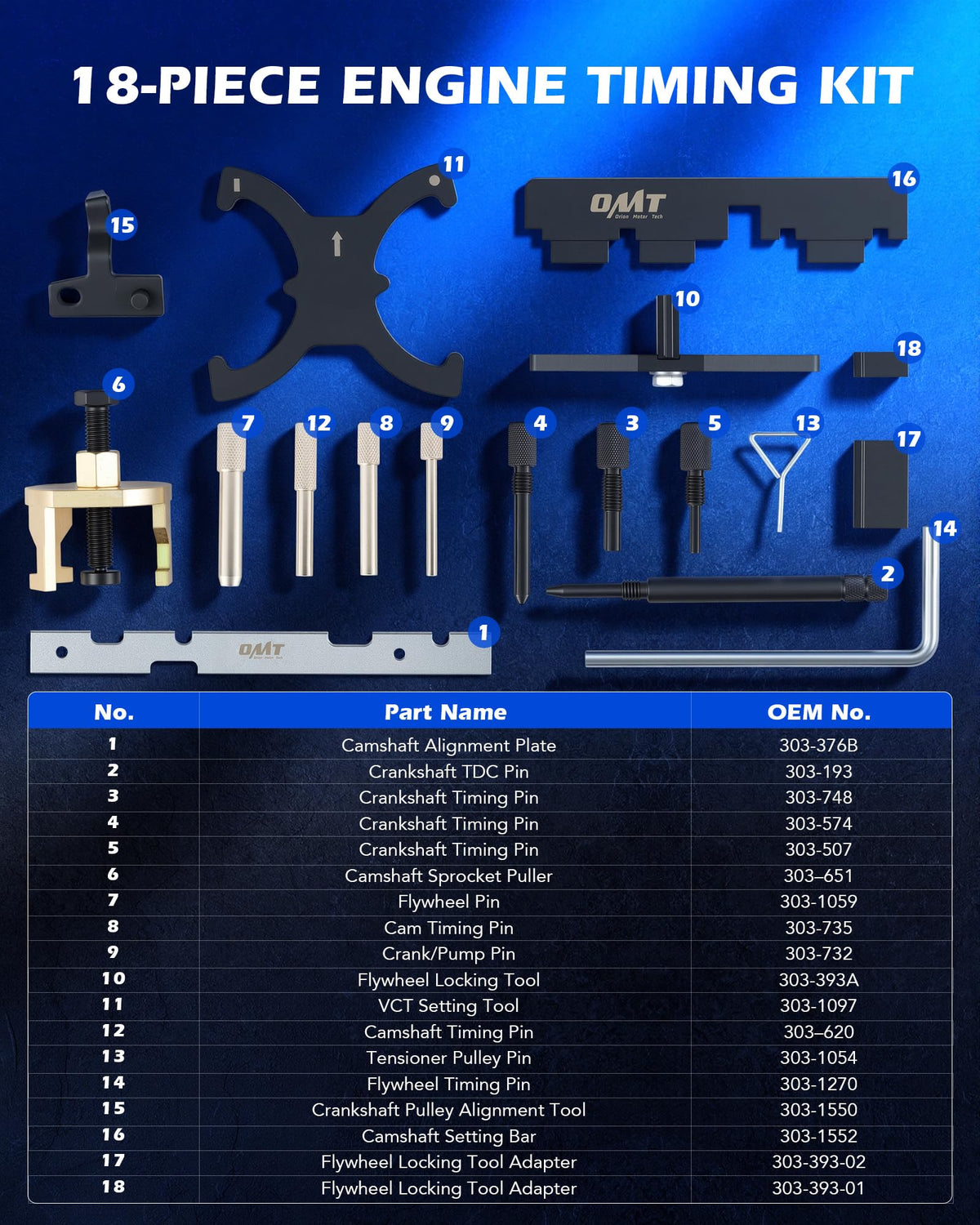

What comes in the kit and how do I store it?

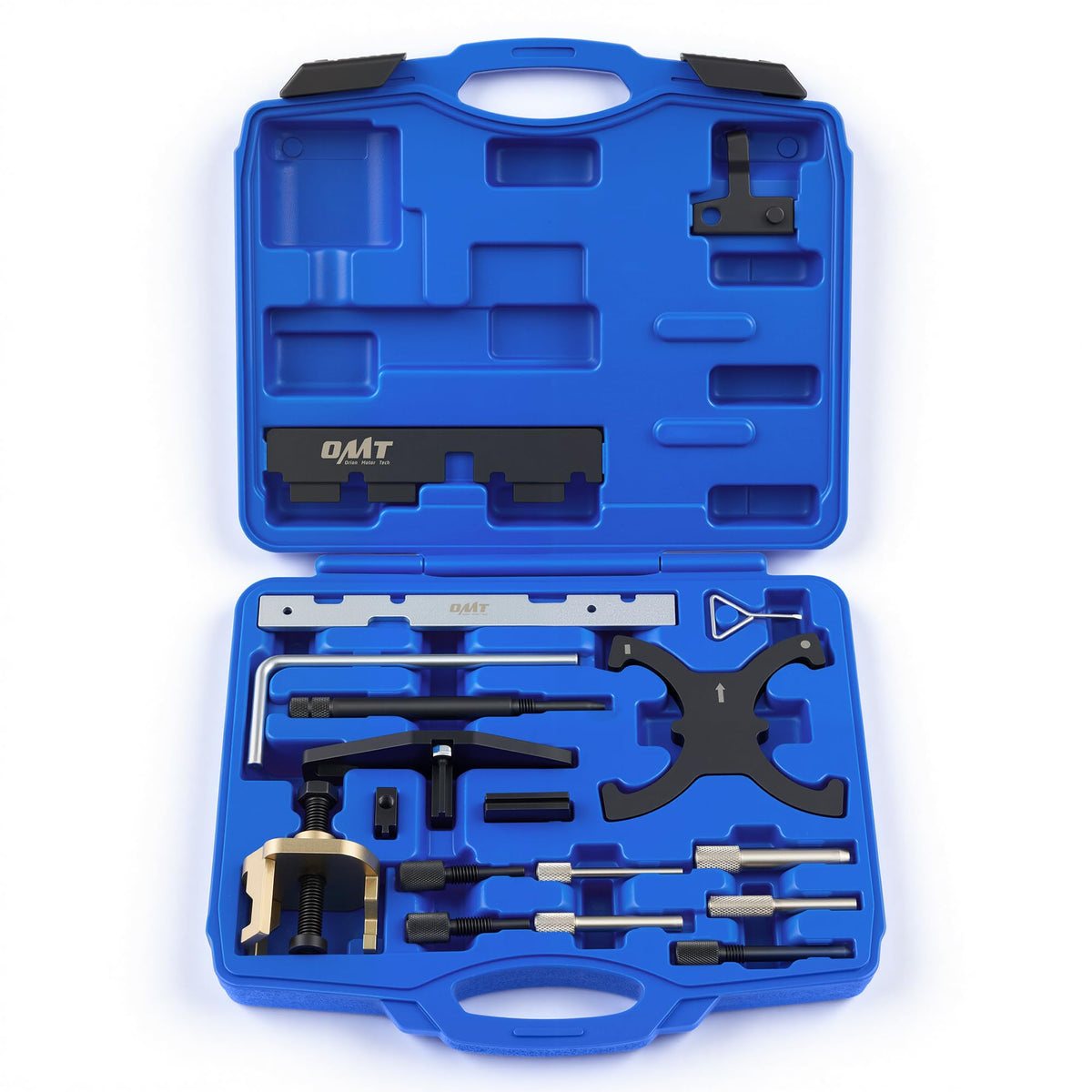

The kit bundles all necessary alignment pins, a cam sprocket puller, camshaft setting bar, alignment plate and reinforced locking tools so you don’t need to hunt for separate pieces. A rugged blow-molded case keeps parts organized and protected between jobs.

• Full set of OEM-style camshaft and crankshaft locking pins and bars.
• Camshaft sprocket puller and alignment plate for safe component removal.
• Custom foam-molded compartment in a hard case for transport and storage.

Who is this for: This timing tool set is aimed at professional mechanics, independent repair shops and experienced DIYers who regularly service Ford-based engines, Mazda variants and compatible Volvo models. If you perform camshaft or crankshaft work—replacing timing belts, chains, tensioners or cam seals—this kit delivers the alignment accuracy and durability required to do the job correctly and efficiently. If you only change basic wear items infrequently, confirm compatibility with your exact engine code before purchasing.
