Orion Motor Tech Wheel Bearing Puller Kit for Harley‑Davidson 0.75/1/25mm — Heat‑Treated Steel with Carry Case

Orion Motor Tech's wheel bearing puller and installer kit lets you remove and install sealed 0.75", 1" and 25mm bearings on most Harley-Davidson motorcycles from 2000–2020 without damaging the wheel.

This compact, all-in-one kit supplies the parts and hardware needed to service motorcycle wheel bearings quickly and accurately. Built from heat-treated AISI 1045 medium carbon steel with blackened threaded rods, the set is engineered to resist wear while providing the controlled force required to extract and press bearings from hubs. The kit’s organized blow-molded case keeps components secure and transportable, so you can work in the garage or at the roadside with minimal fuss.

Which Harley models and bearing sizes does this tool support?

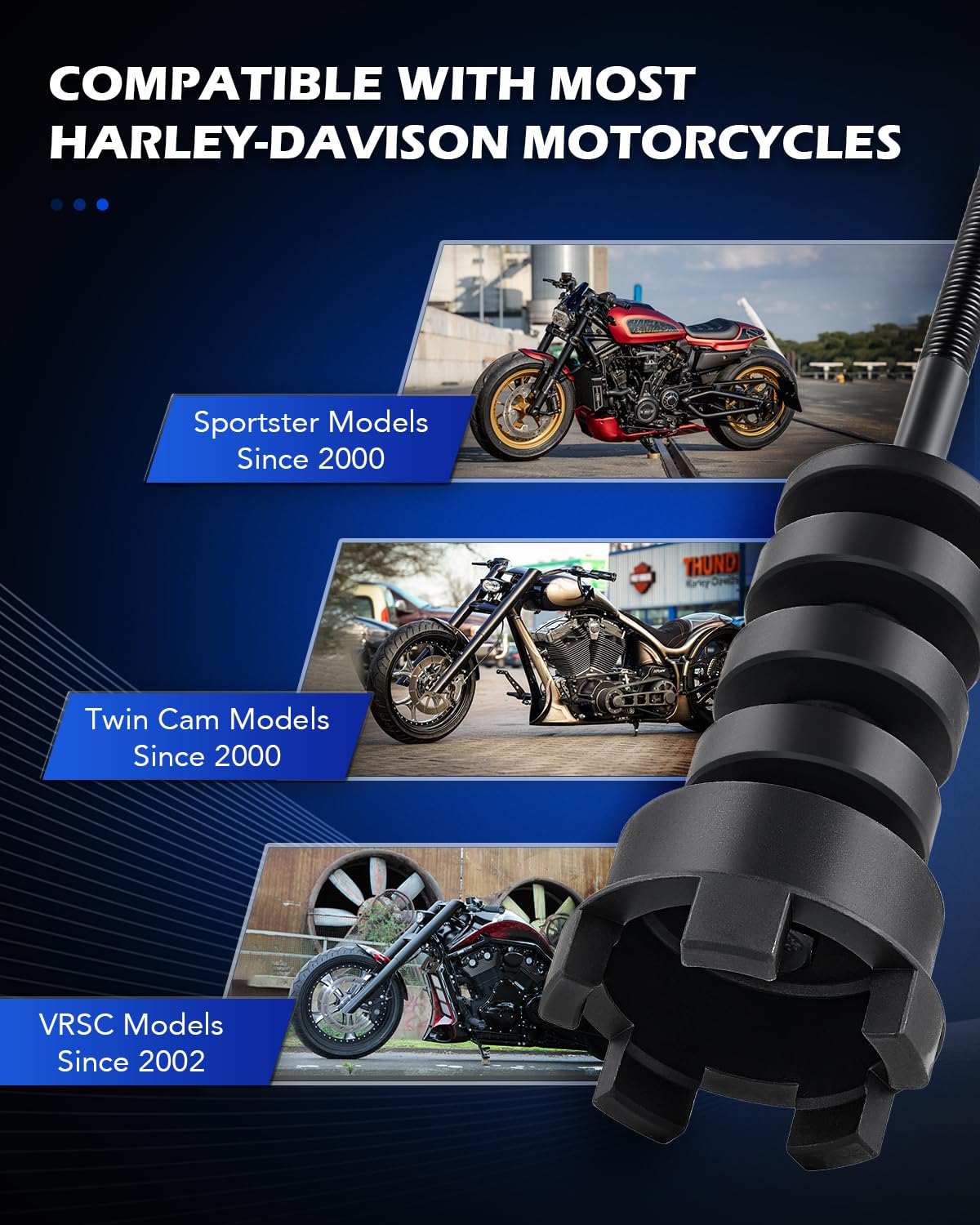

The tool set is intended for most Harley-Davidson motorcycles produced roughly between 2000 and 2020, covering common sealed wheel bearing sizes used in those models. It specifically handles 0.75-inch, 1-inch, and 25-millimeter sealed bearings found in wheels and some hub assemblies. If your bike uses different or specialty bearings, compare dimensions before use.

• Compatible with many Harley models from early-2000s to 2020

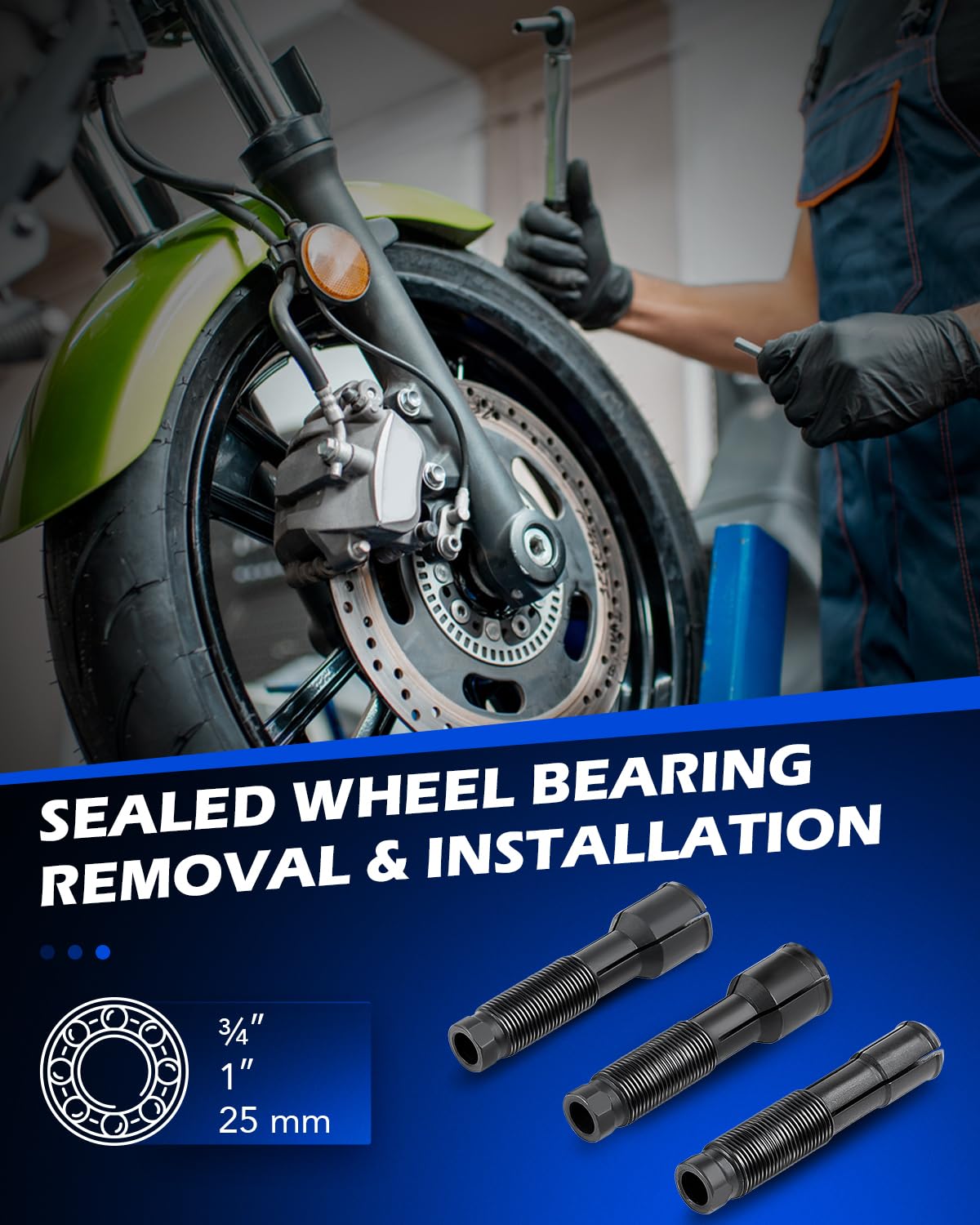

• Works with sealed bearings sized 0.75", 1", and 25 mm
• Check bearing outer and inner diameters to confirm fit

How does the kit protect the wheel while removing or installing bearings?

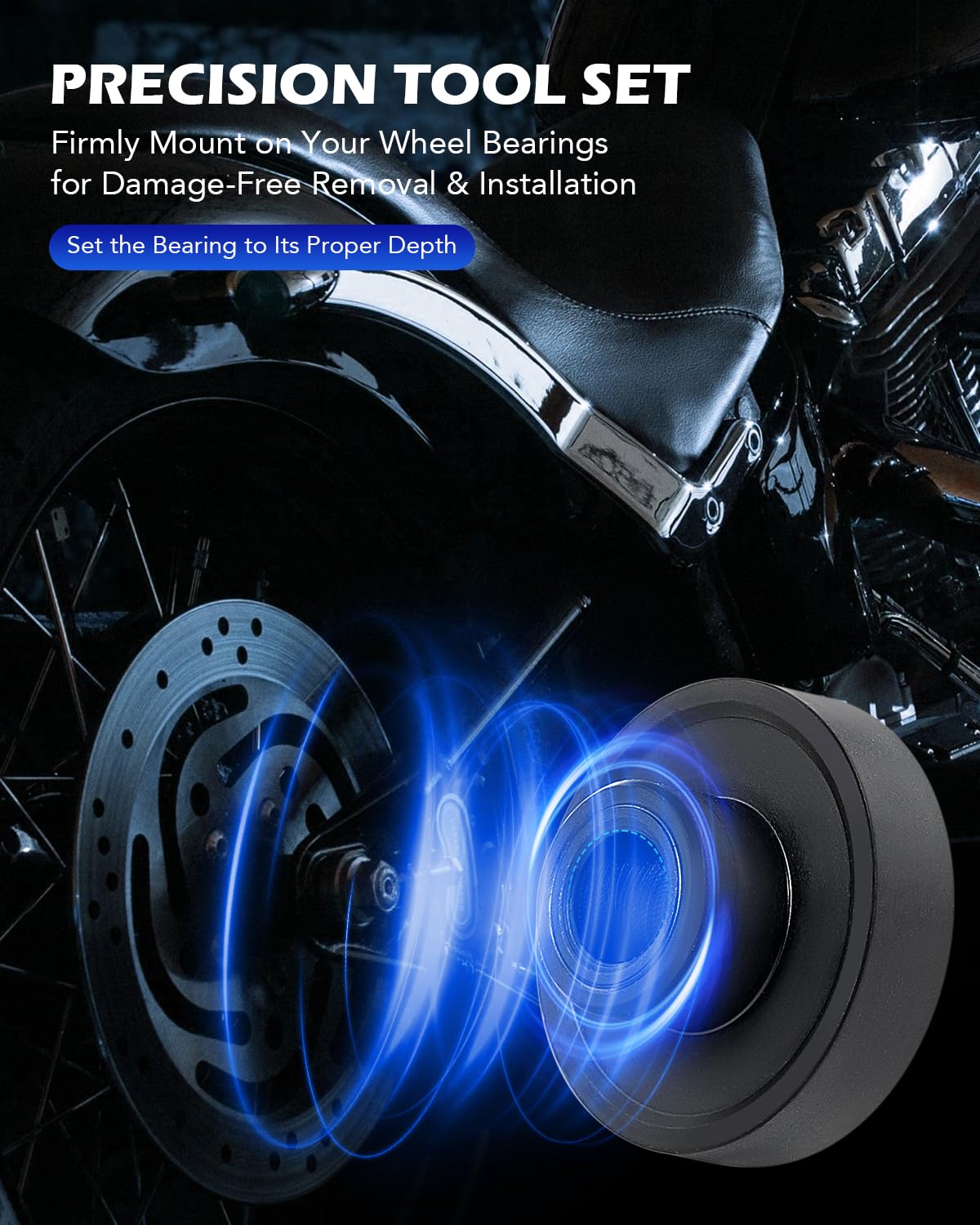

The puller and installer plates distribute pressure evenly so force is applied to the bearing race—not the wheel—reducing the risk of hub damage. Using proper bolt sequencing and the supplied dowels prevents uneven torque and keeps the hub surface intact. Follow step-by-step tightening to press bearings smoothly into place without marring the wheel.

• Installer plates apply uniform pressure to bearing races
• Dowels and plates keep alignment during pressing or pulling
• Heat-treated steel resists bending under load for safer operation

What components come in the kit and what tools do I still need?

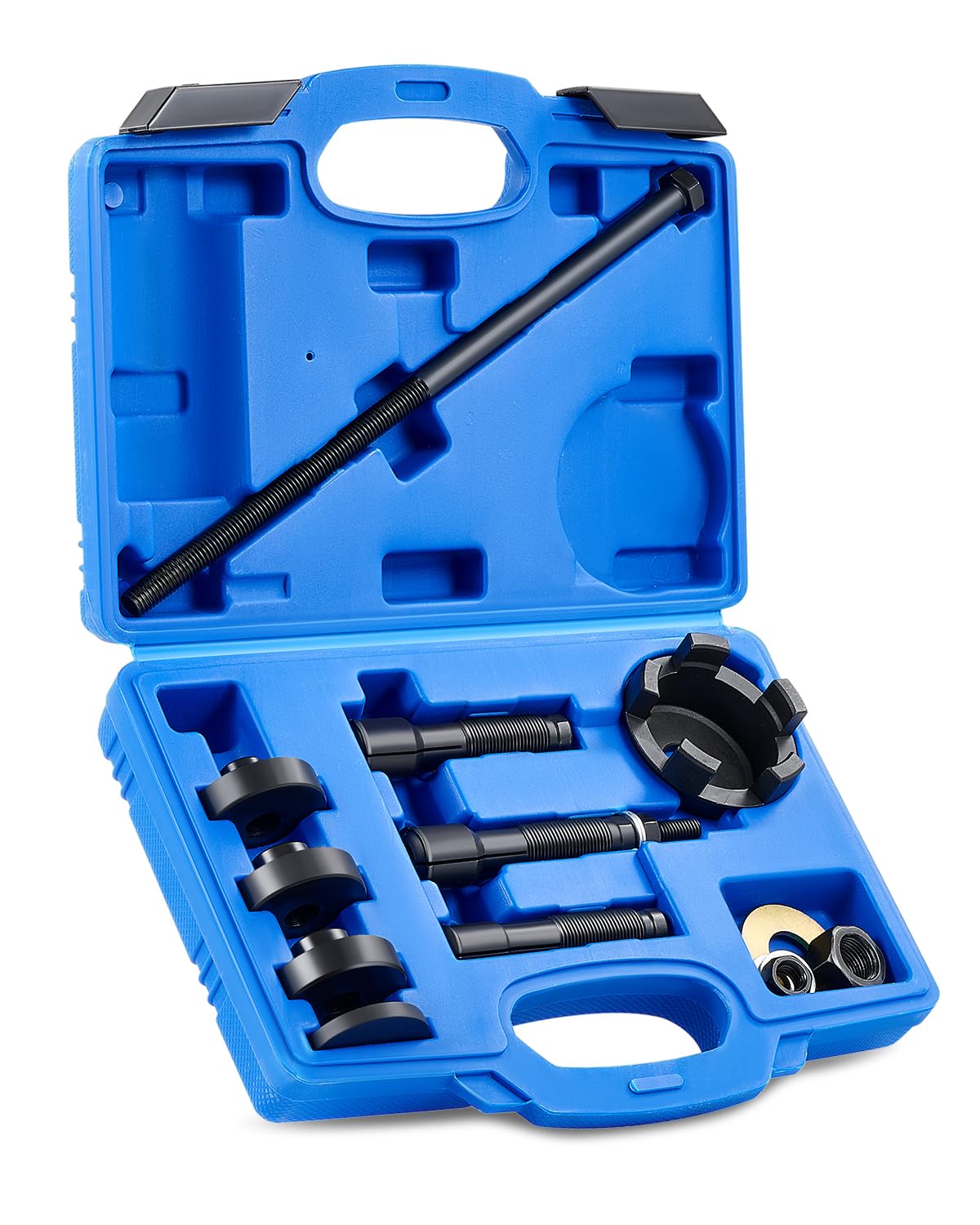

The set includes puller plates, installer plates, bolts, dowels, and heat-treated threaded rods—all stored in a blow-molded carrying case. A torque or breaker bar and sockets or a compatible wrench are required to drive the threaded rods; those driving tools are not included. The kit is designed to be complete aside from the hand driver you likely already own.

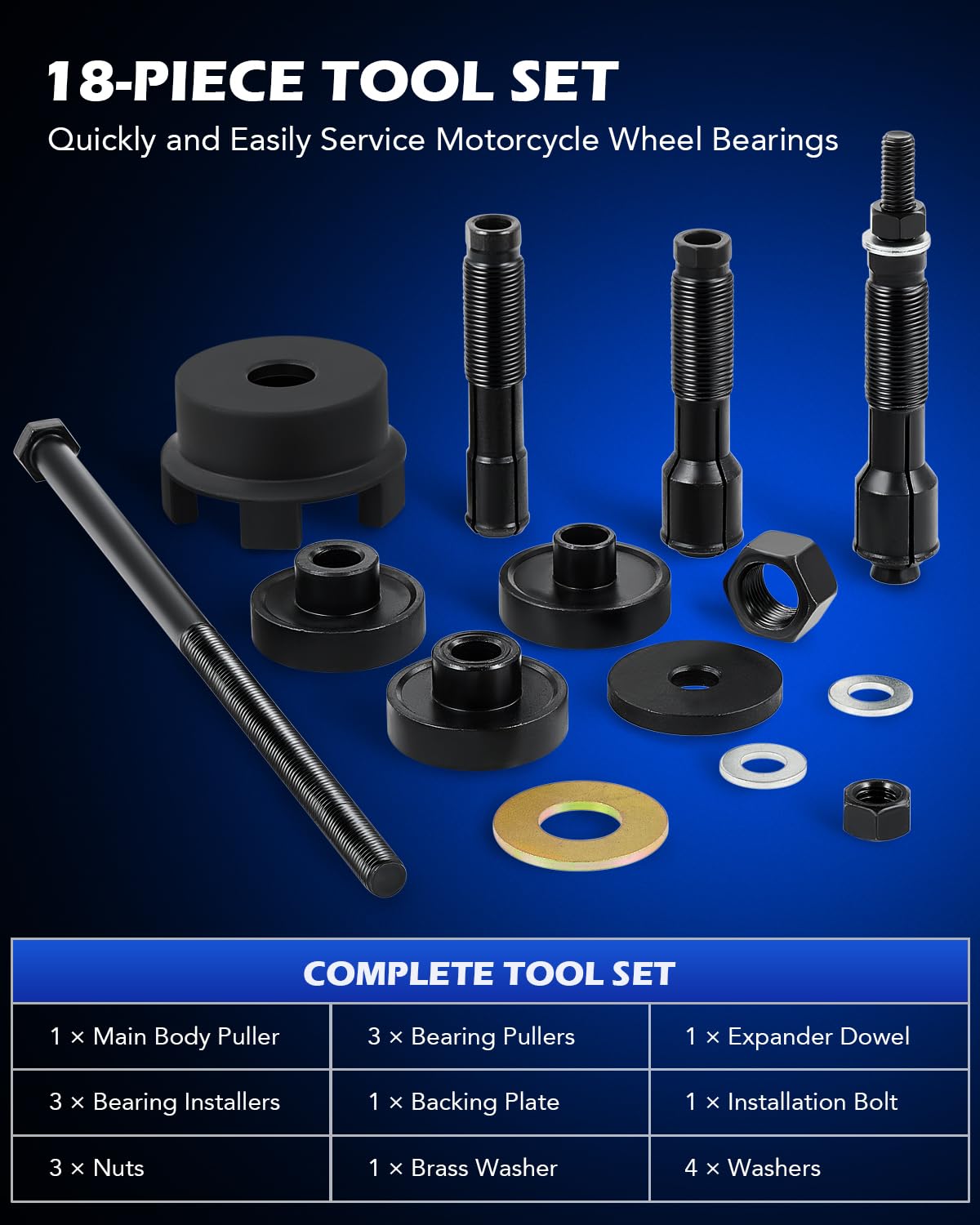

• Includes plates, bolts, dowels, and threaded rods in one case
• Requires a separate wrench or breaker bar to operate (not included)
• All parts organized in a molded case for storage and transport

How durable and reliable are the parts for repeated use?

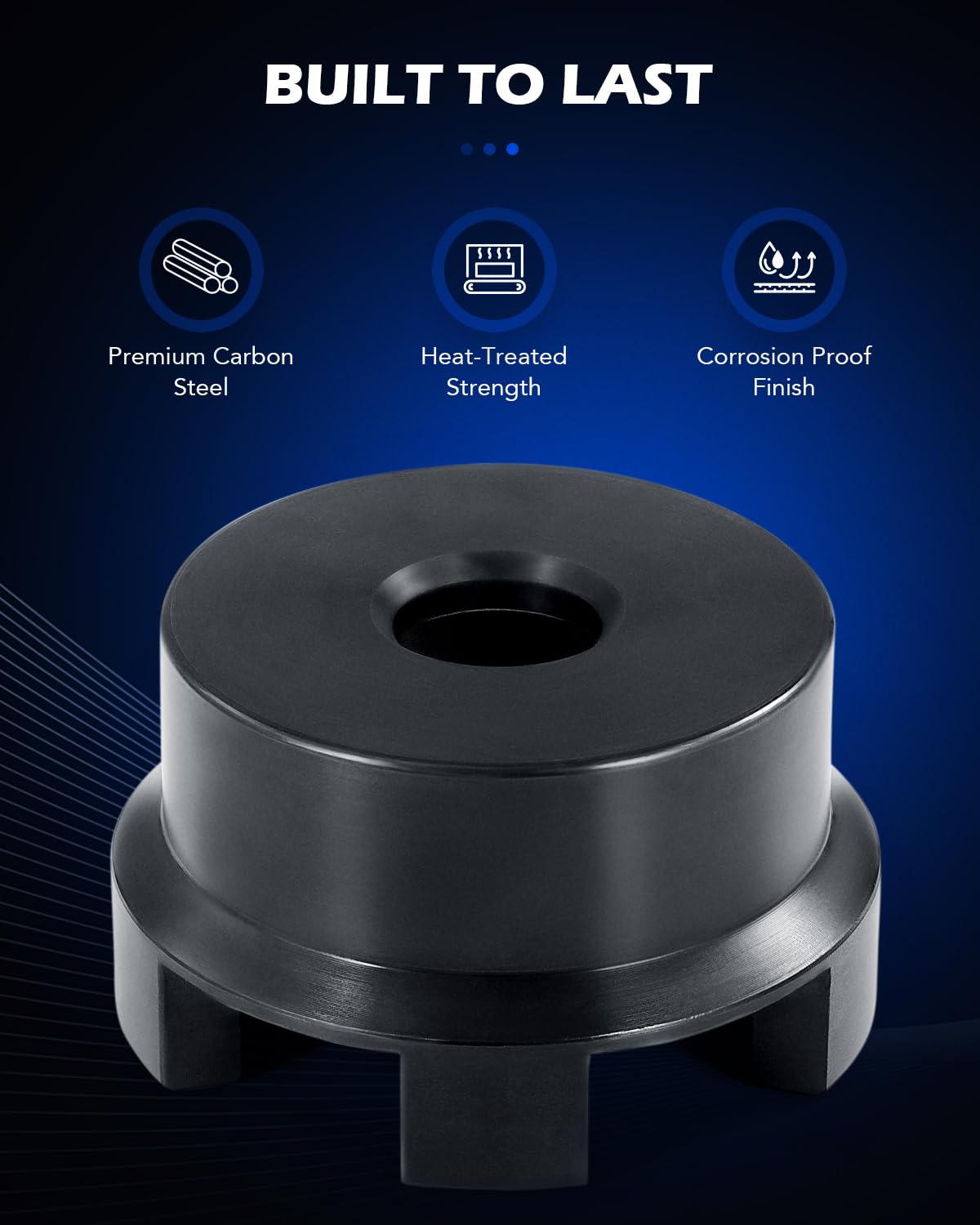

Critical components are machined from AISI 1045 medium carbon steel and the threaded rods receive additional heat treatment and blackening for improved strength and corrosion resistance. Those materials give the kit long service life even when used frequently in a home shop or professional setting. Proper cleaning and storage in the supplied case will extend longevity further.

• AISI 1045 medium carbon steel construction for strength
• Heat-treated, blackened threaded rods for hardness and rust resistance
• Blow-molded case protects parts between jobs

Who is this for? This Orion Motor Tech bearing puller and installer kit is aimed at motorcycle mechanics, DIY Harley owners, and small repair shops who need a reliable, vehicle-specific solution for sealed wheel bearings. If you frequently service Harley wheels or want a sturdy, portable tool set to avoid paying shops for routine bearing jobs, this kit provides the essential components to perform safe removals and installations with professional-level results.
