OTC Brake Pad Gauge OTC 6596 — compact on-vehicle thickness gauge, color-coded pass/fail (red/green), rugged

The OTC 6596 Brake Pad Gauge is a compact, rugged tool that measures brake pad thickness on the vehicle and displays a clear red/green color code to indicate remaining pad life.

Checking brake pad wear quickly and accurately helps you decide whether pads need replacement before noise, vibration, or reduced stopping power appear. The OTC 6596 was engineered to let technicians and DIYers verify pad thickness without disassembling wheels or calipers in most applications. Its simple probe-and-barrel design, built from durable materials, resists shop wear and gives repeatable readings with a visible pass/fail color indicator.

How does the OTC 6596 measure brake pad thickness on the vehicle?

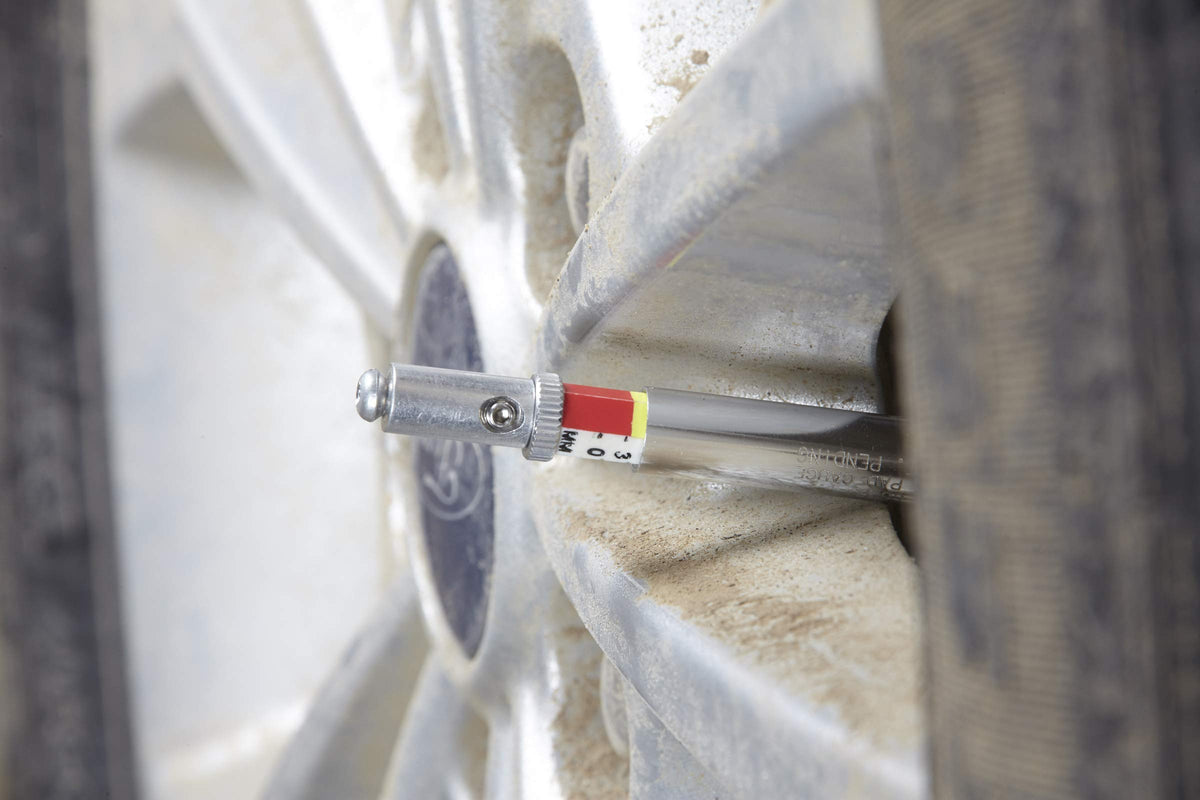

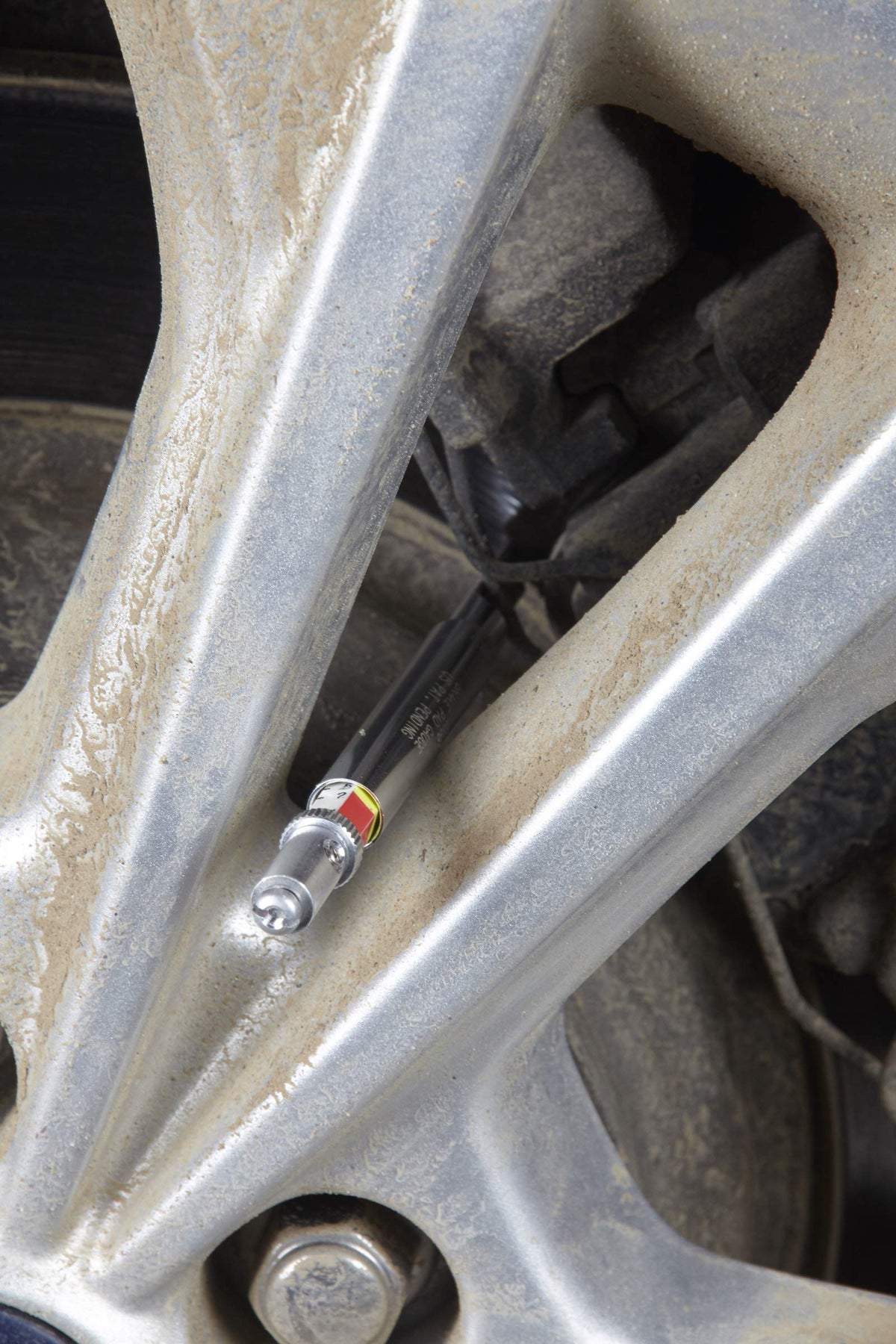

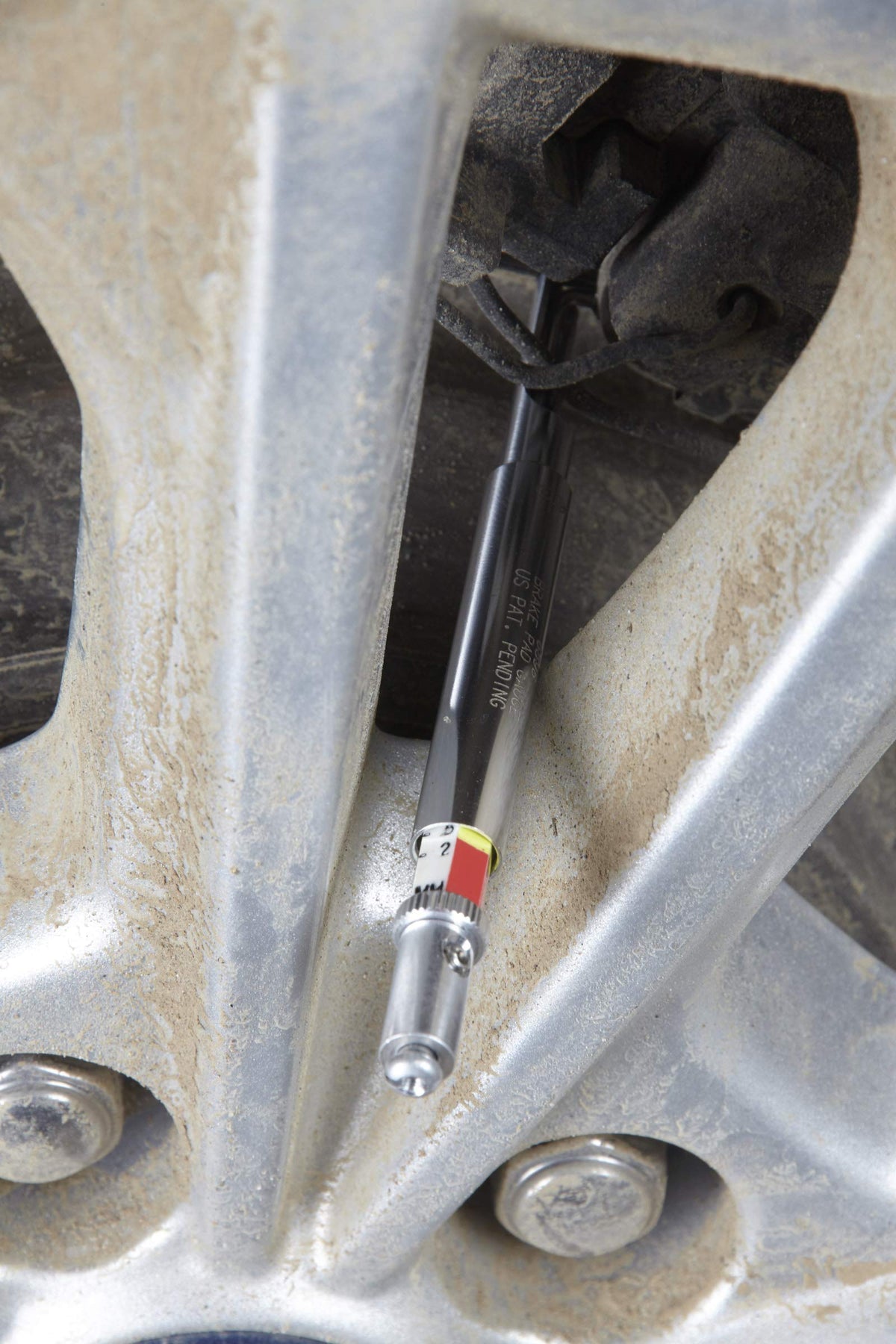

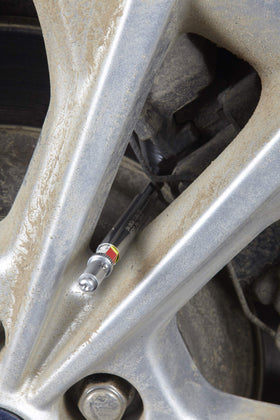

The gauge uses a sliding probe and a barrel calibrated to millimeters to reach the friction material through standard inspection openings. You position the tip against the pad face and lock the probe; the barrel reveals the thickness and the color ring indicates whether the pad meets minimum thickness. No wheel removal is required in most vehicles, so checks are faster and less disruptive.

• Sliding probe records distance to pad surface

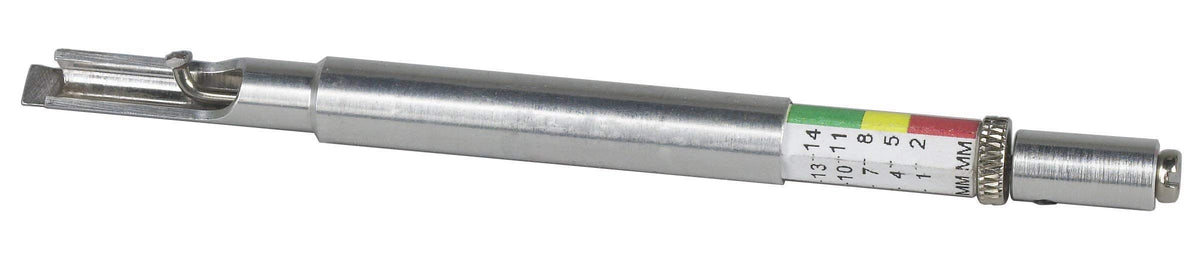

• Barrel scale shows millimeter reading and color code
• Probe locks in place for stable measurement
• Designed to fit common inspection apertures on many calipers and wheels

What do the red and green colors mean on the gauge?

The color-coded band gives an immediate visual decision: green indicates sufficient pad thickness, red signals pads have reached or fallen below the recommended minimum. This instantly readable system speeds triage during multi-vehicle inspections and helps prioritize replacements. It’s a simple go/no-go signal that complements the numeric millimeter readout for confidence in the result.

• Green = acceptable pad thickness
• Red = pad at or below minimum thickness
• Numeric millimeter reading available for precise records
• Color ring speeds fleet and multi-car evaluations

How durable and accurate is the OTC 6596 in a busy shop?

The tool is manufactured from rugged components intended to withstand regular use in professional settings. A straightforward calibration step ensures the barrel and probe return correct measurements: when the probe tip locks on the body ledge the barrel should read 4 mm. With occasional calibration and basic care, the gauge stays reliable for frequent inspections.

• Rugged construction for shop environments
• Simple calibration: set screw and end screw adjust to 4 mm locked position
• Consistent readings when properly maintained
• Compact size resists snagging and stores easily in toolboxes or service carts

Will this gauge fit the vehicles I work on?

The OTC 6596 was designed to be compatible with most passenger and light-truck brake assemblies where the pad is accessible through standard openings. While it works without component removal in many cases, extremely tight or unusual caliper designs may still require partial disassembly. It’s best used as a first check to confirm whether full inspection or pad replacement is needed.

• Fits most common passenger and light-truck caliper openings
• Ideal for rapid shop triage and routine maintenance checks
• Some specialty or compact calipers may still need removal for full assessment
• Use as a quick verification tool prior to deeper service

Who is this for: The OTC 6596 Brake Pad Gauge is intended for professional technicians, fleet service managers, and informed DIYers who want a fast, repeatable method to verify brake pad thickness without disassembling brake components in most situations. If you perform routine brake inspections, manage multiple vehicles, or value a quick pass/fail visual plus a millimeter reading, this compact gauge gives dependable, shop-ready measurements that help prioritize maintenance and reduce unnecessary disassembly.
