OTC Cylinder Leakage Tester Kit 5609 — Dual Gauges, Pressure‑Regulated Manifold in Blow‑Mold Case

The OTC 5609 Cylinder Leakage Tester Kit is a ready-to-use diagnostic set that pressurizes cylinders to pinpoint leaking rings, valves, and head gasket failures quickly and accurately.

When an engine shows low compression or uneven performance, isolating the internal leak source saves hours of guesswork. The OTC 5609 pairs dual, easy-to-read gauges with a pressure-regulated manifold and multiple thread adapters so you can test most spark-ignition engines with a standard 100 psi shop air supply. Everything nests in a tough blow-molded case for transport and storage, and step-by-step instructions are stored beneath the lid to guide technicians through each test.

How does this kit identify whether rings, valves, or a head gasket are leaking?

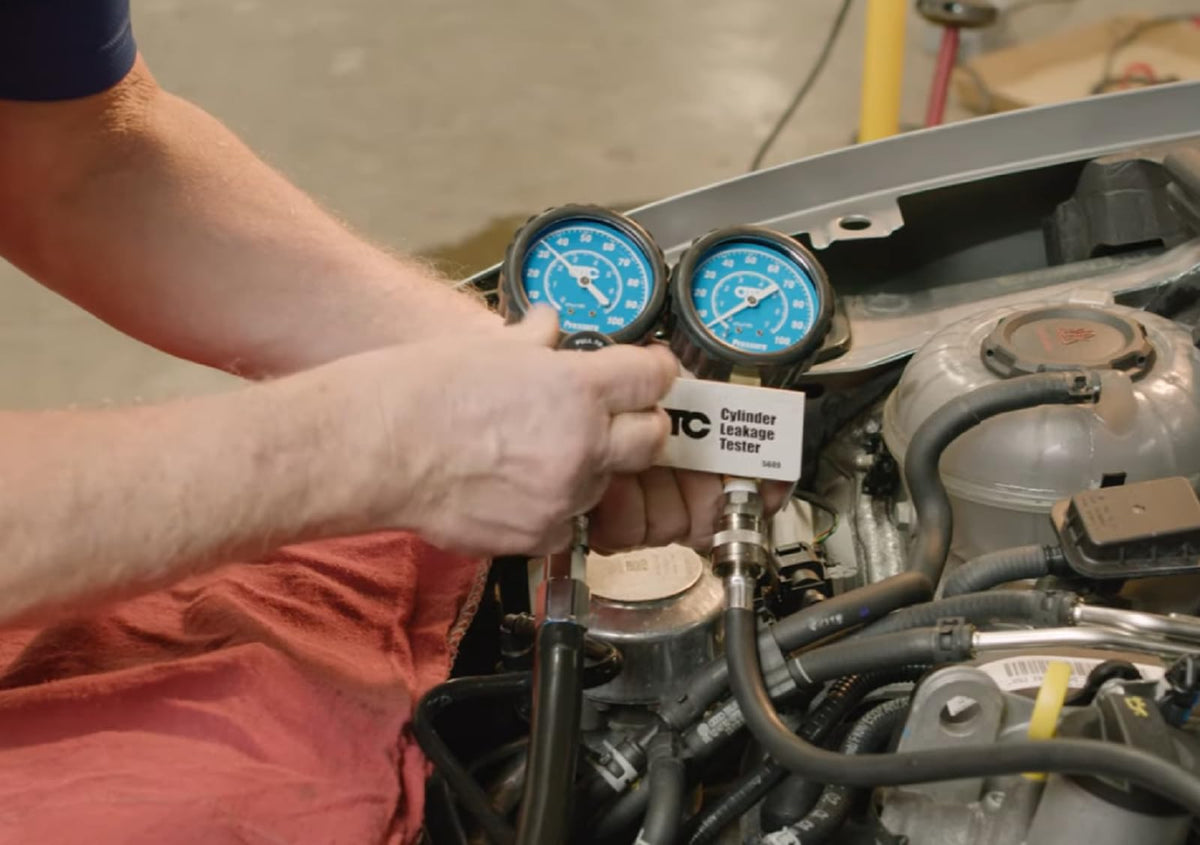

The kit pressurizes an individual cylinder through the spark plug hole and measures the rate and site of leakage. Differences in where you hear or see escaping air indicate the problem area — e.g., through the intake/exhaust, crankcase, or cooling system — letting you narrow down the fault without a teardown.

• Pressurize cylinder with 100 psi shop air using the included manifold and hose.
• Watch dual 2-1/2" gauges for pressure drop and leak rate readings.
• Listen for escaping air at intake/exhaust ports (valves) or bubbling in coolant (head gasket).
• Air in the crankcase or past the piston rings indicates ring wear or damage.

What components come in the kit and what sizes do the adapters cover?

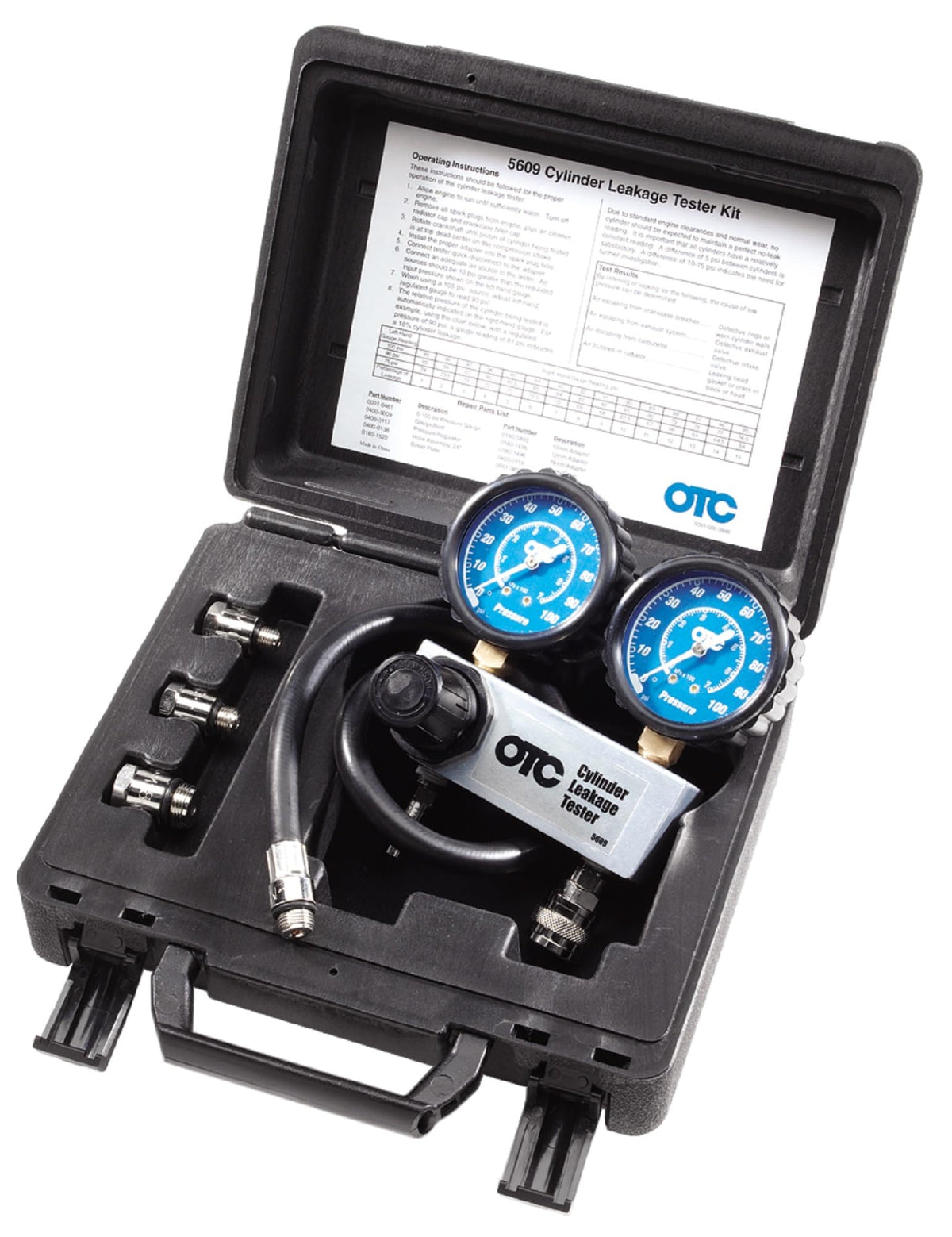

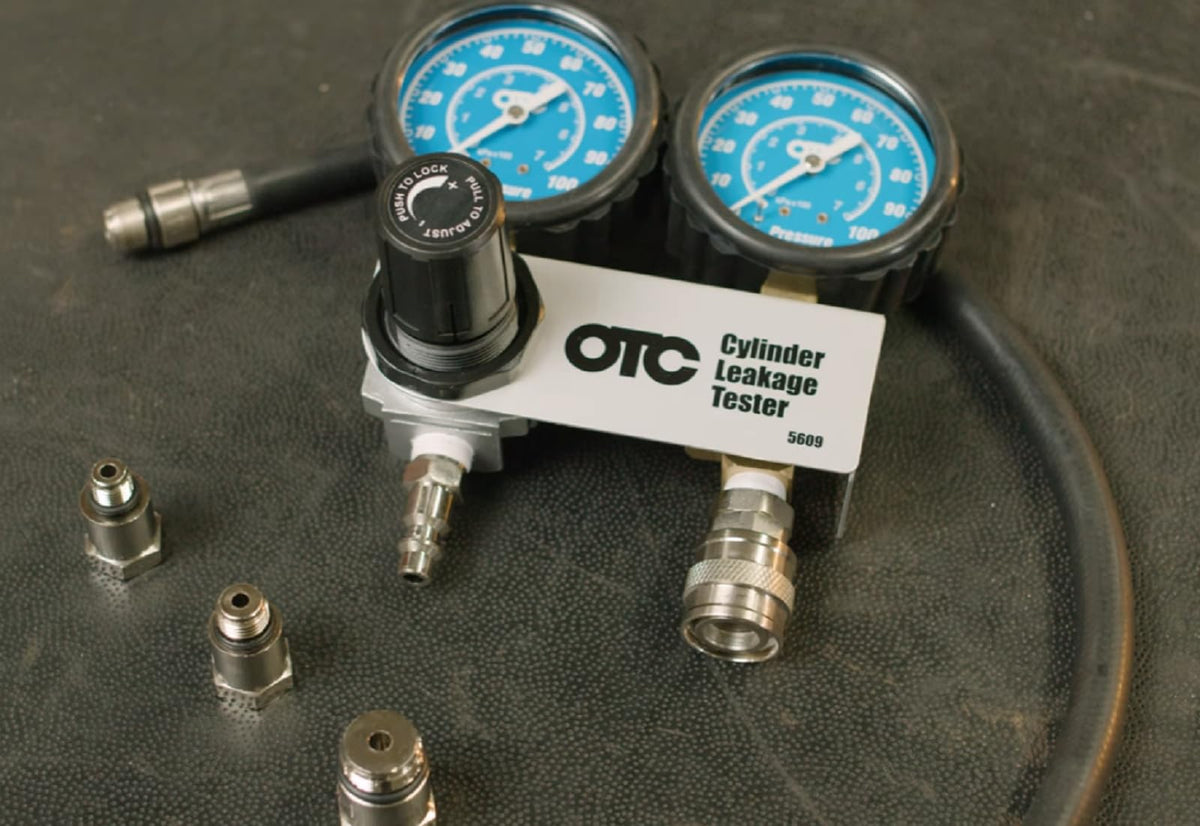

The OTC 5609 ships complete and ready to use: a pressure-regulated aluminum manifold with quick couplers, a 24" flexible 14 mm hose, and three threaded adapters to fit common spark plug hole sizes. A protective, removable-lid blow-molded case keeps parts organized and protected in the shop or on the road.

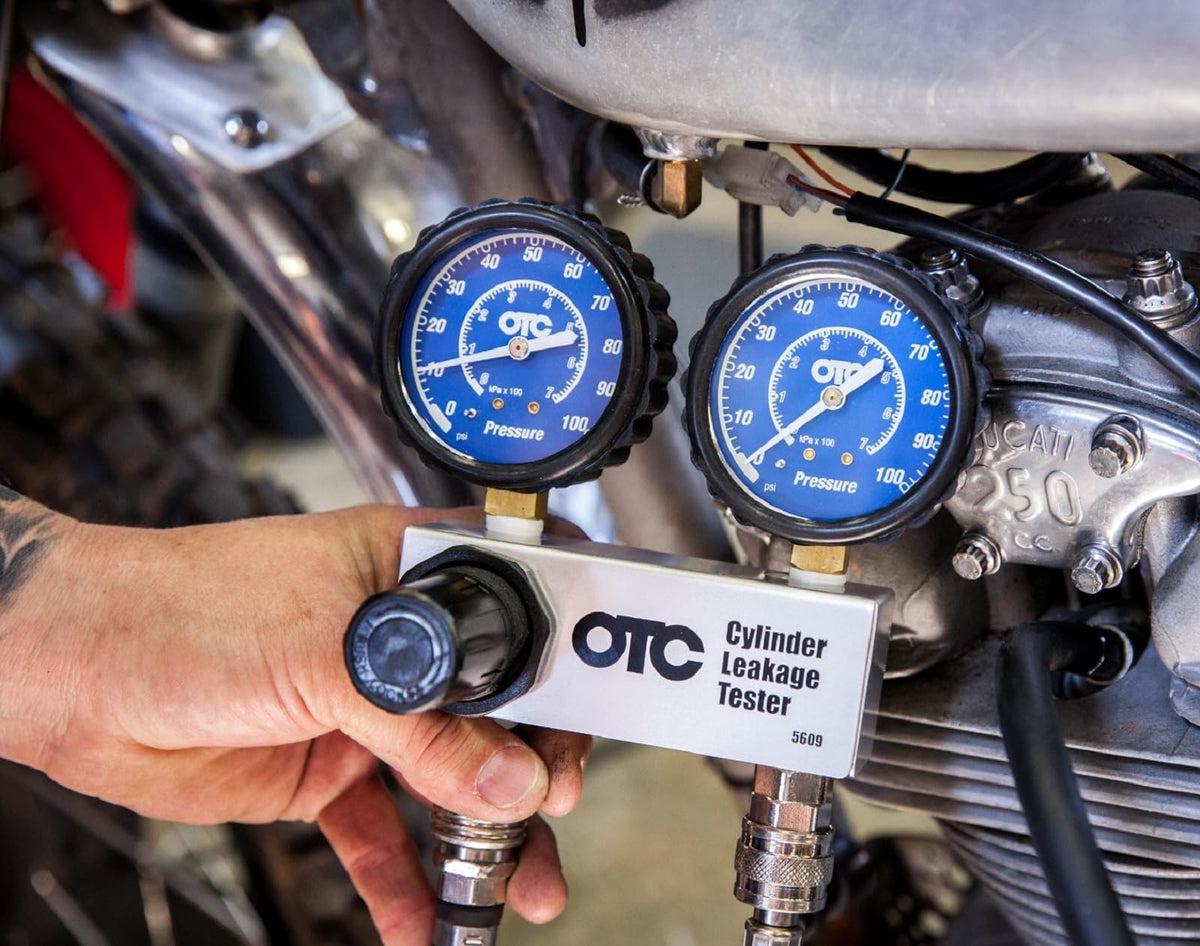

• Pressure-regulated manifold with quick-couplers for fast connections.
• 24" 14 mm flexible hose for reach and maneuverability.
• Thread adapters: 10 mm, 12 mm, and 18 mm to fit most engines.
• Durable case with instructions stored under the lid.

What do the gauges show and why are they useful during testing?

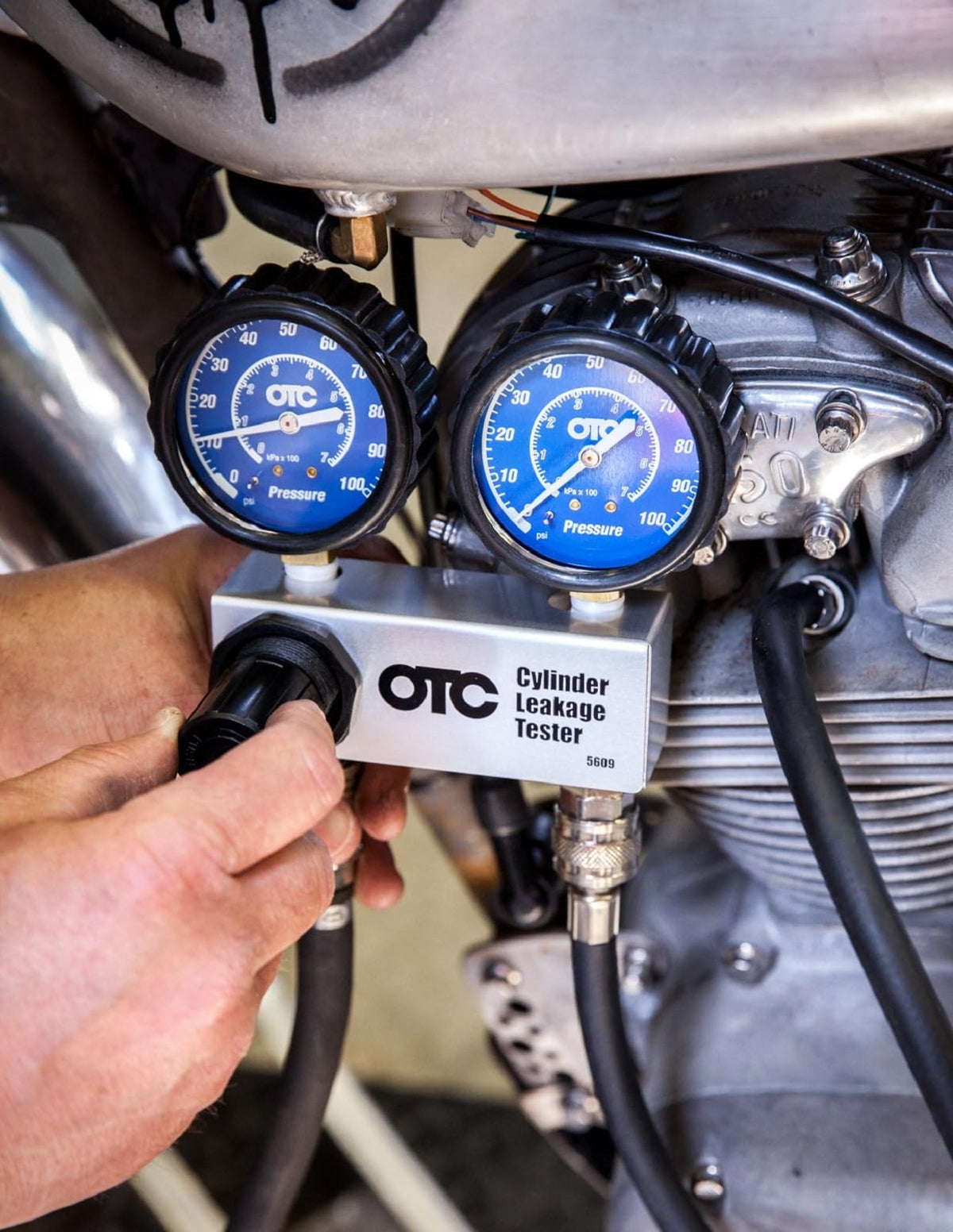

Dual 2-1/2" gauges display readings in psi and kPa, calibrated from 0–100 psi and 0–700 kPa, allowing clear, simultaneous observation of applied pressure and leakage. The chrome bezels and rugged outer boots improve visibility, handling, and drop protection in a busy shop environment.

• Large dual faceplates for quick, at-a-glance readings under workbench lights.
• Calibrations in psi and kPa support international and shop preferences.
• Protective boots reduce damage risk if tools are dropped or bumped.
• Chrome bezels resist corrosion and highlight the gauge faces.

What setup and shop requirements should I know before testing?

You need a stable 100 psi compressed air source to pressurize cylinders during the leak-down test. Follow the included instructions to isolate the cylinder, relieve spark and fuel systems as needed, and perform the test safely and repeatably; these steps ensure accurate diagnosis without damaging components.

• Requires a 100 psi regulated shop air supply for pressurization.
• Disconnect ignition and fuel as recommended before testing.
• Use the correct adapter for the spark plug bore to ensure a sealed test connection.
• Refer to the instruction sheet under the case lid for procedure details.

Who is this for: The OTC 5609 Cylinder Leakage Tester Kit is designed for automotive technicians, home mechanics, and performance tuners who need a fast, reliable method to diagnose internal engine leaks without time-consuming disassembly. It’s particularly useful in repair shops diagnosing drivability or compression issues, schools and training programs teaching engine diagnostics, and DIY enthusiasts who want an authoritative test tool that fits many engines and travels easily in a durable case.
