OTC Vacuum/Pressure Gauge Kit 5613 — 3-1/2" Dual-Scale Gauge, Case & Adapters for Engine Diagnostics

The OTC 5613 Vacuum/Pressure Gauge Kit is a handheld diagnostic tool that measures vacuum and low pressure to help pinpoint engine issues like leaking head gaskets, worn rings, cracked vacuum lines, and low-pressure fuel faults.

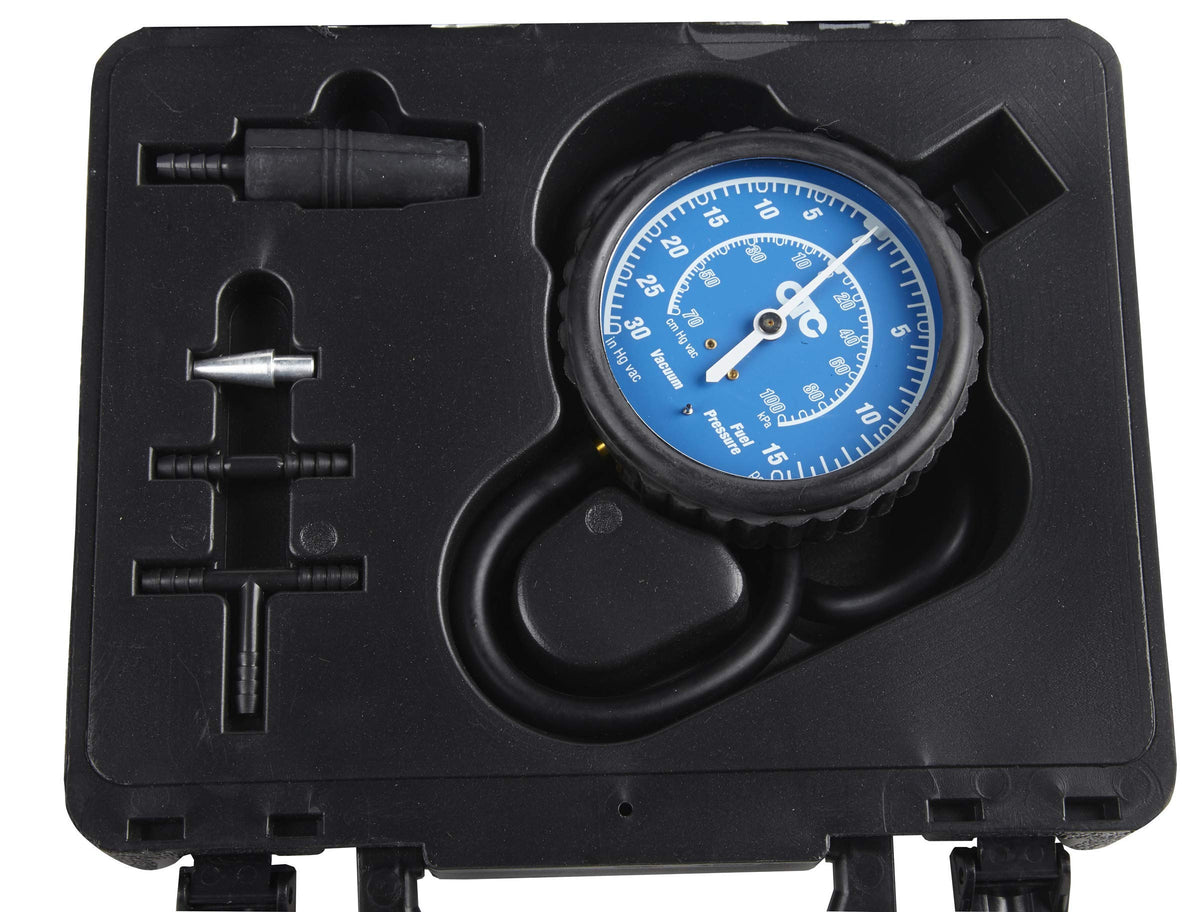

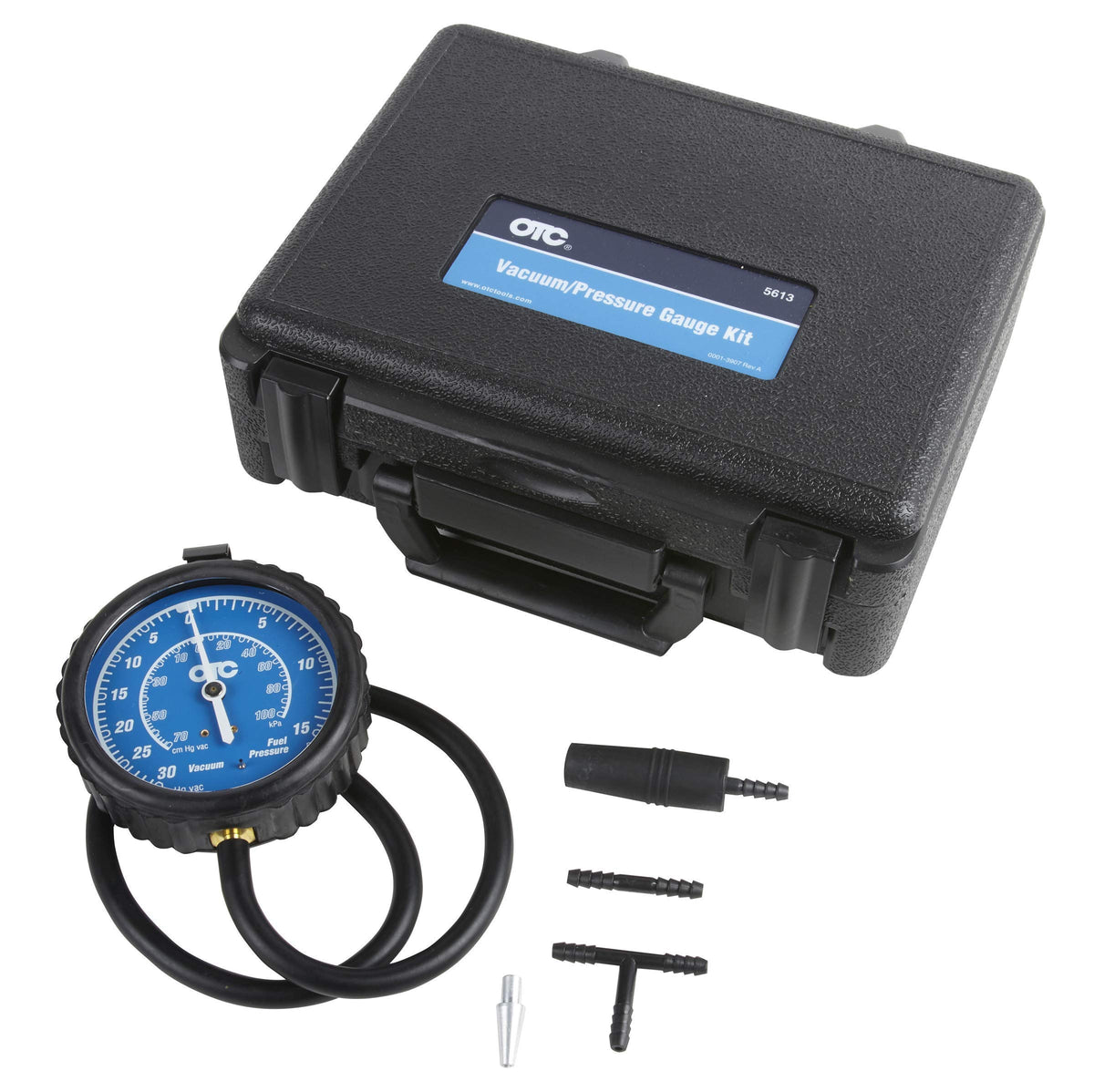

Compact and workshop-tough, this kit pairs a dual-purpose 3-1/2" gauge with a set of adapters and hoses so you can quickly connect to vacuum lines, intake ports, and low-pressure fuel systems. The large dial reads in multiple units for flexibility on domestic and import vehicles, and the molded carrying case keeps components organized and protected between jobs. The built-in hook and protective boot make it practical for bench work or mounted inspections at eye level.

How does the OTC 5613 help diagnose internal engine problems?

The gauge tracks both vacuum and positive pressure swings so you can observe patterns that indicate piston ring wear, valve timing issues, or head gasket leaks. A steady low vacuum, erratic needle movement, or pressure where vacuum should be present each point to different fault classes. Interpreting those needle behaviors with the included instruction chart speeds up accurate troubleshooting.

• Displays 0–30 in. Hg vacuum to show intake manifold performance
• Detects pressure up to 15 psi to test low-pressure fuel circuits
• Needle behavior helps differentiate rings, valves, or gasket issues

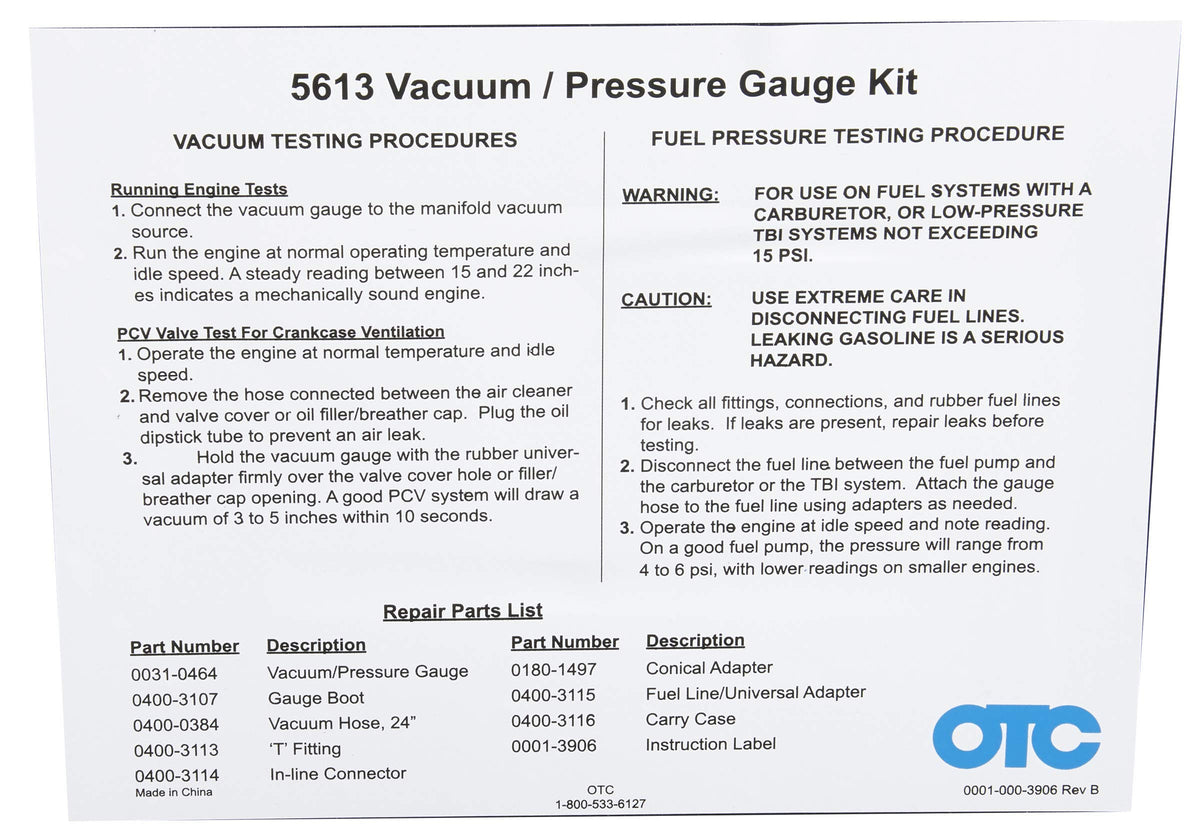

• Instruction chart in the case offers quick reference patterns

What connections and adapters are included for vehicle compatibility?

The kit includes a range of fittings and flexible hoses to reach vacuum ports, hoses, and low-pressure fuel lines on most passenger vehicles. Adapters allow tight connections without cutting factory lines, and the hose lengths are practical for engine-bay routing. Storing everything in the blow-molded case keeps adapters and small parts secure between uses.

• Multiple adapters for common vacuum and fuel fittings
• Flexible hose lengths suited for engine-bay access
• Secure molded case with removable lid for organized storage
• Case lid contains a printed diagnostic chart for quick guidance

How easy is the gauge to read and use during diagnostics?

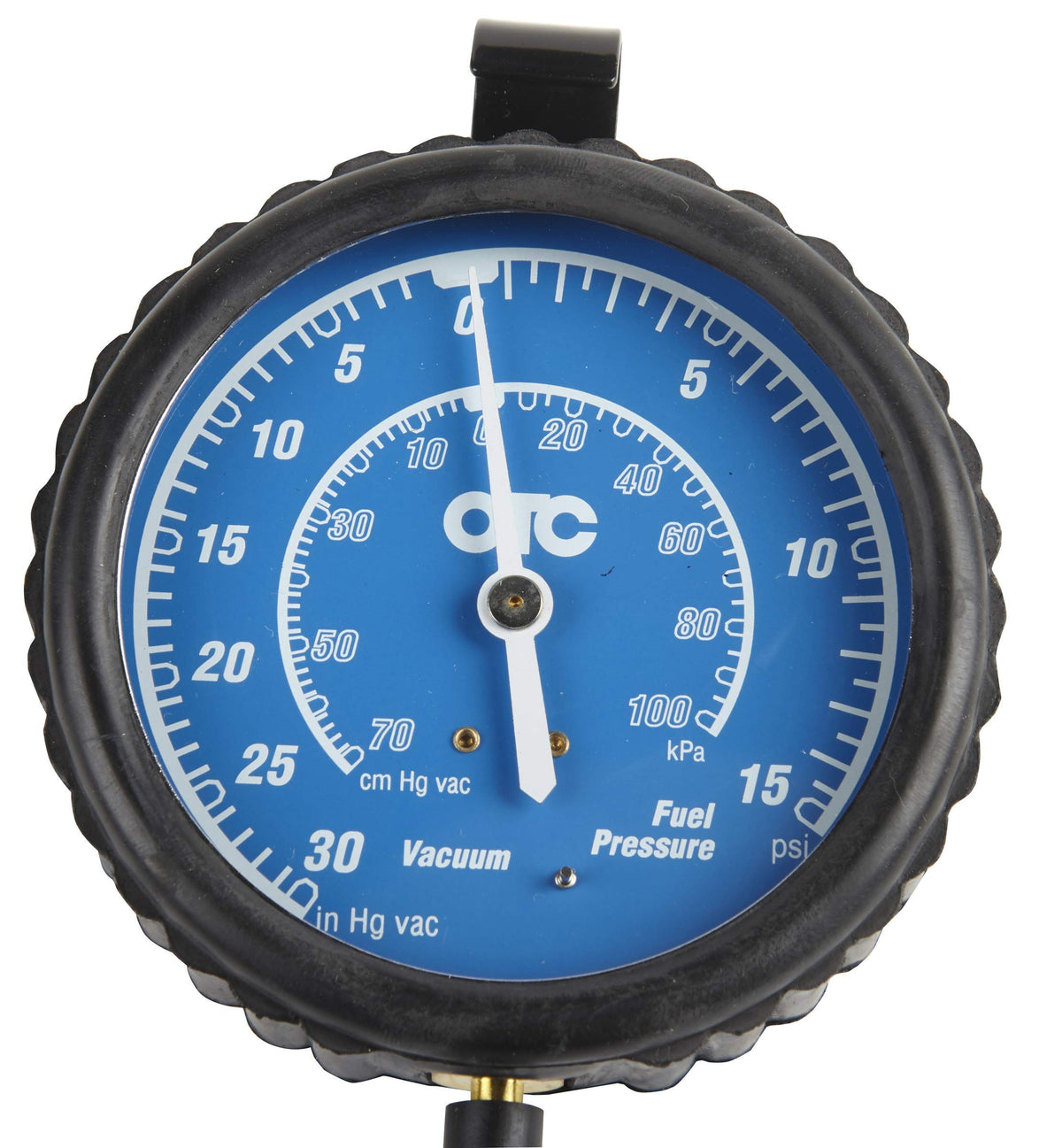

The 3-1/2" dial offers a clear view of readings, and the chrome bezel plus protective rubber boot reduce glare and impact risk. The dual-scale face shows vacuum and pressure in four unit types so you can match shop or factory specs. A rear-mounted hook lets you hang the gauge at eye level while you run the engine for steady observation.

• Large 3-1/2" gauge face for improved readability
• Dual-purpose dial shows vacuum and positive pressure values
• Protective outer boot guards against knocks and drops
• Built-in hook for hands-free viewing during tests

Can this kit test low-pressure fuel systems safely?

Yes — the OTC 5613 is designed to measure low-pressure fuel circuits without requiring high-pressure injectors or fuel-rail equipment. Use the appropriate adapter and route hoses away from heat sources; follow standard shop safety for fuel system access. The gauge’s range covers the low psi values typical of carbureted and return-style fuel systems.

• Range includes 0–15 psi for low-pressure fuel checks
• Adapters enable leak-free connections to fuel lines
• Use with caution and standard fuel-system safety practices
• Case keeps components uncontaminated and ready for use

Who is this for: The OTC 5613 is built for mechanics, DIY enthusiasts, and fleet technicians who need a durable, multi-function vacuum and low-pressure tester. It suits shops that service a variety of gasoline engines, technicians troubleshooting drivability complaints, and anyone who needs a reliable, portable gauge kit to speed accurate diagnosis and avoid unnecessary parts replacement.
