OUBULU 1/2" Heim Joint Rod End Kit (2 Pair) — Chromoly Rod Ends, RH/LH Threads, 16,000 lb

OUBULU 1/2” Heim Joints Rod End Kit is a chromoly, heat-treated rod-end set with right- and left-hand threads, jam nuts, and bungs designed for heavy-duty panhard, steering, and suspension link applications. This kit supplies two right-hand and two left-hand 1/2" chromoly heim joints (20 TPI) together with zinc-coated jam nuts and welded-style bungs, engineered to fit 1" OD tubing with a 0.65" ID and 0.065" wall. Each joint is hard chrome plated and heat treated to resist wear under high loads, giving a 16,000 lb static load rating that suits performance vehicles, off-road rigs, and custom chassis projects. The parts are finished to resist corrosion and simplify installation into panhard bars, tie rods, traction bars, and other steering and suspension linkages.

How does this heim joint kit withstand heavy loads and frequent movement?

The OUBULU joints are fabricated from chromoly steel, heat treated for strength, and hard chrome plated for wear resistance. Those manufacturing steps increase fatigue life and help maintain smooth articulation under repeated cycling.

• Chromoly construction for high tensile strength
• Heat treatment to improve fatigue resistance
• Hard chrome plating reduces surface wear
• 16,000 lb static load rating for heavy-duty use

Will these rod ends fit my panhard bar or tie rod tube?

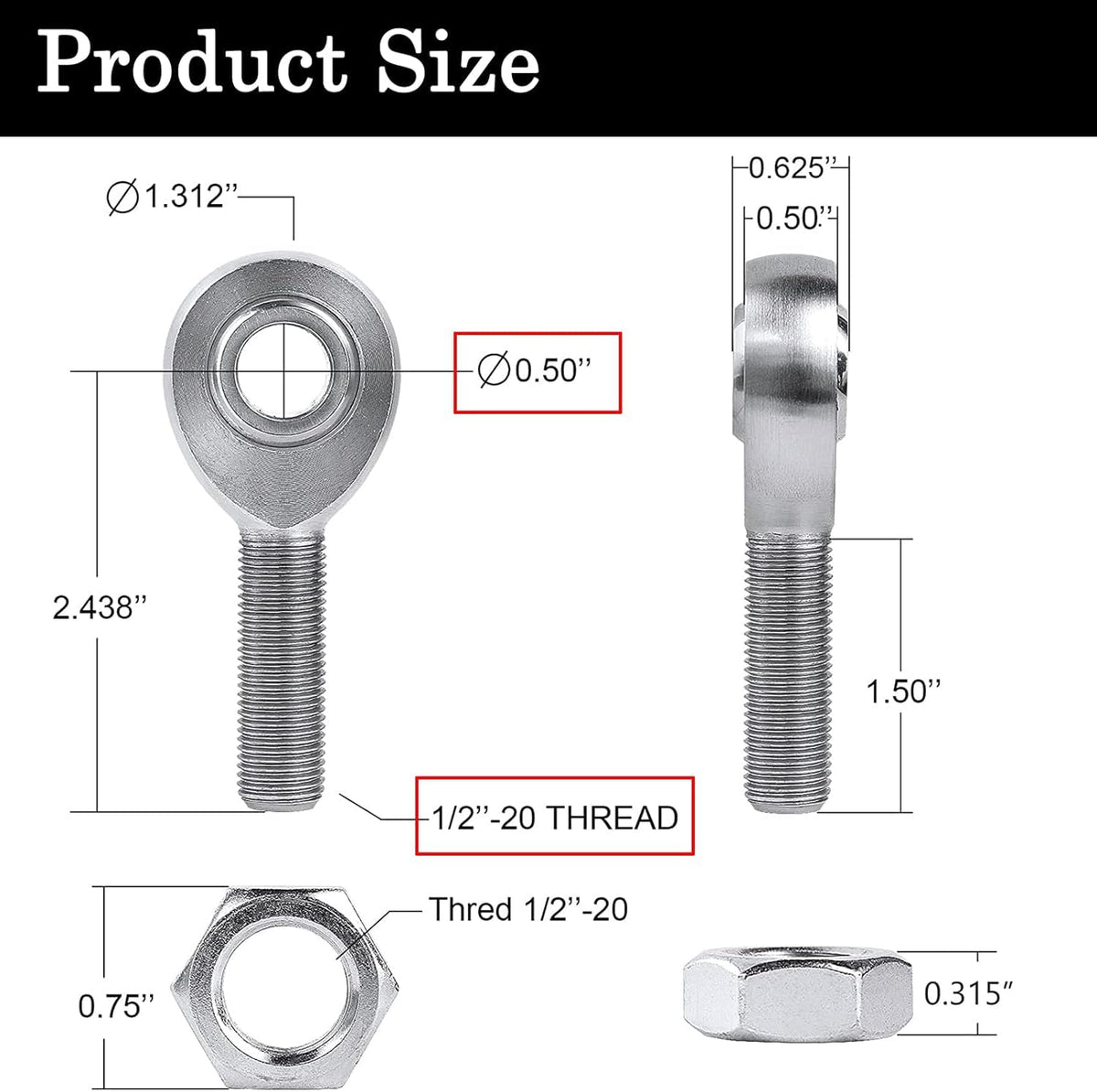

Each rod end uses a 1/2" shaft with 20 threads-per-inch and is sized to work with 1" OD tube that has a 0.065" wall thickness (0.85" ID). The included bungs and jam nuts simplify mounting into standard tubing and allow secure preload and alignment adjustments.

• 1/2" shaft, 20 TPI—standard thread form

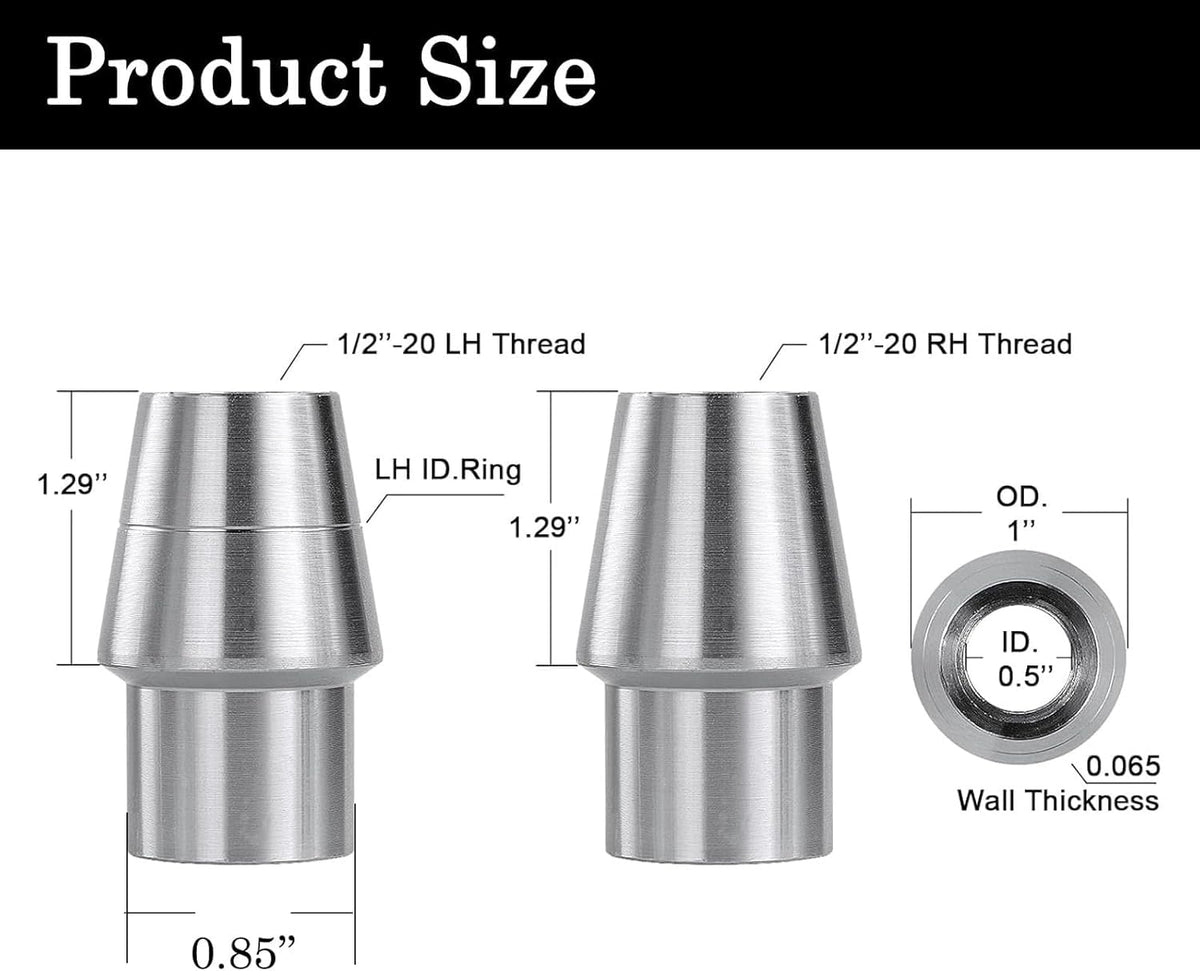

• Designed for 1" OD x 0.065" wall tube (0.85" ID)
• Zinc-coated jam nuts for corrosion resistance
• Supplied bungs to socket into tubing for solid attachment

What types of vehicles and systems commonly use this kit?

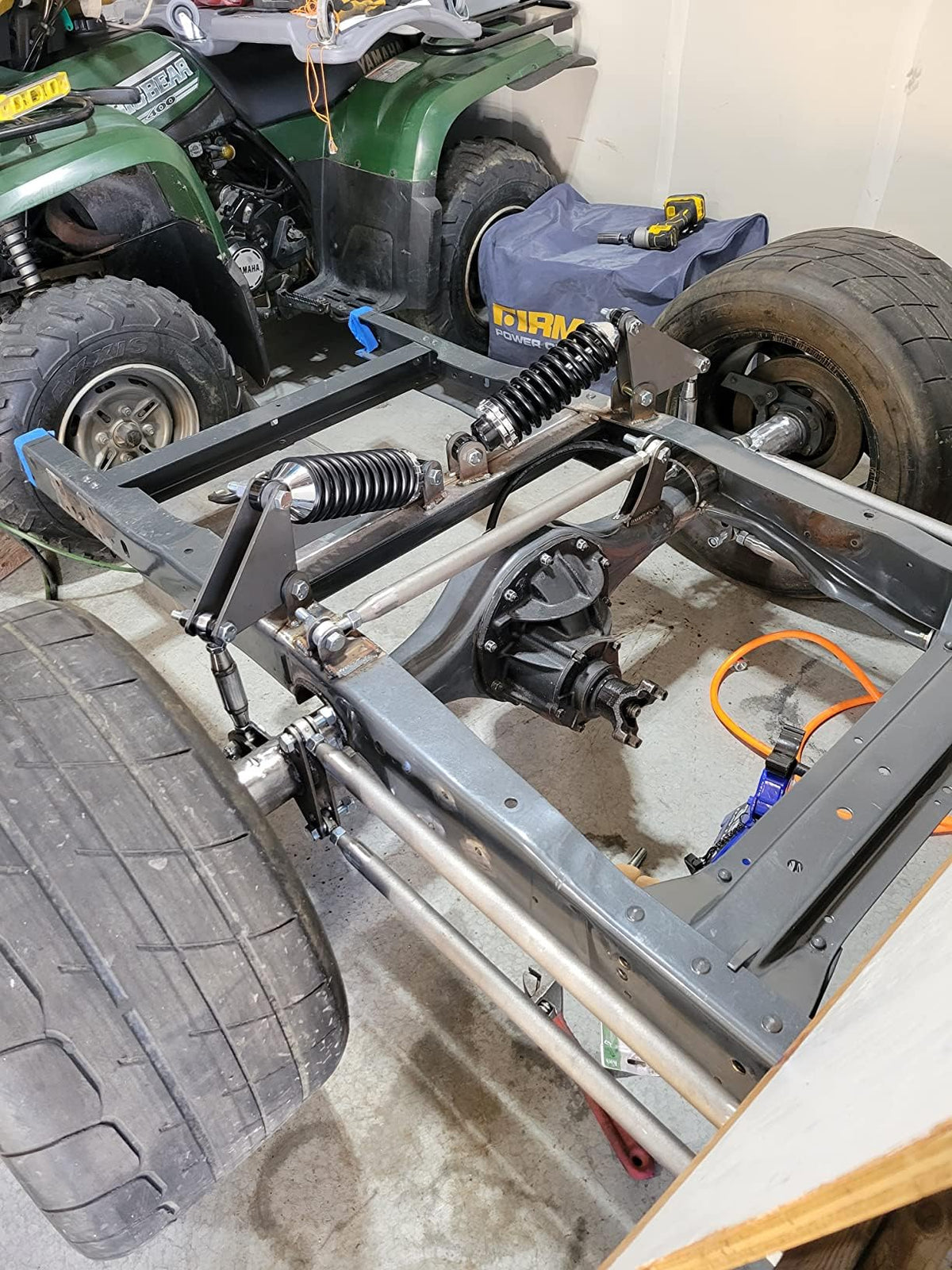

This rod end kit is intended for steering and suspension linkages where high articulation and strength are required. Typical uses include panhard bars, traction bars, tie rods, and custom link assemblies on hot rods, racecars, off-road trucks, and classic vehicle upgrades.

• Panhard bars and lateral linkages for axle location
• Tie rods and steering joints requiring articulation
• Traction bars and suspension links under heavy load
• Custom chassis builds and performance upgrades

How do the right-hand and left-hand pieces help during installation?

Supplying both right- and left-hand threaded rod ends lets you build a turnbuckle-style adjustable link without jammed rod rotation or the need for welded turnbuckles. Opposing threads allow length adjustment by rotating the central tube or adjusting nuts while keeping each end stationary.

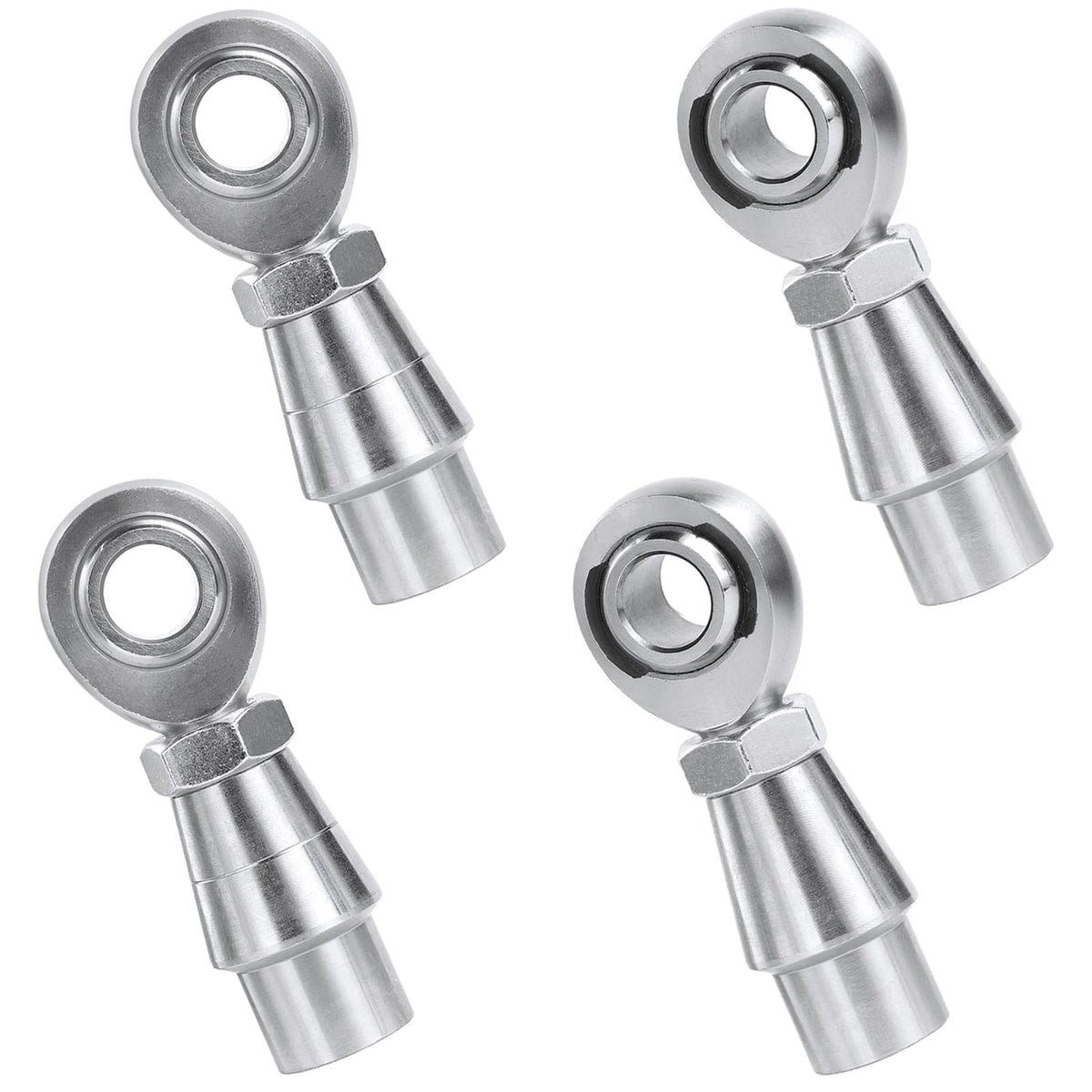

• Includes 2 RH and 2 LH rod ends for adjustable links
• Jam nuts lock settings once aligned
• Bungs provide a secure threaded seat inside tubing
• Enables precise preload and length calibration

Who is this for?

This OUBULU kit is suitable for experienced DIY mechanics, fabricators, and professional shops building or upgrading steering and suspension systems that require robust, adjustable rod ends. If you’re working on hot rods, off-road rigs, race cars, or any custom chassis that needs durable articulation and adjustability in a 1/2" rod-end size, this kit provides a ready-made solution with protective finishes and heavy-duty ratings. Choose different sizes from OUBULU’s range if your application needs smaller or larger rod-end diameters.

FAQ

Q: What tube size do these rod ends fit?

A: They fit 1" OD tubing with 0.065" wall (approximately 0.85" ID).

Q: Are both right- and left-hand threads included?

A: Yes, the kit includes two right-hand and two left-hand 1/2" rod ends with jam nuts and bungs.
