OXDFK 120A 600V Quick Connect Battery Plug Kit — 6‑Piece Gray Set for 2/4/6 AWG, Silver‑Plated Terminals

OXDFK's 120A‑600V quick connect kit is a heavy‑duty, six‑piece battery plug and jumper connector set that lets you rapidly connect or disconnect 2/4/6 AWG cables for winches, trailers, RVs and recovery gear.

This OXDFK connector set is engineered for demanding electrical connections where speed, durability and reliable conductivity matter. Rated for 120 amps at up to 600 volts, the kit accepts 2/4/6 AWG wire, uses silver‑plated copper contacts and stainless spring tabs, and features a rugged PC housing with UL94‑V0 flammability resistance. It’s intended for applications such as motor recovery, winch trailers, traction systems and general heavy‑duty 12–48V setups where frequent plug/disconnect cycles are required.

How does this connector handle heavy current and frequent use?

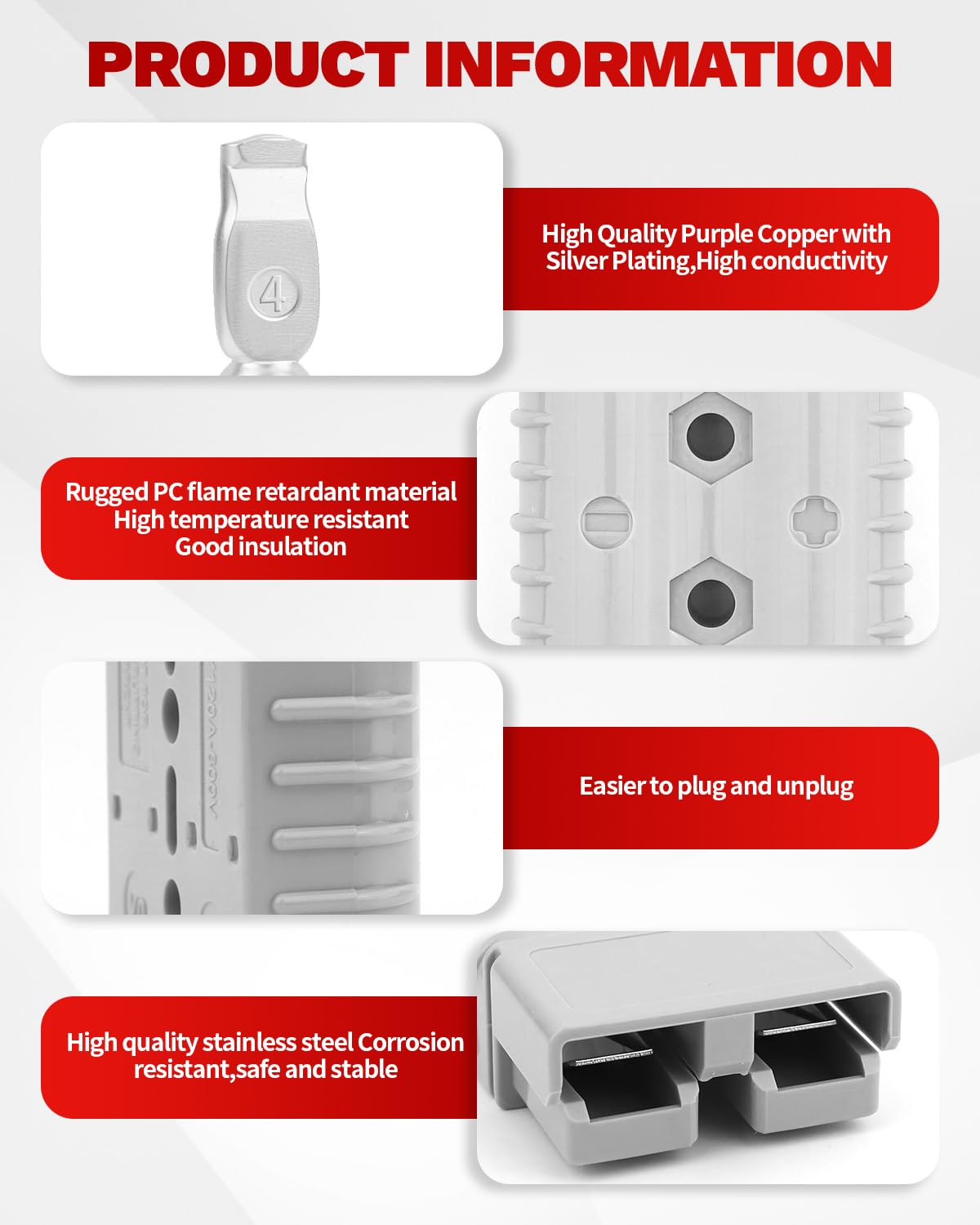

The OXDFK plugs combine high‑conductivity terminals with a durable shell to deliver consistent electrical performance over many cycles. Silver‑plated copper terminals reduce resistance while stainless steel spring tabs maintain firm contact without corroding.

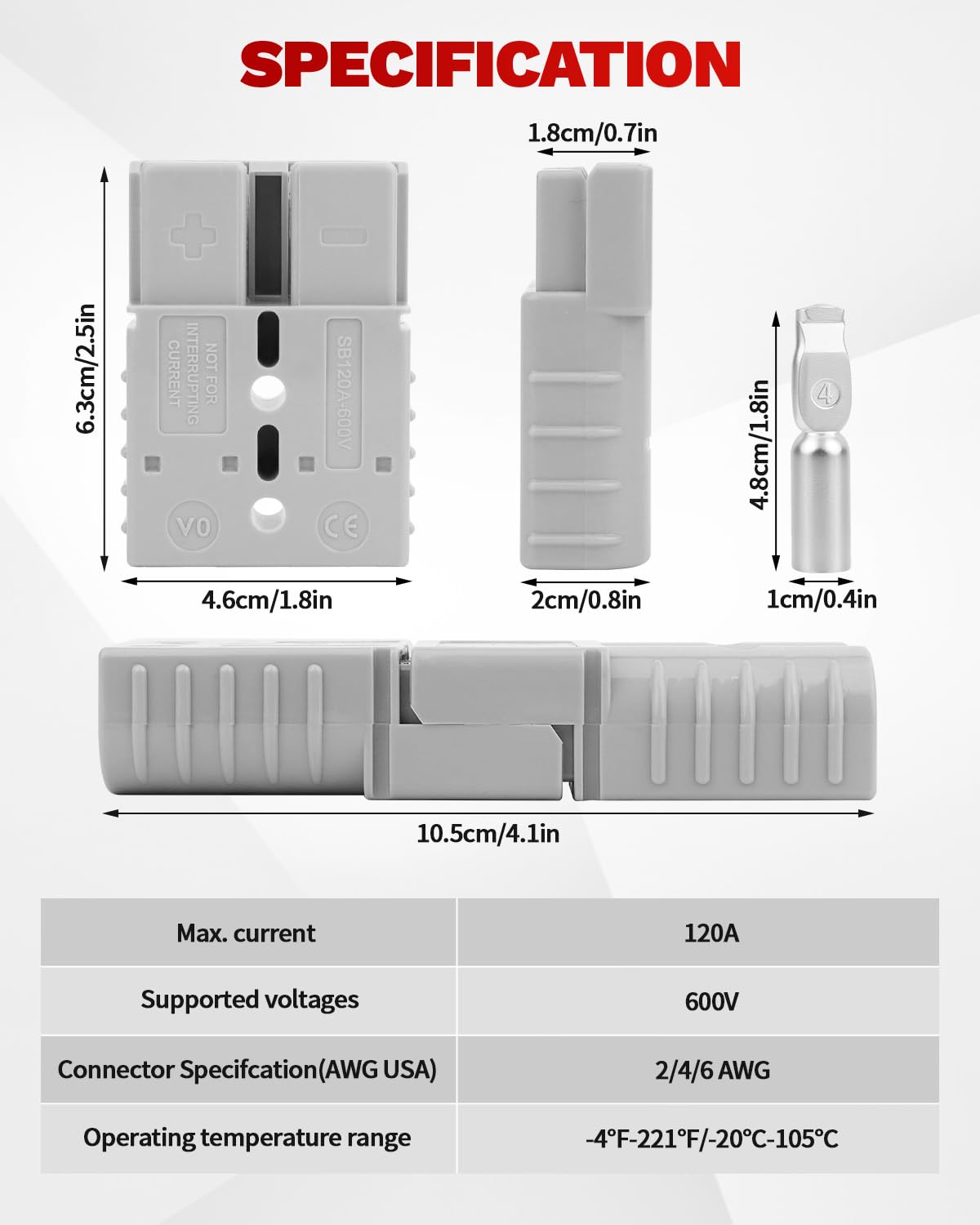

• Rated at 120 A, max 600 V for robust power transfer
• Silver‑plated copper terminals for low contact resistance (AVG 140 µΩ)

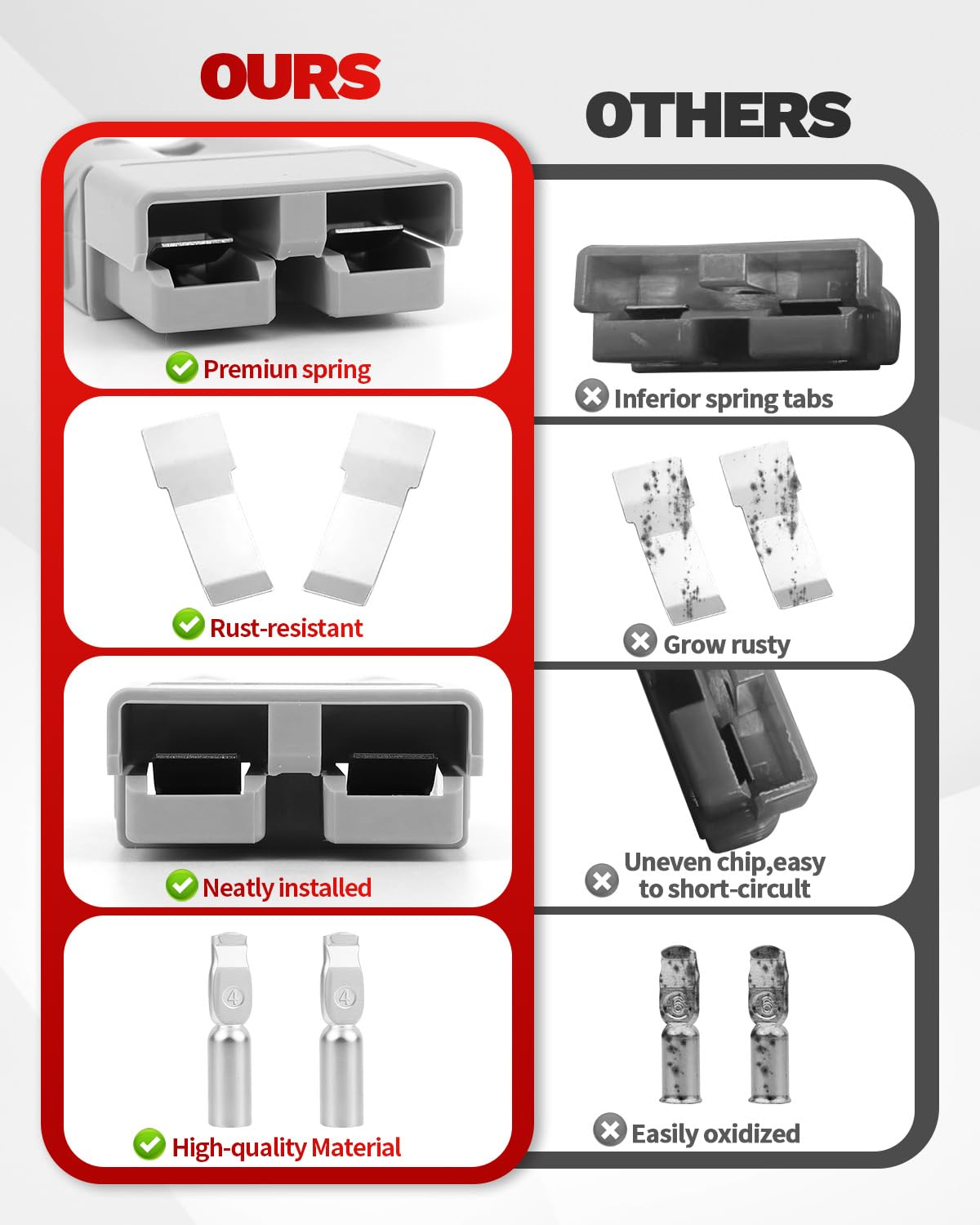

• Stainless steel spring tabs resist rust and keep a secure connection
• Housing rated for 10,000+ insertions to withstand repeated use

What cable sizes and installation methods are supported?

This kit accepts common heavy wires—2 AWG, 4 AWG and 6 AWG—covering most winch, trailer and battery leads. Terminals can be soldered or crimped, then inserted and locked into the plug housing for a fast, reliable connection.

• Compatible with 2/4/6 AWG (approx. 1.3–21.1 / 33.6 mm² ranges provided)
• Maximum wire insulation diameter: 0.575 in for thicker jackets
• Install by crimping or soldering terminal, slide into plug, lock in place
• Clear mechanical retention minimizes loosening under vibration

What makes the materials and design suitable for outdoor and rescue use?

The housing uses impact‑resistant polycarbonate (PC) engineered for high durability and a UL94‑V0 flammability rating. Combined with corrosion‑resistant internal hardware, the connectors are designed to survive harsh environments and frequent mechanical stress.

• PC housing withstands hammer impact and resists cracking
• UL94‑V0-rated material for improved fire safety
• Operates between -20°C and 105°C (-4°F to 221°F) for varied climates
• Designed for rugged equipment: boats, ATVs, trailers, winches

Which equipment and scenarios is this connector best used with?

Use these connectors wherever quick, repeatable battery hookups save time and reduce wear: winch systems, recovery rigs, trailer battery circuits, portable traction systems and RV power modules. They are especially practical for setups that need frequent disconnection for storage, maintenance or transport.

• Ideal for rescue winches, motor recovery and winch trailers
• Works with boats, RVs, ATVs, cranes and portable traction systems

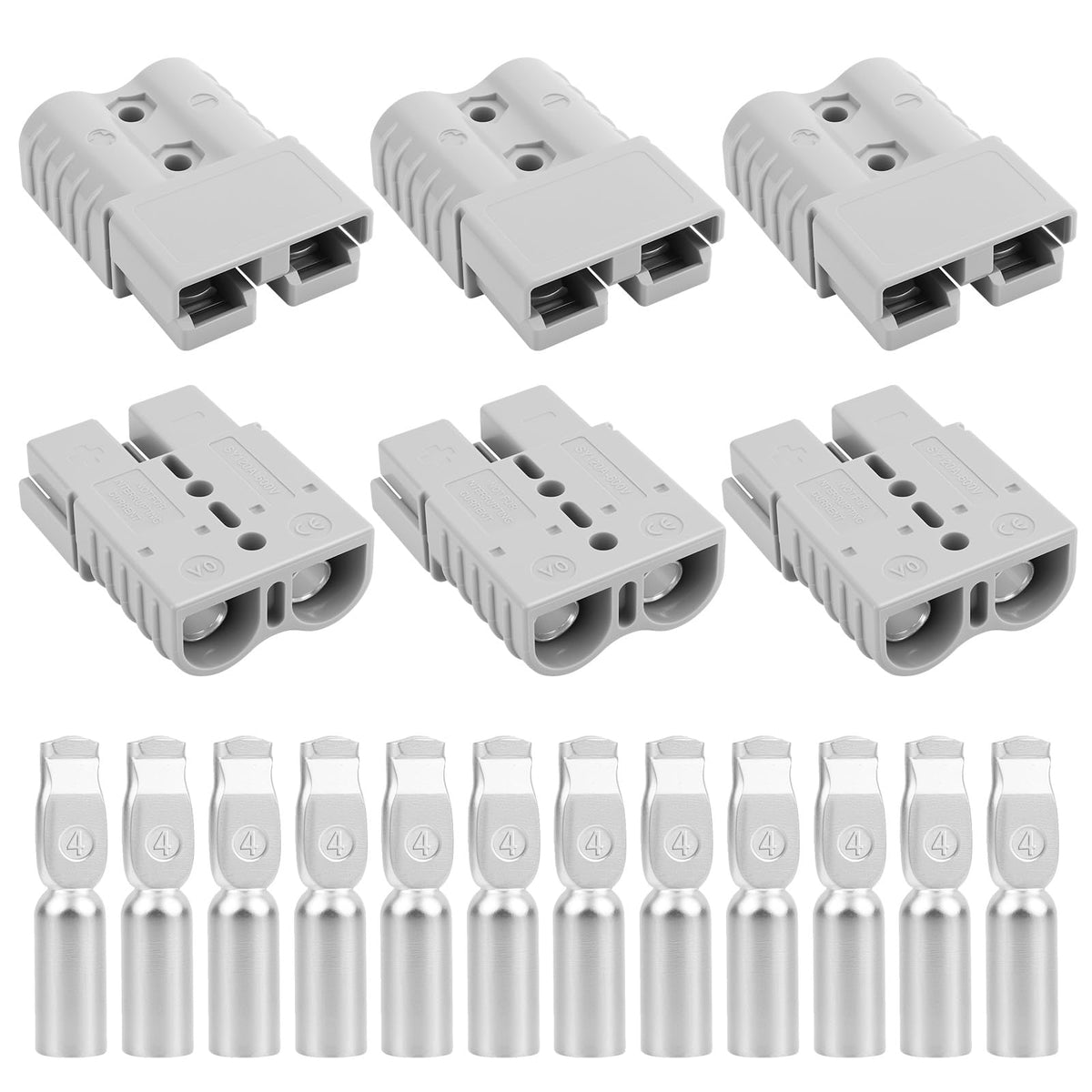

• Six connectors per kit to wire multiple circuits or have spares
• Simplifies emergency jumper use and routine battery maintenance

Who is this for: The OXDFK 120A‑600V quick connect kit is aimed at mechanics, off‑road enthusiasts, rescue teams, fleet operators and DIYers who need a compact, high‑conductivity solution for heavy‑duty battery connections. If you require reliable, repeatable power connections for winches, trailers or portable power systems—and want corrosion resistance plus a housing built for thousands of cycles—this connector set offers an affordable, purpose‑built option.
