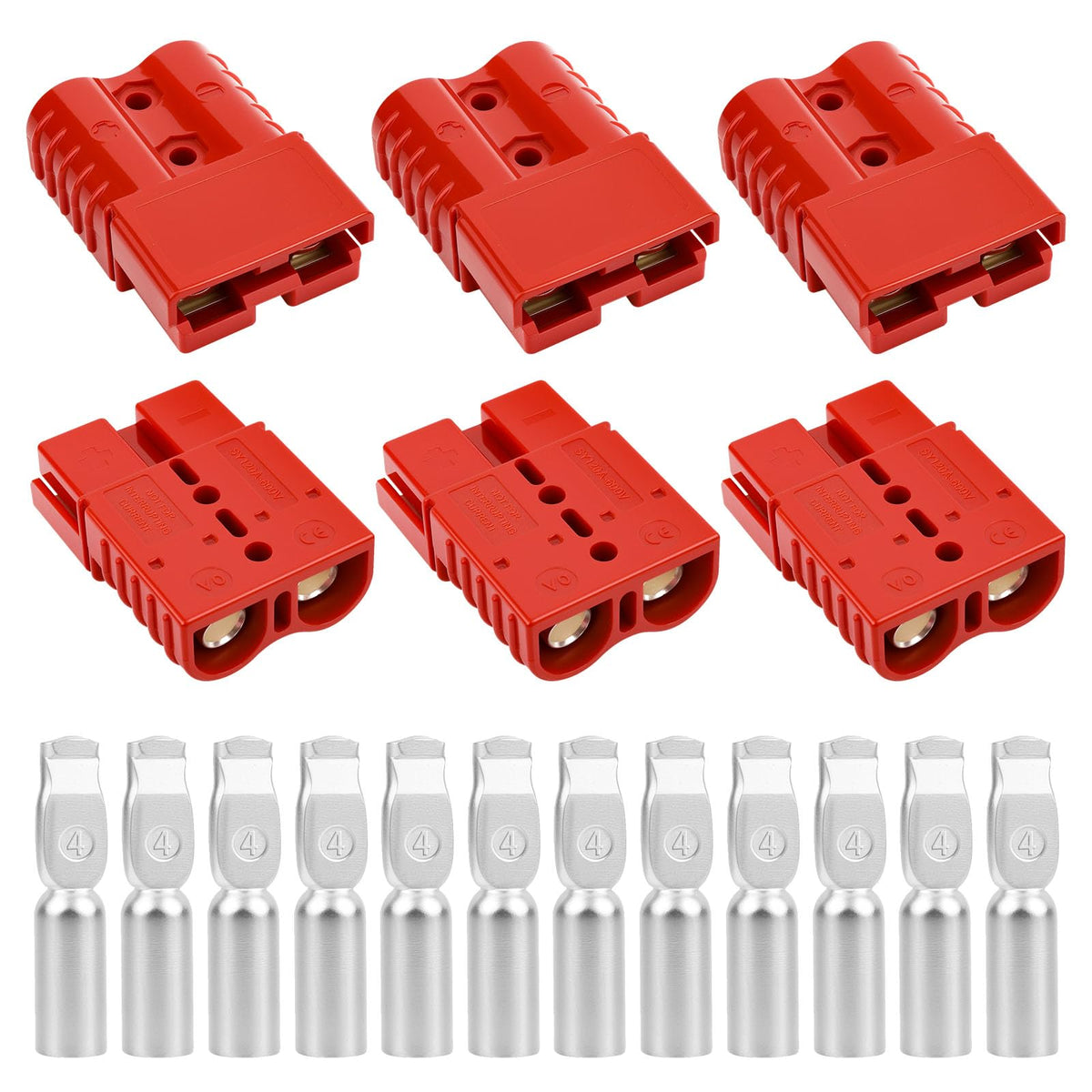

OXDFK 120A 600V Quick Connect Battery Plug Kit — 6PCS Red, Fits 2/4/6 AWG, Silver-Plated Terminals

OXDFK 120A-600V battery quick connect set gives you a fast, heavy-duty plug-and-play solution for winches, trailers, and vehicle power systems.

Designed for demanding environments, this 6-piece red connector kit fits 2, 4, and 6 AWG cables and provides a secure, low-resistance link rated for 120 amps and up to 600 volts. It combines silver-plated copper terminals, stainless steel spring tabs, and a robust PC housing to deliver reliable electrical contact, corrosion resistance, and long mechanical life. Whether used for rescue winches, motor recovery, trailer power, or traction systems, these plugs simplify recurring connections and make maintenance faster and safer.

How durable are these connectors for repeated use?

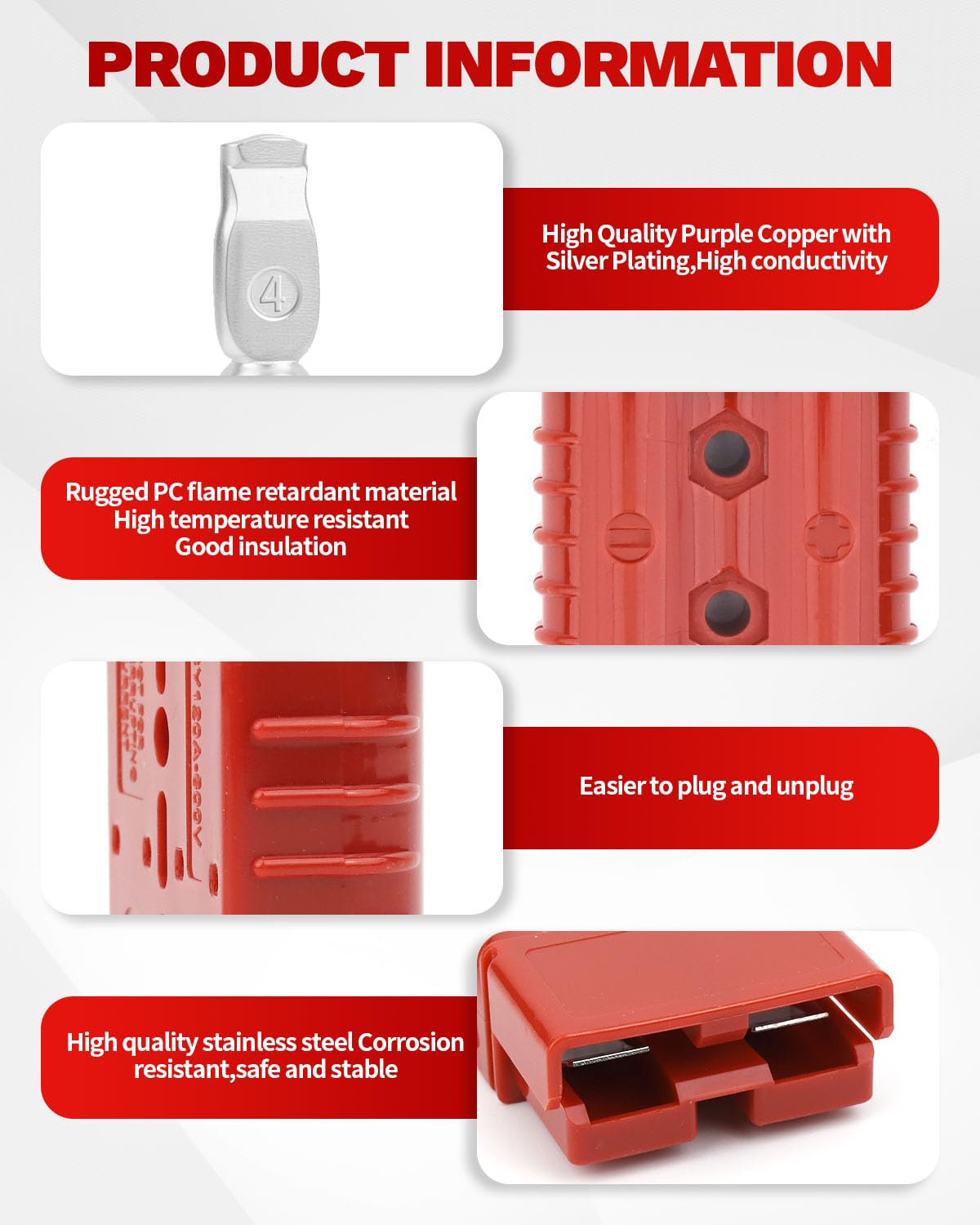

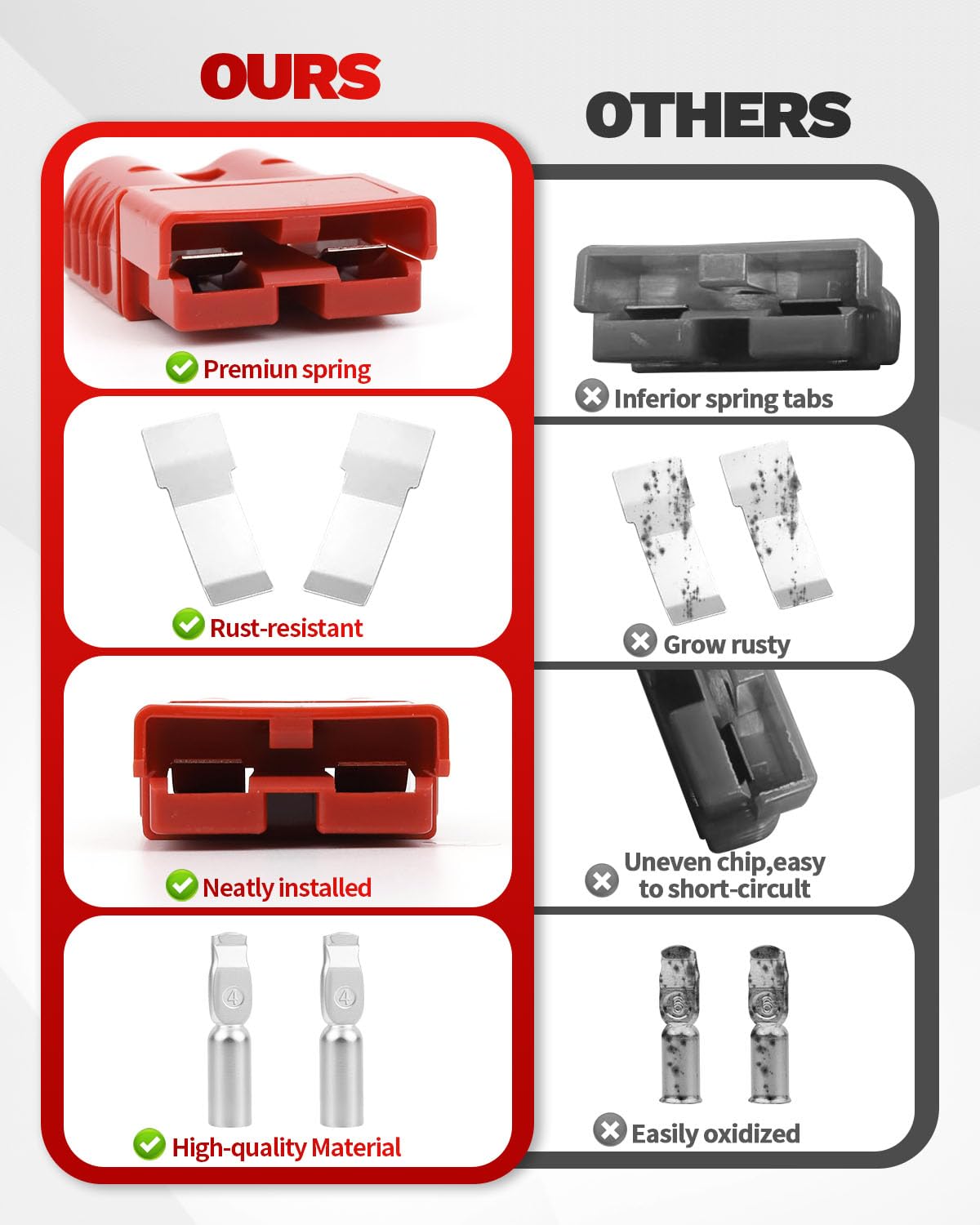

The OXDFK housing is made from impact-resistant PC material designed to survive heavy use, rated to withstand more than 10,000 insertions and withdrawals without cracking. Spring steel tabs resist rust and maintain firm pressure on the terminal, preventing loose or intermittent contacts over time.

• PC housing resists hammer impact and repeated cycles
• Stainless steel spring tabs prevent corrosion and maintain contact pressure
• UL 94-V0 flammability rating on housing material

What cable sizes and electrical specs does it support?

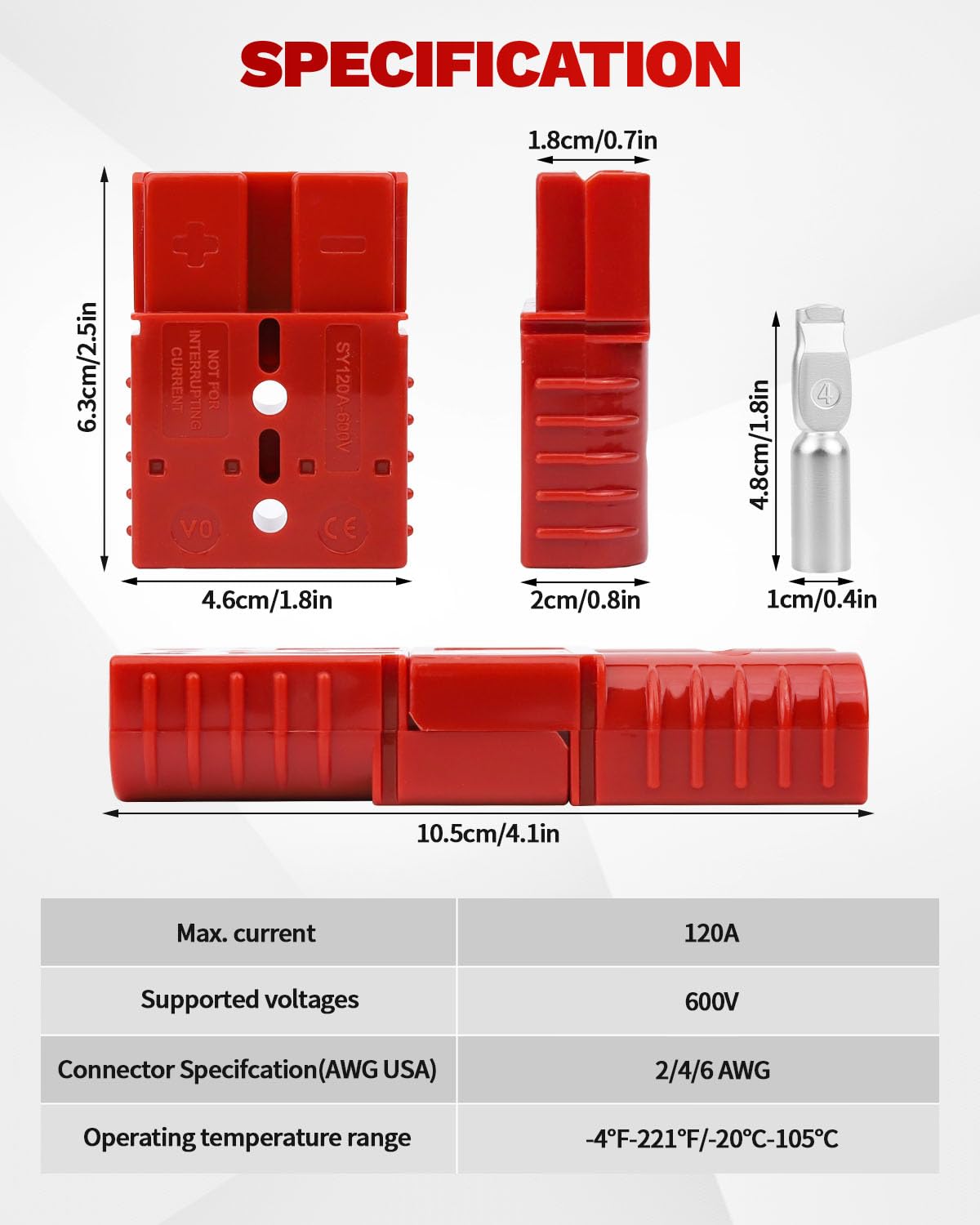

This quick-connect system accepts 2, 4, and 6 AWG cables (roughly 1.3–33.6 mm² range) and is rated for 120 A continuous current with insulation designed for up to 600 V. The silver-plated copper terminals lower contact resistance to keep voltage drop minimal and heat buildup low under load.

• Compatible with 2/4/6 AWG wire sizes
• Rated 120 A and 600 V maximum
• Average contact resistance around 140 micro-ohms for consistent conductivity

How easy is installation and what tools are needed?

Installation is straightforward: strip the cable, crimp or solder the terminal onto the conductor, insert the terminal into the plug body, and lock it in place. No specialized equipment is required beyond standard crimpers, a soldering iron (optional), and basic hand tools for secure mounting.

• Strip cable to manufacturer recommendations for 2/4/6 AWG
• Crimp or solder terminal, then insert and lock into plug housing
• Max wire insulation diameter supported: 0.575 in (for thick insulation boots)

What applications are these connectors best suited for?

These quick disconnects are built for heavy-duty mobile and stationary applications where frequent connection and disconnection are needed. They work well with winches, trailers, RVs, ATVs, boats, cranes, and any system requiring reliable, low-resistance power links and quick serviceability.

• Rescue winch and motor recovery setups for fast hook-ups
• Trailer, RV, and boat battery quick-disconnects for seasonal use
• Traction systems and industrial equipment requiring secure power transfer

Who is this for: Installers, mechanics, off-roaders, and fleet operators who need a rugged, repeatable connection method for high-current DC circuits will appreciate this OXDFK quick connect kit. It’s also a practical pick for DIY enthusiasts and emergency-prep users who want dependable connectors that reduce downtime and resist corrosion in harsh outdoor conditions.
