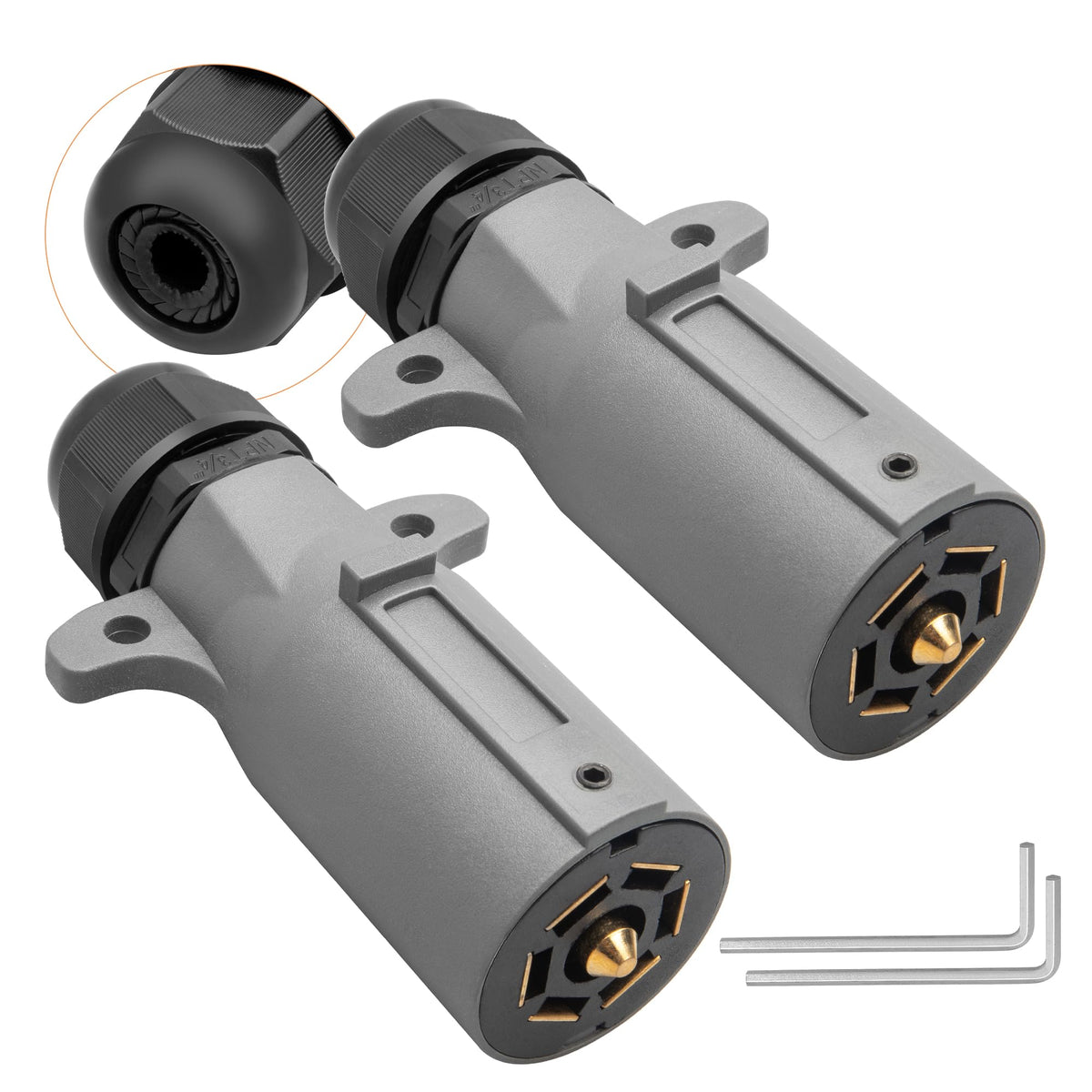

Oyviny RV 7-Pin Trailer Plug 2PC — IP68 Waterproof 7-Way Round Connector with Brass Terminals

The Oyviny RV 7 Pin Trailer Plug is a heavy-duty, IP68-sealed 7-way round connector sold as a 2-piece set, designed to keep moisture and dust out while providing a reliable electrical connection between your tow vehicle and trailer.

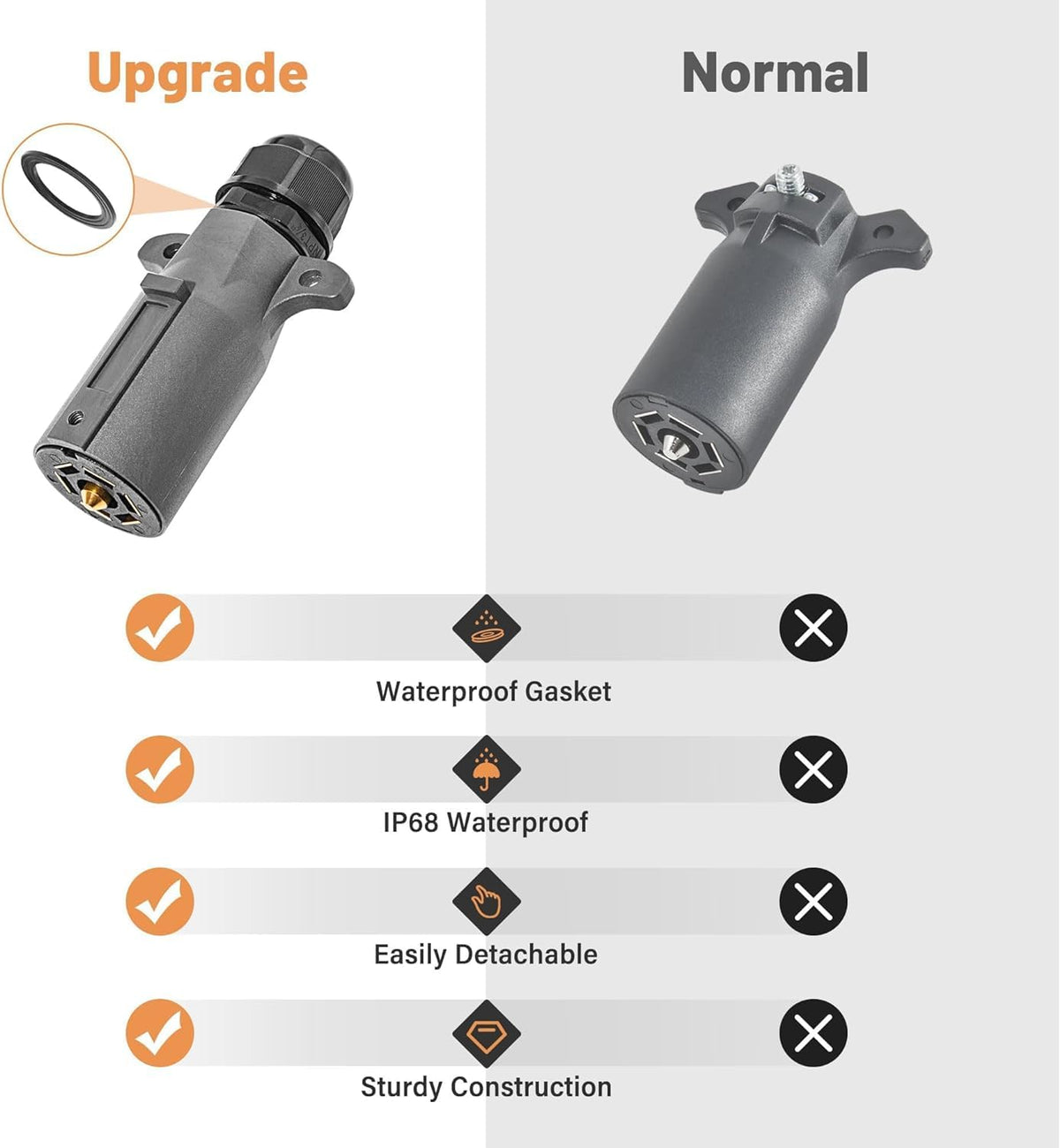

This compact, detachable 7-point trailer wiring plug upgrades standard trailer connectors with a waterproof compression nut and rubber grommet to prevent ingress of water and dirt. Built from rugged grey plastic and fitted with brass terminals and screw strain-relief clamps, the connector is made to withstand regular towing use and simplifies wiring splices for taillights, brakes, turn signals, reverse lights and auxiliary power.

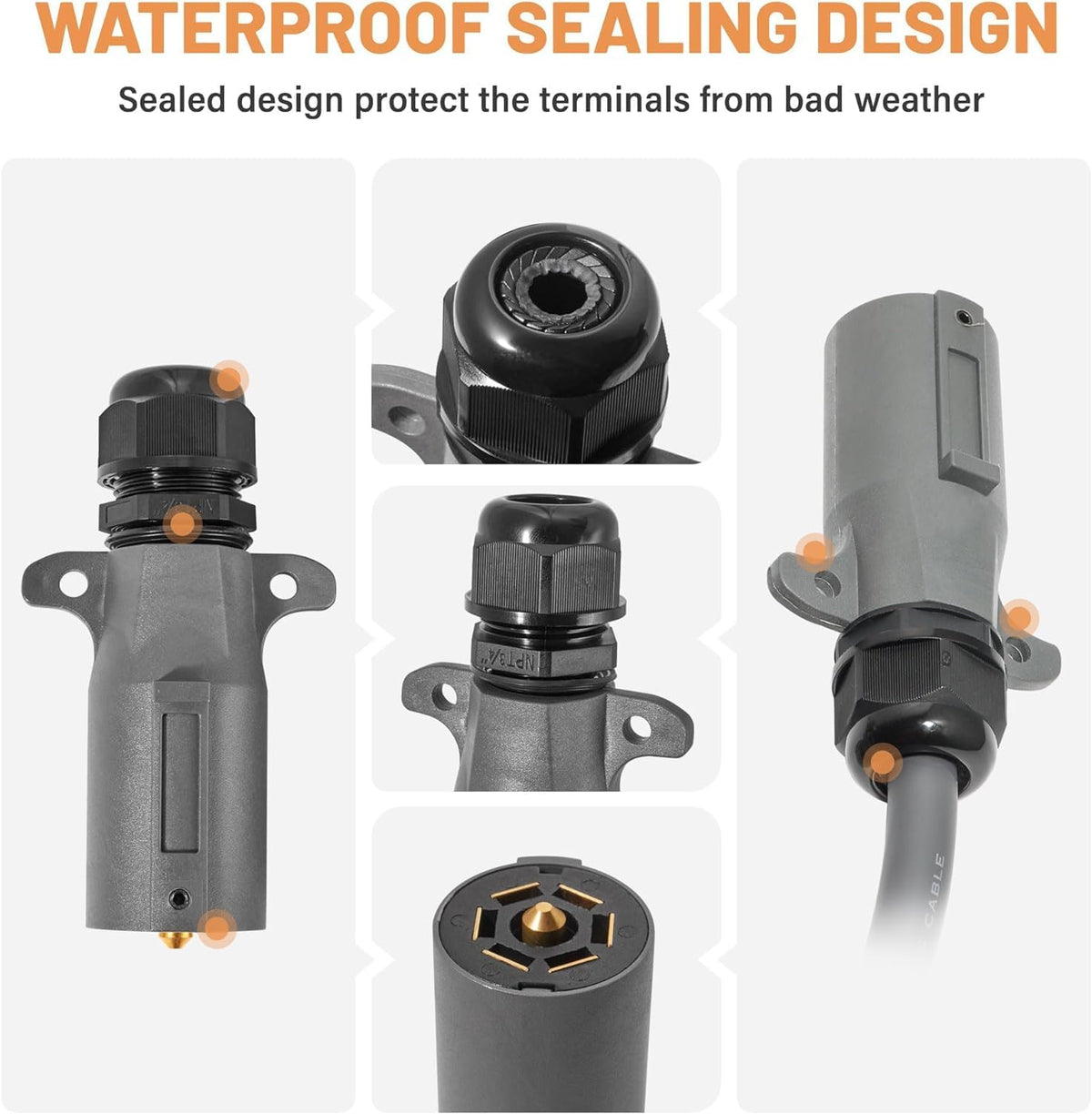

How does this plug keep water and dirt away from electrical contacts?

The Oyviny plug uses an IP68-grade sealing method with a detachable compression nut and rubber grommet at the wire inlet to block moisture and dust. That protective design limits corrosion risk and preserves conductivity over time.

• IP68-style sealing via compression nut
• Rubber grommet at the wire inlet (3/4" NPT wire size)
• Enclosed housing to protect brass terminals
• Designed to reduce ingress during wet towing conditions

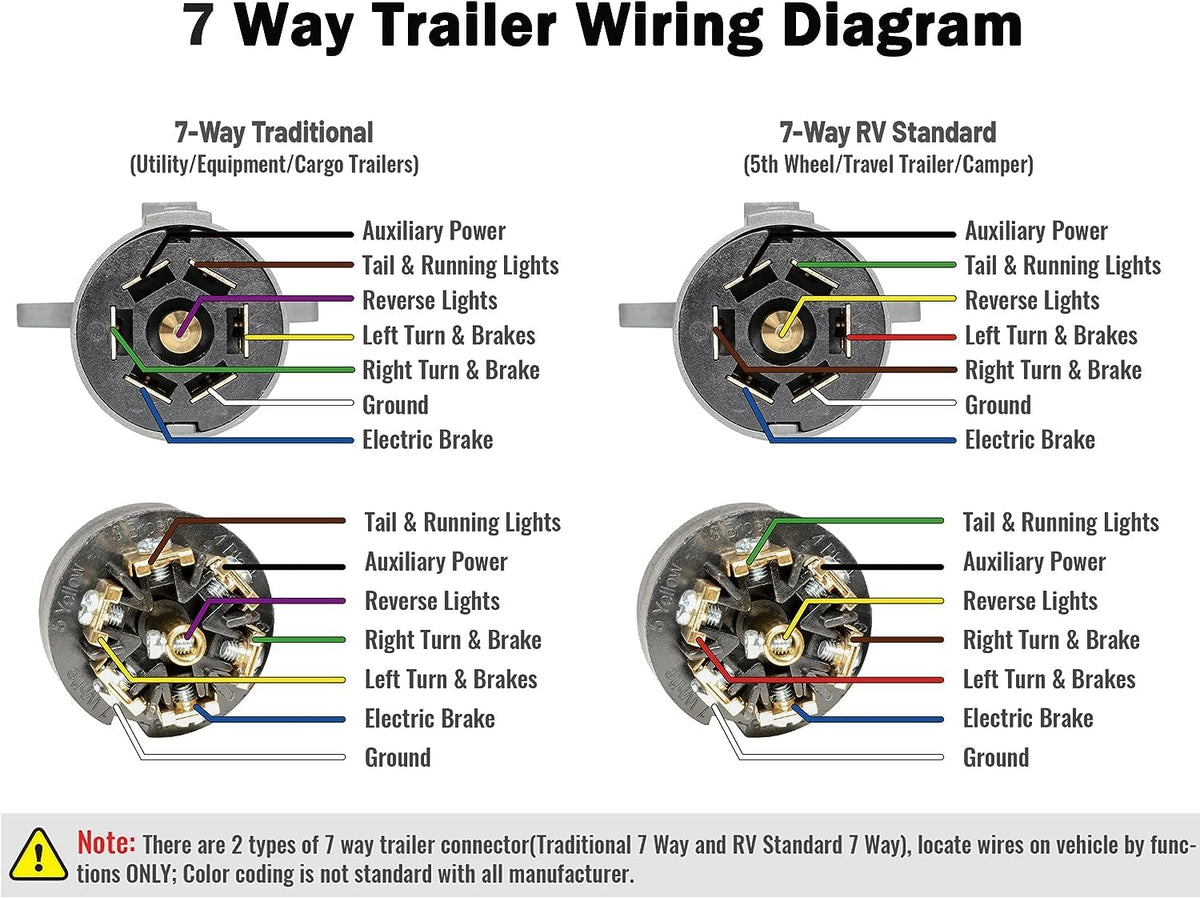

What kind of electrical circuits can I connect with this 7-way plug?

This male-end 7-pin adapter supports all standard RV/trailer functions: running lights, brake lights, turn signals, reverse lights, trailer brakes and an auxiliary power circuit. It comes ready to splice into existing trailer wiring for immediate use.

• Seven-pin configuration for standard trailer systems
• Brass terminals for reliable conductivity
• Compatible with common trailer wiring color codes
• Splice-ready terminal ends for quick hookup

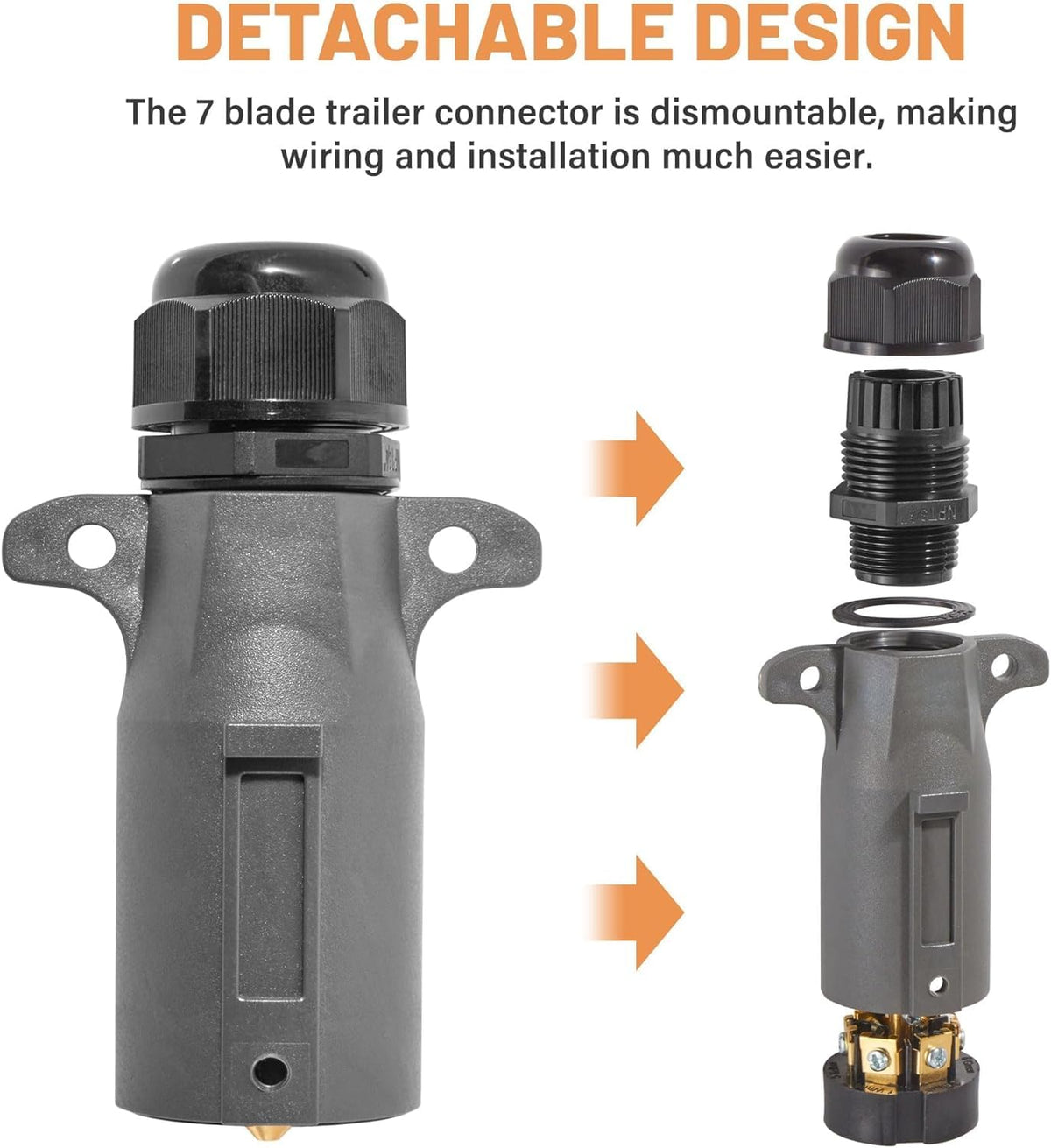

How easy is installation and what tools or steps are required?

Installation is straightforward: loosen the screws on the plug body and end cap to access the terminals, insert each wire into the correct terminal, tighten the screw strain-relief clamps, then reassemble with the compression nut and grommet. No special crimp tools are required, though a small screwdriver and wire stripper make the job faster.

• Loosen screws to remove terminal housing
• Splice trailer wires into terminals by color
• Tighten screw clamps for strain relief
• Reassemble plug and compress grommet for seal

How durable is this connector for repeated towing and handling?

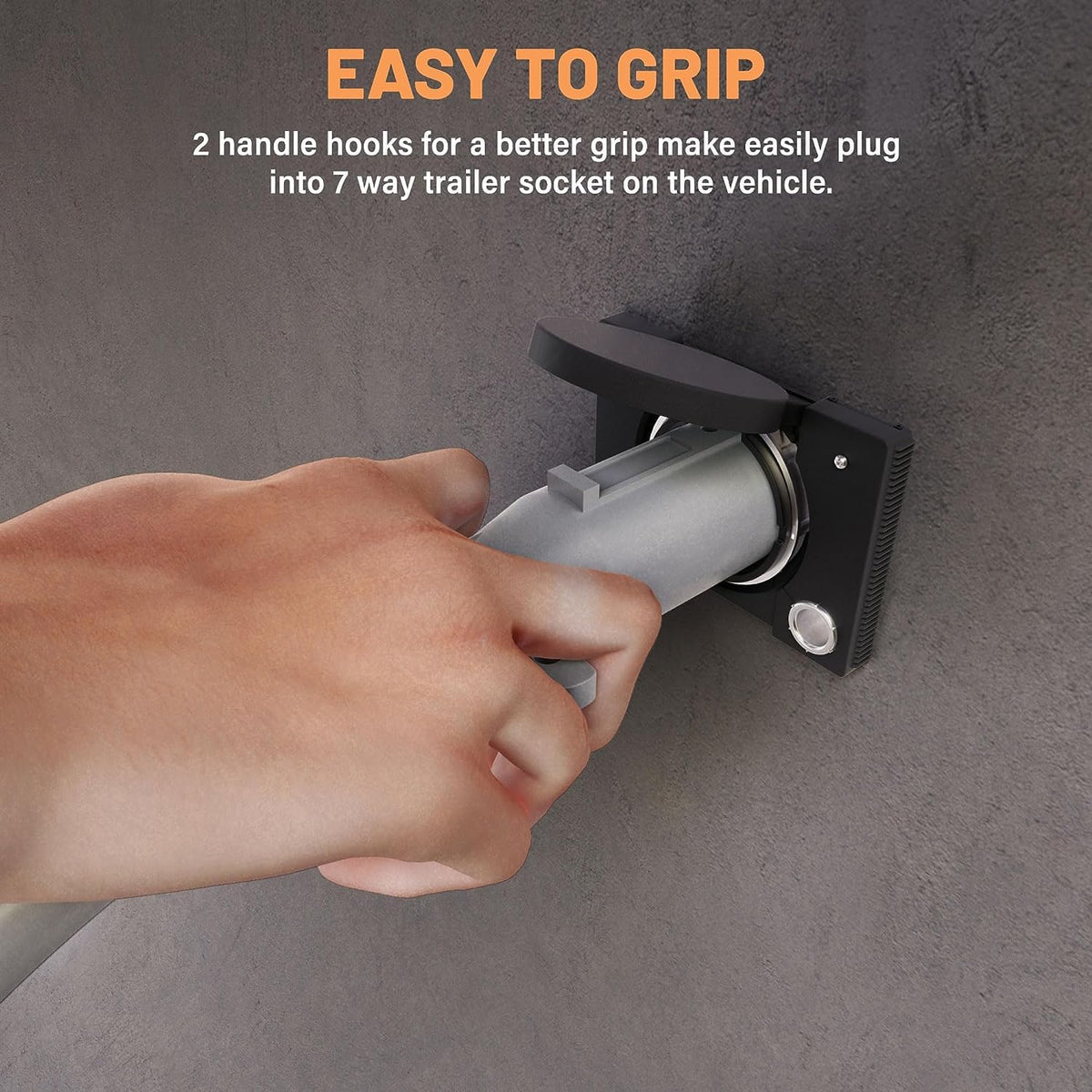

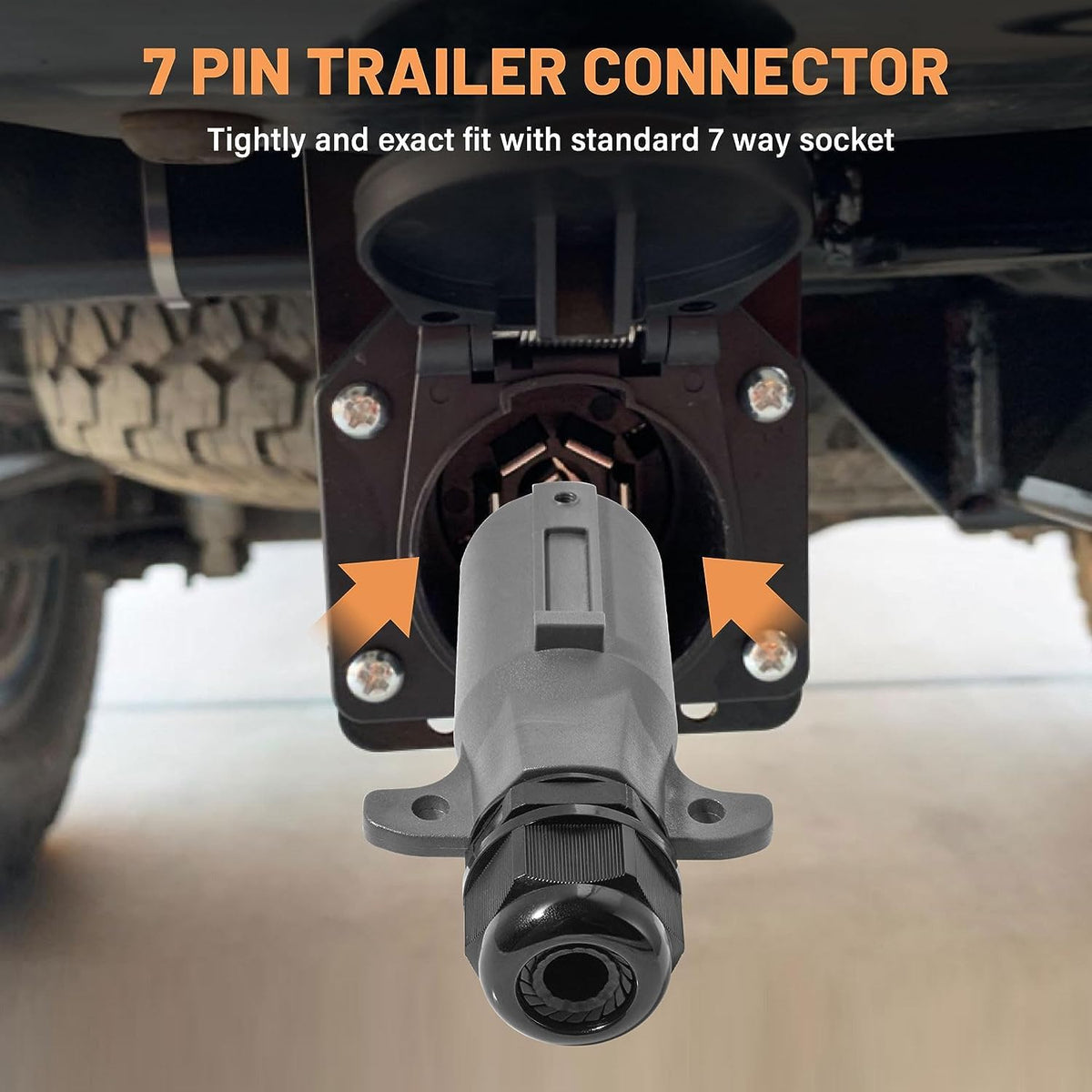

The plug’s heavy-duty grey plastic shell and brass contacts are chosen to resist wear and maintain conductivity under frequent use. Two molded handle hooks on either side improve grip for plugging and unplugging, reducing stress on the housing and wires.

• Robust grey plastic housing for long life
• Brass terminals for corrosion-resistant contact

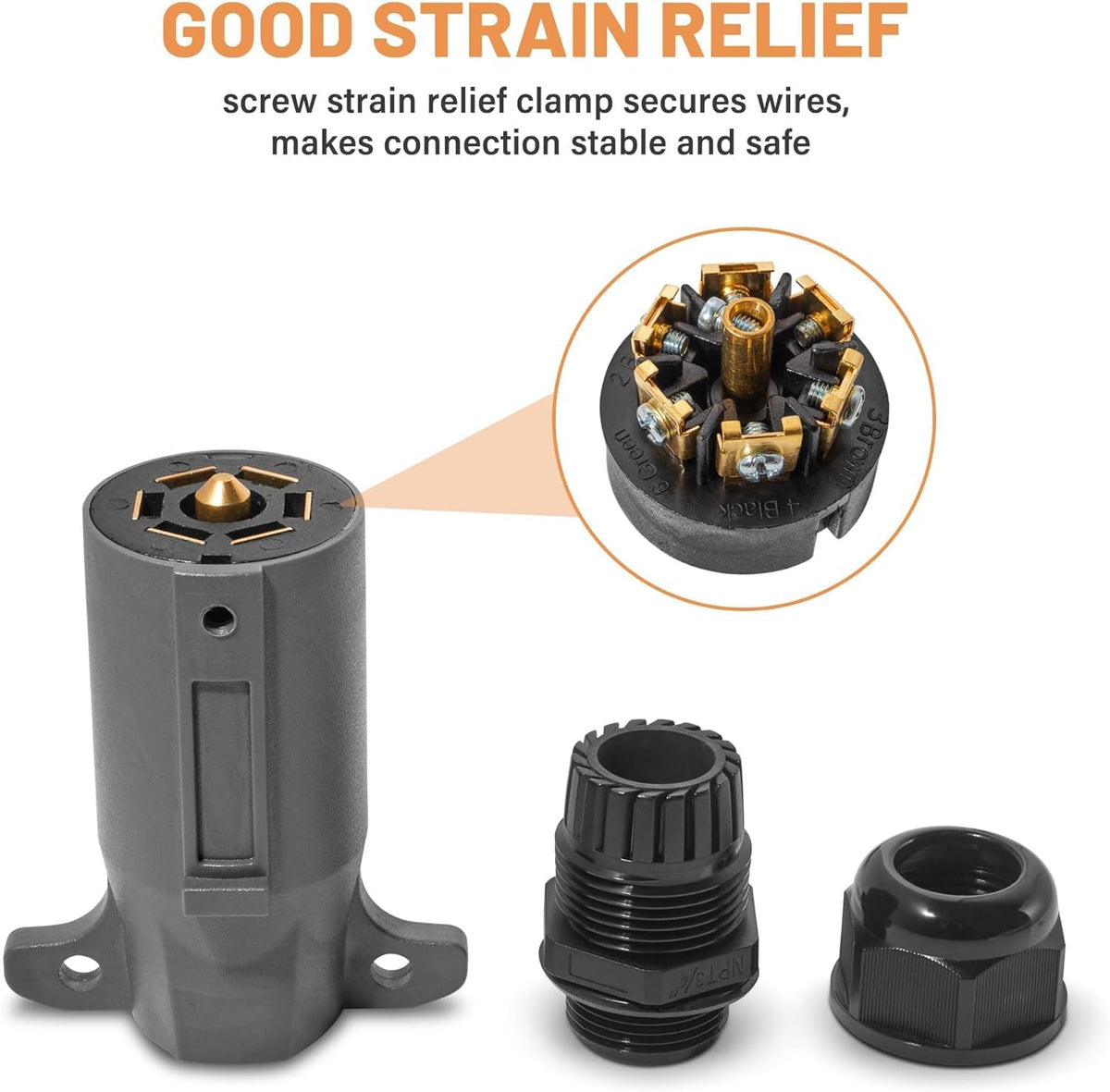

• Screw strain-relief to prevent wire pullout
• Molded handle hooks for easier connection

Who is this for? If you tow trailers, campers or utility trailers and need a dependable, weather-resistant 7-way connection, the Oyviny RV 7 Pin Trailer Plug 2-pack is built for you. It suits DIY trailer owners, RV technicians, fleet operators and anyone replacing a worn or non-sealing 7-pin plug. The connector’s splice-ready design and waterproof sealing also make it practical for seasonal vehicle maintenance or as a spare on long trips.
