Pafessa 12V Electric A-Frame Trailer Tongue Jack 3500 lb Lift, 18" Travel with 7-Way Plug & Drop Foot

Pafessa's 12V electric A-frame trailer tongue jack lifts up to 3,500 lb, offers 18" of travel plus a 4.5" quick-drop foot extension, and includes a 7-way plug and protective cover for reliable trailer hookup and leveling.

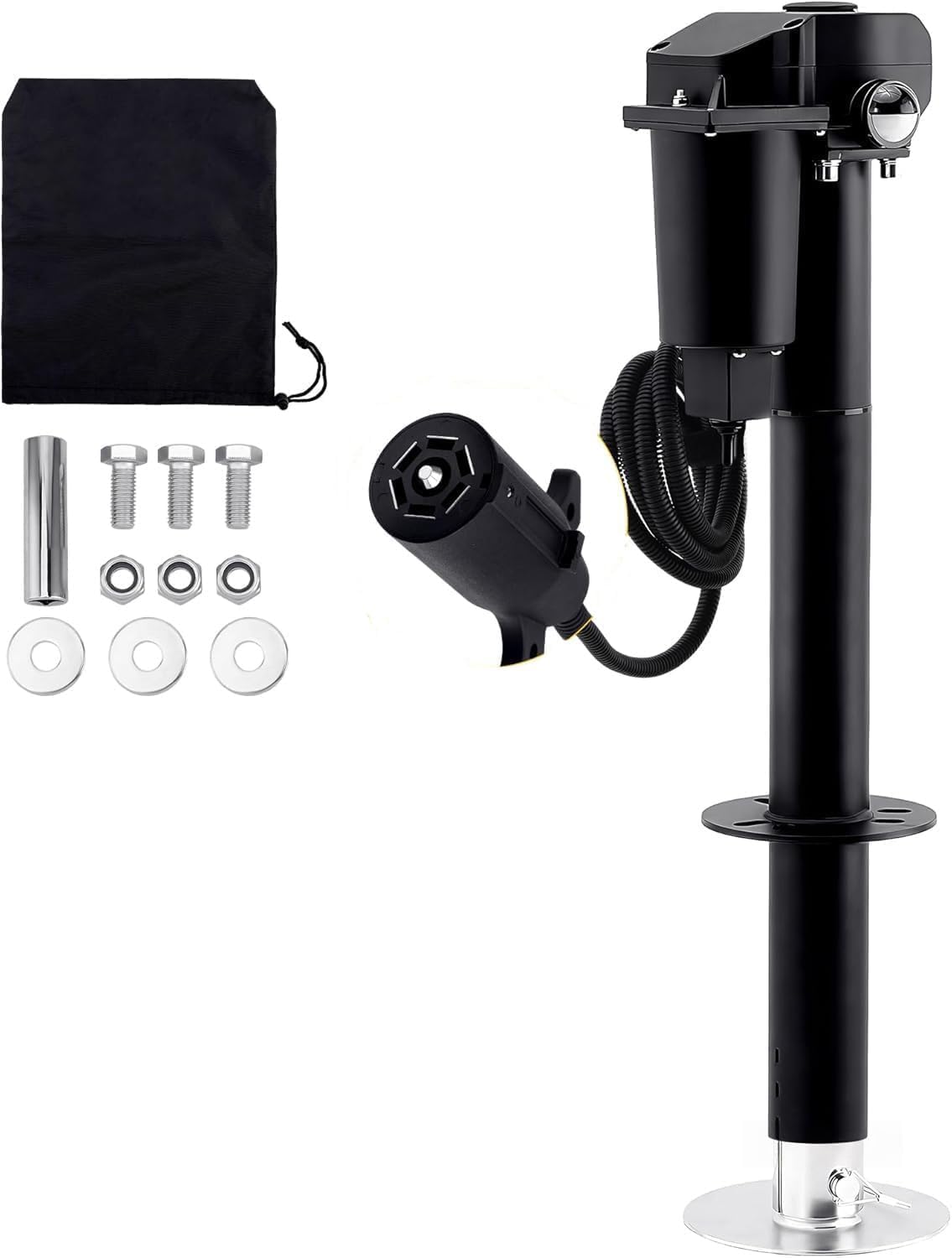

This powered tongue jack is engineered to simplify hitching, unhitching and leveling of A-frame trailers and RVs. It combines a 150W motor, Acme-threaded rod and precision gears in a sealed housing to deliver quiet, steady lifting in a compact package. The unit arrives with a universal round mounting flange and the hardware needed for most 2.25" mounting hole patterns, plus a seven-foot 7-way plug cable so you can connect directly to your tow vehicle.

How much weight and travel distance does this jack handle?

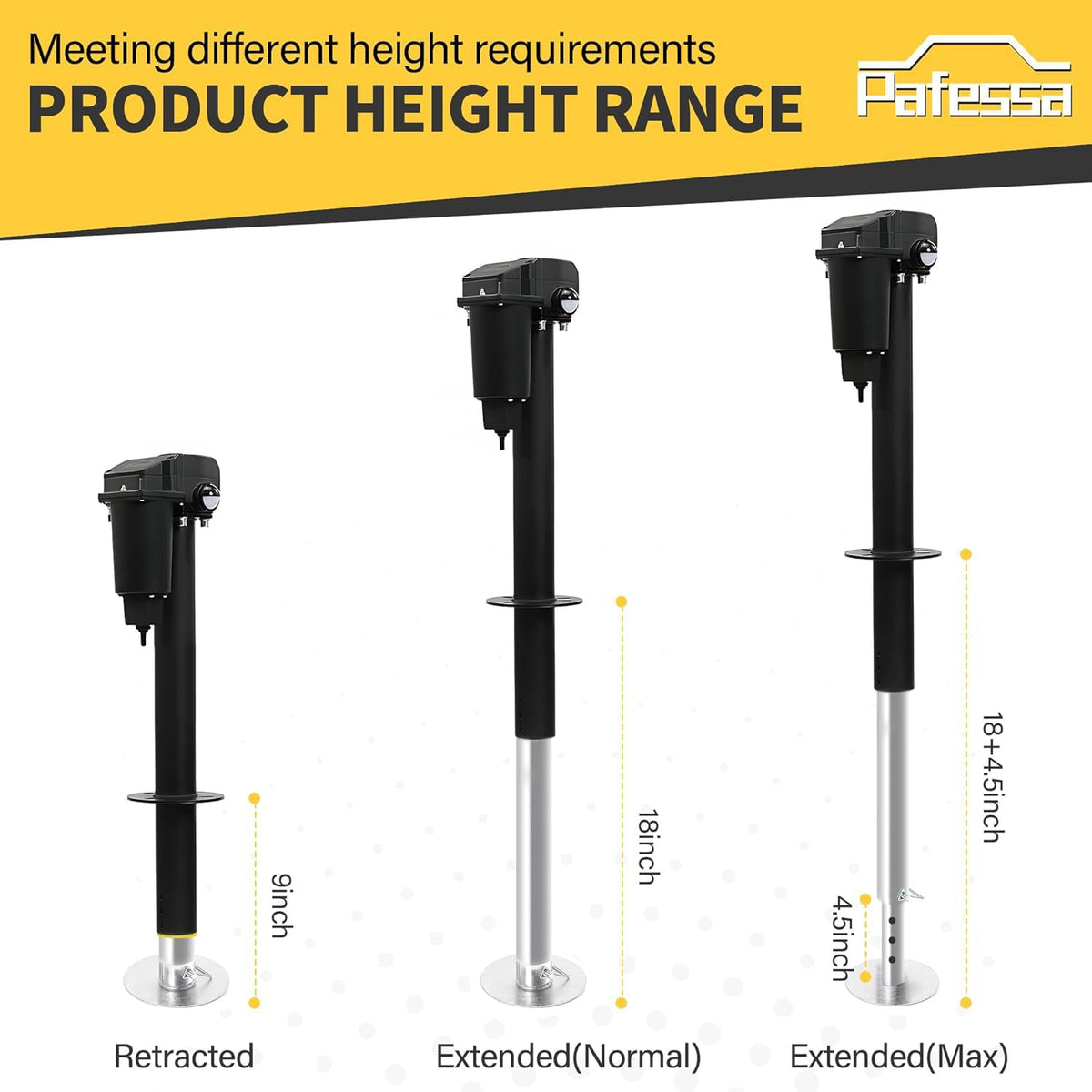

The Pafessa electric tongue jack is rated for a 3,500 lb lift capacity and provides 18" of vertical travel. Its 6" diameter quick-drop footpad adds an additional 4.5" of extension when deployed, giving extra ground clearance and stability for hookups.

• 3,500 lb rated lift capacity
• 18" travel on the jack tube
• 6" quick-drop footpad that adds 4.5" extension
• Working speed ~0.4 in./s for efficient deployment

Will it fit my trailer and how hard is installation?

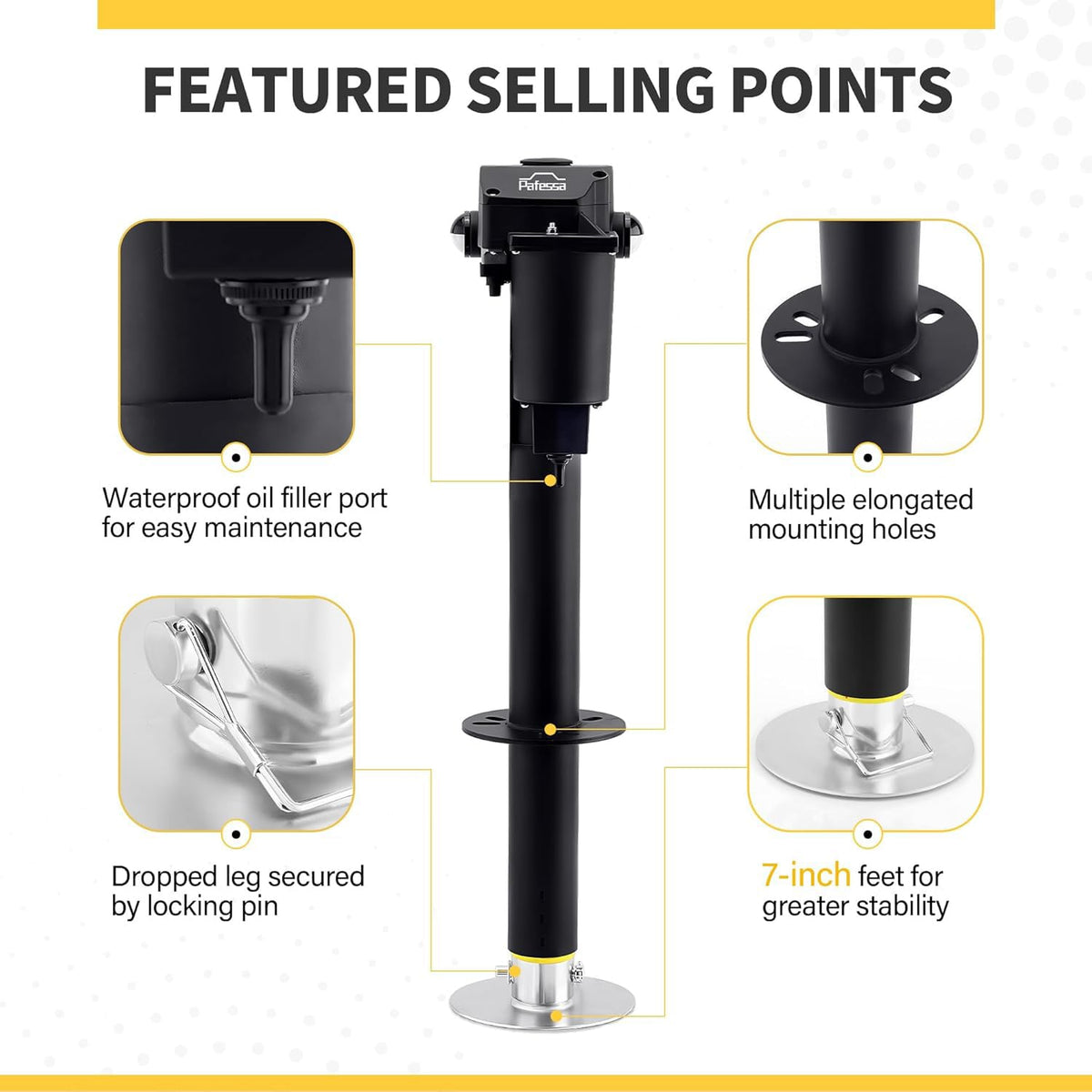

The jack uses a universal round mounting flange pre-drilled to adapt to common A-frame and RV configurations, including 2.25" mounting hole patterns. Pafessa includes high-strength nuts, 3/8" screws, sleeves and an instruction sheet so you can mount and wire the unit without sourcing extra parts.

• Pre-drilled universal round mounting flange
• Hardware kit included (nuts, screws, sleeves)

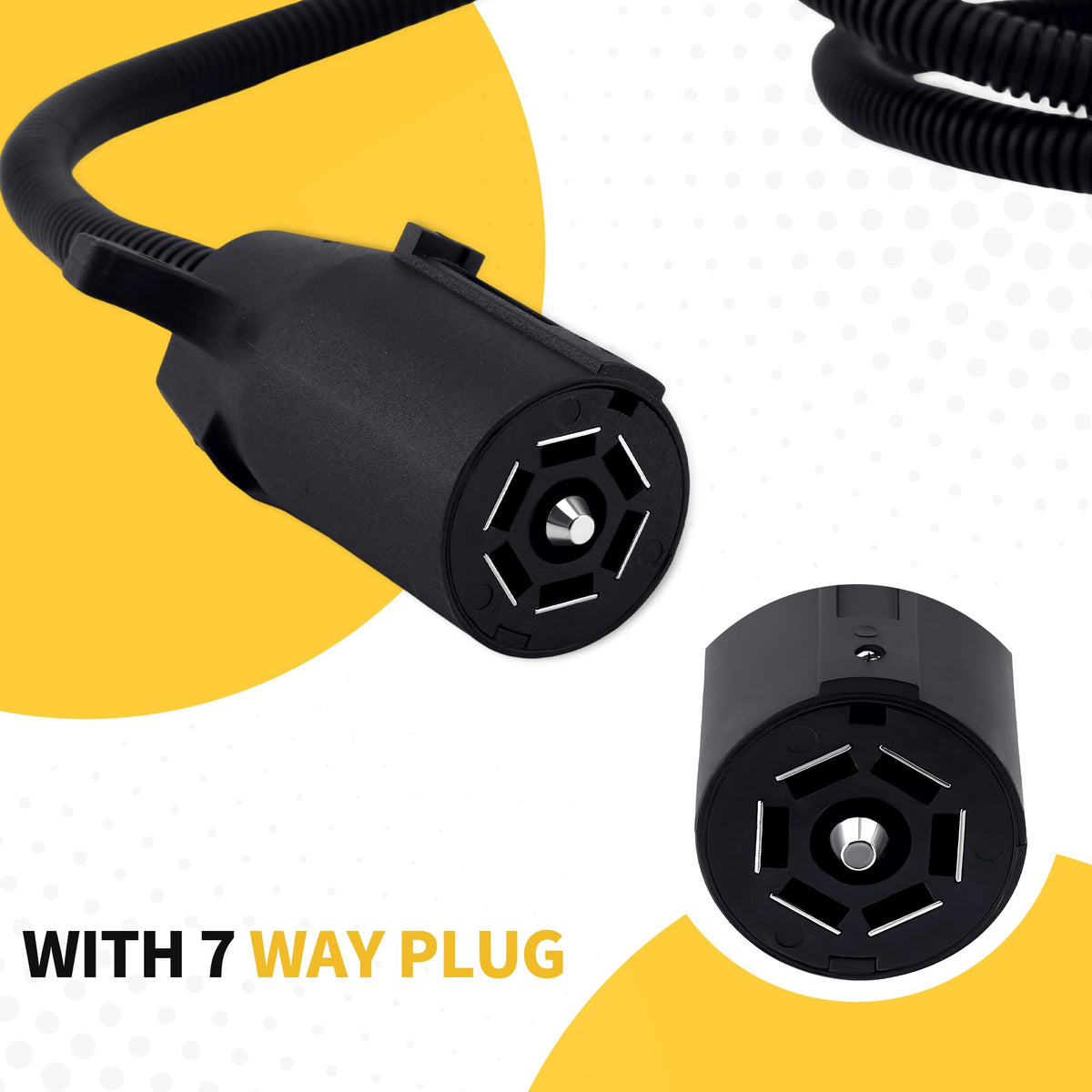

• 7-foot power cable with 7-way plug for direct vehicle connection
• Clear installation instructions provided

What power and protection features are built in?

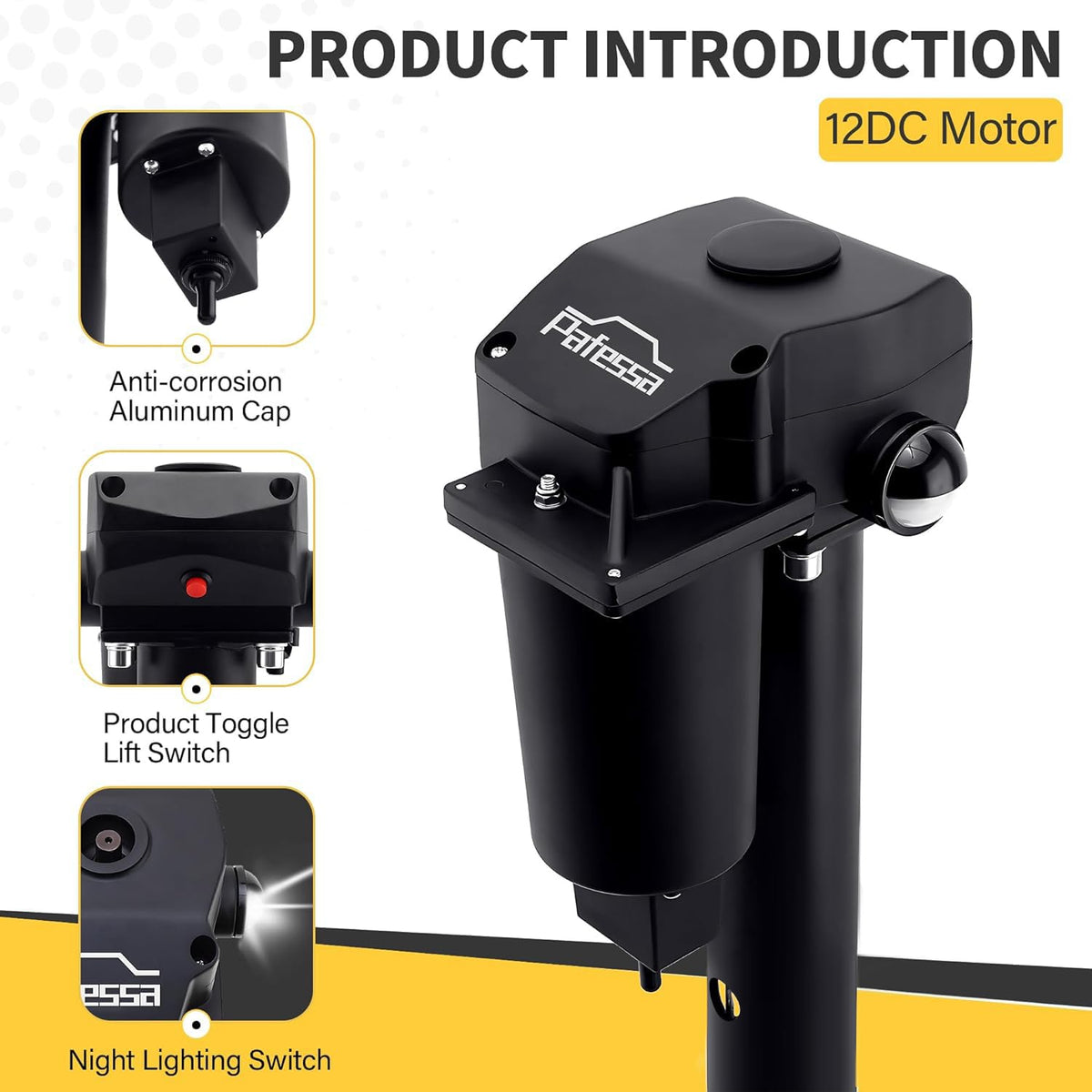

The jack runs on 12V systems with a robust 150W motor and operates in a tested 9–16V range, so it works reliably even with modest battery voltage. Safety protections include a 30A circuit breaker that trips on overcurrent, plus an emergency hand-crank socket for manual operation if needed.

• 150W motor, works from 9–16V
• 30 amp circuit breaker for electrical protection

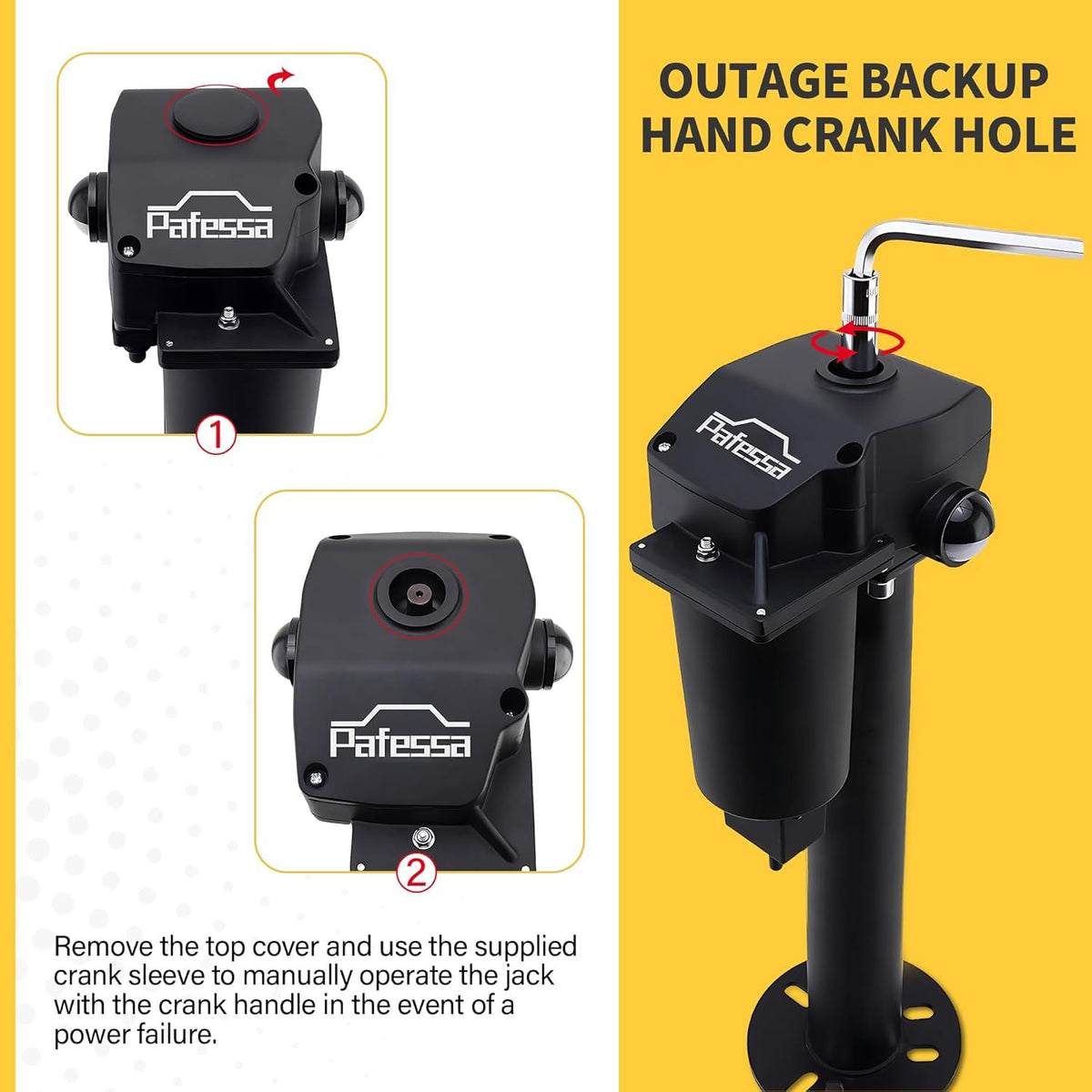

• Emergency hand-crank access at the top of the unit
• Sealed, water-resistant motor and gear housing

How does it perform in low light and rough conditions?

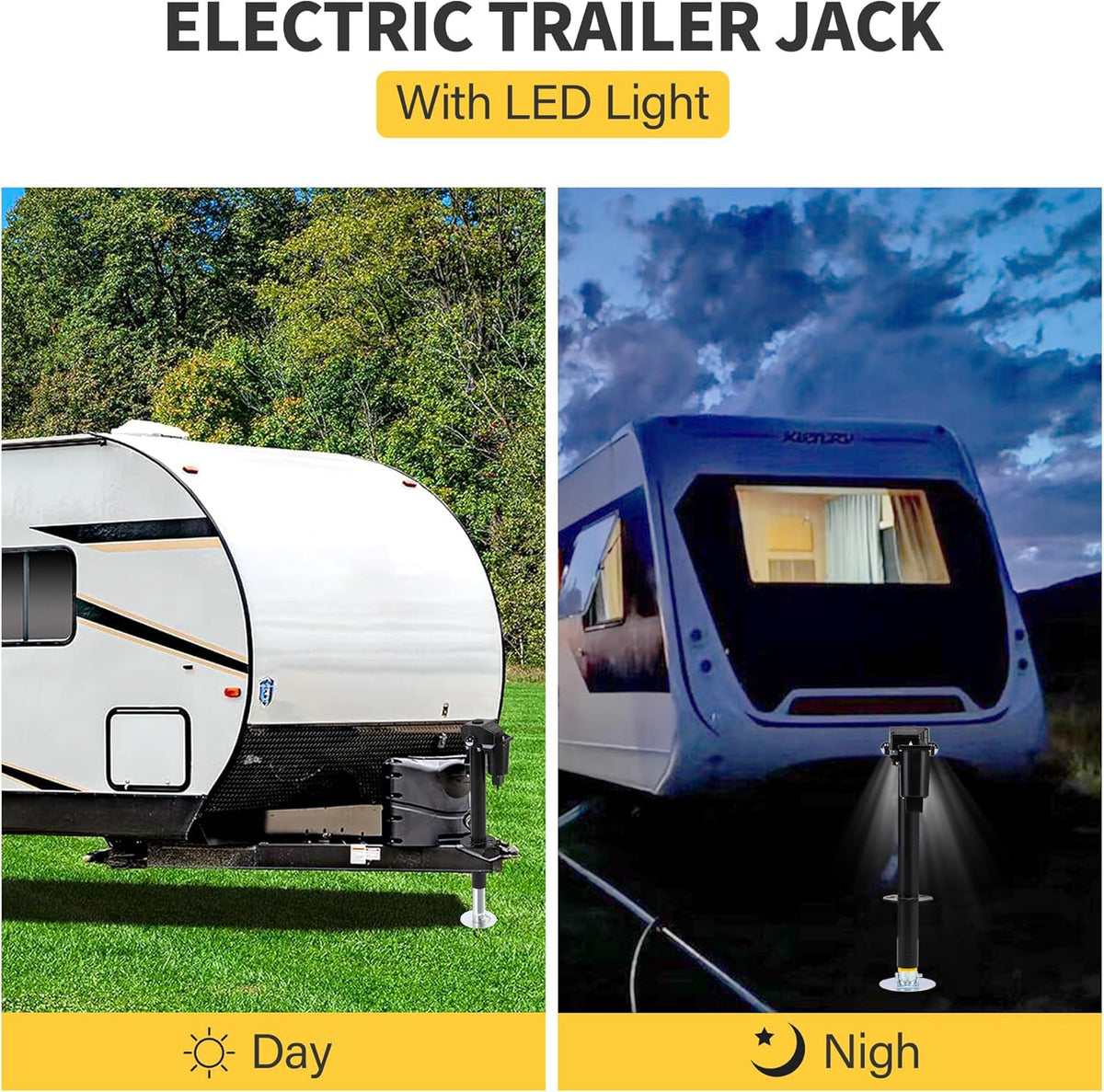

LED site lights built into the die-cast aluminum cap illuminate both sides of the tongue for safe hookup after dark. The jack's powder-coated finish and waterproof gear housing help resist corrosion and debris, and pre-drilled oiling ports make maintenance straightforward to extend service life.

• Dual LED site lights for nighttime visibility
• Powder-coated finish resists corrosion
• Water-resistant motor and gear housing for durability
• Pre-drilled oiling holes for simple lubrication

Who is this for: The Pafessa 12V electric A-frame tongue jack is designed for RV owners, small trailer operators and weekenders who want faster, safer hitching and leveling without manual strain. It suits A-frame trailers with standard 2.25" mounting patterns and RVs needing up to a 3,500 lb lift capacity, especially when you value built-in lighting, a 7-way plug hookup, and overcurrent protection for peace of mind.
