Painless High Beam Relay Kit for 1988–1998 GM Trucks & SUVs — 40A Relay, Plug-and-Play Harness

Painless Performance 30802 is a plug-and-play high beam relay kit that restores all four headlamps to full output in high-beam mode for 1988–1998 GM full-size trucks and SUVs.

This kit addresses a common factory wiring limitation found on many late-1980s to late-1990s GM trucks and SUVs that reduces the number of active headlamps when switching to high beams. By adding a dedicated 40-amp relay, the kit ensures each headlamp receives full power from a reliable source instead of relying on dimmer factory headlamp circuits. The harness, relay base, terminals, and mounting hardware are included for a tidy installation tailored to these GM platform years. Note: some models — notably early Suburbans (1988–1991) — may require small wiring or mounting adjustments.

How does this relay kit improve my high-beam performance?

Installing the Painless Performance 30802 kit routes high-beam power through a heavy-duty 40-amp relay rather than the factory harness, restoring full current to each headlamp. The result is higher usable brightness and a more consistent beam pattern across both left and right lamps. Because the relay reduces voltage drop through old wiring, you’ll notice crisper illumination when you switch to high beams.

• 40-amp relay supplies steady power to all four headlamps
• Reduces voltage drop and dimming caused by factory wiring
• Improves beam uniformity and spread pattern

Will this fit my 1988–1998 GM truck or SUV without modifications?

The harness and relay base were designed for GM full-size trucks and SUVs from 1988 through 1998, and in most cases the kit installs without major changes. However, some vehicles—especially 1988–1991 Suburbans—may need slight wiring routing or mounting adaptations. If your truck has aftermarket lighting or significant prior wiring changes, inspect connectors before installation.

• Compatible with low-beam daytime running light (DRL) GM models in the stated years
• Minor adjustments possible on select early Suburban models
• Works best on vehicles with stock headlamp connectors or clean wiring

What comes in the kit and what tools will I need?

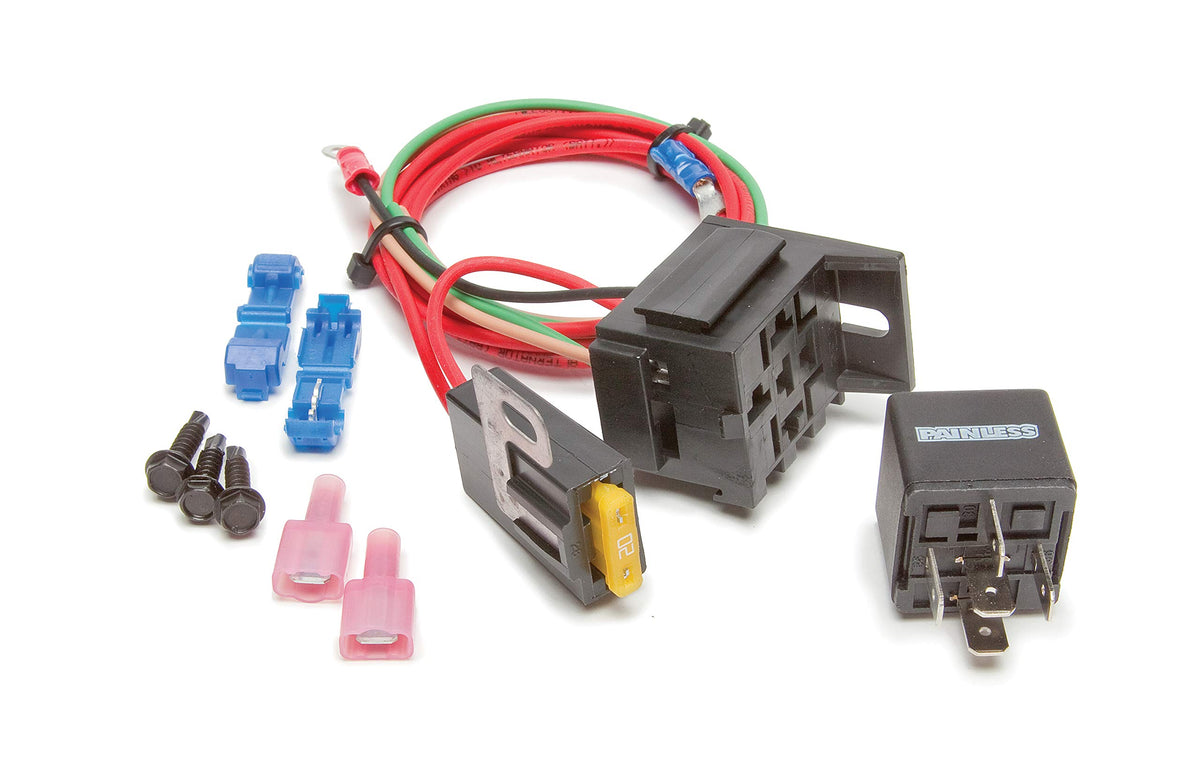

The Painless 30802 package includes a 40-amp heavy-duty relay, a relay base with an attached wire harness, crimp terminals, and mounting hardware so you have everything required for a neat install. Basic hand tools and a multi-meter are typically all that’s needed for a safe connection and verification. Plan 30–90 minutes depending on vehicle access and whether minor modifications are necessary.

• Included: 40-amp relay, relay base with harness, crimp terminals, mounting hardware
• Recommended tools: wire crimper, screwdrivers, wrench set, multimeter
• Estimated install time: 30–90 minutes depending on vehicle

Does installing the relay affect daytime running lights or vehicle electronics?

The kit is intended to work with GM trucks that use low-beam daytime running lights by only changing how high-beam power is routed when you engage high beams. It does not alter factory lighting control modules or introduce complex electronics, minimizing risk to other systems when installed correctly. Always disconnect the battery and follow grounding best practices during installation.

• Keeps DRL functionality intact on compatible models
• No added modules—simple relay-based power routing
• Safe when installed per instructions and with battery disconnected

Who is this for? The Painless Performance 30802 relay kit is ideal for owners of 1988–1998 GM full-size trucks and SUVs who want to regain full high-beam performance, improve nighttime visibility, and eliminate uneven beam output caused by aging factory wiring. It’s suited to DIY mechanics, restoration projects, and anyone preparing a vehicle for safer night driving; technicians and shops will appreciate the included hardware and straightforward wiring layout for quick installation.
