Partsam 2.5" Oval LED Trailer Side Marker Lights 8-Pack (4 Red + 4 Amber) — Sealed Surface-Mount, 12V, 80 Lumens Each

Partsam 8-piece set of 2.5" oval sealed LED trailer side marker lights provides compact, surface-mount clearance and identification lighting for 12V trailers, trucks, boats and RVs.

These small, weatherproof marker lights combine a clear lens with red and amber LEDs to serve as side markers, clearance lamps, or identification lights on a wide range of vehicles. Each lamp houses two high-quality diodes that deliver about 80 lumens per unit while the sealed build resists moisture and road grime. The set includes four red and four amber lights, pre-wired for quick surface installation on trailers, motorhomes, trucks, boats and other 12V platforms.

How bright and visible are these Partsam LED marker lights?

Each lamp contains two LED diodes rated to produce roughly 80 lumens, enough for daytime visibility and regulatory-style identification at dusk or in low light. The clear lens amplifies light output while the red or amber colored housing delivers the required signaling color.

• Brightness: approx. 80 lumens per light.

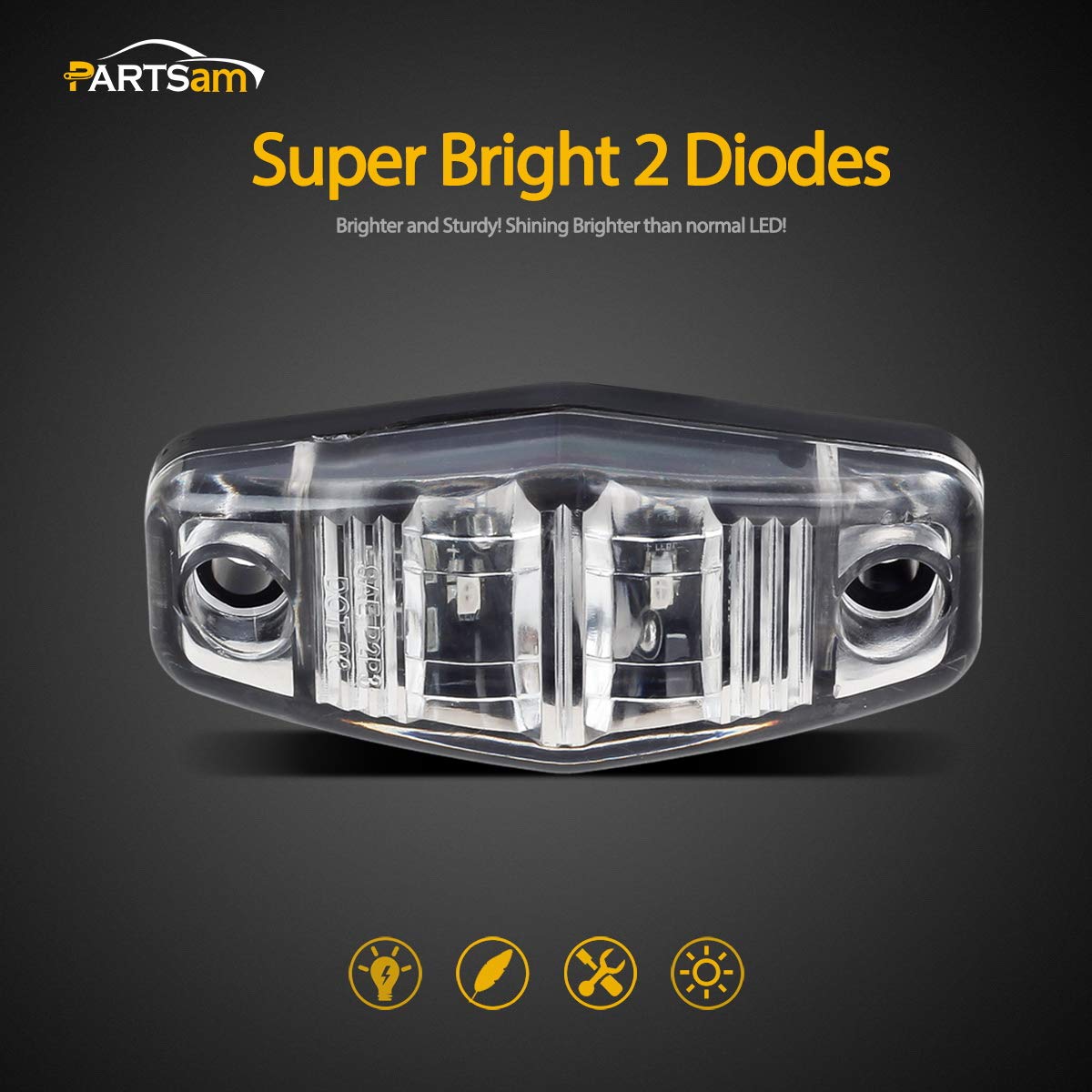

• LEDs: 2 high-quality diodes in each unit for consistent output.
• Lenses: clear over colored LEDs for focused light and improved visibility.

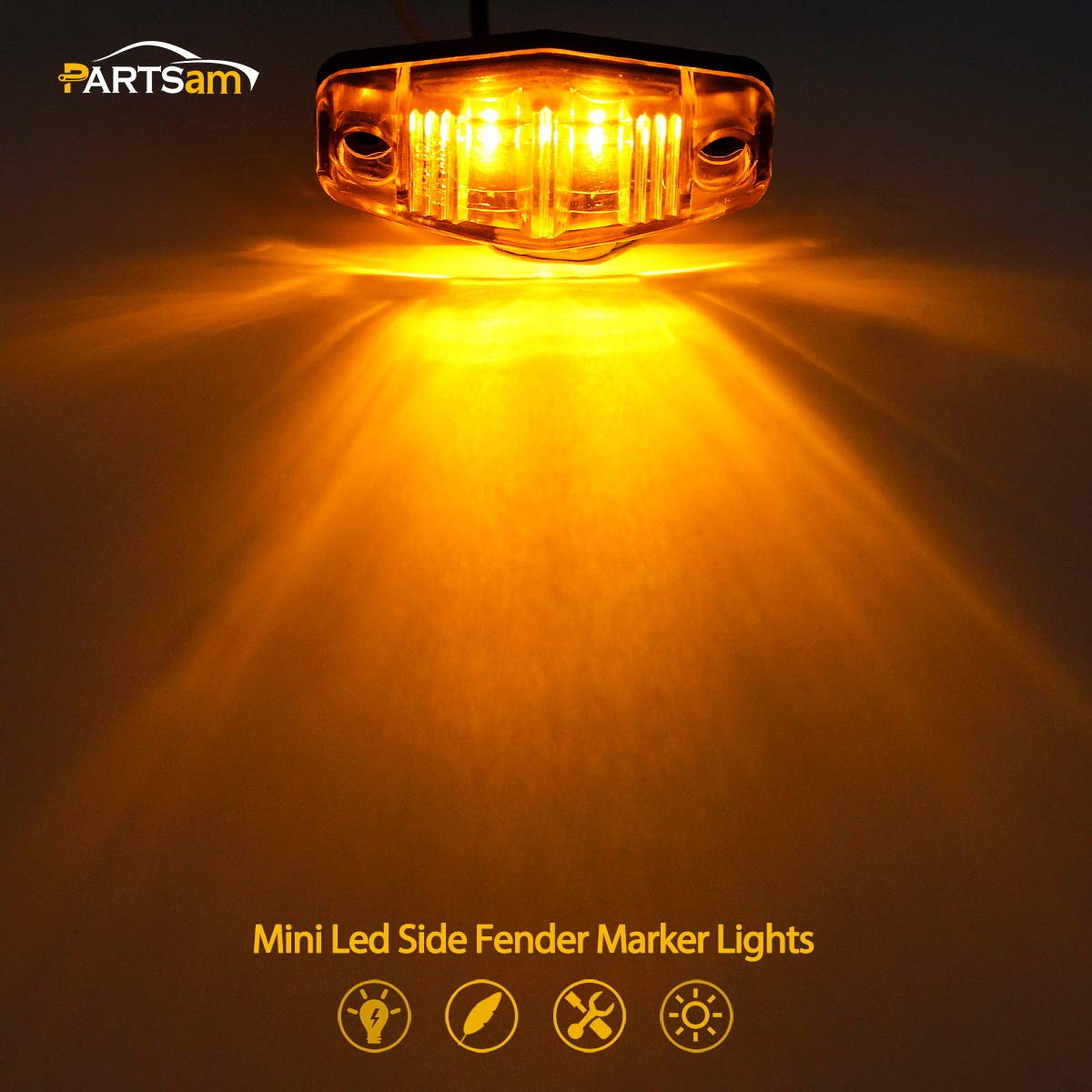

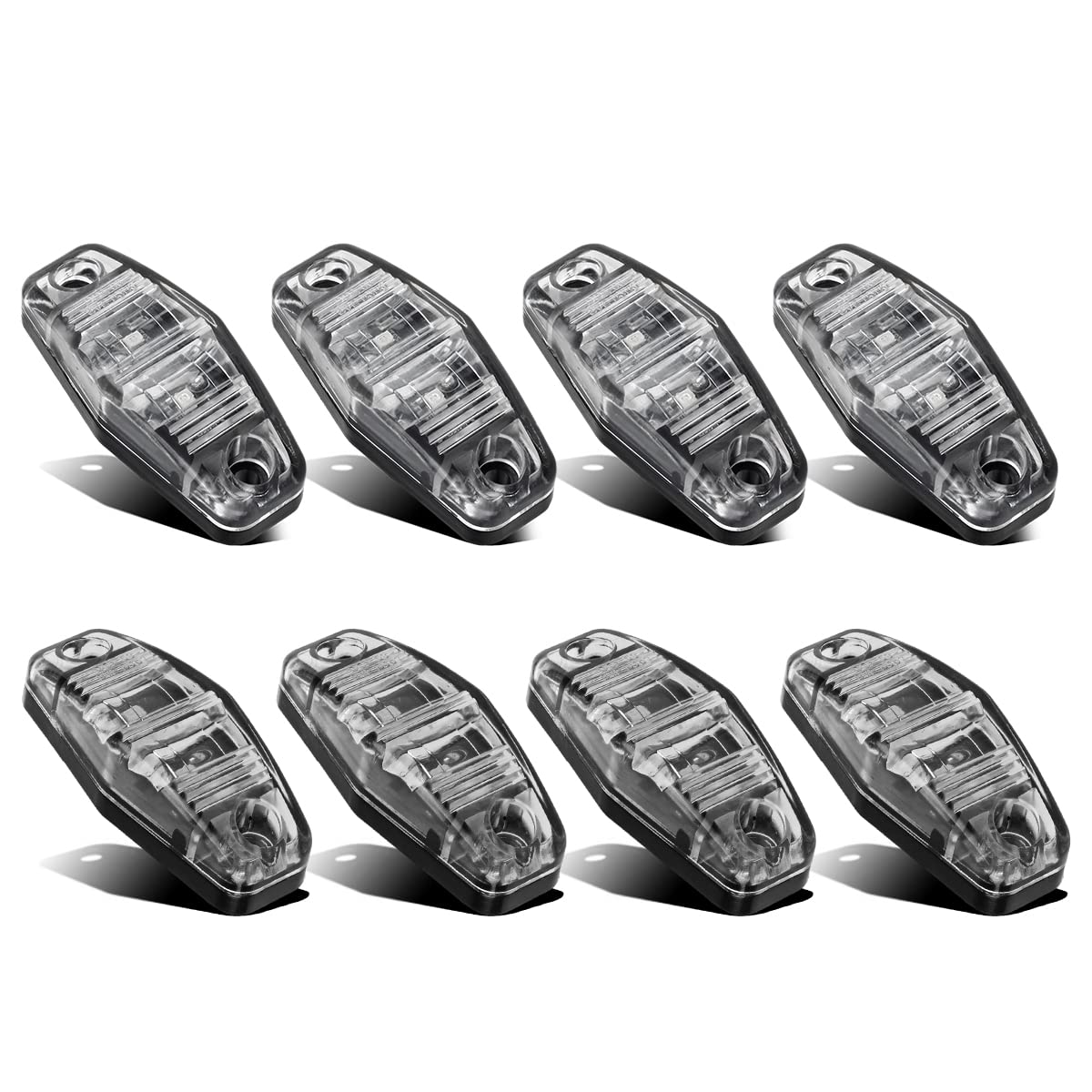

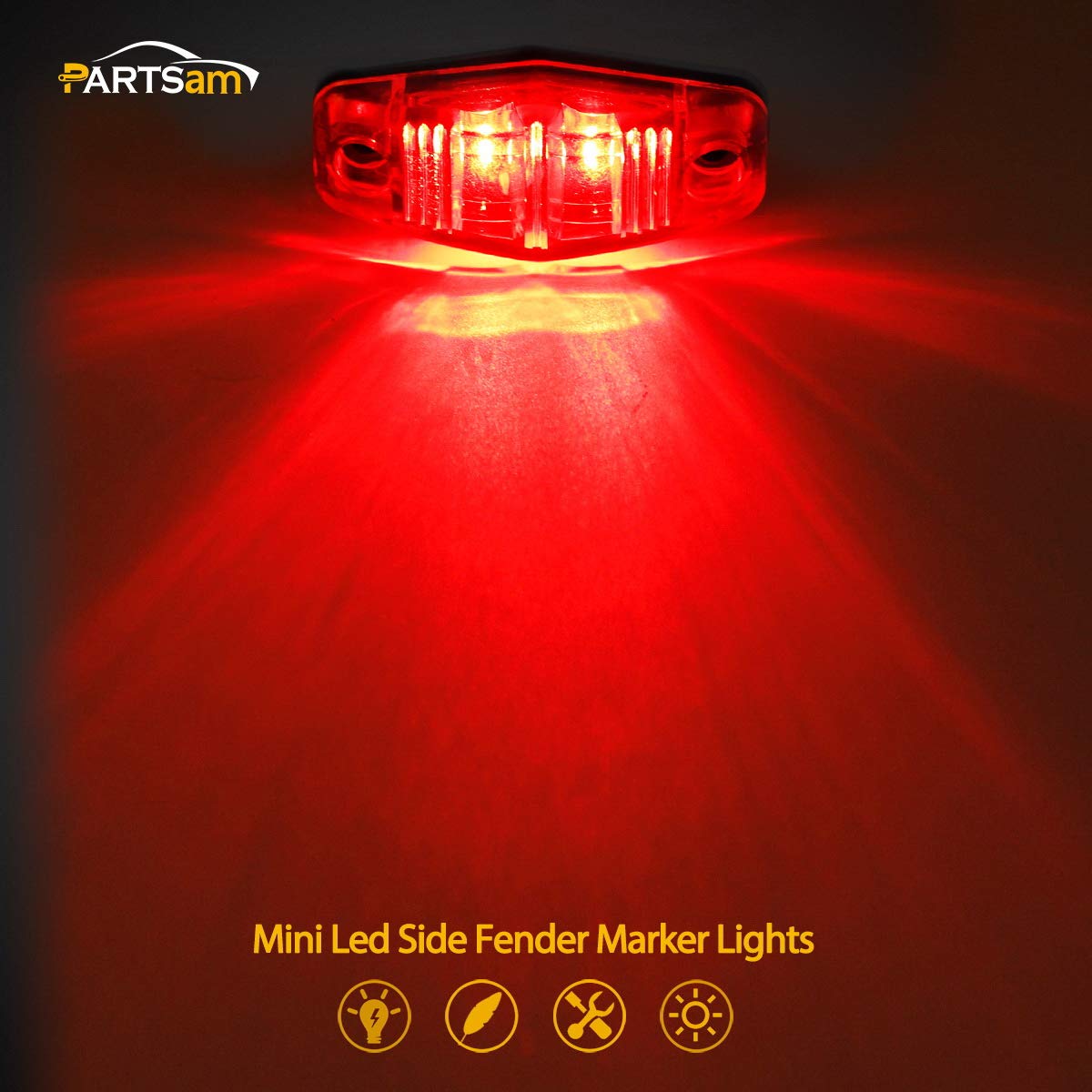

• Colors included: 4 red and 4 amber for mixed-position use.

What are the mounting and wiring details for quick installation?

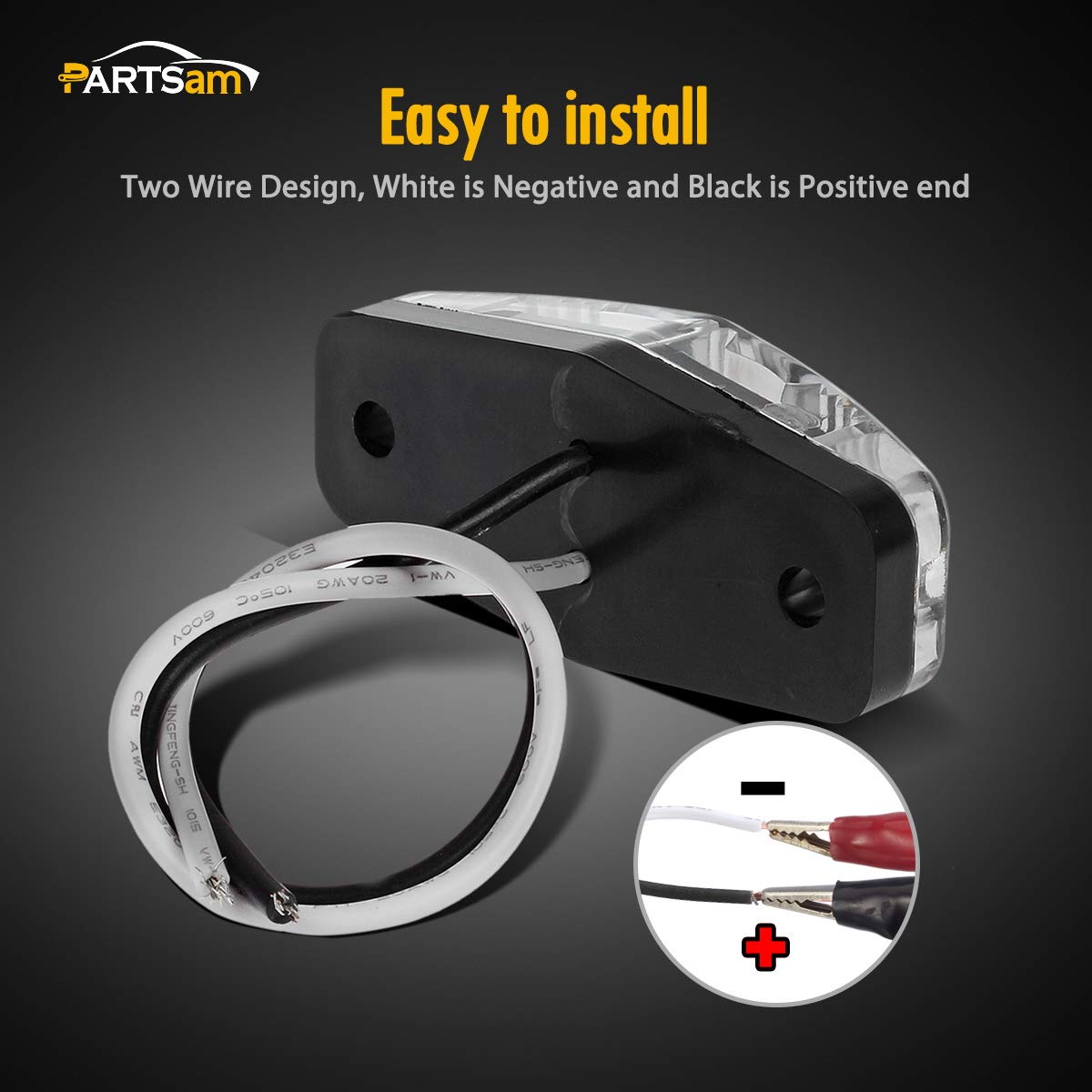

The lights use a surface-mount, sealed design with two pre-attached lead wires for fast fitting to most flat or contoured surfaces. Wires exit the rear of the housing; black is positive and white is negative/ground, simplifying hookup to existing 12V circuits.

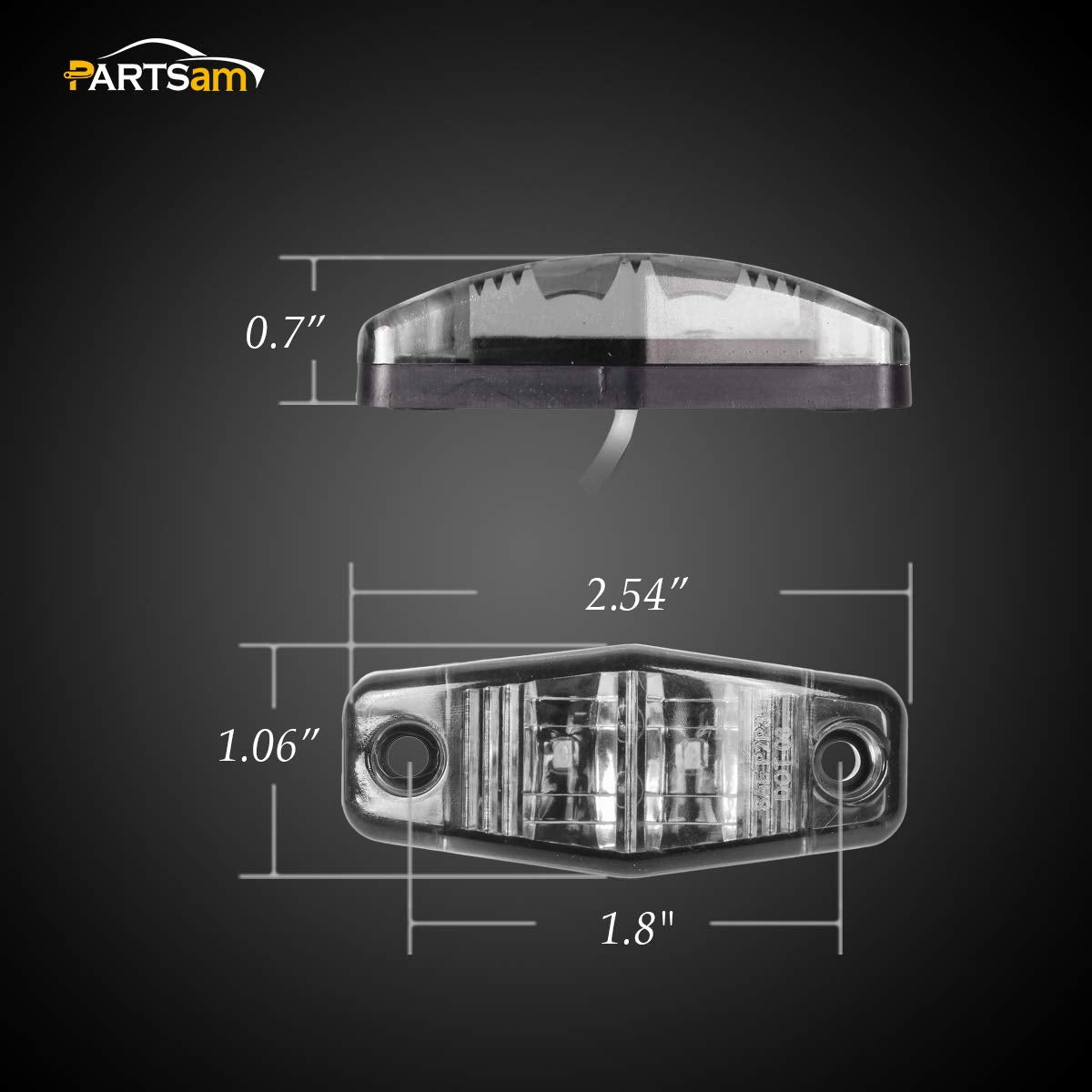

• Mounting: surface mount with two screw holes, center-to-center 46mm (1.8").
• Housing size: 64mm x 26mm x 18mm (2.54" x 1.06" x 0.7").
• Wiring: two-wire design, black = positive, white = negative/ground.
• Sealed build prevents water ingress for exterior vehicle use.

Will these fit my vehicle and where can I use them?

These marker lights are universal for 12V systems and commonly used on trailers, pickup trucks, SUVs, vans, RVs, motorhomes, boats and commercial lorries. They work as side markers, clearance lights, identification lights, or even small brake/tail indicators when arranged per vehicle wiring needs.

• Compatibility: designed for 12V vehicles—trailers, cars, boats, RVs.
• Typical positions: side marker, clearance lamp, position light, or supplementary brake/tail light.
• Use cases: trailers, caravans, campers, buses, and utility vehicles.
• Universal fit: compact oval shape suits tight mounting locations.

How durable are these lights for outdoor and marine environments?

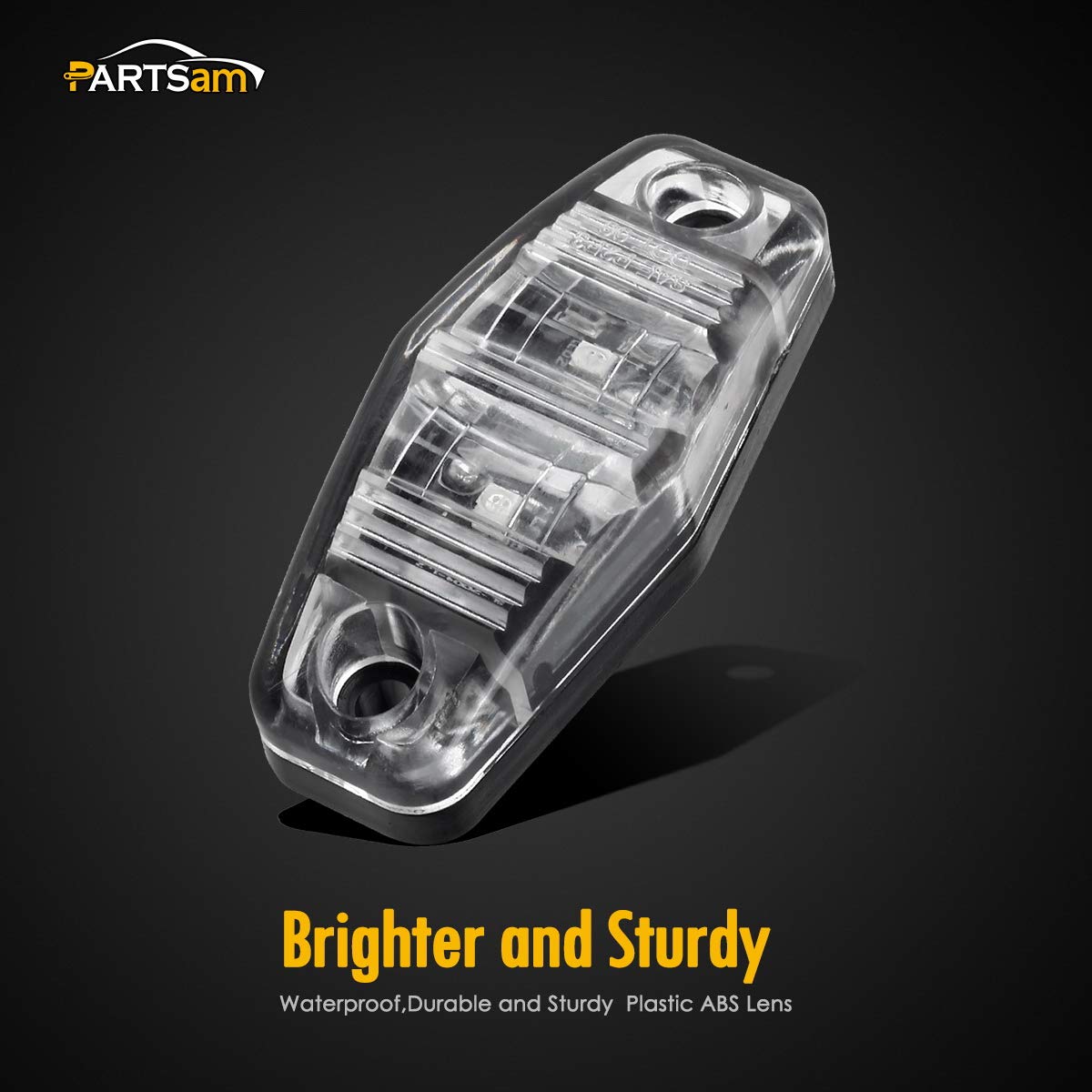

The sealed enclosure and compact polycarbonate lens make the lights resistant to road spray and weather exposure. While designed for rugged exterior use, correct installation with proper sealing around mounting holes will extend service life, especially in marine or high-moisture environments.

• Sealed LED housing helps keep out water and debris.
• Robust lens and body for vibration and road shock resistance.
• Recommended: silicone or gasket around screws for extra moisture protection.
• Suitable for exterior mount on trailers, boats, and utility vehicles.

Who is this for? If you need compact, reliable marker lighting for a 12V trailer, pickup, camper or boat, the Partsam 8-piece oval LED set offers a simple, economical way to add compliant side markers and clearance lights. Hobbyists, fleet operators, DIY trailer owners and RV renovators will appreciate the easy surface-mount installation, sealed construction, and mixed red/amber selection for versatile placement across most lighted vehicle positions.
