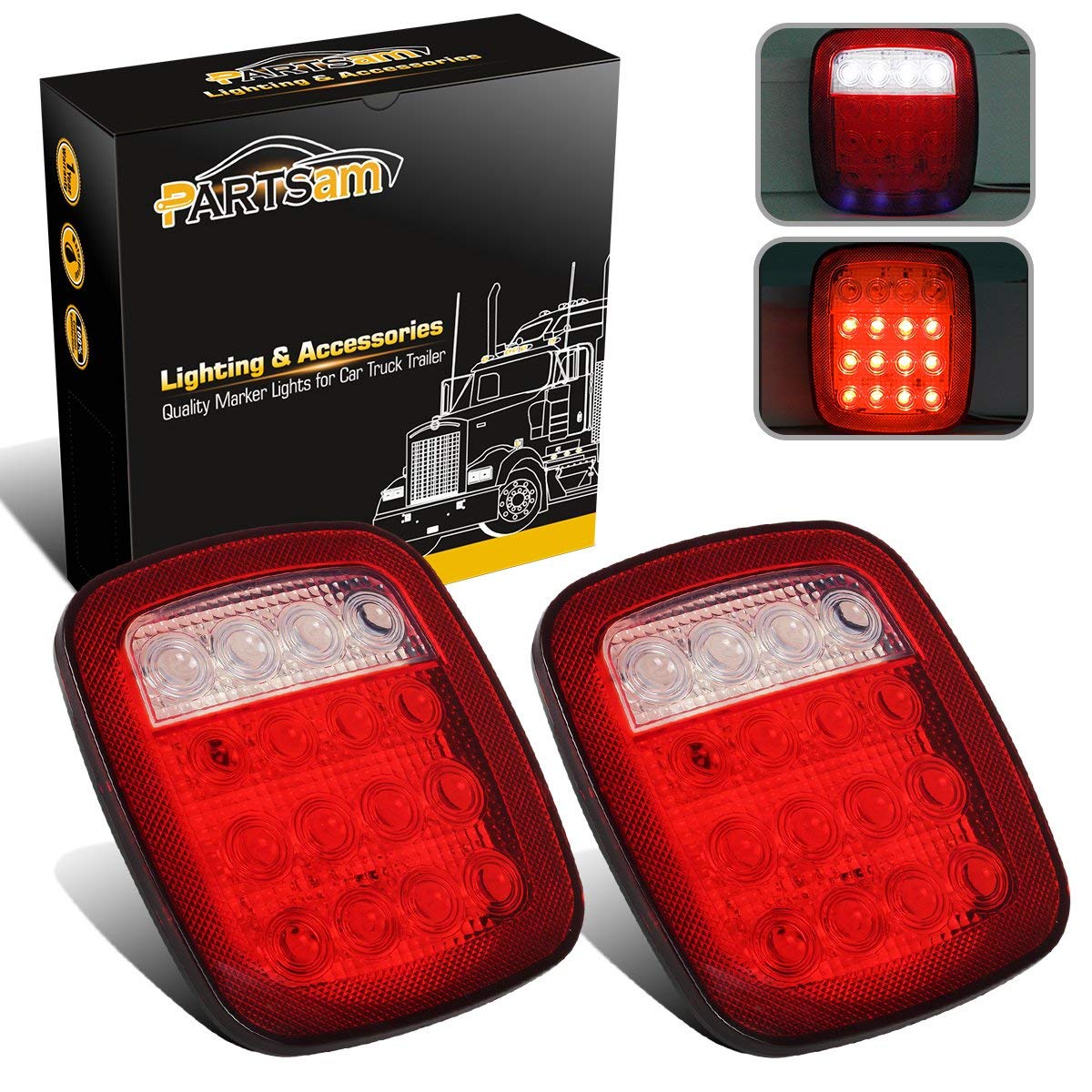

Partsam 2-Pack 16-LED Stop/Turn/Tail & Reverse Lights Red/White — Waterproof 12V Universal

These Partsam 2-pack square stop/turn/tail and reverse lamps combine 12 red LEDs and 4 white LEDs to give stop, turn, tail and backup functions in a single universal 12V waterproof housing.

If you need a compact, multi-function lighting solution for Jeeps, trucks, trailers or utility vehicles, this pair of Partsam lights offers a DIY-ready alternative to factory fixtures. Each lamp integrates separate circuits for bright stop/turn signals and white reverse illumination, with a flat, square profile that fits many mounting locations. The design is universal rather than vehicle-specific, so basic wiring and minor mounting modifications are expected for a custom fit.

How do these lights handle multiple functions on one housing?

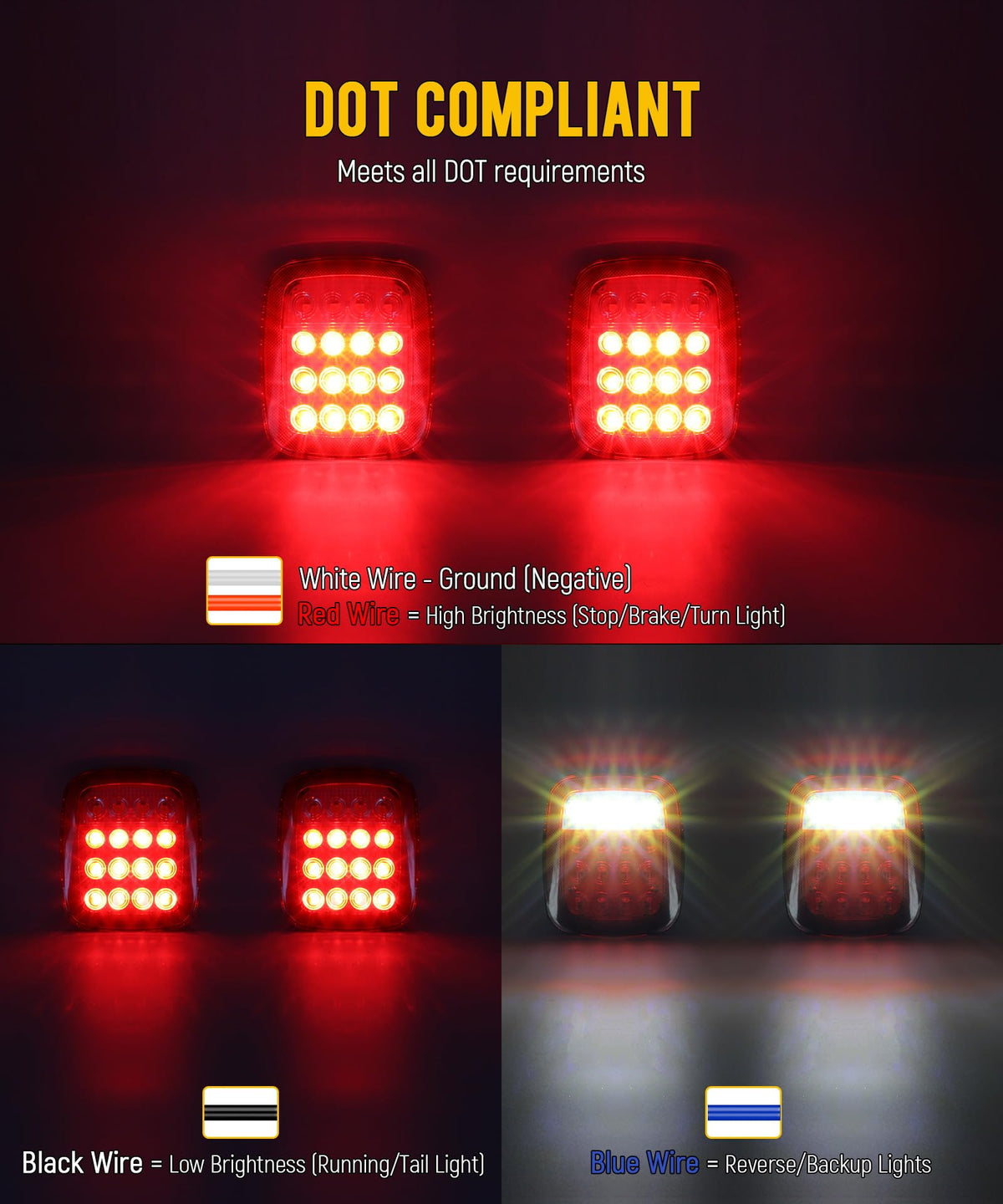

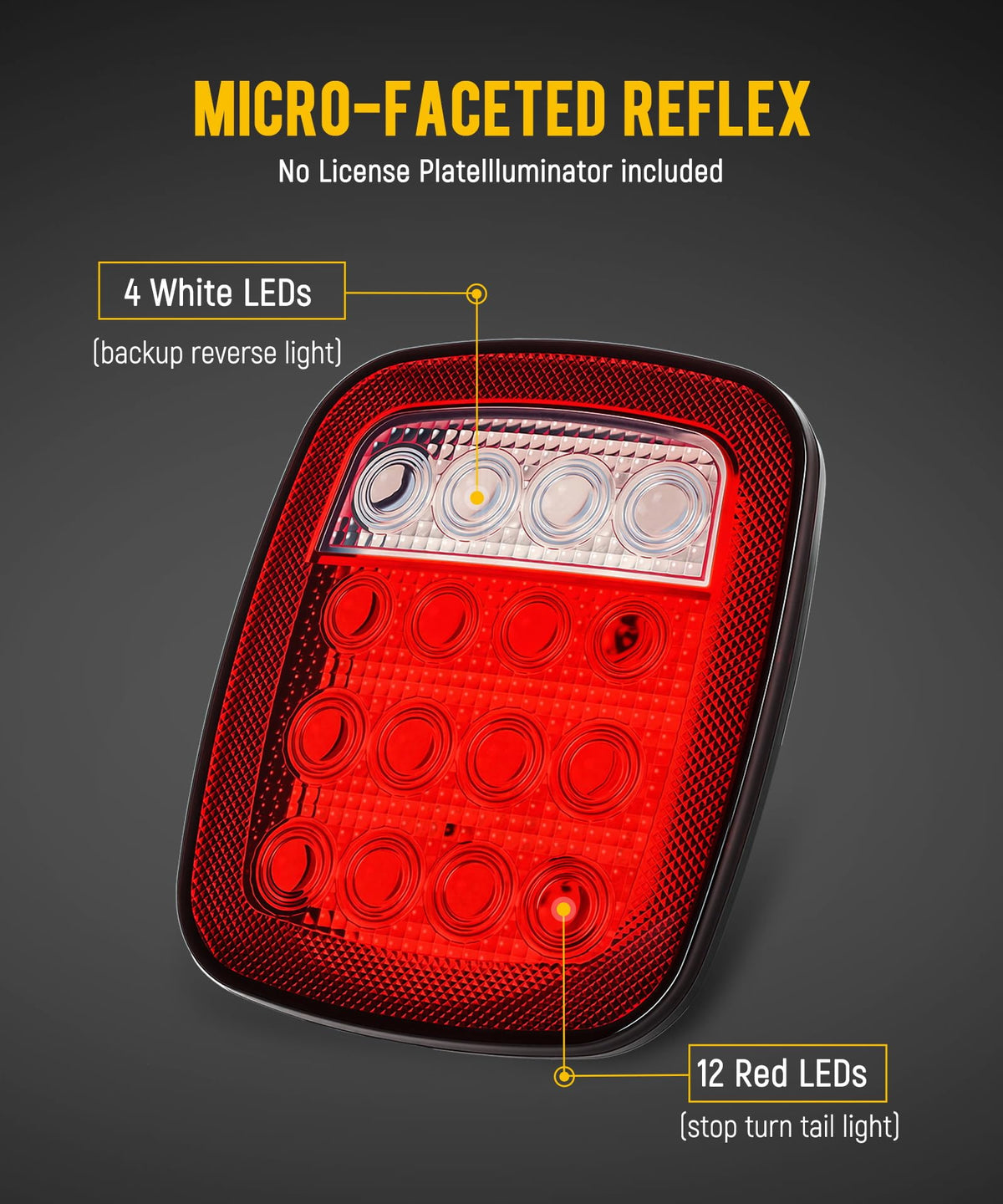

Partsam combines dedicated LED groups inside a single lens to perform several roles. Twelve red LEDs are used for tail, stop and turn indications while four white LEDs serve as reverse lights, enabling a compact all-in-one unit.

• 12 red LEDs for stop/turn/tail sequences with high and low brightness wiring options.
• 4 white LEDs positioned for clear reverse illumination.
• Separate wire connections allow independent control of brake/turn, tail, and reverse circuits.
• Reflective backing helps increase visibility when power is off.

What wiring and installation steps should I expect?

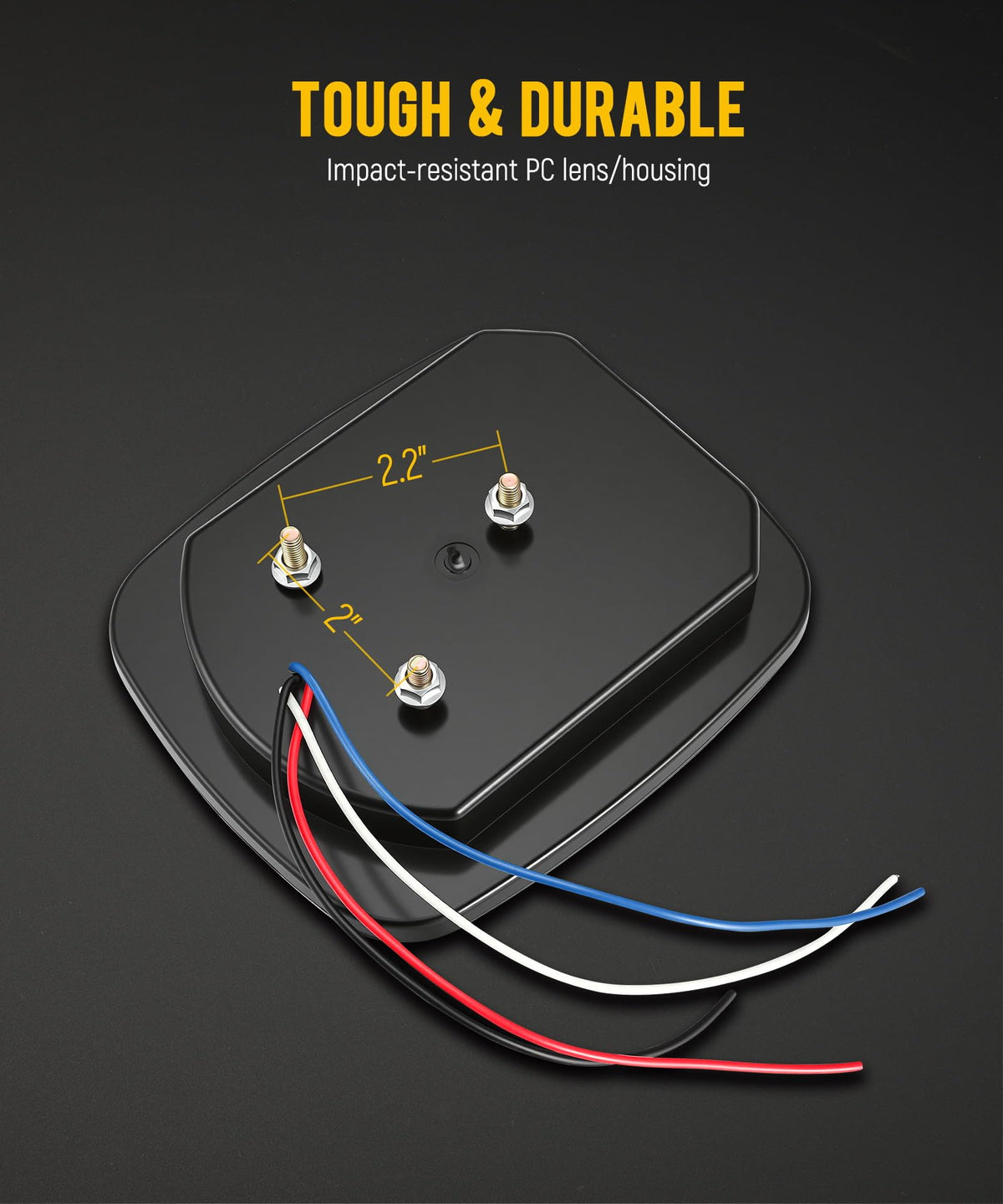

Installation is straightforward for anyone comfortable with basic vehicle wiring. The lamp uses color-coded wires: one common ground and three feed wires to control bright, dim, and reverse modes—minor mounting alterations may be needed for non-factory locations.

• White wire = ground/negative connection.
• White + Red = high-brightness (brake/stop/turn high output).
• White + Black = low-brightness (tail/marker lighting).
• White + Blue = activates white reverse LEDs for backup light function.

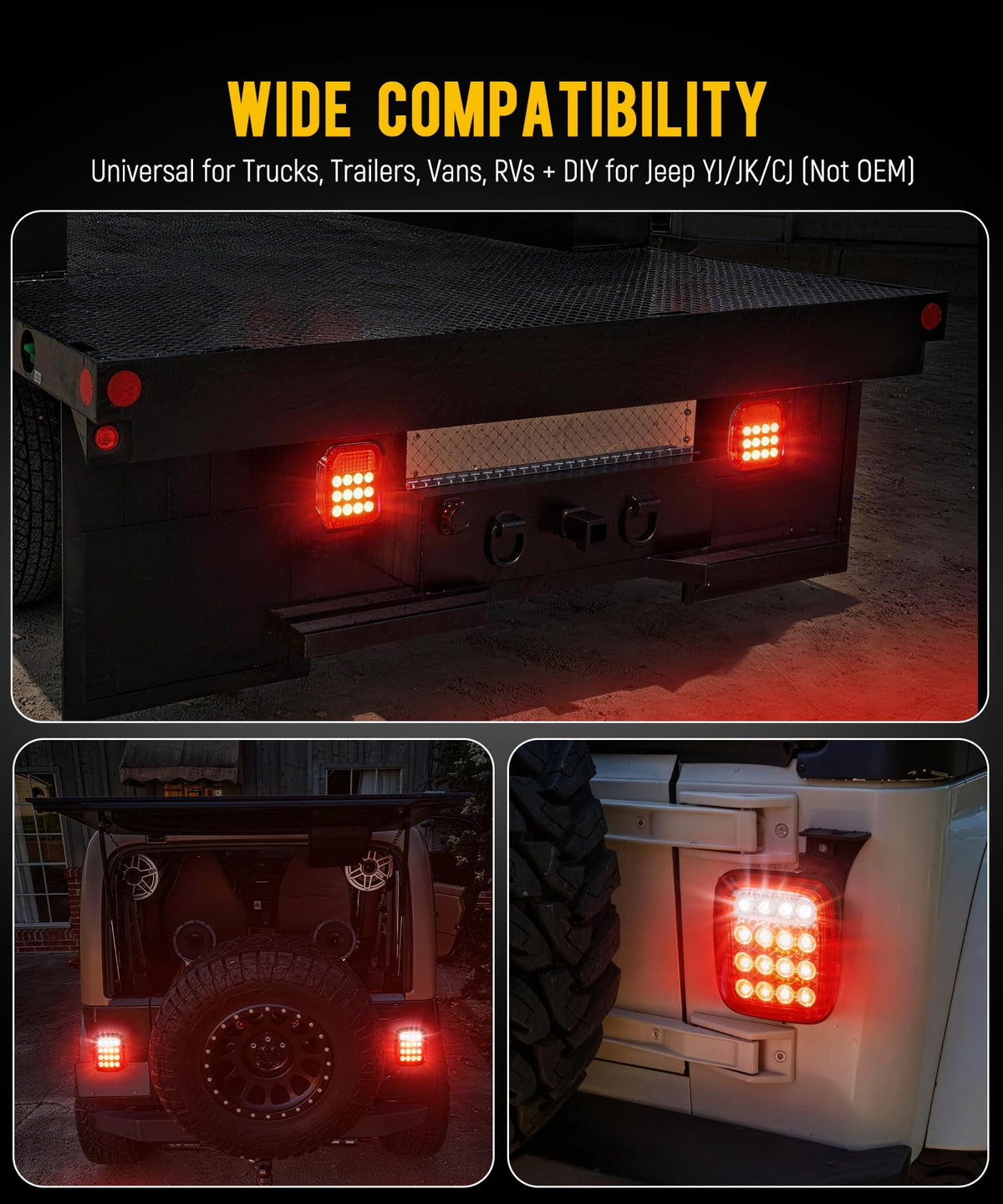

Are these lights compatible with my Jeep or trailer?

These lamps are sold as universal replacements and are compatible with 12V systems commonly found on Jeeps, trailers, trucks and other vehicles. They are not OEM-fit parts for any specific model, so trimming, bracket changes or drilling may be necessary during installation.

• Works with 12V electrical systems on Jeeps YJ, JK, CJ and many trailers, trucks and SUVs.
• Not a direct factory replacement—requires modification for some Jeep models.
• Waterproof housing suitable for exterior mounting on trailers and trucks.
• No license plate illuminator included; separate part required if needed.

How durable and weather-resistant are these lamps?

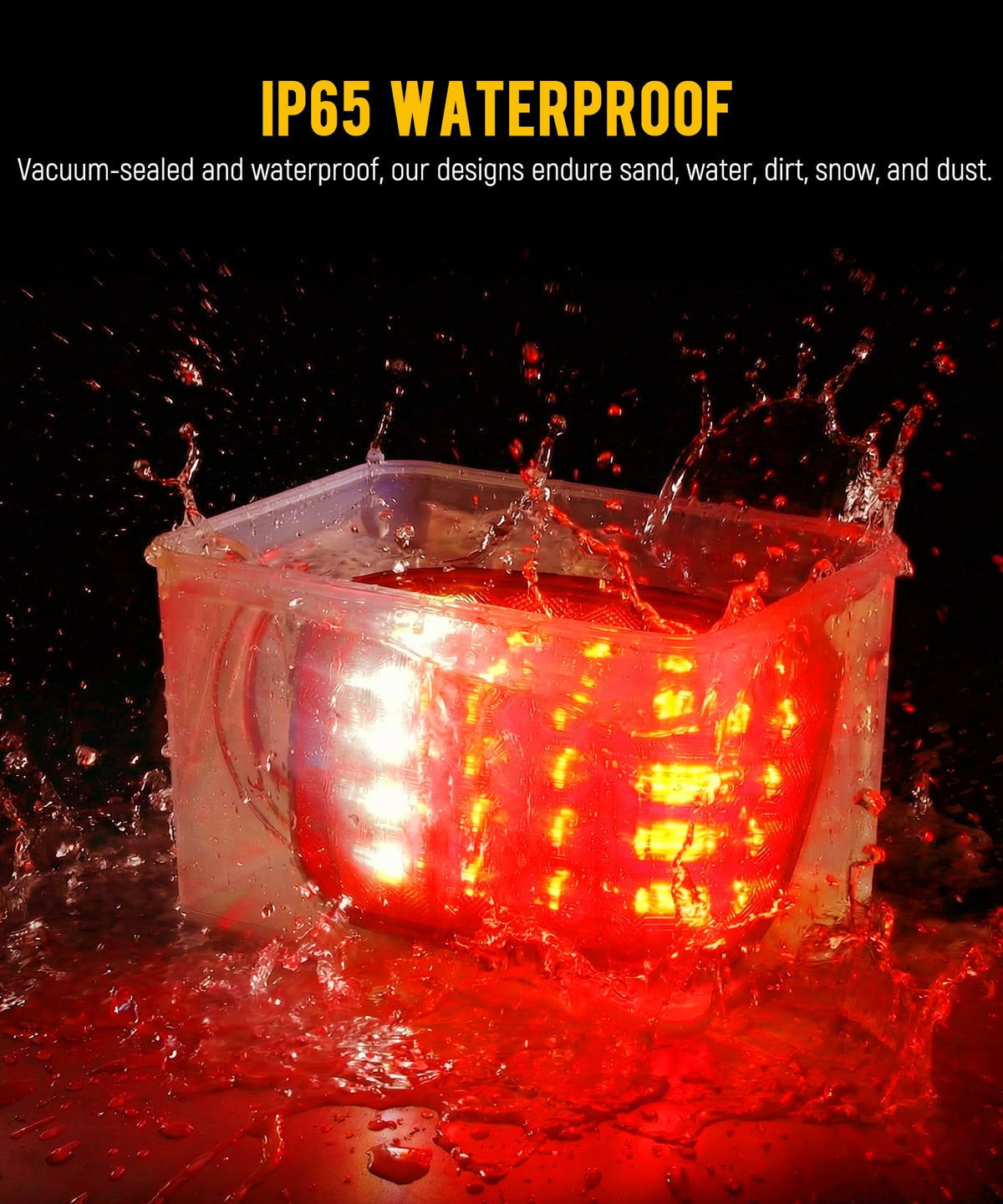

The lights are built for exterior use with a sealed housing to resist water exposure and road spray. LEDs offer long service life and shock resistance compared with incandescent bulbs, but proper sealing and secure mounting are important for longevity.

• Waterproof housing helps prevent moisture intrusion in typical wet conditions.
• LEDs deliver long operating life and better shock resistance than filament bulbs.
• Flat square design minimizes exposed seams for easier cleaning and sealing.
• Recommended to use marine-grade connectors or dielectric grease on terminals for added protection.

Who is this for: The Partsam 2x 16 LED red/white lamps suit DIYers, trailer owners, off-road enthusiasts and light-duty fleet operators who want a compact, multi-function rear lamp solution for 12V vehicles. If you need a cost-effective universal lamp that provides brake, turn, tail and reverse lighting in one waterproof package and you’re willing to perform basic wiring and mounting modifications, these lights are a practical choice.
