Partsam 3/4" Mini LED Watermelon Lights 10-Pack — Amber/White Dual-Color, IP67 Waterproof Marker Lamps

Partsam 3/4-inch amber/white mini LED watermelon lights are compact, dual-color marker lamps designed for 12V–24V trailers, trucks, RVs and utility vehicles, delivering bright side/clearance/turn signaling in a durable, waterproof package.

These are low-profile, round marker lights built around high-quality SMD LEDs with a transparent lens and chrome-style bezel. Each lamp offers two colors (amber and white) via a three-wire connection so you can use them as side markers, clearance lights, or auxiliary turn indicators. With an IP67 rating and a tiny 3/4-inch mounting hole requirement, they fit many vehicle locations where space is limited.

How bright and long-lasting are these mini LED watermelon lights?

Thanks to colored SMD LED chips and a clear plastic lens, the lights provide strong transmission and a crisp signal visible in daytime and nighttime conditions. The LEDs are rated for extended life, making them a low-maintenance option for fleet or personal use.

• High-transmission transparent lens for clear visibility
• SMD LED beads with up to 100,000-hour rated lifespan
• Dual-color output for amber signaling and white marker light
• Suitable for position, identification, turn, and grille lighting

Are these lights weatherproof and rugged enough for exterior use?

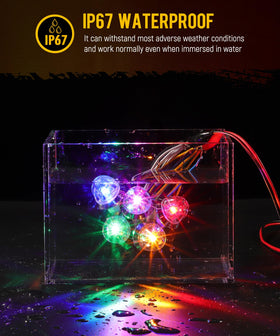

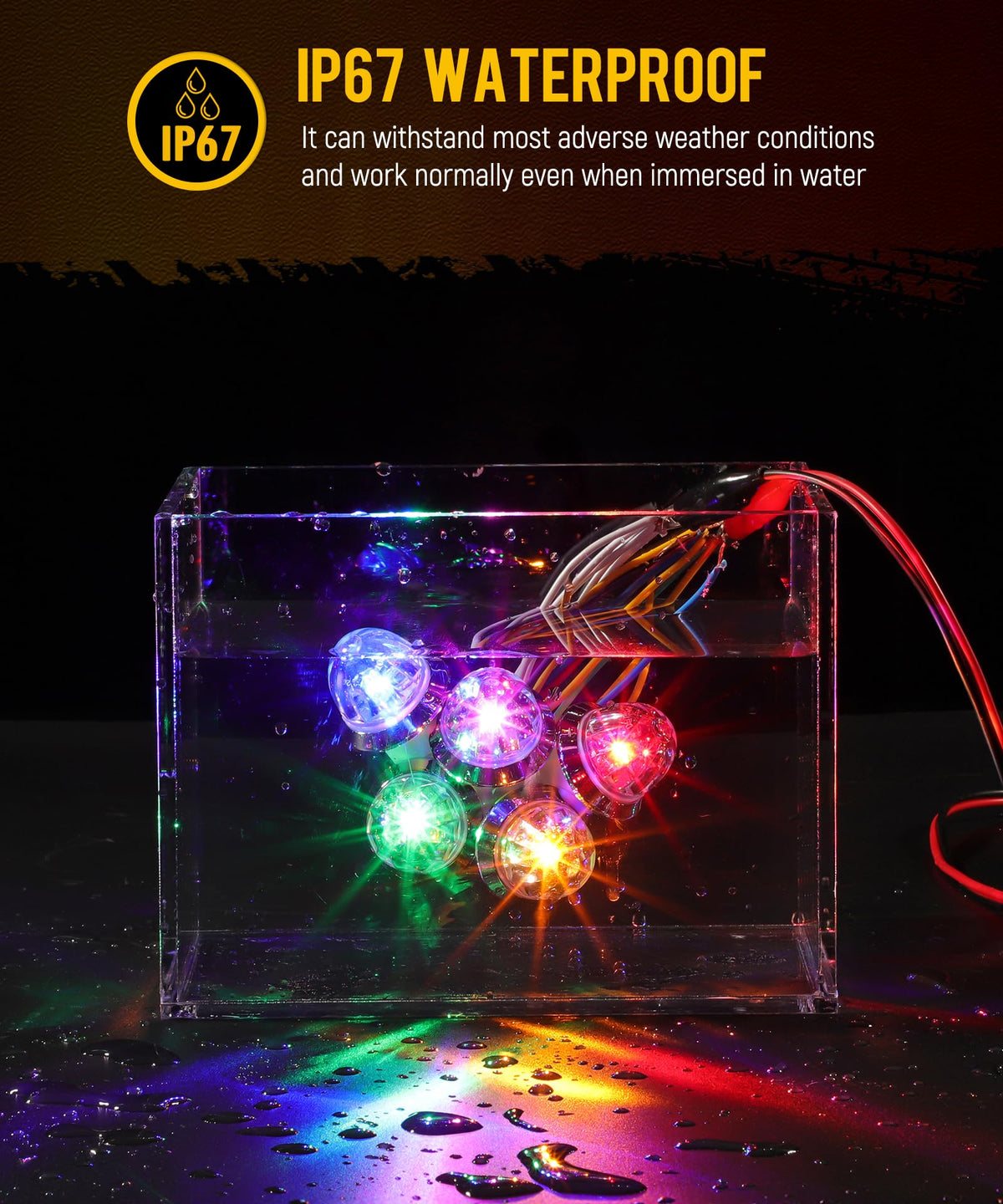

Yes — each lamp is engineered for outdoor vehicle use with a chrome-plated plastic frame and mirror-polished lens. The IP67 waterproof rating protects against dust and temporary immersion, so they resist rain, snow, and road spray normally encountered on trailers and trucks.

• IP67-rated protection against dust and water ingress

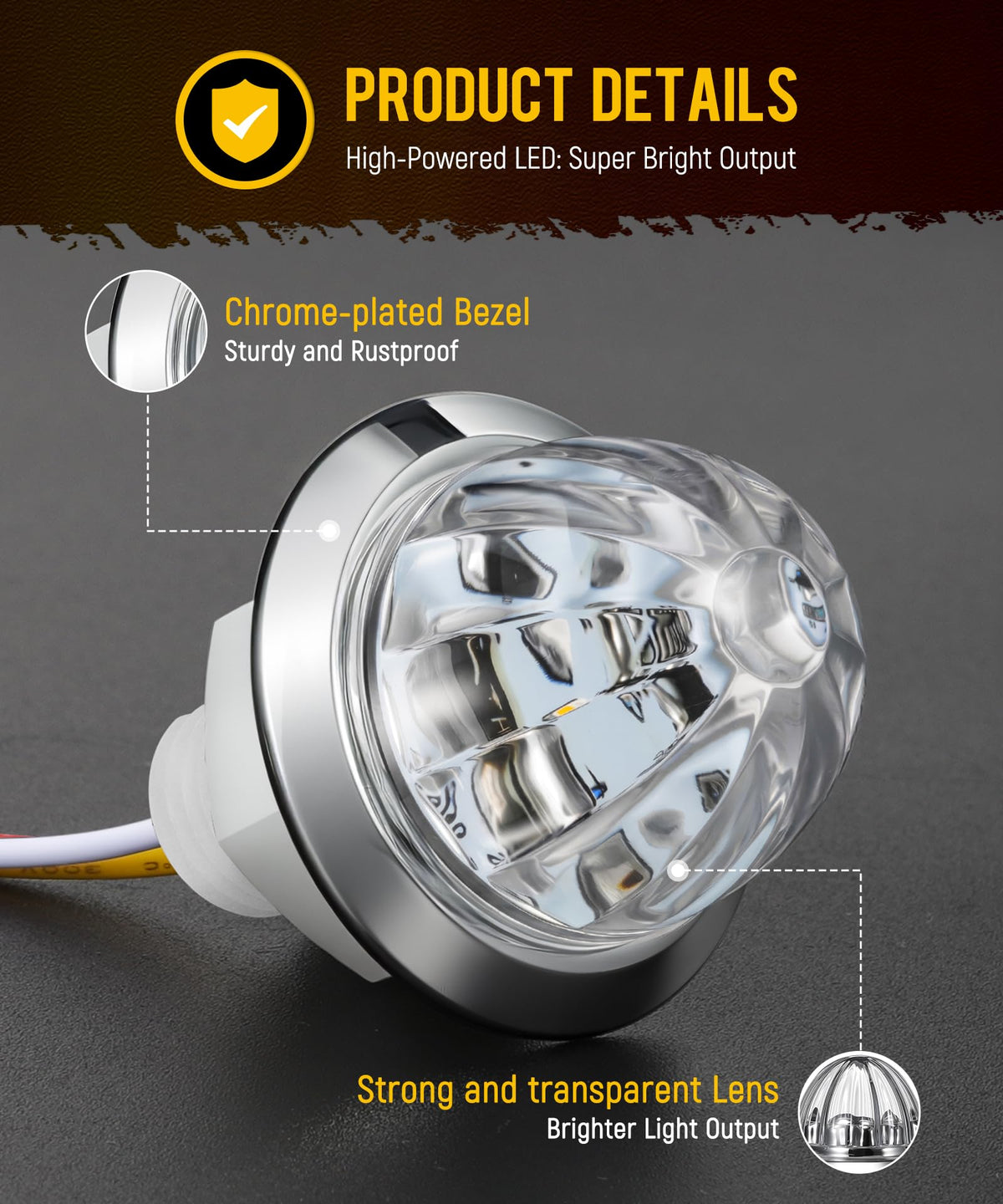

• Chrome-plated frame with mirror-polished lens finish
• Lightweight plastic construction resists corrosion
• Sealed assembly suitable for external mounting points

How do I wire and install these 3/4-inch marker lights?

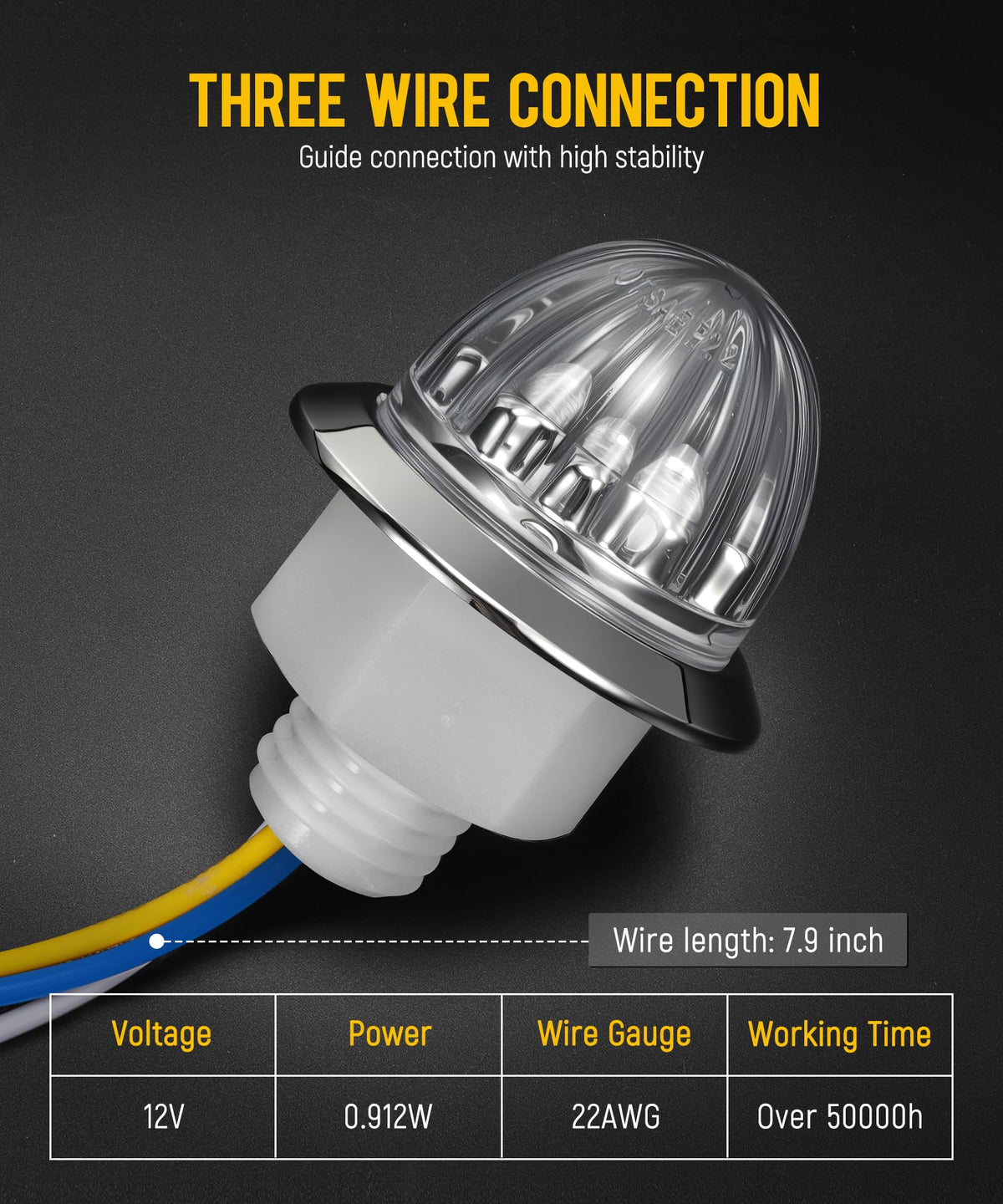

Installation uses a simple three-wire hard connection: white for ground, yellow for the amber output, and black for the white output. Drill a 3/4-inch hole, feed the wires, secure the bezel, and connect to your 12V–24V system; they can be mounted in truck beds, cargo box rails, grilles, bumpers, or side panels.

• Mounting hole: 3/4 inch (diameter); bezel outer diameter 1.5 inches
• Three-wire hookup: white = ground, yellow = amber, black = white
• Works with 12V–24V electrical systems on most vehicles

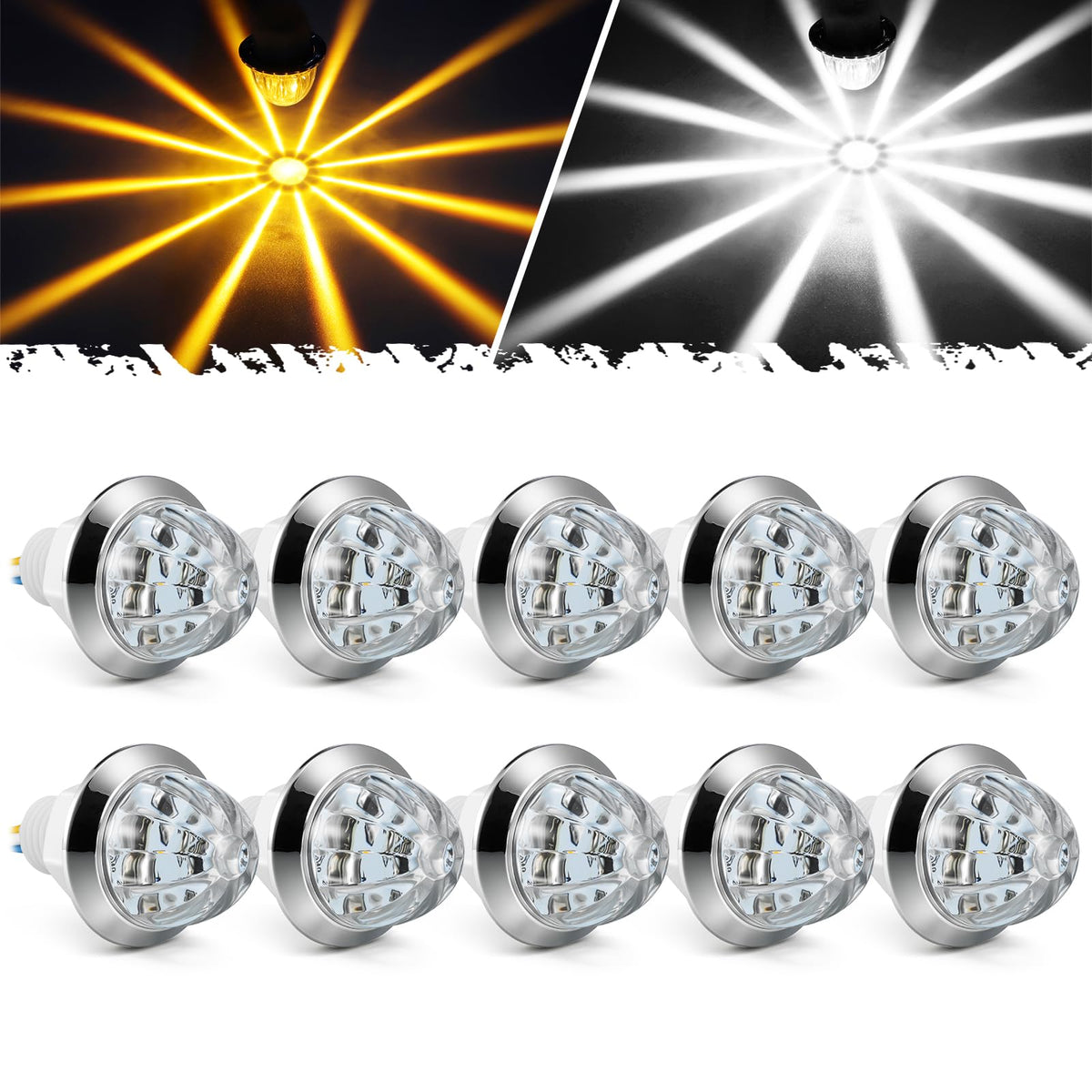

• Package contains 10 lamps for multiple mounting locations

What dimensions and applications should I expect from this 10-pack?

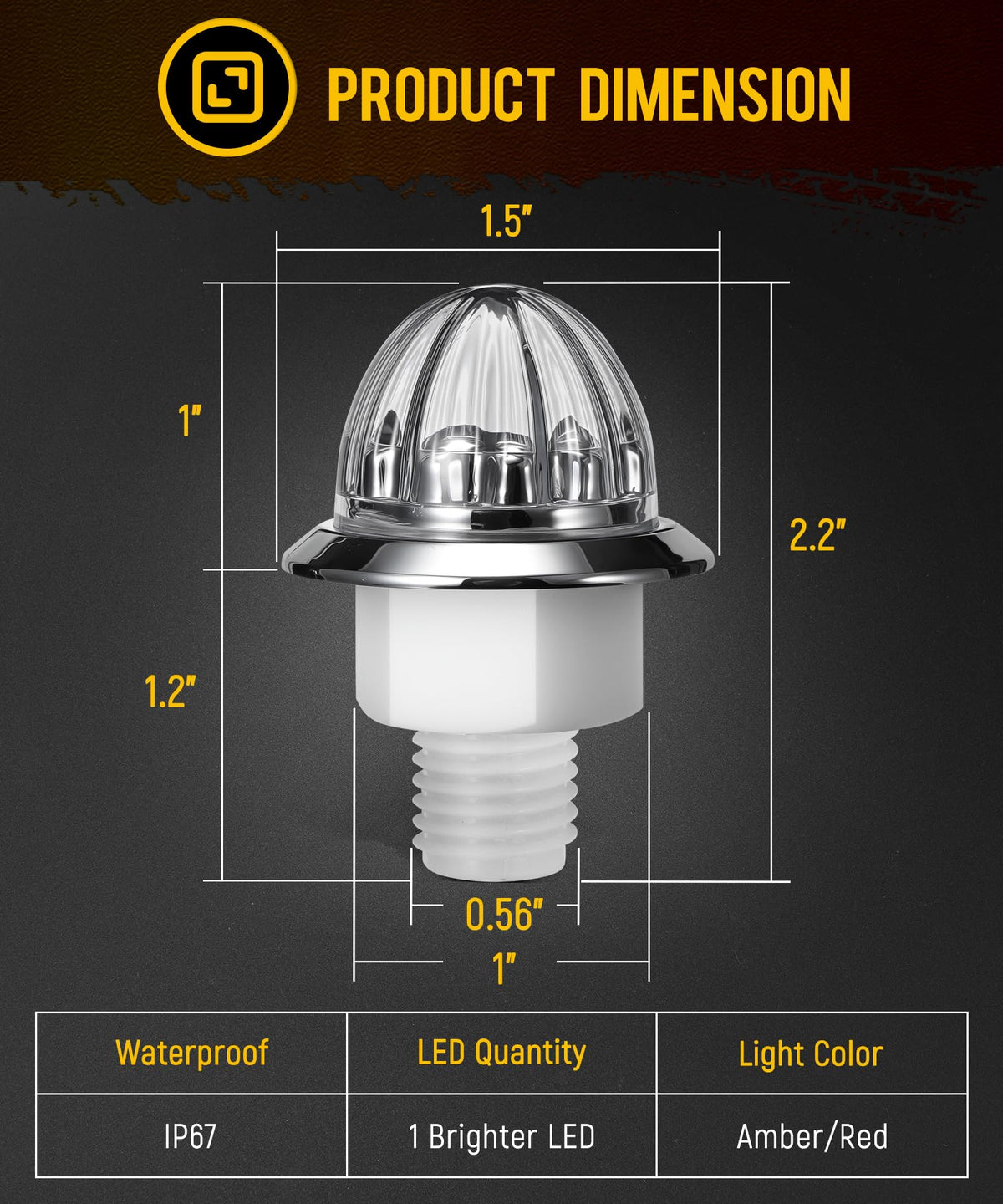

These are compact penny-style lights: 1 inch diameter without the trim bezel, 1.5 inches with bezel, and approximately 25 mm (1 inch) tall. The compact size makes them ideal for tight spaces, custom truck builds, trailers, RVs, and any vehicle needing additional conspicuity or auxiliary signaling.

• Diameter without bezel: 1 inch; with bezel: 1.5 inches
• Height: ~25 mm (1 inch) — low-profile fit

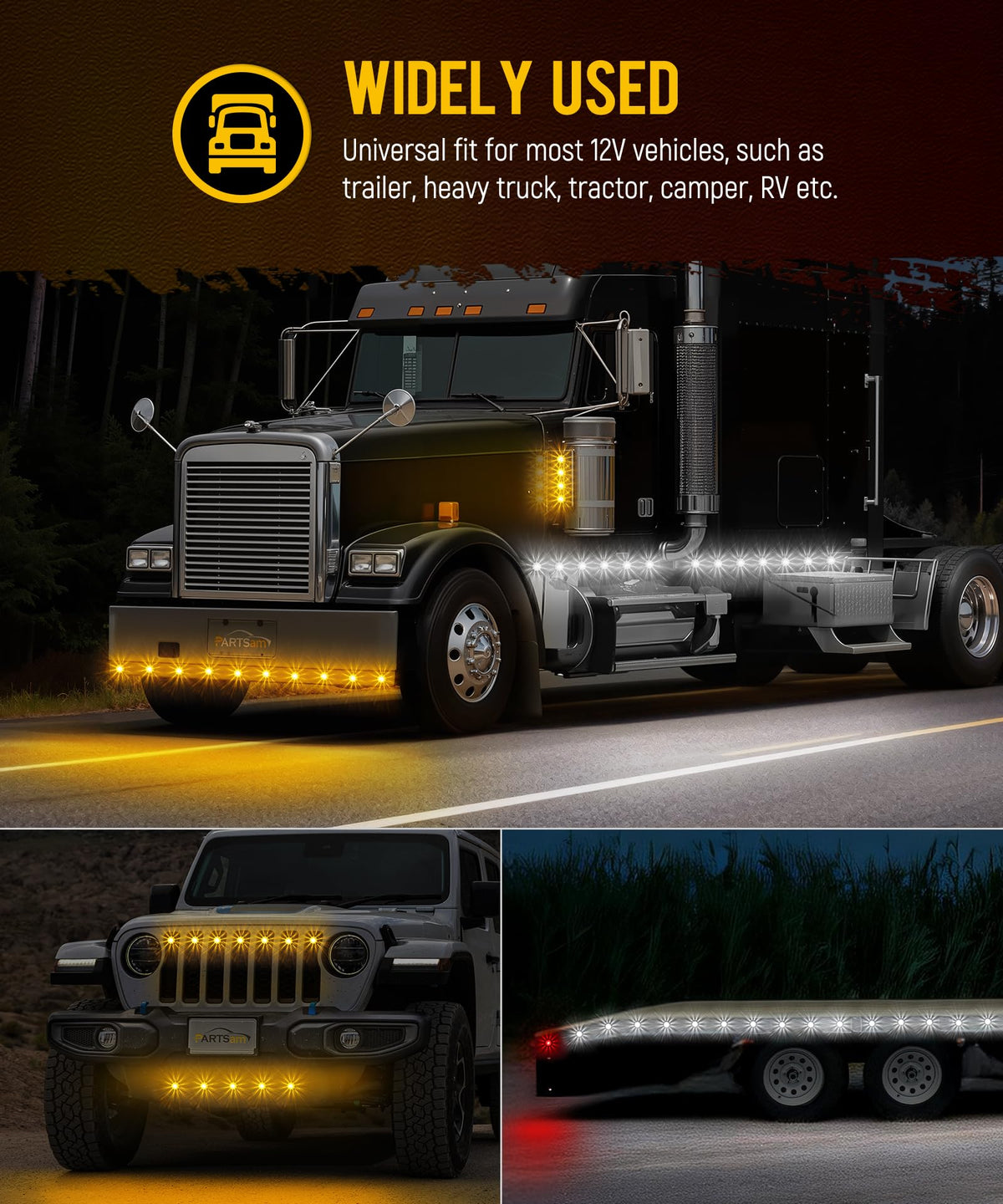

• Universal fit for semi-trailers, pickup trucks, RVs, and trailers
• Sold as a 10-piece set for multiple mounting points

Who is this for? These Partsam mini LED watermelon lights are for vehicle owners, fleet managers, and DIY mechanics who need compact, reliable, dual-color marker lamps for limited-space mounting. They work well for trailer refurbishment, truck customization, RV upgrades, and anywhere extra visibility or signaling is required without bulky fixtures. If you want durable, waterproof marker lights that install quickly and provide both amber and white outputs, this 10-pack is a practical, cost-effective solution.
