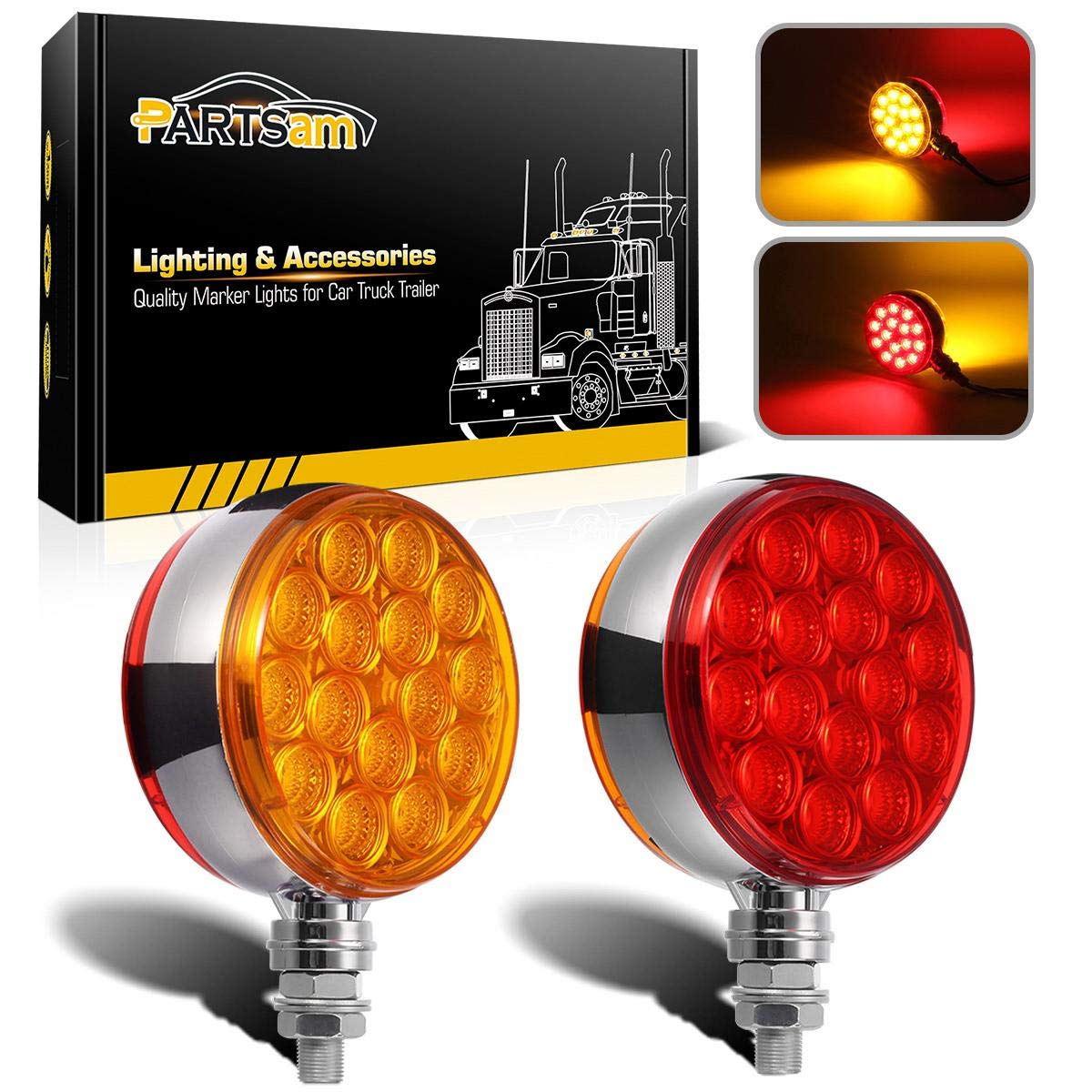

Partsam 3in Round Dual-Face LED Fender Lights 2-Pack — Red/Amber Chrome Pedestal, 30-LED, 10–30V

Partsam 3" round dual-face LED pedestal fender lights are sealed, chrome-mounted truck and trailer lights with 30 high-efficiency LEDs that show amber forward and red rear for combined signal, tail and clearance functions.

These compact 3-inch dual-sided LED lamps combine a chrome die-cast pedestal housing with a faceted miro-reflex reflector and a three-wire post mounting design to replace standard fender and clearance lamps on heavy-duty trucks and trailers. Built to operate from 10–30V systems and hardwired through the mounting stud, they provide multifunction signaling in a single sealed unit while keeping a classic round footprint.

How do these lights handle turn, stop and tail functions?

Each lamp uses its red face for signals visible to vehicles behind and the amber face for forward-facing signals. Internally separated LED arrays let the red side perform stop, turn and tail roles while the amber side covers parking and forward turn signals.

• Red face: stop, rear turn and tail light functions
• Amber face: parking and forward turn signal
• 30 LEDs total (15 per face) for consistent, bright output
• Sealed housing prevents moisture intrusion and preserves circuit integrity

What mounting and wiring details should I know before installing?

The light uses a universal single-stud pedestal mount and exits three plain wires through the mounting post for straightforward hardwiring. It's designed for in-line replacement on vehicles that accept a 3-inch round fixture and runs on standard 12V systems up to 30V.

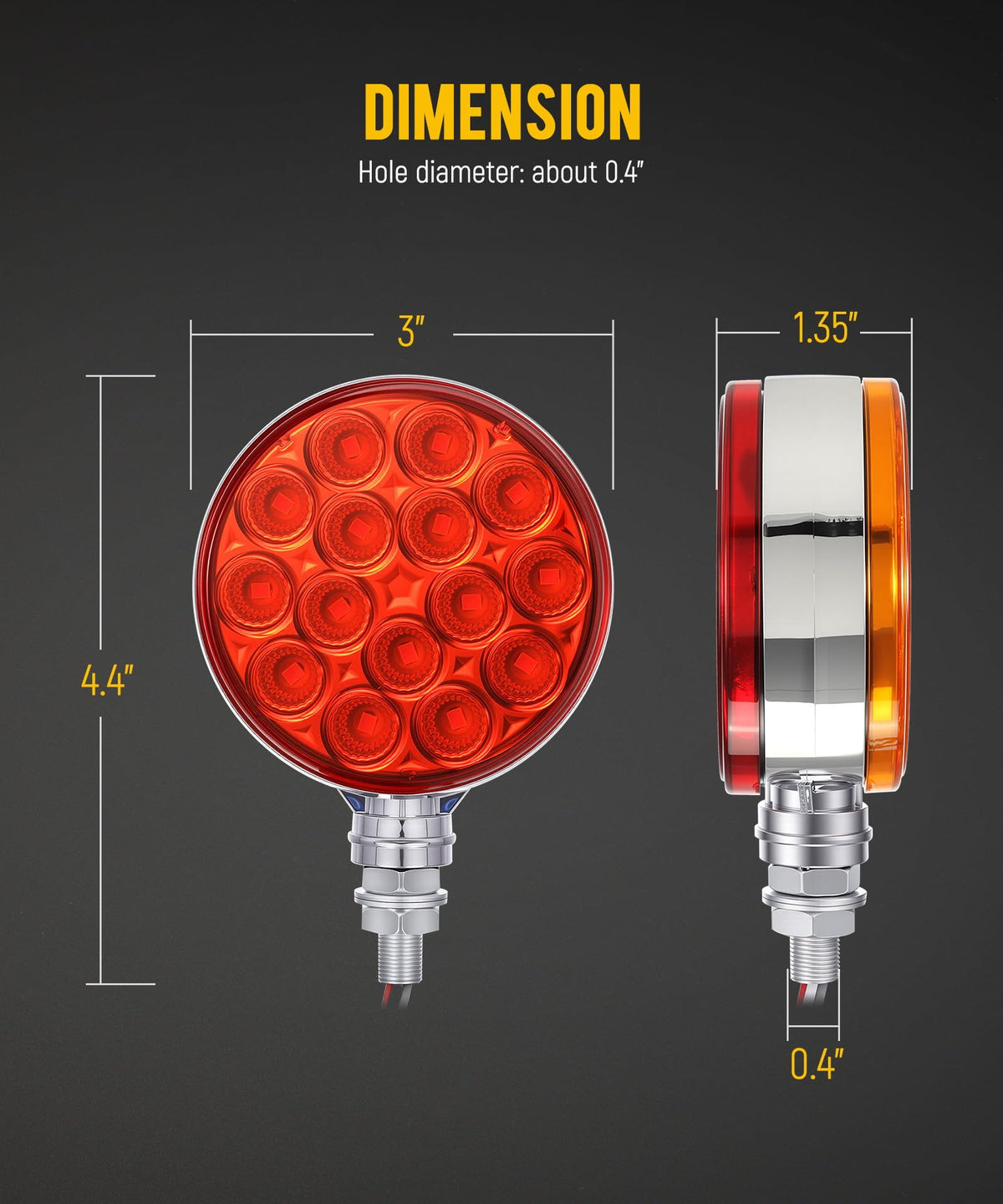

• 3" diameter chrome die-cast housing with pedestal post mount

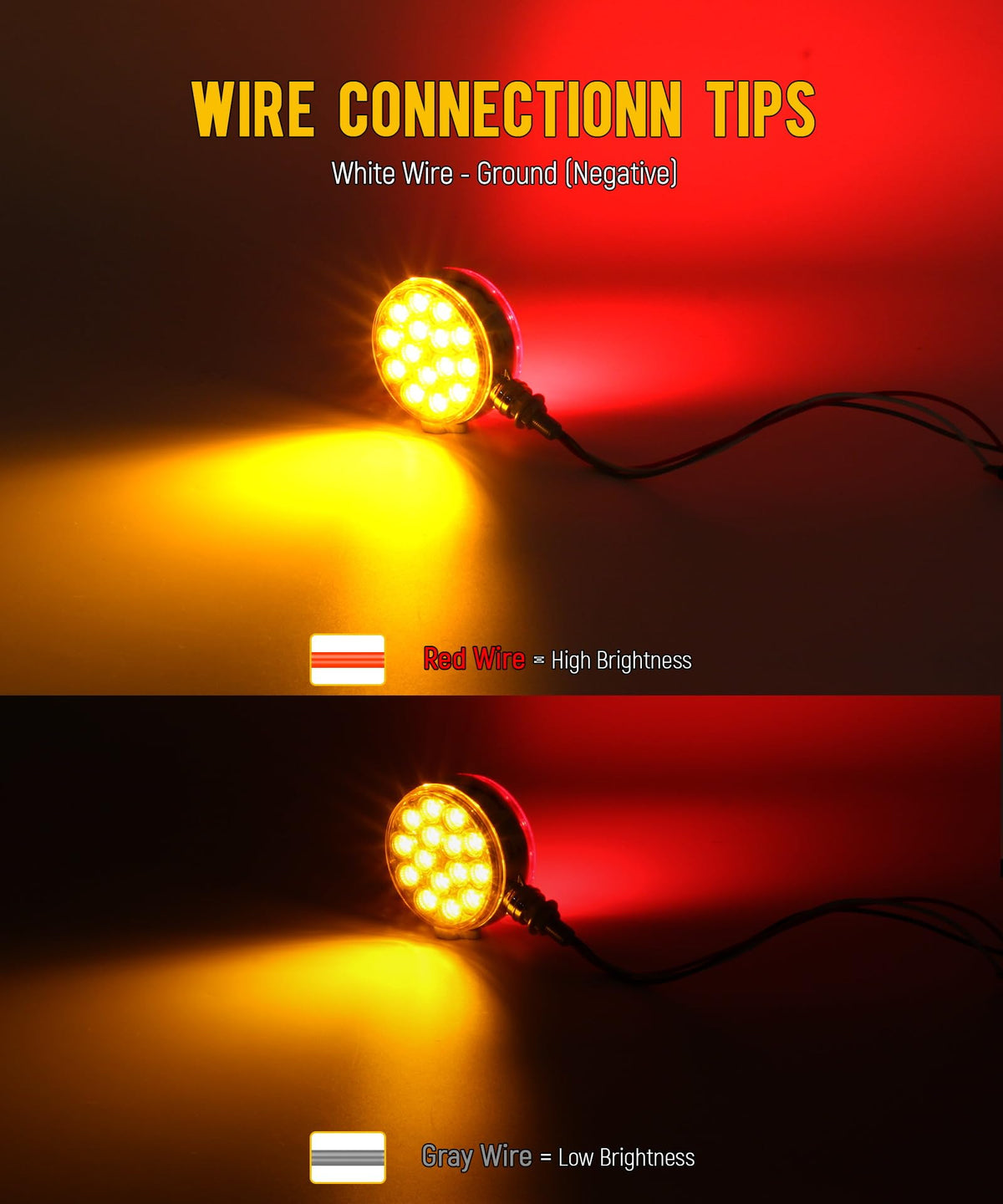

• Three-wire design for separate ground, power, and signal connections
• Designed for 10–30V electrical systems; optimized for 12V operation
• Low amp draw and sealed construction for long service life

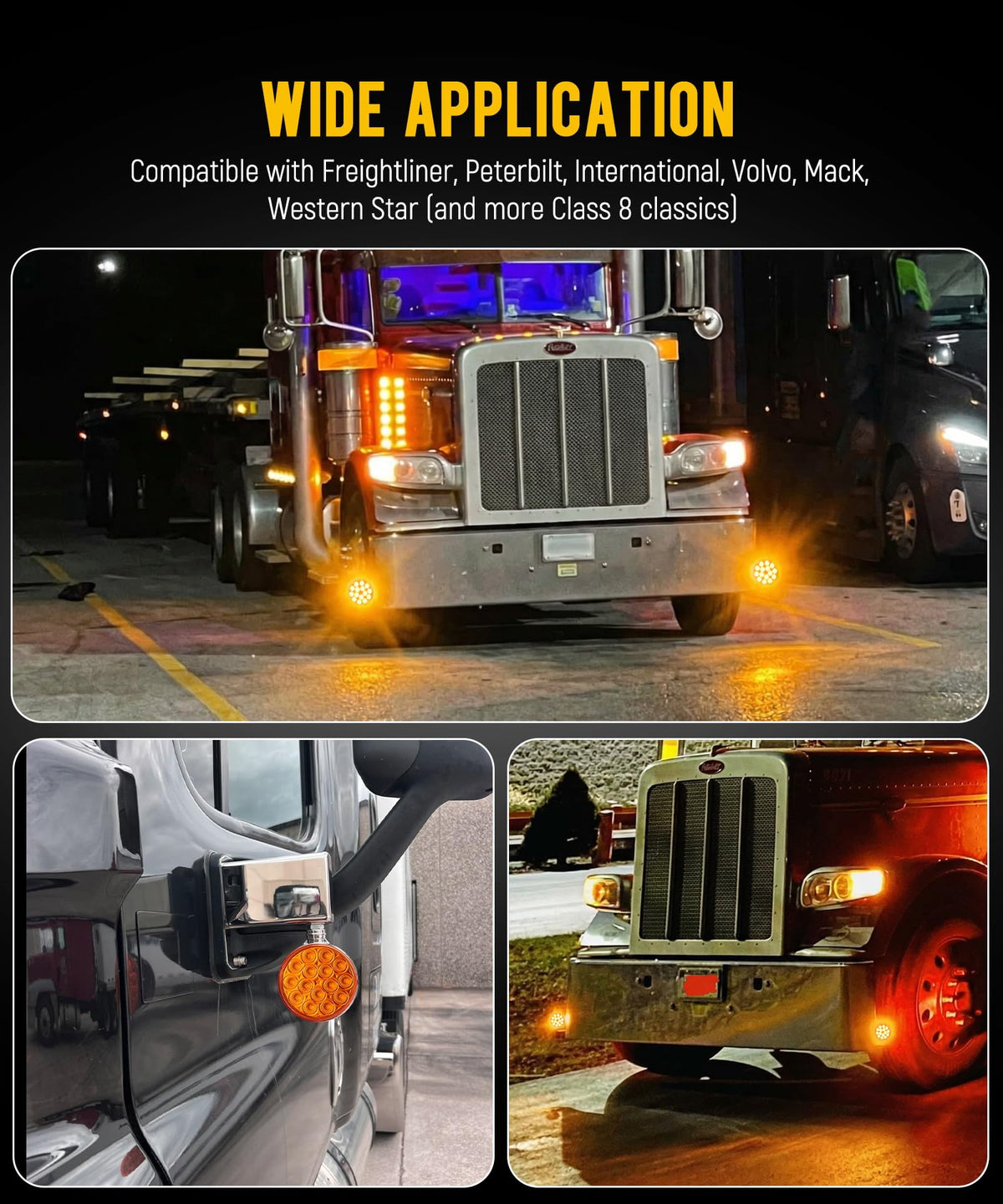

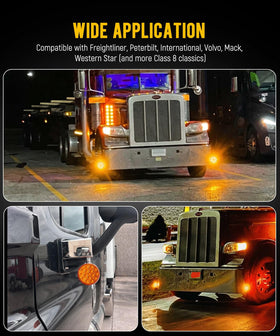

Will these fit my Peterbilt, Freightliner or Western Star truck?

They’re made to match common 3-inch round clearance/fender lamp footprints used on many heavy trucks and trailers, so they’re often compatible with Peterbilt, Freightliner and Western Star models that accept a 3" round light. Confirm the mounting stud diameter and hole spacing on your fender before ordering.

• Specifically noted for semi-truck and trailer applications
• Check that your vehicle expects a 3" round pedestal light (not 4")
• Works for trucks, towing trailers, RVs, buses and utility vehicles
• Chrome finish keeps a factory-style appearance on classic rigs

What durability and visibility features are included?

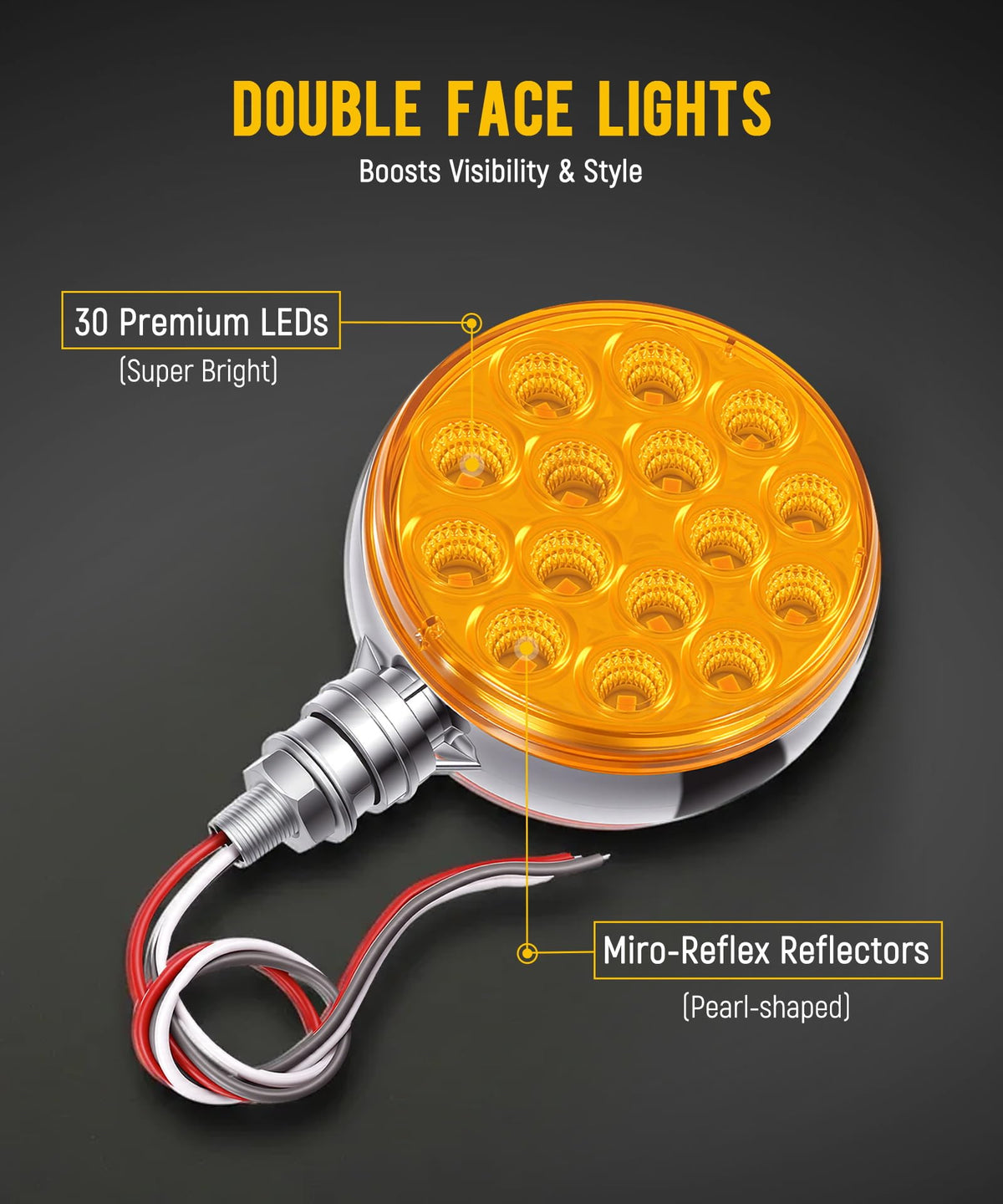

The lights combine a chrome die-cast housing with a miro-reflex faceted reflector that increases apparent output and provides even, contemporary beam dispersion. The sealed lens and body protect the LEDs and wiring from road spray and the elements.

• Miro-reflex faceted reflector boosts perceived brightness and uniformity

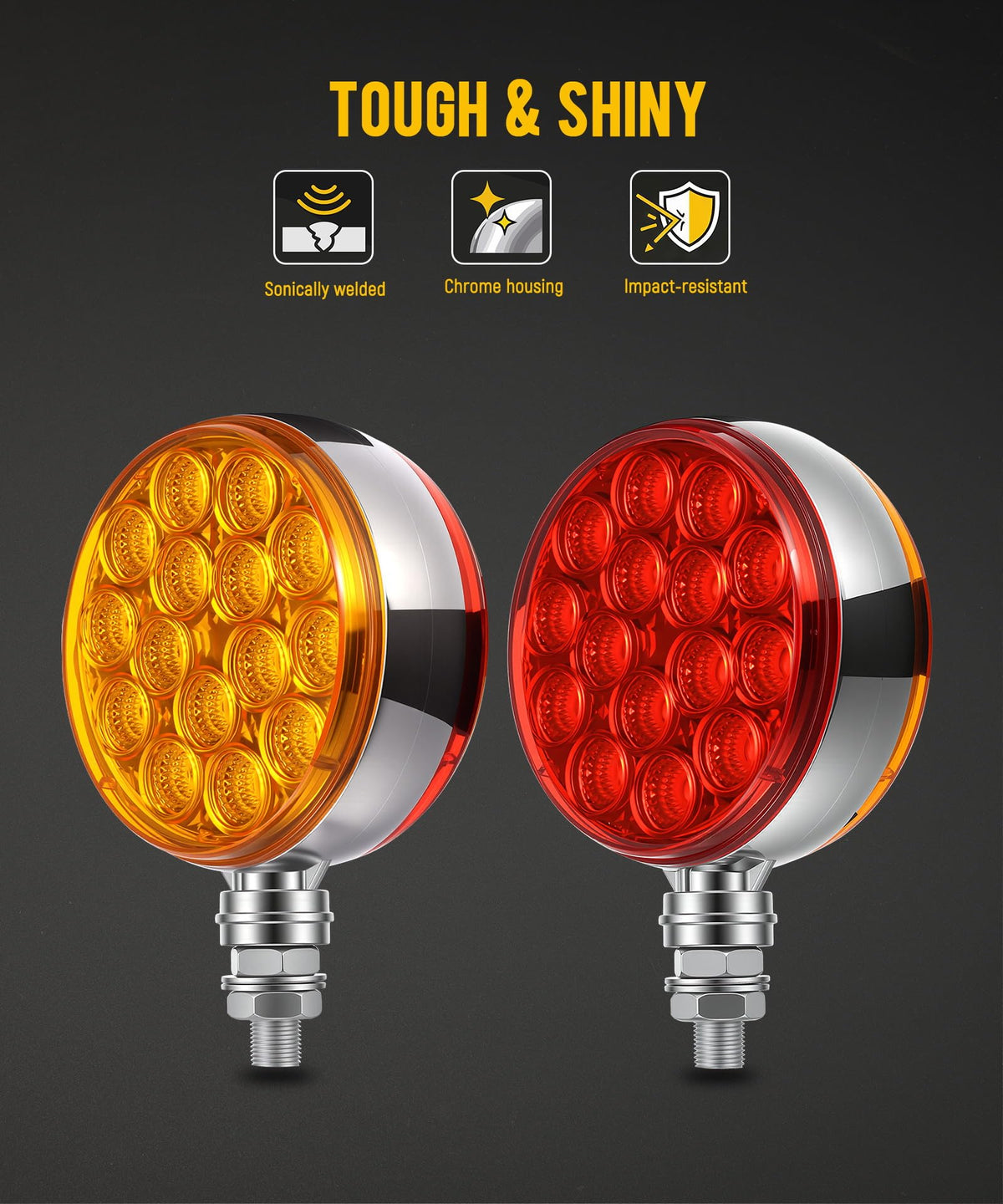

• Die-cast chrome body resists corrosion and holds shape under vibration

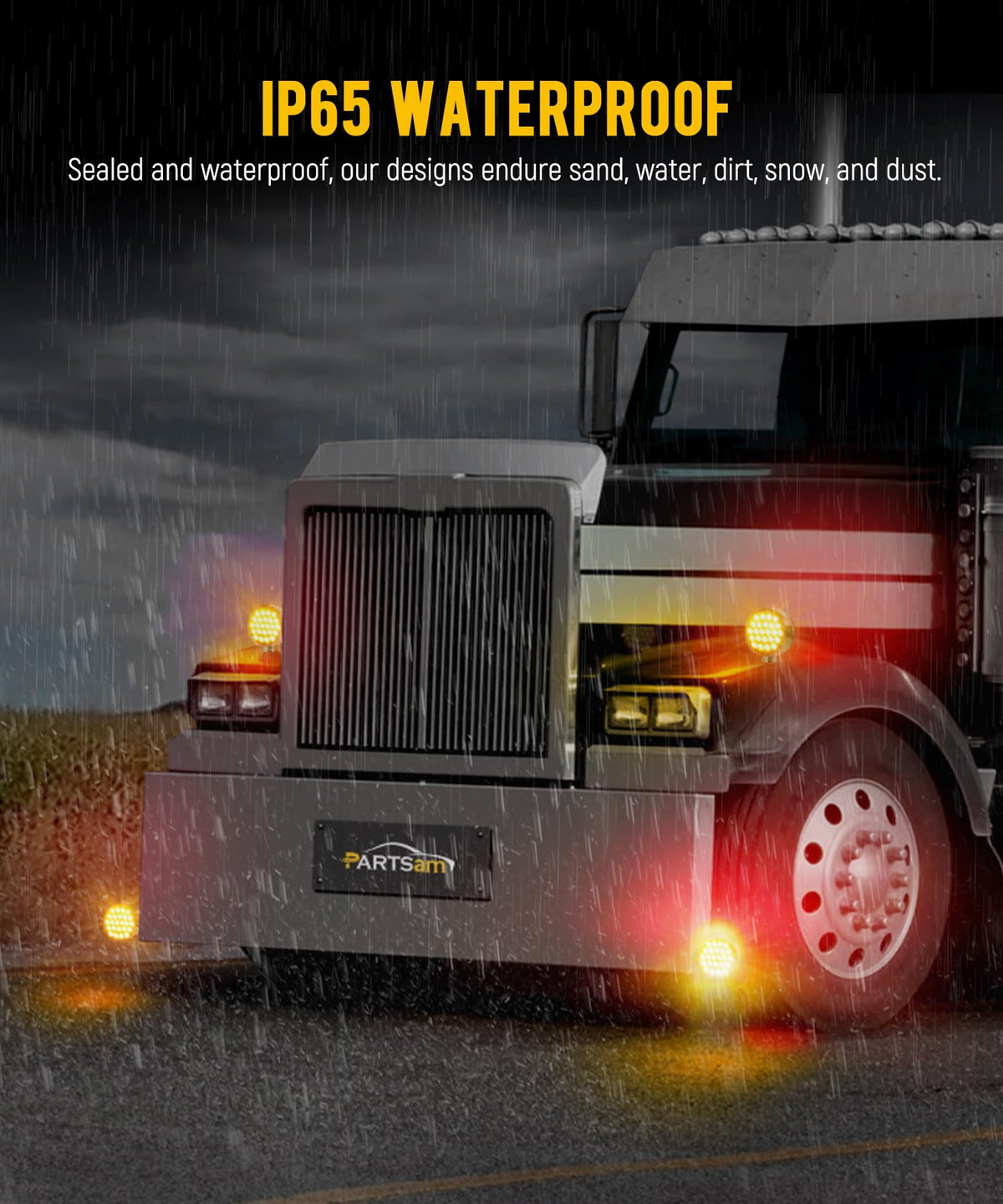

• Sealed construction keeps water and dust out of the LED chamber
• Low current draw reduces load on vehicle electrical systems

Who is this for? Drivers and fleet managers who need compact, multifunction clearance and fender lights for heavy trucks, trailers, RVs or work vehicles will appreciate these Partsam dual-face LEDs. They suit owners replacing worn 3" round lights who want a sealed, low-draw unit with forward amber and rear red signaling in a chrome, pedestal-mounted package that fits standard heavy-duty vehicle electrical systems.
