Partsam 4" Round Double-Face Pedestal LED Light 2pc — Red/Amber, 48-LED, Chrome, DOT-Compliant, 10–30V

Partsam 4" double-faced pedestal light provides amber and red LED visibility in a single, sealed chrome housing for heavy-duty trucks.

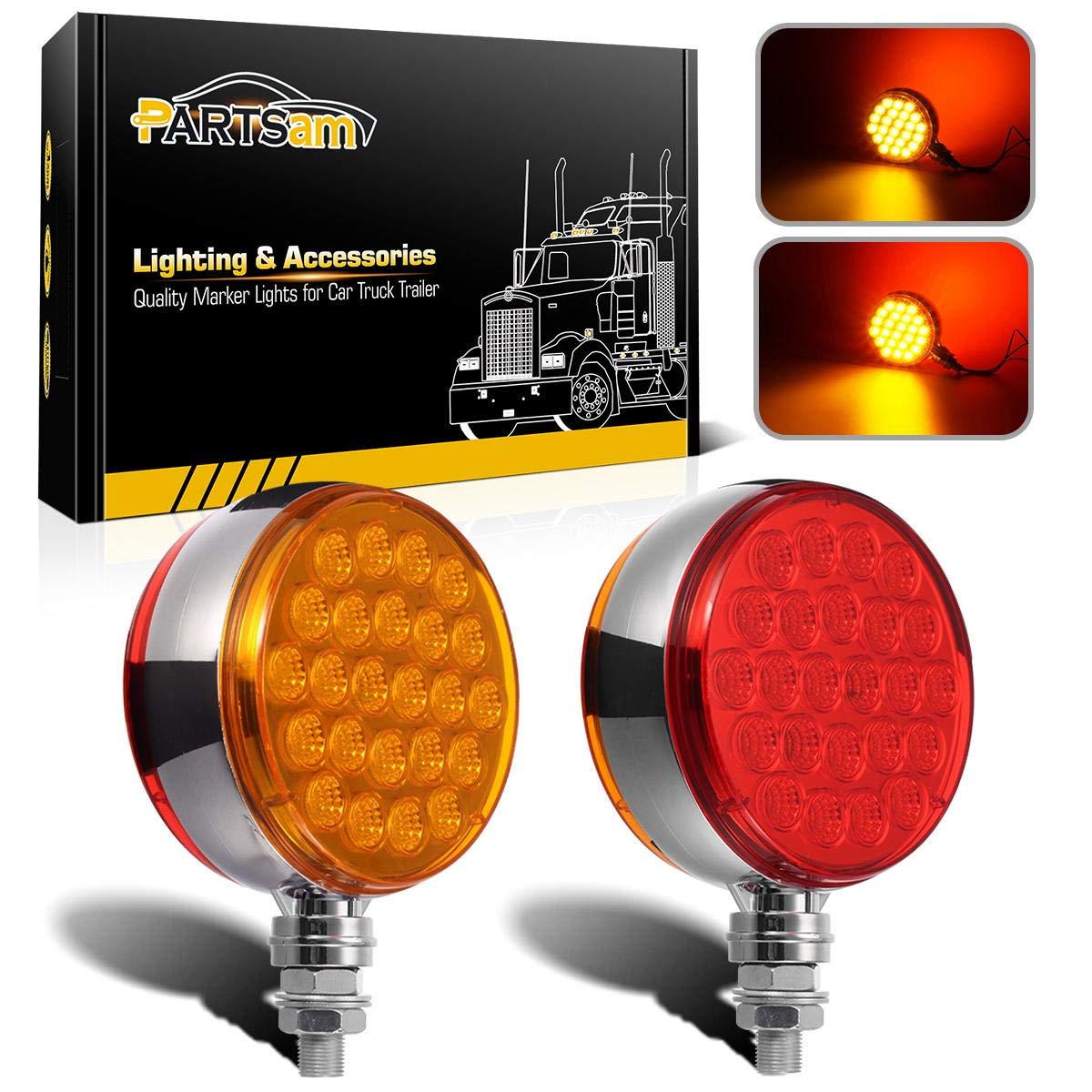

This 2-piece set includes two 4-inch round, single-stud mount pedestal lights from Partsam with 48 LEDs per lamp—24 amber on one side and 24 red on the other. Designed for stop/turn/tail roles, each unit is built to resist moisture and corrosion through sonic sealing and a durable polycarbonate lens and housing. The chrome finish complements truck exteriors while delivering DOT-compliant illumination across 10–30V electrical systems.

How does this light improve visibility on large trucks?

The dual-face design gives you both amber and red signaling from one compact fixture, making it easier for other drivers to see turn signals, brake lights, and running lights. LEDs offer bright, instantaneous illumination with low power draw compared with incandescent bulbs.

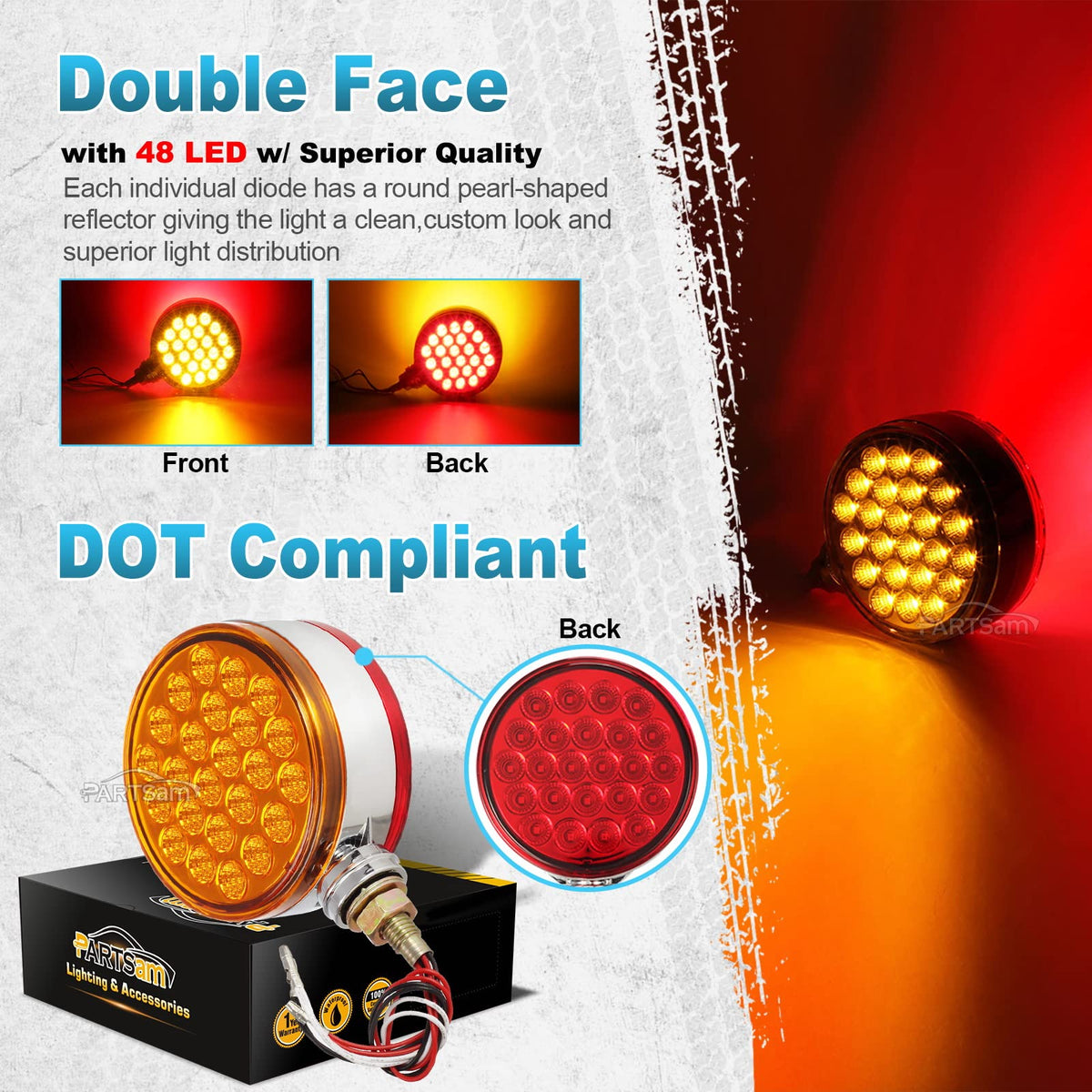

• 48 total LEDs per lamp: 24 amber + 24 red for clear color separation
• Instant-on LED response improves reaction time for following drivers
• High-intensity output for daytime and nighttime visibility
• Meets DOT visibility expectations for stop/turn/tail functions

What makes the housing and lens durable enough for heavy-duty use?

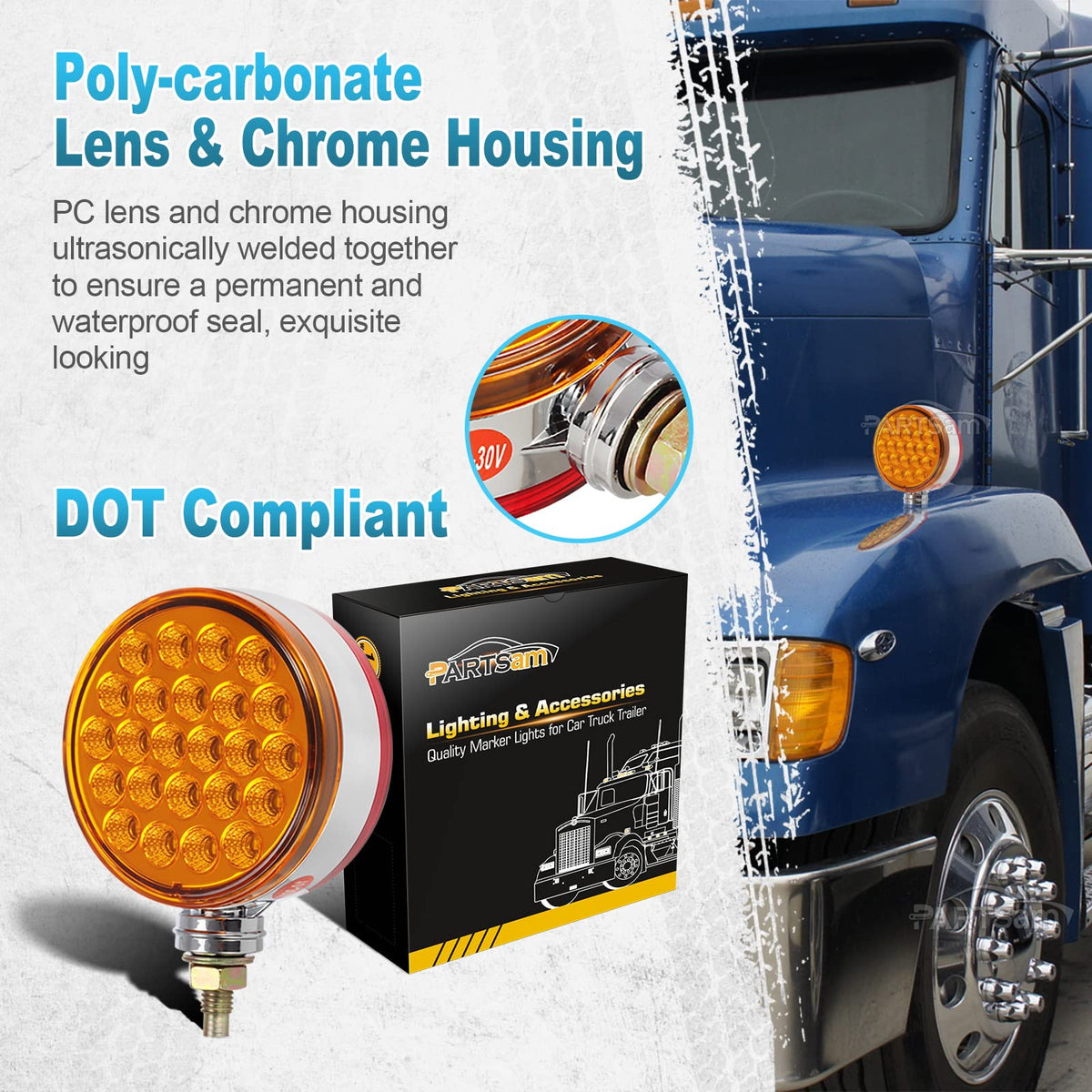

Partsam engineered the light with a high-impact polycarbonate lens and a housing that are sonically sealed to block moisture and keep corrosion at bay. The sealed construction protects the reflector and LEDs from road spray, salt, and dust commonly encountered in trucking environments.

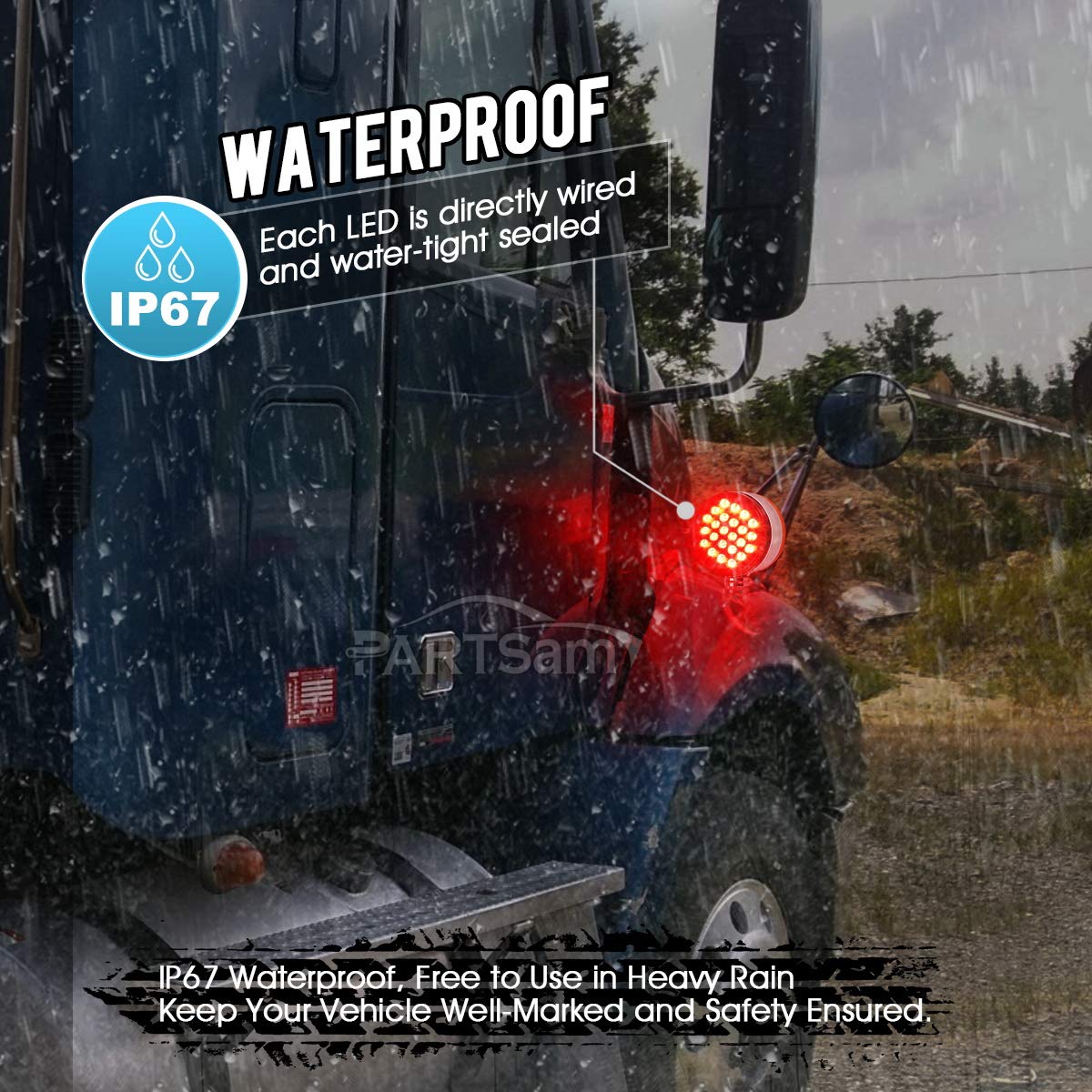

• Sonic sealing prevents water ingress and reduces corrosion risk
• Polycarbonate lens resists cracks and UV degradation
• Chrome-plated housing adds aesthetic resilience and rust resistance
• Sealed reflector maintains consistent light output over time

How do I wire these lights correctly to my truck?

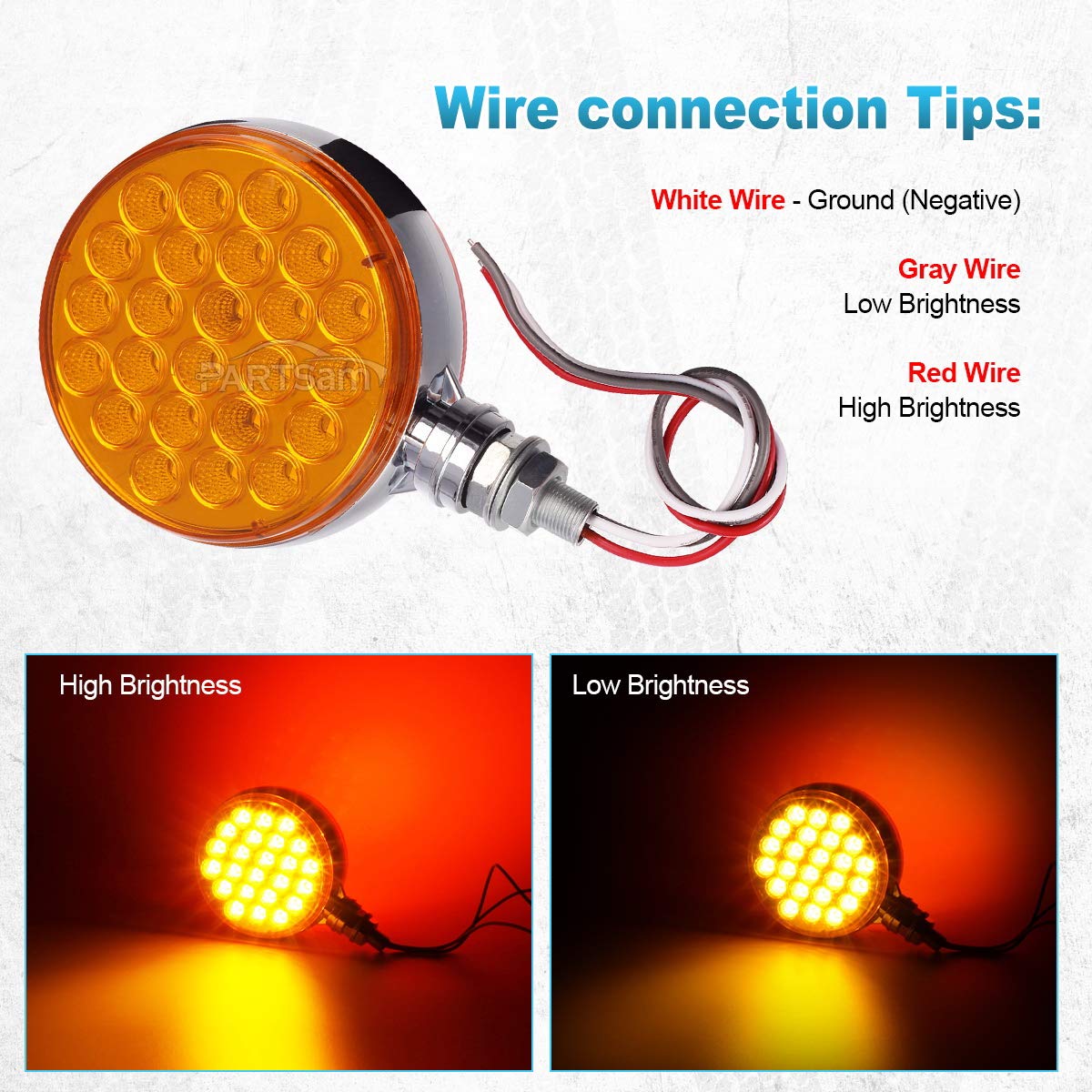

Wiring is straightforward for 10–30V systems: the white lead is ground, gray provides low-brightness output, and red delivers high-brightness. Use the gray for running/marker light circuits and the red for brake/turn signals where a brighter output is required.

• White wire: chassis ground connection
• Gray wire: low-brightness (running/marker) feed
• Red wire: high-brightness (stop/turn/tail) feed

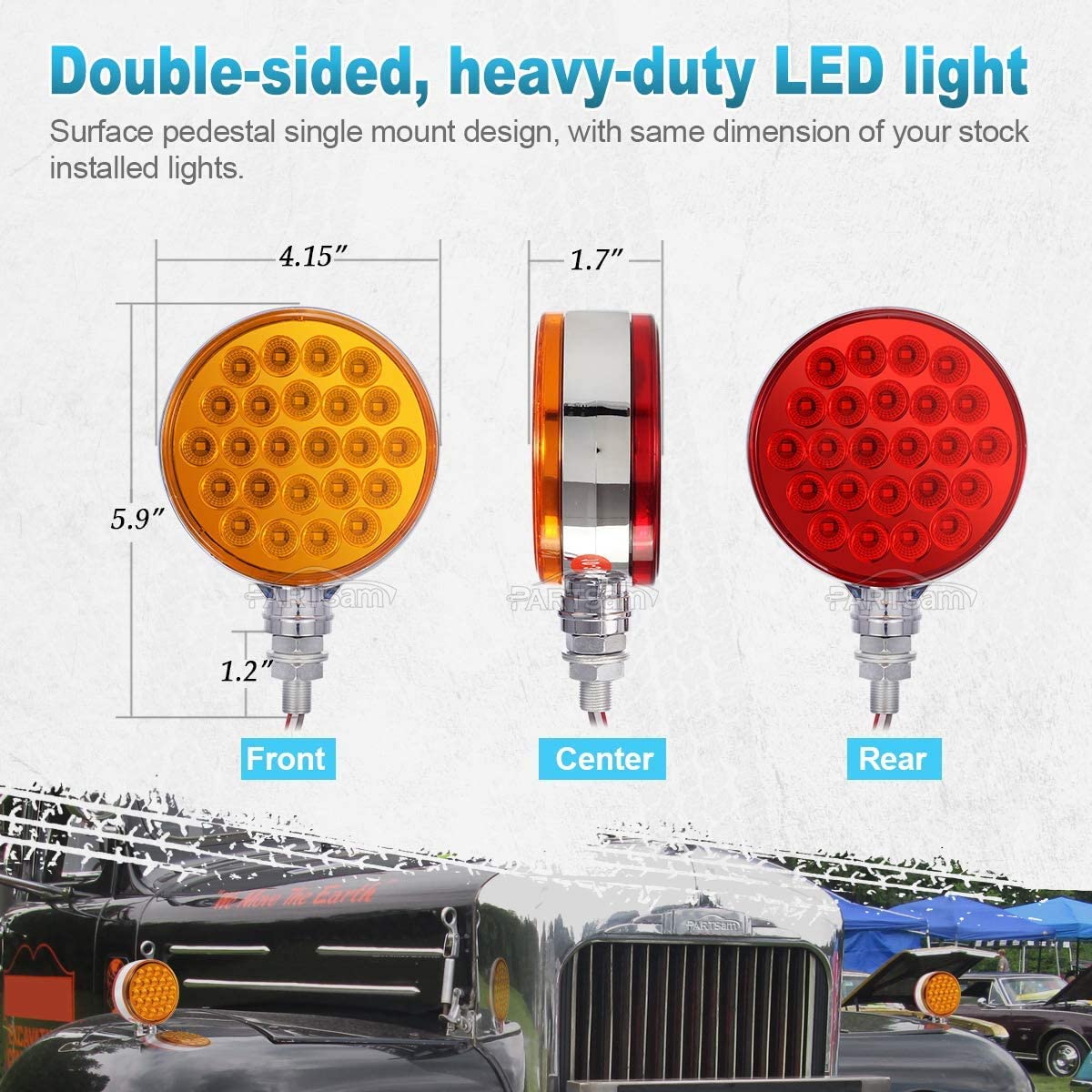

• Single-stud mount for simple pedestal installation

Which trucks and applications are these lights compatible with?

These pedestal lights are designed to fit a wide range of medium- and heavy-duty trucks commonly used in freight and construction fleets. They’re suitable for semi-trailers, tractors, and as auxiliary signal lights on popular makes and models.

• Compatible with Peterbilt, Freightliner, Western Star, International, Mack, Paccar
• Ideal for stop/turn/tail, marker, and auxiliary signaling uses
• Works across 10–30V vehicle electrical systems
• Single-stud pedestal makes replacement straightforward

Who is this for: Fleets, owner-operators, and maintenance teams who need a robust, low-maintenance signaling solution for medium- and heavy-duty trucks will benefit most from these Partsam double-face LED pedestal lights. They suit anyone replacing weathered or underperforming stop/turn/tail lamps who wants a sealed, DOT-compliant option that combines amber and red functions in one chrome-finished assembly.
