Partsam 52-LED Square Double-Face Pedestal Truck Light — Red/Amber, Chrome Bezel & Visor, Waterproof

Partsam's 52-LED square double-face pedestal light provides bright red and amber signaling in a chrome-bezeled, visor-equipped waterproof housing for truck fenders.

This heavy-duty pedestal lamp replaces incandescent fender lights with a compact, dual-sided LED solution engineered for stop, turn, tail, park and side-marker functions. Built with a chrome bezel and integrated visor, the fixture combines visibility and a polished look while operating across common 9–14.8 VDC truck electrical ranges. The lamp’s polycarbonate lens is sonically sealed to a waterproof housing to resist road spray and weather.

How does this light handle multiple signal roles on a truck?

The Partsam double-faced design assigns distinct functions to each side so one unit covers several wiring needs. The red face performs stop, turn and tail duties while the amber face handles parking and turn signaling; an additional amber side-marker LED and reflex reflector enhance lateral visibility.

• Red side: stop, turn, tail—24 red LEDs
• Amber side: park and rear turn signal—24 amber LEDs
• Side marker: 4 amber LEDs + reflex reflector for side visibility
• Single-stud mounting simplifies installation on fenders and pedestals

What are the build and weatherproofing features I should know?

Designed for rugged road use, the lamp pairs a heavy-duty chrome housing and visor with a sonically sealed polycarbonate lens to keep moisture and debris out. The assembly meets IP67-style protection for reliable service in rain and washdown conditions.

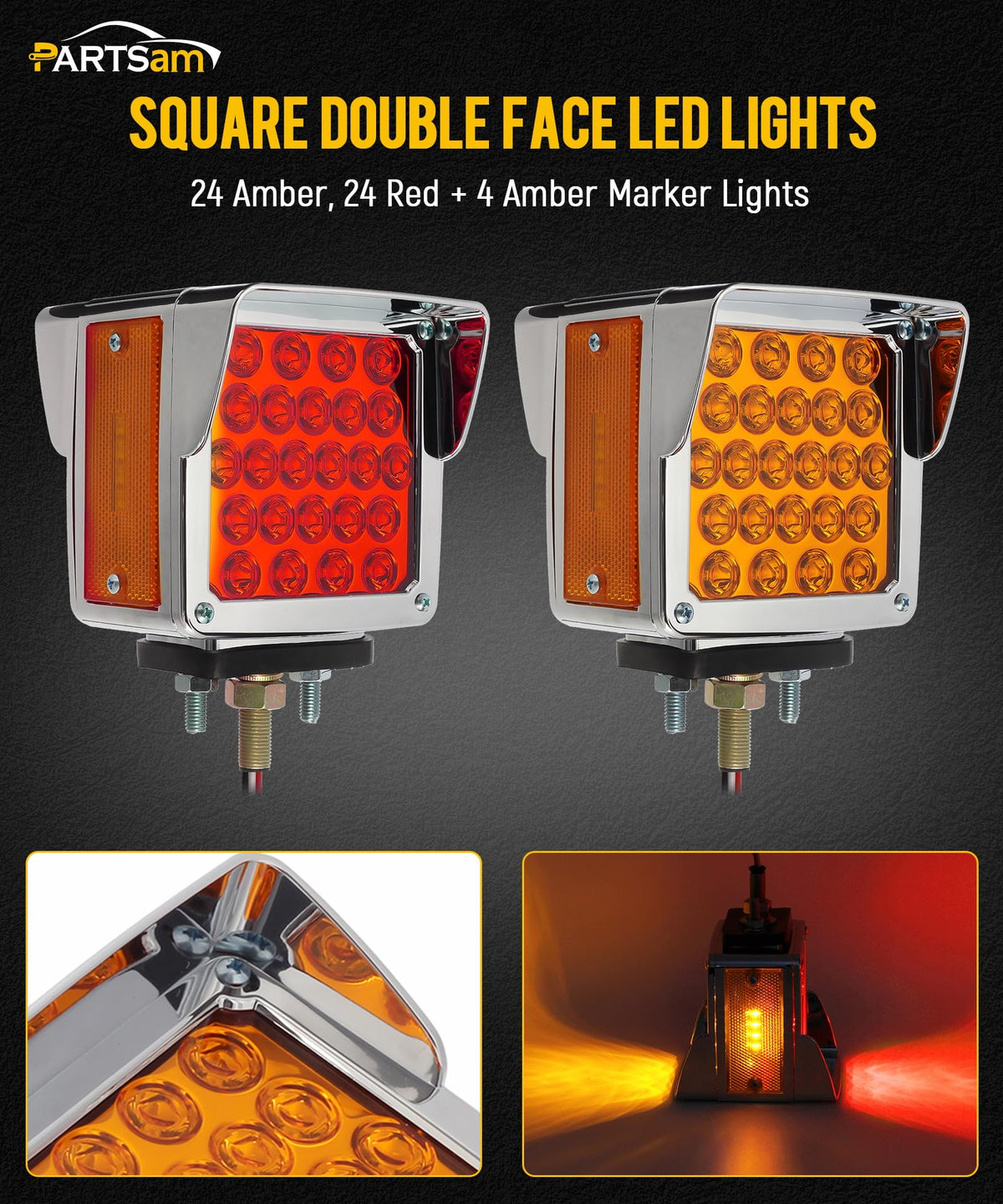

• Chrome bezel and visor for corrosion resistance and reduced glare
• Sonic seal around the lens prevents water ingress
• Waterproof housing rated for heavy-rain exposure
• Operates across typical truck voltages (9–14.8 VDC)

How do I wire and install the pedestal LED light?

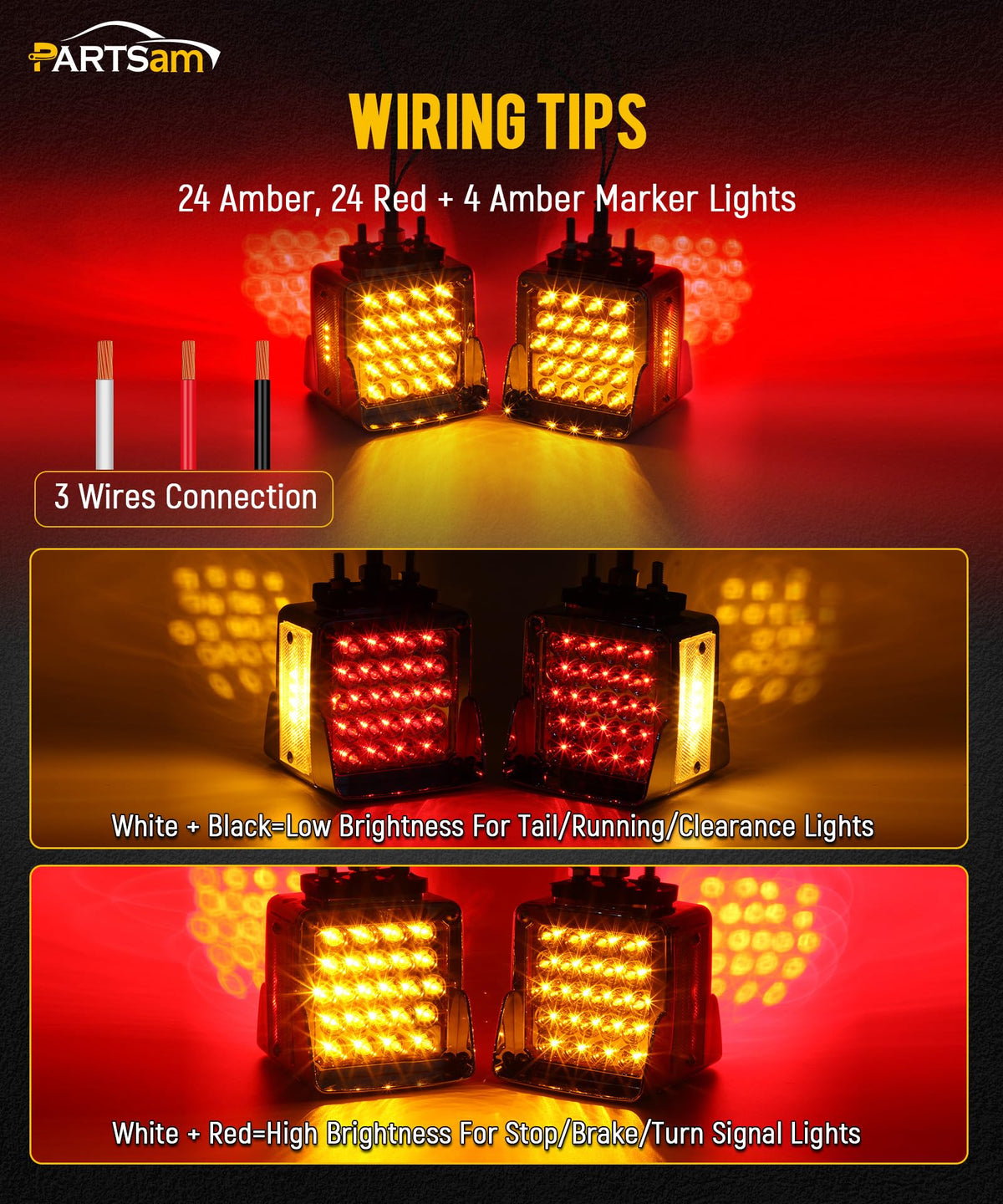

Wiring is straightforward and flexible: ground is the white wire, and specific color combinations determine which faces illuminate and at what brightness. A single-stud mount reduces installation complexity, making it compatible with many common heavy-duty truck fenders and pedestals.

• White = ground
• White + Black = three-side low-brightness configuration
• White + Red = front two sides at high brightness
• Single stud mount with included chrome bezel and visor for quick fitment

Will this light fit my truck model lineup?

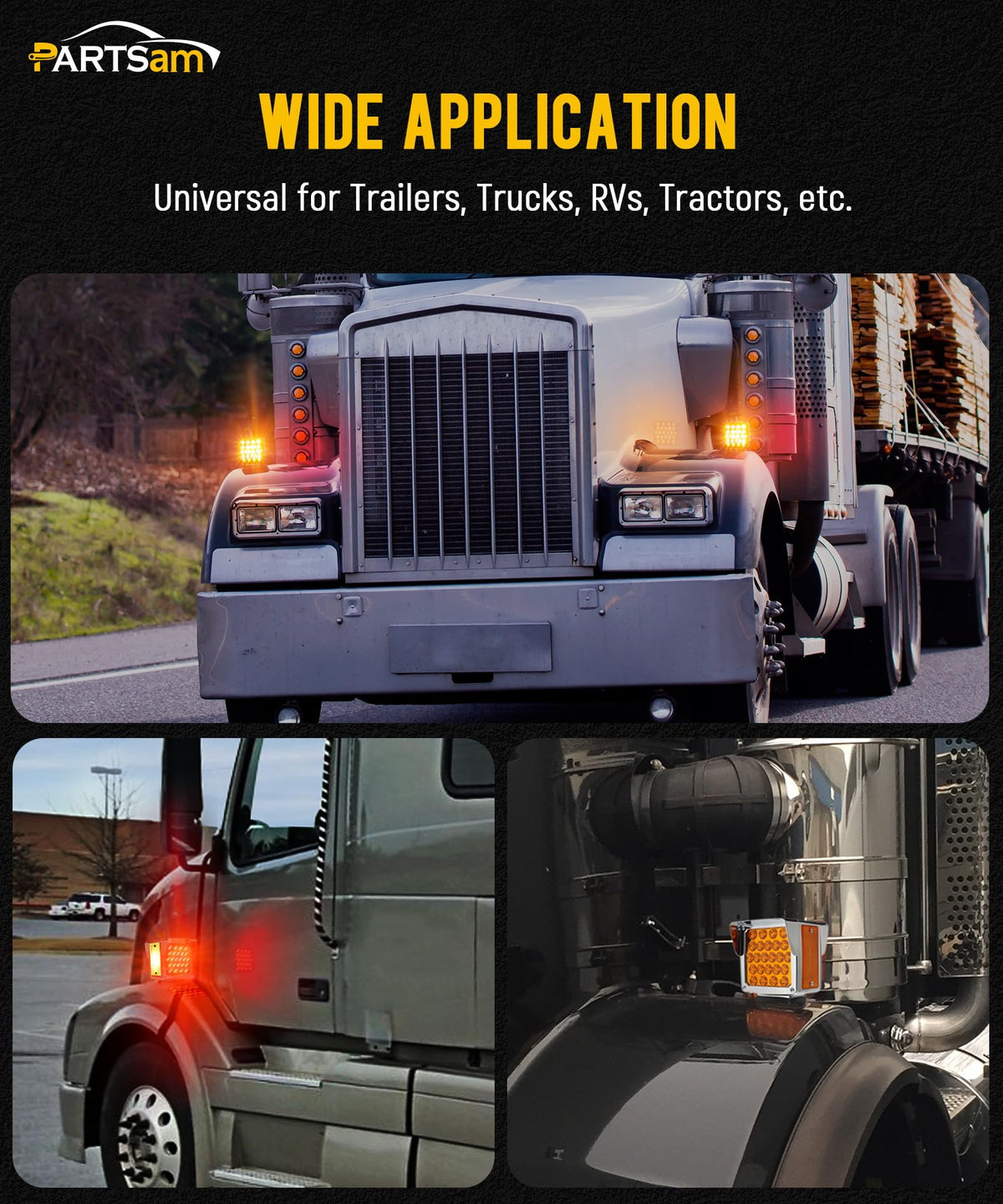

The Partsam 52-LED pedestal lamp is offered to match many popular Peterbilt, Kenworth, Freightliner and medium-duty models. Check physical stud spacing and power compatibility before purchase to confirm a direct fit, or consult a technician for adapter options.

• Common Freightliner fits: FL70, FLD112, FLD120, M2
• Kenworth fits: K100, T2000, T300, T600, T660, T680, T700, T800, W900
• Peterbilt fits: 330, 335, 367, 377, 378, 379, 386, 387, 389, 579, 587
• Verify stud mount location and electrical compatibility prior to install

Who is this for: Fleet managers, owner-operators and maintenance techs who want a compact, visible LED replacement for incandescent fender lights will appreciate this Partsam double-face pedestal lamp. It suits vehicles needing combined stop/turn/tail and marker capabilities from a single, chrome-accented assembly that withstands wet conditions and fits a wide range of heavy-duty truck models.
