Partsam 5x7 (7x6) LED Headlights H6054/H5054 Compatible — 5000–6000K, Hi/Low Sealed Beam (Pair)

Partsam 2PCS 5x7 (7x6) LED headlights are a direct-replacement plug-and-play hi/low sealed beam set designed to upgrade vehicles using H6054/H5054-style lamps for brighter, whiter illumination.

These LED sealed-beam housings swap into most 5x7 (commonly called 7x6) headlight openings without major modifications, offering a modern 5000–6000K color temperature, integrated high/low beams, and a durable aluminum shell with an efficient heatsink. With 15 high-output 3W LED chips per lamp and ratings up to 50,000 hours, they are built to deliver long-lasting light for cars, trucks, SUVs and many classic vehicles that take the H6054/H5054 family of sealed beams.

Will these fit my vehicle’s 5x7 (7x6) sealed-beam opening?

Partsam 7x6 LED headlamps are intended as direct replacements for a wide range of sealed-beam part numbers (H6054, H6054LL, 6054, H5054, H6052, 6052, 6053, 69822). They follow the common dimensions for 5x7 units so most factory and retrofit housings accept them without cutting or reshaping.

• Compatible part numbers: H6054/H5054 family and many 7x6 sealed-beam sockets.
• Fits vehicles like older Jeep Wrangler YJ/XJ, Chevy K5 Blazer, Express Van and similar models.

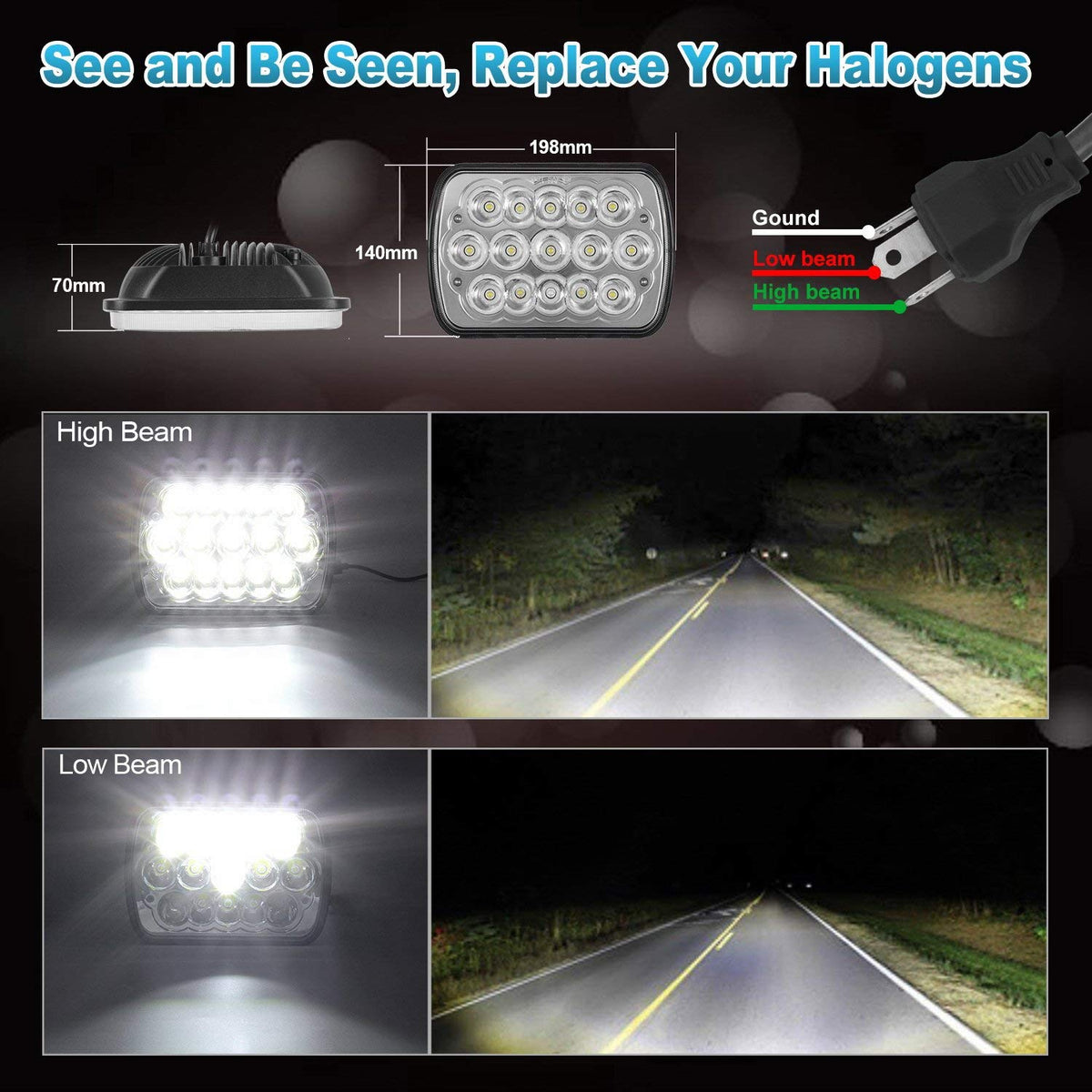

• Check physical depth (7.87" x 5.5" x 2.75") and socket type before ordering.

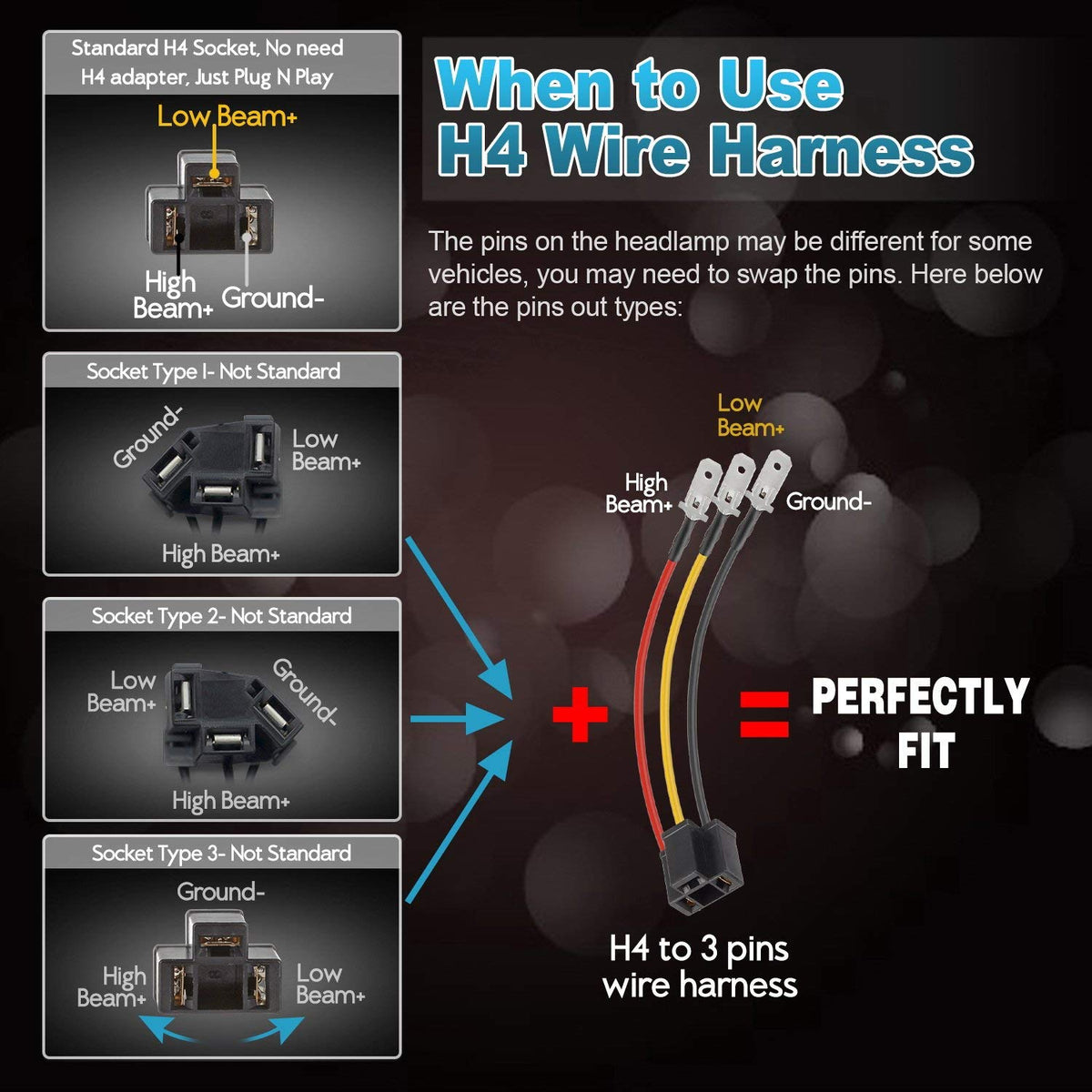

• Toyota models with dual-ground pinouts may need pin re-arrangement or a relay harness.

How bright are these LEDs and how do the beams work?

Each headlight houses fifteen 3W LED chips delivering a combined output tuned between 2500 lumens on low beam and up to 5600 lumens on high beam, with a cool white color temperature around 5000–6000K for crisp visibility. The unit integrates both high- and low-beam functions in the same sealed assembly for straightforward operation through your existing switch.

• Low beam: ~2500 lumens for safe, glare-managed driving.
• High beam: ~5600 lumens for extended visibility at distance.
• Color temperature: 5000–6000K for a bright, daylight-like appearance.
• Rated life: up to 50,000 hours under normal conditions.

What does installation involve and are any extra parts required?

Installation is designed to be plug-and-play for vehicles with standard H4/9003-type connectors and 5x7 sealed-beam sockets: remove the old lamp, plug in the new headlight, and secure it in the housing. Some vehicles use a different pin-out or grounding setup (notably some Toyota models); in those cases repositioning pins or adding a relay harness restores proper function.

• Standard installation: swap old sealed beam for Partsam unit and connect the factory plug.

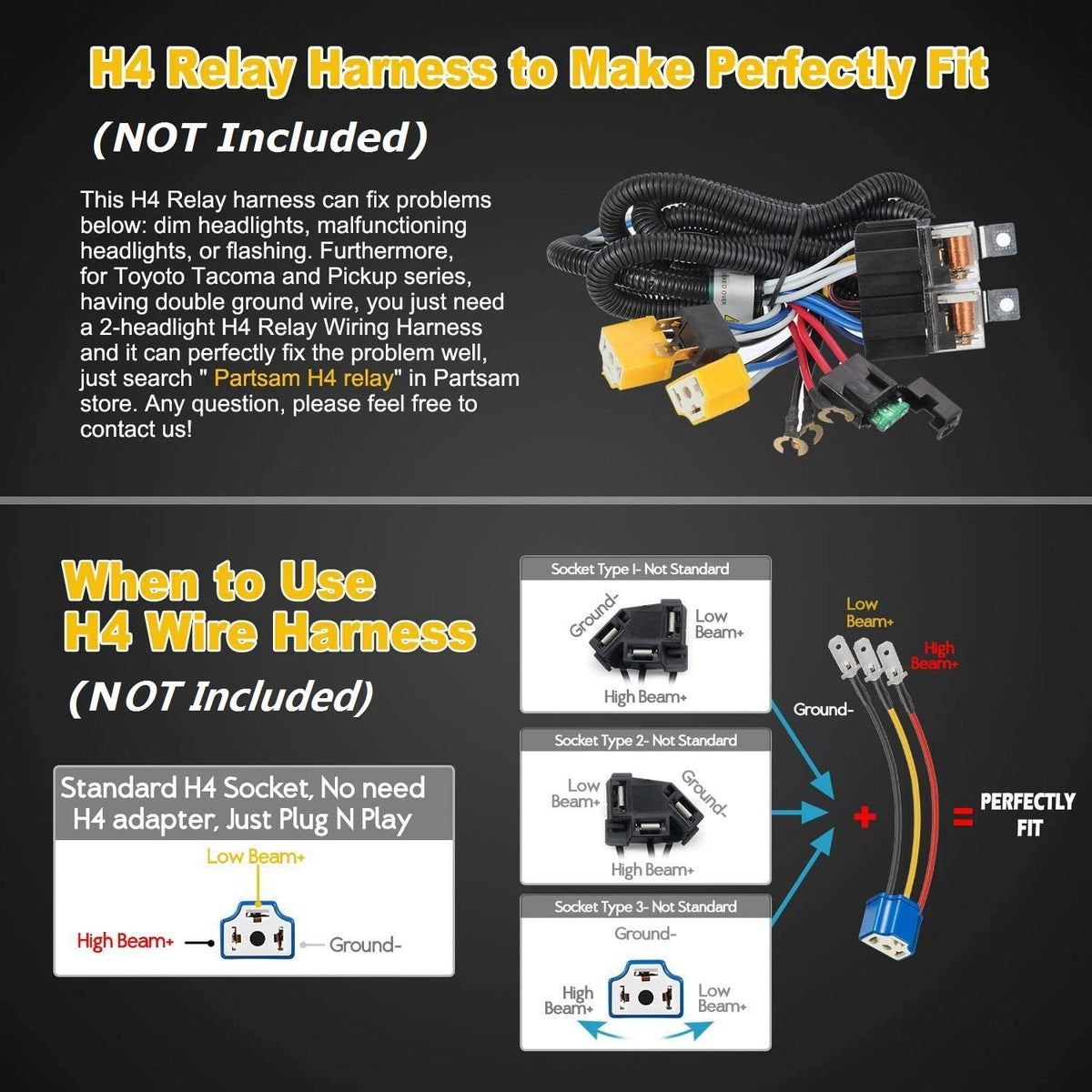

• Toyota dual-ground models: re-arrange pins or use a relay harness available from Partsam.
• Tools: simple hand tools for retaining rings; no soldering typically required.
• Electrical note: if flicker or error codes appear, an adapter or relay may be needed.

Are these durable and suitable for daily driving or off-road use?

The lamps feature an aluminum shell and integrated heatsink to manage thermal load, plus a PMMA lens designed for longevity; these design choices help maintain output and lifespan in varied driving conditions. They are intended for road and light off-road use, but always check local regulations about beam patterns and aftermarket light approvals for street use.

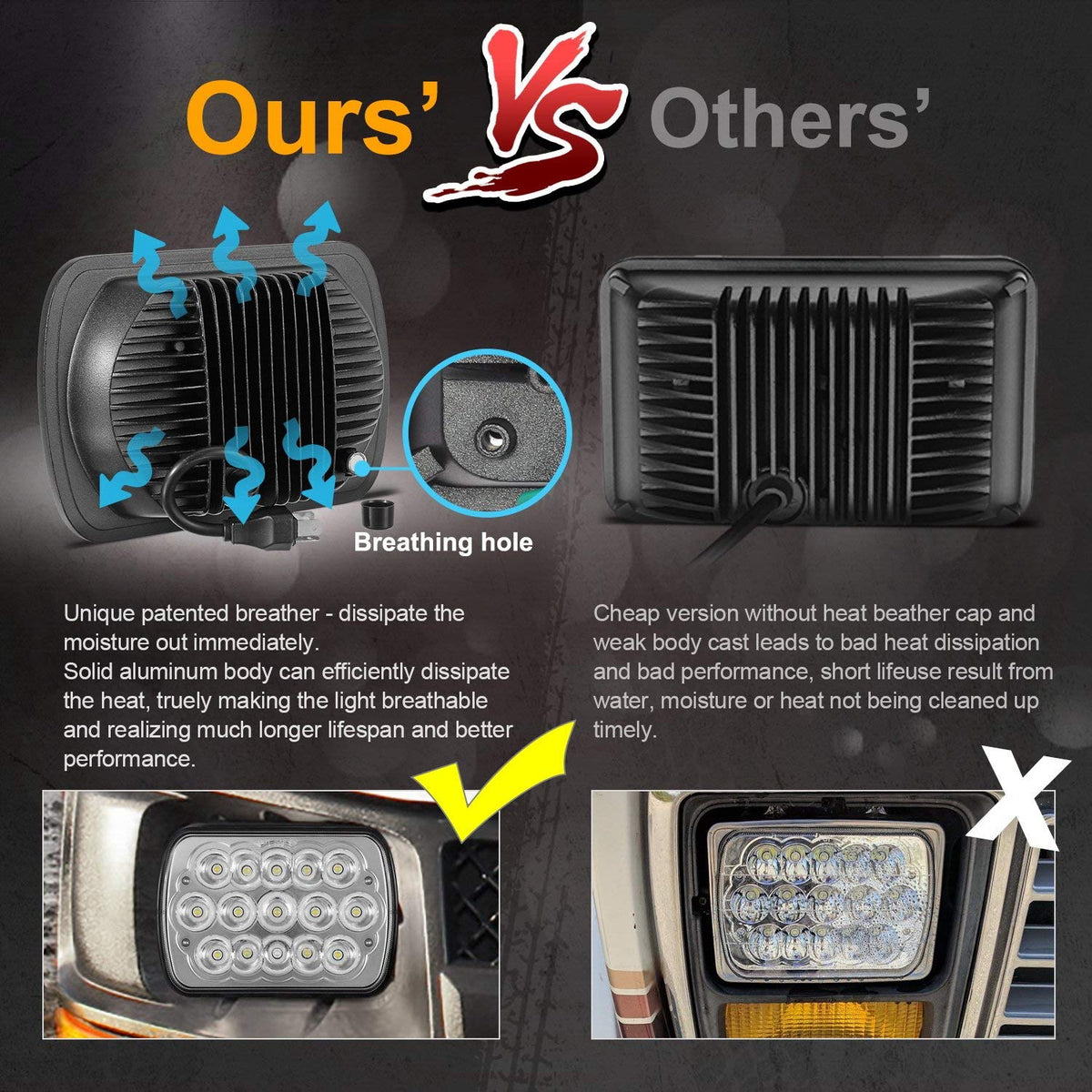

• Construction: aluminum body and heatsink for improved heat dissipation.

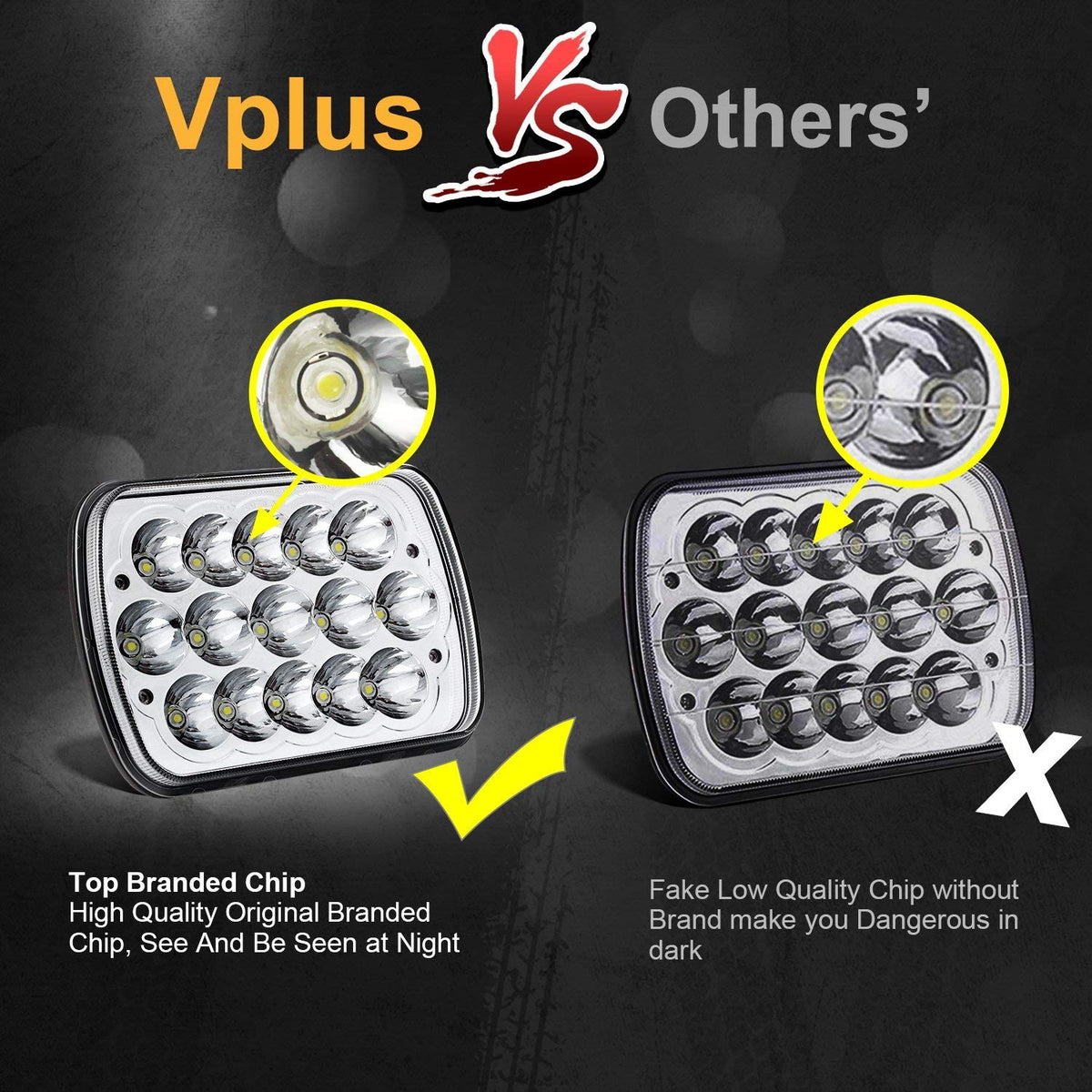

• Lens material: PMMA for optical clarity and resistance to yellowing.
• Expected lifetime: up to 50,000 hours under typical use.
• Use cases: daily driving, restoration projects, light off-road lighting upgrades.

Who is this for: These Partsam 5x7 (7x6) LED headlamps suit drivers restoring older vehicles with sealed-beam sockets, owners looking to modernize lighting on trucks and SUVs, and off-road enthusiasts seeking brighter hi/low light from a durable sealed assembly. If your vehicle accepts H6054/H5054-style lamps and you want a long-lived, higher-output replacement that installs with minimal modification, this kit is a practical upgrade. Always confirm fit and electrical compatibility before purchase to ensure proper operation.
