Partsam 6.3in Oval LED Trailer Tail Lights 2-Pack — Red/White Sealed Flush-Mount, IP65

Partsam 6.3" oval LED trailer tail lights are a sealed, flush-mount 2-piece set combining red ring brake/tail illumination with a white center reverse light for versatile truck, trailer, RV and caravan use. These sealed oval lights blend multiple functions into one compact assembly so you can replace separate tail, brake and reverse fixtures with a single durable unit. Each lamp contains 23 LEDs arranged as a bright outer red ring (16 LEDs) for running and brake lighting plus a 7-LED clear center for backup illumination. The housing mounts recessed with a rubber grommet and uses a four-wire hardwired connection compatible with 12–24V DC electrical systems, making installation straightforward on most trailers, trucks, RVs, and utility vehicles.

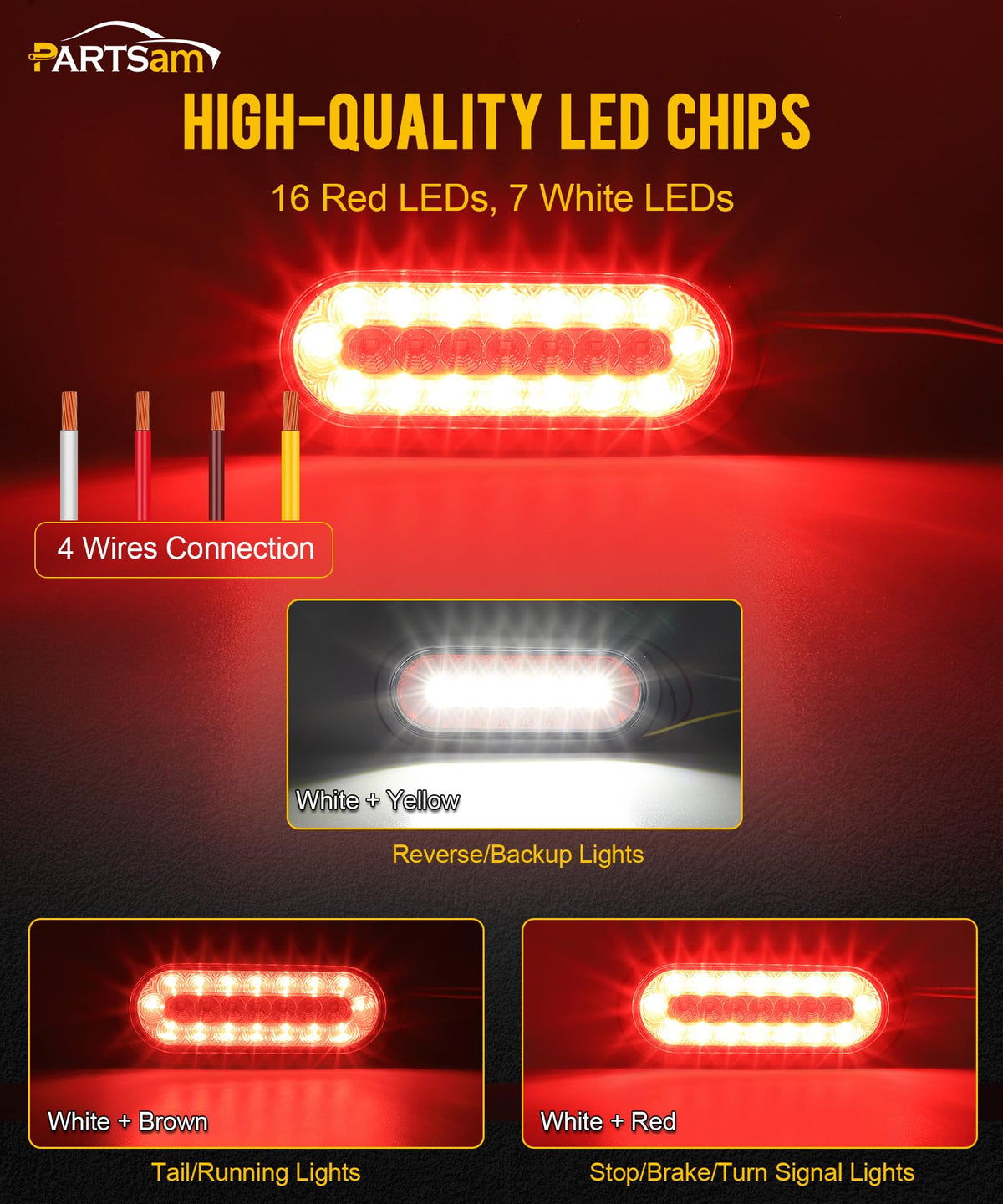

How do these lights combine brake, tail and reverse functions?

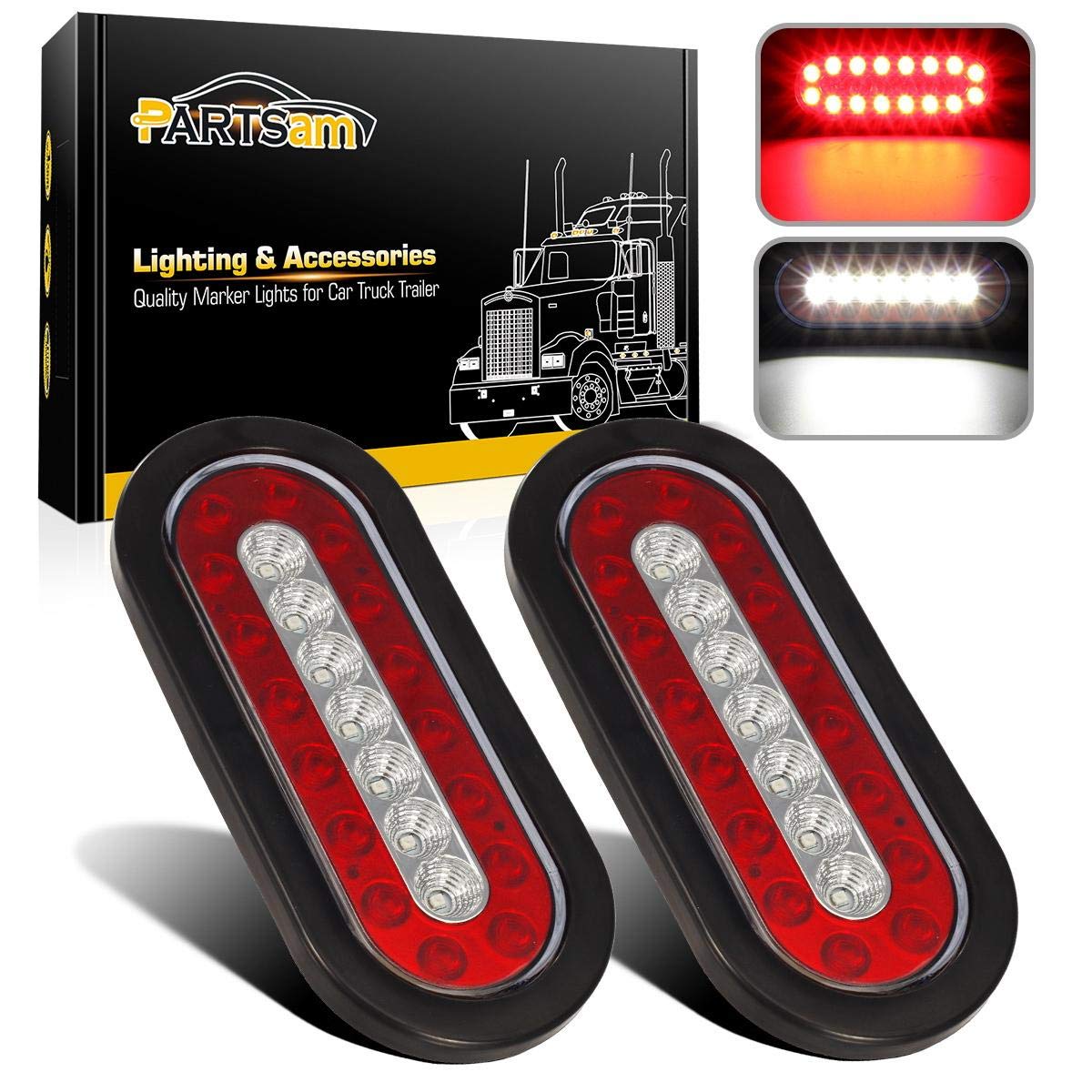

Each lamp separates roles by LED zones: the outer red ring provides running and brake light visibility in dual intensity modes, while the clear center emits white reverse light. The design replaces multiple fixtures with a single, sealed unit to simplify wiring and reduce the number of mounting holes.

• 23 total LEDs: 16 red (outer) + 7 white (center)
• Outer ring supports high/low modes for running and braking
• Center LEDs dedicated to backup/reverse illumination
• Recessed mount reduces snagging and protects the lens

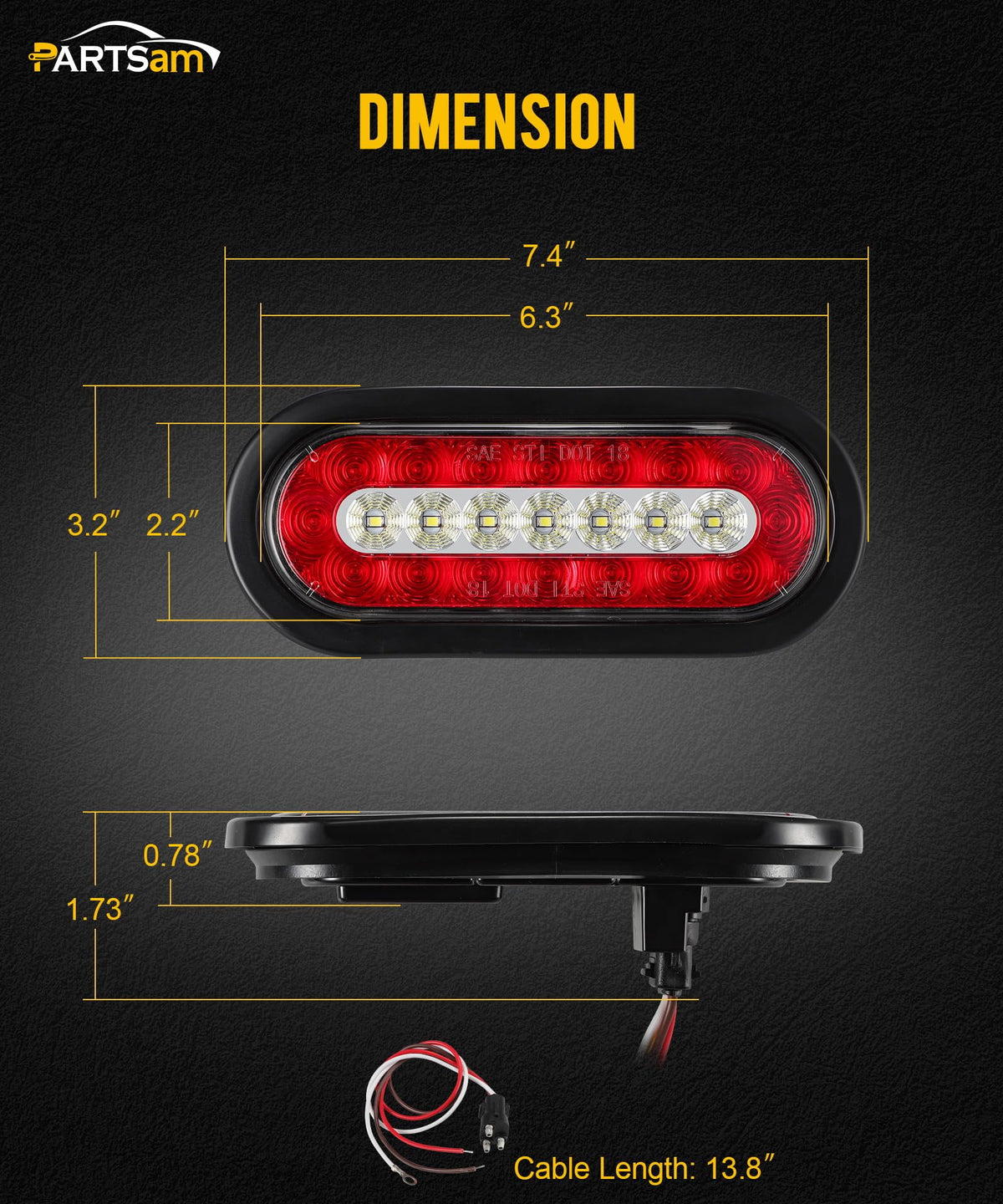

What are the physical dimensions and mounting details?

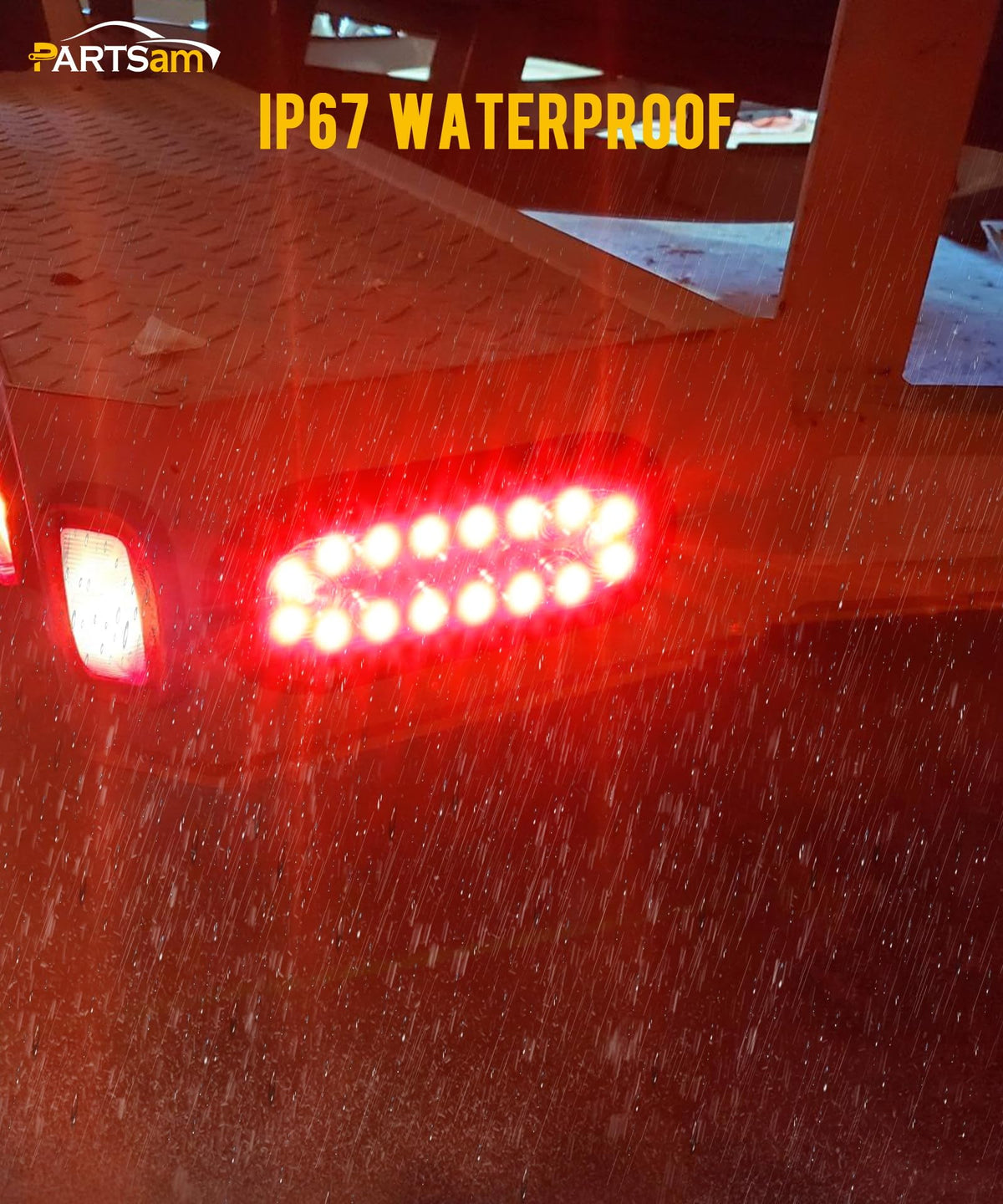

The light's visible inner lens measures 6.3 inches across, with an outer diameter of 7.4 inches and a recommended 6.5-inch drill hole for recessed installation. A supplied oval rubber grommet cushions the housing and seals the cavity, while the IP65 rating provides resistance to spray and dust in typical road conditions.

• Inner diameter (lens): 6.3 inches
• Outer diameter: 7.4 inches; drill hole: 6.5 inches
• Recessed mount using durable rubber grommet included
• IP65-rated for dust and water spray protection

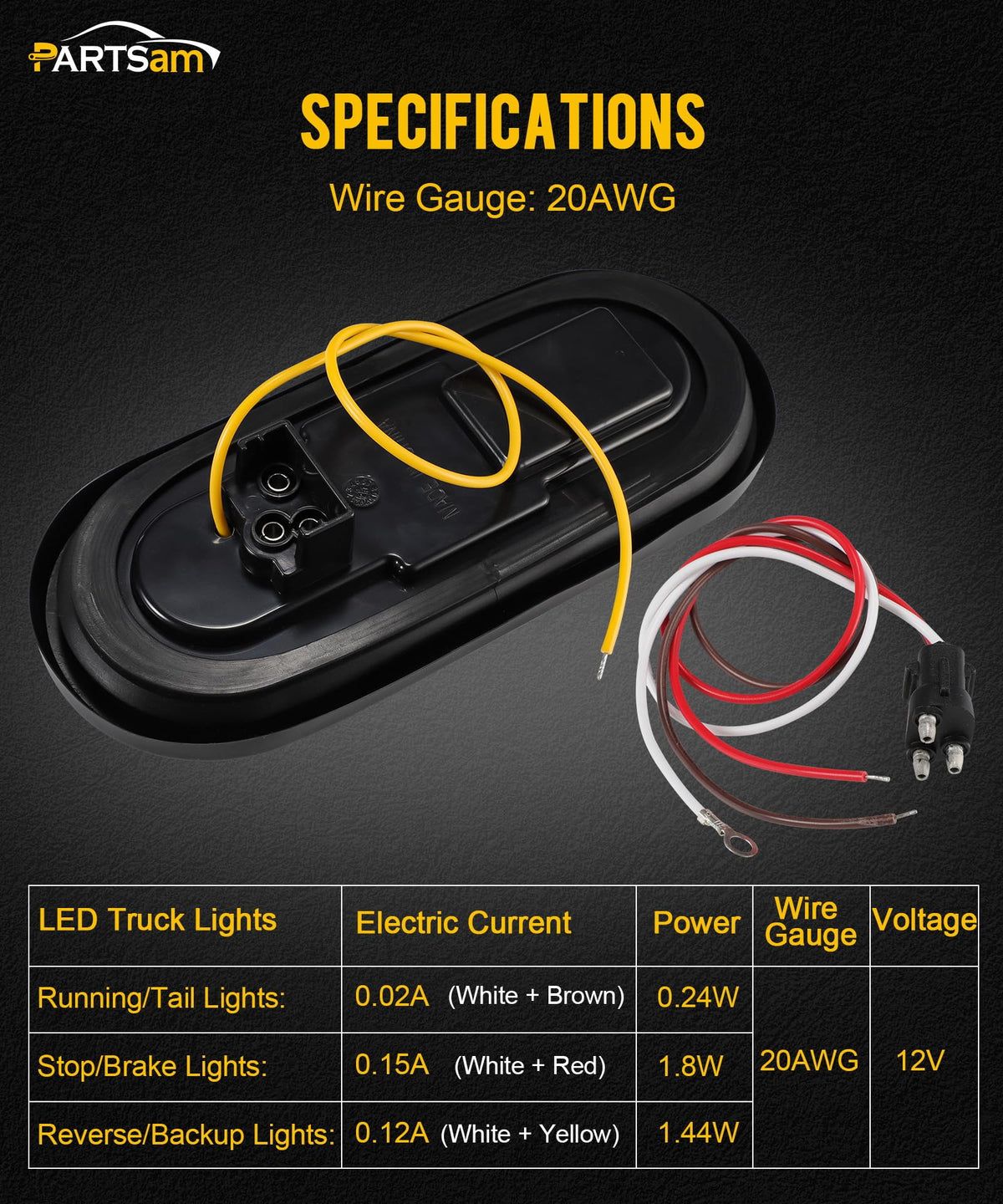

How is the wiring set up and how easy is installation?

Wiring uses a four-conductor hardwire harness labeled for quick hookup: white for ground, red for brake, yellow for reverse, and brown for running/tail. With the recess grommet and standard 12–24V input, installation is suited to owners comfortable with basic trailer wiring or a mechanic who can complete a quick replacement.

• 4-wire connection: White (ground), Red (brake), Yellow (reverse), Brown (running)
• Compatible with DC 12–24V systems common on trailers and trucks
• Recessed mount reduces bezel exposure and simplifies alignment
• Plug-and-hardwire approach for reliable long-term contact

How bright and durable are these LEDs for road use?

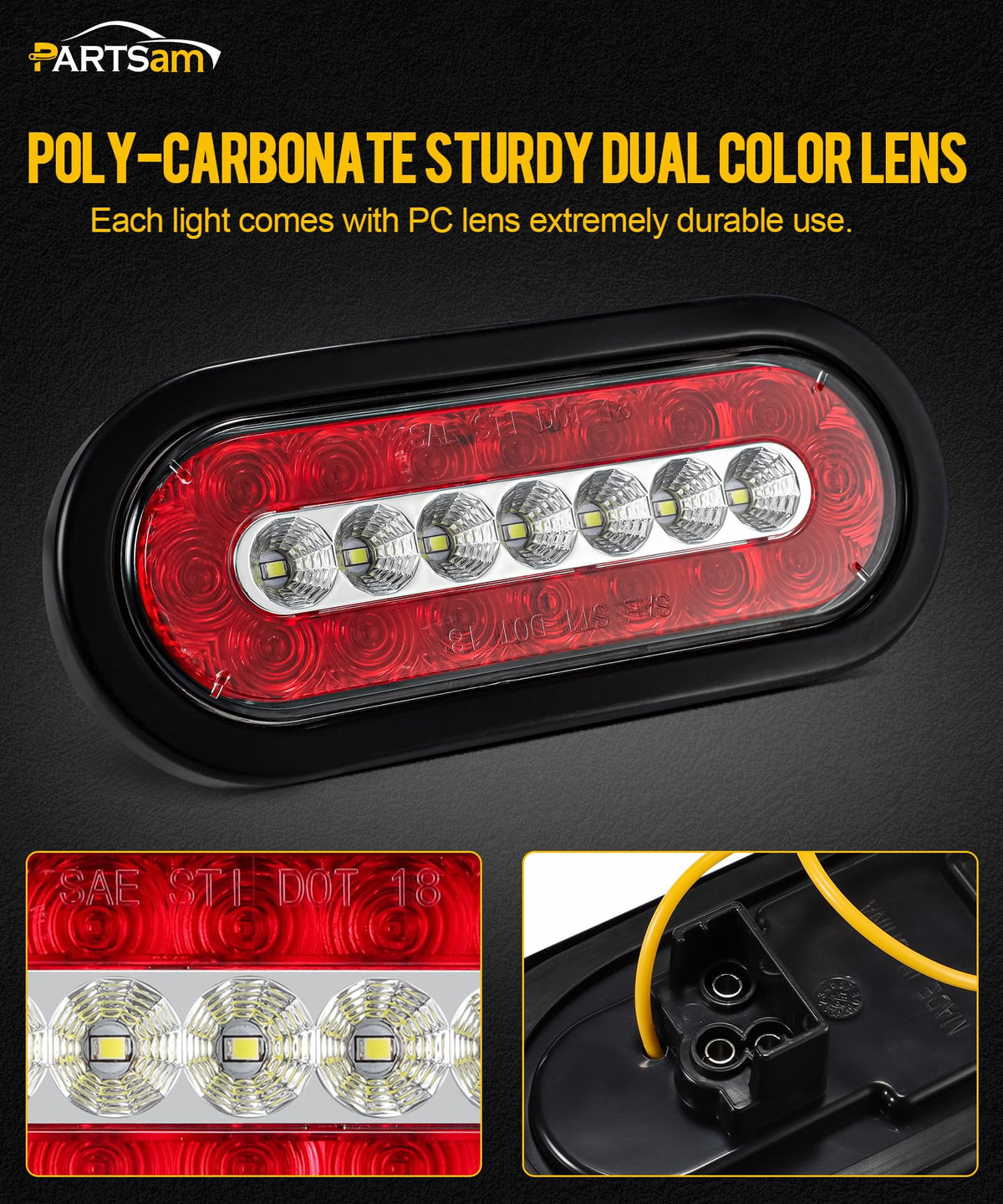

Each diode uses a pearl-shaped reflector to boost light spread and produce a clean, modern beam pattern that increases visibility. The inner miro-flex faceted reflector and sealed housing maintain output while resisting road grime, and the LEDs themselves deliver bright, long-lasting illumination without filament failures.

• Individual diode reflectors for wide, even light distribution
• Sealed construction resists moisture and dirt accumulation
• Suitable for routine road and backing illumination needs
• Durable LED array reduces maintenance versus incandescent bulbs

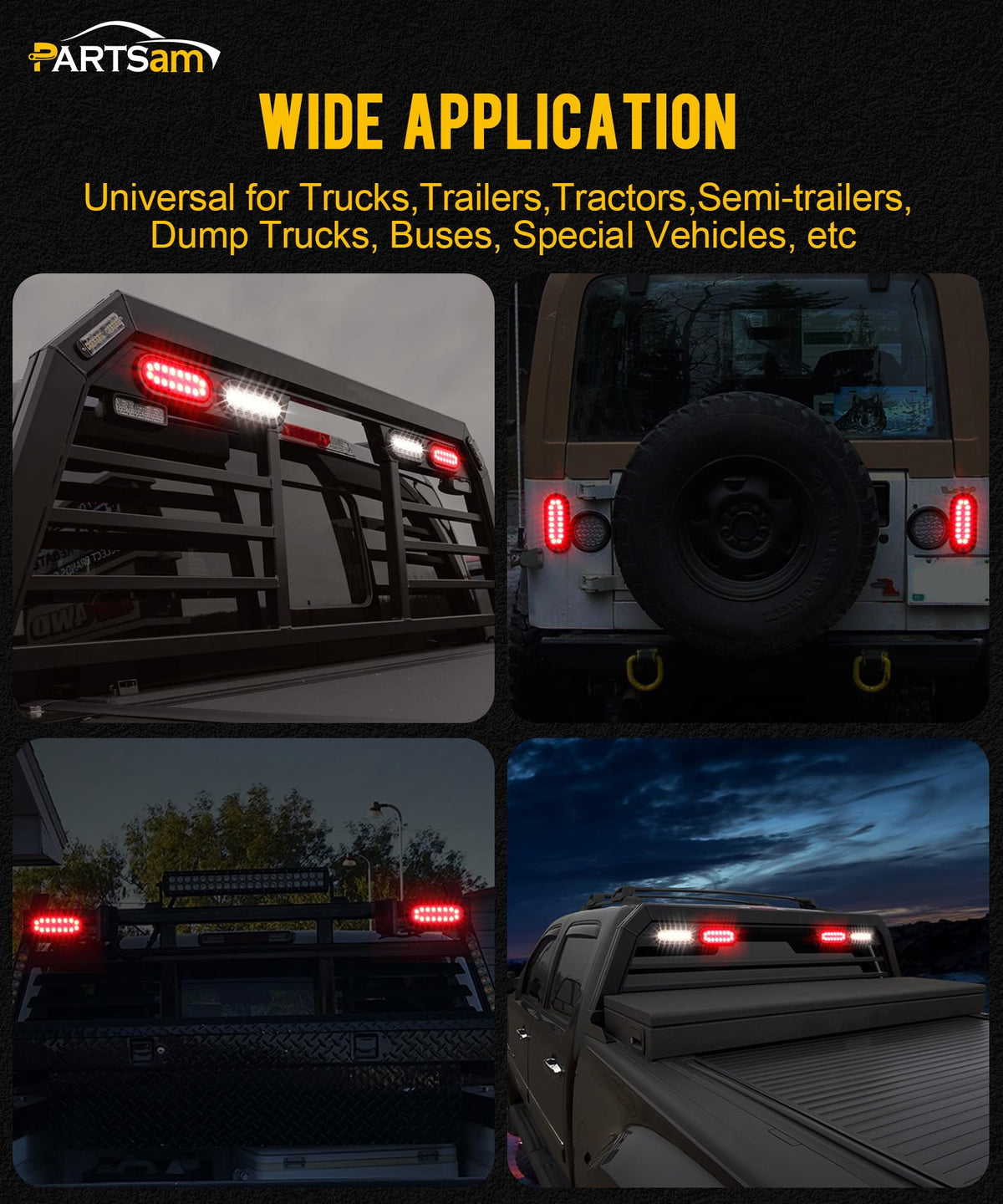

Who is this for? These Partsam 6.3" oval LED tail lights suit anyone replacing worn or nonfunctional trailer lights who wants a consolidated, weather-resistant solution. They work well for owners of trailers, campers, RVs, pickup trucks, UTVs, caravans and utility vehicles seeking a single flush-mounted unit that handles tail, brake and reverse functions with a straightforward 4-wire hookup. If you need improved visibility, fewer mounting holes, and a durable LED upgrade compatible with 12–24V systems, this 2-piece kit is designed for that purpose.

FAQ

Q: Are these lights compatible with 12V and 24V systems?

A: Yes. The Partsam lights accept 12–24V DC, making them compatible with most trailers, trucks, and RV electrical systems.

Q: Do they come with a gasket for recessed mounting?

A: Yes. Each lamp includes a durable oval rubber grommet for recessed mounting and improved sealing.
