Partsam 6-inch Oval Clear Lens LED Backup Turn Tail Lights, Pair — 24-LED Waterproof Flush-Mount

Partsam 6-inch oval 24-LED clear white lamp is a flush-mount, waterproof multi-function light for backup, turn, tail and fog applications on trucks, trailers, RVs and boats.

This pair of Partsam lights combines a slim oval profile with 24 high-output LEDs, a welded PC lens and a rubber grommet to deliver a sealed, durable lighting solution for heavy-duty and marine vehicles. Designed to hardwire into 12V systems, each lamp offers two brightness levels via a three-wire connection and fits into an approximately 6.4-inch mounting hole.

How do these lights perform in wet or harsh environments?

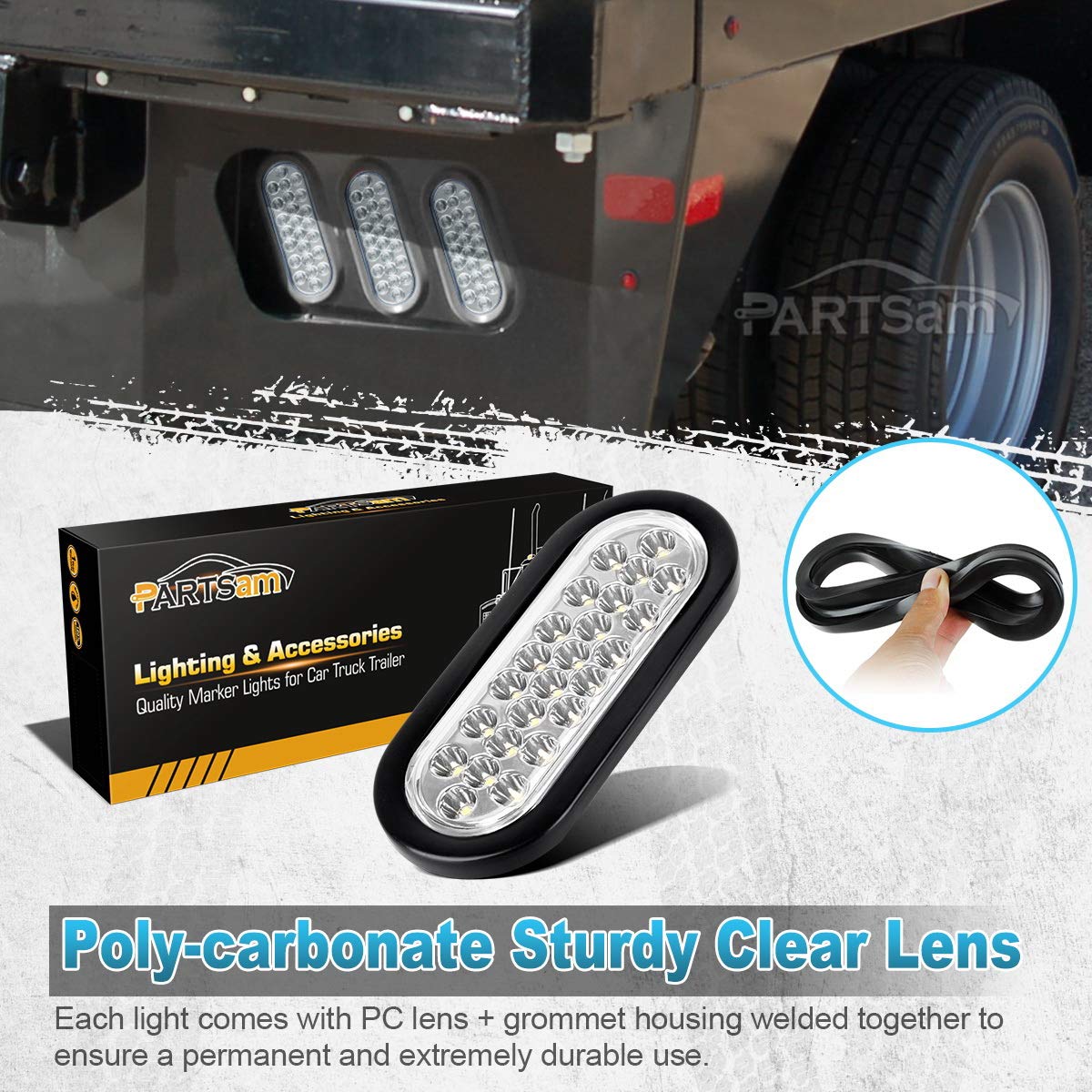

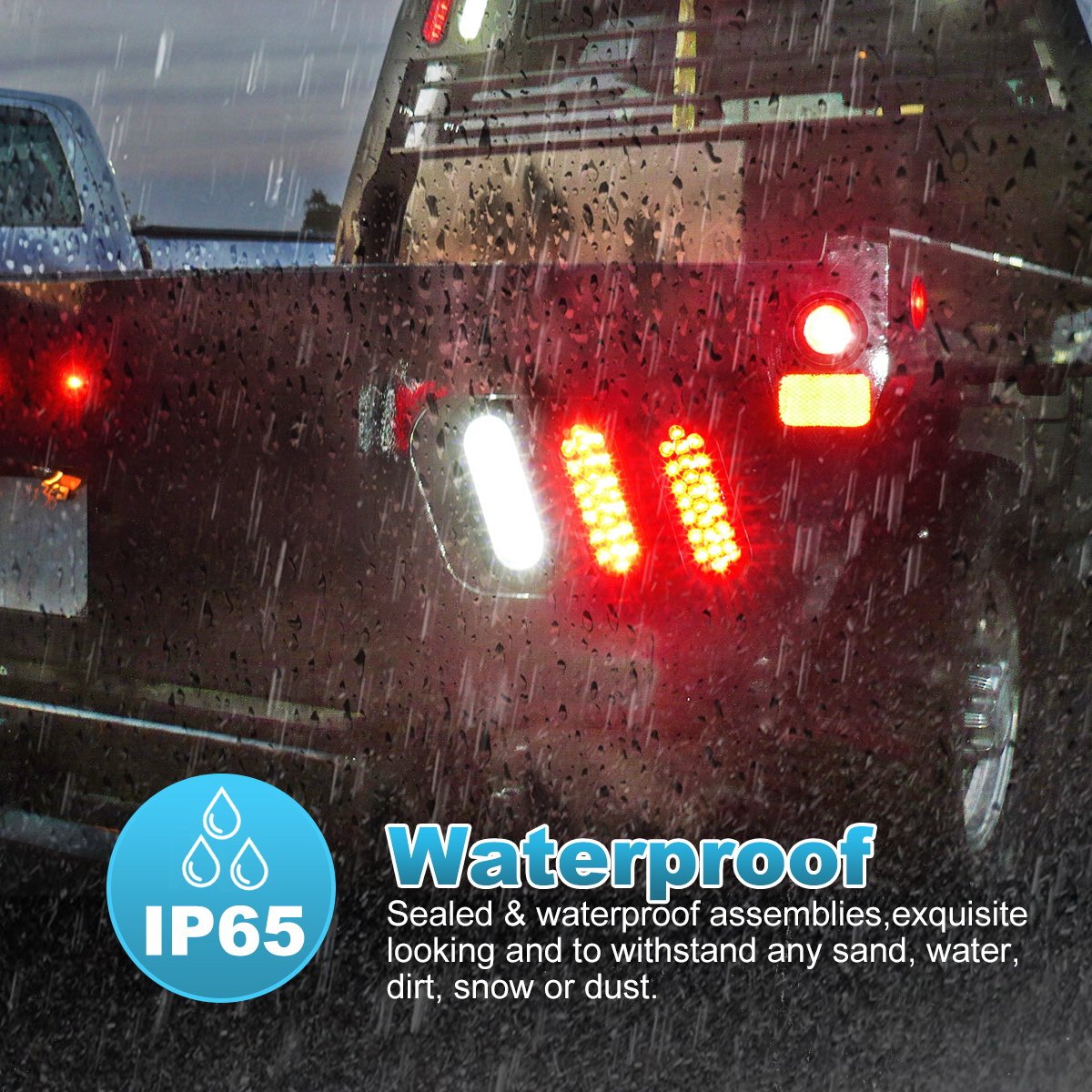

The assemblies are completely sealed with a welded polycarbonate lens and housing for long-term water resistance. The LED circuit boards receive a conformal coating that reduces moisture and corrosion risk, making them suitable for exposure to road spray, splash conditions and marine humidity.

• Welded PC lens and housing for permanent waterproof seal
• Conformal-coated LED board for moisture protection
• Rubber grommet helps prevent water intrusion around the mount

What wiring and brightness options are included, and how do I connect them?

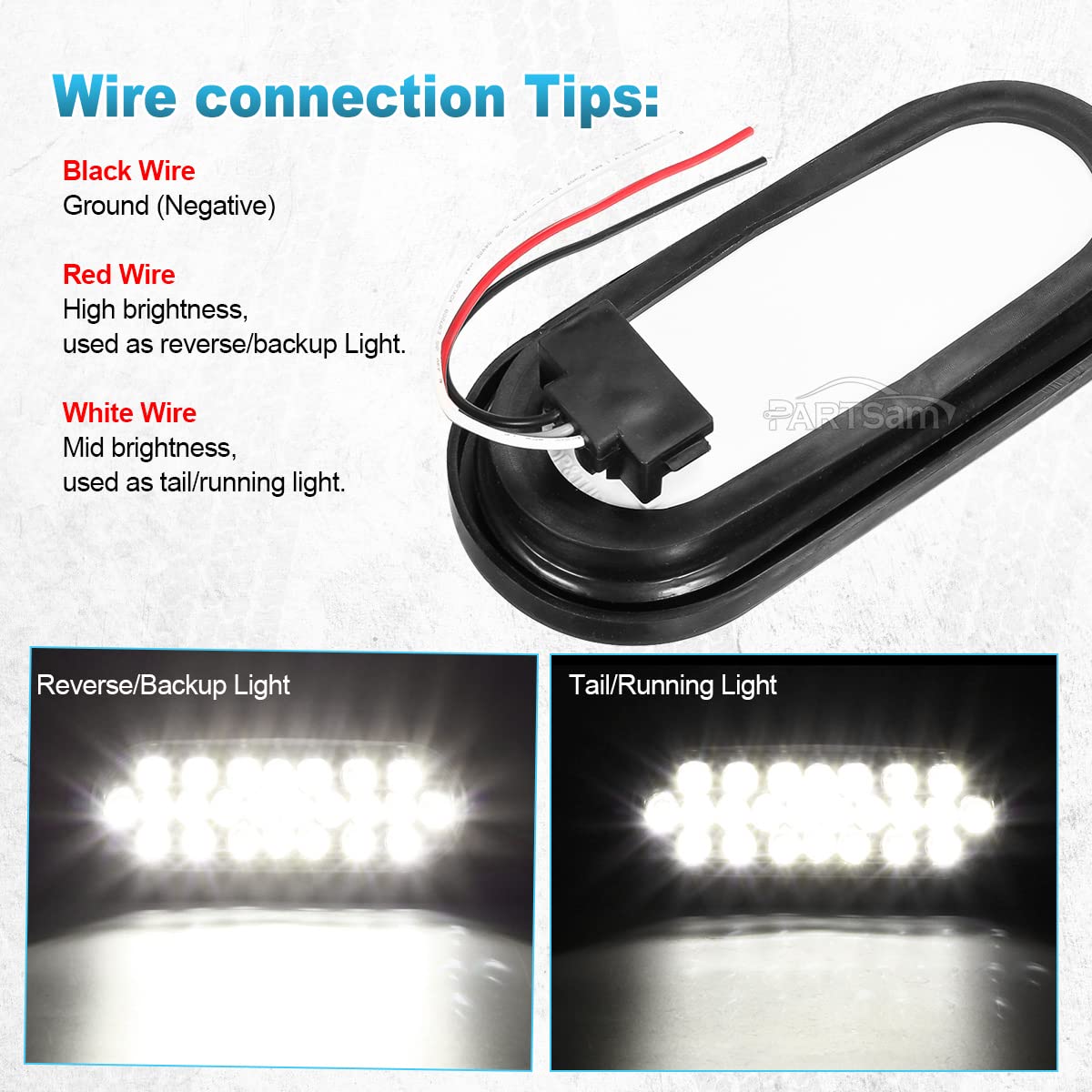

Each lamp is hardwired with three leads to provide ground and two output levels: a higher-brightness feed and a lower-brightness feed. Note that two manufacturing variants exist with either the white or black lead as ground; both versions function the same and are interchangeable as long as ground is matched correctly.

• Three wires: ground, high-brightness, low-brightness
• 12V DC compatible for standard vehicle systems
• Confirm which lead is ground before final wiring to avoid misconnection

Will these lights fit my vehicle and what are the mounting requirements?

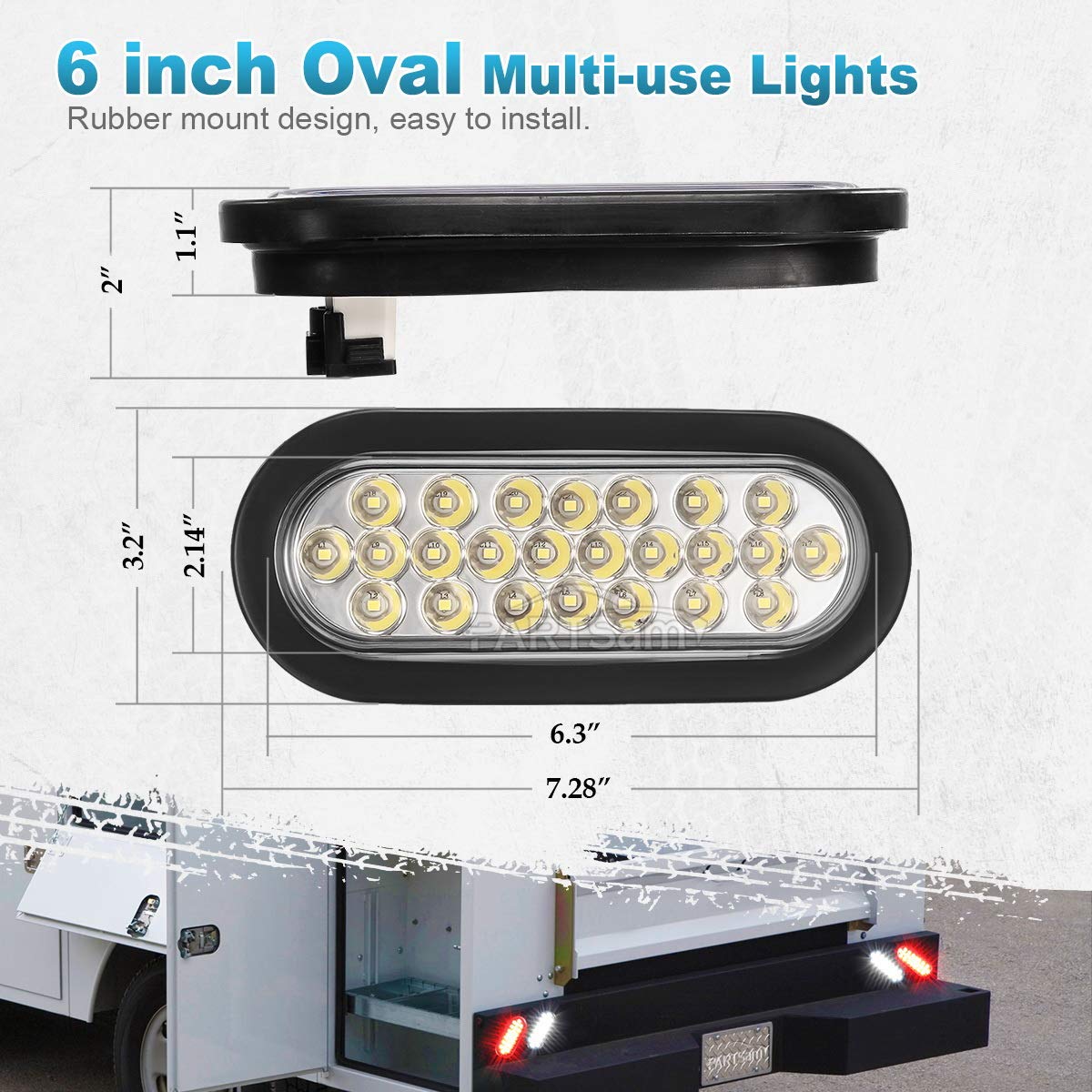

These oval lamps are built as universal units for trucks, trailers, buses, RVs, boats and many heavy-duty makes including Peterbilt, Kenworth and Freightliner. The lamp body measures approximately 6.3" x 2.14" x 1" and with the grommet installed overall dimensions are about 7.28" x 3.2" x 1.1. A hole near 6.4 inches is required for flush installation.

• Lamp body: 6.3" x 2.14" x 1"; with grommet: 7.28" x 3.2" x 1.1"
• Recommended hole size: about 6.4 inches for proper fit
• Universal application: trucks, trailers, boats, RVs and specialty vehicles

What are the LEDs and the expected usability features?

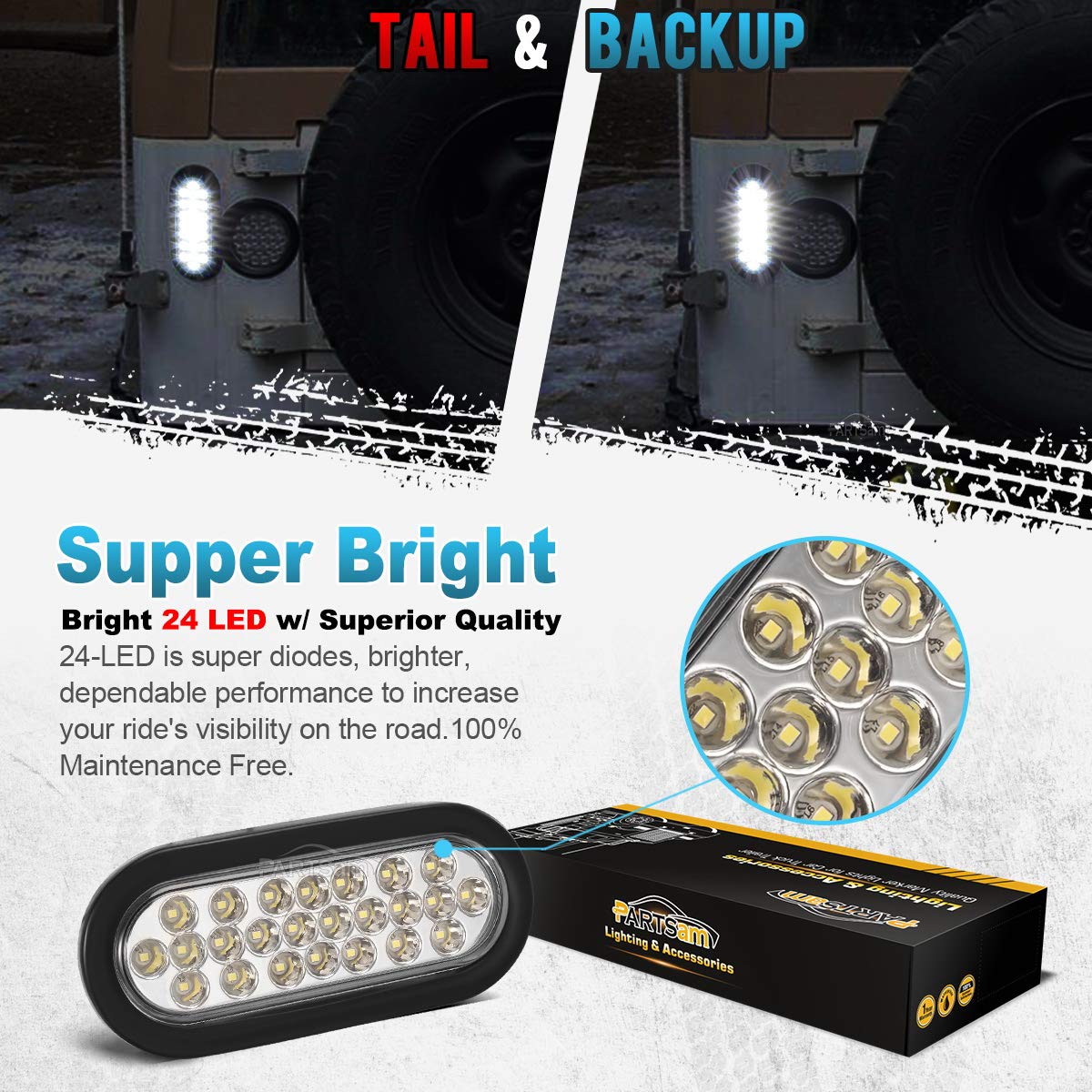

Each unit uses 24 LEDs arranged for bright, even output in a clear/white color suitable for reverse, fog and auxiliary functions. The compact, low-profile oval keeps a clean look while delivering visibility improvements for reversing and signaling in low-light conditions.

• 24 high-quality LEDs per lamp for strong illumination
• Clear lens for uncolored, bright white light output
• Low profile flush mount with rubber grommet for neat installation

Who is this for: These Partsam 6" oval LED lamps are aimed at fleet owners, truck and trailer operators, boaters and RVers who need a rugged, sealed lighting option that mounts flush and accepts dual-brightness wiring. Installers and mechanics who require a simple three-wire hookup and a compact footprint will appreciate the universal fit and waterproof construction. Choose this pair if you want a durable, bright auxiliary light assembly built to withstand road, yard and marine conditions without complicated installation.
