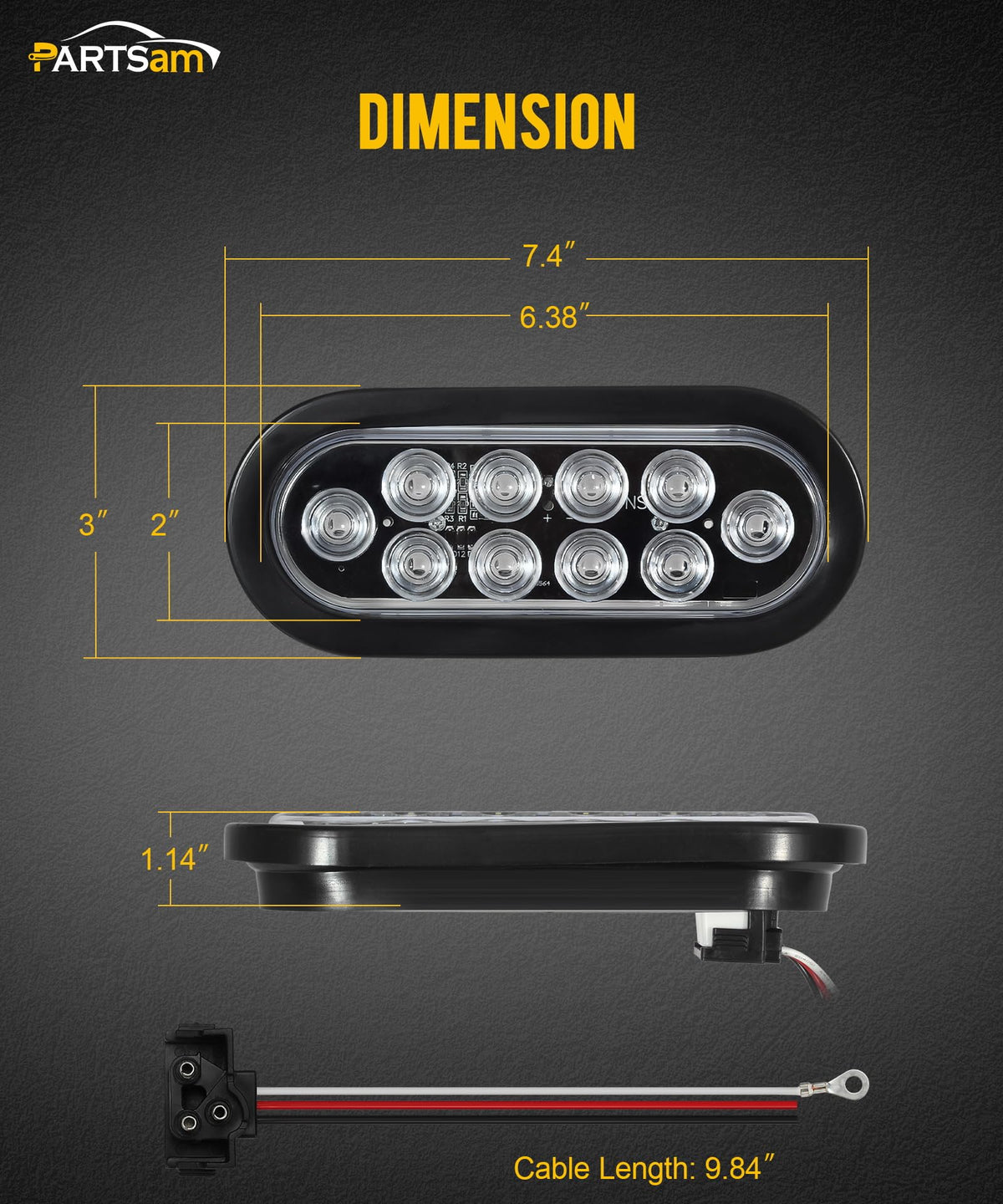

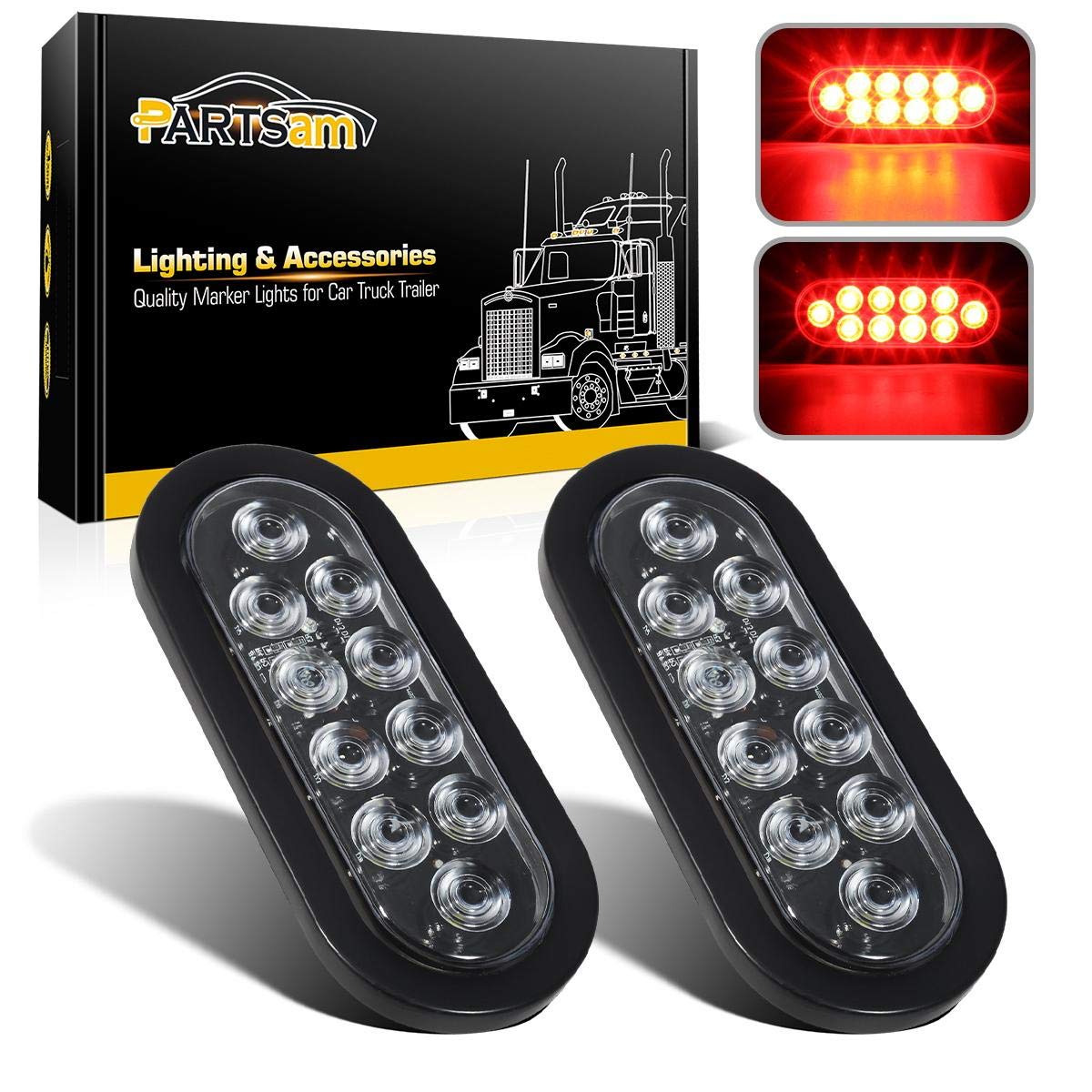

Partsam 6-Inch Oval LED Trailer Tail Lights, 2-Pack Clear Lens Red LEDs — Waterproof, Dual-Brightness

Partsam 6-inch oval red LED trailer tail lights are sealed, waterproof dual-function lamps that provide tail, brake and turn illumination in a low-profile clear-lens package.

These two 6" oval LED tail lights from Partsam combine bright 10-LED arrays with a clear lens and rubber grommet for a tidy flush or recessed installation on trailers, RVs, trucks and utility vehicles. Built for 12V systems and rated for exterior use, they offer two brightness levels via a three-wire pigtail and a compact flange that simplifies mounting in tight locations.

How do these lights perform on braking and signaling?

The Partsam tail lights use a 10-diode red LED array that provides distinct stop/brake intensity and a lower-intensity running light through separate wire inputs. When wired correctly, the high-brightness lead gives a clear brake signal and the low-brightness lead serves as a steady tail light.

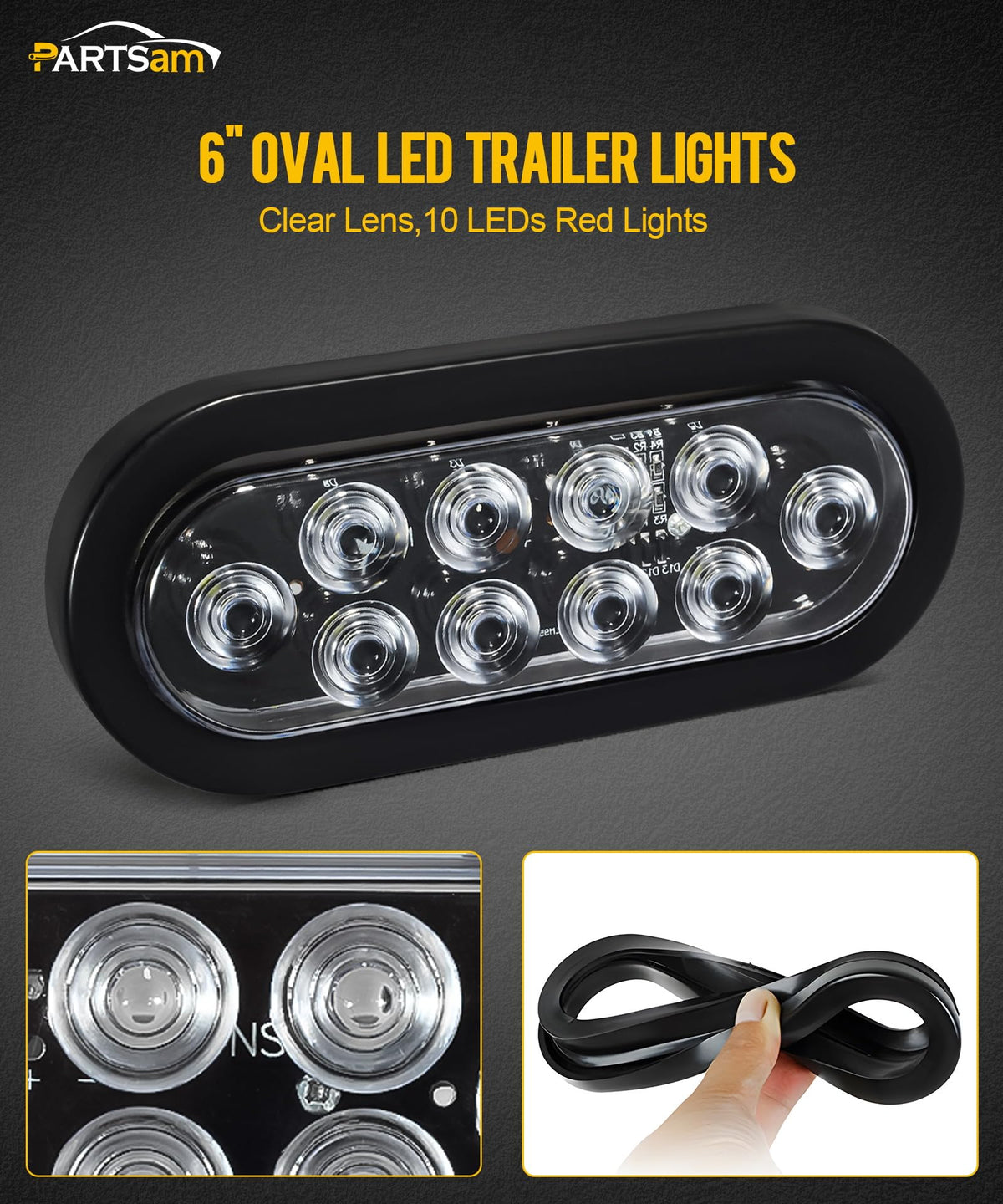

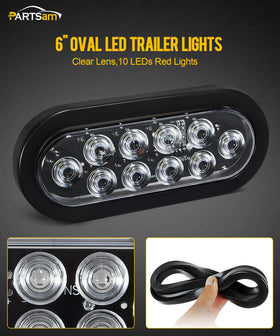

• 10 red LEDs for bright, visible output

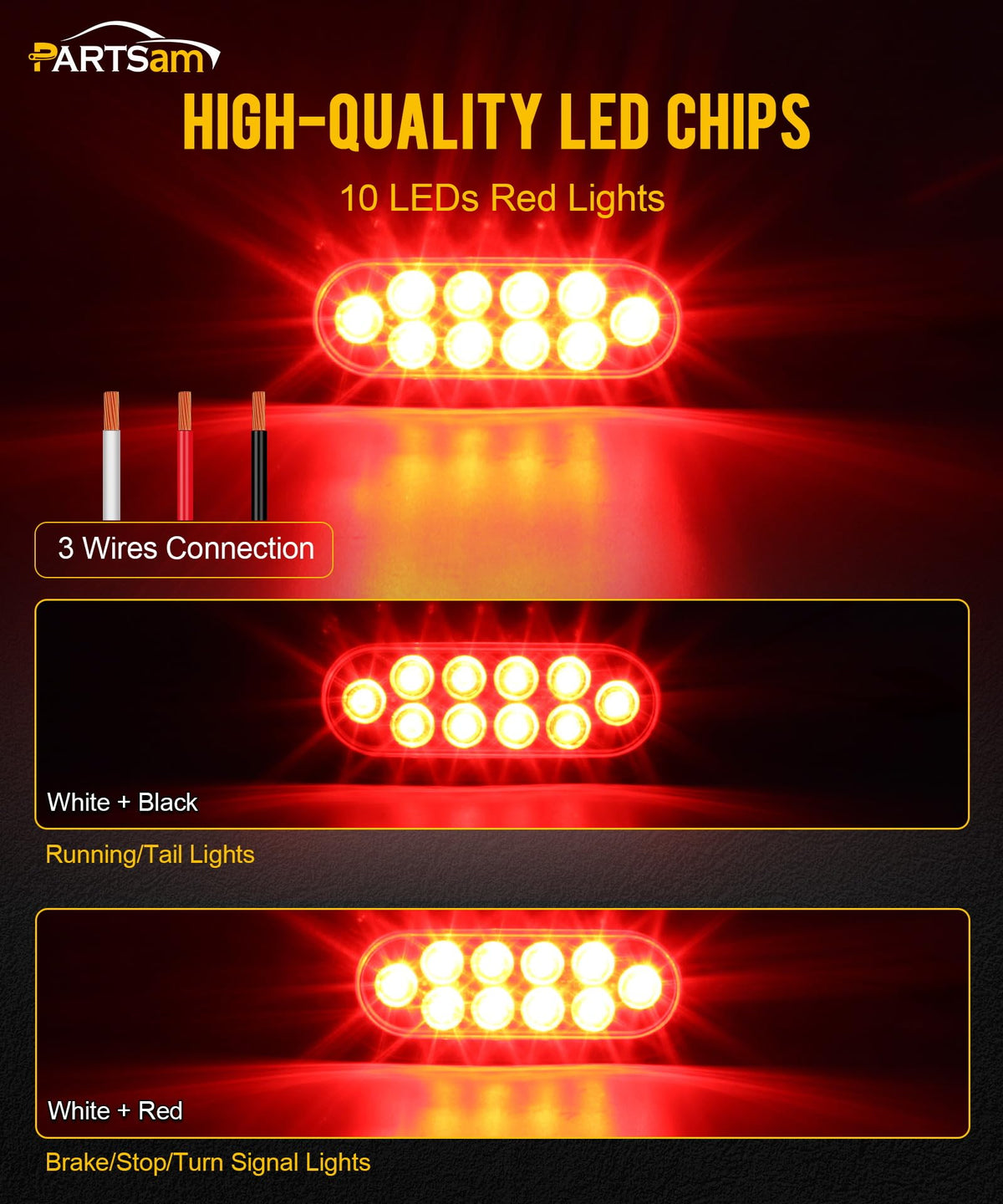

• Three-wire pigtail: ground, low-brightness, high-brightness
• Two-step brightness for clear differentiation between running and braking
• Works with standard 12V DC vehicle electrical systems

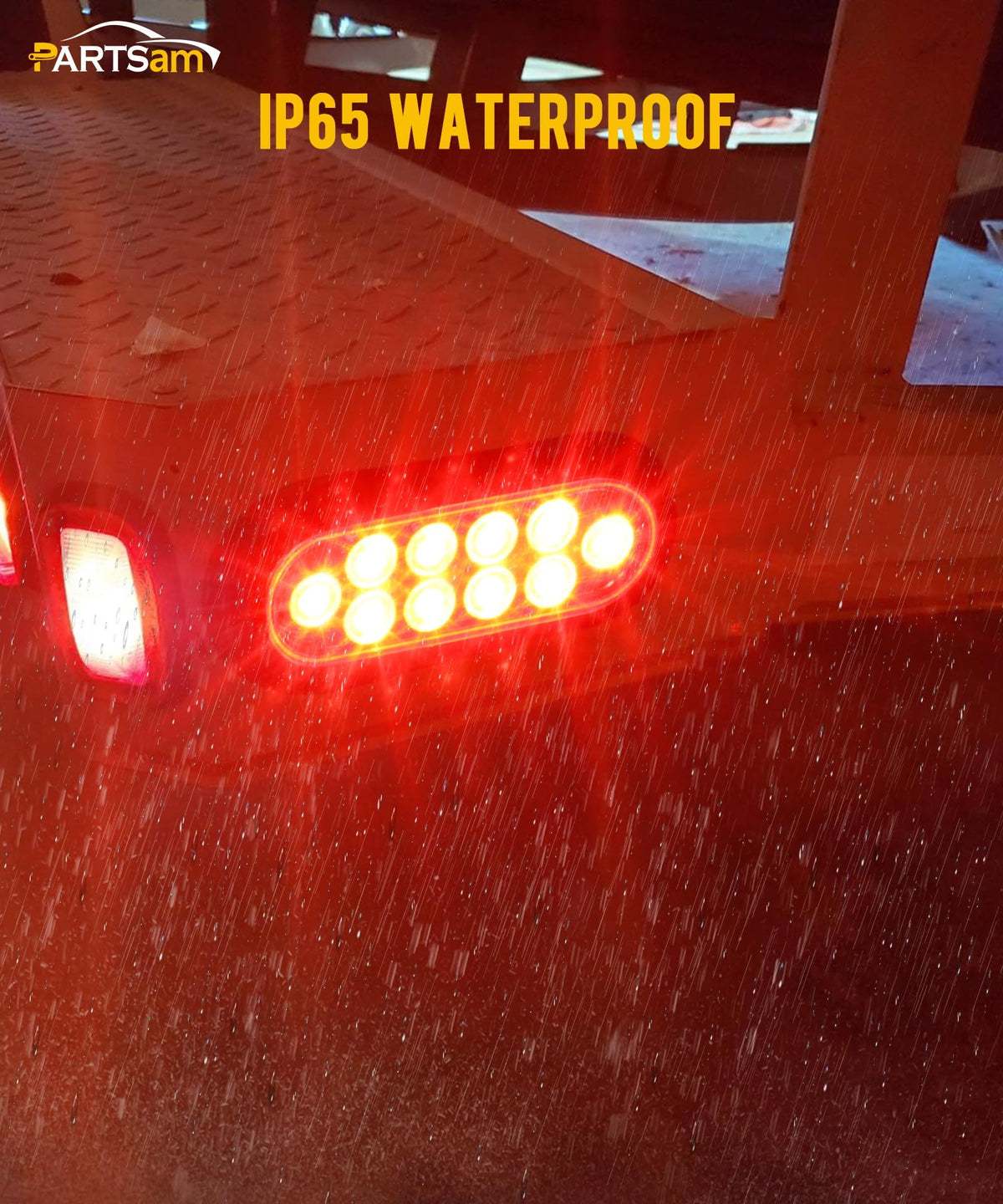

Will these hold up to weather and road conditions?

These lights are sealed and designed to resist water intrusion, dust, and road spray, making them suitable for exposed exterior use. The clear lens and gasketed housing help maintain performance in wet conditions and reduce maintenance needs.

• Waterproof sealed construction for exterior exposure
• Durable clear lens resists moisture and grime buildup
• Flange and grommet options provide a snug mounting seal
• DOT-approved design for many trailer applications

How do I install these on my trailer or vehicle?

Installation can be surface-flush or recessed depending on your mounting preference; the light includes a built-in flange and a grommet for sealed placement. You’ll need to cut an appropriately sized hole for recessed mounts, connect the three wires to the vehicle harness, and secure the body in place.

• Surface mount using the flange, or recess with the included grommet

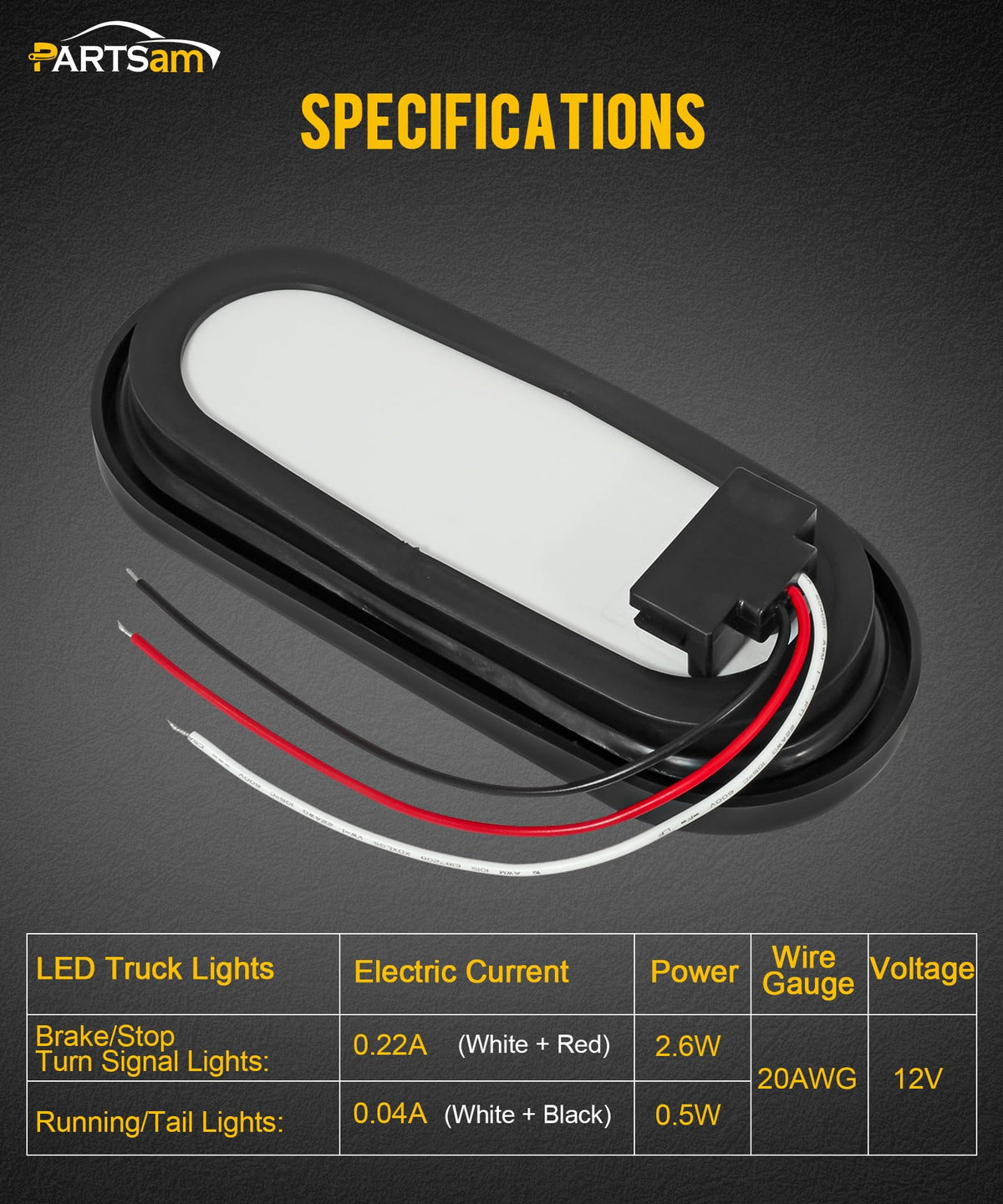

• White wire: ground; black: low brightness; red: high brightness
• Requires basic wiring tools and possibly a flasher/relay for signal functions
• Compatible with 8–16V DC electrical systems commonly found on trailers

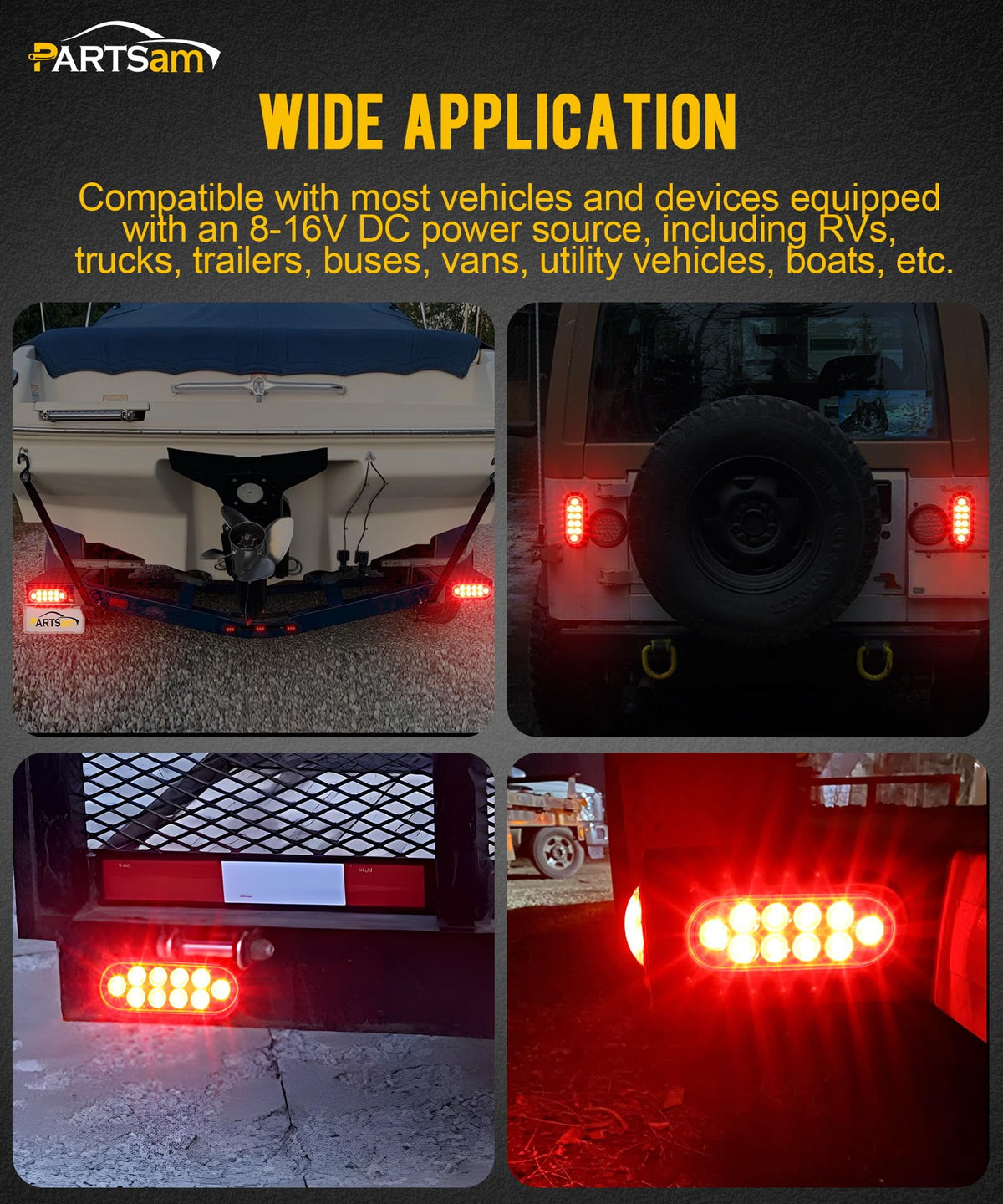

Are these compatible with my truck, RV or trailer?

These oval LEDs are engineered to work across a wide range of vehicles that use 12V systems, including pickups, semi trailers, RVs, utility trailers and more. Their universal mounting and standard wiring make them adaptable to most retrofit or replacement applications.

• Fits trailers, trucks, RVs, buses and many 12V vehicles
• Works for stop, tail and turn signal functions with common wiring
• Recessed or surface mount options suit varied vehicle bodies
• DOT-approved for many types of trailer installations

Who is this for: These Partsam 6-inch oval LED tail lights are intended for vehicle owners, fleet managers and DIY mechanics who need a durable, bright, and easy-to-install lighting upgrade for trailers, utility vehicles and trucks. Choose them if you want a compact, sealed lamp with clear-lens styling, two brightness settings, and standard 3-wire hookup for reliable road visibility.
