Partsam 7x6 (5x7) H6054 LED Headlights 2PCS — Hi/Low 6000/2500 lm, 50,000hr

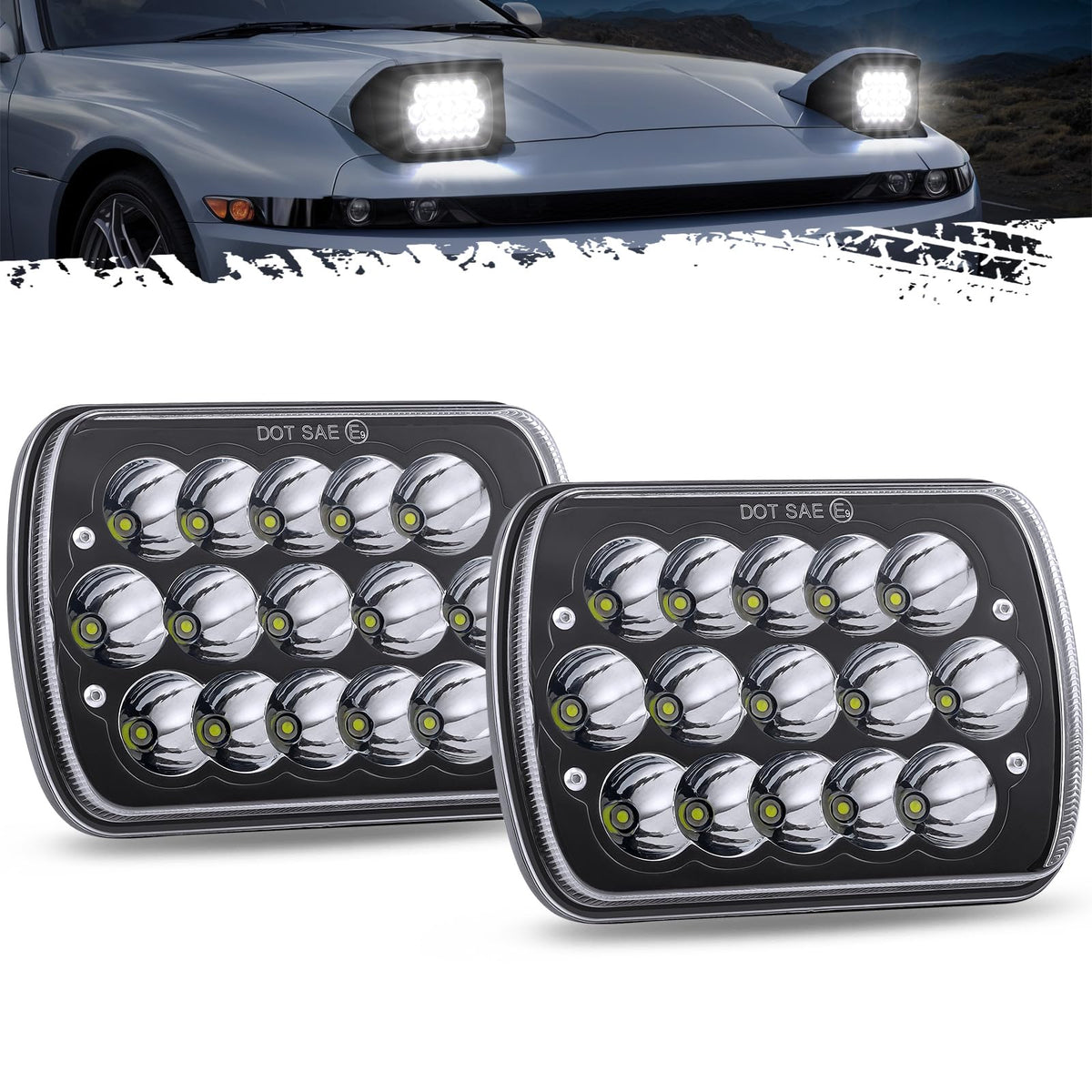

Partsam 2PCS H6054 7x6 (5x7) LED headlamps are plug-and-play sealed-beam replacements that deliver bright hi/low illumination, a durable aluminum body, and a modern DRL look for vehicles using 7x6 headlights.

Replace older sealed-beam lights without major wiring changes: these Partsam LED 7x6 headlamps (often called 5x7) pack 15 ultra-bright 3W LED chips per lamp, a PMMA lens, and an integrated heatsink with breathing holes to manage moisture and temperature. Rated for up to 50,000 hours and offering a daylight color temperature near 5000–6000K, they provide clear road illumination and an updated appearance for Jeeps, trucks, SUVs, and classic vehicles that accept H6054-style lamps.

How bright are these LEDs compared with stock sealed-beam lights?

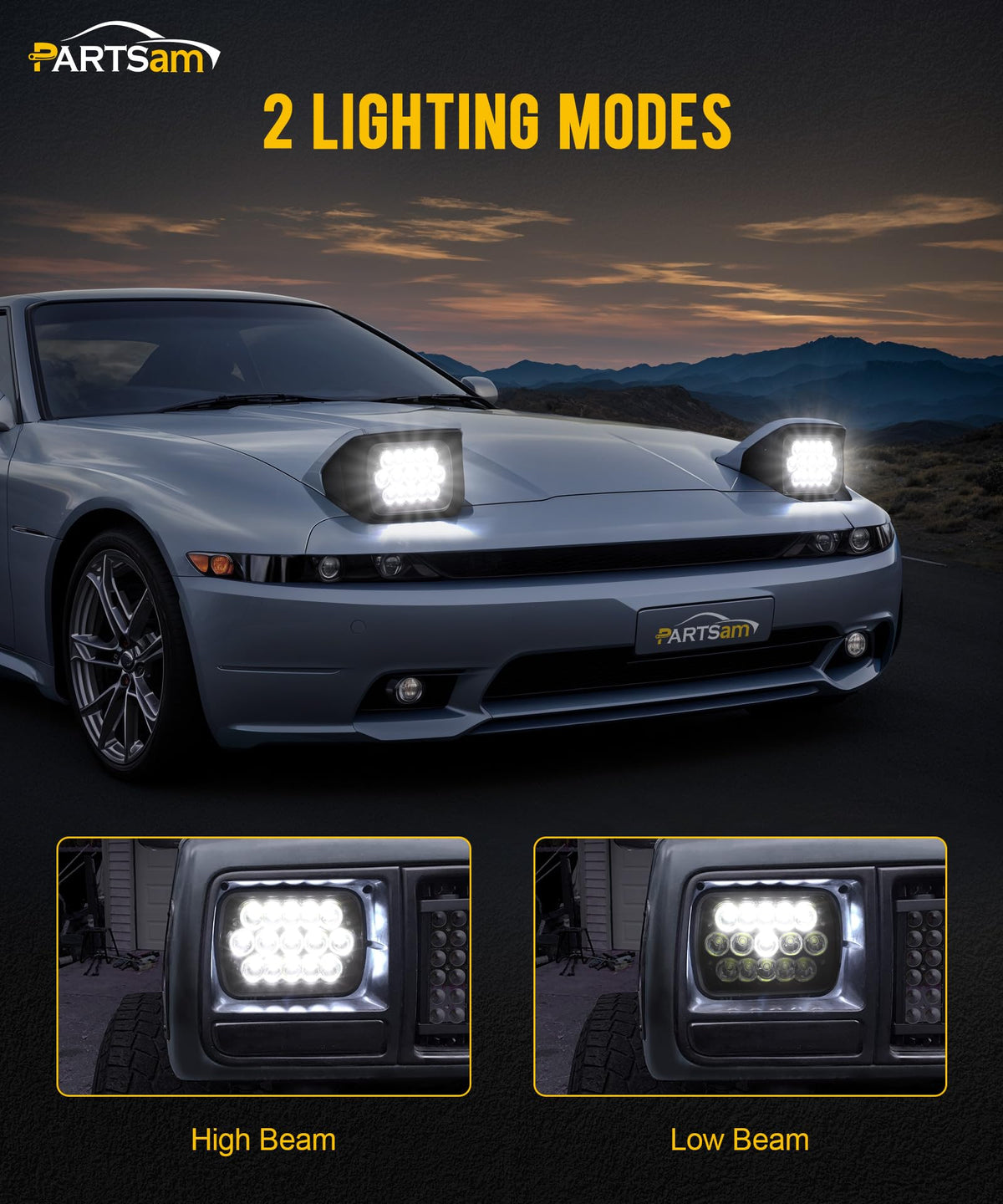

These Partsam lights separate low and high beam output while using the same sealed-beam footprint. The high beam produces up to 6000 lumens and the low beam about 2500 lumens, giving a noticeable boost over many halogen sealed-beam units.

• High beam: ~6000 lumens for long-range visibility
• Low beam: ~2500 lumens for cut-off style near-field lighting
• Color temperature: 5000–6000K for crisp, white illumination
• 15 × 3W LED chips per lamp for even light distribution

Will these fit my vehicle without cutting or modifications?

Partsam designed these to be drop-in replacements for most vehicles that use 7x6 / 5x7 sealed beam lamps, including many older Jeeps and trucks. Fitment covers H6054 and equivalent part numbers, but pin-outs can differ between models, so a minor pin rearrangement or relay harness may be required on some vehicles.

• Compatible with H6054, H6054LL, 6054, H5054 and similar
• Fits ~95% of vehicles using 7x6 sealed beams
• Plug-and-play on most models; relay harness recommended if pin-out differs

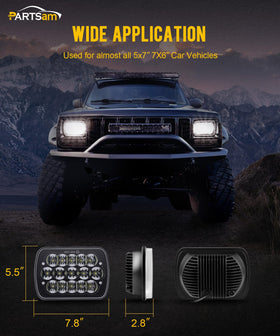

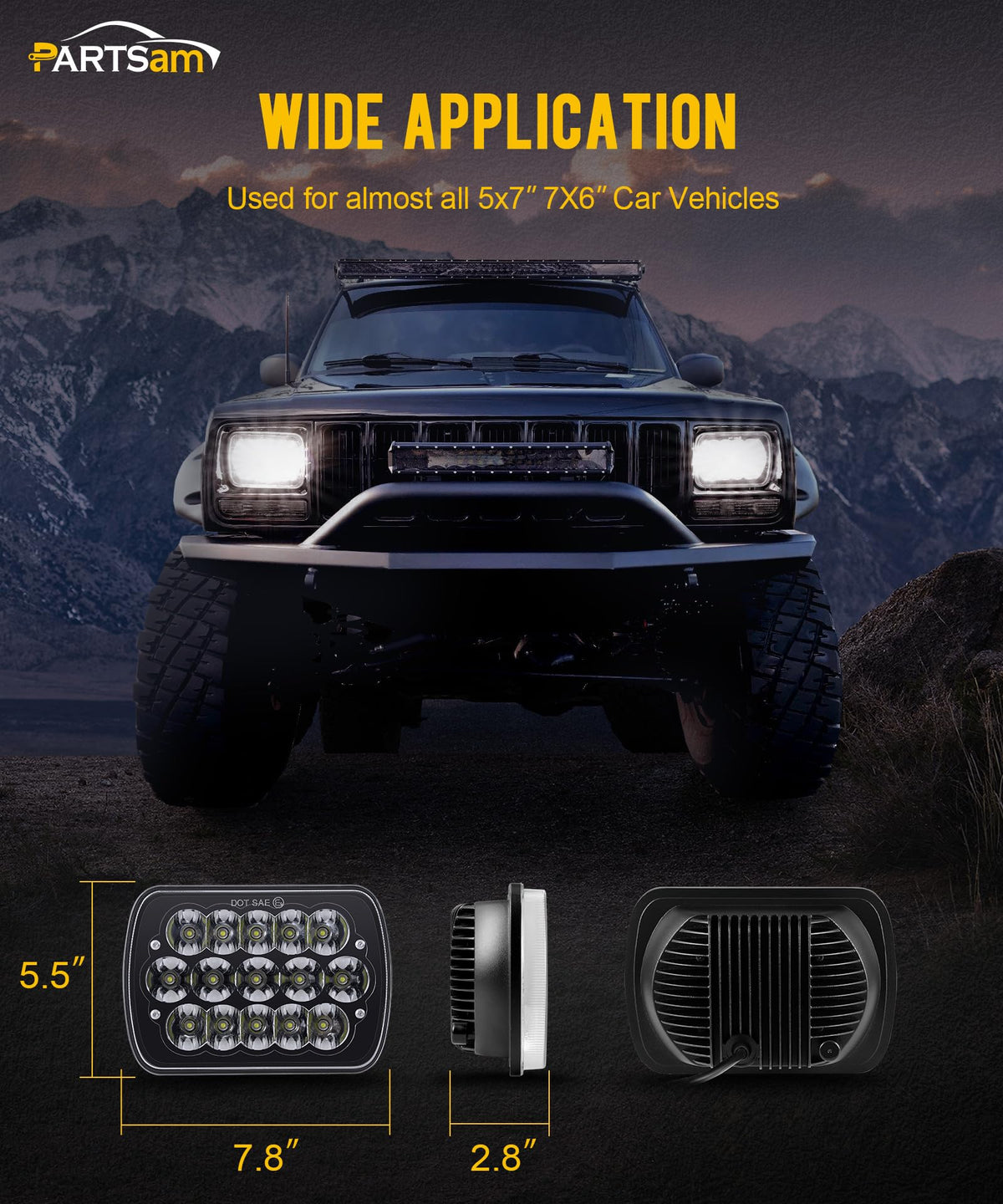

• Compact dimensions: 7.87" × 5.5" × 2.75" (L×W×D)

How durable and weather-resistant are the lamps?

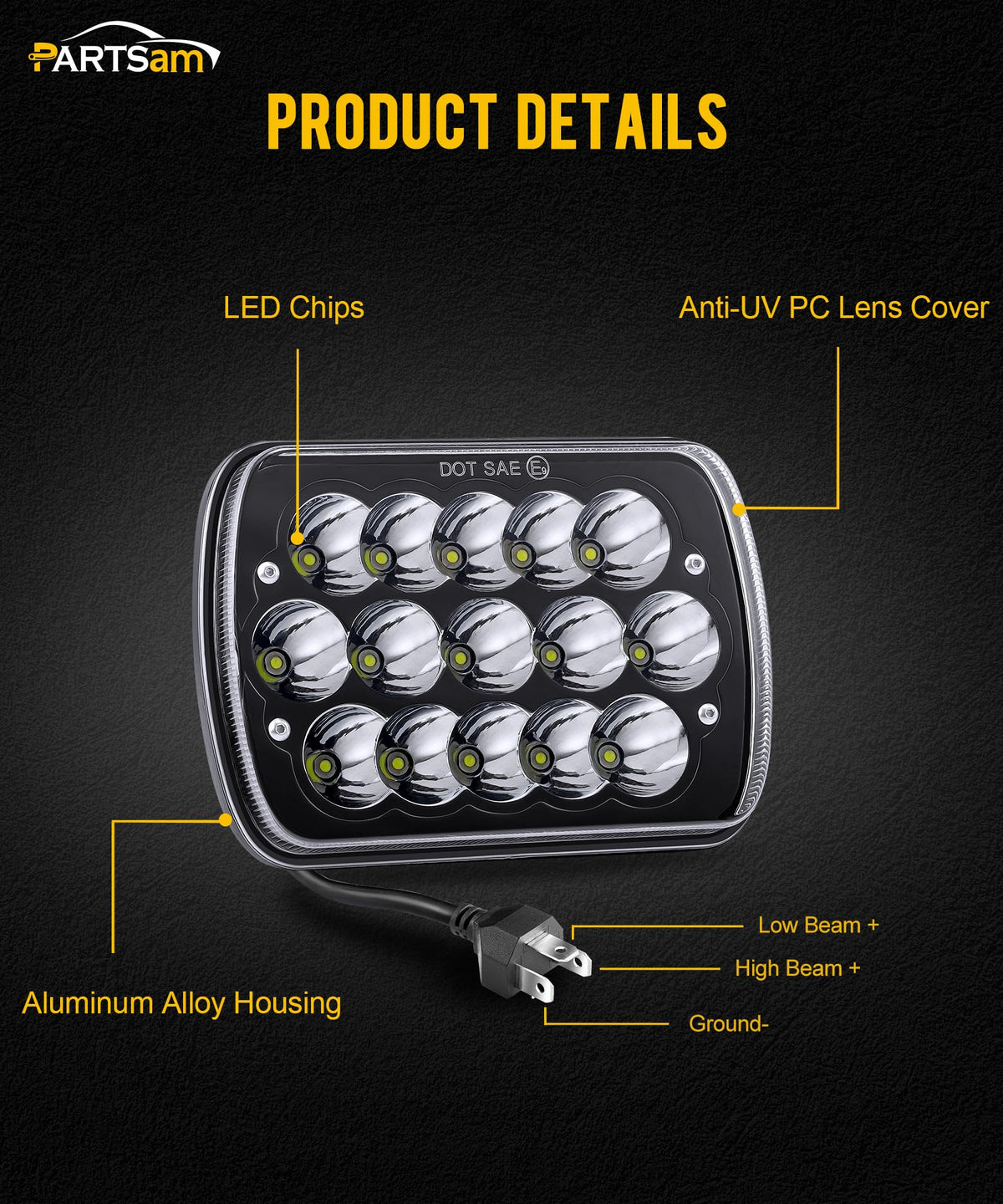

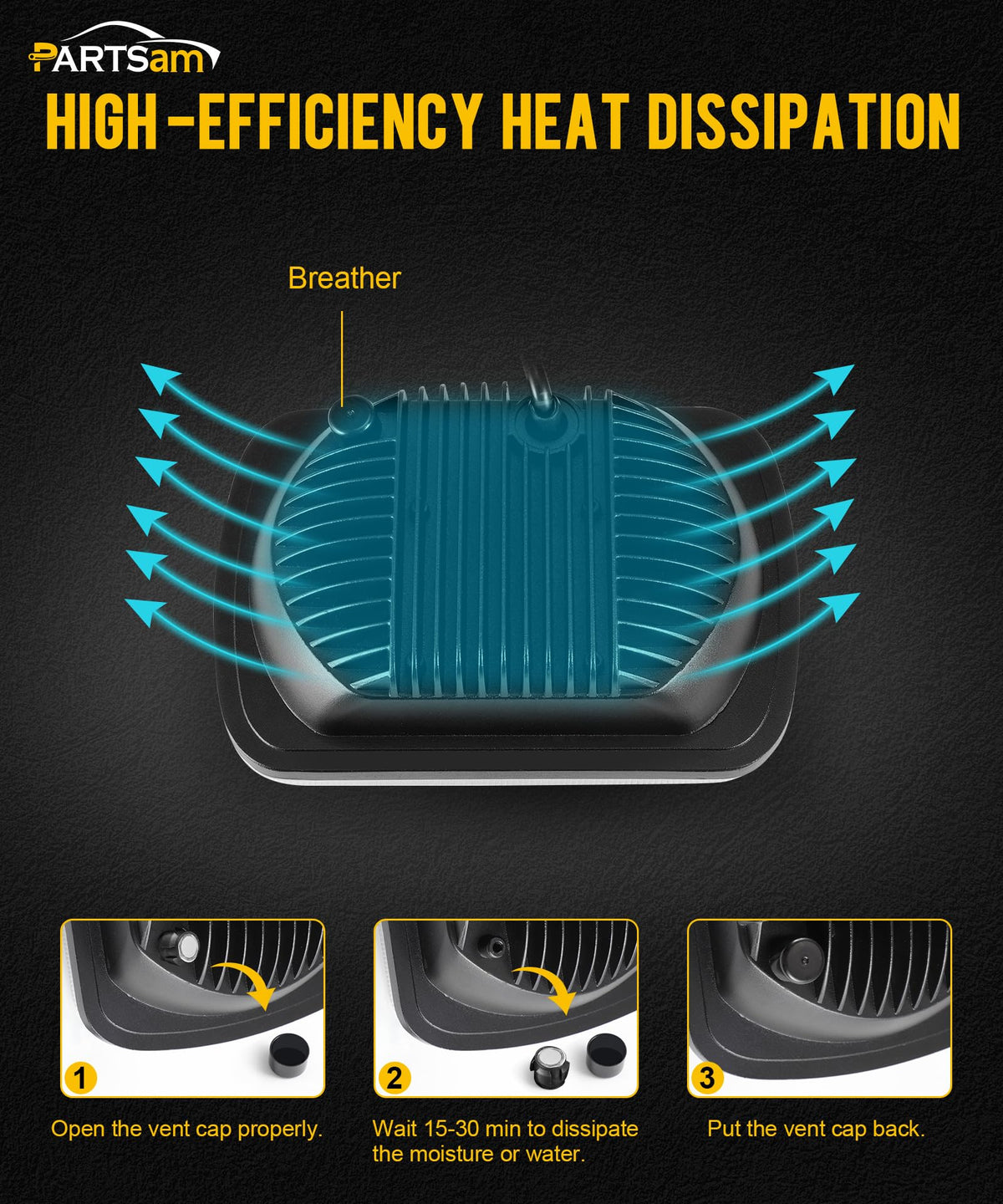

The lamps combine an aluminum shell and heatsink with a PMMA lens and a breathing-hole design to manage moisture and heat. The breathing holes allow trapped condensation to escape, helping prevent fogging and preserving LED longevity under real-world conditions.

• Durable aluminum housing and integrated heatsink
• Breathing holes to expel moisture and reduce internal fogging
• Lens material: PMMA for optical clarity and impact resistance
• Estimated life: up to 50,000 hours under normal use

What installation tips should I know before buying?

Installation is straightforward for most owners, but check your vehicle's connector pin-out first. If your factory harness uses a different pin order for low/high/ground, rearranging pins or using a compatible relay harness will fix the issue without major splicing.

• Check existing headlight pin-out (low/high/ground) prior to installation
• If needed, search for Partsam H4 9003 relay harness for improved compatibility
• Standard 7x6 mounting makes physical swap simple in most applications
• Packaged as a pair (2PCS) so both sides can be upgraded together

Who is this for: Partsam 7x6 H6054 LED headlamps are aimed at owners of classic or off-road vehicles, older pickups, and Jeeps (Wrangler, Cherokee XJ, YJ, etc.) who want a brighter, whiter beam and a modern DRL appearance without a full rewiring job. They suit DIY installers who prefer a mostly plug-and-play swap but are comfortable checking pin-outs or adding a simple relay harness when necessary.
