Partsam Double-Face LED Pedestal Lights 2-Pack, Clear Lens 48-LED Dual-Function 10–30V

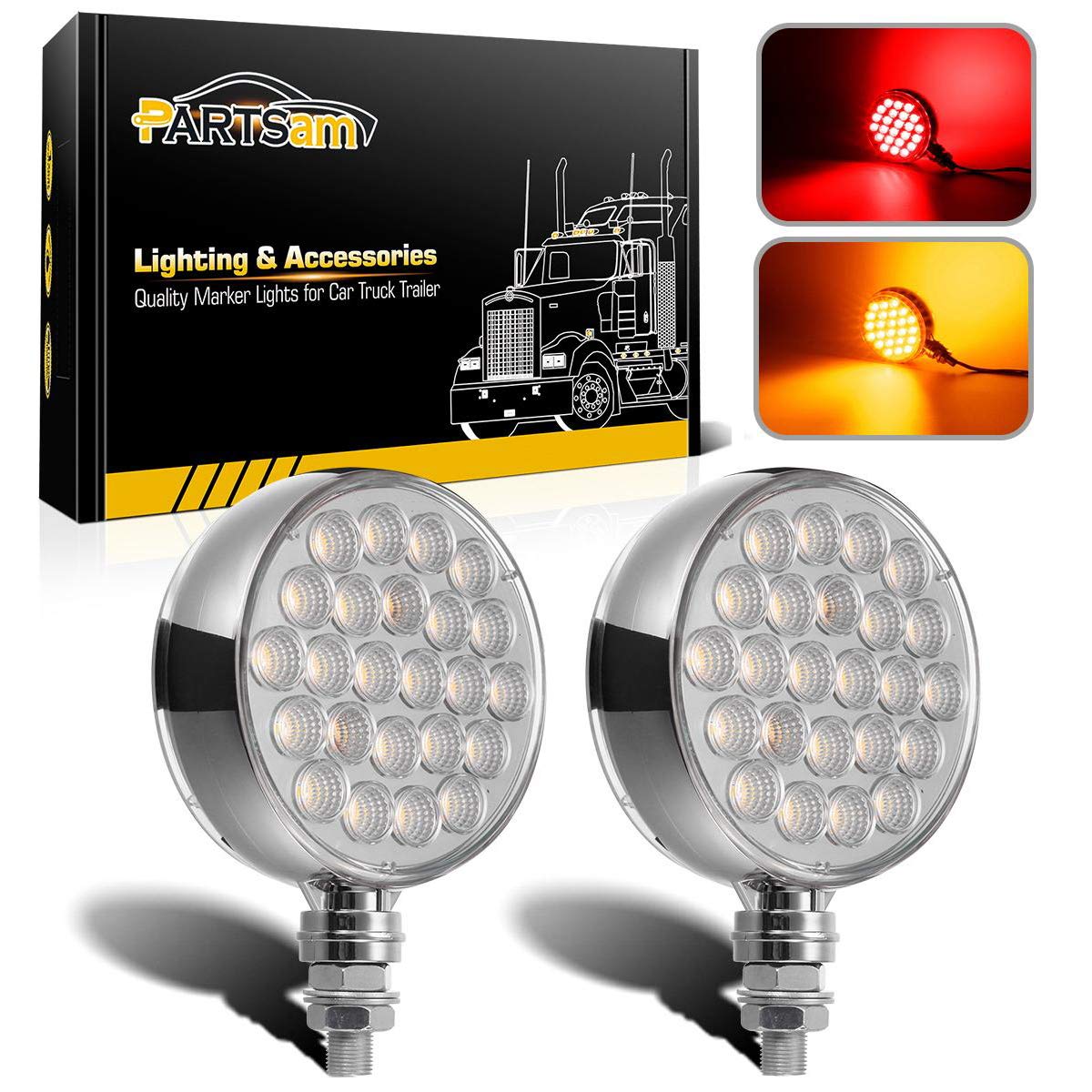

Partsam 2-piece double-face round LED pedestal lights are a compact, sealed fender-mounted solution combining amber front-facing and red rear-facing LEDs for stop/turn/tail and marker functions on trailers and trucks.

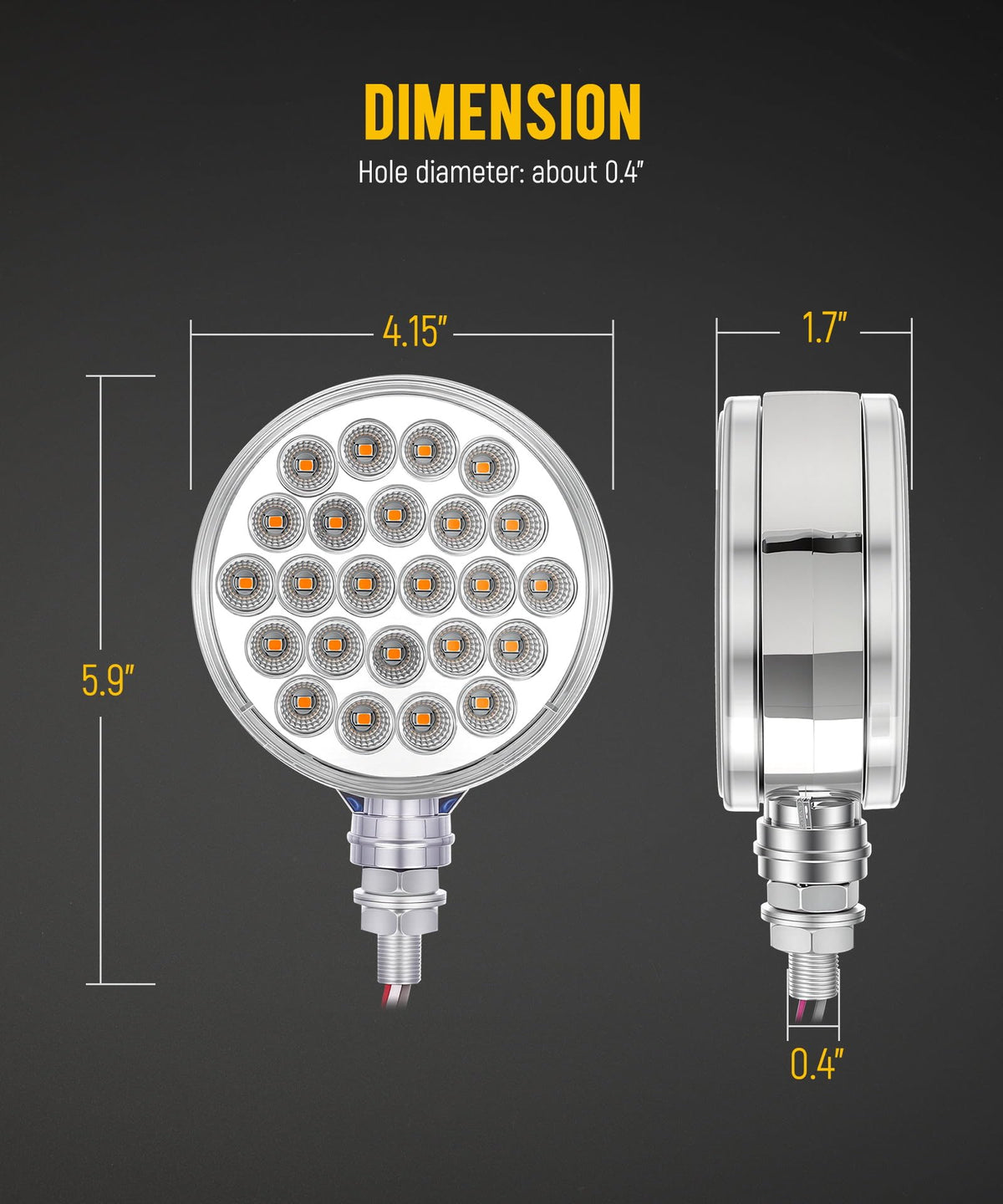

These 4.15" diameter dual-sided pedestal lights are built to replace traditional round fender lamps while adding higher-efficiency LED illumination and multi-function capability in the same footprint. Each lamp houses 48 LEDs (24 red + 24 amber) behind a clear lens with a chrome die-cast housing and Miro-Reflex faceted reflector. They are designed to operate across 10–30V DC with a simple three-wire hookup for ground, low, and high brightness circuits, making them suitable for a wide range of trailers, trucks, RVs, and utility vehicles.

How do these lights handle multiple functions on a single mount?

Each pedestal lamp is double-faced, delivering amber light forward and red light rearward so a single fixture covers marker/turn and stop/tail duties depending on orientation. The design simplifies wiring and keeps vehicle sides tidy with fewer separate housings required.

• Clear lens with chrome housing separates amber and red outputs cleanly.
• Three plain wires: white = ground, gray = low brightness, red = high brightness.
• Low amp draw LEDs support parking, rear turn, stop, and tail functions.
• Universal single stud post mount for easy replacement installation.

Will these work with my vehicle’s electrical system and voltage range?

Yes — the lights accept 10–30V DC, covering standard 12V automotive systems up to 24V heavy-duty applications. Their low current consumption reduces load on wiring and controllers while maintaining bright, consistent output.

• Operates across 10–30V DC, compatible with 12V and 24V systems.
• Separate low/high brightness connection for tail versus stop signals.
• Sealed assembly helps prevent moisture-related voltage issues.

How durable and weather-resistant are these Pedestal LED lamps?

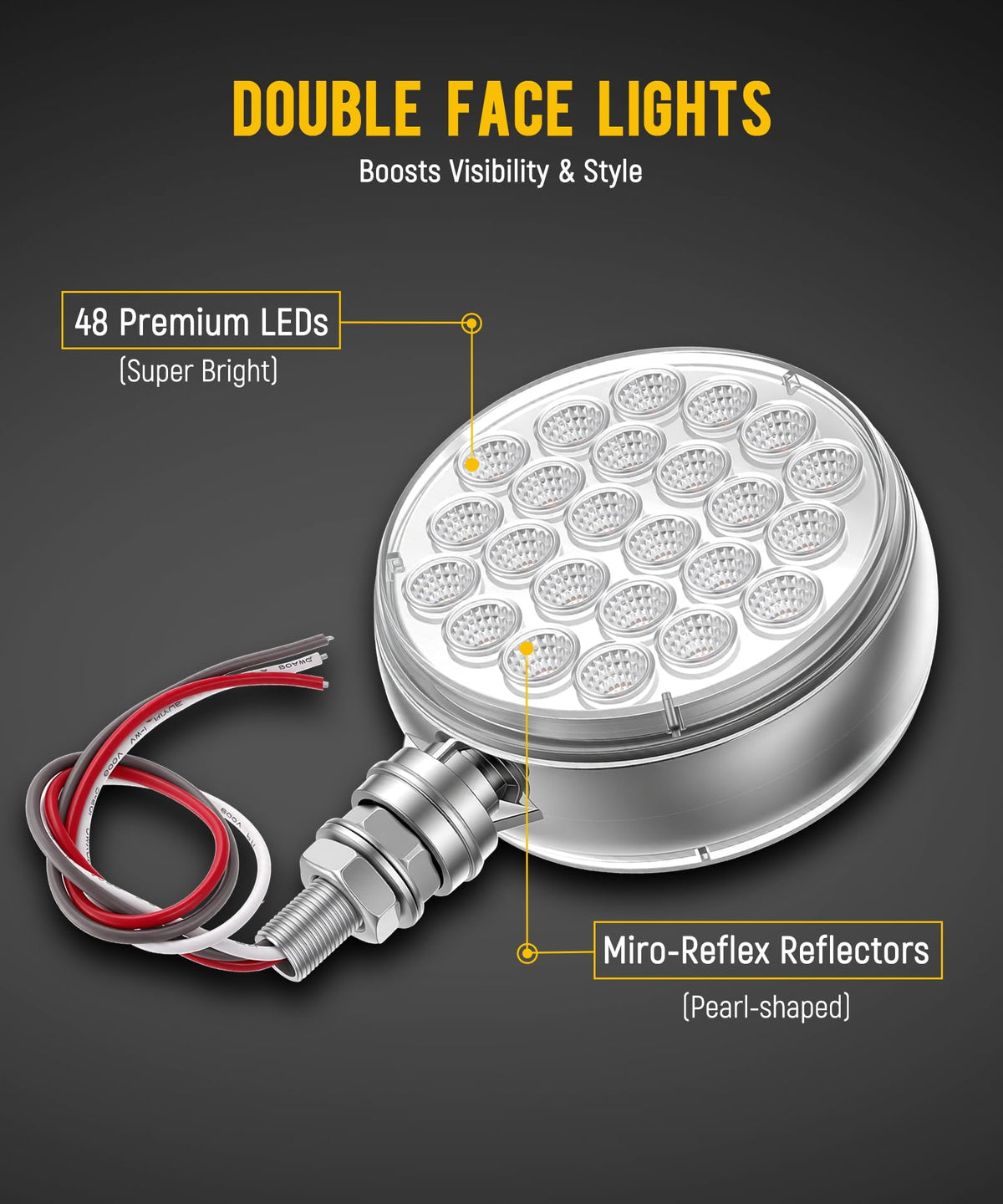

The die-cast chrome housing and sealed clear lens protect internal LEDs and the reflector from road debris and moisture. Miro-Reflex faceted reflector improves perceived brightness while the rugged hardware fits typical post-mount locations for long-term service.

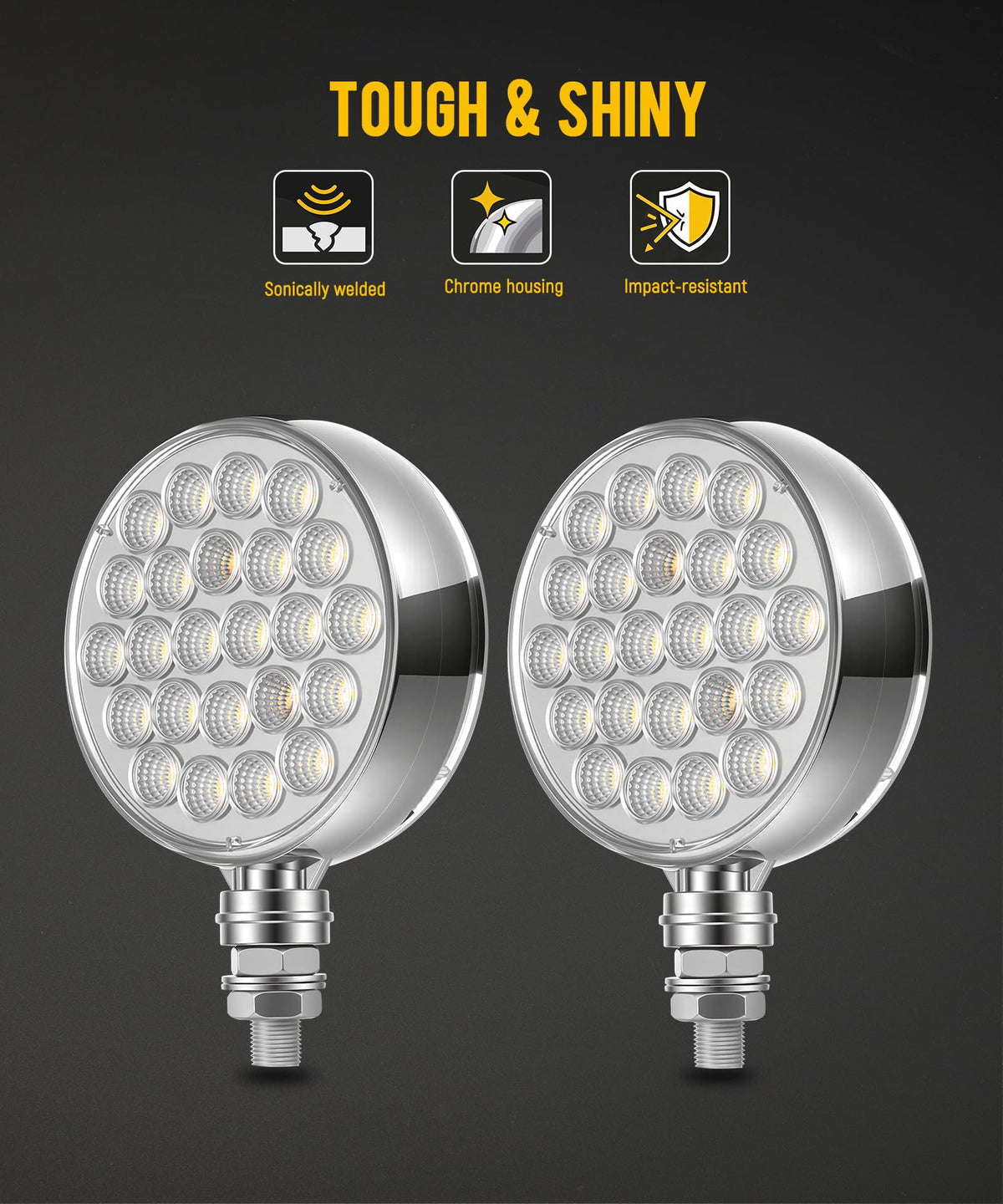

• Chrome die-cast housing resists impact and corrosion.
• Sealed lens prevents ingress of water and dust.
• Miro-Reflex reflector enhances light dispersion and visibility.

How straightforward is the installation and wiring?

Installation is plug-and-play for many applications using the universal single stud post mount and three-wire hardwiring scheme. You can mount these on fenders, bumpers, mirrors, or toolboxes with minimal modification when replacing like-for-like lights.

• Standard post stud mount fits most pedestal locations.
• Three-wire hookup labeled for ground, low, and high circuits.
• Clear/Red side serves stop, turn, and tail; Clear/Amber serves parking and turn.

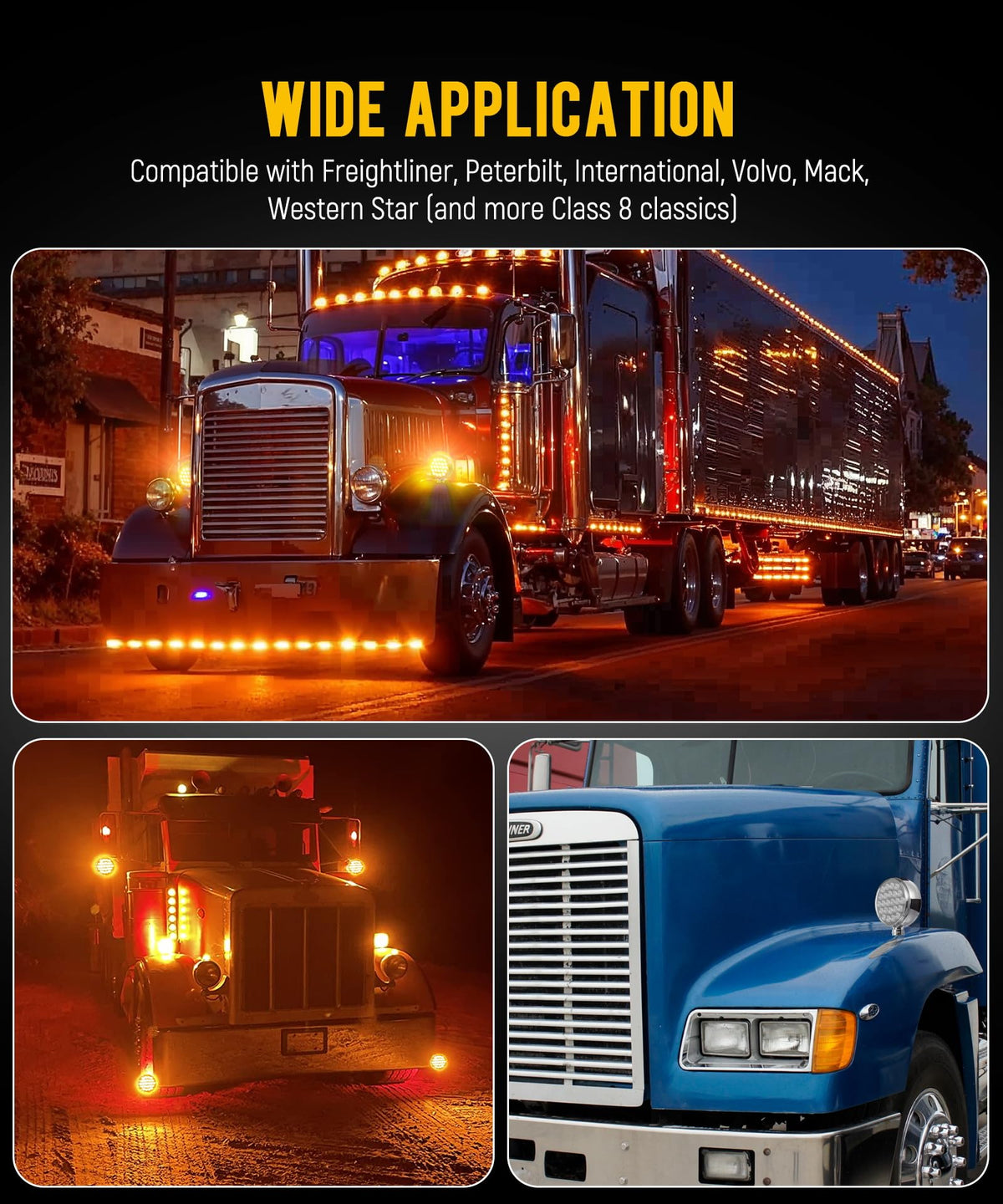

Who is this for: These Partsam double-face round LED pedestal lights suit fleet owners, trailer builders, RV and boat trailer owners, and anyone seeking a compact, multi-function replacement lamp that reduces part count and optimizes side visibility. They are particularly useful where a forward-facing amber marker and rear red signal are needed on the same mounting point, and where rugged, low-power lighting that covers 10–30V systems is required.
