Partsam Dual-Face Square Pedestal LED Turn Signal Lights Amber/Red Halo-Glow, DOT/SAE, 10-30V

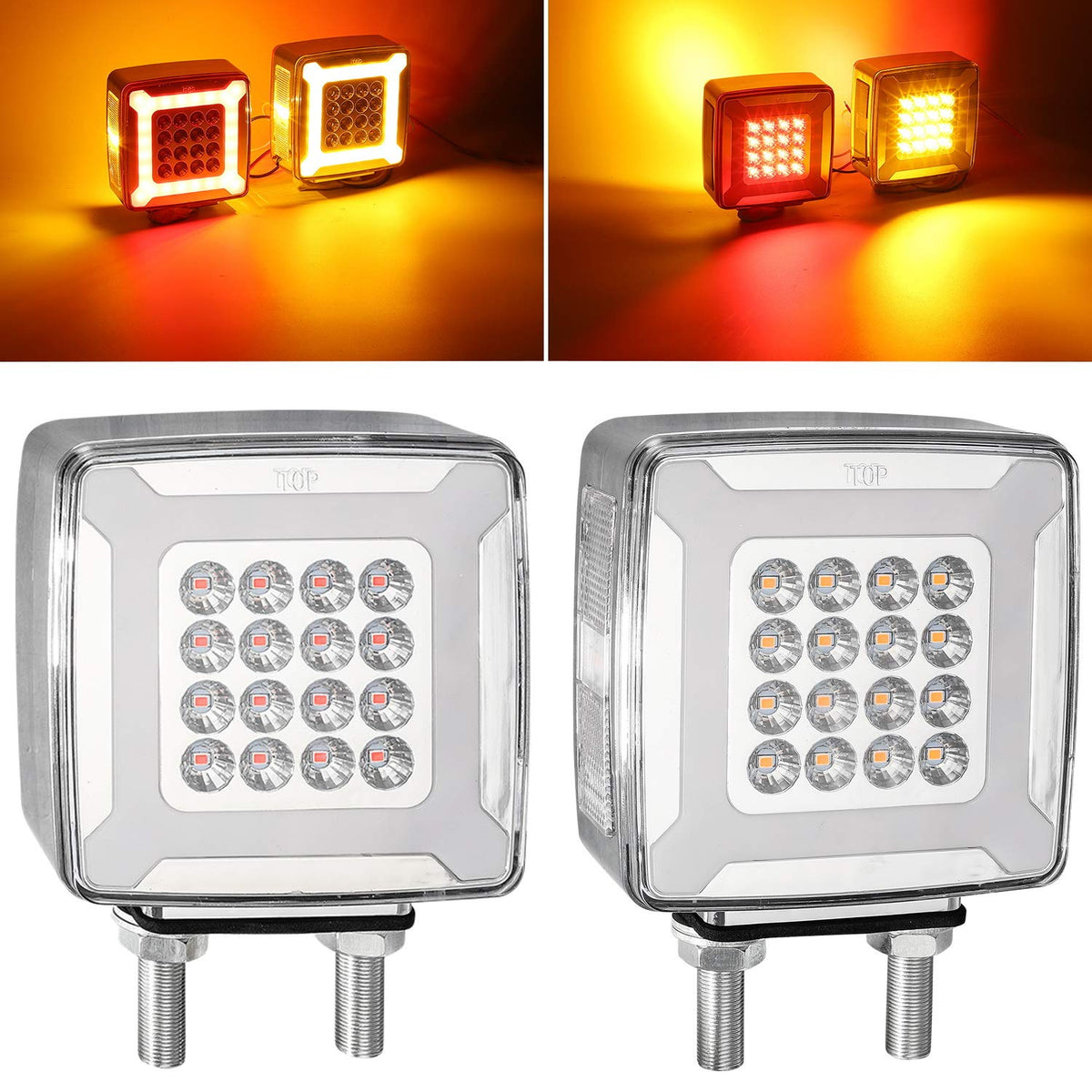

Partsam Dual-Face Square Pedestal LED Turn Signal Lights are compact, double-faced fender lamps that deliver halo running light plus full-bright stop/turn illumination in amber (front) and red (rear).

These square, pedestal-mounted lights combine a distinctive patented "Halo-Glow" ring with dense LED arrays to serve as turn, stop, tail, parking and side marker lamps on trucks, trailers, tractors and other heavy-duty vehicles. Each unit uses dual mounting studs and a three-wire connection for easy installation on 10–30V DC systems, and is DOT/SAE approved for on-road use.

How do these lights perform as running, turn and stop lights?

The Partsam design separates a halo-style running/parking circuit from a full-bright stop/turn circuit so you get smooth, visible running light and instant, maximum output when braking or signaling. All LEDs illuminate at brake/turn for clear, high-contrast indication; the halo remains steady at low output for marker visibility.

• 88 total LEDs create solid, uniform output for stop/turn functions.
• Halo-Glow ring provides amber running/parking light and smooth appearance.
• All LEDs light on brake/turn for maximum brightness and visibility.

What are the installation steps and electrical requirements?

Installation is straightforward: the lamp mounts with dual studs for secure pedestal attachment and connects via three wires — ground, halo (parking), and brake/turn. The unit accepts a wide voltage range so it works with common 12V and 24V vehicle electrical systems and many off-road or farm vehicles with 10–30V DC systems.

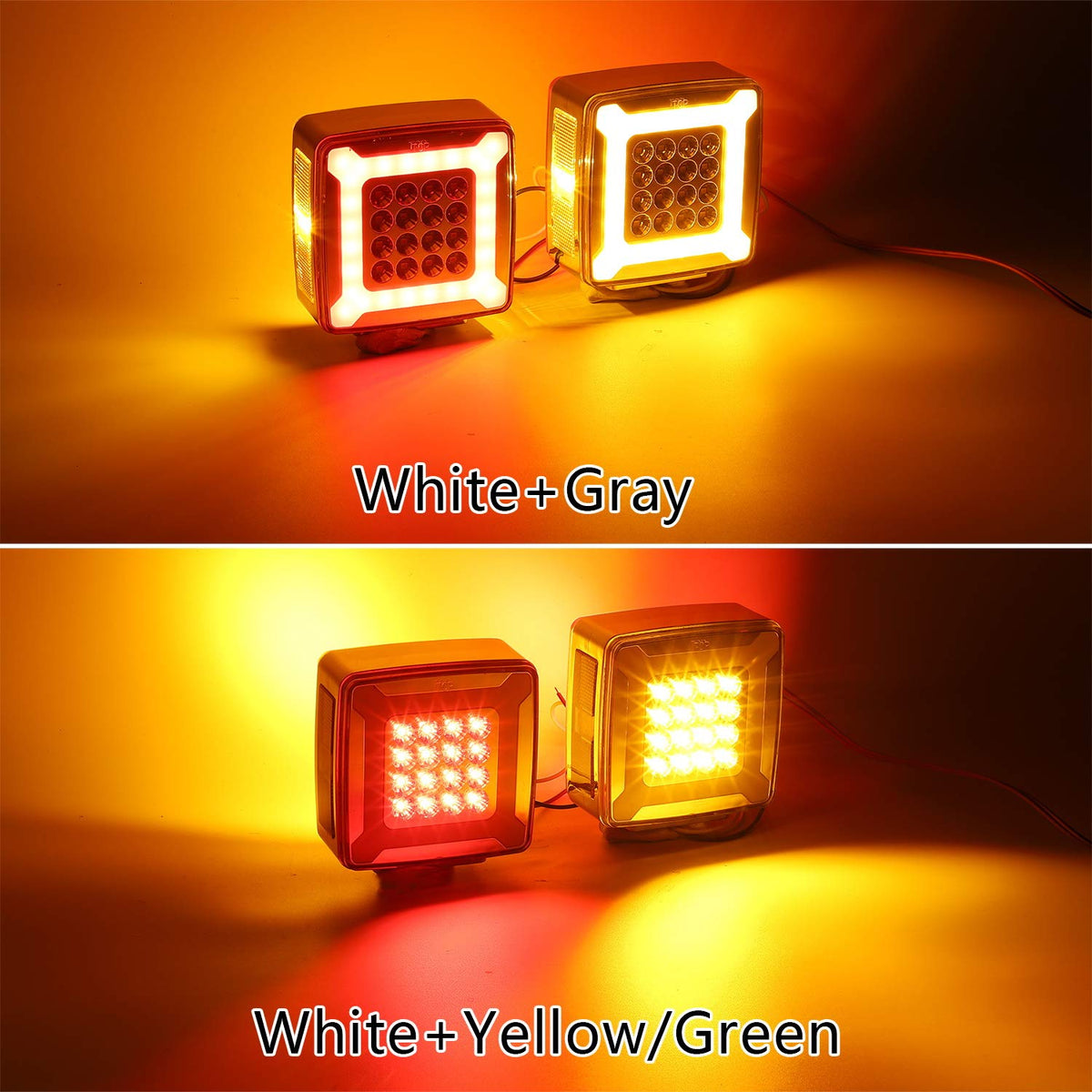

• Three-wire hookup: white = ground, gray = parking/halo, yellow/green = brake/turn.

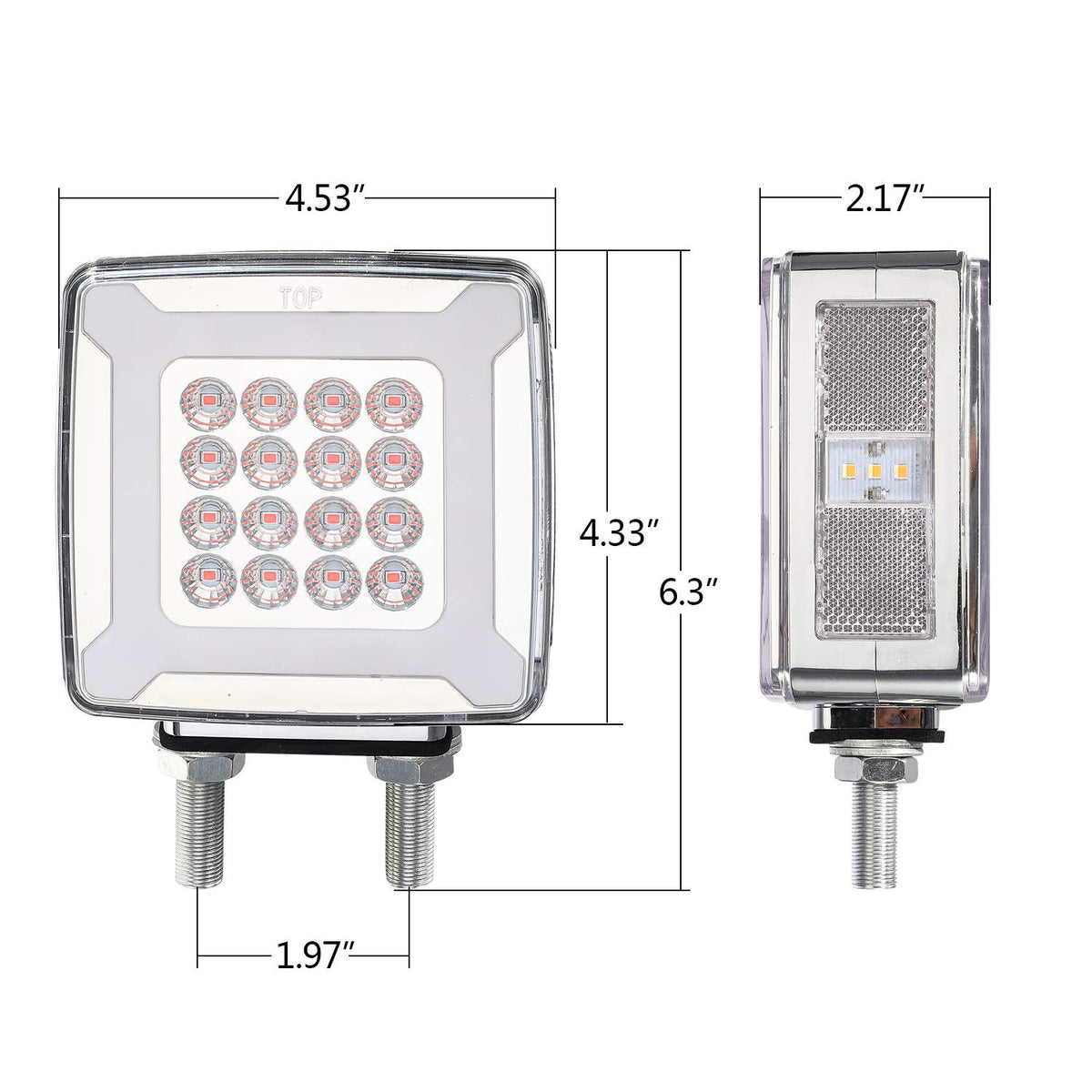

• Dual studs enable up/down or 90–180° rotation for directional mounting.
• Rated for 10–30V DC; compatible with 12V and 24V systems.

What mounting options and orientations are supported?

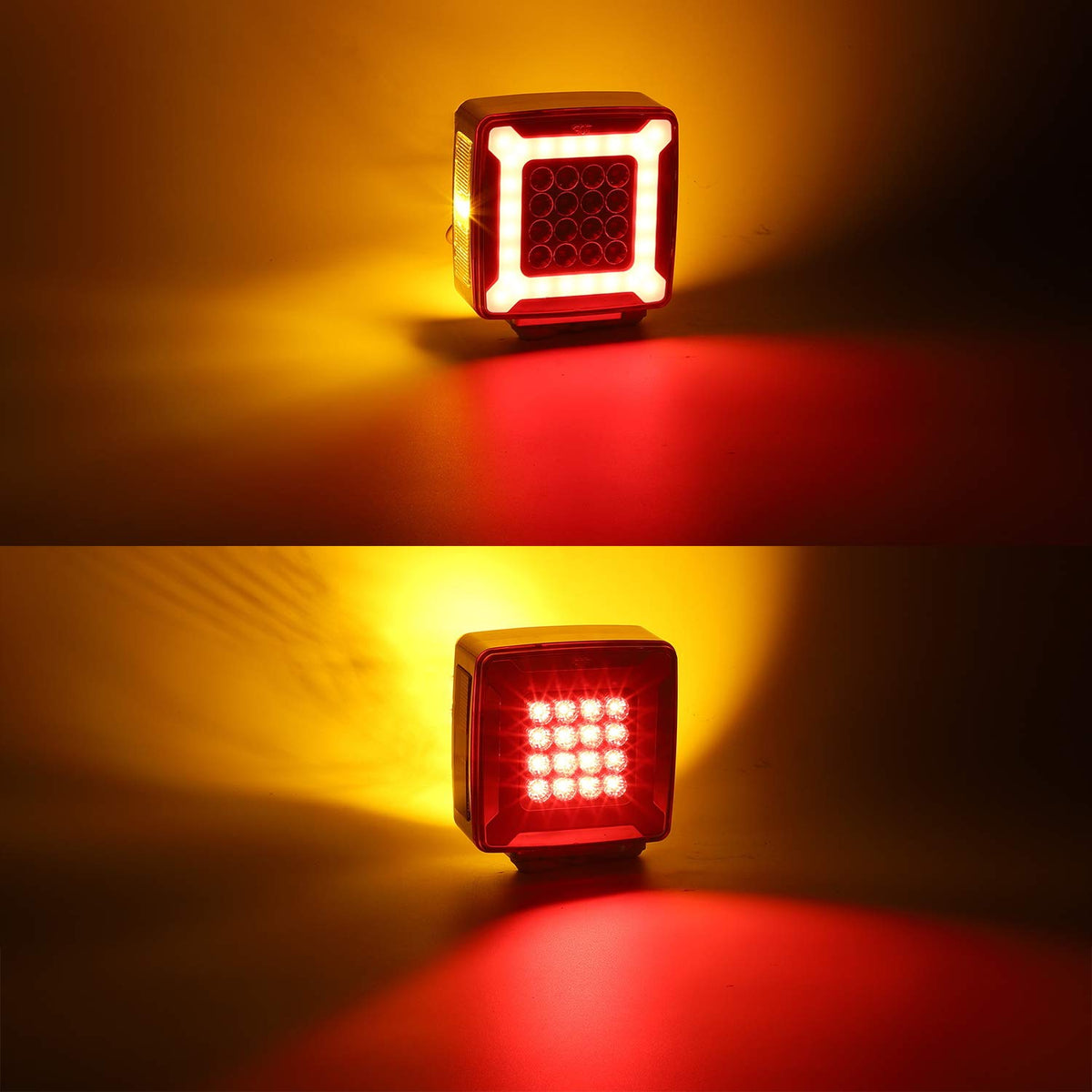

The pedestal design with two studs lets you orient the light for the best visibility and fit: rotate the lamp 90° or 180° to aim amber or red faces appropriately for front or rear mounting. The unit also includes a built-in reflex reflector, eliminating a separate reflector requirement in many installations.

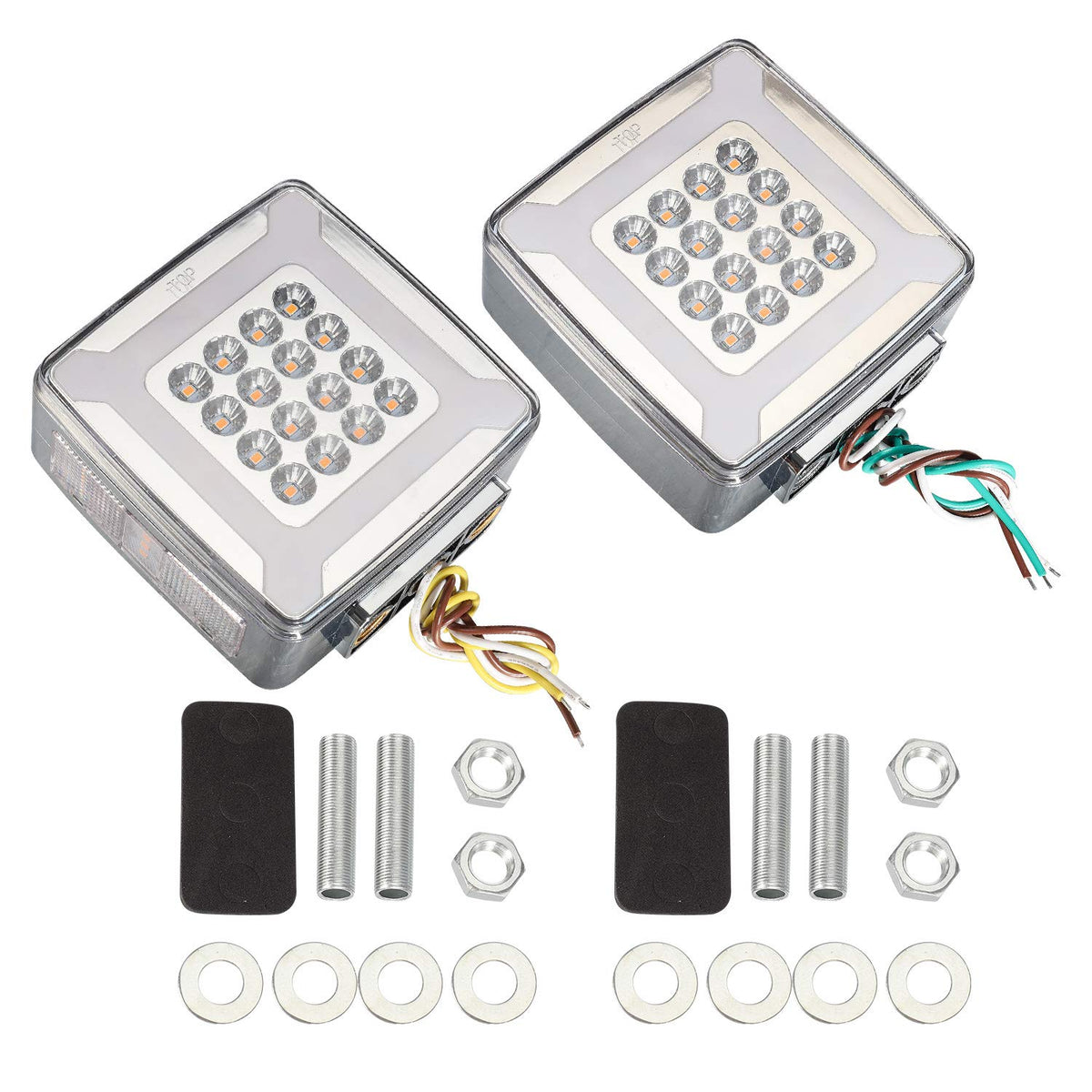

• Dual-stud pedestal mount secures lamp to fenders or brackets.
• Multi-directional mounting supports up/down and sideways rotation.
• Built-in reflector reduces extra hardware and simplifies fitting.

Are these lights durable and road-legal?

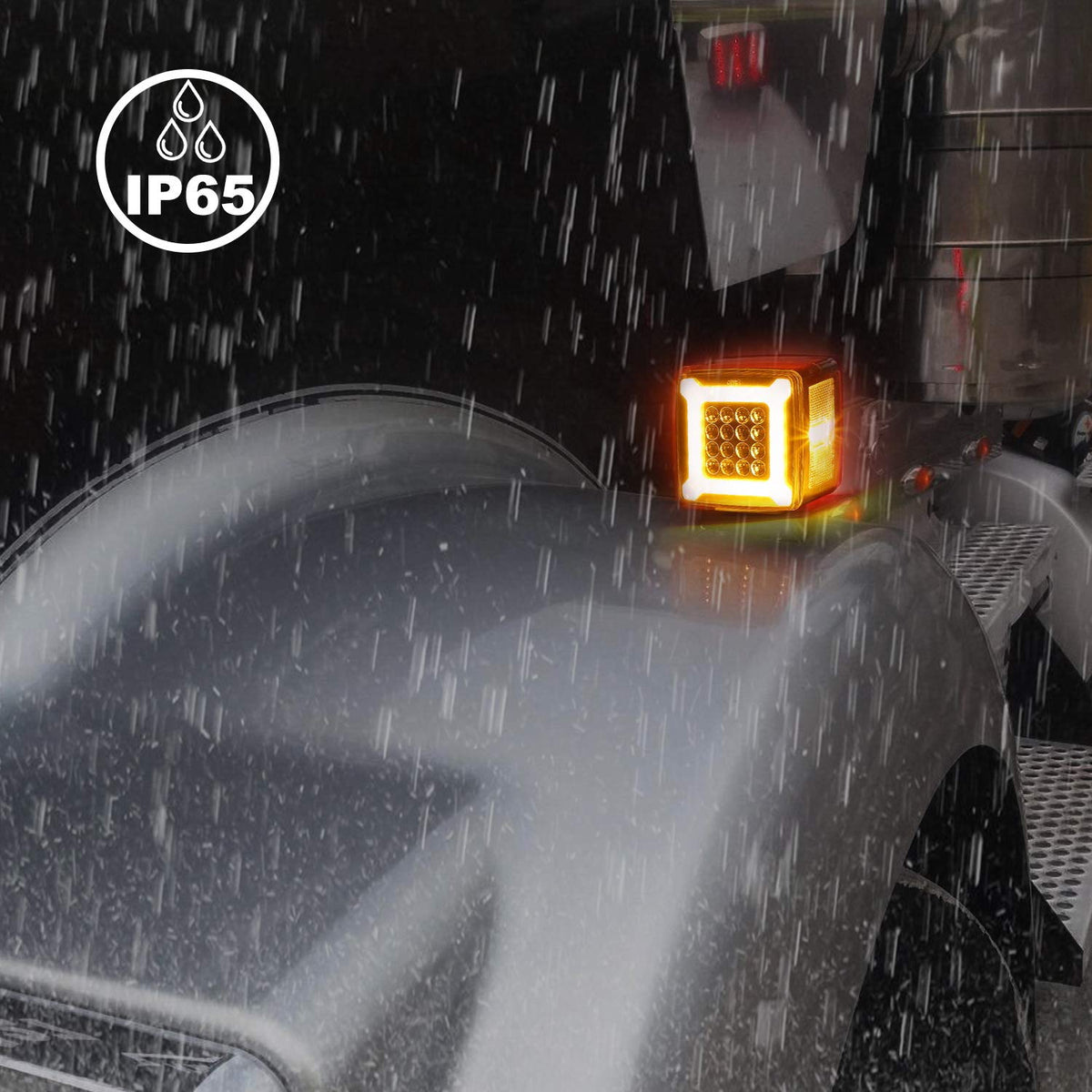

Partsam engineered these LED lamps for heavy-duty environments with high-quality LED chips and rugged housings designed for truck, trailer and farm use. They meet DOT and SAE approval standards for automotive lighting, which helps ensure compliance when replacing or upgrading fender and marker lights.

• DOT SAE approved for on-road use where required.
• High-density LED array resists failure and maintains consistent output.
• Sturdy pedestal and sealed construction for outdoor durability.

Who this is for: These Partsam Dual-Face Square Pedestal LED lights are ideal for fleet operators, trailer owners, agricultural equipment users and DIY mechanics who need compact, versatile fender or marker lamps that combine a distinctive halo running light with full-bright brake and turn functions. If you want an easy-to-install, visibility-focused lighting upgrade for trucks, trailers, vans, tractors or other 10–30V vehicles that keeps installation simple and meets DOT/SAE standards, these lamps are a practical choice.
