Partswcgg 4-inch Round LED Trailer Tail Light Kit — Four 24-LED Red + Two Clear Reverse, IP65 Flange-Mount Chrome Bezel

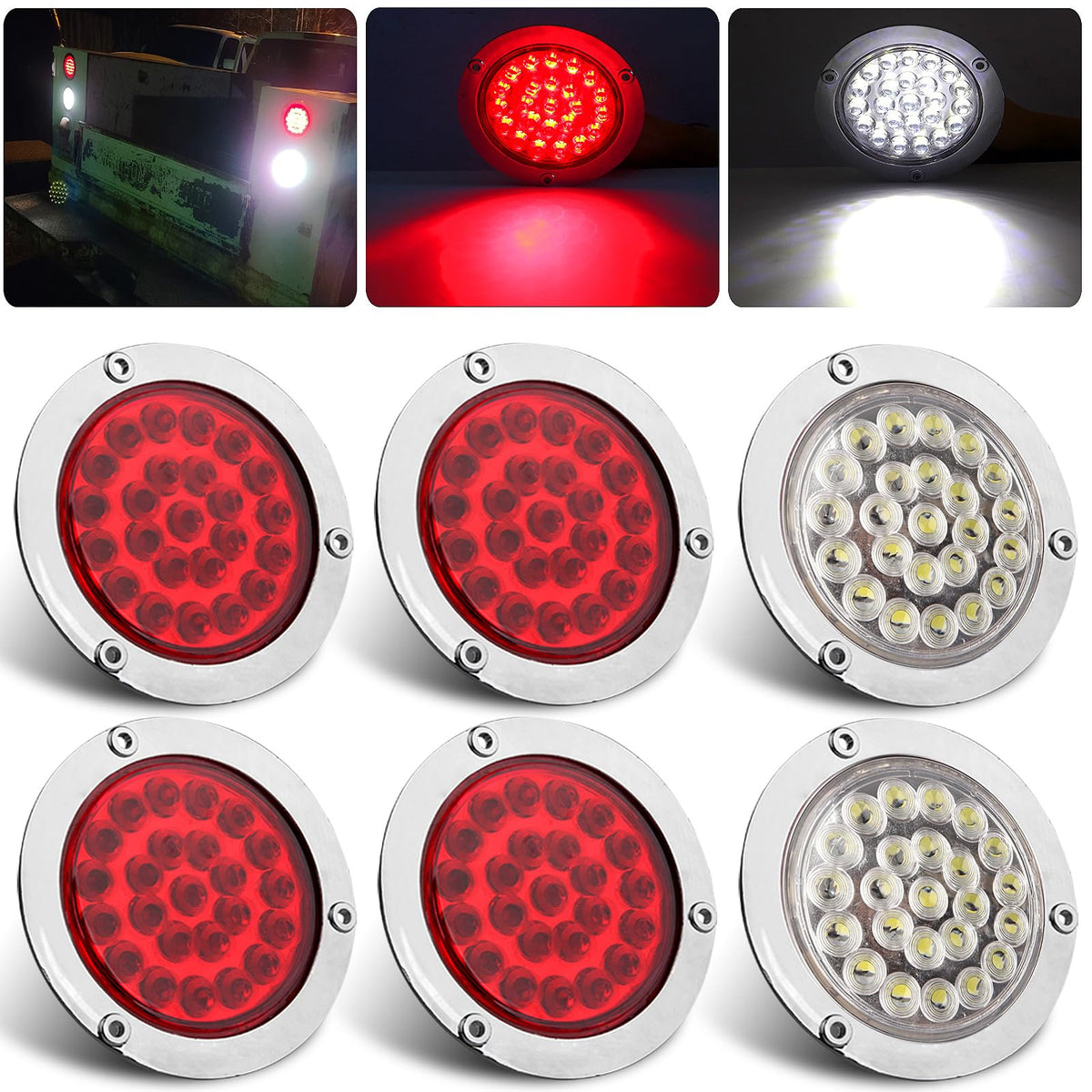

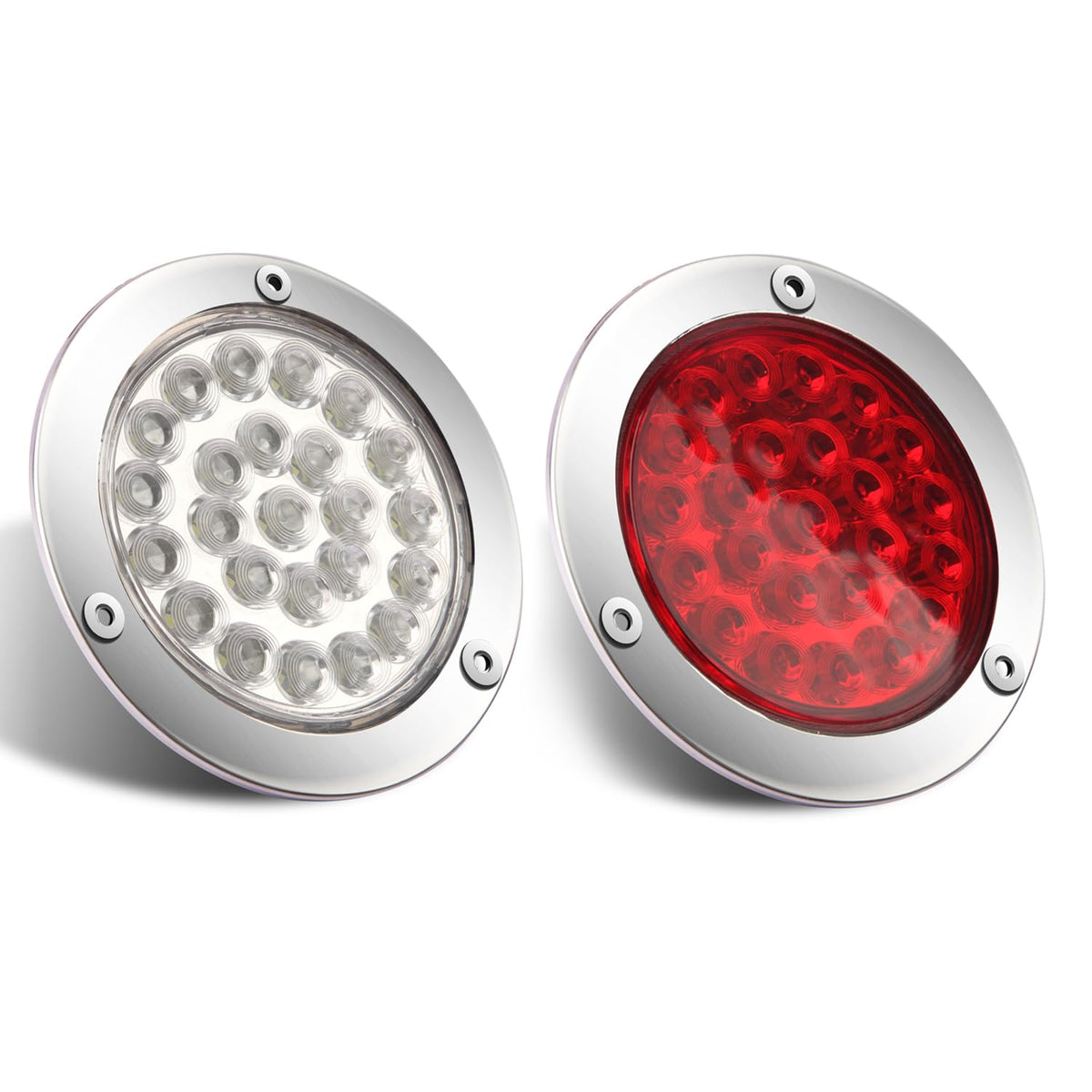

Partswcgg 4" round LED trailer tail light kit is a six-piece, flange-mount lighting set combining four 24-LED red stop/turn/tail lamps and two clear reverse lamps for 12V trailers and trucks.

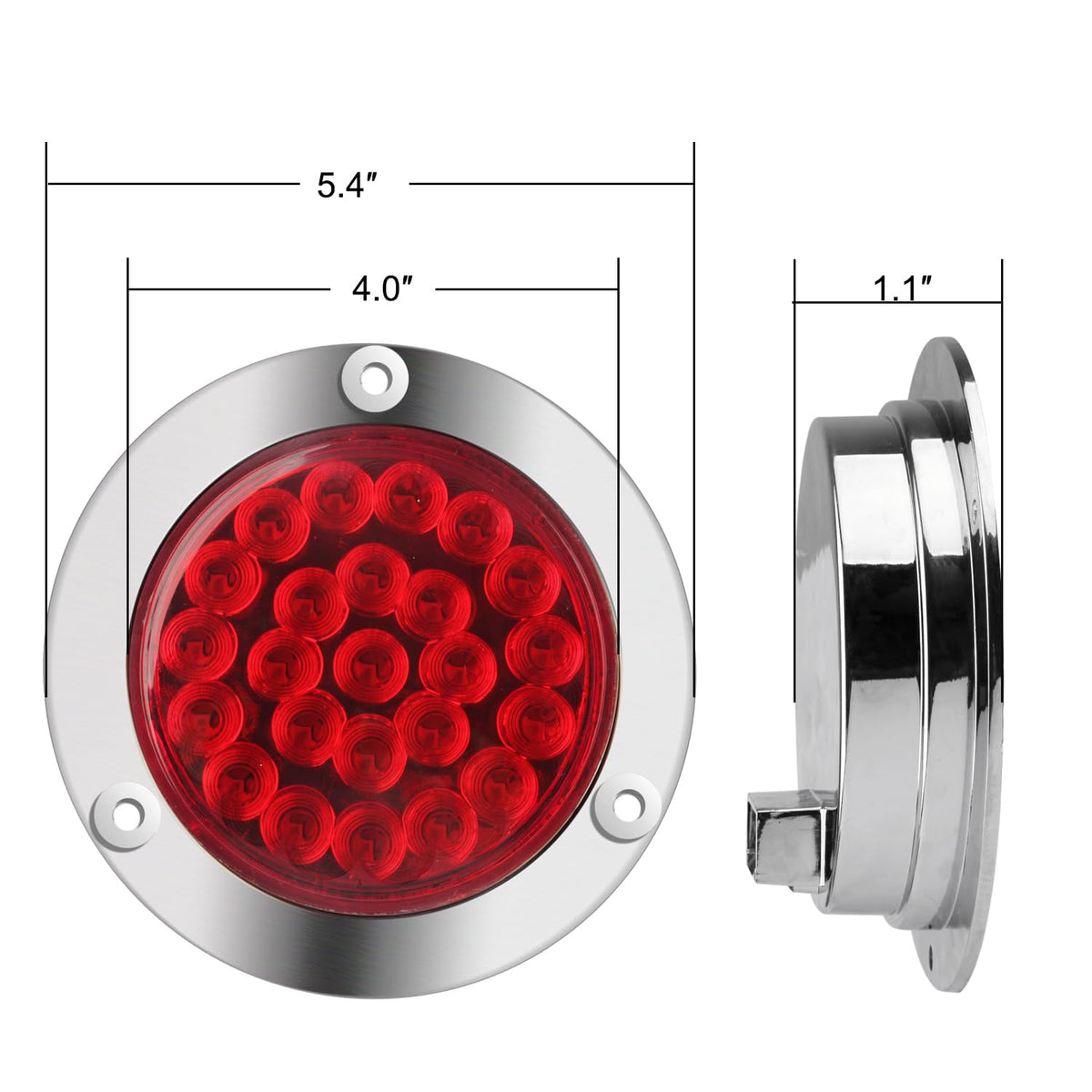

This kit supplies compact, waterproof exterior lighting built with durable polycarbonate lenses and chrome plastic bezels for a clean, low-profile look. Designed to flange-mount to trailer bodies, the lights have a 5.4-inch outer ring with a 4-inch inner lens, and they deliver multiple rear-light functions — brake, turn, running/tail, and backup — in a single installation. The lights are IP65-rated against spray and dust and are wired for straightforward hardwired connections to existing 12V vehicle systems.

How will these lights simplify installation on a trailer?

These flange-mount lamps are pre-assembled with built-in chrome bezels so you only need to drill the mounting hole, secure the flange, and connect the wires. The wiring colors are standard for easy matching to common trailer harnesses, reducing guesswork during hookup.

• Drill-out diameter approx. 4.4 inches for the flange.

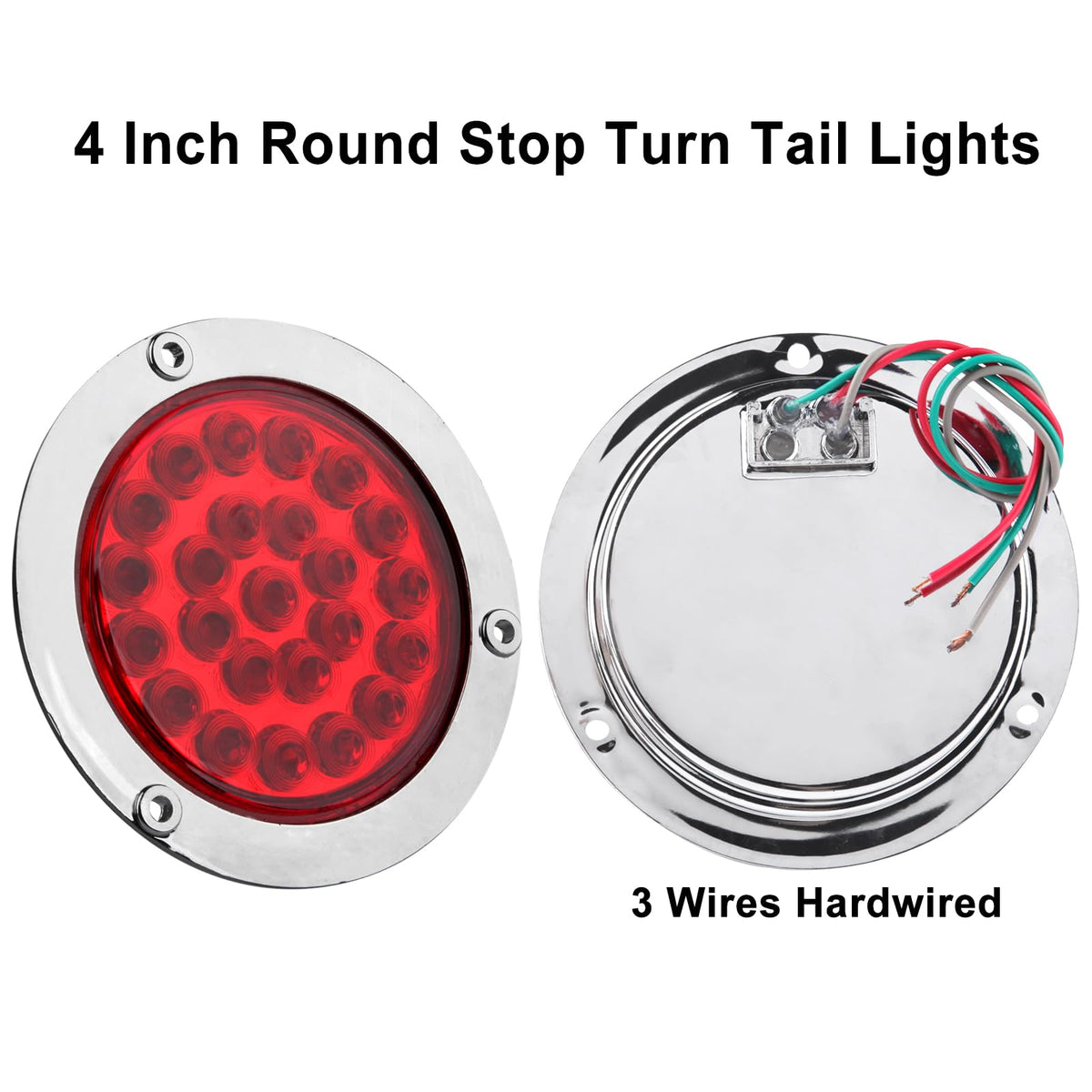

• Red lamp wiring: gray = ground, red = brake/turn/high, green = tail/running low.

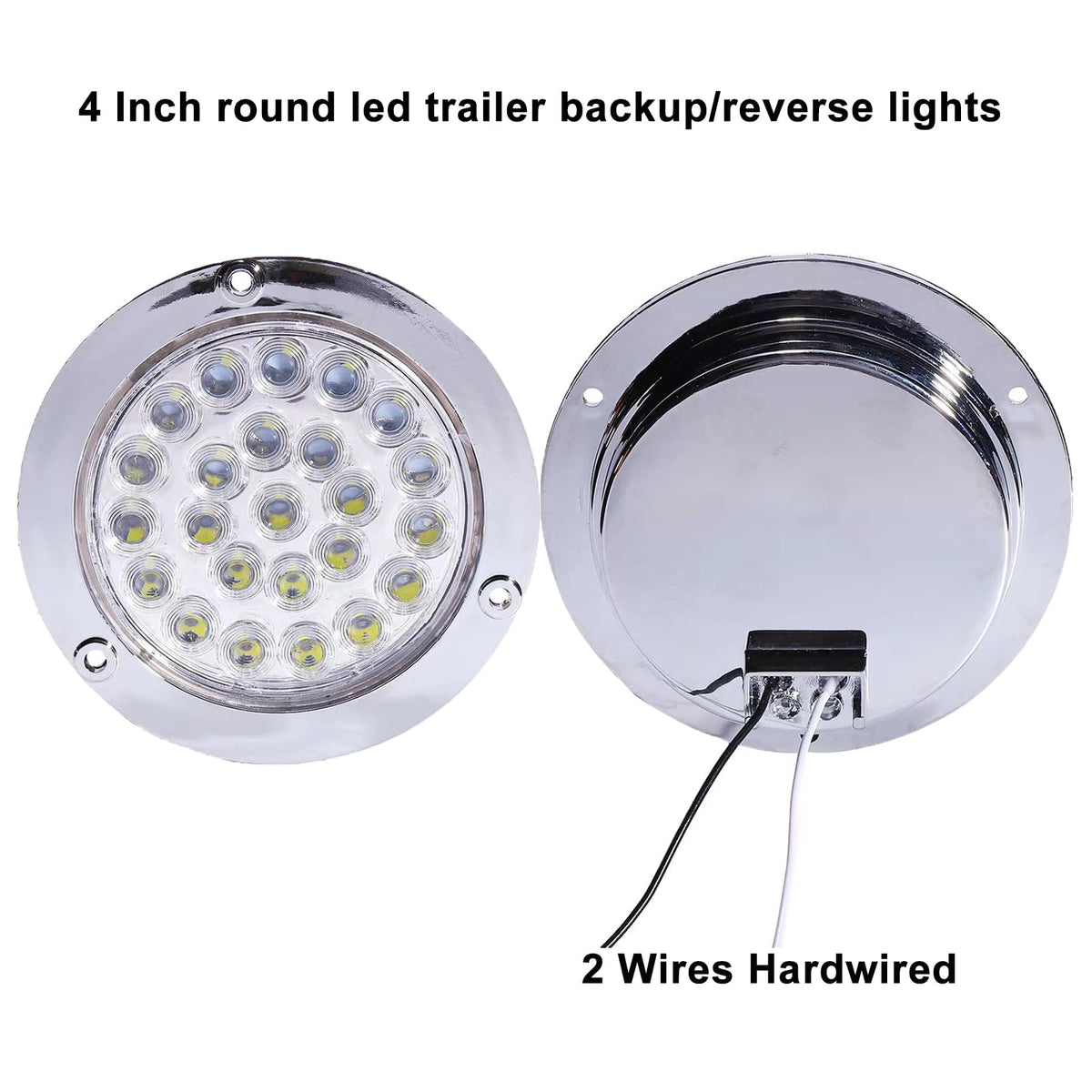

• Clear reverse lamp wiring: white = ground, black = positive reverse.
• Flange mount with included chrome plastic bezel for a finished edge.

What performance can I expect from the 24-LED tail lights?

The red lamps use 24 individual LEDs to produce bright, evenly distributed light for stop, brake, turn, and tail functions, while the clear lamps are dedicated reverse lights. LEDs offer faster illumination response than incandescent bulbs and run cooler with lower current draw, improving visibility and reliability.

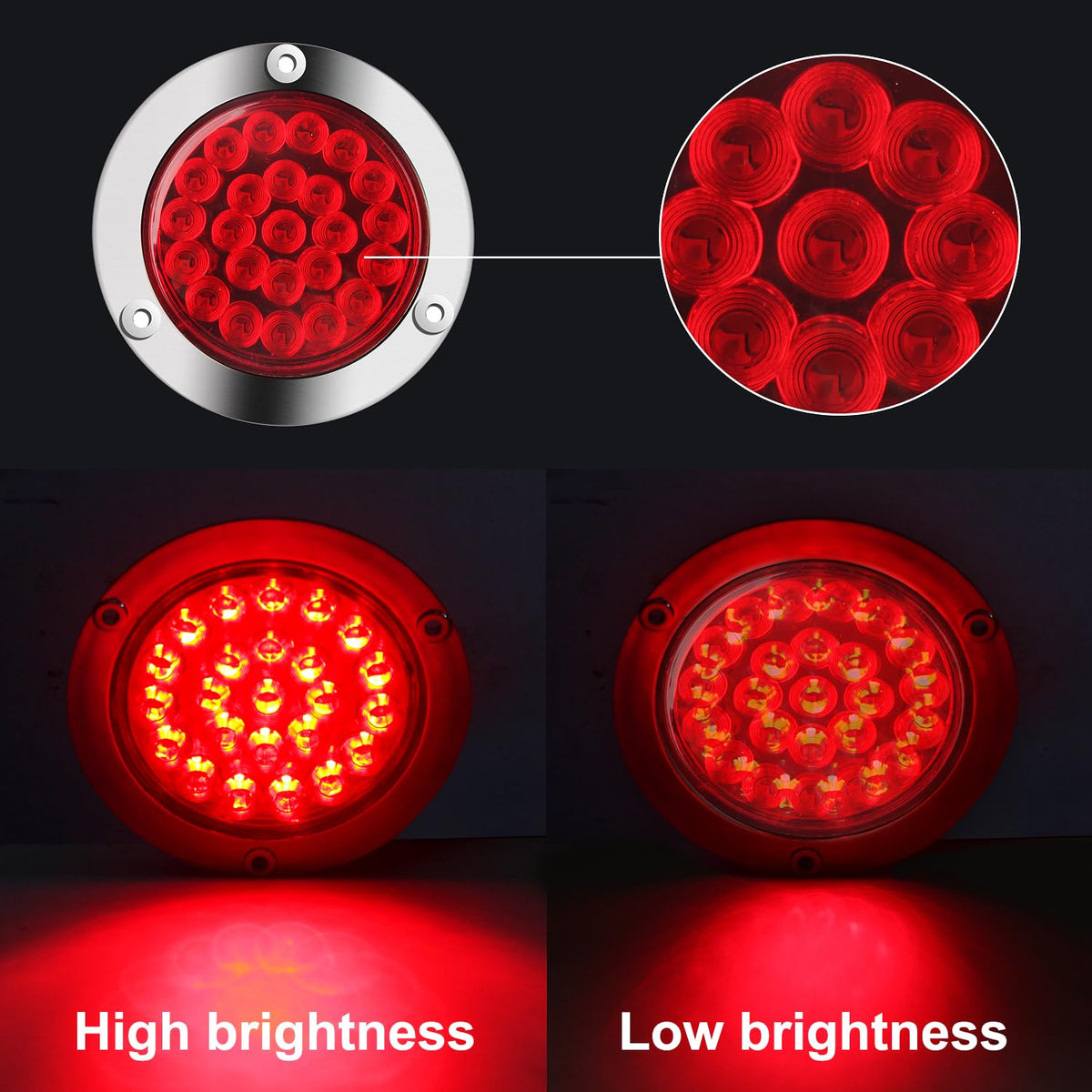

• 24 high-output LEDs per red lamp for clear signaling.

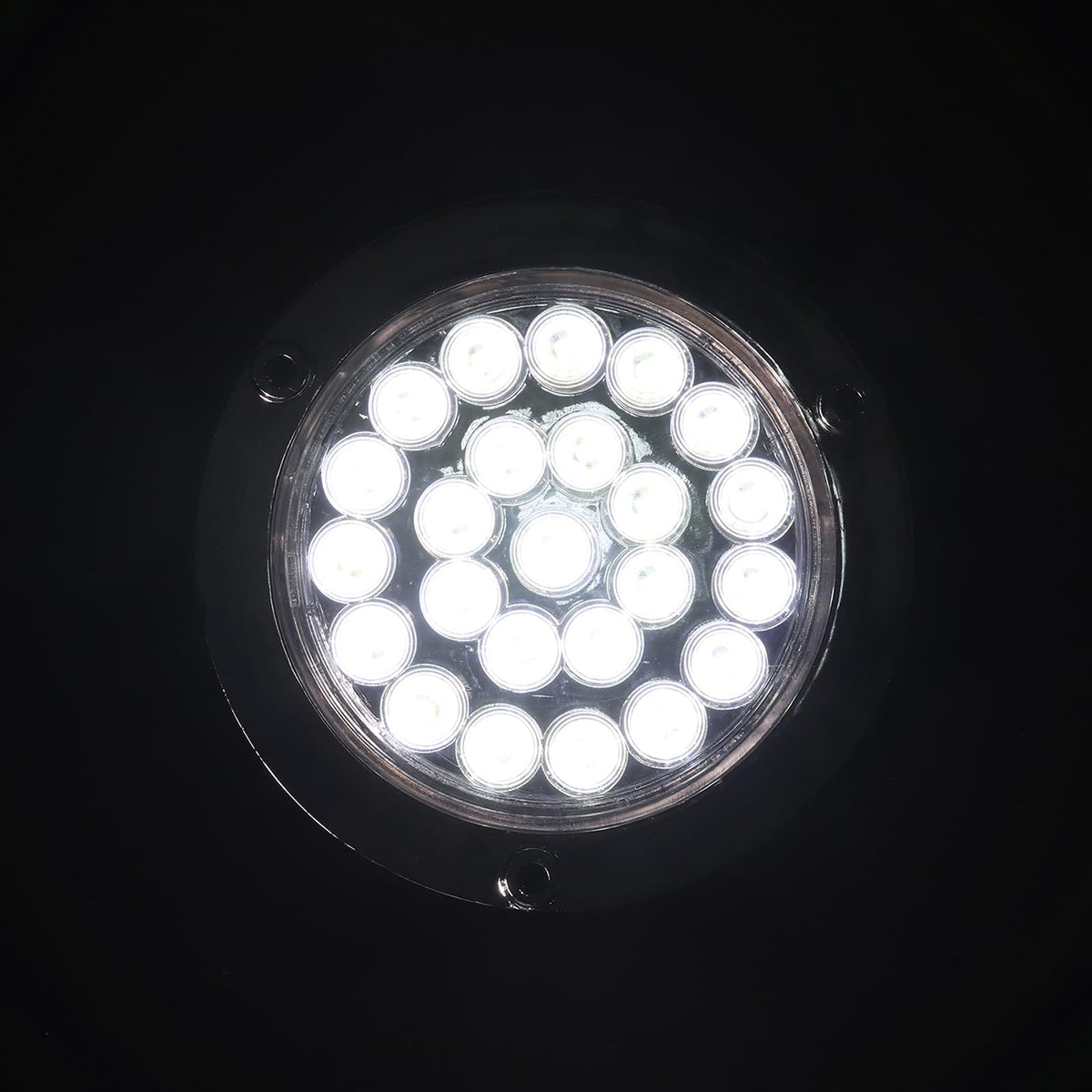

• Clear lens reverse lights optimized for backup illumination.
• Lower energy consumption versus traditional bulbs for extended battery life.
• IP65 splash-proof rating for outdoor use (not submersible).

Which vehicles and environments are these lights suited for?

These lights were made for a wide range of 12V vehicles including light trucks, UTVs, utility and enclosed trailers, horse trailers, and many heavy-duty trailers. They are built to handle road vibration and outdoor exposure when mounted correctly and sealed at the flange.

• Compatible with most 12V vehicle electrical systems and trailer classes.
• Ideal for trailers, pickups, UTVs, and agricultural or utility equipment.
• Use in outdoor and roadside environments; avoid underwater exposure.
• Chrome bezel offers a corrosion-resistant appearance for longer-term use.

Who is this for? This Partswcgg 4-inch round LED kit is aimed at trailer owners, fleet operators, and do-it-yourself mechanics who want a compact, multifunction rear lighting solution that is simple to mount and wire. It suits anyone replacing worn incandescent fixtures or upgrading to LEDs for improved visibility, reliability, and a tidy chrome-finished appearance. If you need a plug-and-play conversion, note that these are hardwired lights — basic wiring skills or professional installation is recommended. For any pre- or post-purchase questions, Partswcgg offers email support with a typical 24-hour response window.
