Partswcgg 6-Inch Oval LED Trailer Tail Lights - 10-Pack Red Stop/Turn/Tail, Sealed IP65 Flush Mount

Partswcgg 6-inch oval LED trailer tail lights are sealed, flush-mount red stop/turn/tail lamps sold in a 10-piece kit with rubber grommets and 3-prong pigtails for fast 12V installation.

These 10 red oval LED lights provide a compact, energy-efficient lighting solution for trailers, trucks, and utility vehicles. Each lamp contains ten bright LEDs and arrives with the gasket and 3-prong plug needed for a flush installation. Rated for 12V DC systems and built with an IP65 exterior rating, they resist dust and rain for dependable roadside visibility.

How will these LEDs improve my trailer's visibility?

The LED array delivers a clearer, quicker-illuminating signal compared with incandescent bulbs, making stop and turn indications easier for other drivers to see. Brightness is concentrated in a 6-inch oval housing that fits many common mounting locations.

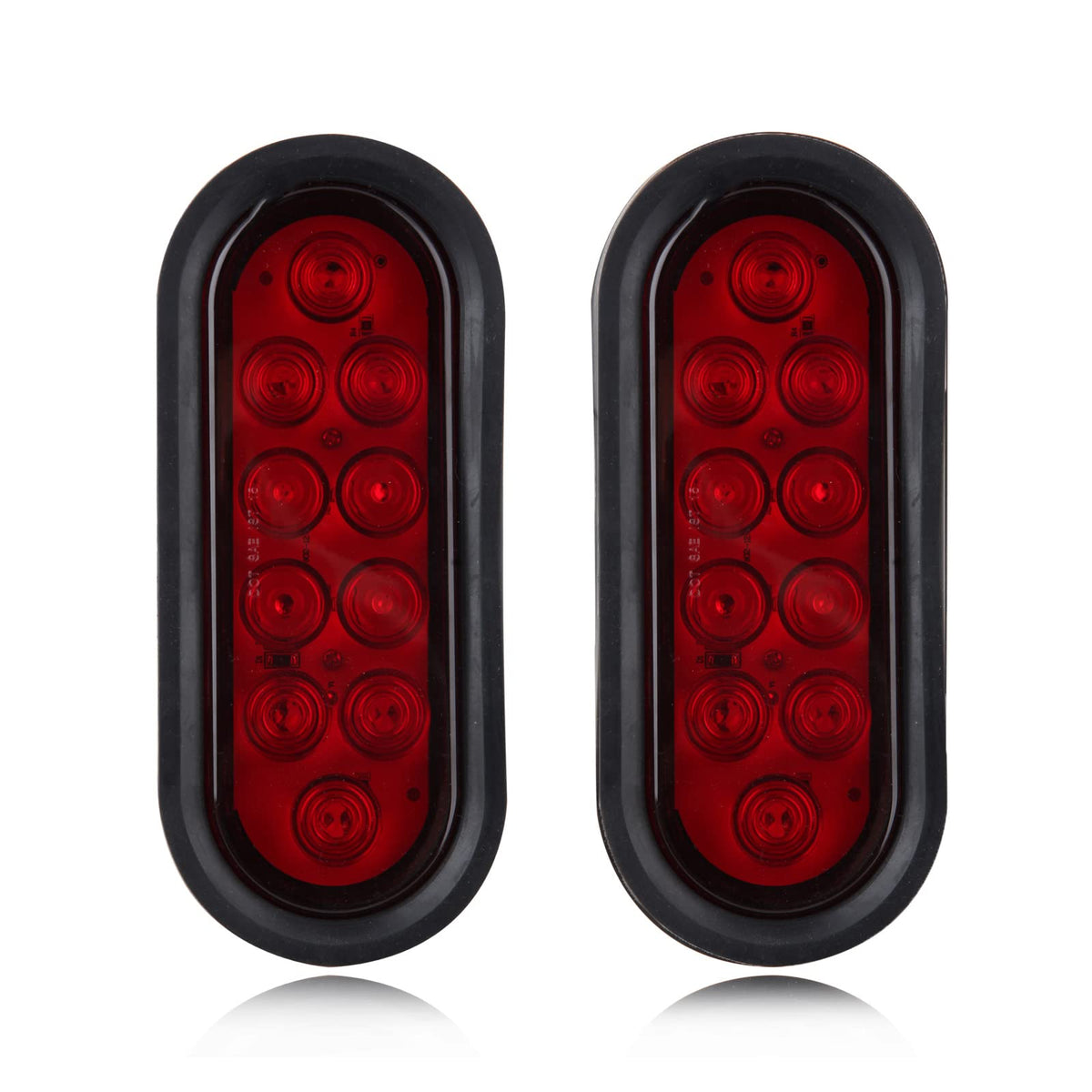

• 10 high-output LEDs per lamp for strong, consistent light
• Red lens optimized for brake/turn/tail signaling
• Sealed housing and rubber grommet reduce moisture intrusion
• Flush mount design keeps lens protected from snags

What does installation look like and which wires do what?

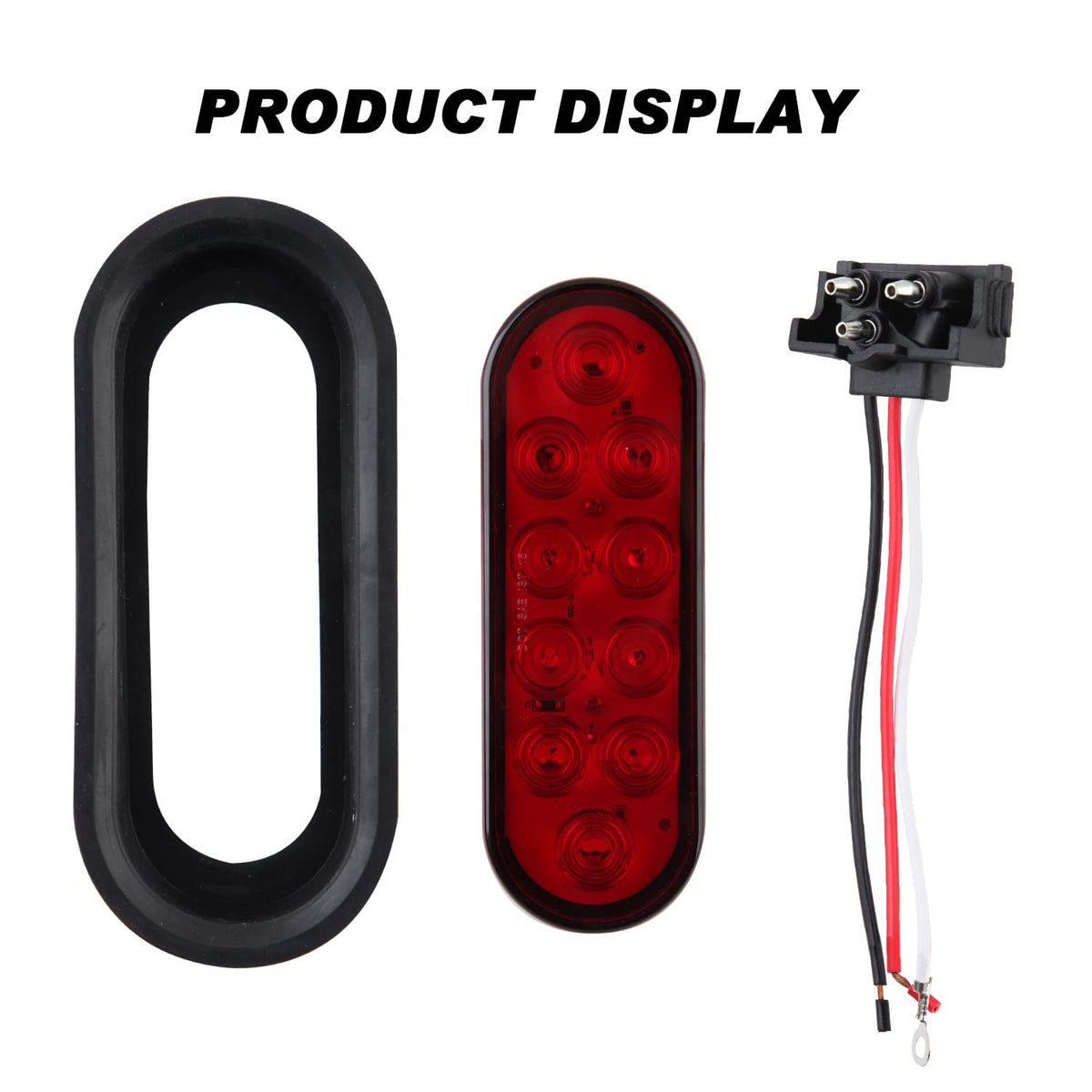

Installing is straightforward: each light is a sealed unit that accepts a standard 3-pin plug and sits into a drilled hole with the provided rubber grommet. Wire colors follow a simple convention to speed wiring and help avoid guesswork when replacing factory lights.

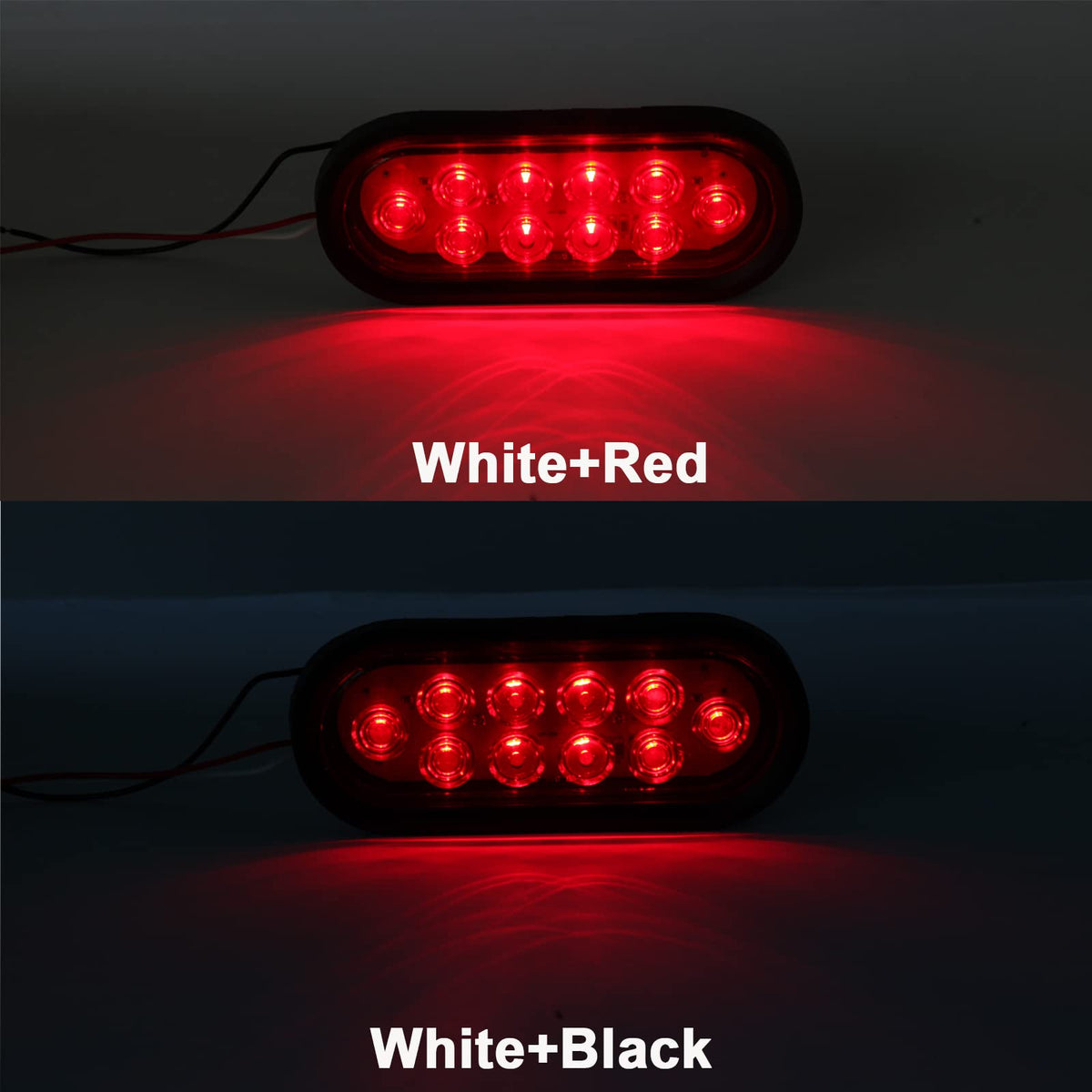

• White wire = ground connection
• Red wire = high-brightness (stop/turn) feed
• Black wire = low-brightness (tail) feed
• Required hole: approximately 6.6 inches; grommet ring ~7.5 inches outer diameter

Are these lights weatherproof and suitable for different vehicles?

The lamps are rated IP65 for protection against dust and low-pressure water jets, so they are suited for exterior use on road vehicles exposed to rain and splash. They are not intended for continuous submersion, so avoid mounting them where they will be underwater.

• IP65 rating for dust resistance and water spray protection
• Compatible with 8–16V DC electrical systems, commonly used in trucks and trailers
• Works on semi trailers, utility trailers, pickup trucks, horse trailers, and more
• Sealed design minimizes corrosion and reduces maintenance

What size, fit, and quantities come in this listing?

This offer includes ten oval LED tail lights sized for a 6-inch visible lens and supplied with grommets and 3-prong pigtails for plug-and-play replacement. Confirm hole size and mounting depth before cutting to ensure a clean flush fit.

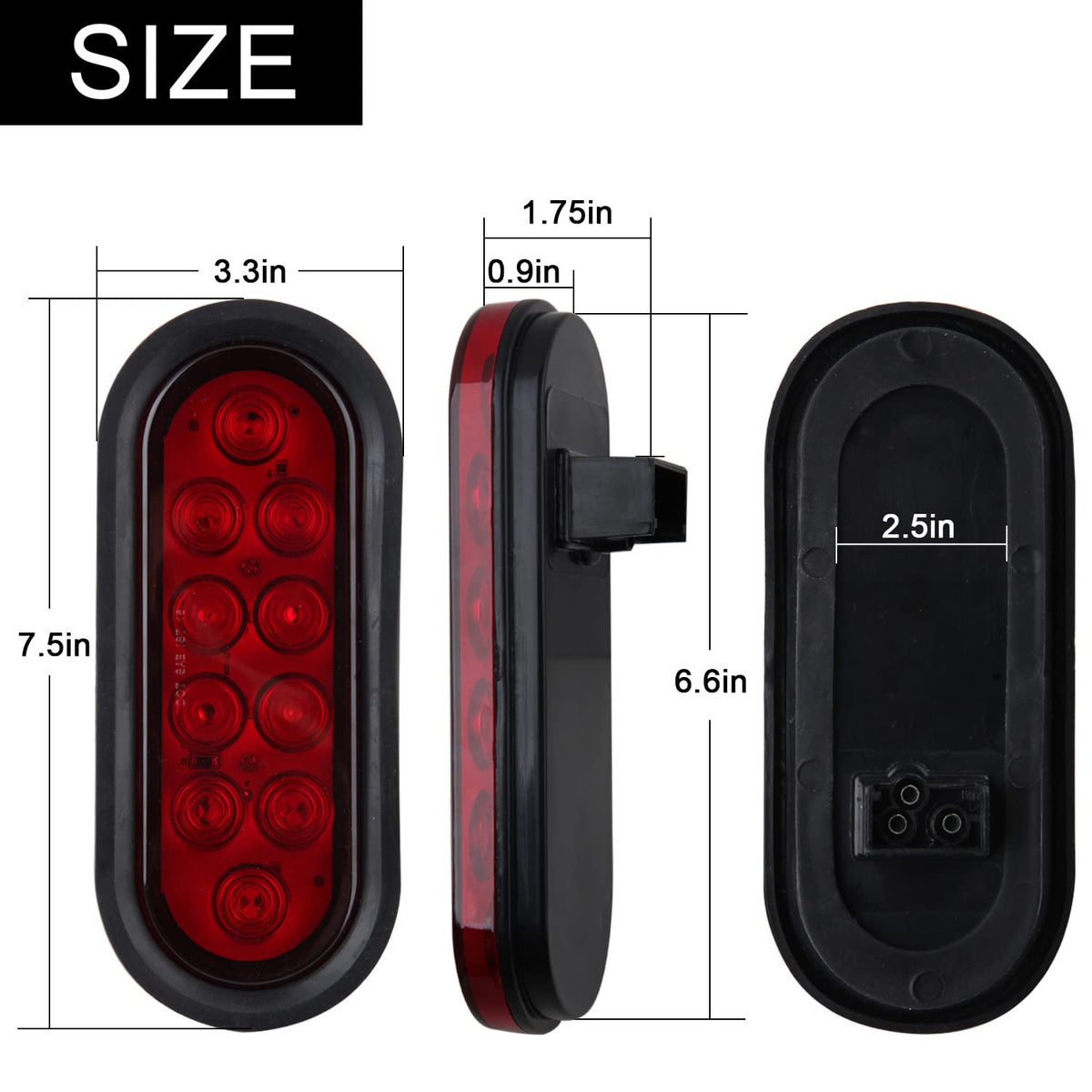

• Visible lens diameter: 6 inches (oval housing)
• Grommet outer ring: approximately 7.5 inches; inner diameter ~6.3 inches
• Mounting depth (thickness) about 1.75 inches; recommended hole ~6.6 inches

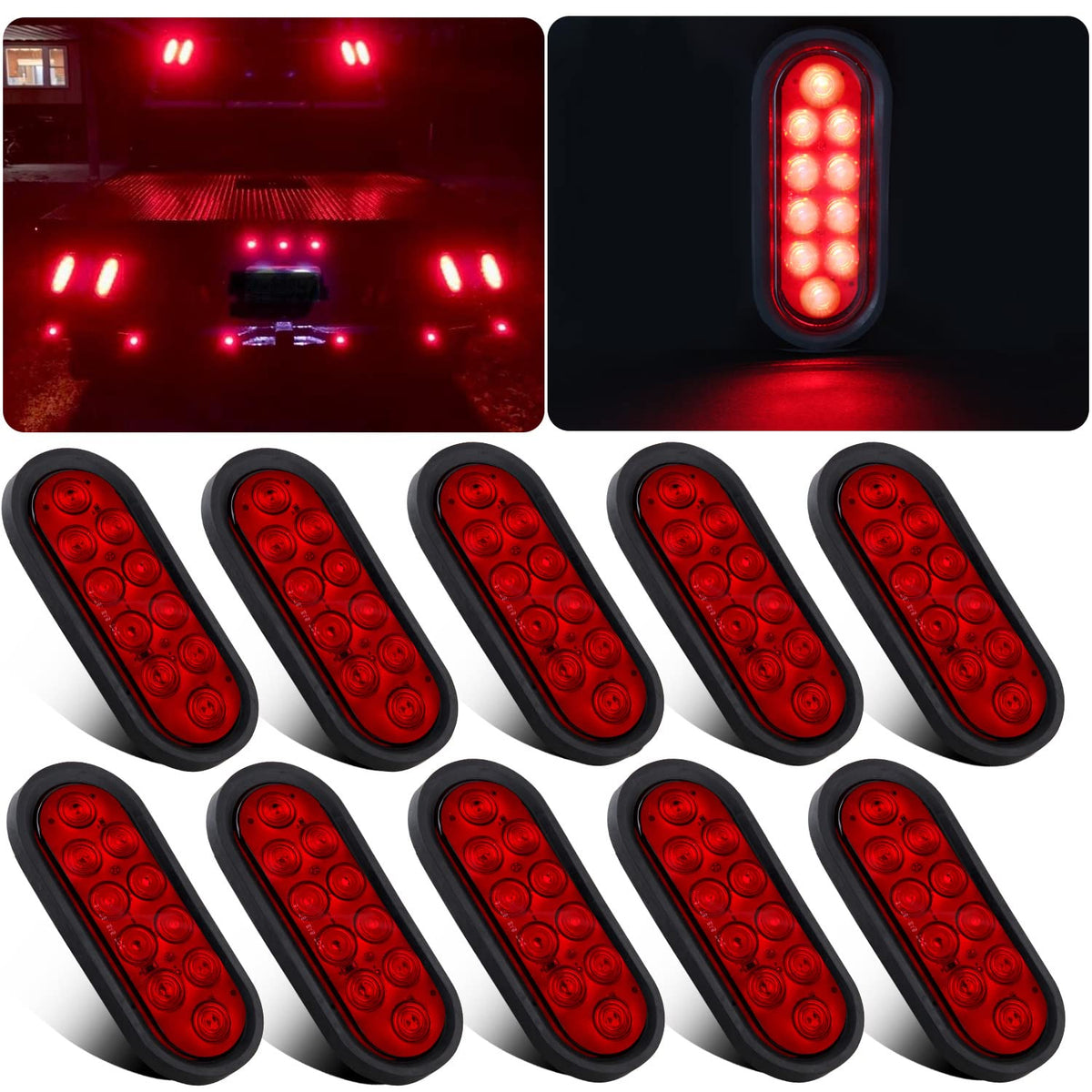

• Ten lights per package for fleet or multi-point installations

Who is this for: This 10-pack is designed for fleet managers, trailer owners, and vehicle maintenance professionals who need multiple reliable replacement tail lights at once. It also suits DIYers upgrading older incandescent lamps to lower-draw LEDs on trailers, trucks, RVs, and work vehicles that use standard 3-prong connectors and 12V systems.
