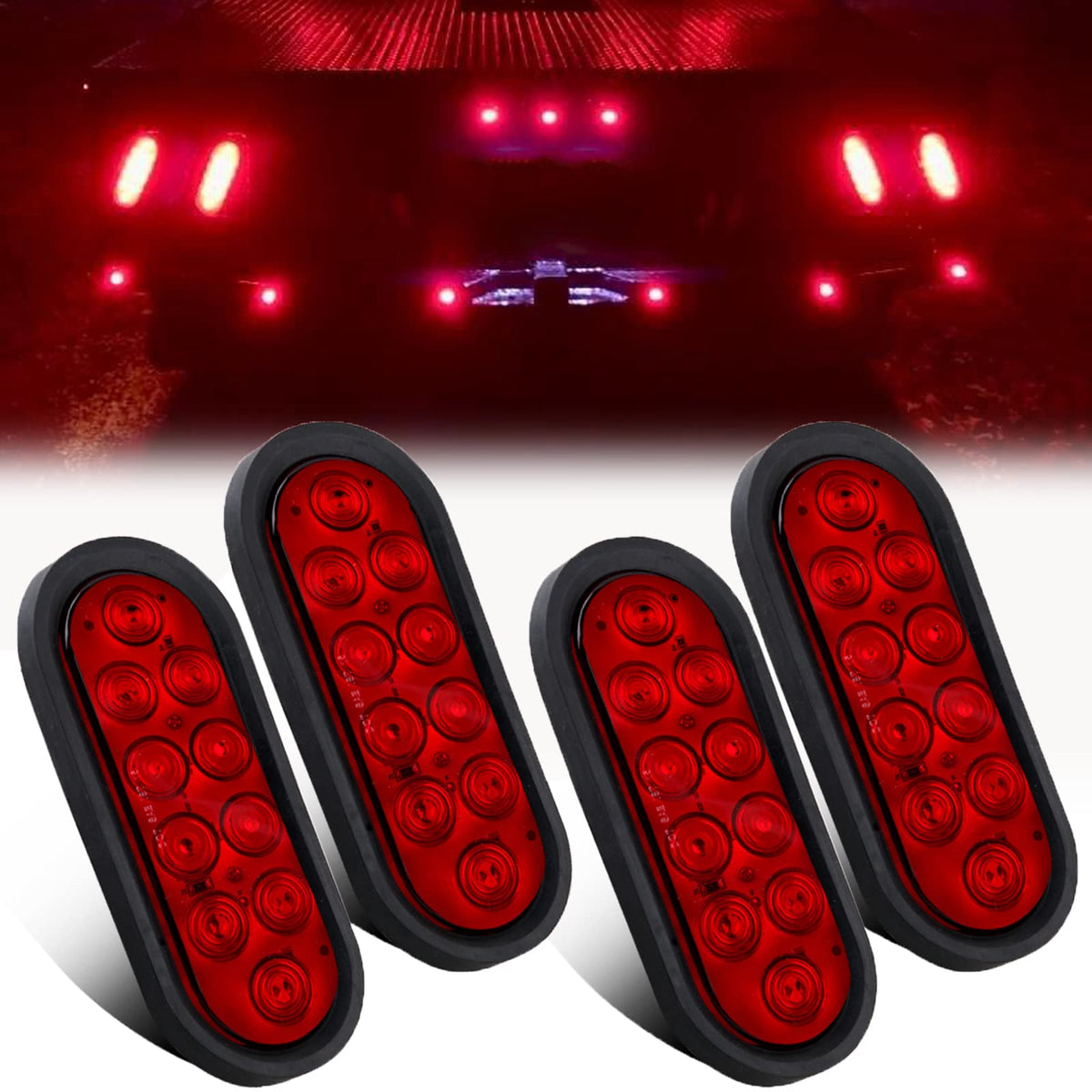

Partswcgg 6" Oval LED Trailer Tail Lights 4-Pack — 10-LED, IP67 Waterproof Multi-Function

Partswcgg 4Pcs 6" oval LED trailer tail lights are compact, multi-function red lens lights with 10 bright LEDs each and IP67-rated waterproofing for reliable trailer signaling.

These four 6-inch oval LED tail lights from Partswcgg combine stop, turn and tail functions into a low-draw LED assembly designed for 8–16V DC vehicles. Each lamp uses ten LEDs to deliver brighter, longer-lasting illumination than incandescent bulbs, and the kit includes black rubber grommets and three-prong plugs to simplify a flush-mount installation. The housings are built for exterior use with a weather-sealed connection and gasket for protection against road splash and dust.

How do these lights replace traditional incandescent trailer lamps?

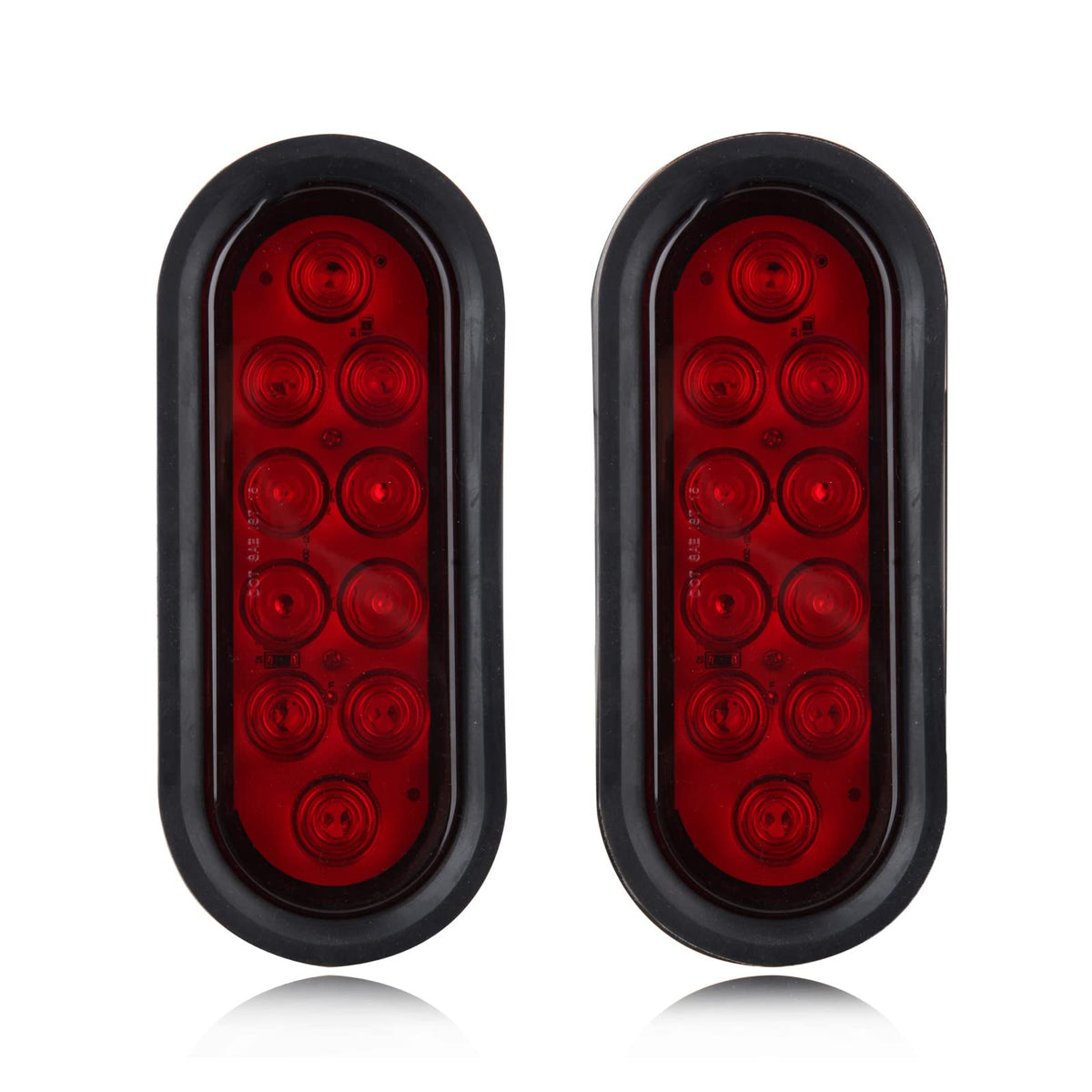

Each oval unit integrates stop, turn and tail lights in one compact assembly, using 10 LED chips per lamp to increase visibility while consuming much less current than incandescent bulbs. LEDs resist vibration and thermal cycling, reducing maintenance and bulb changes.

• 10 LEDs per light for brighter, even output
• Multi-function: stop, turn signal and tail light combined
• Lower amperage draw extends vehicle electrical life
• Durable solid-state LEDs reduce failure from vibration

What installation steps and wiring should I expect?

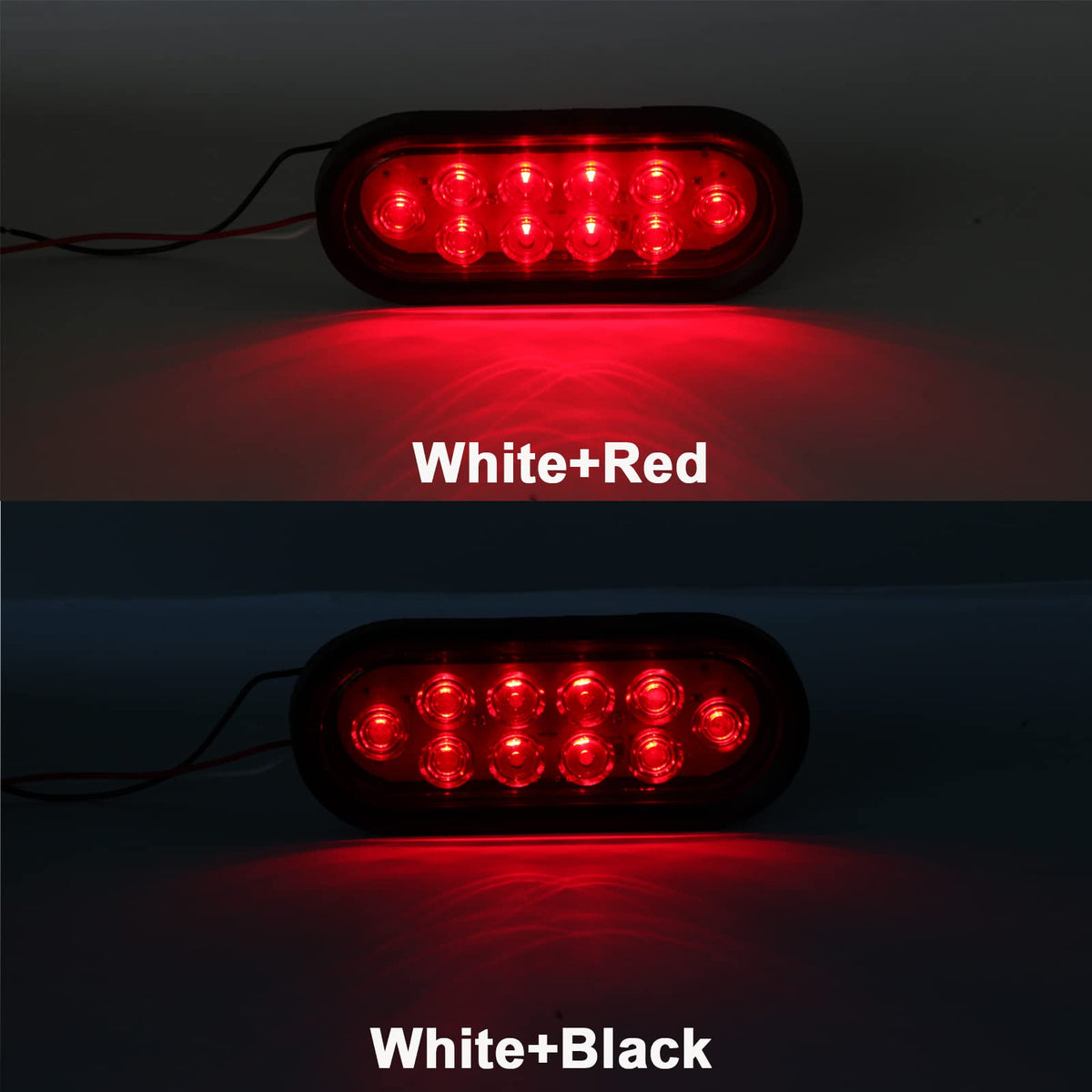

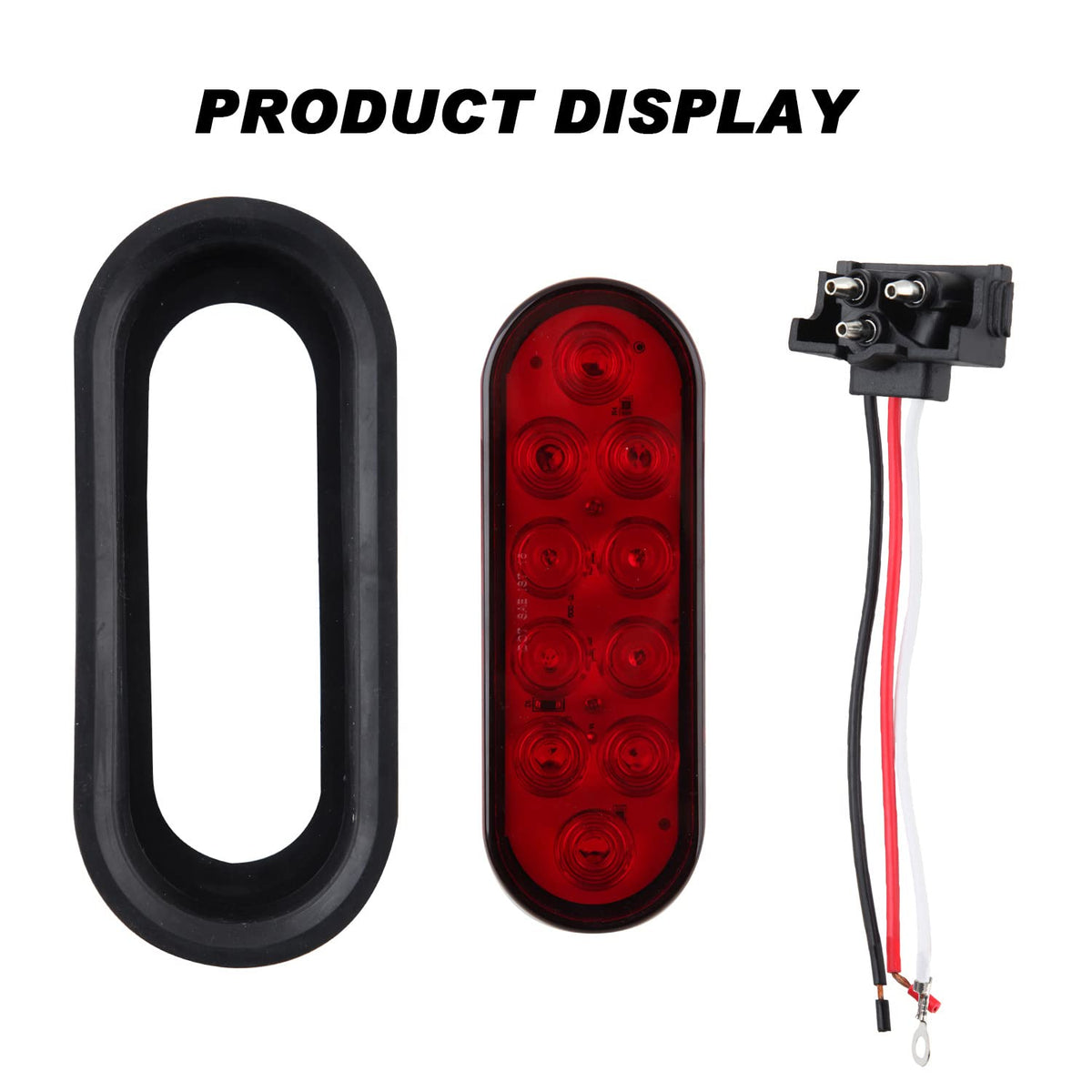

These lights are supplied with rubber grommets and standard 3-pin plugs for a flush-mount fit. Drill a ~6.6" hole, push the grommet into the opening, insert the lamp and connect wires: white = ground, red = high/stop, black = low/tail.

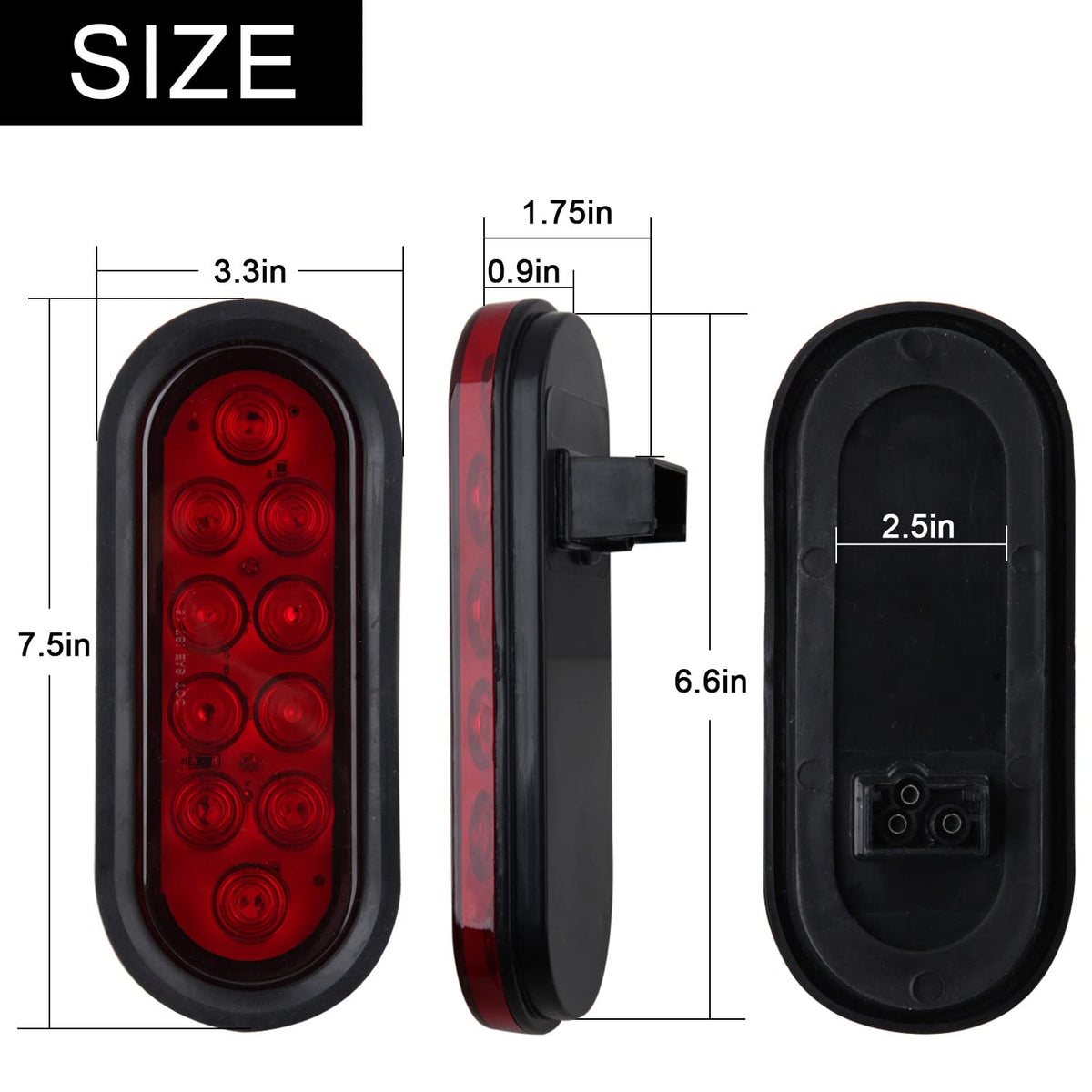

• Approx. 7.5" grommet ring outer diameter, 6.3" inner diameter
• 1.75" lamp thickness, plan for recessed mounting
• Standard 3-prong plug for quick connection
• Follow polarity: white ground, red high, black low

How water- and weather-resistant are these tail lights?

Partswcgg lights carry an IP67 rating for protection against dust and temporary immersion, with a sealed lens and gasketed plug. They are suitable for common wet-road and marine trailer use, but avoid continuous underwater submersion.

• IP67-rated sealing against dust and water ingress
• Rubber grommet helps prevent moisture entry at mount
• Corrosion-resistant contacts on the 3-prong plug
• Recommended for trailers, trucks, vans and utility vehicles

Which vehicles and situations are these lights best for?

These oval LEDs are made for a wide range of 8–16V DC vehicles where compact, multi-function lights are required. They suit trailers, service trucks, buses, UTVs and more—any application that benefits from brighter, lower-current exterior lights.

• Compatible with semi trailers, utility trailers, boat trailers
• Works with service trucks, vans, buses and pickup trucks
• Also useful for parade floats, horse trailers and UTVs
• Ideal when replacing worn incandescent tail lights

Who is this for: Installers, fleet managers and DIY trailer owners who want a dependable, low-maintenance lighting upgrade. If you need brighter rear signaling, lower electrical load, and weather-resistant fittings for 8–16V DC vehicles, this Partswcgg 4-piece 6" oval LED set provides a practical, easy-to-fit solution with included grommets and plugs.
