PerTronix Flame-Thrower Ignition Coil 40,000V Black 40511 — 12V Oil-Filled, 3Ω Primary for Electronic & Points Systems

The PerTronix Flame-Thrower Ignition Coil 40511 is a 12‑volt, oil‑filled high‑output coil engineered to deliver up to 40,000 volts for stronger, more consistent spark energy in compatible electronic and points ignition systems.

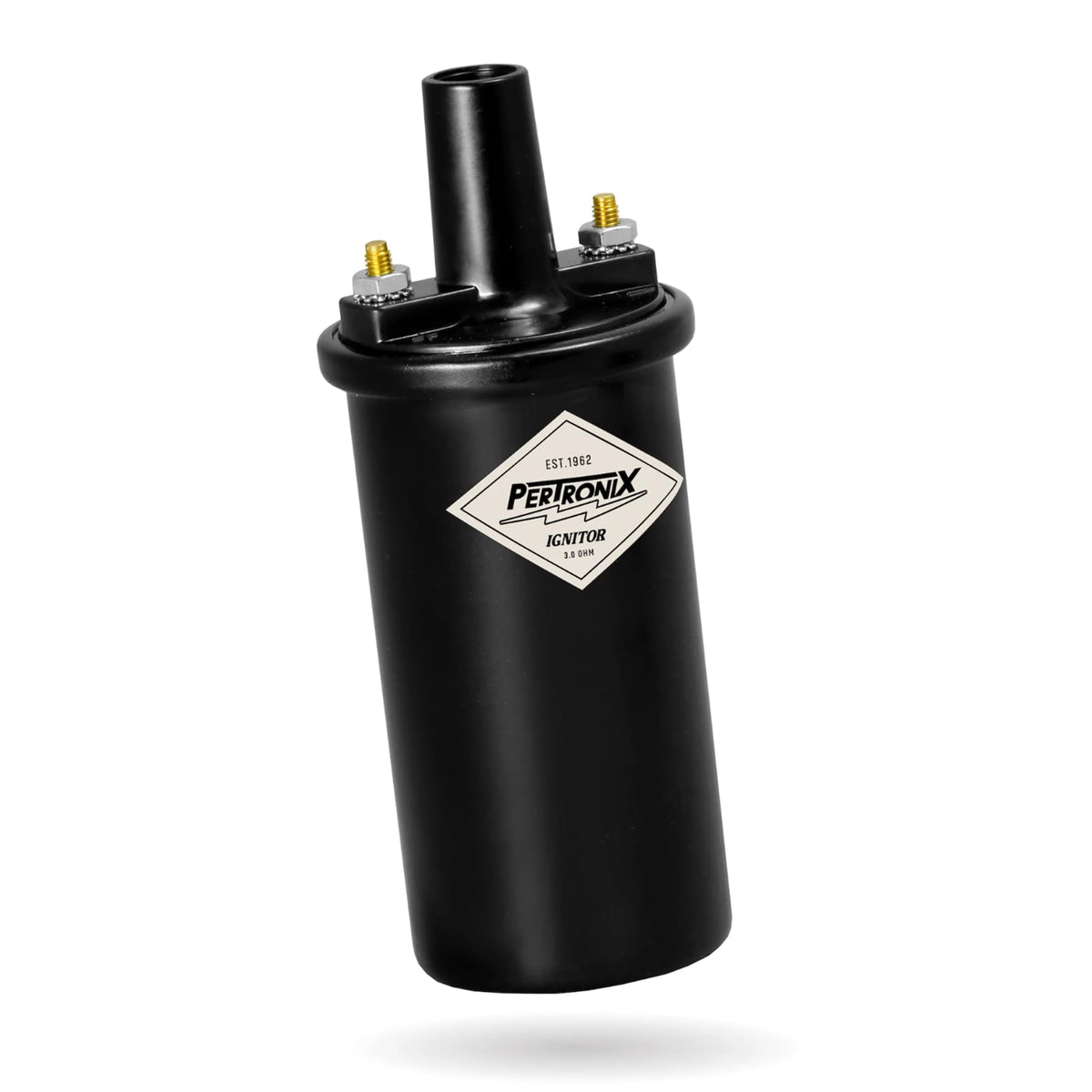

If your engine needs a reliable upgrade from a worn or underperforming stock coil, the PerTronix Flame-Thrower 40511 provides a straightforward bolt‑in solution. Built with a 3‑ohm primary winding and a round oil‑filled canister, it’s optimized for PerTronix Ignitor systems while remaining broadly compatible with many inductive distributors. The design emphasizes heat management and steady spark delivery for street use when installed vertically with the terminal facing up.

How will this coil affect throttle response and combustion?

Stronger secondary voltage helps the spark bridge the gap under load and burn the air/fuel mixture more completely. That can translate to crisper throttle reaction and steadier idle, especially in older systems or after replacing a weak factory coil.

• Delivers up to 40,000 volts for higher spark intensity
• 3 ohm primary suited to inductive electronic or points distributors
• Oil-filled body aids heat dissipation for consistent performance

Is the PerTronix 40511 compatible with my ignition setup?

This coil is tuned for 12‑volt inductive systems and works best with PerTronix Ignitor modules, yet it also functions with many conventional electronic or points distributor systems. Check primary resistance and mounting requirements before swapping to confirm fit and electrical match.

• Designed for 12V inductive ignition systems with a 3 ohm primary
• Optimized for PerTronix Ignitor but compatible with many other distributors
• Verify distributor and bracket clearance for vertical installation

What installation considerations and care are required?

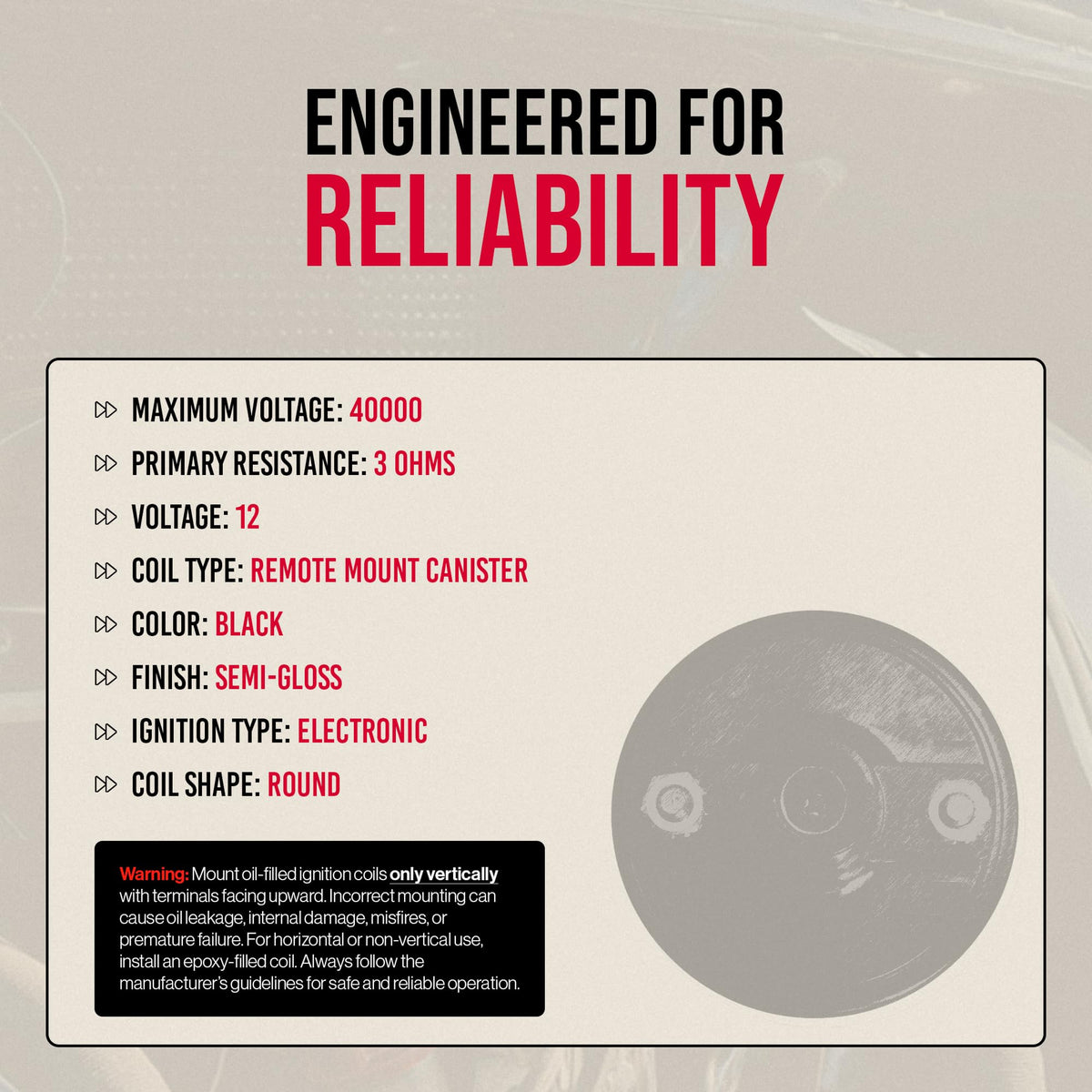

Proper orientation is critical: the oil‑filled canister must be mounted vertically with the high‑tension terminal upward. Mounting it horizontally or inverted risks oil leakage and internal damage, so use correct brackets and fasteners and follow torque specs for terminals.

• Always install vertically with terminal facing upward to prevent leakage
• Secure mounting to minimize vibration and maintain electrical connections
• Inspect wiring and ensure correct polarity and resistor use if needed

Will this coil run reliably for street driving and light performance use?

The oil‑filled construction improves thermal stability, making the 40511 suitable for routine street driving and mild performance duties. It’s built to provide steady spark delivery under typical operating temperatures, though extreme racing demands may require specialty coils.

• Oil filling helps control operating temperature for daily reliability
• Round canister design promotes even spark characteristics
• Appropriate for street and light performance; heavy competition may need different specs

Who is this for: The PerTronix Flame‑Thrower 40511 is aimed at classic car owners, hot‑rod builders and hobbyists replacing a weak factory coil or upgrading to a higher‑output unit compatible with PerTronix Ignitor modules. Choose this coil if you need a straightforward, heat‑managed 12‑volt solution with a 3‑ohm primary and you can mount it vertically; if your application requires unusual mounting, specific racing tolerances, or a non‑inductive CDI system, consider confirming suitability with a technician.
