PHILTOP Radiator for 2009–2013 Toyota Corolla, Matrix & Vibe 1.8L — CU13106 direct-fit, 27 3/4" spacing, aluminum core

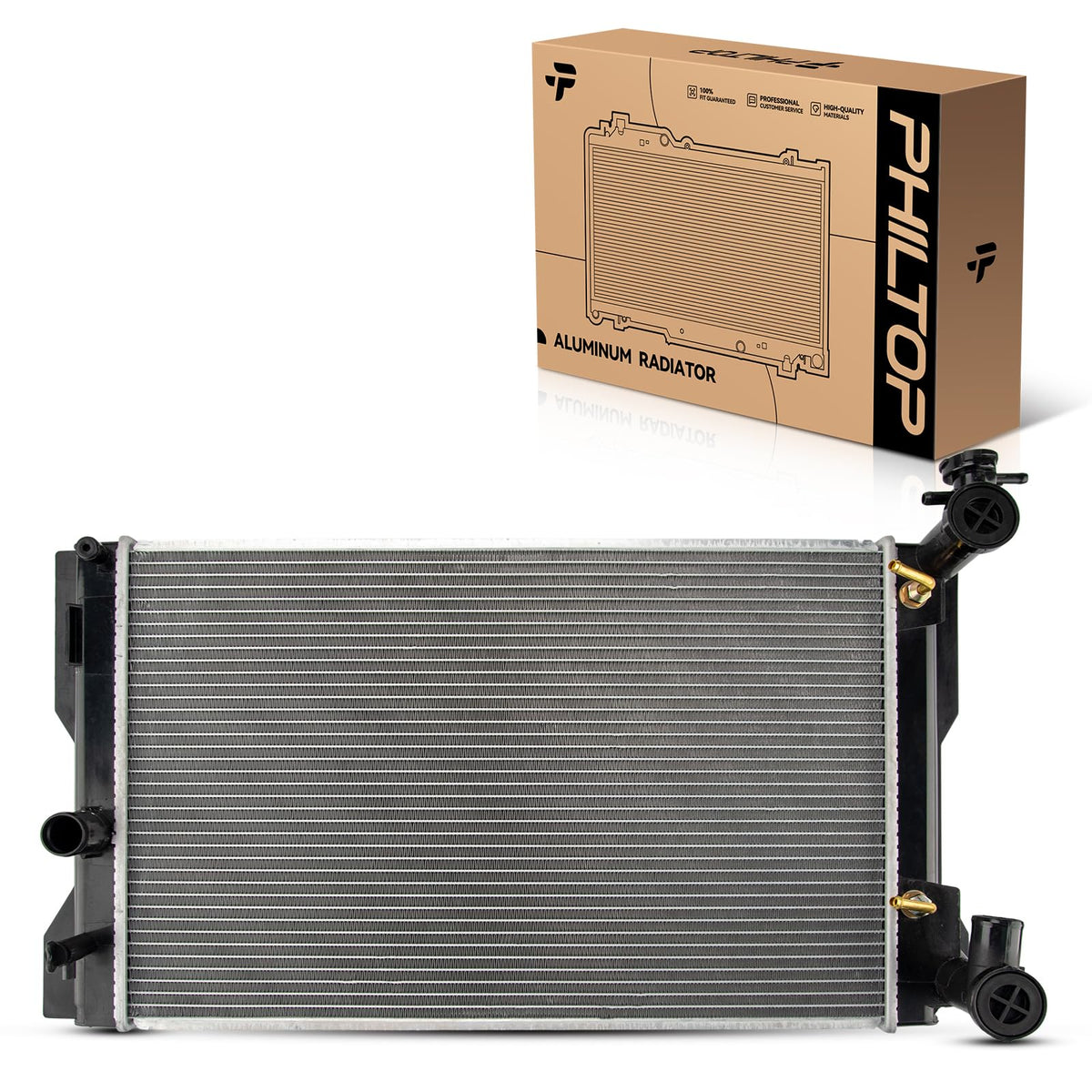

PHILTOP CU13106 is a direct-fit full radiator replacement engineered for 2009–2013 Toyota Corolla, 2009–2010 Vibe and 2009–2013 Matrix 1.8L vehicles built in the USA or Canada, with 27 3/4" spacing between top mounting holes.

This radiator is a complete assembly designed to match OE mounting points and hose connections so installation is straightforward for professional shops and knowledgeable DIYers. Constructed with an aluminum core and a PA189 plastic tank interface, the unit balances lightweight strength with resistance to warping. Critical dimensions and port diameters are supplied to help confirm fitment: core thickness 3/4 inch, core width 23-5/8 inch, core height 14-9/16 inch, inlet and outlet 1-5/16 inch.

Will this radiator fit my Corolla, Matrix, or Vibe?

Yes, the PHILTOP CU13106 was built for 1.8L models of the Toyota Corolla (2009–2013), Pontiac/Chevrolet Vibe (2009–2010), and Toyota Matrix (2009–2013) assembled in the USA or Canada. It aligns with the factory mounting hole spacing and matches common hose diameters used on those models.

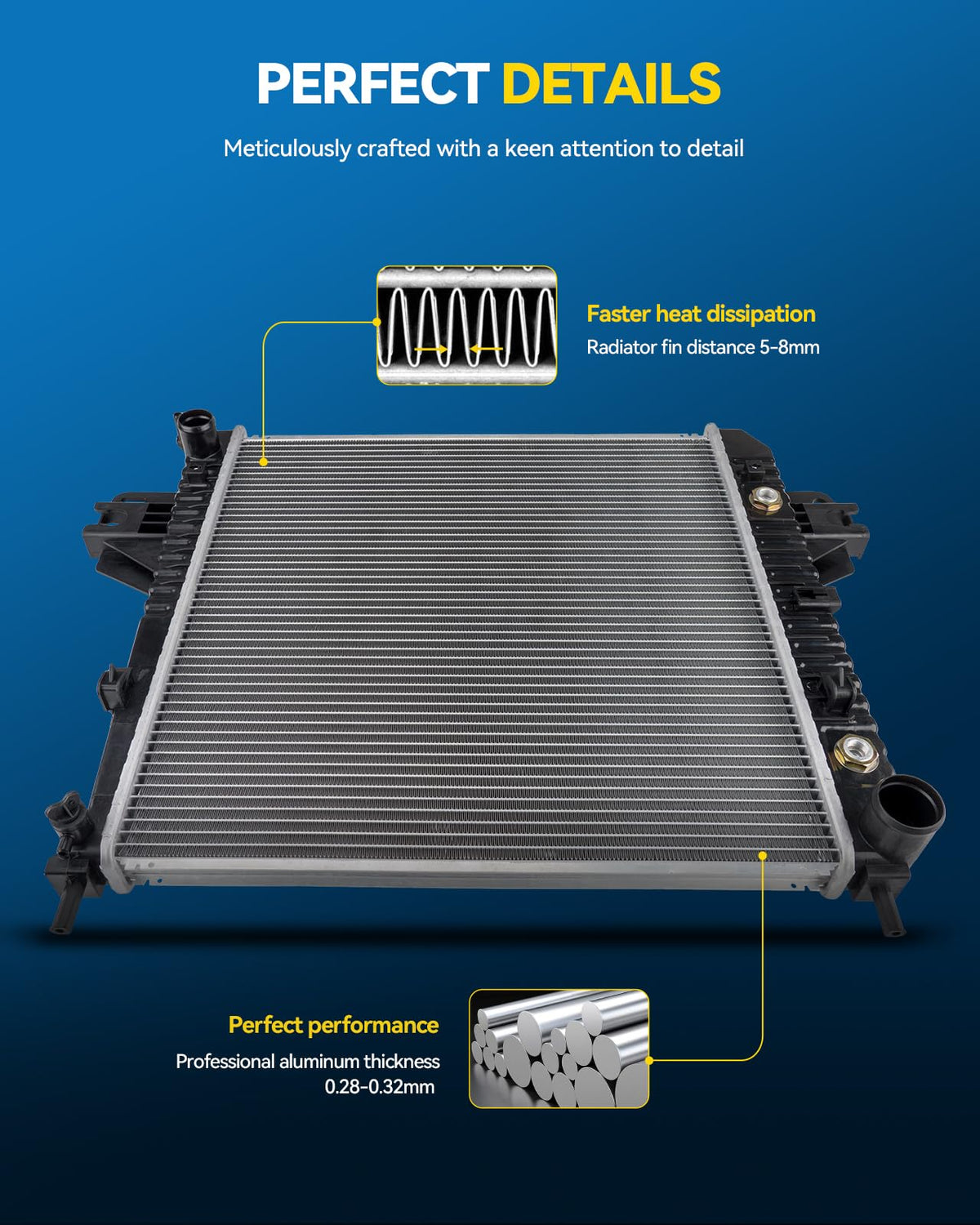

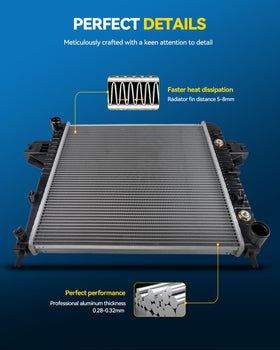

• Top mounting hole spacing: 27 3/4 inches
• Core dimensions: 23-5/8" W x 14-9/16" H x 3/4" thick
• Inlet / outlet diameters: 1-5/16 inches each
• Designed for 1.8L engine architectures in listed years

How is this radiator constructed and why does that matter?

The radiator pairs an aluminum heat-exchange core with PA189 plastic tank interfaces to combine thermal conductivity and shape stability. Aluminum dissipates heat faster than many alloys, while the PA189 tank material minimizes deformation under thermal cycling and mechanical stress.

• Aluminum core and flat water tubes for efficient heat transfer
• Corrugated fins to increase surface area and airflow interaction

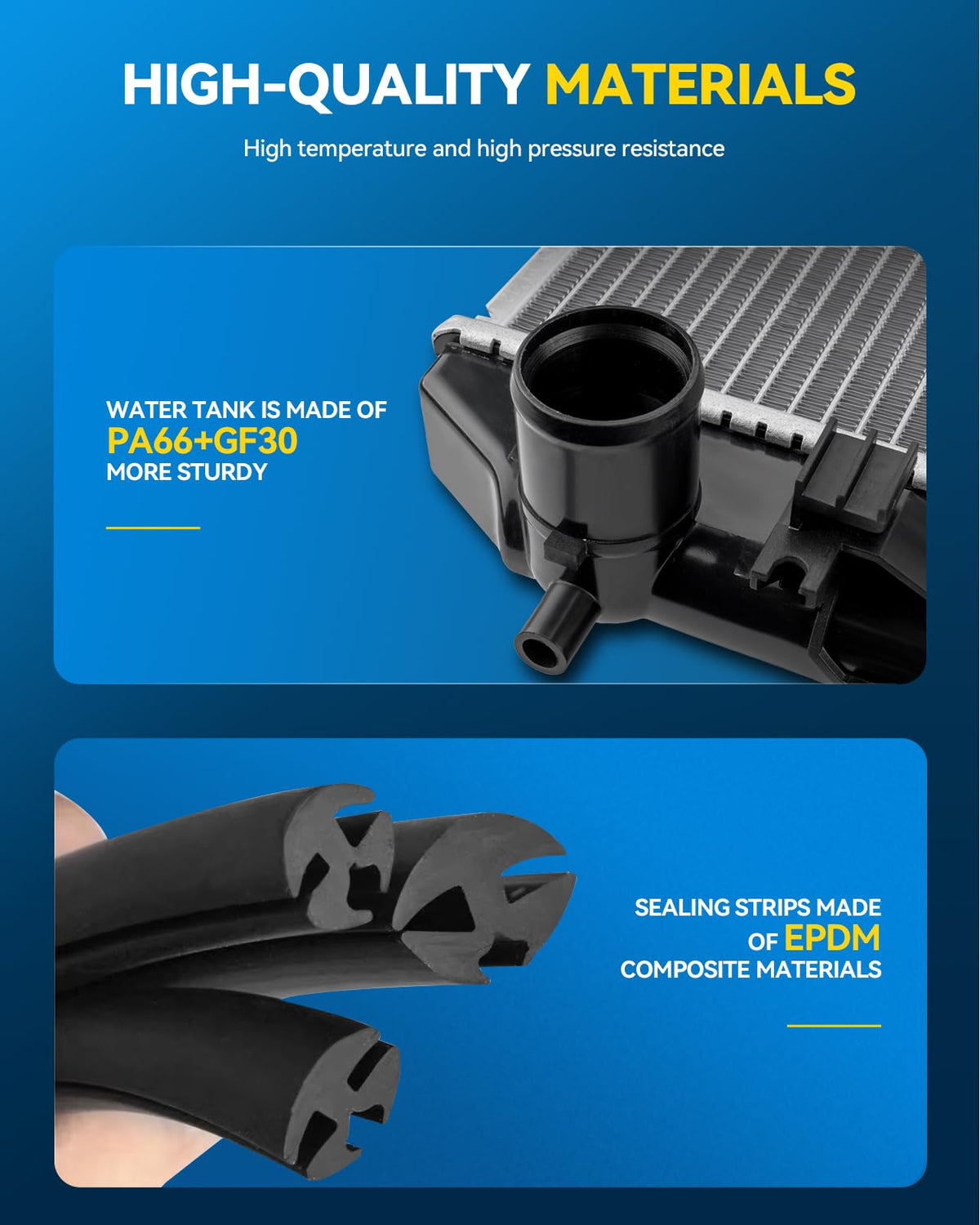

• PA189 plastic tank ends to resist warping and preserve seals
• Multiple quality checks to detect and prevent leaks before shipping

What cooling performance and durability features does it include?

The CU13106 emphasizes fast heat rejection and long-term leakage resistance through its geometry and materials. Flat-shaped water passages and corrugated fins boost cooling surface engagement, and factory anti-leak tests and robust gaskets are intended to reduce failure risk from thermal shock.

• Flat aluminum water pipes improve flow contact with fins
• Corrugated heat sink design increases effective cooling area
• Gaskets and O-rings formulated for thermal shock and cold conditions
• Factory anti-leak testing applied to every assembly

How easy is installation and what should I check before buying?

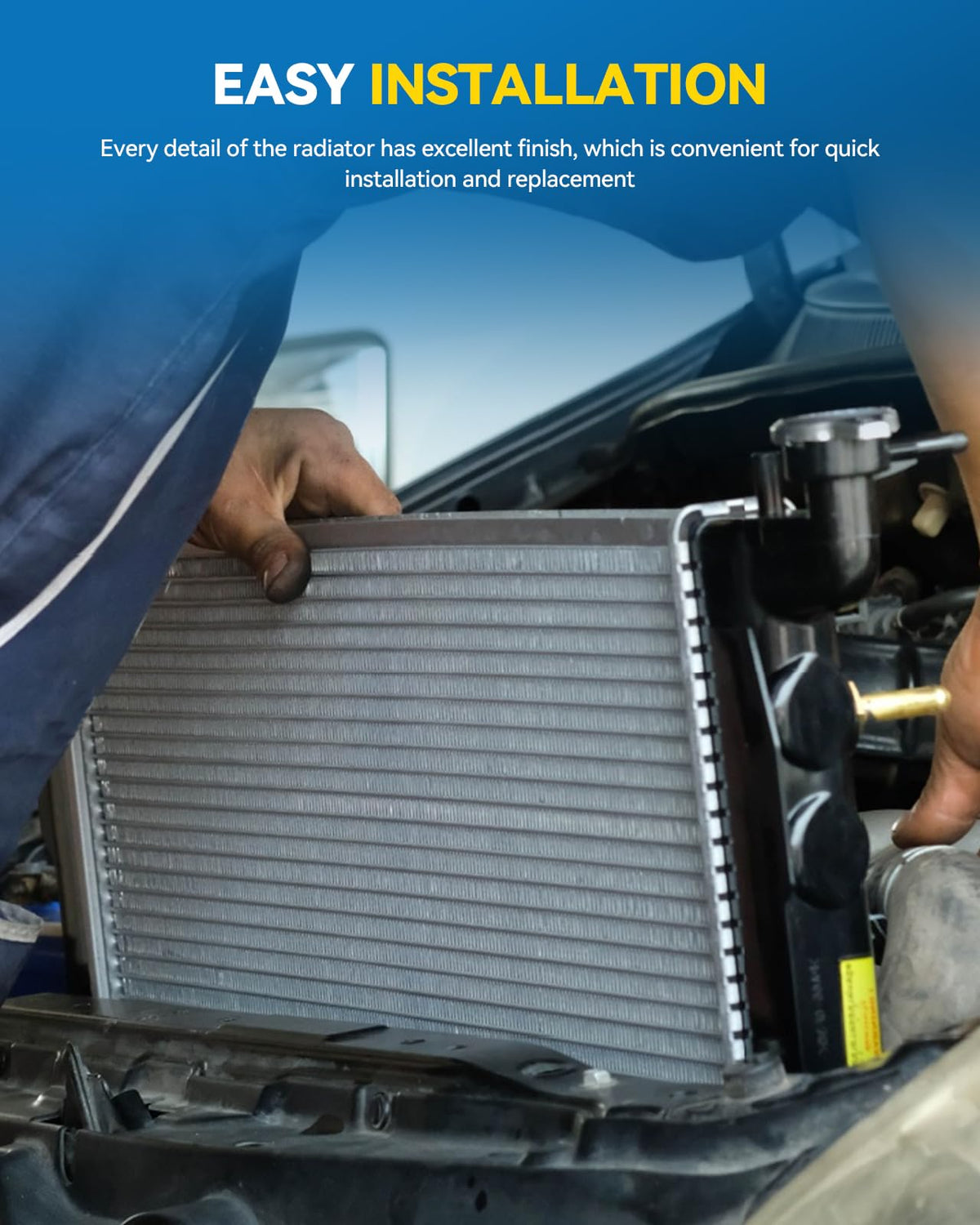

Installation follows the same mounting points and hose sizes as the original equipment part, so most technicians will find it a direct swap. Before ordering, verify your vehicle’s model year, build origin (USA/Canada), engine size (1.8L), and top mounting hole spacing to ensure compatibility.

• Check top mounting hole spacing: 27 3/4 inches
• Confirm inlet/outlet hose inner diameter: 1-5/16 inches
• Verify core envelope dimensions fit your vehicle’s radiator support
• Have coolant drained and proper torque specs on hand for reinstallation

Who is this for: The PHILTOP CU13106 radiator is intended for owners and repair shops replacing a worn, leaking, or underperforming radiator on 2009–2013 Toyota Corolla and Matrix or 2009–2010 Vibe 1.8L vehicles built in the USA or Canada. It’s suited to drivers who want an aftermarket replacement that copies OE mounting features, offers aluminum-core cooling benefits, and includes pre-delivery leak testing to reduce installation surprises. If you need an exact-fit replacement with known core and port sizes and durable tank interfaces, this model is a practical choice.
