Podavelle 1/4" OD Aluminum Hard Fuel Line Hardline Tube

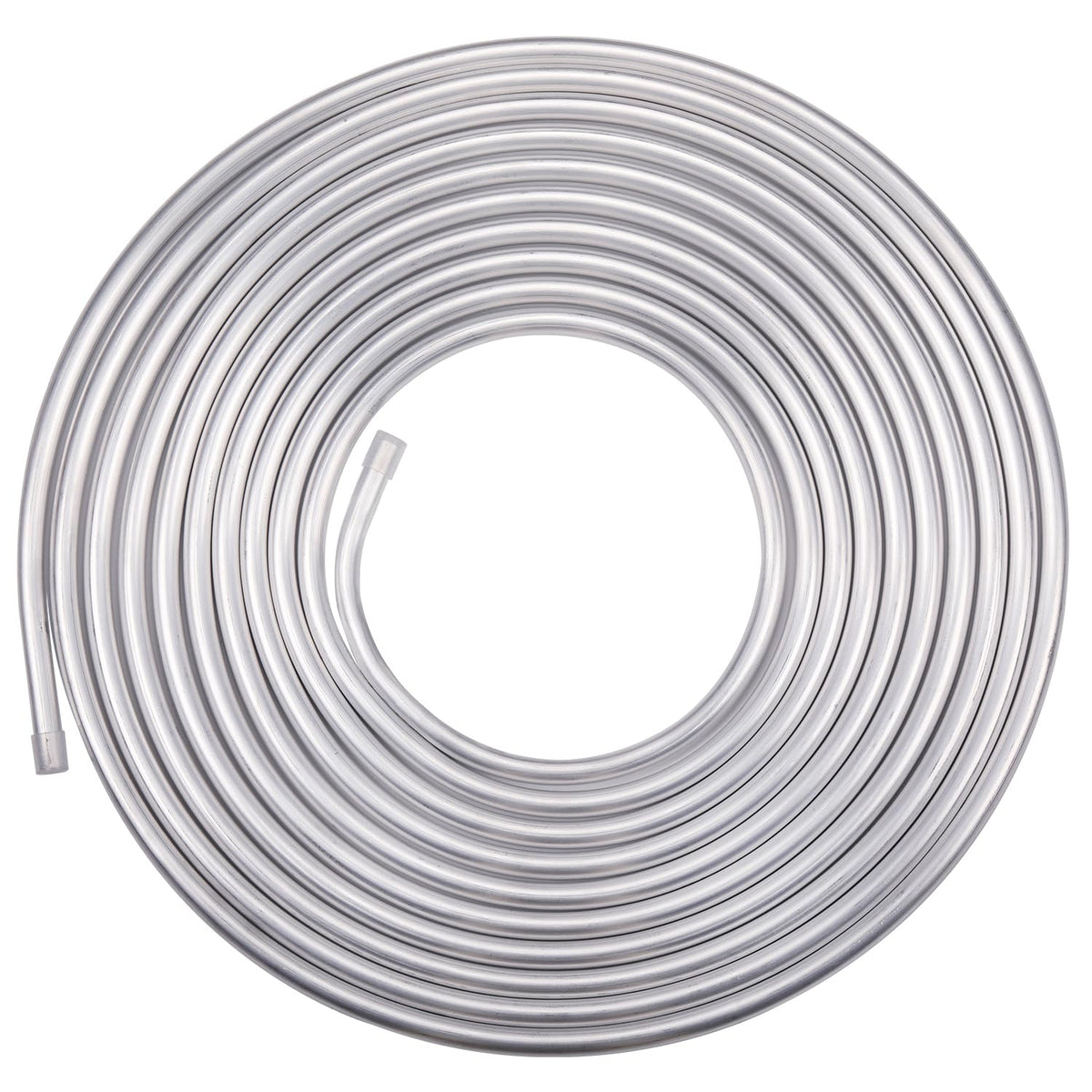

Podavelle's 1/4" OD aluminum hard fuel line is a 25-foot coil of 3003-grade tubing engineered for corrosion resistance, easy forming, and a 650 psi working pressure for fuel, oil, water and air systems.

This coil supplies professional-grade hardline tubing for automotive, marine, industrial and hobby use. The tubing's 1/4" outside diameter and 0.035" wall thickness balance strength with flexibility: it bends, flares and polishes cleanly while remaining lightweight. Because it's extruded from 3003 aluminum, the tube resists corrosion and is straightforward to cut and join using standard fittings and tools.

What are the essential specs and why do they matter?

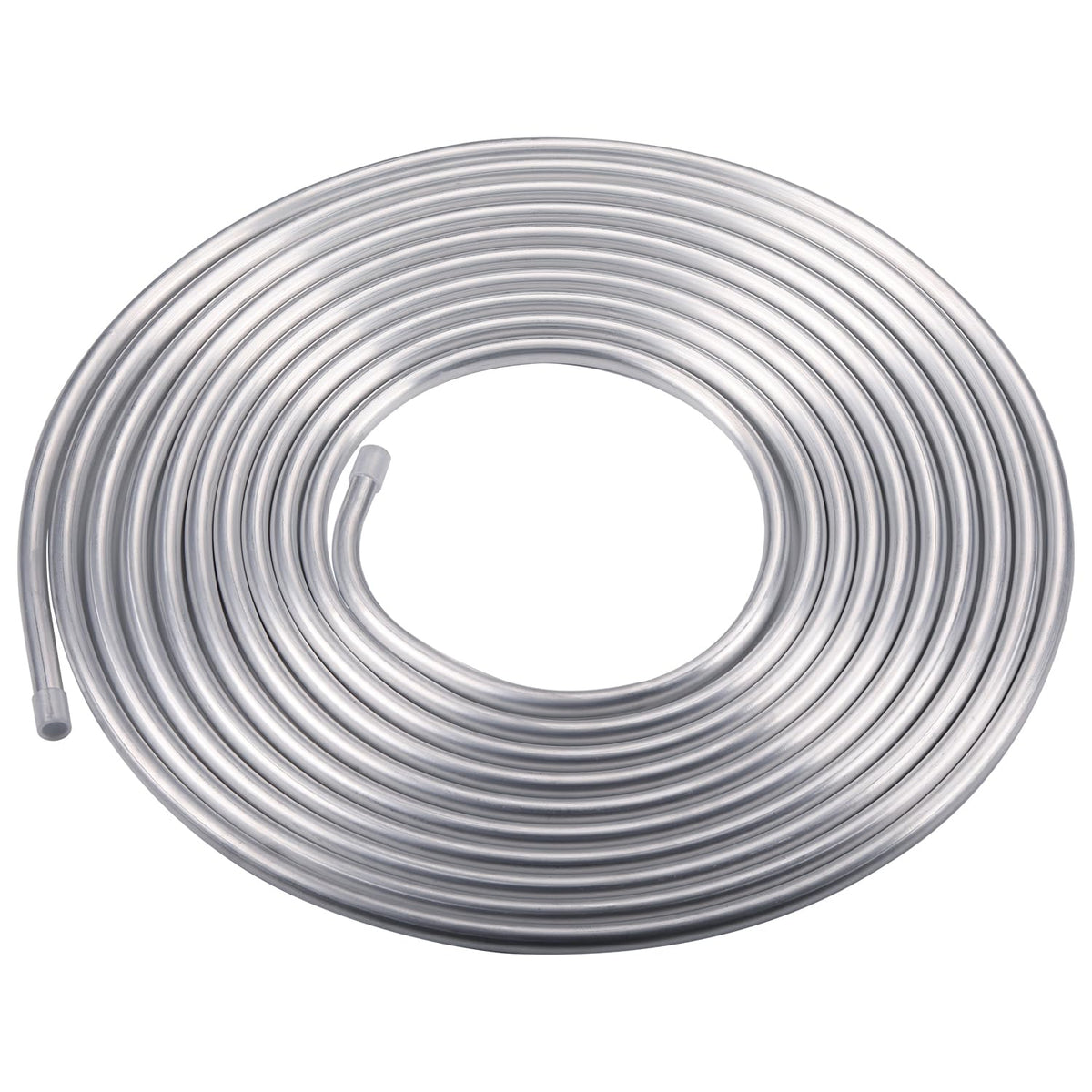

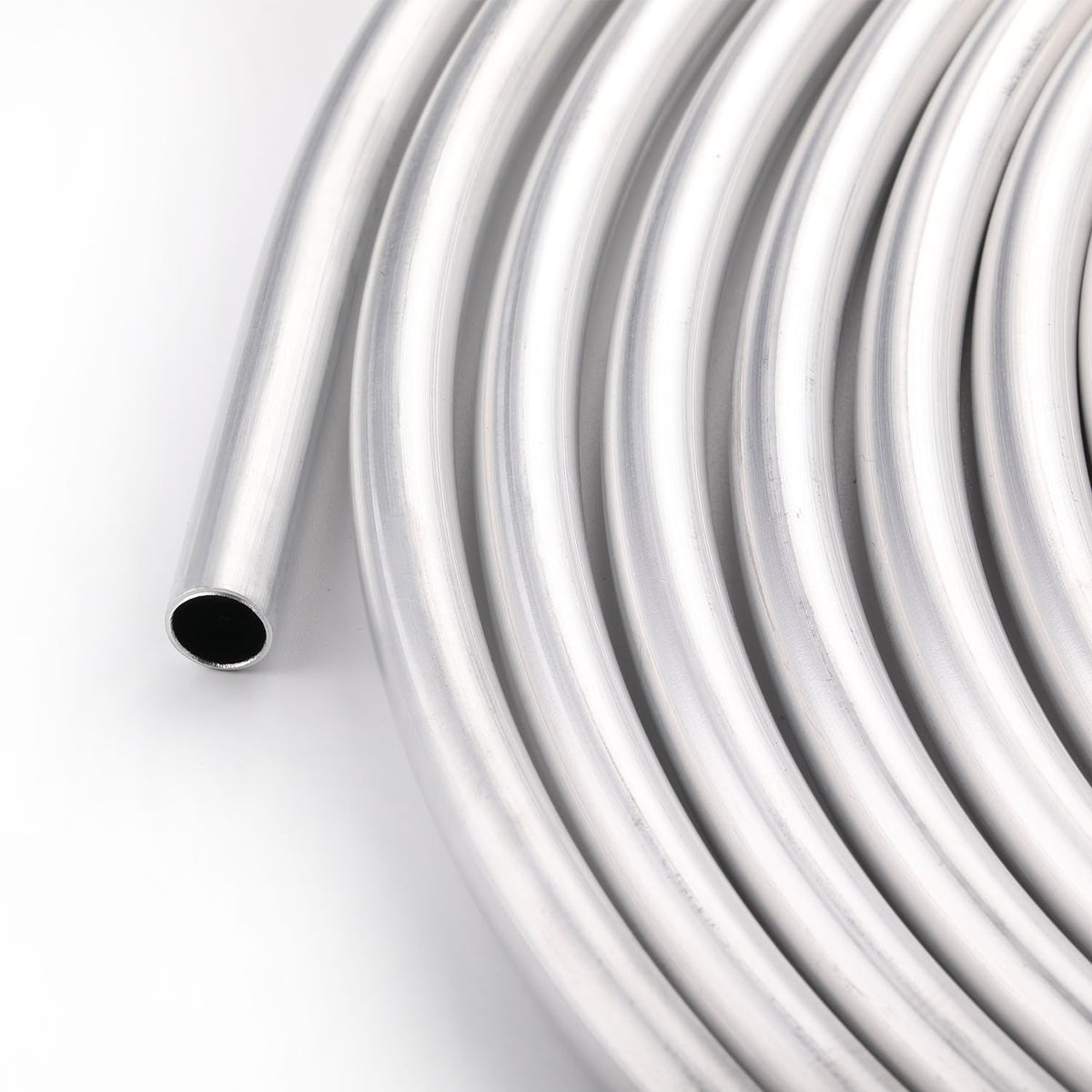

The tube measures 0.25 inch (6.35 mm) outside diameter with a 0.035 inch (0.89 mm) wall, supplied in a 25-foot (7.62 m) coil. Those dimensions yield a hardline that fits common tube nuts and 37° AN flare fittings while still allowing controlled bending without kinking.

• Material: 3003 aluminum alloy for corrosion resistance and ductility
• Outer diameter: 1/4" (6.35 mm); Wall: 0.035" (0.89 mm)
• Length: 25 ft (7.62 m) coil for projects large and small
• Rated working pressure: up to 650 psi for many fuel and fluid systems

How do I install and connect this hardline?

Installation uses familiar hardline techniques: cut square, deburr, bend to route, then flare or attach with tube-nut couplers and sleeves. The alloy accepts 37° AN flares and standard compression-style fittings when sized correctly.

• Cut with a tubing cutter or fine-toothed saw; deburr before assembly
• Bend using a spring or proper tubing bender to prevent flattening
• Use 37° AN flares or compatible tube nut couplers and sleeves for leak-free joints
• Check fittings and system pressure ratings to match the 650 psi working limit

Which fluids and systems is this tubing compatible with?

Podavelle aluminum hardline is suitable for a broad range of fluids in non-corrosive environments: gasoline, diesel, ethanol blends (E85), oil, water and compressed air systems. Avoid use with strong acids, bases or environments that attack aluminum unless protected.

• Works with fuel systems: gasoline, diesel and ethanol blends
• Suitable for oil, water and low-pressure pneumatic lines
• Not recommended for concentrated acids, caustics, or chlorinated solvents
• Consider protective sleeving or coatings for harsh external conditions

How durable and serviceable is this aluminum hardline?

The 3003 alloy balances light weight with resilience: it resists rust, accepts polish, and endures typical service demands when routed and supported properly. With correct fittings and mounting, it performs reliably in many vehicle and equipment applications.

• Corrosion-resistant alloy extends service life in most environments
• Easy to cut, flare, and polish for clean installations and repairs
• 650 psi working rating suits many fuel and fluid circuits but confirm for pressure-critical systems
• Support tubing at regular intervals to prevent vibration fatigue

Who is this for: Technicians, fabricators, restorers and DIY enthusiasts who need a lightweight, corrosion-resistant hardline for fuel, oil, water or air routing. Choose this 25-foot Podavelle coil when you require a versatile 1/4" OD aluminum tube that flares, bends and connects with common fittings for automotive, marine or industrial projects.
