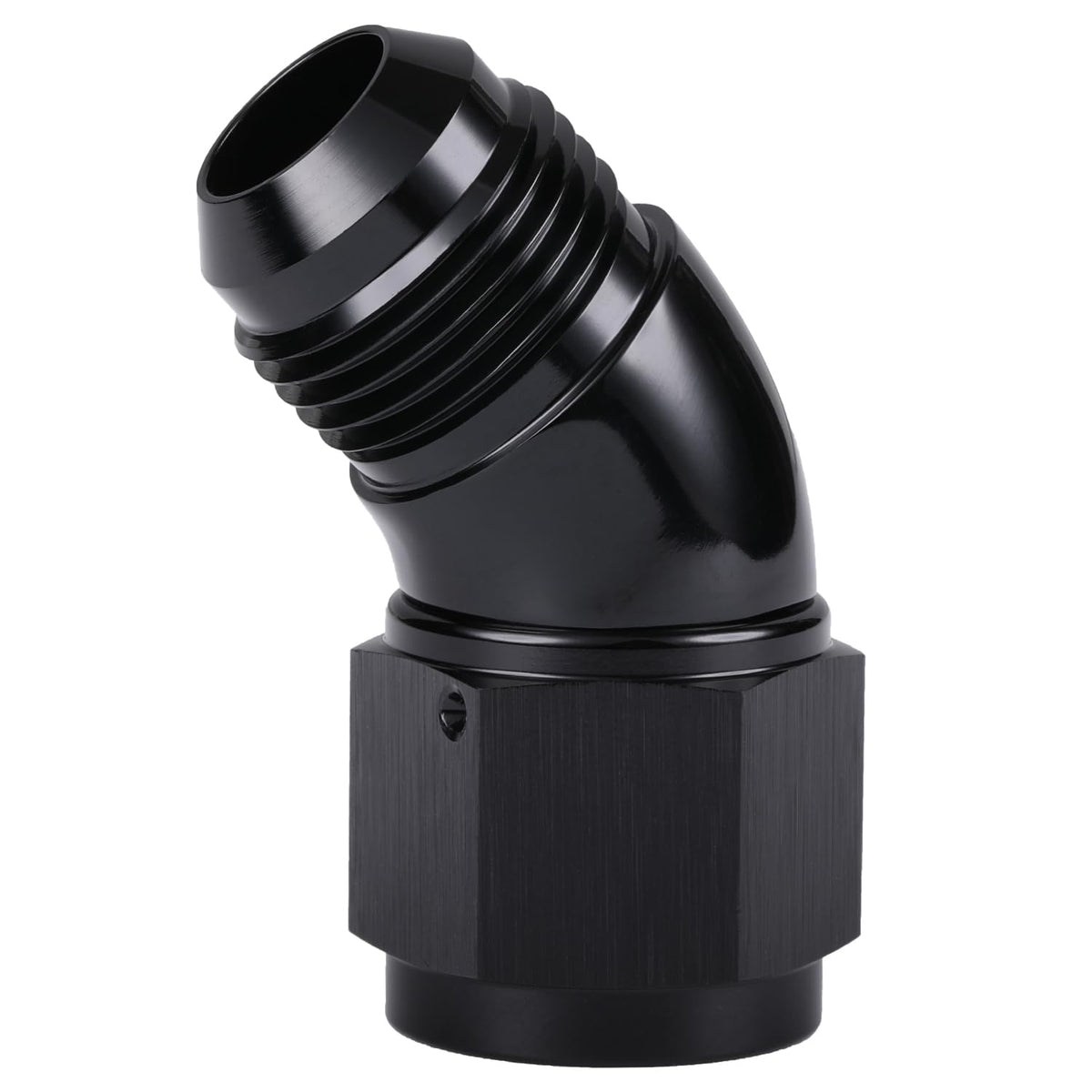

Podavelle 45° AN10 Male-to-Female Swivel Adapter Black — 6061-T6 Aluminum, Full-Flow

Podavelle 45° 10AN male to 10AN female swivel full-flow aluminum adapter in anodized black provides a durable, leak-resistant angled transition for AN10 fluid lines.

This 45-degree coupler from Podavelle is machined from 6061-T6 billet aluminum and anodized black to resist corrosion while maintaining lightweight strength. Designed for AN10 (7/8-14 UNF) systems, it pairs a female swivel with a male fitting and uses a 37° sealing angle to achieve positive sealing under typical operating pressures. Its forged full-flow construction minimizes internal restrictions so fuels and fluids can pass through with minimal turbulence.

How does this adapter ensure a reliable seal at angled connections?

The adapter uses a 37° sealing angle that matches standard AN fittings, producing a metal-to-metal seat for a dependable compression seal. The female swivel allows precise alignment while tightening, preventing stress on hoses and threads. Anodized surfaces help maintain the mating fit and protect against environmental wear.

• 37° sealing angle compatible with AN fittings for positive metal-to-metal sealing
• Female swivel enables correct alignment during installation
• Anodized finish resists corrosion and preserves sealing surfaces

Will this work with fuel, oil, or coolant lines in my vehicle?

Yes — the Podavelle adapter is specified for universal use across fuel, oil, diesel and water lines and is compatible with gasoline and alcohol-based fuels. Its billet 6061-T6 aluminum construction is commonly used in fluid system components for its strength-to-weight ratio and corrosion resistance. Always verify compatibility with your fluid and system pressure before installation.

• Suitable for gasoline, alcohol-blended fuels, diesel, oil and water
• 6061-T6 billet aluminum resists corrosion and reduces weight
• Forged full-flow design minimizes internal restrictions and pressure drop

How does the full-flow construction affect performance and installation?

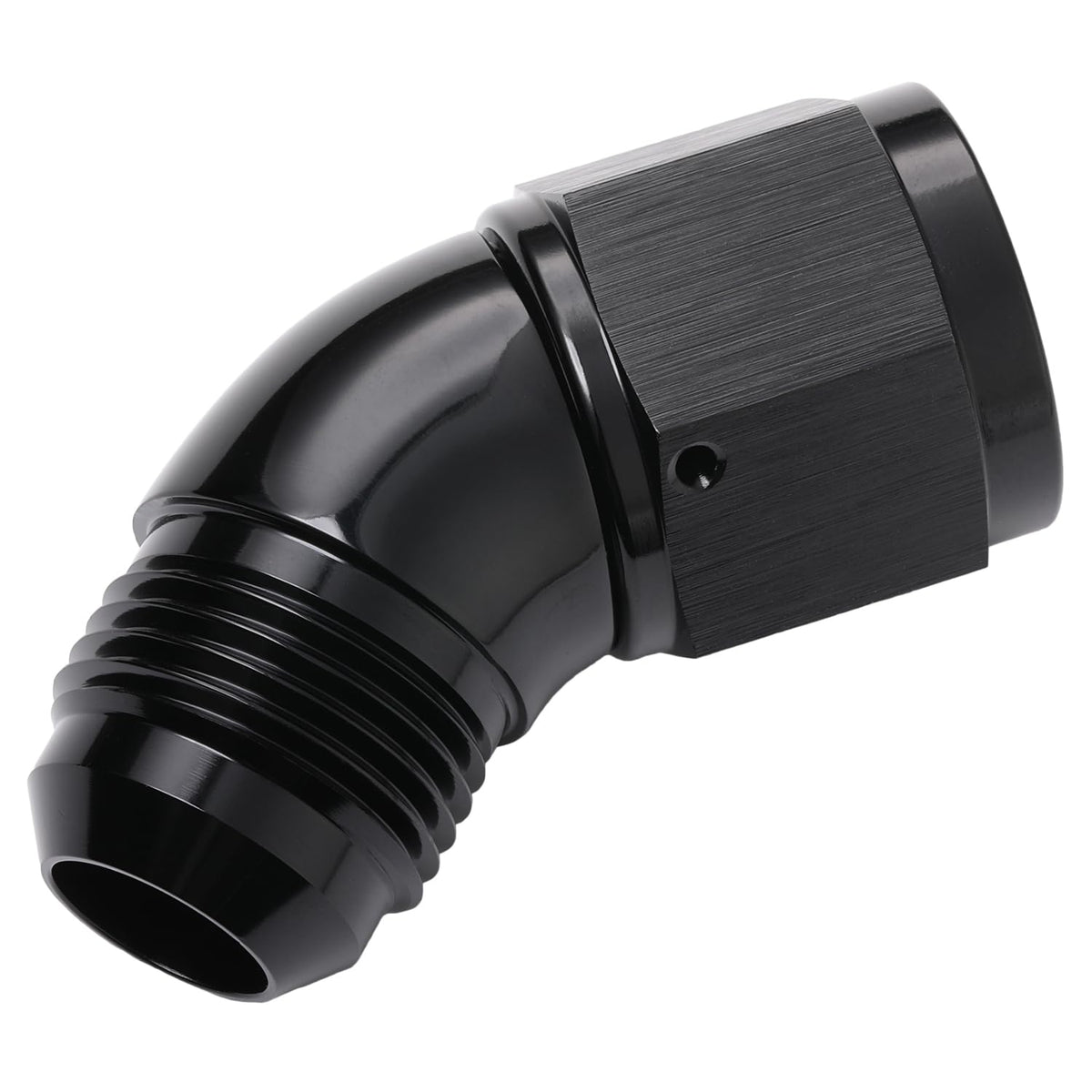

The forged full-flow body has increased wall thickness where needed and an uninterrupted internal passage to preserve flow rates and reduce turbulence. Because the bore is kept clear through the fitting, pressure losses across the adapter are minimized compared with narrow or obstructed adapters. The 45° orientation helps route hoses in tight spaces without kinking.

• Uninterrupted internal passage for minimal flow restriction
• Robust wall thickness for durability under system pressures
• 45° angle provides routing flexibility in confined locations

What should I know about installation and compatibility?

Professional installation is recommended to ensure proper torque, thread engagement and leak-free sealing — no installation instructions are included with the product. Confirm that your system uses AN10 (7/8-14 UNF) fittings and that mating components share the 37° sealing standard. Check hose orientation and clearance before final tightening to prevent stress on fittings.

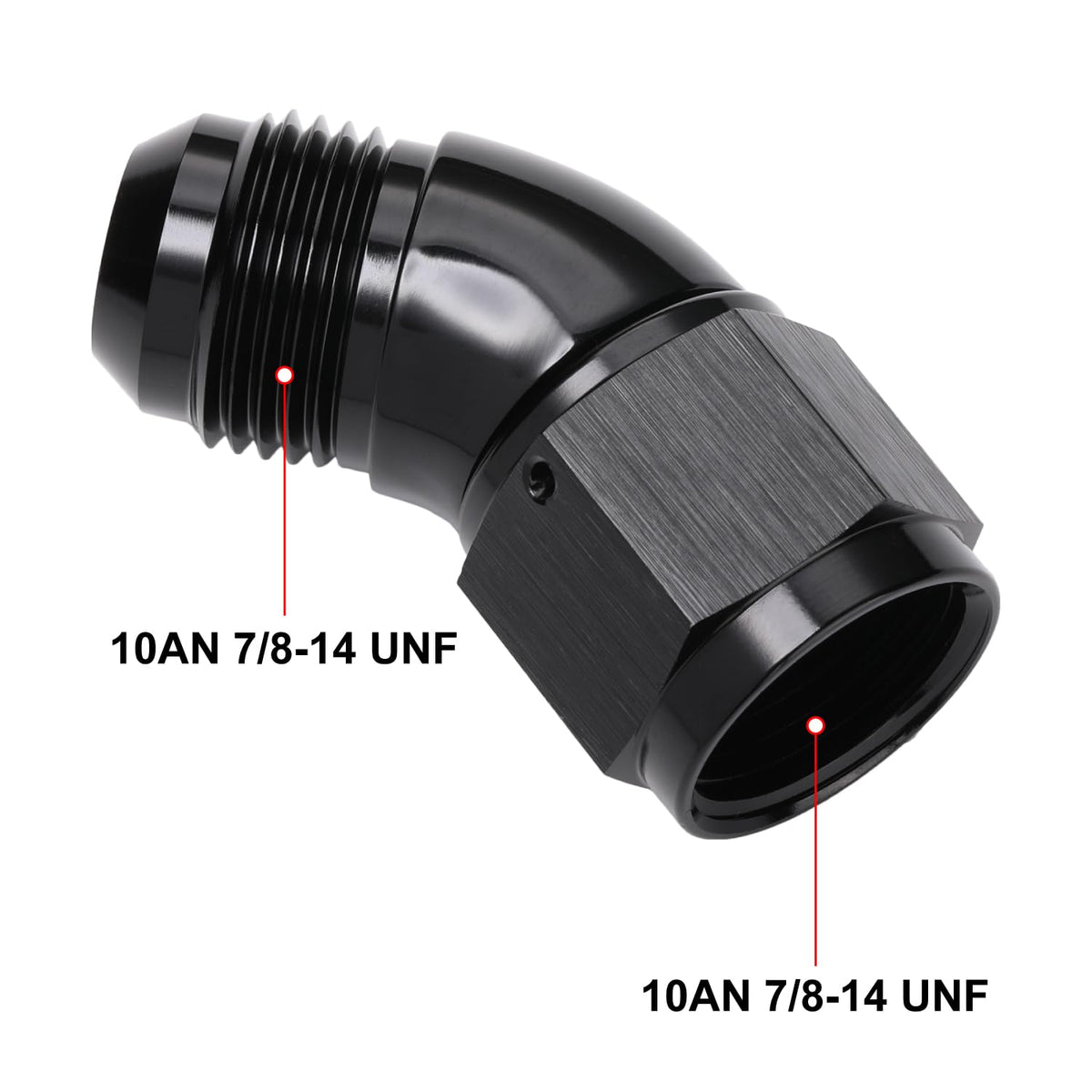

• AN10 (7/8-14 UNF) size — verify mating threads and sealing angle
• No installation instructions included; professional installation advised
• Anodized finish for corrosion resistance; inspect seals and torque during fitting

Who is this for: The Podavelle 45° 10AN male-to-female swivel adapter fits automotive builders, motorsport teams, and hobbyists who need a durable, low-restriction angled AN10 connection. It is appropriate for custom fuel, oil, diesel and coolant systems where a reliable 37° AN seal, lightweight construction and routing flexibility are required. If you prefer to have a certified technician perform fluid-system work, this adapter integrates with standard AN plumbing and common fuel-compatible materials.
