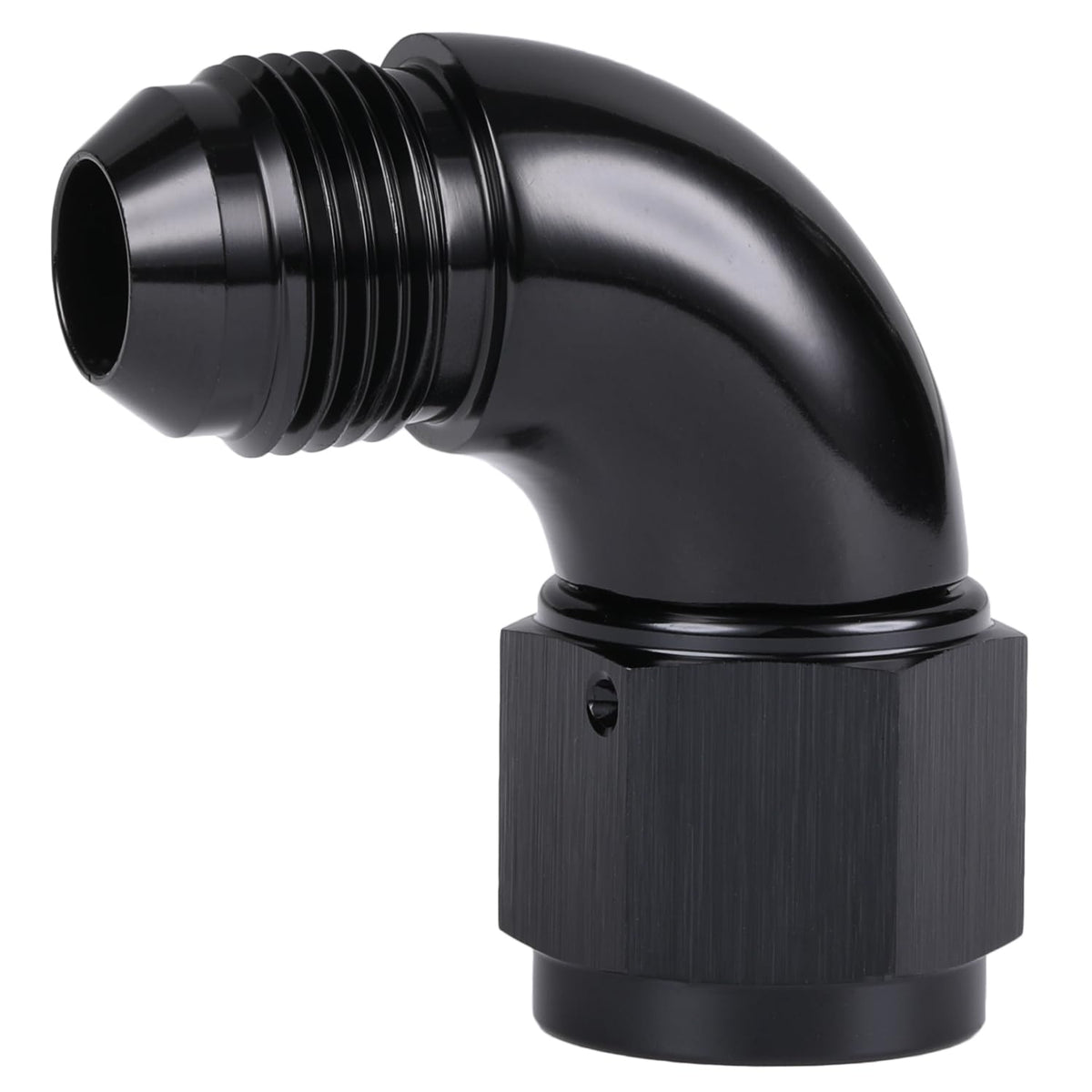

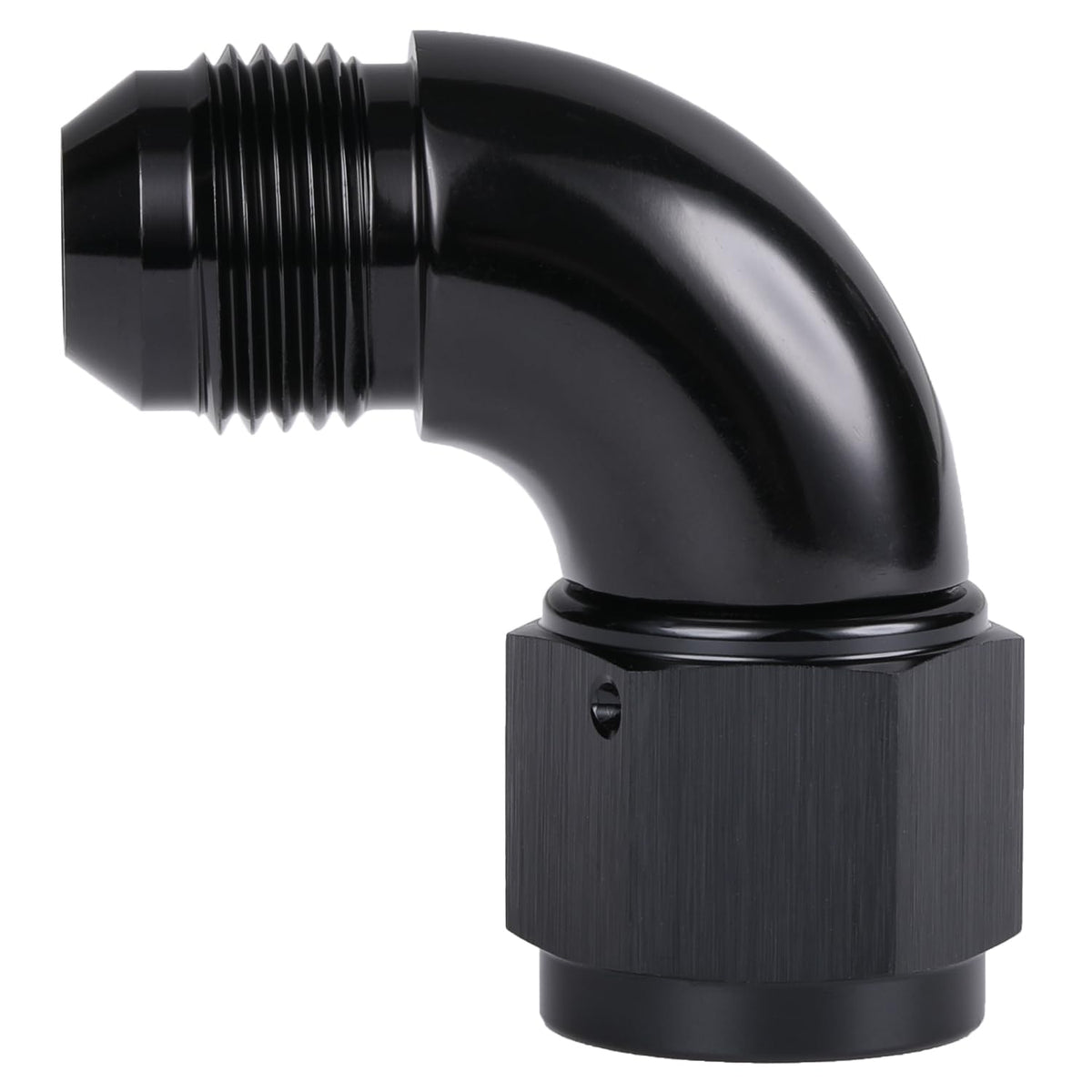

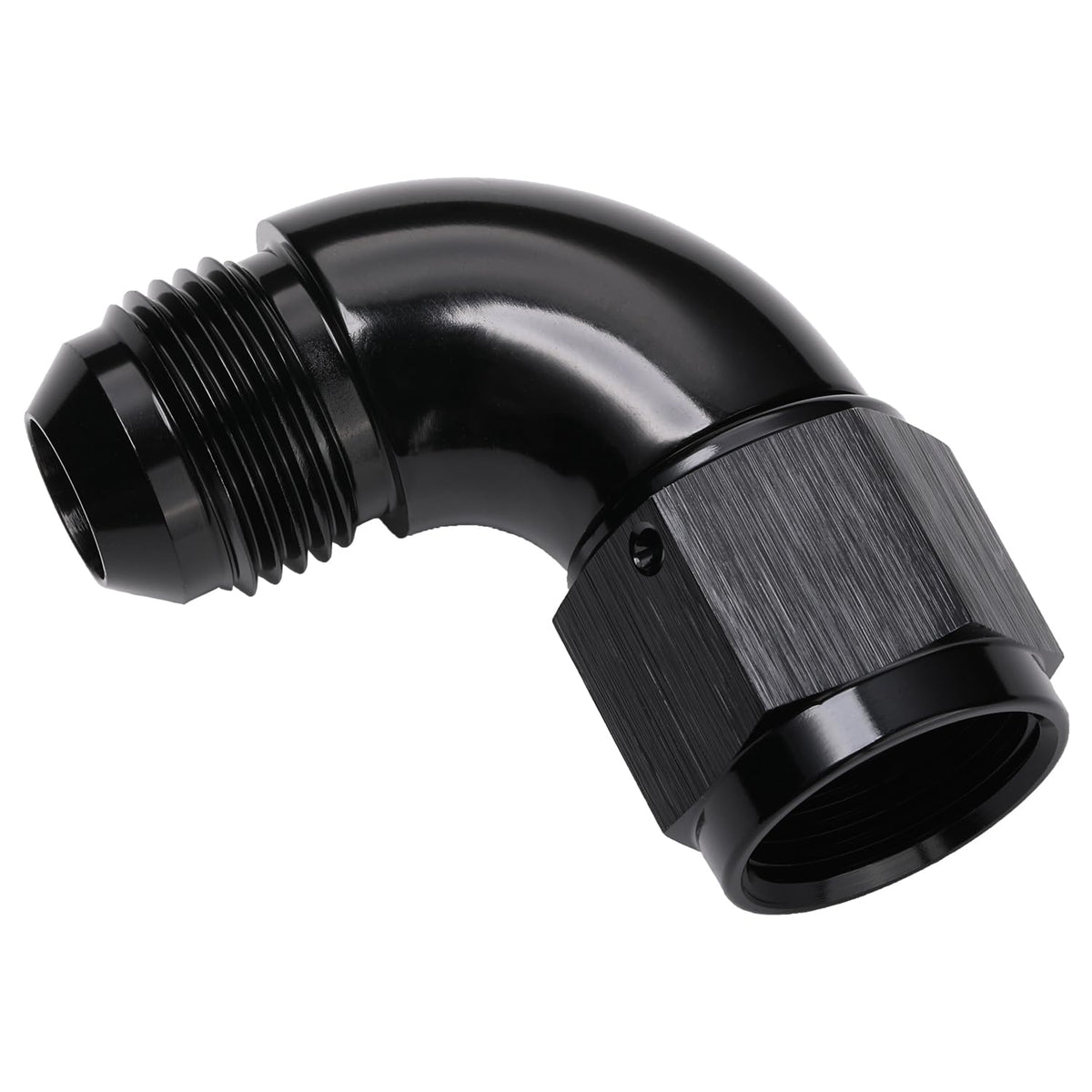

Podavelle AN10 90° Male-to-Female Swivel Adapter — Black Aluminum, Full-Flow 37° Seal

Podavelle's AN10 90° male-to-female swivel adapter is a black anodized, full-flow aluminum fitting designed to deliver a leak-resistant, unrestricted connection for fuel, oil, diesel, or water lines.

This 10AN (7/8-14 UNF) 90-degree swivel coupling is machined from 6061-T6 billet aluminum and anodized black to resist corrosion while keeping weight low. Built with a 37° sealing angle and forged full-flow construction, it maintains consistent internal diameter for minimal pressure loss and reliable sealing under high operating pressures. The adapter is compatible with gasoline and alcohol-based fuels and is intended for professional installation.

How does this adapter maintain a leak-resistant connection?

The Podavelle adapter uses a 37° sealing angle that mates with standard AN fittings to create a positive metal-to-metal seal at high pressures. The precision-machined threads and swivel seat let the hose end rotate for alignment without compromising the compression seal.

• 37° sealing angle for metal-to-metal sealing

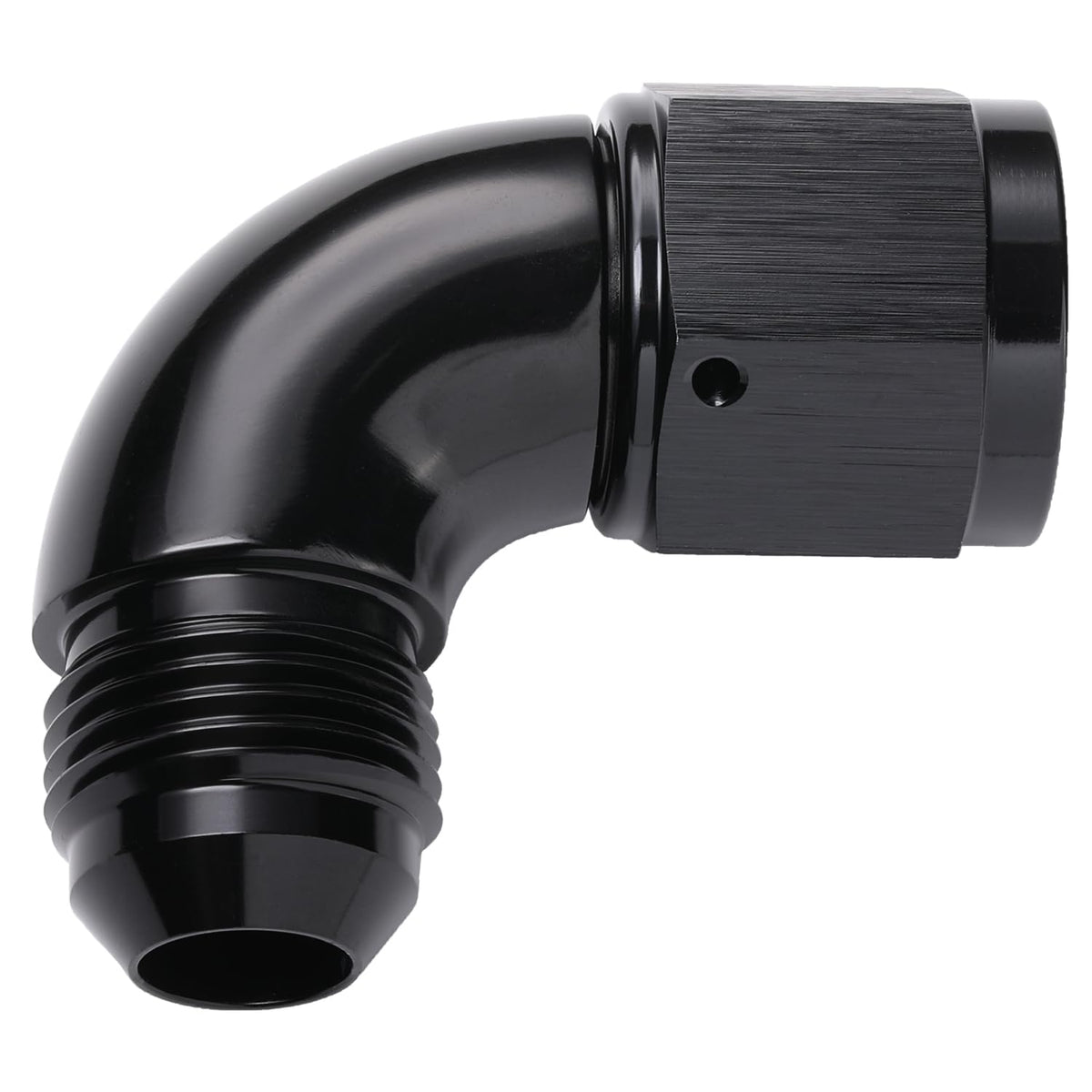

• Precision 7/8-14 UNF threads reduce cross-thread risk
• Swivel female end allows torque-free hose positioning

Will this fitting affect flow or pressure in my lines?

No significant restriction is introduced: the forged full-flow design preserves an uninterrupted internal passage and thicker walls for durability. That keeps fluid velocity and system pressure more consistent compared with restrictive-barbed or partially obstructed fittings.

• Full-flow internal profile minimizes pressure drop
• Forged construction provides superior wall thickness
• Best used where maximized flow and reliability are required

Which fluids and systems is this adapter compatible with?

The adapter is specified for universal use in fuel, oil, diesel and water lines and is fully compatible with gasoline and alcohol-based fuels. Its anodized 6061-T6 aluminum resists corrosion while remaining lightweight, making it suitable for automotive, motorsport, and marine routing where AN fittings are standard.

• Compatible: gasoline, ethanol blends, diesel, oil, and coolant/water lines
• Common applications: fuel rails, return lines, oil feeds, plumbing in performance vehicles
• Not supplied with installation instructions—professional installation recommended

How do I choose and install the right AN10 swivel adapter?

Select this AN10 swivel adapter when your hose or hardline needs a 90° turn combined with a rotating female end for easy alignment. Professional installation is recommended to ensure proper torque, sealing, and safety—use the correct double-nut technique and compatible hose ends to avoid leaks.

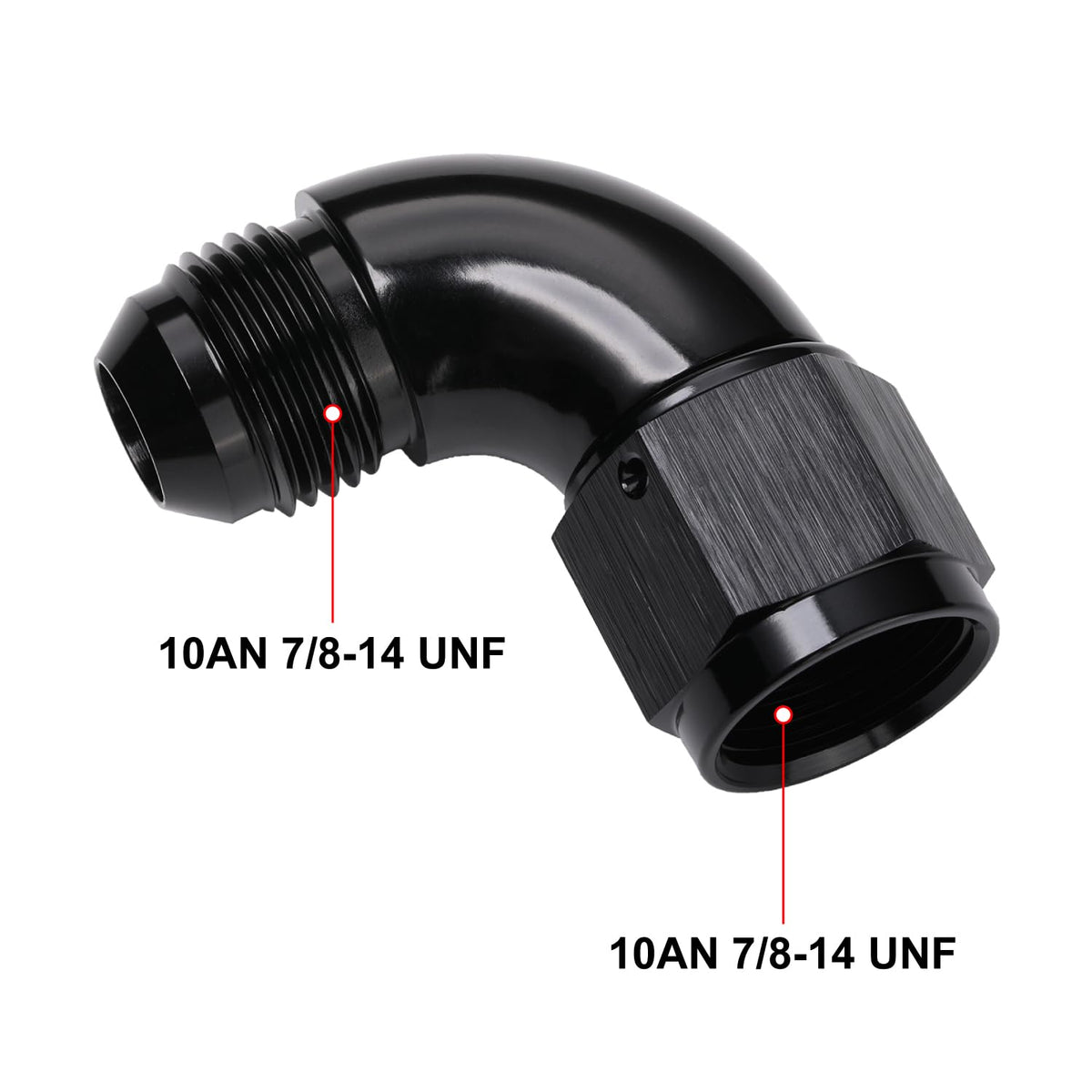

• Match thread: AN10 (7/8-14 UNF) male to AN10 swivel female
• Ensure mating part uses 37° AN seating geometry
• Have a technician install and torque to recommended specs

Who is this for? This Podavelle AN10 90° male-to-female swivel adapter is aimed at mechanics, motorsport builders, and hobbyists who need a durable, high-flow, corrosion-resistant AN fitting for fuel, oil, diesel, or water systems. If you require a compact 90° routing solution with a rotating female end for precise hose alignment—and compatibility with gasoline and alcohol-based fuels—this anodized 6061-T6 adapter is a practical choice. Note that this product does not include installation instructions; professional fitting is recommended to ensure system safety and performance.
