Podavelle AN8 90° Male-to-Female Swivel Adapter — Black Anodized 6061-T6, Full-Flow

Podavelle's 90° AN8 male-to-female swivel adapter is a black anodized 6061-T6 billet aluminum fitting engineered for full-flow performance in fuel, oil, diesel and water systems.

This compact 90-degree coupler combines a female swivel inlet with a male AN8 outlet to reroute lines where space is limited while preserving flow capacity. Machined from 6061-T6 billet aluminum and finished with a corrosion-resistant black anodize, the adapter uses a 37° sealing angle and forged full-flow construction to maintain durable, leak-resistant service under high operating pressures. It’s suitable for gasoline and alcohol-based fuels and designed for use in performance and replacement plumbing on engines and fluid systems.

How does this adapter maintain leak-free service under pressure?

The Podavelle adapter relies on a precision 37° sealing angle that mates reliably with AN-style fittings, creating a robust metal-to-metal seal at elevated pressures. Its forged full-flow body and generous wall thickness reduce the risk of deformation or failure when clamped or tightened.

• 37° sealing interface for AN compatibility and secure sealing
• Billet 6061-T6 construction resists deformation under torque
• Forged full-flow bore minimizes flow restriction and pressure differential

Will this fit my AN8 fuel, oil, or coolant line?

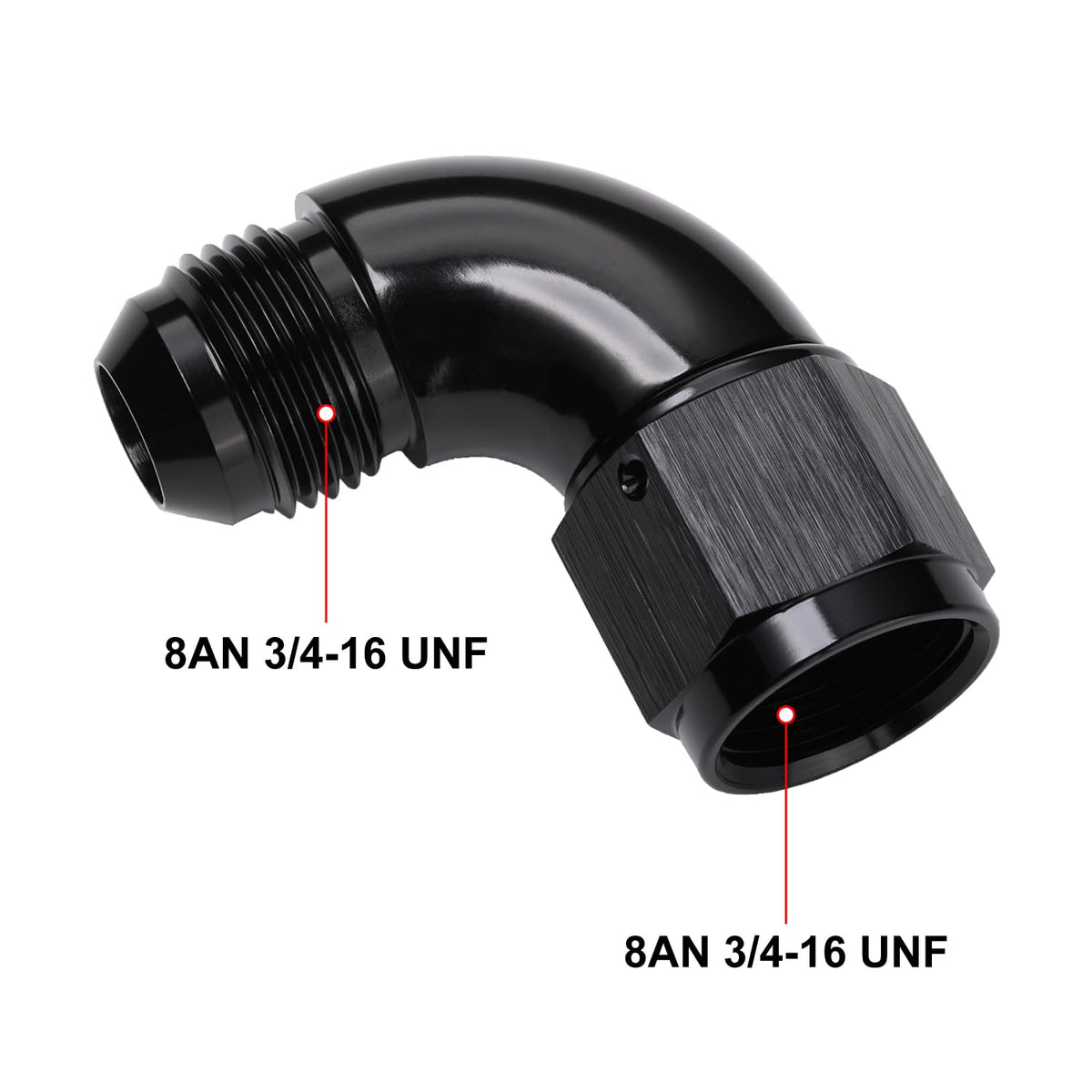

The adapter is sized AN8 (3/4-16 UNF) female swivel to male AN8 at a 90° orientation, designed to mate with standard AN8 hoses, lines, and fittings. It’s intended as a universal plumbing component for fuel, oil, diesel, or water circuits where an AN8 connection is required.

• AN8 (3/4-16 UNF) female swivel on one end for easy hose alignment
• Male AN8 90° outlet to connect to standard male AN fittings or ports
• Compatible with gasoline and alcohol-based fuels, plus oil and coolant lines

How durable is the finish and material for automotive environments?

Built from aircraft-grade 6061-T6 billet aluminum, the adapter balances light weight with high tensile strength for long-term service. The black anodized surface improves corrosion resistance and provides a wear-resistant finish suitable for exposed engine-bay installations.

• 6061-T6 billet offers strength without excessive weight
• Black anodize adds corrosion protection and visual consistency
• Forged areas and thicker walls reduce fatigue risk in demanding service

How should this fitting be installed and used safely?

Professional installation is strongly recommended to ensure correct torque, sealing, and hose routing in pressurized systems. Use compatible AN8 hoses, torque to manufacturer recommendations, and inspect connections for leaks after startup and during routine maintenance.

• Requires correct mating AN8 components and sealing surfaces
• Inspect O-rings and threads before assembly; tighten per spec
• Pressure-test the system after installation and check regularly

Who is this for: This Podavelle 90° AN8 male-to-female swivel adapter is aimed at performance builders, mechanics, and DIY enthusiasts who need a reliable, compact way to reroute AN8 plumbing while preserving flow. It’s well-suited for racecars, custom engine bays, marine fittings, and any application that requires a durable AN8 swivel-to-male 90° connection with a corrosion-resistant finish. Professional installation is advised for pressurized fuel systems and critical applications.
