power queen 14.6V 20A LiFePO4 Battery Charger for 12.8V Batteries — 2‑Stage CC/CV Smart with Pre‑Charge and Safety Protections

Power Queen 14.6V 20A LiFePO4 Battery Charger is a two-stage smart charger engineered to safely and quickly charge 12.8V LiFePO4 batteries using a CC/CV algorithm and built-in protections.

Whether you have a 12V LiFePO4 house battery for an RV, solar storage, marine battery, or deep-cycle system, this Power Queen charger is tailored to LiFePO4 chemistry. It delivers up to 20A of constant current and limits voltage to 14.6V during the charge cycle, includes a pre-charge function to revive very low-voltage packs, and uses thermal management and multiple safety features to protect both the charger and the battery.

How does the two-stage CC/CV charging work and why does it matter?

The charger follows a constant-current (CC) phase first, then switches to constant-voltage (CV) as the battery approaches full charge. That sequence maximizes charging speed while preventing overvoltage and stress on LiFePO4 cells.

• CC stage: delivers up to 20A for fast replenishment of capacity.
• CV stage: holds voltage near 14.6V to finish balancing and topping.
• Automatic stage change: transitions without manual input to protect battery health.

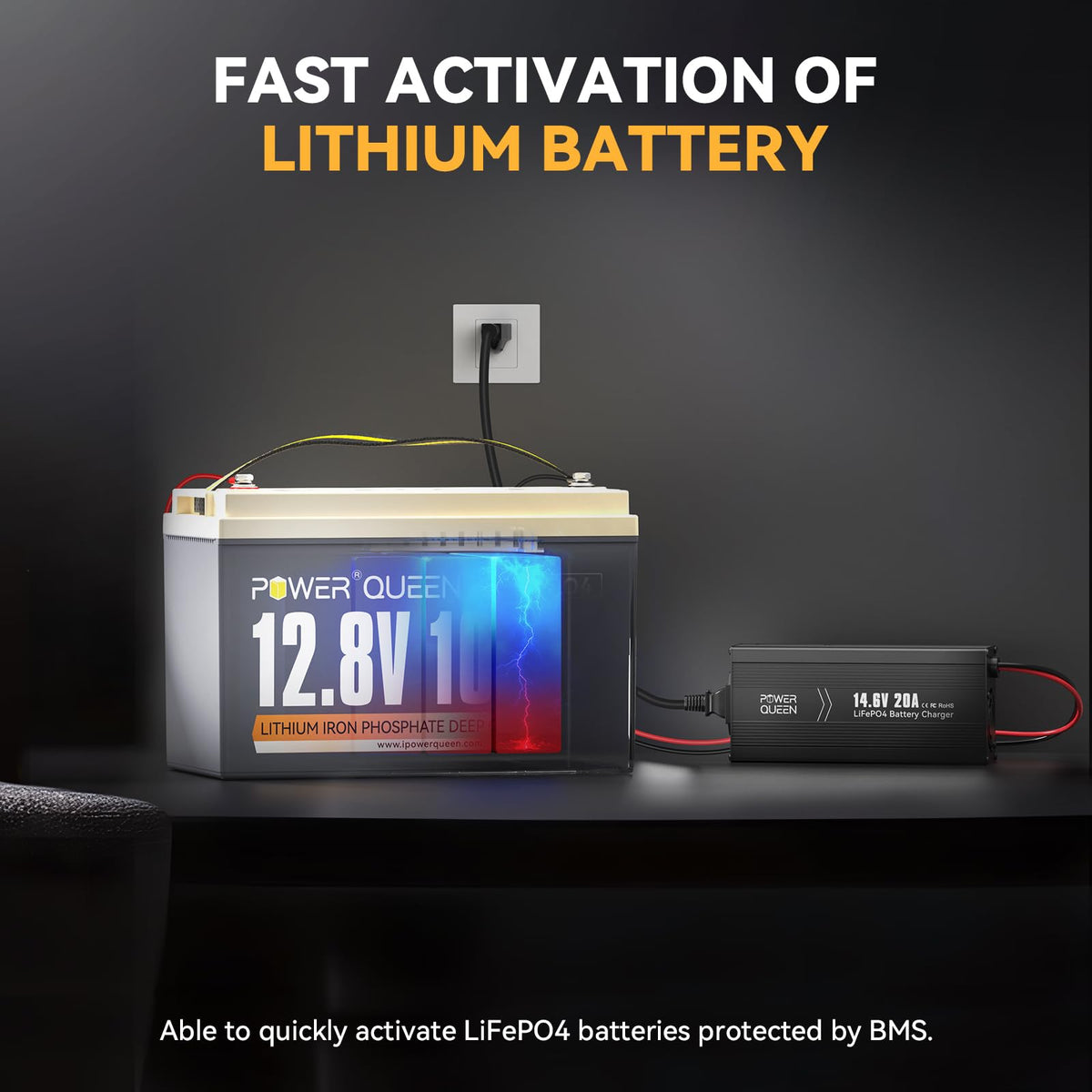

Can this charger revive deeply discharged batteries or 0V packs?

Yes — the Power Queen charger includes a pre-charge/unlock routine designed to inject a small current into very low-voltage packs so Battery Management Systems (BMS) can reset. This increases the chance of reactivating batteries that read near 0V.

• Pre-charge mode wakes BMS-protected cells by applying safe, low current.
• Recognizes 12.8V LiFePO4 chemistry to avoid inappropriate charge profiles.
• Reduces need for specialized recovery tools or external power supplies.

What safety features protect the charger and battery during use?

Multiple protections are built into the unit to guard against common faults and thermal stress. The charger monitors temperature, output conditions and connection polarity so charging proceeds only under safe conditions.

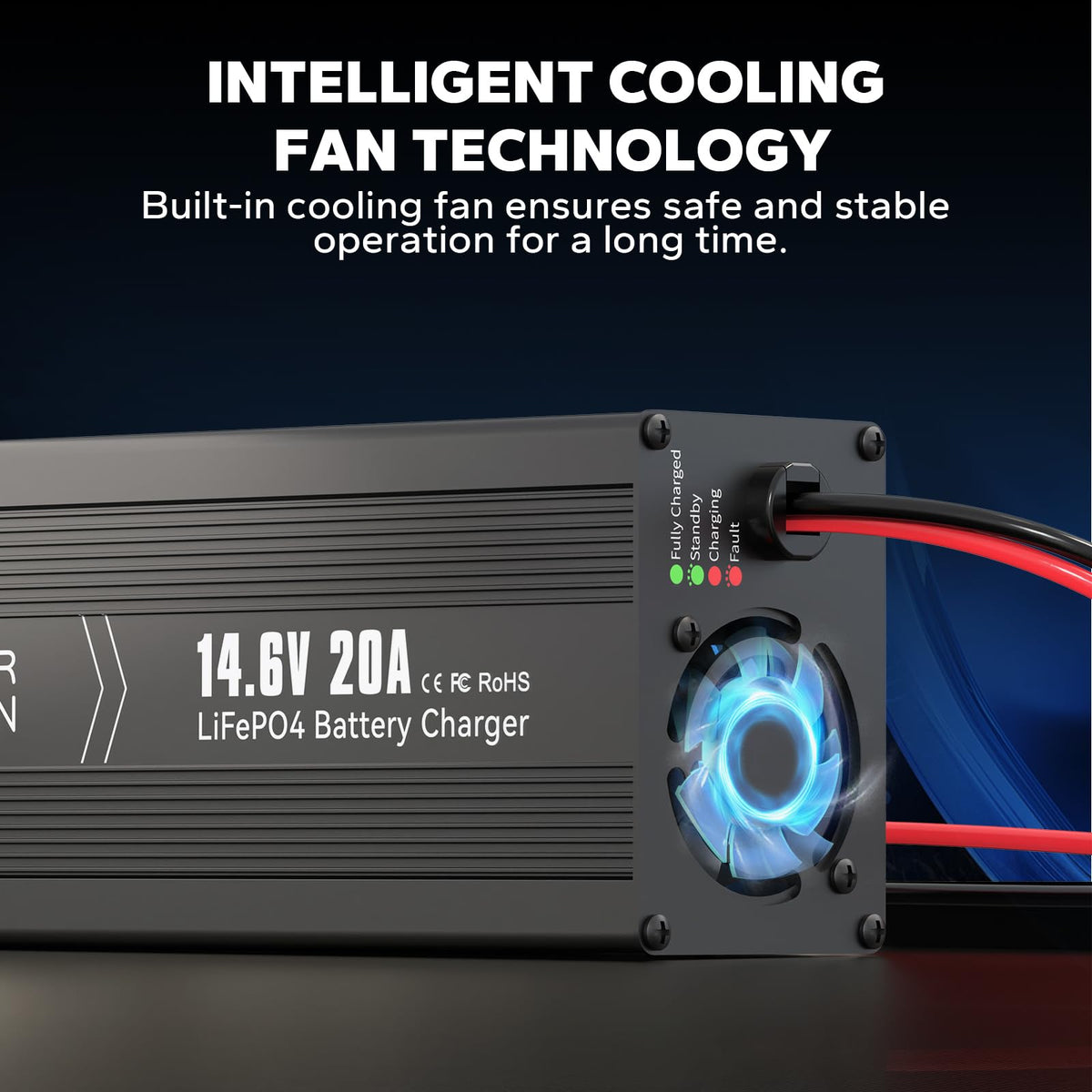

• Over-temperature protection and built-in cooling fan prevent overheating.
• Output short-circuit and over-voltage safeguards limit damage from faults.
• Reverse polarity protection prevents harm if leads are connected backwards.

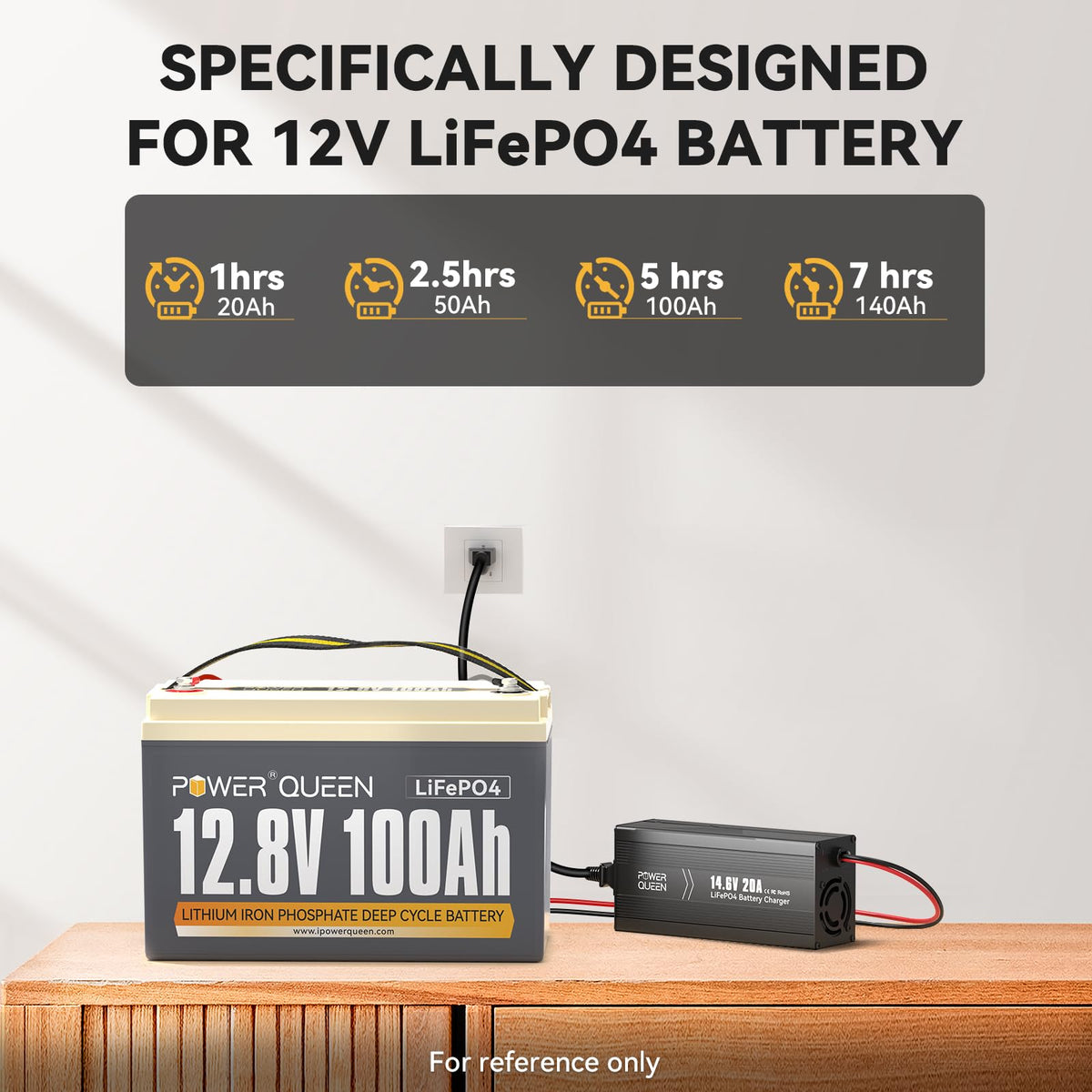

How fast will it charge my LiFePO4 battery compared with small multi-amp chargers?

With a 20A constant-current capability, charging time is dramatically reduced versus low-amp chargers. For larger capacity batteries the time savings are substantial and more convenient for frequent use.

• Full charge for a 100Ah LiFePO4 battery in roughly 5 hours at 20A.
• Vs. 3A chargers: which may require 30+ hours for the same pack.
• Ideal when you need quicker turnaround between outings or cycles.

Who is this for? If you own 12.8V LiFePO4 (12V nominal) batteries for RVs, boats, solar backups, electric mobility, or stationary energy storage and need predictable, chemistry-specific charging with fast replenishment and robust safety, the Power Queen 14.6V 20A charger is a suitable choice. It’s particularly useful for installers, fleet owners, and recreational users who want a durable aluminum-bodied charger with a pre-charge function to recover low-voltage packs and a fan-cooled design for continuous, stable operation.
